Sayfa 0-25 - Isuzu EPC

0-25 — INLET MANIFOLD (#43195) — 400 parça

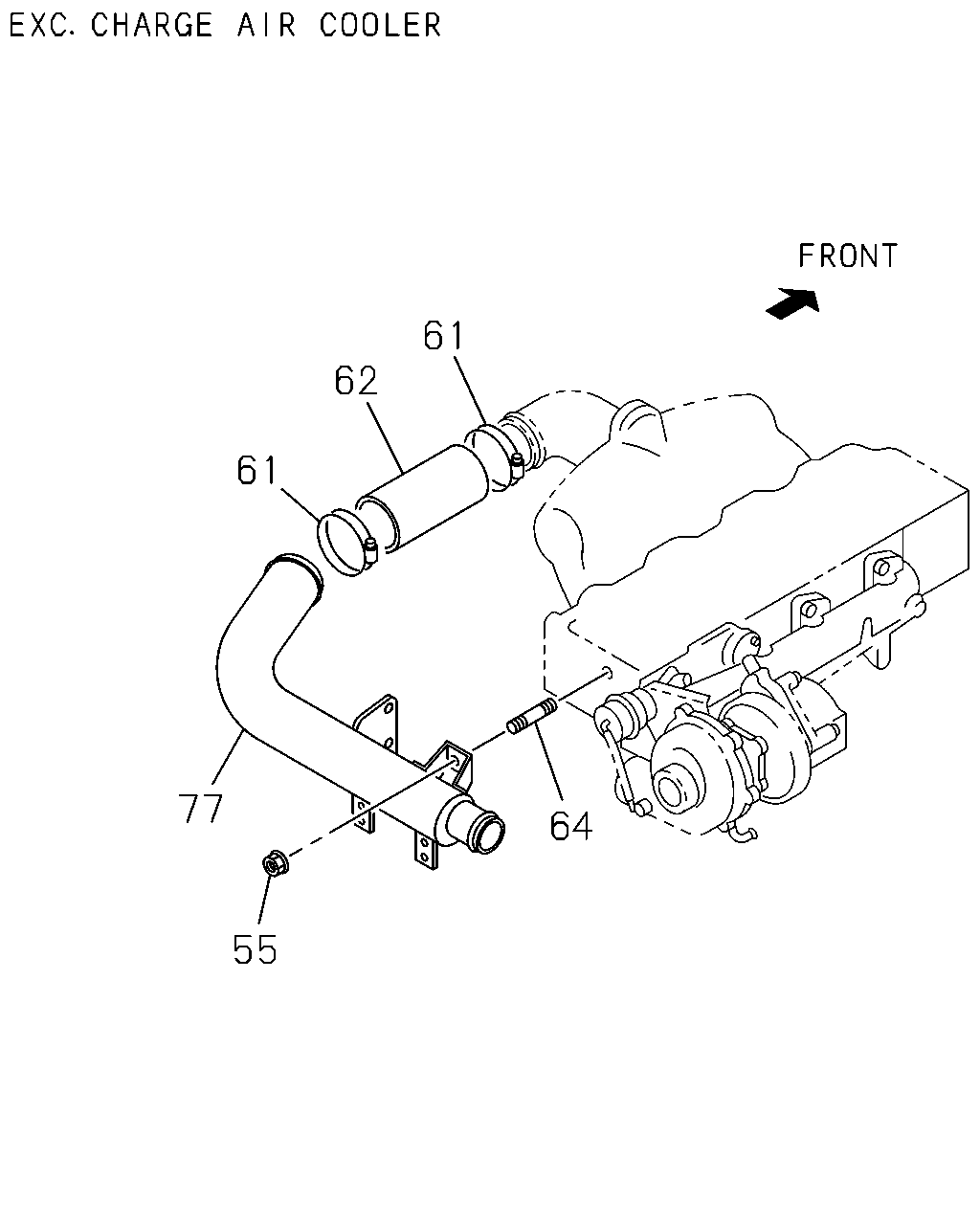

61 62 61 77 64 55

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
55	03.407 NUT; INL PIPE TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	01	1	9811-	●
61	03.273 CLIP; CONNECTOR HOSE TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 03.417 ID=58-79	8-94126-771-0	02	1	9811-	●
62	03.265 HOSE; CONNECTOR TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL>	8-97176-147-0	01	1	9811-	●
64	03.275 STUD; INL PIPE TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 03.417 M8X14 L=26	9-04110-814-0	01	1	9811-	●
77	03.265 PIPE; INL,INT SHUTTER TO INL MAN TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL>	8-97176-076-0	01	1	9811-	●

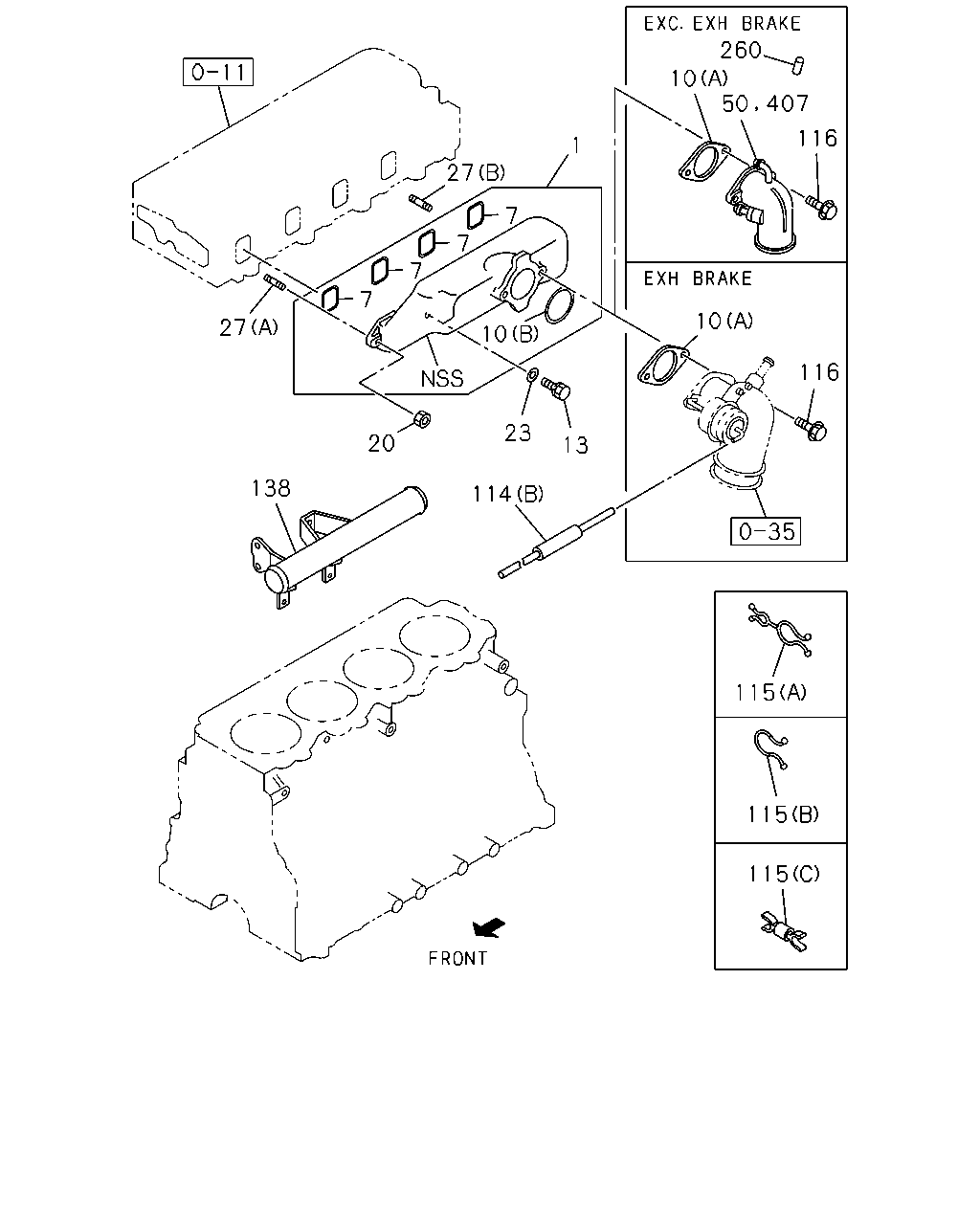

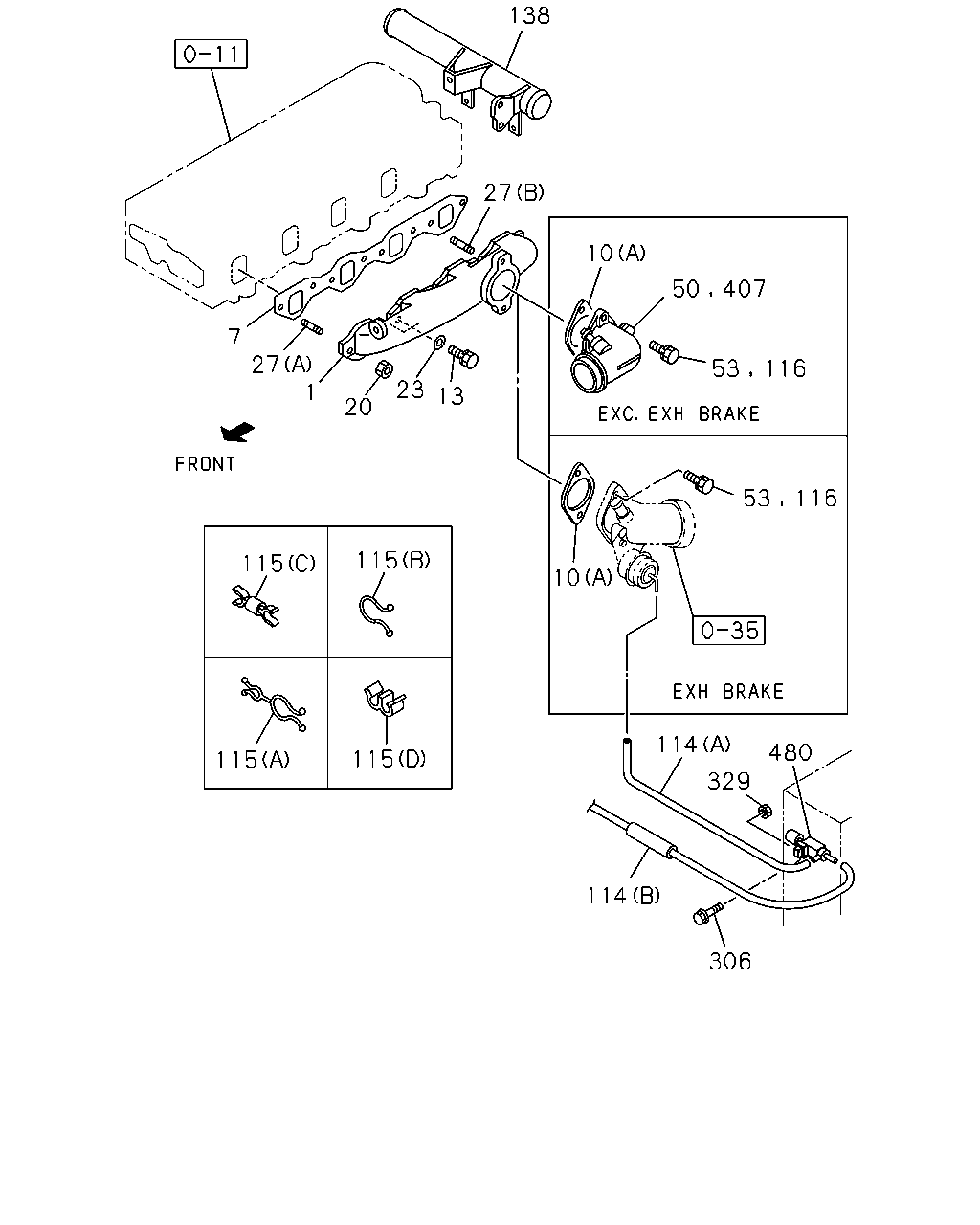

138 27 10 7 27 1 53 116 23 13 20 53 116 115 115 10 114 480 115 115 329 114 306 50 407

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.265 MANIFOLD; INL CHILE EQUIPMENT(6KB)	8-97147-920-0	01	1	9811-0012		●
1	03.265 MANIFOLD; INL BRAZIL EQUIPMENT(RWF),CHILE EQUIPMENT(6KB)	8-97147-920-0	01	1	0101-0105		●
1	03.265 MANIFOLD; INL	8-97147-920-0	01	1	0106-		●	●
1	03.265 MANIFOLD; INL TAIWAN EQUIPMENT(RWV)	8-97107-744-1	01	1	9811-0105		●
1	03.265 MANIFOLD; INL EXC. TURBOCHARGER<K51>	8-97107-744-1	01	1	9811-0105	●
1	03.265 MANIFOLD; INL TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL>	8-97107-744-1	01	1	9811-0105	●
1	03.265 MANIFOLD; INL EXC. TURBOCHARGER<K51>	8-97107-744-1	01	1	0106-	●
1	03.265 MANIFOLD; INL TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL>	8-97107-744-1	01	1	0106-	●
1	03.265 MANIFOLD; INL TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97192-327-1	01	1	9811-0112	●
1	03.265 MANIFOLD; INL TURBOCHARGER<K51>	8-97192-327-1	01	1	0201-	●
1	03.265 MANIFOLD; INL	8-97192-327-1	01	1	0201-			●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) CHILE EQUIPMENT(6KB)	8-97144-623-0	04	1	9811-0012		●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) BRAZIL EQUIPMENT(RWF),CHILE EQUIPMENT(6KB)	8-97144-623-0	04	1	0101-0105		●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97144-623-0	04	1	0106-		●	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) TAIWAN EQUIPMENT(RWV) ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97066-741-1	01	1	9811-9904		●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97066-741-1	01	1	9811-9904	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) TAIWAN EQUIPMENT(RWV)	8-97066-741-1	01	1	9905-9905		●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EXC. TURBOCHARGER<K51>	8-97066-741-1	01	1	9905-9905	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL>	8-97066-741-1	01	1	9905-9905	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97228-044-0	01	1	9905-9905	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) TAIWAN EQUIPMENT(RWV) ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97228-044-0	01	1	9906-0101		●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97228-044-0	01	1	9906-0101	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97301-838-0	01	1	0102-	●		●
10	03.406 GASKET; INL PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) CHILE EQUIPMENT(6KB) (B)	8-97144-622-0	01	1	9811-0012		●
10	03.406 GASKET; INL PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) BRAZIL EQUIPMENT(RWF),CHILE EQUIPMENT(6KB) (B)	8-97144-622-0	01	1	0101-0105		●
10	03.406 GASKET; INL PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) (B)	8-97144-622-0	01	1	0106-		●	●
10	03.406 GASKET; INL PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EXC. TURBOCHARGER<K51>,EURO2 SPECIFICATION<7AF> (A)	8-97035-883-1	01	1	9811-	●	●
13	03.275 BOLT; INL MANIF 01.073 M8X25 W/LK WASHER	0-50040-825-0	04	1	0201-			●
13	03.275 BOLT; INL MANIF 00.780 M8X30 W/LK WASHER	0-50040-830-0	02	1	0201-			●
13	03.275 BOLT; INL MANIF 01.073 M8X25 W/LK WASHER	0-50040-825-0	06	1	9901-		●
13	03.275 BOLT; INL MANIF EXC. TURBOCHARGER<K51> 01.073 M8X25 W/LK WASHER	0-50040-825-0	06	1	9901-	●
13	03.275 BOLT; INL MANIF TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 01.073 M8X25 W/LK WASHER	0-50040-825-0	06	1	9901-	●
13	03.275 BOLT; INL MANIF 01.073 M8X25 W/LK WASHER	0-50040-825-0	06	1	9811-9812	●	●	●
13	03.275 BOLT; INL MANIF TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 01.073 M8X25 W/LK WASHER	0-50040-825-0	05	1	9901-	●
13	03.275 BOLT; INL MANIF TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 00.780 M8X30 W/LK WASHER	0-50040-830-0	01	1	9901-	●
13	03.275 BOLT; INL MANIF M8X30 FLANGE	0-28080-830-0	08	1	9811-				●
20	03.275 NUT; INL MANIF 00.854 M8 FLANGE	5-09440-005-0	02	1	9811-	●	●	●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	02	1	9811-				●
23	03.275 WASHER; PL,INL MANIF 07.633 ID=8.4 OD=22	9-09164-708-0	01	1	9811-	●	●
27	03.275 STUD; INL MANIF 03.901 (A) M8X25 L=37	9-04110-825-0	01	1	9811-9811		●
27	03.275 STUD; INL MANIF OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 03.901 (A) M8X25 L=37	9-04110-825-0	01	1	9811-9811	●
27	03.275 STUD; INL MANIF OIL COOLER<KC4> TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 03.901 (A) M8X25 L=37	9-04110-825-0	01	1	9811-9811	●
27	03.275 STUD; INL MANIF 03.901 (A) M8X25 L=37	9-04110-825-0	01	1	9812-0112		●
27	03.275 STUD; INL MANIF OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 03.901 (A) M8X25 L=37	9-04110-825-0	01	1	9812-0112	●
27	03.275 STUD; INL MANIF OIL COOLER<KC4> TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 03.901 (A) M8X25 L=37	9-04110-825-0	01	1	9812-0112	●
27	03.275 STUD; INL MANIF TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 03.901 (A) M8X25 L=37	9-04110-825-0	01	1	9812-0112	●
27	03.275 STUD; INL MANIF 03.901 (A) M8X25 L=37	9-04110-825-0	01	1	0201-		●	●
27	03.275 STUD; INL MANIF OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 03.901 (A) M8X25 L=37	9-04110-825-0	01	1	0201-	●
27	03.275 STUD; INL MANIF OIL COOLER<KC4> TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 03.901 (A) M8X25 L=37	9-04110-825-0	01	1	0201-	●
27	03.275 STUD; INL MANIF TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 03.901 (A) M8X25 L=37	9-04110-825-0	01	1	0201-	●
27	03.275 STUD; INL MANIF 00.219 (B) M8X35 L=46	9-09630-034-1	01	1	9811-9811		●
27	03.275 STUD; INL MANIF OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 00.219 (B) M8X35 L=46	9-09630-034-1	01	1	9811-9811	●
27	03.275 STUD; INL MANIF OIL COOLER<KC4> TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 00.219 (B) M8X35 L=46	9-09630-034-1	01	1	9811-9811	●
27	03.275 STUD; INL MANIF 00.219 (B) M8X35 L=46	9-09630-034-1	01	1	9812-0112		●
27	03.275 STUD; INL MANIF OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 00.219 (B) M8X35 L=46	9-09630-034-1	01	1	9812-0112	●
27	03.275 STUD; INL MANIF OIL COOLER<KC4> TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 00.219 (B) M8X35 L=46	9-09630-034-1	01	1	9812-0112	●
27	03.275 STUD; INL MANIF TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 00.219 (B) M8X35 L=46	9-09630-034-1	01	1	9812-0112	●
27	03.275 STUD; INL MANIF 00.219 (B) M8X35 L=46	9-09630-034-1	01	1	0201-		●	●
27	03.275 STUD; INL MANIF OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 00.219 (B) M8X35 L=46	9-09630-034-1	01	1	0201-	●
27	03.275 STUD; INL MANIF OIL COOLER<KC4> TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 00.219 (B) M8X35 L=46	9-09630-034-1	01	1	0201-	●
27	03.275 STUD; INL MANIF TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 00.219 (B) M8X35 L=46	9-09630-034-1	01	1	0201-	●
27	03.275 STUD; INL MANIF EXC. OIL COOLER<KC4>,TURBOCHARGER<K51> 03.901 (A),(B) M8X25 L=37	9-04110-825-0	02	1	9811-9811	●
27	03.275 STUD; INL MANIF TURBOCHARGER<K51> EXC. OIL COOLER<KC4>,CHARGE AIR COOLER<6PL> 03.901 (A),(B) M8X25 L=37	9-04110-825-0	02	1	9811-9811	●
27	03.275 STUD; INL MANIF TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 03.901 (A),(B) M8X25 L=37	9-04110-825-0	02	1	9811-9811	●
27	03.275 STUD; INL MANIF EXC. OIL COOLER<KC4>,TURBOCHARGER<K51> 03.901 (A),(B) M8X25 L=37	9-04110-825-0	02	1	9812-	●
50	03.265 PIPE; INL AIR INTAKE SYSTEM FRONT<6PC> EXC. EXHAUST BRAKE<NF8>	8-97078-858-0	01	1	9811-	●	●
53	03.602 BOLT; INL PIPE TURBOCHARGER<K51> 09.181 M10X25 FLANGE	0-28781-025-0	02	1	9811-0208	●
53	03.602 BOLT; INL PIPE 09.181 M10X25 FLANGE	0-28781-025-0	02	1	9811-0208			●
53	03.602 BOLT; INL PIPE TURBOCHARGER<K51> 04.525 M10X25 FLANGE	0-28181-025-0	02	1	0209-	●
53	03.602 BOLT; INL PIPE 04.525 M10X25 FLANGE	0-28181-025-0	02	1	0209-			●
53	03.602 BOLT; INL PIPE EXC. AIR INTAKE SYSTEM FRONT<6PC> 04.686 M8X30 FLANGE	0-28680-830-0	02	1	9811-				●
114	03.265 HOSE; VAC,INT THROTTLE EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> (B) L=1320	8-97096-148-1	01	1	9811-9904	●	●
114	03.265 HOSE; VAC,INT THROTTLE EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> (B) L=1320	8-97227-211-0	01	1	9905-	●	●
114	03.265 HOSE; VAC,INT THROTTLE TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (A) L=400	8-97194-945-0	01	1	9811-9904	●
114	03.265 HOSE; VAC,INT THROTTLE TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (A) L=403	8-97228-401-0	01	1	9905-	●
114	03.265 HOSE; VAC,INT THROTTLE TURBOCHARGER<K51> EXHAUST BRAKE<NF8> (B) L=1200	8-97180-275-0	01	1	9811-9812	●
114	03.265 HOSE; VAC,INT THROTTLE TURBOCHARGER<K51> EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> (B) L=1200	8-97180-275-0	01	1	9901-0006	●
114	03.265 HOSE; VAC,INT THROTTLE TURBOCHARGER<K51> EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> (A) L=430	8-97259-506-0	01	1	0007-0009	●
114	03.265 HOSE; VAC,INT THROTTLE TURBOCHARGER<K51> EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> (A) L=890	8-97302-168-0	01	1	0010-	●
114	03.265 HOSE; VAC,INT THROTTLE TURBOCHARGER<K51> EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> 08.962 (A) L=430 SERVICED BY L=3000	0-04740-300-0	01	1	9811-0006	●
114	03.265 HOSE; VAC,INT THROTTLE TURBOCHARGER<K51> EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> (B) L=1200	8-97259-490-0	01	1	0007-0009	●
114	03.265 HOSE; VAC,INT THROTTLE TURBOCHARGER<K51> EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> (B) L=310	8-97302-167-0	01	1	0010-0102	●
114	03.265 HOSE; VAC,INT THROTTLE TURBOCHARGER<K51> EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> (B) L=310	8-97309-000-0	01	1	0103-	●
115	03.265 CLIP; VAC HOSE,INT THROTTLE EXHAUST BRAKE<NF8> 08.852 (A) ID=8 & 23	5-09707-002-0	01	1	9811-9812	●	●
115	03.265 CLIP; VAC HOSE,INT THROTTLE EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> 08.852 (A) ID=8 & 23	5-09707-002-0	01	1	9901-	●	●
115	03.265 CLIP; VAC HOSE,INT THROTTLE EXHAUST BRAKE<NF8> 03.278 (B) ID=37	8-94481-468-0	01	1	9811-9812	●	●
115	03.265 CLIP; VAC HOSE,INT THROTTLE EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> 03.278 (B) ID=37	8-94481-468-0	01	1	9901-	●	●
115	03.265 CLIP; VAC HOSE,INT THROTTLE EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER<K51> 03.483 (C) ID=6 & 6	8-94463-708-0	01	1	9811-	●	●
115	03.265 CLIP; VAC HOSE,INT THROTTLE EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 08.852 (A) ID=8 & 16	5-09707-032-0	03	1	9811-	●	●
115	03.265 CLIP; VAC HOSE,INT THROTTLE TURBOCHARGER<K51> EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> 03.162 (D) ID=6.8X2	8-94126-636-0	01	1	0010-	●
115	03.265 CLIP; VAC HOSE,INT THROTTLE TURBOCHARGER<K51> EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> (C) ID=6 & 7	8-97302-181-0	01	1	0010-0102	●
116	03.275 BOLT; MANIF TO INL PIPE EXC. TURBOCHARGER<K51> 01.540 M10X20 FLANGE	0-28181-020-0	02	1	9811-0208	●	●
116	03.275 BOLT; MANIF TO INL PIPE EXC. TURBOCHARGER<K51> 04.525 M10X25 FLANGE	0-28181-025-0	02	1	0209-	●	●
138	03.265 PIPE; INL SGL CAB(NK*S) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51> 03.417	8-94417-173-1	01	1	9811-	●	●
138	03.265 PIPE; INL EXC. AIR INTAKE SYSTEM FRONT<6PC>	8-97180-566-1	01	1	9811-				●
306	03.265 BOLT; VLV TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 04.054 M5X10 W/LK+PL WASHER	9-03920-510-0	02	1	9811-	●
306	03.265 BOLT; VLV TURBOCHARGER<K51> EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9811-	●
306	03.265 BOLT; VLV TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9811-	●
306	03.265 BOLT; VLV 01.540 M8X45 FLANGE	0-28080-845-0	05	1	9811-				●
329	03.280 NUT; VLV TURBOCHARGER<K51> EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	01	1	9811-0009	●
407	03.265 PIPE; INL,REAR AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51>,EXHAUST BRAKE<NF8>	8-94152-318-0	01	1	9811-	●	●
480	03.314 VALVE ASM; VAC SW TURBOCHARGER<K51> EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> 03.670	8-94144-597-1	01	1	9811-	●
480	03.314 VALVE ASM; VAC SW TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 03.670	8-94144-597-1	01	1	9811-	●

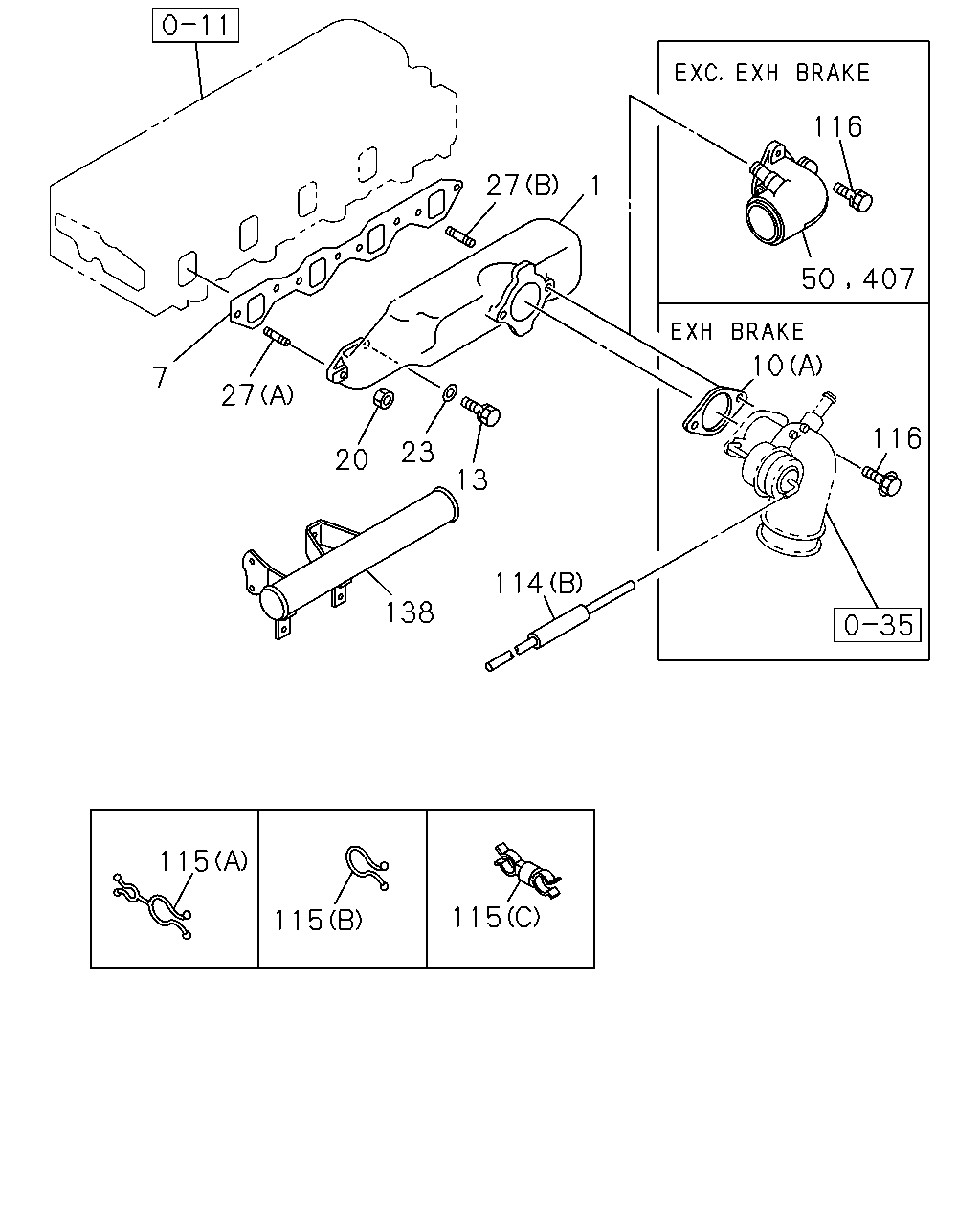

116 27 1 10 7 27 116 23 20 13 114 138 115 115 115 50 407

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.265 MANIFOLD; INL CHILE EQUIPMENT(6KB)	8-97147-920-0	01	1	9811-0012		●
1	03.265 MANIFOLD; INL BRAZIL EQUIPMENT(RWF),CHILE EQUIPMENT(6KB)	8-97147-920-0	01	1	0101-0105		●
1	03.265 MANIFOLD; INL	8-97147-920-0	01	1	0106-		●	●
1	03.265 MANIFOLD; INL TAIWAN EQUIPMENT(RWV)	8-97107-744-1	01	1	9811-0105		●
1	03.265 MANIFOLD; INL EXC. TURBOCHARGER<K51>	8-97107-744-1	01	1	9811-0105	●
1	03.265 MANIFOLD; INL TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL>	8-97107-744-1	01	1	9811-0105	●
1	03.265 MANIFOLD; INL EXC. TURBOCHARGER<K51>	8-97107-744-1	01	1	0106-	●
1	03.265 MANIFOLD; INL TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL>	8-97107-744-1	01	1	0106-	●
1	03.265 MANIFOLD; INL TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97192-327-1	01	1	9811-0112	●
1	03.265 MANIFOLD; INL TURBOCHARGER<K51>	8-97192-327-1	01	1	0201-	●
1	03.265 MANIFOLD; INL	8-97192-327-1	01	1	0201-			●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) CHILE EQUIPMENT(6KB)	8-97144-623-0	04	1	9811-0012		●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) BRAZIL EQUIPMENT(RWF),CHILE EQUIPMENT(6KB)	8-97144-623-0	04	1	0101-0105		●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97144-623-0	04	1	0106-		●	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) TAIWAN EQUIPMENT(RWV) ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97066-741-1	01	1	9811-9904		●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97066-741-1	01	1	9811-9904	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) TAIWAN EQUIPMENT(RWV)	8-97066-741-1	01	1	9905-9905		●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EXC. TURBOCHARGER<K51>	8-97066-741-1	01	1	9905-9905	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL>	8-97066-741-1	01	1	9905-9905	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97228-044-0	01	1	9905-9905	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) TAIWAN EQUIPMENT(RWV) ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97228-044-0	01	1	9906-0101		●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97228-044-0	01	1	9906-0101	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97301-838-0	01	1	0102-	●		●
10	03.406 GASKET; INL PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) CHILE EQUIPMENT(6KB) (B)	8-97144-622-0	01	1	9811-0012		●
10	03.406 GASKET; INL PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) BRAZIL EQUIPMENT(RWF),CHILE EQUIPMENT(6KB) (B)	8-97144-622-0	01	1	0101-0105		●
10	03.406 GASKET; INL PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) (B)	8-97144-622-0	01	1	0106-		●	●
10	03.406 GASKET; INL PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EXC. TURBOCHARGER<K51>,EURO2 SPECIFICATION<7AF> (A)	8-97035-883-1	01	1	9811-	●	●
13	03.275 BOLT; INL MANIF 01.073 M8X25 W/LK WASHER	0-50040-825-0	04	1	0201-			●
13	03.275 BOLT; INL MANIF 00.780 M8X30 W/LK WASHER	0-50040-830-0	02	1	0201-			●
13	03.275 BOLT; INL MANIF 01.073 M8X25 W/LK WASHER	0-50040-825-0	06	1	9901-		●
13	03.275 BOLT; INL MANIF EXC. TURBOCHARGER<K51> 01.073 M8X25 W/LK WASHER	0-50040-825-0	06	1	9901-	●
13	03.275 BOLT; INL MANIF TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 01.073 M8X25 W/LK WASHER	0-50040-825-0	06	1	9901-	●
13	03.275 BOLT; INL MANIF 01.073 M8X25 W/LK WASHER	0-50040-825-0	06	1	9811-9812	●	●	●
13	03.275 BOLT; INL MANIF TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 01.073 M8X25 W/LK WASHER	0-50040-825-0	05	1	9901-	●
13	03.275 BOLT; INL MANIF TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 00.780 M8X30 W/LK WASHER	0-50040-830-0	01	1	9901-	●
13	03.275 BOLT; INL MANIF M8X30 FLANGE	0-28080-830-0	08	1	9811-				●
20	03.275 NUT; INL MANIF 00.854 M8 FLANGE	5-09440-005-0	02	1	9811-	●	●	●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	02	1	9811-				●
23	03.275 WASHER; PL,INL MANIF 07.633 ID=8.4 OD=22	9-09164-708-0	01	1	9811-	●	●
27	03.275 STUD; INL MANIF 03.901 (A) M8X25 L=37	9-04110-825-0	01	1	9811-9811		●
27	03.275 STUD; INL MANIF OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 03.901 (A) M8X25 L=37	9-04110-825-0	01	1	9811-9811	●
27	03.275 STUD; INL MANIF OIL COOLER<KC4> TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 03.901 (A) M8X25 L=37	9-04110-825-0	01	1	9811-9811	●
27	03.275 STUD; INL MANIF 03.901 (A) M8X25 L=37	9-04110-825-0	01	1	9812-0112		●
27	03.275 STUD; INL MANIF OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 03.901 (A) M8X25 L=37	9-04110-825-0	01	1	9812-0112	●
27	03.275 STUD; INL MANIF OIL COOLER<KC4> TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 03.901 (A) M8X25 L=37	9-04110-825-0	01	1	9812-0112	●
27	03.275 STUD; INL MANIF TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 03.901 (A) M8X25 L=37	9-04110-825-0	01	1	9812-0112	●
27	03.275 STUD; INL MANIF 03.901 (A) M8X25 L=37	9-04110-825-0	01	1	0201-		●	●
27	03.275 STUD; INL MANIF OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 03.901 (A) M8X25 L=37	9-04110-825-0	01	1	0201-	●
27	03.275 STUD; INL MANIF OIL COOLER<KC4> TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 03.901 (A) M8X25 L=37	9-04110-825-0	01	1	0201-	●
27	03.275 STUD; INL MANIF TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 03.901 (A) M8X25 L=37	9-04110-825-0	01	1	0201-	●
27	03.275 STUD; INL MANIF 00.219 (B) M8X35 L=46	9-09630-034-1	01	1	9811-9811		●
27	03.275 STUD; INL MANIF OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 00.219 (B) M8X35 L=46	9-09630-034-1	01	1	9811-9811	●
27	03.275 STUD; INL MANIF OIL COOLER<KC4> TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 00.219 (B) M8X35 L=46	9-09630-034-1	01	1	9811-9811	●
27	03.275 STUD; INL MANIF 00.219 (B) M8X35 L=46	9-09630-034-1	01	1	9812-0112		●
27	03.275 STUD; INL MANIF OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 00.219 (B) M8X35 L=46	9-09630-034-1	01	1	9812-0112	●
27	03.275 STUD; INL MANIF OIL COOLER<KC4> TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 00.219 (B) M8X35 L=46	9-09630-034-1	01	1	9812-0112	●
27	03.275 STUD; INL MANIF TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 00.219 (B) M8X35 L=46	9-09630-034-1	01	1	9812-0112	●
27	03.275 STUD; INL MANIF 00.219 (B) M8X35 L=46	9-09630-034-1	01	1	0201-		●	●
27	03.275 STUD; INL MANIF OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 00.219 (B) M8X35 L=46	9-09630-034-1	01	1	0201-	●
27	03.275 STUD; INL MANIF OIL COOLER<KC4> TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 00.219 (B) M8X35 L=46	9-09630-034-1	01	1	0201-	●
27	03.275 STUD; INL MANIF TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 00.219 (B) M8X35 L=46	9-09630-034-1	01	1	0201-	●
27	03.275 STUD; INL MANIF EXC. OIL COOLER<KC4>,TURBOCHARGER<K51> 03.901 (A),(B) M8X25 L=37	9-04110-825-0	02	1	9811-9811	●
27	03.275 STUD; INL MANIF TURBOCHARGER<K51> EXC. OIL COOLER<KC4>,CHARGE AIR COOLER<6PL> 03.901 (A),(B) M8X25 L=37	9-04110-825-0	02	1	9811-9811	●
27	03.275 STUD; INL MANIF TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 03.901 (A),(B) M8X25 L=37	9-04110-825-0	02	1	9811-9811	●
27	03.275 STUD; INL MANIF EXC. OIL COOLER<KC4>,TURBOCHARGER<K51> 03.901 (A),(B) M8X25 L=37	9-04110-825-0	02	1	9812-	●
50	03.265 PIPE; INL AIR INTAKE SYSTEM FRONT<6PC> EXC. EXHAUST BRAKE<NF8>	8-97078-858-0	01	1	9811-	●	●
114	03.265 HOSE; VAC,INT THROTTLE EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> (B) L=1320	8-97096-148-1	01	1	9811-9904	●	●
114	03.265 HOSE; VAC,INT THROTTLE EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> (B) L=1320	8-97227-211-0	01	1	9905-	●	●
114	03.265 HOSE; VAC,INT THROTTLE TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (A) L=400	8-97194-945-0	01	1	9811-9904	●
114	03.265 HOSE; VAC,INT THROTTLE TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (A) L=403	8-97228-401-0	01	1	9905-	●
114	03.265 HOSE; VAC,INT THROTTLE TURBOCHARGER<K51> EXHAUST BRAKE<NF8> (B) L=1200	8-97180-275-0	01	1	9811-9812	●
114	03.265 HOSE; VAC,INT THROTTLE TURBOCHARGER<K51> EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> (B) L=1200	8-97180-275-0	01	1	9901-0006	●
114	03.265 HOSE; VAC,INT THROTTLE TURBOCHARGER<K51> EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> (A) L=430	8-97259-506-0	01	1	0007-0009	●
114	03.265 HOSE; VAC,INT THROTTLE TURBOCHARGER<K51> EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> (A) L=890	8-97302-168-0	01	1	0010-	●
114	03.265 HOSE; VAC,INT THROTTLE TURBOCHARGER<K51> EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> 08.962 (A) L=430 SERVICED BY L=3000	0-04740-300-0	01	1	9811-0006	●
114	03.265 HOSE; VAC,INT THROTTLE TURBOCHARGER<K51> EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> (B) L=1200	8-97259-490-0	01	1	0007-0009	●
114	03.265 HOSE; VAC,INT THROTTLE TURBOCHARGER<K51> EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> (B) L=310	8-97302-167-0	01	1	0010-0102	●
114	03.265 HOSE; VAC,INT THROTTLE TURBOCHARGER<K51> EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> (B) L=310	8-97309-000-0	01	1	0103-	●
115	03.265 CLIP; VAC HOSE,INT THROTTLE EXHAUST BRAKE<NF8> 08.852 (A) ID=8 & 23	5-09707-002-0	01	1	9811-9812	●	●
115	03.265 CLIP; VAC HOSE,INT THROTTLE EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> 08.852 (A) ID=8 & 23	5-09707-002-0	01	1	9901-	●	●
115	03.265 CLIP; VAC HOSE,INT THROTTLE EXHAUST BRAKE<NF8> 03.278 (B) ID=37	8-94481-468-0	01	1	9811-9812	●	●
115	03.265 CLIP; VAC HOSE,INT THROTTLE EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> 03.278 (B) ID=37	8-94481-468-0	01	1	9901-	●	●
115	03.265 CLIP; VAC HOSE,INT THROTTLE EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER<K51> 03.483 (C) ID=6 & 6	8-94463-708-0	01	1	9811-	●	●
115	03.265 CLIP; VAC HOSE,INT THROTTLE EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 08.852 (A) ID=8 & 16	5-09707-032-0	03	1	9811-	●	●
115	03.265 CLIP; VAC HOSE,INT THROTTLE TURBOCHARGER<K51> EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> 03.162 (D) ID=6.8X2	8-94126-636-0	01	1	0010-	●
115	03.265 CLIP; VAC HOSE,INT THROTTLE TURBOCHARGER<K51> EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> (C) ID=6 & 7	8-97302-181-0	01	1	0010-0102	●
116	03.275 BOLT; MANIF TO INL PIPE EXC. TURBOCHARGER<K51> 01.540 M10X20 FLANGE	0-28181-020-0	02	1	9811-0208	●	●
116	03.275 BOLT; MANIF TO INL PIPE EXC. TURBOCHARGER<K51> 04.525 M10X25 FLANGE	0-28181-025-0	02	1	0209-	●	●
138	03.265 PIPE; INL SGL CAB(NK*S) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51> 03.417	8-94417-173-1	01	1	9811-	●	●
138	03.265 PIPE; INL EXC. AIR INTAKE SYSTEM FRONT<6PC>	8-97180-566-1	01	1	9811-				●
407	03.265 PIPE; INL,REAR AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51>,EXHAUST BRAKE<NF8>	8-94152-318-0	01	1	9811-	●	●

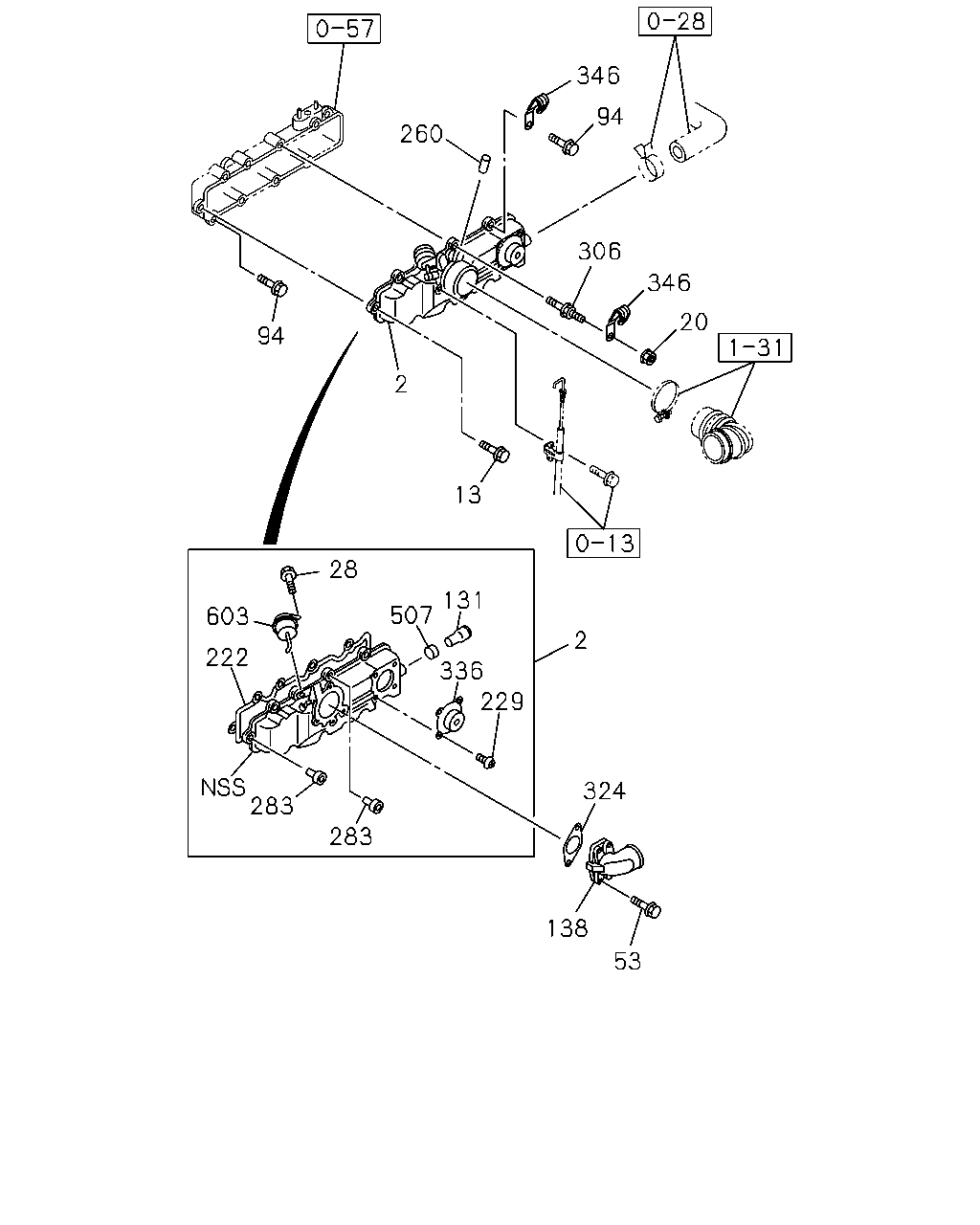

346 94 260 306 346 20 94 2 13 28 131 507 603 2 222 336 229 283 324 283 138 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	03.407 COVER; INL AIR INTAKE REAR VERTICAL<KJ3> EXHAUST BRAKE<NF8>	8-97146-866-2	01	1	9811-				●
2	03.407 COVER; INL AIR INTAKE REAR VERTICAL<KJ3> EXC. EXHAUST BRAKE<NF8>	8-97122-604-1	01	1	9811-9811				●
2	03.407 COVER; INL AIR INTAKE REAR VERTICAL<KJ3> EXC. EXHAUST BRAKE<NF8>	8-97222-239-0	01	1	9812-				●
2	03.407 COVER; INL AIR INTAKE SYSTEM FRONT<6PC> EXC. EXHAUST BRAKE<NF8>	8-97122-603-1	01	1	9811-9811				●
2	03.407 COVER; INL AIR INTAKE SYSTEM FRONT<6PC> EXC. EXHAUST BRAKE<NF8>	8-97222-238-0	01	1	9812-				●
2	03.407 COVER; INL EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC>	8-97146-864-2	01	1	9811-				●
13	03.275 BOLT; INL MANIF 01.073 M8X25 W/LK WASHER	0-50040-825-0	04	1	0201-			●
13	03.275 BOLT; INL MANIF 00.780 M8X30 W/LK WASHER	0-50040-830-0	02	1	0201-			●
13	03.275 BOLT; INL MANIF 01.073 M8X25 W/LK WASHER	0-50040-825-0	06	1	9901-		●
13	03.275 BOLT; INL MANIF EXC. TURBOCHARGER<K51> 01.073 M8X25 W/LK WASHER	0-50040-825-0	06	1	9901-	●
13	03.275 BOLT; INL MANIF TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 01.073 M8X25 W/LK WASHER	0-50040-825-0	06	1	9901-	●
13	03.275 BOLT; INL MANIF 01.073 M8X25 W/LK WASHER	0-50040-825-0	06	1	9811-9812	●	●	●
13	03.275 BOLT; INL MANIF TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 01.073 M8X25 W/LK WASHER	0-50040-825-0	05	1	9901-	●
13	03.275 BOLT; INL MANIF TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 00.780 M8X30 W/LK WASHER	0-50040-830-0	01	1	9901-	●
13	03.275 BOLT; INL MANIF M8X30 FLANGE	0-28080-830-0	08	1	9811-				●
20	03.275 NUT; INL MANIF 00.854 M8 FLANGE	5-09440-005-0	02	1	9811-	●	●	●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	02	1	9811-				●
28	03.278 BOLT; CHAMBER EXHAUST BRAKE<NF8> 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9811-				●
53	03.602 BOLT; INL PIPE TURBOCHARGER<K51> 09.181 M10X25 FLANGE	0-28781-025-0	02	1	9811-0208	●
53	03.602 BOLT; INL PIPE 09.181 M10X25 FLANGE	0-28781-025-0	02	1	9811-0208			●
53	03.602 BOLT; INL PIPE TURBOCHARGER<K51> 04.525 M10X25 FLANGE	0-28181-025-0	02	1	0209-	●
53	03.602 BOLT; INL PIPE 04.525 M10X25 FLANGE	0-28181-025-0	02	1	0209-			●
53	03.602 BOLT; INL PIPE EXC. AIR INTAKE SYSTEM FRONT<6PC> 04.686 M8X30 FLANGE	0-28680-830-0	02	1	9811-				●
94	02.559 BOLT 03.275 M8X30 FLANGE	0-28080-830-0	02	1	9811-				●
131	03.278 PIPE; PCV,INL	8-97102-601-0	01	1	9811-				●
138	03.265 PIPE; INL SGL CAB(NK*S) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51> 03.417	8-94417-173-1	01	1	9811-	●	●
138	03.265 PIPE; INL EXC. AIR INTAKE SYSTEM FRONT<6PC>	8-97180-566-1	01	1	9811-				●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97084-938-2	01	1	9811-				●
229	03.278 SCREW; VENTILATION VLV 06.321 M4X8 W/LK WASHER	9-03910-408-0	04	1	9811-				●
260	03.278 CAP; RUBBER TURBOCHARGER<K51> EXC. EXHAUST BRAKE<NF8> 01.780 ID=4	8-94217-809-0	01	1	9811-	●
260	03.278 CAP; RUBBER 01.780 ID=4	8-94217-809-0	01	1	9811-				●
283	03.265 RUBBER OD=23	8-97105-689-6	10	1	9811-				●
306	03.265 BOLT; VLV TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 04.054 M5X10 W/LK+PL WASHER	9-03920-510-0	02	1	9811-	●
306	03.265 BOLT; VLV TURBOCHARGER<K51> EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9811-	●
306	03.265 BOLT; VLV TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9811-	●
306	03.265 BOLT; VLV 01.540 M8X45 FLANGE	0-28080-845-0	05	1	9811-				●
324	03.407 GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EXC. AIR INTAKE SYSTEM FRONT<6PC>	8-97180-546-0	01	1	9811-				●
336	03.415 VALVE; VENTILATION	8-97119-887-0	01	1	9811-				●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	03	1	9811-				●
507	03.415 ORIFICE	8-97088-649-0	01	1	9811-				●
603	03.278 CHAMBER; THROTTLE EXHAUST BRAKE<NF8>	8-97204-780-0	01	1	9811-				●

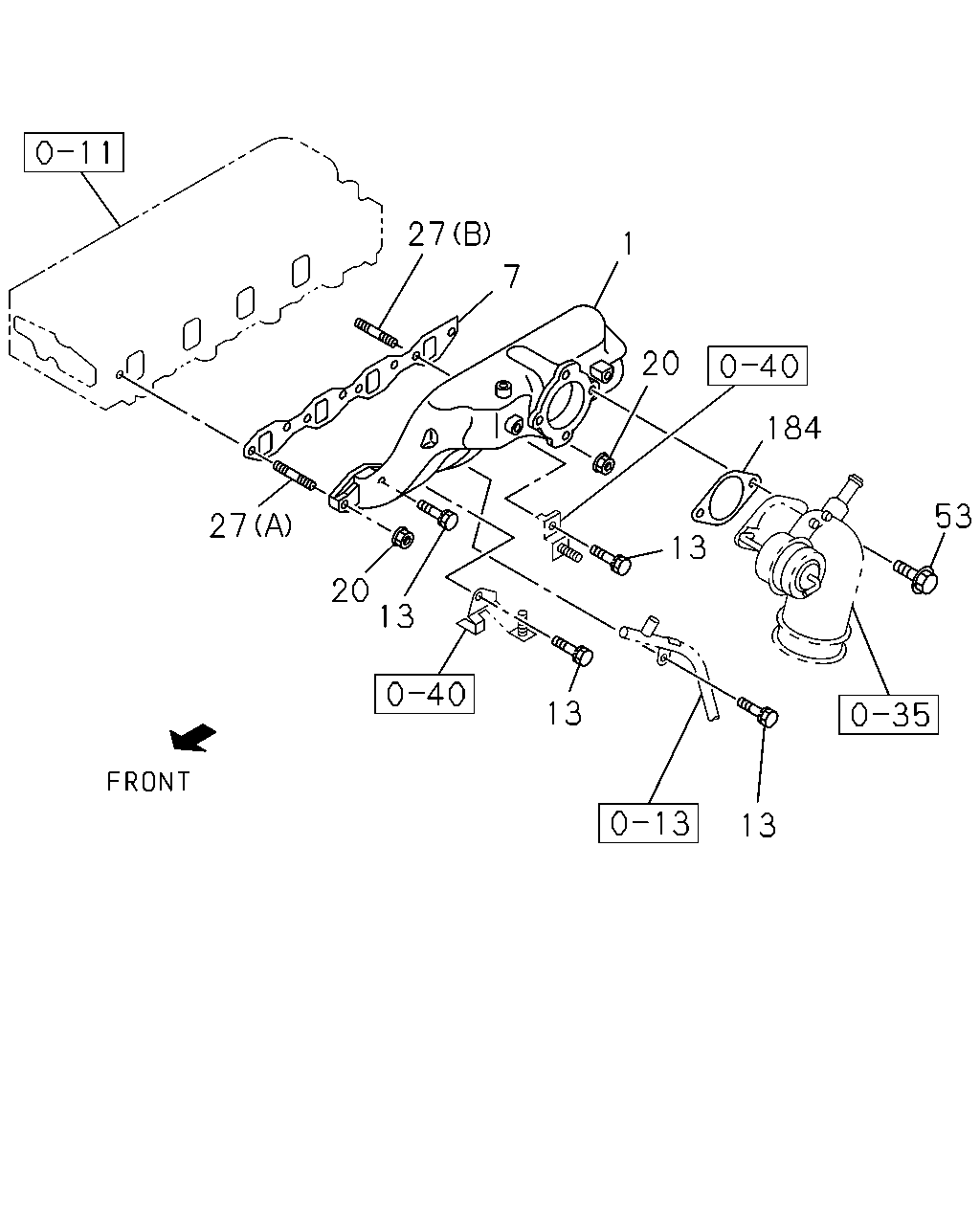

27 1 7 20 184 53 27 13 20 13 13 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.265 MANIFOLD; INL CHILE EQUIPMENT(6KB)	8-97147-920-0	01	1	9811-0012		●
1	03.265 MANIFOLD; INL BRAZIL EQUIPMENT(RWF),CHILE EQUIPMENT(6KB)	8-97147-920-0	01	1	0101-0105		●
1	03.265 MANIFOLD; INL	8-97147-920-0	01	1	0106-		●	●
1	03.265 MANIFOLD; INL TAIWAN EQUIPMENT(RWV)	8-97107-744-1	01	1	9811-0105		●
1	03.265 MANIFOLD; INL EXC. TURBOCHARGER<K51>	8-97107-744-1	01	1	9811-0105	●
1	03.265 MANIFOLD; INL TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL>	8-97107-744-1	01	1	9811-0105	●
1	03.265 MANIFOLD; INL EXC. TURBOCHARGER<K51>	8-97107-744-1	01	1	0106-	●
1	03.265 MANIFOLD; INL TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL>	8-97107-744-1	01	1	0106-	●
1	03.265 MANIFOLD; INL TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97192-327-1	01	1	9811-0112	●
1	03.265 MANIFOLD; INL TURBOCHARGER<K51>	8-97192-327-1	01	1	0201-	●
1	03.265 MANIFOLD; INL	8-97192-327-1	01	1	0201-			●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) CHILE EQUIPMENT(6KB)	8-97144-623-0	04	1	9811-0012		●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) BRAZIL EQUIPMENT(RWF),CHILE EQUIPMENT(6KB)	8-97144-623-0	04	1	0101-0105		●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97144-623-0	04	1	0106-		●	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) TAIWAN EQUIPMENT(RWV) ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97066-741-1	01	1	9811-9904		●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97066-741-1	01	1	9811-9904	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) TAIWAN EQUIPMENT(RWV)	8-97066-741-1	01	1	9905-9905		●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EXC. TURBOCHARGER<K51>	8-97066-741-1	01	1	9905-9905	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL>	8-97066-741-1	01	1	9905-9905	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97228-044-0	01	1	9905-9905	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) TAIWAN EQUIPMENT(RWV) ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97228-044-0	01	1	9906-0101		●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97228-044-0	01	1	9906-0101	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97301-838-0	01	1	0102-	●		●
13	03.275 BOLT; INL MANIF 01.073 M8X25 W/LK WASHER	0-50040-825-0	04	1	0201-			●
13	03.275 BOLT; INL MANIF 00.780 M8X30 W/LK WASHER	0-50040-830-0	02	1	0201-			●
13	03.275 BOLT; INL MANIF 01.073 M8X25 W/LK WASHER	0-50040-825-0	06	1	9901-		●
13	03.275 BOLT; INL MANIF EXC. TURBOCHARGER<K51> 01.073 M8X25 W/LK WASHER	0-50040-825-0	06	1	9901-	●
13	03.275 BOLT; INL MANIF TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 01.073 M8X25 W/LK WASHER	0-50040-825-0	06	1	9901-	●
13	03.275 BOLT; INL MANIF 01.073 M8X25 W/LK WASHER	0-50040-825-0	06	1	9811-9812	●	●	●
13	03.275 BOLT; INL MANIF TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 01.073 M8X25 W/LK WASHER	0-50040-825-0	05	1	9901-	●
13	03.275 BOLT; INL MANIF TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 00.780 M8X30 W/LK WASHER	0-50040-830-0	01	1	9901-	●
13	03.275 BOLT; INL MANIF M8X30 FLANGE	0-28080-830-0	08	1	9811-				●
20	03.275 NUT; INL MANIF 00.854 M8 FLANGE	5-09440-005-0	02	1	9811-	●	●	●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	02	1	9811-				●
27	03.275 STUD; INL MANIF 03.901 (A) M8X25 L=37	9-04110-825-0	01	1	9811-9811		●
27	03.275 STUD; INL MANIF OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 03.901 (A) M8X25 L=37	9-04110-825-0	01	1	9811-9811	●
27	03.275 STUD; INL MANIF OIL COOLER<KC4> TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 03.901 (A) M8X25 L=37	9-04110-825-0	01	1	9811-9811	●
27	03.275 STUD; INL MANIF 03.901 (A) M8X25 L=37	9-04110-825-0	01	1	9812-0112		●
27	03.275 STUD; INL MANIF OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 03.901 (A) M8X25 L=37	9-04110-825-0	01	1	9812-0112	●
27	03.275 STUD; INL MANIF OIL COOLER<KC4> TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 03.901 (A) M8X25 L=37	9-04110-825-0	01	1	9812-0112	●
27	03.275 STUD; INL MANIF TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 03.901 (A) M8X25 L=37	9-04110-825-0	01	1	9812-0112	●
27	03.275 STUD; INL MANIF 03.901 (A) M8X25 L=37	9-04110-825-0	01	1	0201-		●	●
27	03.275 STUD; INL MANIF OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 03.901 (A) M8X25 L=37	9-04110-825-0	01	1	0201-	●
27	03.275 STUD; INL MANIF OIL COOLER<KC4> TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 03.901 (A) M8X25 L=37	9-04110-825-0	01	1	0201-	●
27	03.275 STUD; INL MANIF TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 03.901 (A) M8X25 L=37	9-04110-825-0	01	1	0201-	●
27	03.275 STUD; INL MANIF 00.219 (B) M8X35 L=46	9-09630-034-1	01	1	9811-9811		●
27	03.275 STUD; INL MANIF OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 00.219 (B) M8X35 L=46	9-09630-034-1	01	1	9811-9811	●
27	03.275 STUD; INL MANIF OIL COOLER<KC4> TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 00.219 (B) M8X35 L=46	9-09630-034-1	01	1	9811-9811	●
27	03.275 STUD; INL MANIF 00.219 (B) M8X35 L=46	9-09630-034-1	01	1	9812-0112		●
27	03.275 STUD; INL MANIF OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 00.219 (B) M8X35 L=46	9-09630-034-1	01	1	9812-0112	●
27	03.275 STUD; INL MANIF OIL COOLER<KC4> TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 00.219 (B) M8X35 L=46	9-09630-034-1	01	1	9812-0112	●
27	03.275 STUD; INL MANIF TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 00.219 (B) M8X35 L=46	9-09630-034-1	01	1	9812-0112	●
27	03.275 STUD; INL MANIF 00.219 (B) M8X35 L=46	9-09630-034-1	01	1	0201-		●	●
27	03.275 STUD; INL MANIF OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 00.219 (B) M8X35 L=46	9-09630-034-1	01	1	0201-	●
27	03.275 STUD; INL MANIF OIL COOLER<KC4> TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 00.219 (B) M8X35 L=46	9-09630-034-1	01	1	0201-	●
27	03.275 STUD; INL MANIF TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 00.219 (B) M8X35 L=46	9-09630-034-1	01	1	0201-	●
27	03.275 STUD; INL MANIF EXC. OIL COOLER<KC4>,TURBOCHARGER<K51> 03.901 (A),(B) M8X25 L=37	9-04110-825-0	02	1	9811-9811	●
27	03.275 STUD; INL MANIF TURBOCHARGER<K51> EXC. OIL COOLER<KC4>,CHARGE AIR COOLER<6PL> 03.901 (A),(B) M8X25 L=37	9-04110-825-0	02	1	9811-9811	●
27	03.275 STUD; INL MANIF TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 03.901 (A),(B) M8X25 L=37	9-04110-825-0	02	1	9811-9811	●
27	03.275 STUD; INL MANIF EXC. OIL COOLER<KC4>,TURBOCHARGER<K51> 03.901 (A),(B) M8X25 L=37	9-04110-825-0	02	1	9812-	●
53	03.602 BOLT; INL PIPE TURBOCHARGER<K51> 09.181 M10X25 FLANGE	0-28781-025-0	02	1	9811-0208	●
53	03.602 BOLT; INL PIPE 09.181 M10X25 FLANGE	0-28781-025-0	02	1	9811-0208			●
53	03.602 BOLT; INL PIPE TURBOCHARGER<K51> 04.525 M10X25 FLANGE	0-28181-025-0	02	1	0209-	●
53	03.602 BOLT; INL PIPE 04.525 M10X25 FLANGE	0-28181-025-0	02	1	0209-			●
53	03.602 BOLT; INL PIPE EXC. AIR INTAKE SYSTEM FRONT<6PC> 04.686 M8X30 FLANGE	0-28680-830-0	02	1	9811-				●
184	03.275 GASKET; T/V ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) TURBOCHARGER<K51> ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 03.406	8-97035-883-1	01	1	9811-	●
184	03.275 GASKET; T/V ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 03.406	8-97035-883-1	01	1	9811-			●

260 10 116 1 27 7 7 7 7 10 27 10 116 23 20 13 138 114 115 115 115 50 407

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.265 MANIFOLD; INL CHILE EQUIPMENT(6KB)	8-97147-920-0	01	1	9811-0012		●
1	03.265 MANIFOLD; INL BRAZIL EQUIPMENT(RWF),CHILE EQUIPMENT(6KB)	8-97147-920-0	01	1	0101-0105		●
1	03.265 MANIFOLD; INL	8-97147-920-0	01	1	0106-		●	●
1	03.265 MANIFOLD; INL TAIWAN EQUIPMENT(RWV)	8-97107-744-1	01	1	9811-0105		●
1	03.265 MANIFOLD; INL EXC. TURBOCHARGER<K51>	8-97107-744-1	01	1	9811-0105	●
1	03.265 MANIFOLD; INL TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL>	8-97107-744-1	01	1	9811-0105	●
1	03.265 MANIFOLD; INL EXC. TURBOCHARGER<K51>	8-97107-744-1	01	1	0106-	●
1	03.265 MANIFOLD; INL TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL>	8-97107-744-1	01	1	0106-	●
1	03.265 MANIFOLD; INL TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97192-327-1	01	1	9811-0112	●
1	03.265 MANIFOLD; INL TURBOCHARGER<K51>	8-97192-327-1	01	1	0201-	●
1	03.265 MANIFOLD; INL	8-97192-327-1	01	1	0201-			●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) CHILE EQUIPMENT(6KB)	8-97144-623-0	04	1	9811-0012		●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) BRAZIL EQUIPMENT(RWF),CHILE EQUIPMENT(6KB)	8-97144-623-0	04	1	0101-0105		●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97144-623-0	04	1	0106-		●	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) TAIWAN EQUIPMENT(RWV) ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97066-741-1	01	1	9811-9904		●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97066-741-1	01	1	9811-9904	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) TAIWAN EQUIPMENT(RWV)	8-97066-741-1	01	1	9905-9905		●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EXC. TURBOCHARGER<K51>	8-97066-741-1	01	1	9905-9905	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL>	8-97066-741-1	01	1	9905-9905	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97228-044-0	01	1	9905-9905	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) TAIWAN EQUIPMENT(RWV) ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97228-044-0	01	1	9906-0101		●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97228-044-0	01	1	9906-0101	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97301-838-0	01	1	0102-	●		●
10	03.406 GASKET; INL PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) CHILE EQUIPMENT(6KB) (B)	8-97144-622-0	01	1	9811-0012		●
10	03.406 GASKET; INL PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) BRAZIL EQUIPMENT(RWF),CHILE EQUIPMENT(6KB) (B)	8-97144-622-0	01	1	0101-0105		●
10	03.406 GASKET; INL PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) (B)	8-97144-622-0	01	1	0106-		●	●
10	03.406 GASKET; INL PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EXC. TURBOCHARGER<K51>,EURO2 SPECIFICATION<7AF> (A)	8-97035-883-1	01	1	9811-	●	●
13	03.275 BOLT; INL MANIF 01.073 M8X25 W/LK WASHER	0-50040-825-0	04	1	0201-			●
13	03.275 BOLT; INL MANIF 00.780 M8X30 W/LK WASHER	0-50040-830-0	02	1	0201-			●
13	03.275 BOLT; INL MANIF 01.073 M8X25 W/LK WASHER	0-50040-825-0	06	1	9901-		●
13	03.275 BOLT; INL MANIF EXC. TURBOCHARGER<K51> 01.073 M8X25 W/LK WASHER	0-50040-825-0	06	1	9901-	●
13	03.275 BOLT; INL MANIF TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 01.073 M8X25 W/LK WASHER	0-50040-825-0	06	1	9901-	●
13	03.275 BOLT; INL MANIF 01.073 M8X25 W/LK WASHER	0-50040-825-0	06	1	9811-9812	●	●	●
13	03.275 BOLT; INL MANIF TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 01.073 M8X25 W/LK WASHER	0-50040-825-0	05	1	9901-	●
13	03.275 BOLT; INL MANIF TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 00.780 M8X30 W/LK WASHER	0-50040-830-0	01	1	9901-	●
13	03.275 BOLT; INL MANIF M8X30 FLANGE	0-28080-830-0	08	1	9811-				●
20	03.275 NUT; INL MANIF 00.854 M8 FLANGE	5-09440-005-0	02	1	9811-	●	●	●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	02	1	9811-				●
23	03.275 WASHER; PL,INL MANIF 07.633 ID=8.4 OD=22	9-09164-708-0	01	1	9811-	●	●
27	03.275 STUD; INL MANIF 03.901 (A) M8X25 L=37	9-04110-825-0	01	1	9811-9811		●
27	03.275 STUD; INL MANIF OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 03.901 (A) M8X25 L=37	9-04110-825-0	01	1	9811-9811	●
27	03.275 STUD; INL MANIF OIL COOLER<KC4> TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 03.901 (A) M8X25 L=37	9-04110-825-0	01	1	9811-9811	●
27	03.275 STUD; INL MANIF 03.901 (A) M8X25 L=37	9-04110-825-0	01	1	9812-0112		●
27	03.275 STUD; INL MANIF OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 03.901 (A) M8X25 L=37	9-04110-825-0	01	1	9812-0112	●
27	03.275 STUD; INL MANIF OIL COOLER<KC4> TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 03.901 (A) M8X25 L=37	9-04110-825-0	01	1	9812-0112	●
27	03.275 STUD; INL MANIF TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 03.901 (A) M8X25 L=37	9-04110-825-0	01	1	9812-0112	●
27	03.275 STUD; INL MANIF 03.901 (A) M8X25 L=37	9-04110-825-0	01	1	0201-		●	●
27	03.275 STUD; INL MANIF OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 03.901 (A) M8X25 L=37	9-04110-825-0	01	1	0201-	●
27	03.275 STUD; INL MANIF OIL COOLER<KC4> TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 03.901 (A) M8X25 L=37	9-04110-825-0	01	1	0201-	●
27	03.275 STUD; INL MANIF TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 03.901 (A) M8X25 L=37	9-04110-825-0	01	1	0201-	●
27	03.275 STUD; INL MANIF 00.219 (B) M8X35 L=46	9-09630-034-1	01	1	9811-9811		●
27	03.275 STUD; INL MANIF OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 00.219 (B) M8X35 L=46	9-09630-034-1	01	1	9811-9811	●
27	03.275 STUD; INL MANIF OIL COOLER<KC4> TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 00.219 (B) M8X35 L=46	9-09630-034-1	01	1	9811-9811	●
27	03.275 STUD; INL MANIF 00.219 (B) M8X35 L=46	9-09630-034-1	01	1	9812-0112		●
27	03.275 STUD; INL MANIF OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 00.219 (B) M8X35 L=46	9-09630-034-1	01	1	9812-0112	●
27	03.275 STUD; INL MANIF OIL COOLER<KC4> TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 00.219 (B) M8X35 L=46	9-09630-034-1	01	1	9812-0112	●
27	03.275 STUD; INL MANIF TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 00.219 (B) M8X35 L=46	9-09630-034-1	01	1	9812-0112	●
27	03.275 STUD; INL MANIF 00.219 (B) M8X35 L=46	9-09630-034-1	01	1	0201-		●	●
27	03.275 STUD; INL MANIF OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 00.219 (B) M8X35 L=46	9-09630-034-1	01	1	0201-	●
27	03.275 STUD; INL MANIF OIL COOLER<KC4> TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 00.219 (B) M8X35 L=46	9-09630-034-1	01	1	0201-	●
27	03.275 STUD; INL MANIF TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 00.219 (B) M8X35 L=46	9-09630-034-1	01	1	0201-	●
27	03.275 STUD; INL MANIF EXC. OIL COOLER<KC4>,TURBOCHARGER<K51> 03.901 (A),(B) M8X25 L=37	9-04110-825-0	02	1	9811-9811	●
27	03.275 STUD; INL MANIF TURBOCHARGER<K51> EXC. OIL COOLER<KC4>,CHARGE AIR COOLER<6PL> 03.901 (A),(B) M8X25 L=37	9-04110-825-0	02	1	9811-9811	●
27	03.275 STUD; INL MANIF TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 03.901 (A),(B) M8X25 L=37	9-04110-825-0	02	1	9811-9811	●
27	03.275 STUD; INL MANIF EXC. OIL COOLER<KC4>,TURBOCHARGER<K51> 03.901 (A),(B) M8X25 L=37	9-04110-825-0	02	1	9812-	●
50	03.265 PIPE; INL AIR INTAKE SYSTEM FRONT<6PC> EXC. EXHAUST BRAKE<NF8>	8-97078-858-0	01	1	9811-	●	●
114	03.265 HOSE; VAC,INT THROTTLE EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> (B) L=1320	8-97096-148-1	01	1	9811-9904	●	●
114	03.265 HOSE; VAC,INT THROTTLE EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> (B) L=1320	8-97227-211-0	01	1	9905-	●	●
114	03.265 HOSE; VAC,INT THROTTLE TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (A) L=400	8-97194-945-0	01	1	9811-9904	●
114	03.265 HOSE; VAC,INT THROTTLE TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (A) L=403	8-97228-401-0	01	1	9905-	●
114	03.265 HOSE; VAC,INT THROTTLE TURBOCHARGER<K51> EXHAUST BRAKE<NF8> (B) L=1200	8-97180-275-0	01	1	9811-9812	●
114	03.265 HOSE; VAC,INT THROTTLE TURBOCHARGER<K51> EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> (B) L=1200	8-97180-275-0	01	1	9901-0006	●
114	03.265 HOSE; VAC,INT THROTTLE TURBOCHARGER<K51> EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> (A) L=430	8-97259-506-0	01	1	0007-0009	●
114	03.265 HOSE; VAC,INT THROTTLE TURBOCHARGER<K51> EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> (A) L=890	8-97302-168-0	01	1	0010-	●
114	03.265 HOSE; VAC,INT THROTTLE TURBOCHARGER<K51> EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> 08.962 (A) L=430 SERVICED BY L=3000	0-04740-300-0	01	1	9811-0006	●
114	03.265 HOSE; VAC,INT THROTTLE TURBOCHARGER<K51> EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> (B) L=1200	8-97259-490-0	01	1	0007-0009	●
114	03.265 HOSE; VAC,INT THROTTLE TURBOCHARGER<K51> EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> (B) L=310	8-97302-167-0	01	1	0010-0102	●
114	03.265 HOSE; VAC,INT THROTTLE TURBOCHARGER<K51> EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> (B) L=310	8-97309-000-0	01	1	0103-	●
115	03.265 CLIP; VAC HOSE,INT THROTTLE EXHAUST BRAKE<NF8> 08.852 (A) ID=8 & 23	5-09707-002-0	01	1	9811-9812	●	●
115	03.265 CLIP; VAC HOSE,INT THROTTLE EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> 08.852 (A) ID=8 & 23	5-09707-002-0	01	1	9901-	●	●
115	03.265 CLIP; VAC HOSE,INT THROTTLE EXHAUST BRAKE<NF8> 03.278 (B) ID=37	8-94481-468-0	01	1	9811-9812	●	●
115	03.265 CLIP; VAC HOSE,INT THROTTLE EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> 03.278 (B) ID=37	8-94481-468-0	01	1	9901-	●	●
115	03.265 CLIP; VAC HOSE,INT THROTTLE EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER<K51> 03.483 (C) ID=6 & 6	8-94463-708-0	01	1	9811-	●	●
115	03.265 CLIP; VAC HOSE,INT THROTTLE EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 08.852 (A) ID=8 & 16	5-09707-032-0	03	1	9811-	●	●
115	03.265 CLIP; VAC HOSE,INT THROTTLE TURBOCHARGER<K51> EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> 03.162 (D) ID=6.8X2	8-94126-636-0	01	1	0010-	●
115	03.265 CLIP; VAC HOSE,INT THROTTLE TURBOCHARGER<K51> EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> (C) ID=6 & 7	8-97302-181-0	01	1	0010-0102	●
116	03.275 BOLT; MANIF TO INL PIPE EXC. TURBOCHARGER<K51> 01.540 M10X20 FLANGE	0-28181-020-0	02	1	9811-0208	●	●
116	03.275 BOLT; MANIF TO INL PIPE EXC. TURBOCHARGER<K51> 04.525 M10X25 FLANGE	0-28181-025-0	02	1	0209-	●	●
138	03.265 PIPE; INL SGL CAB(NK*S) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51> 03.417	8-94417-173-1	01	1	9811-	●	●
138	03.265 PIPE; INL EXC. AIR INTAKE SYSTEM FRONT<6PC>	8-97180-566-1	01	1	9811-				●
260	03.278 CAP; RUBBER TURBOCHARGER<K51> EXC. EXHAUST BRAKE<NF8> 01.780 ID=4	8-94217-809-0	01	1	9811-	●
260	03.278 CAP; RUBBER 01.780 ID=4	8-94217-809-0	01	1	9811-				●
407	03.265 PIPE; INL,REAR AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51>,EXHAUST BRAKE<NF8>	8-94152-318-0	01	1	9811-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
