Sayfa 0-22 - Isuzu EPC

0-22 — ENGINE MOUNTING (#43194) — 209 parça

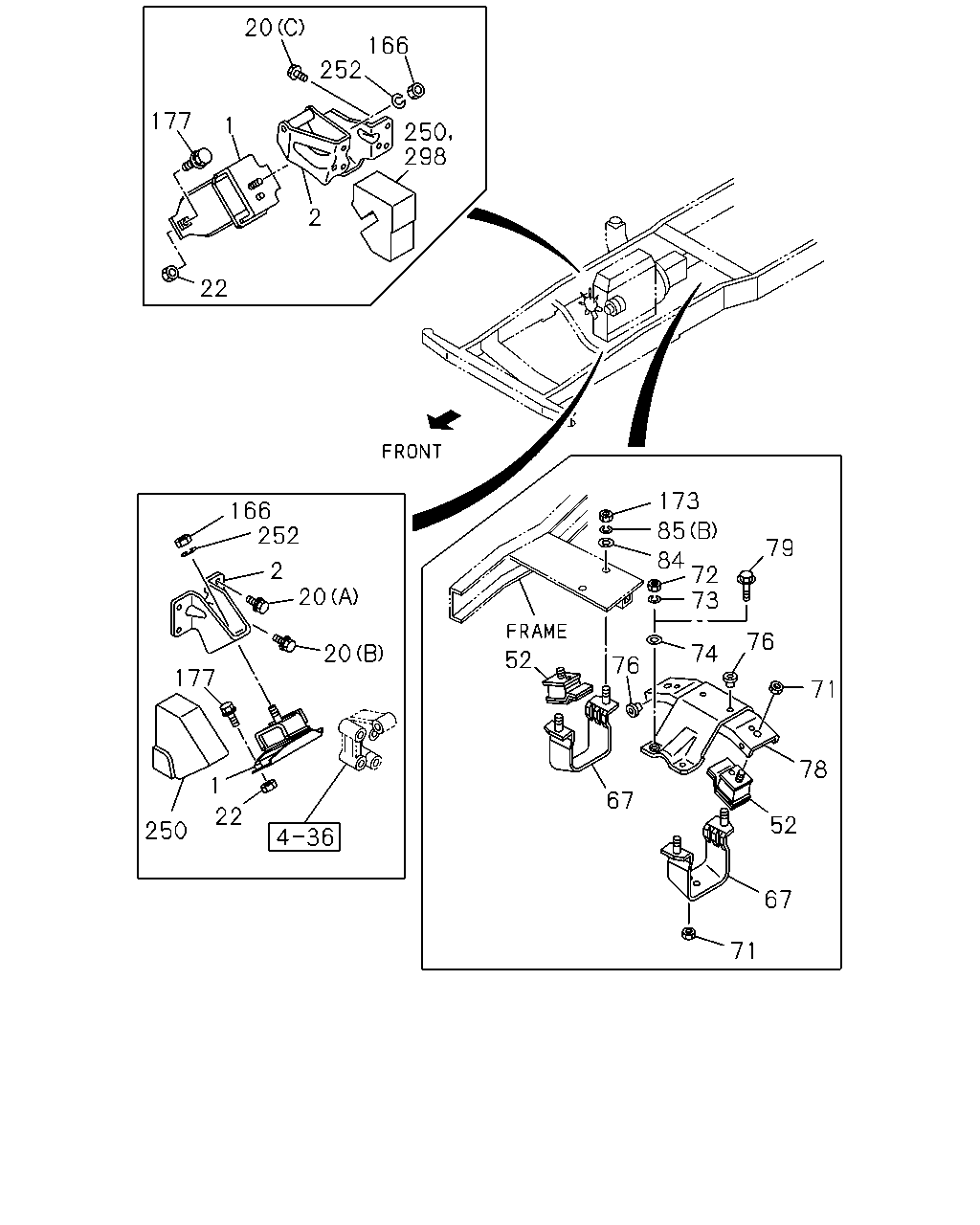

20 166 252 177 1 250 298 2 22 173 166 252 85 79 84 72 73 2 20 76 20 74 52 76 177 71 78 1 67 22 52 250 67 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.027 RUBBER; ENG FOOT,FRT FRT INDEPENDENT SUSPENSION(6PP)	8-97122-890-0	01	1	0201-	●
1	00.027 RUBBER; ENG FOOT,FRT FRT INDEPENDENT SUSPENSION(6PP)	8-97122-892-0	01	1	0201-	●
1	00.027 RUBBER; ENG FOOT,FRT FRT INDEPENDENT SUSPENSION(6PP)	8-97085-123-0	01	1	0106-		●
1	00.027 RUBBER; ENG FOOT,FRT FRT INDEPENDENT SUSPENSION(6PP)	8-97085-122-0	01	1	0106-		●
1	00.027 RUBBER; ENG FOOT,FRT	8-97080-621-0	01	1	9811-0105		●	●
1	00.027 RUBBER; ENG FOOT,FRT EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97080-621-0	01	1	0106-		●
1	00.027 RUBBER; ENG FOOT,FRT	8-97080-621-0	01	1	0106-			●
1	00.027 RUBBER; ENG FOOT,FRT	8-97080-620-0	01	1	9811-0105		●	●
1	00.027 RUBBER; ENG FOOT,FRT EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97080-620-0	01	1	0106-		●
1	00.027 RUBBER; ENG FOOT,FRT	8-97080-620-0	01	1	0106-			●
1	00.027 RUBBER; ENG FOOT,FRT	8-97122-895-0	01	1	9811-0112				●
1	00.027 RUBBER; ENG FOOT,FRT EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97122-895-0	01	1	0201-	●
1	00.027 RUBBER; ENG FOOT,FRT	8-97122-893-0	01	1	9811-0112				●
1	00.027 RUBBER; ENG FOOT,FRT EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97122-893-0	01	1	0201-	●
2	00.029 FOOT; ENG	8-94122-052-1	01	1	9811-0107	●	●	●
2	00.029 FOOT; ENG	8-97300-156-0	01	1	0108-	●	●	●
2	00.029 FOOT; ENG	8-97073-922-1	01	1	9811-0107	●	●	●
2	00.029 FOOT; ENG	8-97287-639-1	01	1	0108-	●	●	●
2	00.029 FOOT; ENG	8-97145-013-0	02	1	9811-9907				●
2	00.029 FOOT; ENG	8-97228-330-0	02	1	9908-9910				●
2	00.029 FOOT; ENG	8-97228-669-1	02	1	9911-				●
20	00.029 BOLT; ENG FOOT 02.277 (A) M10X22 W/LK WASHER	0-50041-022-0	05	1	9811-	●	●
20	00.029 BOLT; ENG FOOT 00.034 (C) M10X28	8-94329-952-1	02	1	9811-0112		●
20	00.029 BOLT; ENG FOOT OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 00.034 (C) M10X28	8-94329-952-1	02	1	9811-0112			●
20	00.029 BOLT; ENG FOOT OIL COOLER<KC4> TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 00.034 (C) M10X28	8-94329-952-1	02	1	9811-0112			●
20	00.029 BOLT; ENG FOOT 00.034 (C) M10X28	8-94329-952-1	02	1	0201-	●	●
20	00.029 BOLT; ENG FOOT OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 00.034 (C) M10X28	8-94329-952-1	02	1	0201-			●
20	00.029 BOLT; ENG FOOT OIL COOLER<KC4> TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 00.034 (C) M10X28	8-94329-952-1	02	1	0201-			●
20	00.029 BOLT; ENG FOOT 00.002 (B) M14X25 W/LK WASHER	0-50041-425-0	01	1	9811-	●	●	●
20	00.029 BOLT; ENG FOOT OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 02.277 (A) M10X22 W/LK WASHER	0-50041-022-0	02	1	9811-			●
20	00.029 BOLT; ENG FOOT OIL COOLER<KC4> TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 02.277 (A) M10X22 W/LK WASHER	0-50041-022-0	02	1	9811-			●
20	00.029 BOLT; ENG FOOT EXC. OIL COOLER<KC4>,TURBOCHARGER<K51> 02.277 (A) M10X22 W/LK WASHER	0-50041-022-0	03	1	9811-			●
20	00.029 BOLT; ENG FOOT TURBOCHARGER<K51> EXC. OIL COOLER<KC4>,CHARGE AIR COOLER<6PL> 02.277 (A) M10X22 W/LK WASHER	0-50041-022-0	03	1	9811-			●
20	00.029 BOLT; ENG FOOT EXC. TURBOCHARGER<K51> 02.277 (A) M10X22 W/LK WASHER	0-50041-022-0	03	1	9811-			●
20	00.029 BOLT; ENG FOOT TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 02.277 (A) M10X22 W/LK WASHER	0-50041-022-0	03	1	9811-			●
20	00.029 BOLT; ENG FOOT EXC. OIL COOLER<KC4>,TURBOCHARGER<K51> 00.034 (C) M10X28	8-94329-952-1	01	1	9811-			●
20	00.029 BOLT; ENG FOOT TURBOCHARGER<K51> EXC. OIL COOLER<KC4>,CHARGE AIR COOLER<6PL> 00.034 (C) M10X28	8-94329-952-1	01	1	9811-			●
20	00.029 BOLT; ENG FOOT TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 00.034 (C) M10X28	8-94329-952-1	01	1	9811-			●
20	00.029 BOLT; ENG FOOT TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 02.277 (A) M10X22 W/LK WASHER	0-50041-022-0	06	1	9811-			●
20	00.029 BOLT; ENG FOOT M10X20 FLANGE	0-28191-020-0	08	1	9811-				●
22	00.002 NUT; CUSHION RUBBER TO BRKT FRT INDEPENDENT SUSPENSION(6PP) 08.917 M10 FLANGE	0-91150-210-0	02	1	0106-	●	●
22	00.002 NUT; CUSHION RUBBER TO BRKT EXC. FRT INDEPENDENT SUSPENSION(6PP) 08.917 M10 FLANGE	0-91150-210-0	04	1	9811-	●	●
22	00.002 NUT; CUSHION RUBBER TO BRKT 05.816 M12	9-99110-412-0	02	1	9811-				●
52	00.027 RUBBER; CUSHION,ENG MTG,RR	8-94111-903-0	02	1	9811-	●	●	●	●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR	8-94111-908-2	01	1	9811-		●	●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR	8-94111-909-2	01	1	9811-		●	●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR	8-94384-214-0	01	1	9811-				●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR	8-94384-213-0	01	1	9811-				●
71	00.002 NUT; SUPPORT RUBBER TO BRKT 04.785 M10 FLANGE	0-91150-110-0	04	1	9811-	●	●	●	●
72	00.002 NUT; SUPPORT RUBBER TO TRANS 09.011 M10	9-09110-410-0	04	1	9811-		●	●
73	00.002 WASHER; LK,CUSHION RUBBER TO FRA ID=10.2	9-09150-610-0	04	1	9811-		●	●
74	00.002 WASHER; PL,SUPPORT RUBBER TO TRA 04.085 ID=10.5 OD=22	9-09164-610-0	02	1	9811-	●	●	●	●
76	00.002 STOPPER; ENG MTG RUBBER 00.027	8-94111-904-0	04	1	9811-0203	●	●	●	●
76	00.002 STOPPER; ENG MTG RUBBER 00.027	8-94111-904-0	02	1	0204-	●	●	●	●
78	00.029 BRACKET; ENG MTG,RR	8-97260-282-1	01	1	0201-	●
78	00.029 BRACKET; ENG MTG,RR	8-94133-393-2	01	1	9811-		●	●
78	00.029 BRACKET; ENG MTG,RR	8-94112-891-2	01	1	9811-				●
79	00.002 BOLT; SUPPORT RUBBER TO TRANS FIRE TRUCK CHASSIS(V4F) 00.685 M10X30 FLANGE	0-28081-030-0	04	1	9811-0105				●
79	00.002 BOLT; SUPPORT RUBBER TO TRANS EXC. FIRE TRUCK CHASSIS(V4F) 03.417 M10X25 FLANGE	0-28081-025-0	04	1	9811-0105				●
79	00.002 BOLT; SUPPORT RUBBER TO TRANS 03.417 M10X25 FLANGE	0-28081-025-0	04	1	0106-				●
84	00.002 WASHER; PL,ENG MTG RR TO FRAME 03.706 ID=10.5 OD=32	9-09164-810-0	04	1	9811-	●	●	●	●
85	00.002 WASHER; LK,ENG MTG RR TO FRAME 06.515 (A) ID=12.2	9-09150-612-0	02	1	9811-	●	●
85	00.002 WASHER; LK,ENG MTG RR TO FRAME (B) ID=10.2	9-09150-610-0	04	1	9811-	●	●	●	●
166	00.002 NUT; SUPPORT RUBBER 05.816 M12	9-99110-412-0	02	1	9811-0206	●		●
166	00.002 NUT; SUPPORT RUBBER 04.634 M12	9-99110-512-0	02	1	0207-	●		●
173	00.002 NUT; ENG MTG RR TO FRAME 09.011 M10	9-09110-410-0	04	1	9811-	●	●	●	●
177	00.002 BOLT; BRKT TO CUSHION RUBBER FRT INDEPENDENT SUSPENSION(6PP) M10X32.5	8-97090-761-0	04	1	0106-	●	●
177	00.002 BOLT; BRKT TO CUSHION RUBBER EXC. FRT INDEPENDENT SUSPENSION(6PP) M10X37.5	8-94468-733-1	04	1	9811-	●	●
250	00.002 SPACER; ENG FOOT TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97205-803-0	01	1	9811-0105			●
250	00.002 SPACER; ENG FOOT TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97205-805-0	01	1	9811-0105			●
252	00.002 WASHER; LK,SUPPORT RUBBER 06.515 ID=12.2	9-09150-612-0	02	1	9811-	●		●	●
298	00.027 RUBBER; SPACE,ENG FOOT 00.002	8-97205-803-0	01	1	0201-0203	●
298	00.027 RUBBER; SPACE,ENG FOOT	8-97264-926-0	01	1	0204-	●
298	00.027 RUBBER; SPACE,ENG FOOT 00.002	8-97205-805-0	01	1	0201-0203	●
298	00.027 RUBBER; SPACE,ENG FOOT	8-97264-925-0	01	1	0204-	●

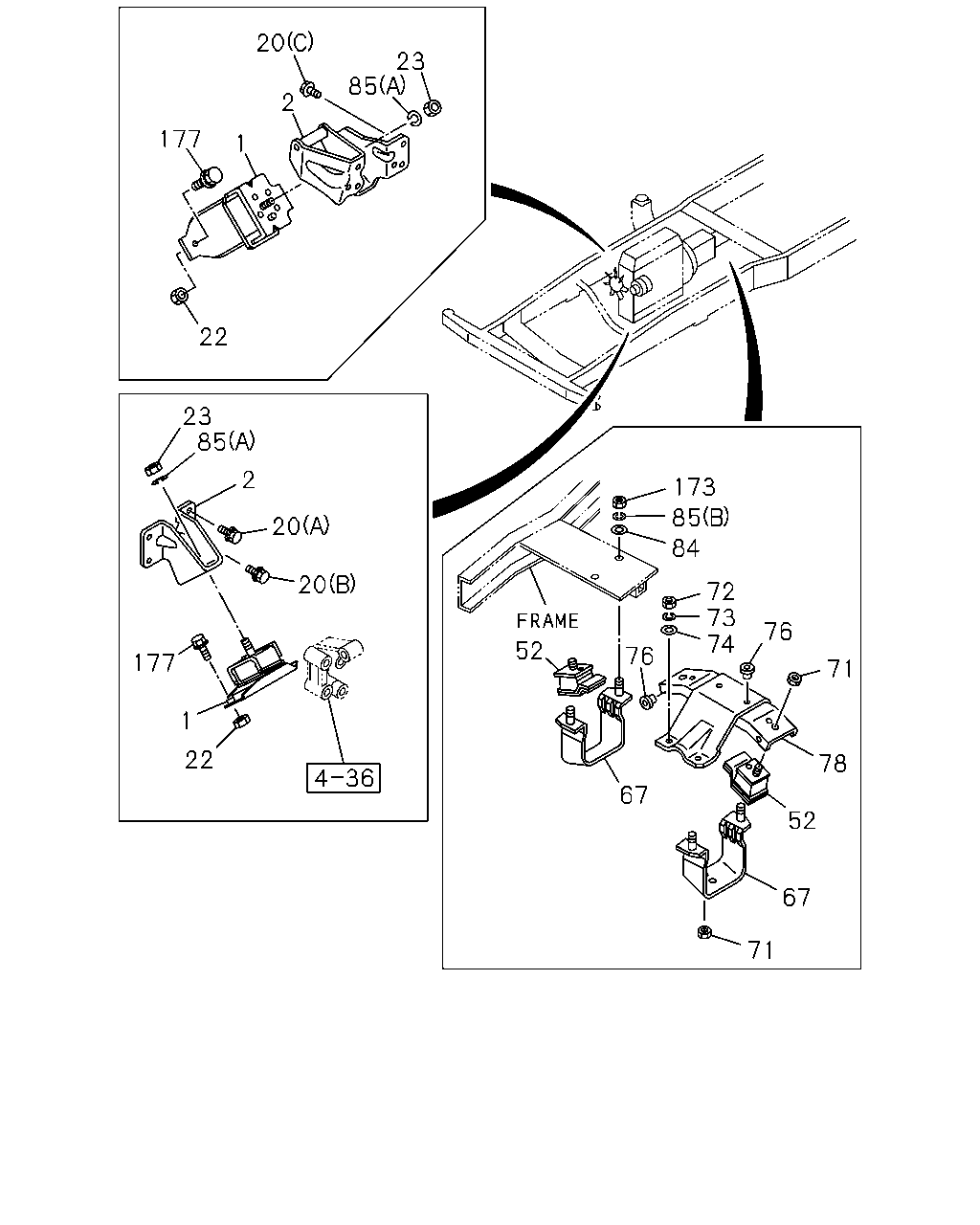

20 23 85 2 177 1 22 23 85 2 173 85 20 84 20 72 73 74 76 52 76 177 71 1 22 78 67 52 67 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.027 RUBBER; ENG FOOT,FRT FRT INDEPENDENT SUSPENSION(6PP)	8-97122-890-0	01	1	0201-	●
1	00.027 RUBBER; ENG FOOT,FRT FRT INDEPENDENT SUSPENSION(6PP)	8-97122-892-0	01	1	0201-	●
1	00.027 RUBBER; ENG FOOT,FRT FRT INDEPENDENT SUSPENSION(6PP)	8-97085-123-0	01	1	0106-		●
1	00.027 RUBBER; ENG FOOT,FRT FRT INDEPENDENT SUSPENSION(6PP)	8-97085-122-0	01	1	0106-		●
1	00.027 RUBBER; ENG FOOT,FRT	8-97080-621-0	01	1	9811-0105		●	●
1	00.027 RUBBER; ENG FOOT,FRT EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97080-621-0	01	1	0106-		●
1	00.027 RUBBER; ENG FOOT,FRT	8-97080-621-0	01	1	0106-			●
1	00.027 RUBBER; ENG FOOT,FRT	8-97080-620-0	01	1	9811-0105		●	●
1	00.027 RUBBER; ENG FOOT,FRT EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97080-620-0	01	1	0106-		●
1	00.027 RUBBER; ENG FOOT,FRT	8-97080-620-0	01	1	0106-			●
1	00.027 RUBBER; ENG FOOT,FRT	8-97122-895-0	01	1	9811-0112				●
1	00.027 RUBBER; ENG FOOT,FRT EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97122-895-0	01	1	0201-	●
1	00.027 RUBBER; ENG FOOT,FRT	8-97122-893-0	01	1	9811-0112				●
1	00.027 RUBBER; ENG FOOT,FRT EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97122-893-0	01	1	0201-	●
2	00.029 FOOT; ENG	8-94122-052-1	01	1	9811-0107	●	●	●
2	00.029 FOOT; ENG	8-97300-156-0	01	1	0108-	●	●	●
2	00.029 FOOT; ENG	8-97073-922-1	01	1	9811-0107	●	●	●
2	00.029 FOOT; ENG	8-97287-639-1	01	1	0108-	●	●	●
2	00.029 FOOT; ENG	8-97145-013-0	02	1	9811-9907				●
2	00.029 FOOT; ENG	8-97228-330-0	02	1	9908-9910				●
2	00.029 FOOT; ENG	8-97228-669-1	02	1	9911-				●
20	00.029 BOLT; ENG FOOT 02.277 (A) M10X22 W/LK WASHER	0-50041-022-0	05	1	9811-	●	●
20	00.029 BOLT; ENG FOOT 00.034 (C) M10X28	8-94329-952-1	02	1	9811-0112		●
20	00.029 BOLT; ENG FOOT OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 00.034 (C) M10X28	8-94329-952-1	02	1	9811-0112			●
20	00.029 BOLT; ENG FOOT OIL COOLER<KC4> TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 00.034 (C) M10X28	8-94329-952-1	02	1	9811-0112			●
20	00.029 BOLT; ENG FOOT 00.034 (C) M10X28	8-94329-952-1	02	1	0201-	●	●
20	00.029 BOLT; ENG FOOT OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 00.034 (C) M10X28	8-94329-952-1	02	1	0201-			●
20	00.029 BOLT; ENG FOOT OIL COOLER<KC4> TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 00.034 (C) M10X28	8-94329-952-1	02	1	0201-			●
20	00.029 BOLT; ENG FOOT 00.002 (B) M14X25 W/LK WASHER	0-50041-425-0	01	1	9811-	●	●	●
20	00.029 BOLT; ENG FOOT OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 02.277 (A) M10X22 W/LK WASHER	0-50041-022-0	02	1	9811-			●
20	00.029 BOLT; ENG FOOT OIL COOLER<KC4> TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 02.277 (A) M10X22 W/LK WASHER	0-50041-022-0	02	1	9811-			●
20	00.029 BOLT; ENG FOOT EXC. OIL COOLER<KC4>,TURBOCHARGER<K51> 02.277 (A) M10X22 W/LK WASHER	0-50041-022-0	03	1	9811-			●
20	00.029 BOLT; ENG FOOT TURBOCHARGER<K51> EXC. OIL COOLER<KC4>,CHARGE AIR COOLER<6PL> 02.277 (A) M10X22 W/LK WASHER	0-50041-022-0	03	1	9811-			●
20	00.029 BOLT; ENG FOOT EXC. TURBOCHARGER<K51> 02.277 (A) M10X22 W/LK WASHER	0-50041-022-0	03	1	9811-			●
20	00.029 BOLT; ENG FOOT TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 02.277 (A) M10X22 W/LK WASHER	0-50041-022-0	03	1	9811-			●
20	00.029 BOLT; ENG FOOT EXC. OIL COOLER<KC4>,TURBOCHARGER<K51> 00.034 (C) M10X28	8-94329-952-1	01	1	9811-			●
20	00.029 BOLT; ENG FOOT TURBOCHARGER<K51> EXC. OIL COOLER<KC4>,CHARGE AIR COOLER<6PL> 00.034 (C) M10X28	8-94329-952-1	01	1	9811-			●
20	00.029 BOLT; ENG FOOT TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 00.034 (C) M10X28	8-94329-952-1	01	1	9811-			●
20	00.029 BOLT; ENG FOOT TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 02.277 (A) M10X22 W/LK WASHER	0-50041-022-0	06	1	9811-			●
20	00.029 BOLT; ENG FOOT M10X20 FLANGE	0-28191-020-0	08	1	9811-				●
22	00.002 NUT; CUSHION RUBBER TO BRKT FRT INDEPENDENT SUSPENSION(6PP) 08.917 M10 FLANGE	0-91150-210-0	02	1	0106-	●	●
22	00.002 NUT; CUSHION RUBBER TO BRKT EXC. FRT INDEPENDENT SUSPENSION(6PP) 08.917 M10 FLANGE	0-91150-210-0	04	1	9811-	●	●
22	00.002 NUT; CUSHION RUBBER TO BRKT 05.816 M12	9-99110-412-0	02	1	9811-				●
23	00.002 NUT; SUPPORT RUBBER,ENG FOOT 05.816 M12	9-99110-412-0	02	1	9811-0206		●
23	00.002 NUT; SUPPORT RUBBER,ENG FOOT 04.634 M12	9-99110-512-0	02	1	0207-		●
52	00.027 RUBBER; CUSHION,ENG MTG,RR	8-94111-903-0	02	1	9811-	●	●	●	●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR	8-94111-908-2	01	1	9811-		●	●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR	8-94111-909-2	01	1	9811-		●	●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR	8-94384-214-0	01	1	9811-				●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR	8-94384-213-0	01	1	9811-				●
71	00.002 NUT; SUPPORT RUBBER TO BRKT 04.785 M10 FLANGE	0-91150-110-0	04	1	9811-	●	●	●	●
72	00.002 NUT; SUPPORT RUBBER TO TRANS 09.011 M10	9-09110-410-0	04	1	9811-		●	●
73	00.002 WASHER; LK,CUSHION RUBBER TO FRA ID=10.2	9-09150-610-0	04	1	9811-		●	●
74	00.002 WASHER; PL,SUPPORT RUBBER TO TRA 04.085 ID=10.5 OD=22	9-09164-610-0	02	1	9811-	●	●	●	●
76	00.002 STOPPER; ENG MTG RUBBER 00.027	8-94111-904-0	04	1	9811-0203	●	●	●	●
76	00.002 STOPPER; ENG MTG RUBBER 00.027	8-94111-904-0	02	1	0204-	●	●	●	●
78	00.029 BRACKET; ENG MTG,RR	8-97260-282-1	01	1	0201-	●
78	00.029 BRACKET; ENG MTG,RR	8-94133-393-2	01	1	9811-		●	●
78	00.029 BRACKET; ENG MTG,RR	8-94112-891-2	01	1	9811-				●
84	00.002 WASHER; PL,ENG MTG RR TO FRAME 03.706 ID=10.5 OD=32	9-09164-810-0	04	1	9811-	●	●	●	●
85	00.002 WASHER; LK,ENG MTG RR TO FRAME 06.515 (A) ID=12.2	9-09150-612-0	02	1	9811-	●	●
85	00.002 WASHER; LK,ENG MTG RR TO FRAME (B) ID=10.2	9-09150-610-0	04	1	9811-	●	●	●	●
173	00.002 NUT; ENG MTG RR TO FRAME 09.011 M10	9-09110-410-0	04	1	9811-	●	●	●	●
177	00.002 BOLT; BRKT TO CUSHION RUBBER FRT INDEPENDENT SUSPENSION(6PP) M10X32.5	8-97090-761-0	04	1	0106-	●	●
177	00.002 BOLT; BRKT TO CUSHION RUBBER EXC. FRT INDEPENDENT SUSPENSION(6PP) M10X37.5	8-94468-733-1	04	1	9811-	●	●

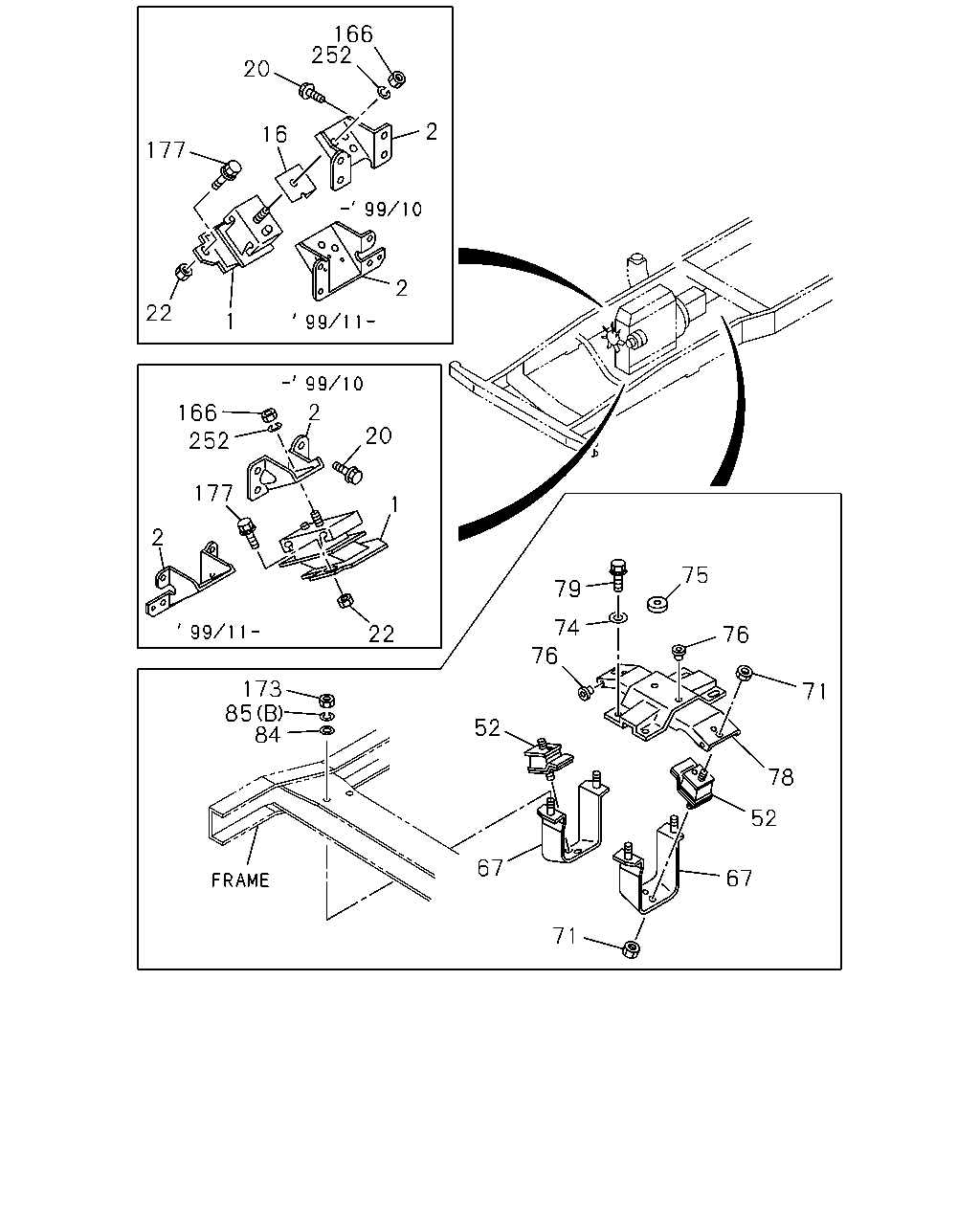

166 252 20 2 16 177 2 22 1 2 166 252 20 177 1 2 75 79 74 22 76 76 173 85 84 71 52 78 52 67 67 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.027 RUBBER; ENG FOOT,FRT FRT INDEPENDENT SUSPENSION(6PP)	8-97122-890-0	01	1	0201-	●
1	00.027 RUBBER; ENG FOOT,FRT FRT INDEPENDENT SUSPENSION(6PP)	8-97122-892-0	01	1	0201-	●
1	00.027 RUBBER; ENG FOOT,FRT FRT INDEPENDENT SUSPENSION(6PP)	8-97085-123-0	01	1	0106-		●
1	00.027 RUBBER; ENG FOOT,FRT FRT INDEPENDENT SUSPENSION(6PP)	8-97085-122-0	01	1	0106-		●
1	00.027 RUBBER; ENG FOOT,FRT	8-97080-621-0	01	1	9811-0105		●	●
1	00.027 RUBBER; ENG FOOT,FRT EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97080-621-0	01	1	0106-		●
1	00.027 RUBBER; ENG FOOT,FRT	8-97080-621-0	01	1	0106-			●
1	00.027 RUBBER; ENG FOOT,FRT	8-97080-620-0	01	1	9811-0105		●	●
1	00.027 RUBBER; ENG FOOT,FRT EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97080-620-0	01	1	0106-		●
1	00.027 RUBBER; ENG FOOT,FRT	8-97080-620-0	01	1	0106-			●
1	00.027 RUBBER; ENG FOOT,FRT	8-97122-895-0	01	1	9811-0112				●
1	00.027 RUBBER; ENG FOOT,FRT EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97122-895-0	01	1	0201-	●
1	00.027 RUBBER; ENG FOOT,FRT	8-97122-893-0	01	1	9811-0112				●
1	00.027 RUBBER; ENG FOOT,FRT EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97122-893-0	01	1	0201-	●
2	00.029 FOOT; ENG	8-94122-052-1	01	1	9811-0107	●	●	●
2	00.029 FOOT; ENG	8-97300-156-0	01	1	0108-	●	●	●
2	00.029 FOOT; ENG	8-97073-922-1	01	1	9811-0107	●	●	●
2	00.029 FOOT; ENG	8-97287-639-1	01	1	0108-	●	●	●
2	00.029 FOOT; ENG	8-97145-013-0	02	1	9811-9907				●
2	00.029 FOOT; ENG	8-97228-330-0	02	1	9908-9910				●
2	00.029 FOOT; ENG	8-97228-669-1	02	1	9911-				●
16	07.039 PROTECTOR; HEAT,ENG MTG,FRT 00.027	8-94365-486-0	01	1	9811-				●
20	00.029 BOLT; ENG FOOT 02.277 (A) M10X22 W/LK WASHER	0-50041-022-0	05	1	9811-	●	●
20	00.029 BOLT; ENG FOOT 00.034 (C) M10X28	8-94329-952-1	02	1	9811-0112		●
20	00.029 BOLT; ENG FOOT OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 00.034 (C) M10X28	8-94329-952-1	02	1	9811-0112			●
20	00.029 BOLT; ENG FOOT OIL COOLER<KC4> TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 00.034 (C) M10X28	8-94329-952-1	02	1	9811-0112			●
20	00.029 BOLT; ENG FOOT 00.034 (C) M10X28	8-94329-952-1	02	1	0201-	●	●
20	00.029 BOLT; ENG FOOT OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 00.034 (C) M10X28	8-94329-952-1	02	1	0201-			●
20	00.029 BOLT; ENG FOOT OIL COOLER<KC4> TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 00.034 (C) M10X28	8-94329-952-1	02	1	0201-			●
20	00.029 BOLT; ENG FOOT 00.002 (B) M14X25 W/LK WASHER	0-50041-425-0	01	1	9811-	●	●	●
20	00.029 BOLT; ENG FOOT OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 02.277 (A) M10X22 W/LK WASHER	0-50041-022-0	02	1	9811-			●
20	00.029 BOLT; ENG FOOT OIL COOLER<KC4> TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 02.277 (A) M10X22 W/LK WASHER	0-50041-022-0	02	1	9811-			●
20	00.029 BOLT; ENG FOOT EXC. OIL COOLER<KC4>,TURBOCHARGER<K51> 02.277 (A) M10X22 W/LK WASHER	0-50041-022-0	03	1	9811-			●
20	00.029 BOLT; ENG FOOT TURBOCHARGER<K51> EXC. OIL COOLER<KC4>,CHARGE AIR COOLER<6PL> 02.277 (A) M10X22 W/LK WASHER	0-50041-022-0	03	1	9811-			●
20	00.029 BOLT; ENG FOOT EXC. TURBOCHARGER<K51> 02.277 (A) M10X22 W/LK WASHER	0-50041-022-0	03	1	9811-			●
20	00.029 BOLT; ENG FOOT TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 02.277 (A) M10X22 W/LK WASHER	0-50041-022-0	03	1	9811-			●
20	00.029 BOLT; ENG FOOT EXC. OIL COOLER<KC4>,TURBOCHARGER<K51> 00.034 (C) M10X28	8-94329-952-1	01	1	9811-			●
20	00.029 BOLT; ENG FOOT TURBOCHARGER<K51> EXC. OIL COOLER<KC4>,CHARGE AIR COOLER<6PL> 00.034 (C) M10X28	8-94329-952-1	01	1	9811-			●
20	00.029 BOLT; ENG FOOT TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 00.034 (C) M10X28	8-94329-952-1	01	1	9811-			●
20	00.029 BOLT; ENG FOOT TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 02.277 (A) M10X22 W/LK WASHER	0-50041-022-0	06	1	9811-			●
20	00.029 BOLT; ENG FOOT M10X20 FLANGE	0-28191-020-0	08	1	9811-				●
22	00.002 NUT; CUSHION RUBBER TO BRKT FRT INDEPENDENT SUSPENSION(6PP) 08.917 M10 FLANGE	0-91150-210-0	02	1	0106-	●	●
22	00.002 NUT; CUSHION RUBBER TO BRKT EXC. FRT INDEPENDENT SUSPENSION(6PP) 08.917 M10 FLANGE	0-91150-210-0	04	1	9811-	●	●
22	00.002 NUT; CUSHION RUBBER TO BRKT 05.816 M12	9-99110-412-0	02	1	9811-				●
52	00.027 RUBBER; CUSHION,ENG MTG,RR	8-94111-903-0	02	1	9811-	●	●	●	●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR	8-94111-908-2	01	1	9811-		●	●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR	8-94111-909-2	01	1	9811-		●	●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR	8-94384-214-0	01	1	9811-				●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR	8-94384-213-0	01	1	9811-				●
71	00.002 NUT; SUPPORT RUBBER TO BRKT 04.785 M10 FLANGE	0-91150-110-0	04	1	9811-	●	●	●	●
74	00.002 WASHER; PL,SUPPORT RUBBER TO TRA 04.085 ID=10.5 OD=22	9-09164-610-0	02	1	9811-	●	●	●	●
75	00.683 SPACER; ENG TO TRANS FIRE TRUCK CHASSIS(V4F) 09.011 OD=32 T=6.0	8-94416-693-0	04	1	9811-0105				●
76	00.002 STOPPER; ENG MTG RUBBER 00.027	8-94111-904-0	04	1	9811-0203	●	●	●	●
76	00.002 STOPPER; ENG MTG RUBBER 00.027	8-94111-904-0	02	1	0204-	●	●	●	●
78	00.029 BRACKET; ENG MTG,RR	8-97260-282-1	01	1	0201-	●
78	00.029 BRACKET; ENG MTG,RR	8-94133-393-2	01	1	9811-		●	●
78	00.029 BRACKET; ENG MTG,RR	8-94112-891-2	01	1	9811-				●
79	00.002 BOLT; SUPPORT RUBBER TO TRANS FIRE TRUCK CHASSIS(V4F) 00.685 M10X30 FLANGE	0-28081-030-0	04	1	9811-0105				●
79	00.002 BOLT; SUPPORT RUBBER TO TRANS EXC. FIRE TRUCK CHASSIS(V4F) 03.417 M10X25 FLANGE	0-28081-025-0	04	1	9811-0105				●
79	00.002 BOLT; SUPPORT RUBBER TO TRANS 03.417 M10X25 FLANGE	0-28081-025-0	04	1	0106-				●
84	00.002 WASHER; PL,ENG MTG RR TO FRAME 03.706 ID=10.5 OD=32	9-09164-810-0	04	1	9811-	●	●	●	●
85	00.002 WASHER; LK,ENG MTG RR TO FRAME 06.515 (A) ID=12.2	9-09150-612-0	02	1	9811-	●	●
85	00.002 WASHER; LK,ENG MTG RR TO FRAME (B) ID=10.2	9-09150-610-0	04	1	9811-	●	●	●	●
166	00.002 NUT; SUPPORT RUBBER 05.816 M12	9-99110-412-0	02	1	9811-0206	●		●
166	00.002 NUT; SUPPORT RUBBER 04.634 M12	9-99110-512-0	02	1	0207-	●		●
173	00.002 NUT; ENG MTG RR TO FRAME 09.011 M10	9-09110-410-0	04	1	9811-	●	●	●	●
177	00.002 BOLT; BRKT TO CUSHION RUBBER FRT INDEPENDENT SUSPENSION(6PP) M10X32.5	8-97090-761-0	04	1	0106-	●	●
177	00.002 BOLT; BRKT TO CUSHION RUBBER EXC. FRT INDEPENDENT SUSPENSION(6PP) M10X37.5	8-94468-733-1	04	1	9811-	●	●
252	00.002 WASHER; LK,SUPPORT RUBBER 06.515 ID=12.2	9-09150-612-0	02	1	9811-	●		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
