Sayfa 0-14 - Isuzu EPC

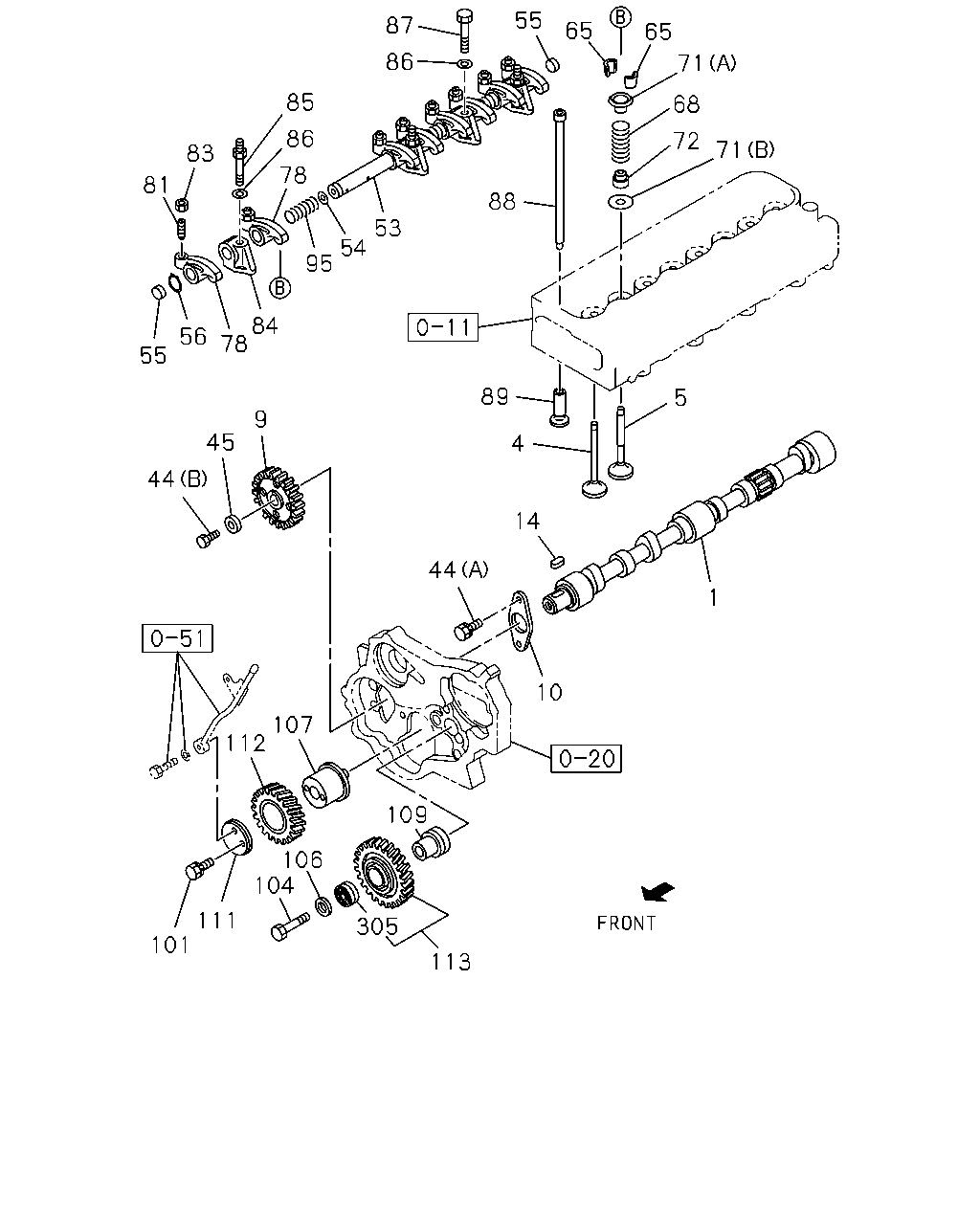

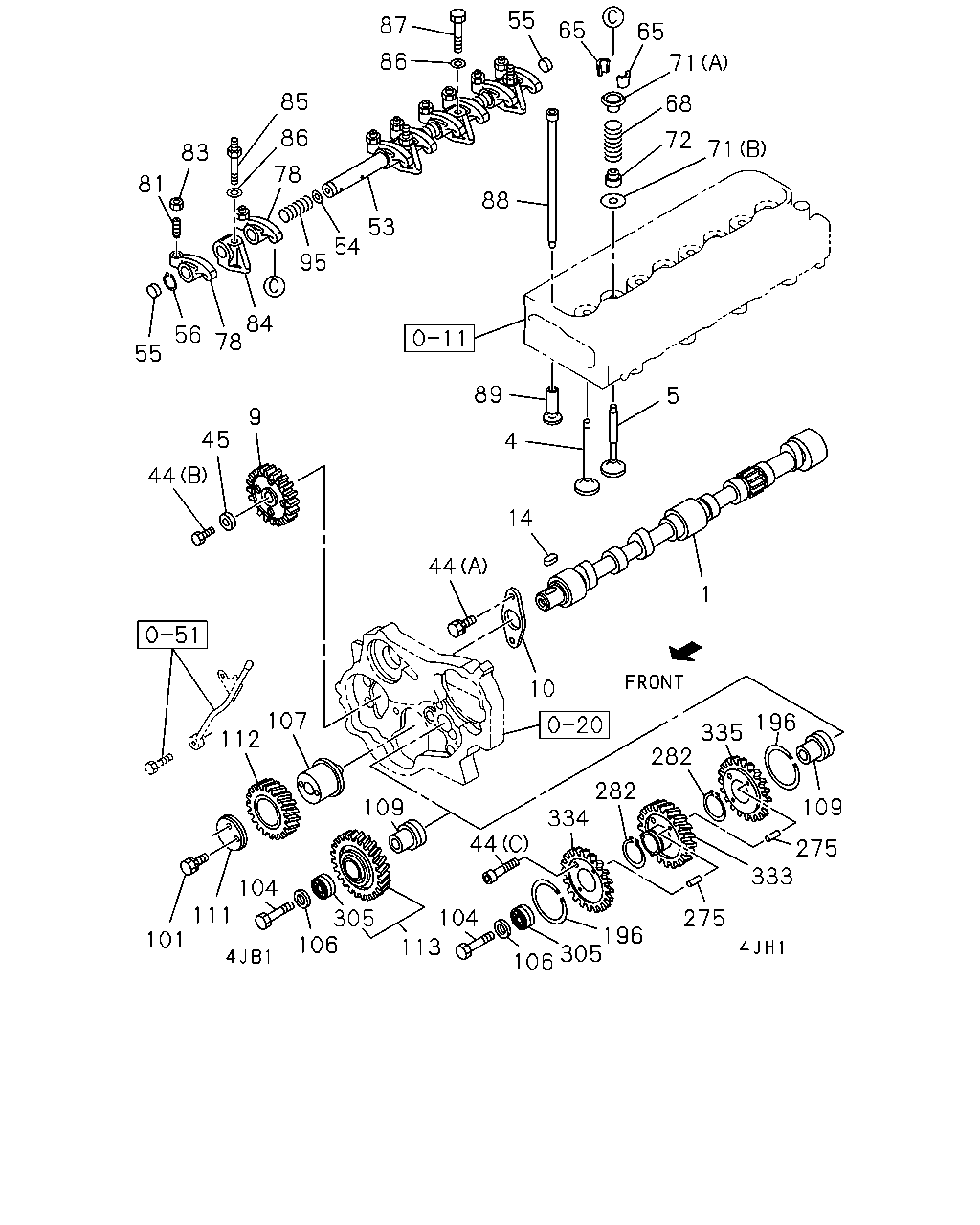

0-14 — CAMSHAFT AND VALVE (#43191) — 565 parça

55 87 65 65 86 71 85 68 86 72 71 83 78 81 88 53 54 95 84 78 56 55 89 5 9 45 4 44 14 44 1 10 107 112 109 106 104 111 305 101 113

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.519 CAMSHAFT	8-94127-797-4	01	1	9811-0002	●	●
1	00.519 CAMSHAFT	8-94127-797-4	01	1	0003-0012	●	●	●
1	00.519 CAMSHAFT	8-97287-657-0	01	1	0101-	●	●	●
1	00.519 CAMSHAFT	8-97077-829-0	01	1	9811-				●
4	00.296 VALVE; INL	8-97131-729-0	04	1	9811-	●		●
4	00.296 VALVE; INL EXC. TURBOCHARGER<K51>	8-94464-921-0	04	1	9811-		●
4	00.296 VALVE; INL EXC. TURBOCHARGER<K51>	8-94133-275-1	04	1	9811-		●
4	00.296 VALVE; INL	8-97171-398-0	04	1	9811-				●
5	00.297 VALVE; EXH	8-97043-861-1	04	1	0201-			●
5	00.297 VALVE; EXH	8-97118-767-1	04	1	9811-	●
5	00.297 VALVE; EXH TURBOCHARGER<K51>	8-94433-245-0	04	1	9811-		●
5	00.297 VALVE; EXH EXC. TURBOCHARGER<K51>	8-94247-875-1	04	1	9811-		●
5	00.297 VALVE; EXH	8-97171-399-0	04	1	9811-				●
9	00.736 GEAR; CM/SHF Z=60	8-97240-012-2	01	1	0201-			●
9	00.736 GEAR; CM/SHF TAIWAN EQUIPMENT(RWV) Z=42	8-97079-212-0	01	1	9811-0105	●
9	00.736 GEAR; CM/SHF EXC. TURBOCHARGER<K51> Z=42	8-97079-212-0	01	1	9811-0105		●
9	00.736 GEAR; CM/SHF TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> Z=42	8-97079-212-0	01	1	9811-0105		●
9	00.736 GEAR; CM/SHF EXC. TURBOCHARGER<K51> Z=42	8-97079-212-0	01	1	0106-0201		●
9	00.736 GEAR; CM/SHF TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> Z=42	8-97079-212-0	01	1	0106-0201		●
9	00.736 GEAR; CM/SHF Z=42	8-97079-212-1	01	1	0202-		●
9	00.736 GEAR; CM/SHF TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> Z=42	8-97218-062-1	01	1	9811-9904		●
9	00.736 GEAR; CM/SHF TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> Z=42	8-97229-594-1	01	1	9905-0201		●
9	00.736 GEAR; CM/SHF Z=70 OD=208.6	8-97088-057-2	01	1	9811-				●
10	00.533 PLATE; THRUST TAIWAN EQUIPMENT(RWV)	8-94110-480-1	01	1	9811-0105	●
10	00.533 PLATE; THRUST	8-94110-480-1	01	1	9811-0105		●
10	00.533 PLATE; THRUST	8-94110-480-1	01	1	0106-		●	●
14	00.738 KEY; CM/SHF 08.960	9-08000-718-0	01	1	9811-	●	●	●
44	00.738 BOLT (C) M6X30 HEX SOCKET	9-05820-630-0	01	1	0201-			●
44	00.738 BOLT TAIWAN EQUIPMENT(RWV) 03.704 (A) M8X16 W/LK WASHER	0-50040-816-0	02	1	9811-0102	●
44	00.738 BOLT 03.704 (A) M8X16 W/LK WASHER	0-50040-816-0	02	1	9811-0102		●
44	00.738 BOLT TAIWAN EQUIPMENT(RWV) 01.062 (A) M8X16 FLANGE	0-28080-816-0	02	1	0103-0105	●
44	00.738 BOLT 01.062 (A) M8X16 FLANGE	0-28080-816-0	02	1	0103-0105		●
44	00.738 BOLT 01.062 (A) M8X16 FLANGE	0-28080-816-0	02	1	0106-0112		●
44	00.738 BOLT 01.062 (A) M8X16 FLANGE	0-28080-816-0	02	1	0201-		●	●
44	00.738 BOLT 00.533 (B) M12X47	8-94433-407-0	01	1	9811-	●	●	●
45	00.738 WASHER; GEAR CAM ID=13 OD=36	5-12519-002-1	01	1	9811-	●	●	●
53	00.353 SHAFT; ROCKER ARM	8-97036-197-0	01	1	9811-	●	●	●
53	00.353 SHAFT; ROCKER ARM JBK	8-97074-617-1	01	1	9811-				●
53	00.353 SHAFT; ROCKER ARM KEIHIN SEIMITSU	8-97174-567-0	01	1	9811-				●
54	00.349 WASHER; ROCKER SPR ID=19.1 OD=23	8-94341-906-0	06	1	9811-	●	●	●
55	00.356 PLUG; ROCKER SHAFT END	9-12626-005-0	02	1	9811-	●	●	●
56	00.349 RING; SNAP,ROCKER ARM ID=17.5	9-09180-019-0	02	1	9811-	●	●	●
65	00.310 COLLAR; SPLIT	5-12565-004-0	16	1	9811-	●	●	●
65	00.310 COLLAR; SPLIT	5-12565-006-0	16	1	9811-				●
68	00.303 SPRING; VLV ID=26.25	8-94433-247-0	08	1	9811-	●	●	●
68	00.303 SPRING; VLV ID=28.5	8-97023-559-0	08	1	9811-				●
71	00.309 SEAT; SPR (B) OD=34	5-12563-001-0	08	1	9811-	●	●	●
71	00.309 SEAT; SPR (A) OD=32.8	8-94133-731-2	08	1	9811-	●	●	●
71	00.309 SEAT; SPR (A) OD=38	8-94385-029-2	08	1	9811-				●
71	00.309 SEAT; SPR (B) ID=14.3 OD=40	8-94399-526-1	08	1	9811-				●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97120-307-0	08	1	9811-	●	●	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-94396-609-2	08	1	9811-				●
78	00.333 ARM; ROCKER	8-94152-344-0	08	1	9811-	●	●	●
78	00.333 ARM; ROCKER (B) JBK	8-97014-258-2	04	1	9811-				●
78	00.333 ARM; ROCKER (A) JBK	8-97074-614-1	04	1	9811-				●
78	00.333 ARM; ROCKER (A) KEIHIN SEIMITSU	8-97174-562-0	04	1	9811-				●
78	00.333 ARM; ROCKER (B) KEIHIN SEIMITSU	8-97174-565-0	04	1	9811-				●
81	00.429 SCREW; ADJ,ROCKER ARM M8X30	8-94152-283-1	08	1	9811-	●	●	●
81	00.429 SCREW; ADJ,ROCKER ARM	8-94367-526-2	08	1	9811-				●
83	00.787 NUT; ADJ SCREW,LK 08.915 M8	9-09111-508-0	08	1	9811-	●	●	●
83	00.787 NUT; ADJ SCREW,LK 06.822 M10	9-09111-410-0	08	1	9811-				●
84	00.349 BRACKET; ROCKER SHAFT,INTER	8-94152-345-1	04	1	9811-	●	●	●
84	00.349 BRACKET; ROCKER SHAFT,INTER JBK	8-94388-109-3	03	1	9811-				●
84	00.349 BRACKET; ROCKER SHAFT,INTER KEIHIN SEIMITSU	8-97174-568-0	03	1	9811-				●
85	00.349 BOLT; BRKT M8X15,M10X60 L=82	8-94433-304-0	03	1	9811-	●	●	●
85	00.349 BOLT; BRKT M10X62 FLANGE	8-94393-131-0	03	1	9811-				●
85	00.349 BOLT; BRKT M10X62 FLANGE	8-97174-650-0	03	1	9811-				●
86	00.349 WASHER; ROCKER ARM FIX ID=10.5	9-09164-010-0	04	1	9811-	●	●	●
87	00.349 BOLT; ROCKER SHAFT M10X60	8-94433-302-0	01	1	9811-	●	●	●
87	00.349 BOLT; ROCKER SHAFT 03.415 M8X35 FLANGE	0-28080-835-0	02	1	9811-				●
88	00.426 ROD; PUSH	8-97071-673-0	08	1	9811-	●	●	●
89	00.459 TAPPET; VLV	8-94438-305-1	08	1	9811-	●	●	●
95	00.376 SPRING; ROCKER SHAFT	8-94341-905-0	03	1	9811-	●	●	●
95	00.376 SPRING; ROCKER SHAFT JBK	8-94397-263-0	04	1	9811-				●
95	00.376 SPRING; ROCKER SHAFT KEIHIN SEIMITSU	8-97174-654-0	04	1	9811-				●
101	00.724 BOLT; THRUST COLLAR TAIWAN EQUIPMENT(RWV) 03.330 M8X55 W/LK WASHER	5-09000-084-1	02	1	9811-9812	●
101	00.724 BOLT; THRUST COLLAR 03.330 M8X55 W/LK WASHER	5-09000-084-1	02	1	9811-9812		●
101	00.724 BOLT; THRUST COLLAR TAIWAN EQUIPMENT(RWV) 03.330 M8X55 W/LK WASHER	5-09000-084-1	02	1	9901-9904	●
101	00.724 BOLT; THRUST COLLAR EXC. TURBOCHARGER<K51> 03.330 M8X55 W/LK WASHER	5-09000-084-1	02	1	9901-9904		●
101	00.724 BOLT; THRUST COLLAR TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 03.330 M8X55 W/LK WASHER	5-09000-084-1	02	1	9901-9904		●
101	00.724 BOLT; THRUST COLLAR TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> M8X53 FLANGE	8-97223-999-0	02	1	9901-9904		●
101	00.724 BOLT; THRUST COLLAR TAIWAN EQUIPMENT(RWV) M8X53 FLANGE	8-97223-999-0	02	1	9905-0105	●
101	00.724 BOLT; THRUST COLLAR M8X53 FLANGE	8-97223-999-0	02	1	9905-0105		●
101	00.724 BOLT; THRUST COLLAR M8X53 FLANGE	8-97223-999-0	02	1	0106-0112		●
101	00.724 BOLT; THRUST COLLAR M8X53 FLANGE	8-97223-999-0	02	1	0201-		●	●
101	00.724 BOLT; THRUST COLLAR (A) M14X36.5	8-94372-221-1	01	1	9811-				●
101	00.724 BOLT; THRUST COLLAR (B) M8X14	8-97073-782-0	03	1	9811-0203				●
101	00.724 BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28090-816-0	03	1	0204-				●
101	00.724 BOLT; THRUST COLLAR (C) M14X25	9-92361-425-0	01	1	9811-				●
104	00.724 BOLT; SHAFT IDLE M12X77	8-94129-384-0	01	1	0201-			●
104	00.724 BOLT; SHAFT IDLE TAIWAN EQUIPMENT(RWV)	8-94109-706-1	01	1	9811-9811	●
104	00.724 BOLT; SHAFT IDLE EXC. TURBOCHARGER<K51>	8-94109-706-1	01	1	9811-9811		●
104	00.724 BOLT; SHAFT IDLE TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL>	8-94109-706-1	01	1	9811-9811		●
104	00.724 BOLT; SHAFT IDLE TAIWAN EQUIPMENT(RWV)	8-94109-706-1	01	1	9812-0105	●
104	00.724 BOLT; SHAFT IDLE	8-94109-706-1	01	1	9812-0105		●
104	00.724 BOLT; SHAFT IDLE	8-94109-706-1	01	1	0106-		●
104	00.724 BOLT; SHAFT IDLE TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> M12X57	1-09040-044-0	01	1	9811-9811		●
106	00.724 WASHER; IDLE GEAR SHAFT TAIWAN EQUIPMENT(RWV) 00.738 ID=13 OD=36	5-12519-002-1	01	1	9811-0105	●
106	00.724 WASHER; IDLE GEAR SHAFT 00.738 ID=13 OD=36	5-12519-002-1	01	1	9811-0105		●
106	00.724 WASHER; IDLE GEAR SHAFT 00.738 ID=13 OD=36	5-12519-002-1	01	1	0106-0112		●
106	00.724 WASHER; IDLE GEAR SHAFT 00.738 ID=13 OD=36	5-12519-002-1	01	1	0201-		●	●
107	00.724 SHAFT; IDLE GEAR	8-97240-021-0	01	1	0201-			●
107	00.724 SHAFT; IDLE GEAR TAIWAN EQUIPMENT(RWV)	8-94139-758-1	01	1	9811-0105	●
107	00.724 SHAFT; IDLE GEAR EXC. TURBOCHARGER<K51>	8-94139-758-1	01	1	9811-0105		●
107	00.724 SHAFT; IDLE GEAR TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL>	8-94139-758-1	01	1	9811-0105		●
107	00.724 SHAFT; IDLE GEAR EXC. TURBOCHARGER<K51>	8-94139-758-1	01	1	0106-		●
107	00.724 SHAFT; IDLE GEAR TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL>	8-94139-758-1	01	1	0106-		●
107	00.724 SHAFT; IDLE GEAR TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97218-993-0	01	1	9811-0207		●
107	00.724 SHAFT; IDLE GEAR TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97920-007-0	01	1	0208-		●
107	00.724 SHAFT; IDLE GEAR (D)	8-97104-380-0	01	1	9811-				●
107	00.724 SHAFT; IDLE GEAR (B)	8-97186-398-1	01	1	9811-				●
107	00.724 SHAFT; IDLE GEAR (C)	8-97189-244-0	01	1	9811-0203				●
107	00.724 SHAFT; IDLE GEAR (C)	8-97350-021-0	01	1	0204-				●
107	00.724 SHAFT; IDLE GEAR POWER STEERING<N40> (A)	8-94334-682-0	01	1	9811-				●
109	00.724 SHAFT; IDLE GEAR	8-97240-023-1	01	1	0201-			●
109	00.724 SHAFT; IDLE GEAR TAIWAN EQUIPMENT(RWV)	8-94109-913-1	01	1	9811-0105	●
109	00.724 SHAFT; IDLE GEAR EXC. TURBOCHARGER<K51>	8-94109-913-1	01	1	9811-0105		●
109	00.724 SHAFT; IDLE GEAR TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL>	8-94109-913-1	01	1	9811-0105		●
109	00.724 SHAFT; IDLE GEAR EXC. TURBOCHARGER<K51>	8-94109-913-1	01	1	0106-		●
109	00.724 SHAFT; IDLE GEAR TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL>	8-94109-913-1	01	1	0106-		●
109	00.724 SHAFT; IDLE GEAR TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97218-780-0	01	1	9811-		●
111	00.724 COLLAR; THRUST,IDLE GEAR	8-94171-289-0	01	1	0201-			●
111	00.724 COLLAR; THRUST,IDLE GEAR TAIWAN EQUIPMENT(RWV)	8-94141-937-1	01	1	9811-0105	●
111	00.724 COLLAR; THRUST,IDLE GEAR	8-94141-937-1	01	1	9811-0105		●
111	00.724 COLLAR; THRUST,IDLE GEAR	8-94141-937-1	01	1	0106-		●
111	00.724 COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-1	03	1	9811-				●
111	00.724 COLLAR; THRUST,IDLE GEAR POWER STEERING<N40> ID=14.5 OD=46	8-97209-728-1	01	1	9811-				●
112	00.724 GEAR; IDLE Z=43	8-97240-014-1	01	1	0201-			●
112	00.724 GEAR; IDLE TAIWAN EQUIPMENT(RWV) Z=31	8-97164-773-0	01	1	9811-0105	●
112	00.724 GEAR; IDLE EXC. TURBOCHARGER<K51> Z=31	8-97164-773-0	01	1	9811-0105		●
112	00.724 GEAR; IDLE TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> Z=31	8-97164-773-0	01	1	9811-0105		●
112	00.724 GEAR; IDLE EXC. TURBOCHARGER<K51> Z=31	8-97164-773-0	01	1	0106-		●
112	00.724 GEAR; IDLE TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> Z=31	8-97164-773-0	01	1	0106-		●
112	00.724 GEAR; IDLE TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> Z=31	8-97218-063-0	01	1	9811-9904		●
112	00.724 GEAR; IDLE TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> Z=31	8-97229-601-0	01	1	9905-		●
112	00.724 GEAR; IDLE (C) Z=122	8-97088-053-1	01	1	9811-				●
112	00.724 GEAR; IDLE (D) Z=82	8-97088-055-1	01	1	9811-				●
112	00.724 GEAR; IDLE (A) Z=72-60	8-97114-602-1	01	1	9811-9902				●
112	00.724 GEAR; IDLE (A) Z=72-60	8-97227-213-0	01	1	9903-				●
112	00.724 GEAR; IDLE POWER STEERING<N40> (B) Z=34	8-97120-005-0	01	1	9811-				●
113	00.724 GEAR; IDLE TAIWAN EQUIPMENT(RWV) Z=37	8-94139-761-0	01	1	9811-0105	●
113	00.724 GEAR; IDLE EXC. TURBOCHARGER<K51> Z=37	8-94139-761-0	01	1	9811-0105		●
113	00.724 GEAR; IDLE TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> Z=37	8-94139-761-0	01	1	9811-0105		●
113	00.724 GEAR; IDLE EXC. TURBOCHARGER<K51> Z=37	8-94139-761-0	01	1	0106-		●
113	00.724 GEAR; IDLE TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> Z=37	8-94139-761-0	01	1	0106-		●
113	00.724 GEAR; IDLE TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> Z=37	8-97218-065-1	01	1	9811-9904		●
113	00.724 GEAR; IDLE TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> Z=37	8-97229-602-0	01	1	9905-		●
305	00.724 BEARING; IDLE GEAR	8-97240-019-1	01	1	0201-			●
305	00.724 BEARING; IDLE GEAR TAIWAN EQUIPMENT(RWV)	8-94110-271-0	01	1	9811-0105	●
305	00.724 BEARING; IDLE GEAR EXC. TURBOCHARGER<K51>	8-94110-271-0	01	1	9811-0105		●
305	00.724 BEARING; IDLE GEAR TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL>	8-94110-271-0	01	1	9811-0105		●
305	00.724 BEARING; IDLE GEAR EXC. TURBOCHARGER<K51>	8-94110-271-0	01	1	0106-		●
305	00.724 BEARING; IDLE GEAR TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL>	8-94110-271-0	01	1	0106-		●
305	00.724 BEARING; IDLE GEAR TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97218-947-1	01	1	9811-		●

87 83 107 85 81 112 111 102 78 65 65 66 71 105 65 78 66 71 223 65 224 53 84 68 68 95 71 37 71 87 1 72 72 5 4 37 12 9 8 112 7 206 101 102 107 112 111 107 206 101 101 111 111 117 107 206 112

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.519 CAMSHAFT	8-94127-797-4	01	1	9811-0002	●	●
1	00.519 CAMSHAFT	8-94127-797-4	01	1	0003-0012	●	●	●
1	00.519 CAMSHAFT	8-97287-657-0	01	1	0101-	●	●	●
1	00.519 CAMSHAFT	8-97077-829-0	01	1	9811-				●
4	00.296 VALVE; INL	8-97131-729-0	04	1	9811-	●		●
4	00.296 VALVE; INL EXC. TURBOCHARGER<K51>	8-94464-921-0	04	1	9811-		●
4	00.296 VALVE; INL EXC. TURBOCHARGER<K51>	8-94133-275-1	04	1	9811-		●
4	00.296 VALVE; INL	8-97171-398-0	04	1	9811-				●
5	00.297 VALVE; EXH	8-97043-861-1	04	1	0201-			●
5	00.297 VALVE; EXH	8-97118-767-1	04	1	9811-	●
5	00.297 VALVE; EXH TURBOCHARGER<K51>	8-94433-245-0	04	1	9811-		●
5	00.297 VALVE; EXH EXC. TURBOCHARGER<K51>	8-94247-875-1	04	1	9811-		●
5	00.297 VALVE; EXH	8-97171-399-0	04	1	9811-				●
7	00.738 BOLT; CM/SHF GEAR 08.900 M14X40	9-92061-440-0	01	1	9811-0204				●
7	00.738 BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	0205-				●
8	00.738 WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	9811-				●
9	00.736 GEAR; CM/SHF Z=60	8-97240-012-2	01	1	0201-			●
9	00.736 GEAR; CM/SHF TAIWAN EQUIPMENT(RWV) Z=42	8-97079-212-0	01	1	9811-0105	●
9	00.736 GEAR; CM/SHF EXC. TURBOCHARGER<K51> Z=42	8-97079-212-0	01	1	9811-0105		●
9	00.736 GEAR; CM/SHF TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> Z=42	8-97079-212-0	01	1	9811-0105		●
9	00.736 GEAR; CM/SHF EXC. TURBOCHARGER<K51> Z=42	8-97079-212-0	01	1	0106-0201		●
9	00.736 GEAR; CM/SHF TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> Z=42	8-97079-212-0	01	1	0106-0201		●
9	00.736 GEAR; CM/SHF Z=42	8-97079-212-1	01	1	0202-		●
9	00.736 GEAR; CM/SHF TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> Z=42	8-97218-062-1	01	1	9811-9904		●
9	00.736 GEAR; CM/SHF TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> Z=42	8-97229-594-1	01	1	9905-0201		●
9	00.736 GEAR; CM/SHF Z=70 OD=208.6	8-97088-057-2	01	1	9811-				●
12	00.738 KEY; CAM GEAR SET	8-94399-487-0	01	1	9811-				●
37	00.539 METAL; CM/SHF	8-97112-638-0	10	1	9811-0209				●
37	00.539 METAL; CM/SHF B=16	8-97356-939-0	10	1	0210-				●
53	00.353 SHAFT; ROCKER ARM	8-97036-197-0	01	1	9811-	●	●	●
53	00.353 SHAFT; ROCKER ARM JBK	8-97074-617-1	01	1	9811-				●
53	00.353 SHAFT; ROCKER ARM KEIHIN SEIMITSU	8-97174-567-0	01	1	9811-				●
65	00.310 COLLAR; SPLIT	5-12565-004-0	16	1	9811-	●	●	●
65	00.310 COLLAR; SPLIT	5-12565-006-0	16	1	9811-				●
66	00.303 CAP; VLV STEM END	8-97188-300-0	08	1	9811-0106				●
66	00.303 CAP; VLV STEM END	8-94396-015-2	08	1	0107-				●
68	00.303 SPRING; VLV ID=26.25	8-94433-247-0	08	1	9811-	●	●	●
68	00.303 SPRING; VLV ID=28.5	8-97023-559-0	08	1	9811-				●
71	00.309 SEAT; SPR (B) OD=34	5-12563-001-0	08	1	9811-	●	●	●
71	00.309 SEAT; SPR (A) OD=32.8	8-94133-731-2	08	1	9811-	●	●	●
71	00.309 SEAT; SPR (A) OD=38	8-94385-029-2	08	1	9811-				●
71	00.309 SEAT; SPR (B) ID=14.3 OD=40	8-94399-526-1	08	1	9811-				●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97120-307-0	08	1	9811-	●	●	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-94396-609-2	08	1	9811-				●
78	00.333 ARM; ROCKER	8-94152-344-0	08	1	9811-	●	●	●
78	00.333 ARM; ROCKER (B) JBK	8-97014-258-2	04	1	9811-				●
78	00.333 ARM; ROCKER (A) JBK	8-97074-614-1	04	1	9811-				●
78	00.333 ARM; ROCKER (A) KEIHIN SEIMITSU	8-97174-562-0	04	1	9811-				●
78	00.333 ARM; ROCKER (B) KEIHIN SEIMITSU	8-97174-565-0	04	1	9811-				●
81	00.429 SCREW; ADJ,ROCKER ARM M8X30	8-94152-283-1	08	1	9811-	●	●	●
81	00.429 SCREW; ADJ,ROCKER ARM	8-94367-526-2	08	1	9811-				●
83	00.787 NUT; ADJ SCREW,LK 08.915 M8	9-09111-508-0	08	1	9811-	●	●	●
83	00.787 NUT; ADJ SCREW,LK 06.822 M10	9-09111-410-0	08	1	9811-				●
84	00.349 BRACKET; ROCKER SHAFT,INTER	8-94152-345-1	04	1	9811-	●	●	●
84	00.349 BRACKET; ROCKER SHAFT,INTER JBK	8-94388-109-3	03	1	9811-				●
84	00.349 BRACKET; ROCKER SHAFT,INTER KEIHIN SEIMITSU	8-97174-568-0	03	1	9811-				●
85	00.349 BOLT; BRKT M8X15,M10X60 L=82	8-94433-304-0	03	1	9811-	●	●	●
85	00.349 BOLT; BRKT M10X62 FLANGE	8-94393-131-0	03	1	9811-				●
85	00.349 BOLT; BRKT M10X62 FLANGE	8-97174-650-0	03	1	9811-				●
87	00.349 BOLT; ROCKER SHAFT M10X60	8-94433-302-0	01	1	9811-	●	●	●
87	00.349 BOLT; ROCKER SHAFT 03.415 M8X35 FLANGE	0-28080-835-0	02	1	9811-				●
95	00.376 SPRING; ROCKER SHAFT	8-94341-905-0	03	1	9811-	●	●	●
95	00.376 SPRING; ROCKER SHAFT JBK	8-94397-263-0	04	1	9811-				●
95	00.376 SPRING; ROCKER SHAFT KEIHIN SEIMITSU	8-97174-654-0	04	1	9811-				●
101	00.724 BOLT; THRUST COLLAR TAIWAN EQUIPMENT(RWV) 03.330 M8X55 W/LK WASHER	5-09000-084-1	02	1	9811-9812	●
101	00.724 BOLT; THRUST COLLAR 03.330 M8X55 W/LK WASHER	5-09000-084-1	02	1	9811-9812		●
101	00.724 BOLT; THRUST COLLAR TAIWAN EQUIPMENT(RWV) 03.330 M8X55 W/LK WASHER	5-09000-084-1	02	1	9901-9904	●
101	00.724 BOLT; THRUST COLLAR EXC. TURBOCHARGER<K51> 03.330 M8X55 W/LK WASHER	5-09000-084-1	02	1	9901-9904		●
101	00.724 BOLT; THRUST COLLAR TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 03.330 M8X55 W/LK WASHER	5-09000-084-1	02	1	9901-9904		●
101	00.724 BOLT; THRUST COLLAR TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> M8X53 FLANGE	8-97223-999-0	02	1	9901-9904		●
101	00.724 BOLT; THRUST COLLAR TAIWAN EQUIPMENT(RWV) M8X53 FLANGE	8-97223-999-0	02	1	9905-0105	●
101	00.724 BOLT; THRUST COLLAR M8X53 FLANGE	8-97223-999-0	02	1	9905-0105		●
101	00.724 BOLT; THRUST COLLAR M8X53 FLANGE	8-97223-999-0	02	1	0106-0112		●
101	00.724 BOLT; THRUST COLLAR M8X53 FLANGE	8-97223-999-0	02	1	0201-		●	●
101	00.724 BOLT; THRUST COLLAR (A) M14X36.5	8-94372-221-1	01	1	9811-				●
101	00.724 BOLT; THRUST COLLAR (B) M8X14	8-97073-782-0	03	1	9811-0203				●
101	00.724 BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28090-816-0	03	1	0204-				●
101	00.724 BOLT; THRUST COLLAR (C) M14X25	9-92361-425-0	01	1	9811-				●
102	00.724 COVER; IDLE GEAR (A)	8-94334-681-1	01	1	9811-				●
102	00.724 COVER; IDLE GEAR (B) OD=51	8-97096-826-0	01	1	9811-				●
105	00.724 BOLT; IDLE GEAR SHAFT POWER STEERING<N40> 08.900 M14X60	9-91666-460-0	01	1	9811-				●
107	00.724 SHAFT; IDLE GEAR	8-97240-021-0	01	1	0201-			●
107	00.724 SHAFT; IDLE GEAR TAIWAN EQUIPMENT(RWV)	8-94139-758-1	01	1	9811-0105	●
107	00.724 SHAFT; IDLE GEAR EXC. TURBOCHARGER<K51>	8-94139-758-1	01	1	9811-0105		●
107	00.724 SHAFT; IDLE GEAR TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL>	8-94139-758-1	01	1	9811-0105		●
107	00.724 SHAFT; IDLE GEAR EXC. TURBOCHARGER<K51>	8-94139-758-1	01	1	0106-		●
107	00.724 SHAFT; IDLE GEAR TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL>	8-94139-758-1	01	1	0106-		●
107	00.724 SHAFT; IDLE GEAR TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97218-993-0	01	1	9811-0207		●
107	00.724 SHAFT; IDLE GEAR TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97920-007-0	01	1	0208-		●
107	00.724 SHAFT; IDLE GEAR (D)	8-97104-380-0	01	1	9811-				●
107	00.724 SHAFT; IDLE GEAR (B)	8-97186-398-1	01	1	9811-				●
107	00.724 SHAFT; IDLE GEAR (C)	8-97189-244-0	01	1	9811-0203				●
107	00.724 SHAFT; IDLE GEAR (C)	8-97350-021-0	01	1	0204-				●
107	00.724 SHAFT; IDLE GEAR POWER STEERING<N40> (A)	8-94334-682-0	01	1	9811-				●
111	00.724 COLLAR; THRUST,IDLE GEAR	8-94171-289-0	01	1	0201-			●
111	00.724 COLLAR; THRUST,IDLE GEAR TAIWAN EQUIPMENT(RWV)	8-94141-937-1	01	1	9811-0105	●
111	00.724 COLLAR; THRUST,IDLE GEAR	8-94141-937-1	01	1	9811-0105		●
111	00.724 COLLAR; THRUST,IDLE GEAR	8-94141-937-1	01	1	0106-		●
111	00.724 COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-1	03	1	9811-				●
111	00.724 COLLAR; THRUST,IDLE GEAR POWER STEERING<N40> ID=14.5 OD=46	8-97209-728-1	01	1	9811-				●
112	00.724 GEAR; IDLE Z=43	8-97240-014-1	01	1	0201-			●
112	00.724 GEAR; IDLE TAIWAN EQUIPMENT(RWV) Z=31	8-97164-773-0	01	1	9811-0105	●
112	00.724 GEAR; IDLE EXC. TURBOCHARGER<K51> Z=31	8-97164-773-0	01	1	9811-0105		●
112	00.724 GEAR; IDLE TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> Z=31	8-97164-773-0	01	1	9811-0105		●
112	00.724 GEAR; IDLE EXC. TURBOCHARGER<K51> Z=31	8-97164-773-0	01	1	0106-		●
112	00.724 GEAR; IDLE TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> Z=31	8-97164-773-0	01	1	0106-		●
112	00.724 GEAR; IDLE TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> Z=31	8-97218-063-0	01	1	9811-9904		●
112	00.724 GEAR; IDLE TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> Z=31	8-97229-601-0	01	1	9905-		●
112	00.724 GEAR; IDLE (C) Z=122	8-97088-053-1	01	1	9811-				●
112	00.724 GEAR; IDLE (D) Z=82	8-97088-055-1	01	1	9811-				●
112	00.724 GEAR; IDLE (A) Z=72-60	8-97114-602-1	01	1	9811-9902				●
112	00.724 GEAR; IDLE (A) Z=72-60	8-97227-213-0	01	1	9903-				●
112	00.724 GEAR; IDLE POWER STEERING<N40> (B) Z=34	8-97120-005-0	01	1	9811-				●
117	00.662 BOLT; FLANGE M14X65 FLANGE	8-97113-167-0	01	1	9811-				●
206	00.724 BUSHING; IDLE GEAR (A) AFTER PRESS FITTING, MACHINE IT.	1-12528-006-0	01	1	9811-				●
206	00.724 BUSHING; IDLE GEAR (B) AFTER PRESS FITTING, MACHINE IT.	8-94369-340-0	01	1	9811-				●
206	00.724 BUSHING; IDLE GEAR (C) AFTER PRESS FITTING, MACHINE IT.	8-97112-608-0	01	1	9811-				●
223	00.724 GASKET; COVER,IDLE GEAR ALSO INCLUDED IN GASKET SET(ENGINE). 04.854 ID=105.6	1-09623-247-0	01	1	9811-0211				●
223	00.724 GASKET; COVER,IDLE GEAR ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6	1-09623-423-0	01	1	0212-				●
224	00.724 BOLT; COVER 01.062 M8X16 FLANGE	0-28080-816-0	02	1	9811-				●

55 87 65 86 71 65 68 53 85 72 71 83 86 81 88 54 95 78 84 78 56 55 89 5 144 50 49 36 46 4 47 4 1 43 48 45 44 123 31 121 41 138 42 137 148 147 124 116 120 119 146 146 145

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.519 CAMSHAFT	8-94127-797-4	01	1	9811-0002	●	●
1	00.519 CAMSHAFT	8-94127-797-4	01	1	0003-0012	●	●	●
1	00.519 CAMSHAFT	8-97287-657-0	01	1	0101-	●	●	●
1	00.519 CAMSHAFT	8-97077-829-0	01	1	9811-				●
4	00.296 VALVE; INL	8-97131-729-0	04	1	9811-	●		●
4	00.296 VALVE; INL EXC. TURBOCHARGER<K51>	8-94464-921-0	04	1	9811-		●
4	00.296 VALVE; INL EXC. TURBOCHARGER<K51>	8-94133-275-1	04	1	9811-		●
4	00.296 VALVE; INL	8-97171-398-0	04	1	9811-				●
5	00.297 VALVE; EXH	8-97043-861-1	04	1	0201-			●
5	00.297 VALVE; EXH	8-97118-767-1	04	1	9811-	●
5	00.297 VALVE; EXH TURBOCHARGER<K51>	8-94433-245-0	04	1	9811-		●
5	00.297 VALVE; EXH EXC. TURBOCHARGER<K51>	8-94247-875-1	04	1	9811-		●
5	00.297 VALVE; EXH	8-97171-399-0	04	1	9811-				●
31	00.736 SPROCKET; CM/SHF CHILE EQUIPMENT(6KB) Z=44	8-97147-983-0	01	1	9811-0012	●
31	00.736 SPROCKET; CM/SHF BRAZIL EQUIPMENT(RWF),CHILE EQUIPMENT(6KB) Z=44	8-97147-983-0	01	1	0101-0105	●
31	00.736 SPROCKET; CM/SHF Z=44	8-97147-983-0	01	1	0106-	●
36	00.533 SEAL; OIL,CM/SHF,FRT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) CHILE EQUIPMENT(6KB) OD=56 T=7.0	8-97080-562-0	01	1	9811-0012	●
36	00.533 SEAL; OIL,CM/SHF,FRT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) BRAZIL EQUIPMENT(RWF),CHILE EQUIPMENT(6KB) OD=56 T=7.0	8-97080-562-0	01	1	0101-0105	●
36	00.533 SEAL; OIL,CM/SHF,FRT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) OD=56 T=7.0	8-97080-562-0	01	1	0106-0207	●
36	00.533 SEAL; OIL,CM/SHF,FRT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) OD=56 T=6.5	8-97352-745-0	01	1	0208-	●
41	00.662 FLANGE; CAM PULLEY CHILE EQUIPMENT(6KB)	8-94157-492-0	01	1	9811-0012	●
41	00.662 FLANGE; CAM PULLEY BRAZIL EQUIPMENT(RWF),CHILE EQUIPMENT(6KB)	8-94157-492-0	01	1	0101-0105	●
41	00.662 FLANGE; CAM PULLEY	8-94157-492-0	01	1	0106-	●
42	00.662 BOLT; FLANGE CAM CHILE EQUIPMENT(6KB) 04.785 M8X18 W/LK WASHER	0-50040-818-0	03	1	9811-0012	●
42	00.662 BOLT; FLANGE CAM BRAZIL EQUIPMENT(RWF),CHILE EQUIPMENT(6KB) 04.785 M8X18 W/LK WASHER	0-50040-818-0	03	1	0101-0105	●
42	00.662 BOLT; FLANGE CAM 04.785 M8X18 W/LK WASHER	0-50040-818-0	03	1	0106-	●
43	00.662 BOLT; PULLEY CHILE EQUIPMENT(6KB) 04.686 M6X16 W/LK WASHER	0-50040-616-0	03	1	9811-0012	●
43	00.662 BOLT; PULLEY BRAZIL EQUIPMENT(RWF),CHILE EQUIPMENT(6KB) 04.686 M6X16 W/LK WASHER	0-50040-616-0	03	1	0101-0105	●
43	00.662 BOLT; PULLEY 04.686 M6X16 W/LK WASHER	0-50040-616-0	03	1	0106-	●
44	00.738 BOLT (C) M6X30 HEX SOCKET	9-05820-630-0	01	1	0201-			●
44	00.738 BOLT TAIWAN EQUIPMENT(RWV) 03.704 (A) M8X16 W/LK WASHER	0-50040-816-0	02	1	9811-0102	●
44	00.738 BOLT 03.704 (A) M8X16 W/LK WASHER	0-50040-816-0	02	1	9811-0102		●
44	00.738 BOLT TAIWAN EQUIPMENT(RWV) 01.062 (A) M8X16 FLANGE	0-28080-816-0	02	1	0103-0105	●
44	00.738 BOLT 01.062 (A) M8X16 FLANGE	0-28080-816-0	02	1	0103-0105		●
44	00.738 BOLT 01.062 (A) M8X16 FLANGE	0-28080-816-0	02	1	0106-0112		●
44	00.738 BOLT 01.062 (A) M8X16 FLANGE	0-28080-816-0	02	1	0201-		●	●
44	00.738 BOLT 00.533 (B) M12X47	8-94433-407-0	01	1	9811-	●	●	●
45	00.738 WASHER; GEAR CAM ID=13 OD=36	5-12519-002-1	01	1	9811-	●	●	●
46	00.736 CENTER ASM; TIMING PULLEY CHILE EQUIPMENT(6KB)	8-97118-491-0	01	1	9811-0012	●
46	00.736 CENTER ASM; TIMING PULLEY BRAZIL EQUIPMENT(RWF),CHILE EQUIPMENT(6KB)	8-97118-491-0	01	1	0101-0105	●
46	00.736 CENTER ASM; TIMING PULLEY	8-97118-491-1	01	1	0106-	●
47	00.662 PIN; STRAIGHT,CENTER CHILE EQUIPMENT(6KB) 08.939 OD=4 L=12	9-08160-412-0	01	1	9811-0012	●
47	00.662 PIN; STRAIGHT,CENTER BRAZIL EQUIPMENT(RWF),CHILE EQUIPMENT(6KB) 08.939 OD=4 L=12	9-08160-412-0	01	1	0101-0105	●
47	00.662 PIN; STRAIGHT,CENTER 08.939 OD=4 L=12	9-08160-412-0	01	1	0106-	●
48	00.724 BOLT; RET CHILE EQUIPMENT(6KB) 01.540 M8X35 W/LK WASHER	0-50040-835-0	05	1	9811-0012	●
48	00.724 BOLT; RET BRAZIL EQUIPMENT(RWF),CHILE EQUIPMENT(6KB) 01.540 M8X35 W/LK WASHER	0-50040-835-0	05	1	0101-0105	●
48	00.724 BOLT; RET 01.540 M8X35 W/LK WASHER	0-50040-835-0	05	1	0106-	●
49	00.724 RETAINER; OIL SEAL,CM/SHF CHILE EQUIPMENT(6KB)	8-94133-516-2	01	1	9811-0012	●
49	00.724 RETAINER; OIL SEAL,CM/SHF BRAZIL EQUIPMENT(RWF),CHILE EQUIPMENT(6KB)	8-94133-516-2	01	1	0101-0105	●
49	00.724 RETAINER; OIL SEAL,CM/SHF	8-94133-516-2	01	1	0106-	●
50	00.724 GASKET; RET ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) CHILE EQUIPMENT(6KB)	8-97080-893-0	01	1	9811-0012	●
50	00.724 GASKET; RET ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) BRAZIL EQUIPMENT(RWF),CHILE EQUIPMENT(6KB)	8-97080-893-0	01	1	0101-0105	●
50	00.724 GASKET; RET ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97080-893-0	01	1	0106-	●
53	00.353 SHAFT; ROCKER ARM	8-97036-197-0	01	1	9811-	●	●	●
53	00.353 SHAFT; ROCKER ARM JBK	8-97074-617-1	01	1	9811-				●
53	00.353 SHAFT; ROCKER ARM KEIHIN SEIMITSU	8-97174-567-0	01	1	9811-				●
54	00.349 WASHER; ROCKER SPR ID=19.1 OD=23	8-94341-906-0	06	1	9811-	●	●	●
55	00.356 PLUG; ROCKER SHAFT END	9-12626-005-0	02	1	9811-	●	●	●
56	00.349 RING; SNAP,ROCKER ARM ID=17.5	9-09180-019-0	02	1	9811-	●	●	●
65	00.310 COLLAR; SPLIT	5-12565-004-0	16	1	9811-	●	●	●
65	00.310 COLLAR; SPLIT	5-12565-006-0	16	1	9811-				●
68	00.303 SPRING; VLV ID=26.25	8-94433-247-0	08	1	9811-	●	●	●
68	00.303 SPRING; VLV ID=28.5	8-97023-559-0	08	1	9811-				●
71	00.309 SEAT; SPR (B) OD=34	5-12563-001-0	08	1	9811-	●	●	●
71	00.309 SEAT; SPR (A) OD=32.8	8-94133-731-2	08	1	9811-	●	●	●
71	00.309 SEAT; SPR (A) OD=38	8-94385-029-2	08	1	9811-				●
71	00.309 SEAT; SPR (B) ID=14.3 OD=40	8-94399-526-1	08	1	9811-				●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97120-307-0	08	1	9811-	●	●	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-94396-609-2	08	1	9811-				●
78	00.333 ARM; ROCKER	8-94152-344-0	08	1	9811-	●	●	●
78	00.333 ARM; ROCKER (B) JBK	8-97014-258-2	04	1	9811-				●
78	00.333 ARM; ROCKER (A) JBK	8-97074-614-1	04	1	9811-				●
78	00.333 ARM; ROCKER (A) KEIHIN SEIMITSU	8-97174-562-0	04	1	9811-				●
78	00.333 ARM; ROCKER (B) KEIHIN SEIMITSU	8-97174-565-0	04	1	9811-				●
81	00.429 SCREW; ADJ,ROCKER ARM M8X30	8-94152-283-1	08	1	9811-	●	●	●
81	00.429 SCREW; ADJ,ROCKER ARM	8-94367-526-2	08	1	9811-				●
83	00.787 NUT; ADJ SCREW,LK 08.915 M8	9-09111-508-0	08	1	9811-	●	●	●
83	00.787 NUT; ADJ SCREW,LK 06.822 M10	9-09111-410-0	08	1	9811-				●
84	00.349 BRACKET; ROCKER SHAFT,INTER	8-94152-345-1	04	1	9811-	●	●	●
84	00.349 BRACKET; ROCKER SHAFT,INTER JBK	8-94388-109-3	03	1	9811-				●
84	00.349 BRACKET; ROCKER SHAFT,INTER KEIHIN SEIMITSU	8-97174-568-0	03	1	9811-				●
85	00.349 BOLT; BRKT M8X15,M10X60 L=82	8-94433-304-0	03	1	9811-	●	●	●
85	00.349 BOLT; BRKT M10X62 FLANGE	8-94393-131-0	03	1	9811-				●
85	00.349 BOLT; BRKT M10X62 FLANGE	8-97174-650-0	03	1	9811-				●
86	00.349 WASHER; ROCKER ARM FIX ID=10.5	9-09164-010-0	04	1	9811-	●	●	●
87	00.349 BOLT; ROCKER SHAFT M10X60	8-94433-302-0	01	1	9811-	●	●	●
87	00.349 BOLT; ROCKER SHAFT 03.415 M8X35 FLANGE	0-28080-835-0	02	1	9811-				●
88	00.426 ROD; PUSH	8-97071-673-0	08	1	9811-	●	●	●
89	00.459 TAPPET; VLV	8-94438-305-1	08	1	9811-	●	●	●
95	00.376 SPRING; ROCKER SHAFT	8-94341-905-0	03	1	9811-	●	●	●
95	00.376 SPRING; ROCKER SHAFT JBK	8-94397-263-0	04	1	9811-				●
95	00.376 SPRING; ROCKER SHAFT KEIHIN SEIMITSU	8-97174-654-0	04	1	9811-				●
116	00.659 PULLEY; TIMING,INJ PUMP CHILE EQUIPMENT(6KB) Z=44 B=37.7	8-97043-289-0	01	1	9811-0012	●
116	00.659 PULLEY; TIMING,INJ PUMP BRAZIL EQUIPMENT(RWF),CHILE EQUIPMENT(6KB) Z=44 B=37.7	8-97043-289-0	01	1	0101-0105	●
116	00.659 PULLEY; TIMING,INJ PUMP Z=44 B=37.7	8-97043-289-0	01	1	0106-	●
119	00.662 NUT; PULLEY CHILE EQUIPMENT(6KB) 03.340 M14	8-94226-565-0	01	1	9811-0012	●
119	00.662 NUT; PULLEY BRAZIL EQUIPMENT(RWF),CHILE EQUIPMENT(6KB) 03.340 M14	8-94226-565-0	01	1	0101-0105	●
119	00.662 NUT; PULLEY 03.340 M14	8-94226-565-0	01	1	0106-	●
120	00.662 WASHER; LK,PULLEY,INJ PUMP CHILE EQUIPMENT(6KB) 03.340	8-94226-554-0	01	1	9811-0012	●
120	00.662 WASHER; LK,PULLEY,INJ PUMP BRAZIL EQUIPMENT(RWF),CHILE EQUIPMENT(6KB) 03.340	8-94226-554-0	01	1	0101-0105	●
120	00.662 WASHER; LK,PULLEY,INJ PUMP 03.340	8-94226-554-0	01	1	0106-	●
121	00.724 BOLT; IDLE PULLEY CHILE EQUIPMENT(6KB) M12X57 FLANGE	8-94433-408-1	01	1	9811-0012	●
121	00.724 BOLT; IDLE PULLEY BRAZIL EQUIPMENT(RWF),CHILE EQUIPMENT(6KB) M12X57 FLANGE	8-94433-408-1	01	1	0101-0105	●
121	00.724 BOLT; IDLE PULLEY M12X57 FLANGE	8-94433-408-1	01	1	0106-	●
123	00.724 PULLEY; IDLE,TIMING CHILE EQUIPMENT(6KB)	8-94382-215-1	01	1	9811-0012	●
123	00.724 PULLEY; IDLE,TIMING BRAZIL EQUIPMENT(RWF),CHILE EQUIPMENT(6KB)	8-94382-215-1	01	1	0101-0105	●
123	00.724 PULLEY; IDLE,TIMING	8-94382-215-1	01	1	0106-	●
124	00.659 PULLEY; TIMING,CR/SHF CHILE EQUIPMENT(6KB) Z=22	8-94133-501-3	01	1	9811-0012	●
124	00.659 PULLEY; TIMING,CR/SHF BRAZIL EQUIPMENT(RWF),CHILE EQUIPMENT(6KB) Z=22	8-94133-501-3	01	1	0101-0105	●
124	00.659 PULLEY; TIMING,CR/SHF Z=22	8-94133-501-3	01	1	0106-	●
137	00.724 BOLT; TENSIONER CHILE EQUIPMENT(6KB) M12X57 FLANGE	8-94433-408-1	01	1	9811-0012	●
137	00.724 BOLT; TENSIONER BRAZIL EQUIPMENT(RWF),CHILE EQUIPMENT(6KB) M12X57 FLANGE	8-94433-408-1	01	1	0101-0105	●
137	00.724 BOLT; TENSIONER M12X57 FLANGE	8-94433-408-1	01	1	0106-	●
138	00.724 TENSIONER; TIMING BELT CHILE EQUIPMENT(6KB)	8-94382-214-1	01	1	9811-0012	●
138	00.724 TENSIONER; TIMING BELT BRAZIL EQUIPMENT(RWF),CHILE EQUIPMENT(6KB)	8-94382-214-1	01	1	0101-0105	●
138	00.724 TENSIONER; TIMING BELT	8-94382-214-1	01	1	0106-	●
144	00.724 BELT; TIMING CHILE EQUIPMENT(6KB) BLUE	8-94380-679-0	01	1	9811-0012	●
144	00.724 BELT; TIMING BRAZIL EQUIPMENT(RWF),CHILE EQUIPMENT(6KB) BLUE	8-94380-679-0	01	1	0101-0105	●
144	00.724 BELT; TIMING BLUE	8-94380-679-0	01	1	0106-	●
145	00.724 NUT; FLANGE CHILE EQUIPMENT(6KB) 01.540 M8 FLANGE	0-91150-208-0	01	1	9811-0012	●
145	00.724 NUT; FLANGE BRAZIL EQUIPMENT(RWF),CHILE EQUIPMENT(6KB) 01.540 M8 FLANGE	0-91150-208-0	01	1	0101-0105	●
145	00.724 NUT; FLANGE 01.540 M8 FLANGE	0-91150-208-0	01	1	0106-	●
146	00.724 WASHER; PL,TENSION LEVER CHILE EQUIPMENT(6KB) 07.633 ID=8.4 OD=22	9-09164-708-0	02	1	9811-0012	●
146	00.724 WASHER; PL,TENSION LEVER BRAZIL EQUIPMENT(RWF),CHILE EQUIPMENT(6KB) 07.633 ID=8.4 OD=22	9-09164-708-0	02	1	0101-0105	●
146	00.724 WASHER; PL,TENSION LEVER 07.633 ID=8.4 OD=22	9-09164-708-0	02	1	0106-	●
147	00.724 BOLT; TENSION LEVER CHILE EQUIPMENT(6KB) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9811-0012	●
147	00.724 BOLT; TENSION LEVER BRAZIL EQUIPMENT(RWF),CHILE EQUIPMENT(6KB) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0101-0105	●
147	00.724 BOLT; TENSION LEVER 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0106-	●
148	00.724 LEVER; TENSION,TIMING BELT CHILE EQUIPMENT(6KB)	8-97146-370-0	01	1	9811-0012	●
148	00.724 LEVER; TENSION,TIMING BELT BRAZIL EQUIPMENT(RWF),CHILE EQUIPMENT(6KB)	8-97146-370-0	01	1	0101-0105	●
148	00.724 LEVER; TENSION,TIMING BELT	8-97146-370-0	01	1	0106-	●

55 87 65 65 86 71 85 68 86 72 71 83 78 81 88 53 54 95 84 78 56 55 89 5 9 45 4 44 14 44 1 10 107 112 196 335 282 282 334 109 109 44 275 333 104 111 104 275 305 106 196 305 106 101 113

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.519 CAMSHAFT	8-94127-797-4	01	1	9811-0002	●	●
1	00.519 CAMSHAFT	8-94127-797-4	01	1	0003-0012	●	●	●
1	00.519 CAMSHAFT	8-97287-657-0	01	1	0101-	●	●	●
1	00.519 CAMSHAFT	8-97077-829-0	01	1	9811-				●
4	00.296 VALVE; INL	8-97131-729-0	04	1	9811-	●		●
4	00.296 VALVE; INL EXC. TURBOCHARGER<K51>	8-94464-921-0	04	1	9811-		●
4	00.296 VALVE; INL EXC. TURBOCHARGER<K51>	8-94133-275-1	04	1	9811-		●
4	00.296 VALVE; INL	8-97171-398-0	04	1	9811-				●
5	00.297 VALVE; EXH	8-97043-861-1	04	1	0201-			●
5	00.297 VALVE; EXH	8-97118-767-1	04	1	9811-	●
5	00.297 VALVE; EXH TURBOCHARGER<K51>	8-94433-245-0	04	1	9811-		●
5	00.297 VALVE; EXH EXC. TURBOCHARGER<K51>	8-94247-875-1	04	1	9811-		●
5	00.297 VALVE; EXH	8-97171-399-0	04	1	9811-				●
9	00.736 GEAR; CM/SHF Z=60	8-97240-012-2	01	1	0201-			●
9	00.736 GEAR; CM/SHF TAIWAN EQUIPMENT(RWV) Z=42	8-97079-212-0	01	1	9811-0105	●
9	00.736 GEAR; CM/SHF EXC. TURBOCHARGER<K51> Z=42	8-97079-212-0	01	1	9811-0105		●
9	00.736 GEAR; CM/SHF TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> Z=42	8-97079-212-0	01	1	9811-0105		●
9	00.736 GEAR; CM/SHF EXC. TURBOCHARGER<K51> Z=42	8-97079-212-0	01	1	0106-0201		●
9	00.736 GEAR; CM/SHF TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> Z=42	8-97079-212-0	01	1	0106-0201		●
9	00.736 GEAR; CM/SHF Z=42	8-97079-212-1	01	1	0202-		●
9	00.736 GEAR; CM/SHF TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> Z=42	8-97218-062-1	01	1	9811-9904		●
9	00.736 GEAR; CM/SHF TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> Z=42	8-97229-594-1	01	1	9905-0201		●
9	00.736 GEAR; CM/SHF Z=70 OD=208.6	8-97088-057-2	01	1	9811-				●
10	00.533 PLATE; THRUST TAIWAN EQUIPMENT(RWV)	8-94110-480-1	01	1	9811-0105	●
10	00.533 PLATE; THRUST	8-94110-480-1	01	1	9811-0105		●
10	00.533 PLATE; THRUST	8-94110-480-1	01	1	0106-		●	●
14	00.738 KEY; CM/SHF 08.960	9-08000-718-0	01	1	9811-	●	●	●
44	00.738 BOLT (C) M6X30 HEX SOCKET	9-05820-630-0	01	1	0201-			●
44	00.738 BOLT TAIWAN EQUIPMENT(RWV) 03.704 (A) M8X16 W/LK WASHER	0-50040-816-0	02	1	9811-0102	●
44	00.738 BOLT 03.704 (A) M8X16 W/LK WASHER	0-50040-816-0	02	1	9811-0102		●
44	00.738 BOLT TAIWAN EQUIPMENT(RWV) 01.062 (A) M8X16 FLANGE	0-28080-816-0	02	1	0103-0105	●
44	00.738 BOLT 01.062 (A) M8X16 FLANGE	0-28080-816-0	02	1	0103-0105		●
44	00.738 BOLT 01.062 (A) M8X16 FLANGE	0-28080-816-0	02	1	0106-0112		●
44	00.738 BOLT 01.062 (A) M8X16 FLANGE	0-28080-816-0	02	1	0201-		●	●
44	00.738 BOLT 00.533 (B) M12X47	8-94433-407-0	01	1	9811-	●	●	●
45	00.738 WASHER; GEAR CAM ID=13 OD=36	5-12519-002-1	01	1	9811-	●	●	●
53	00.353 SHAFT; ROCKER ARM	8-97036-197-0	01	1	9811-	●	●	●
53	00.353 SHAFT; ROCKER ARM JBK	8-97074-617-1	01	1	9811-				●
53	00.353 SHAFT; ROCKER ARM KEIHIN SEIMITSU	8-97174-567-0	01	1	9811-				●
54	00.349 WASHER; ROCKER SPR ID=19.1 OD=23	8-94341-906-0	06	1	9811-	●	●	●
55	00.356 PLUG; ROCKER SHAFT END	9-12626-005-0	02	1	9811-	●	●	●
56	00.349 RING; SNAP,ROCKER ARM ID=17.5	9-09180-019-0	02	1	9811-	●	●	●
65	00.310 COLLAR; SPLIT	5-12565-004-0	16	1	9811-	●	●	●
65	00.310 COLLAR; SPLIT	5-12565-006-0	16	1	9811-				●
68	00.303 SPRING; VLV ID=26.25	8-94433-247-0	08	1	9811-	●	●	●
68	00.303 SPRING; VLV ID=28.5	8-97023-559-0	08	1	9811-				●
71	00.309 SEAT; SPR (B) OD=34	5-12563-001-0	08	1	9811-	●	●	●
71	00.309 SEAT; SPR (A) OD=32.8	8-94133-731-2	08	1	9811-	●	●	●
71	00.309 SEAT; SPR (A) OD=38	8-94385-029-2	08	1	9811-				●
71	00.309 SEAT; SPR (B) ID=14.3 OD=40	8-94399-526-1	08	1	9811-				●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97120-307-0	08	1	9811-	●	●	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-94396-609-2	08	1	9811-				●
78	00.333 ARM; ROCKER	8-94152-344-0	08	1	9811-	●	●	●
78	00.333 ARM; ROCKER (B) JBK	8-97014-258-2	04	1	9811-				●
78	00.333 ARM; ROCKER (A) JBK	8-97074-614-1	04	1	9811-				●
78	00.333 ARM; ROCKER (A) KEIHIN SEIMITSU	8-97174-562-0	04	1	9811-				●
78	00.333 ARM; ROCKER (B) KEIHIN SEIMITSU	8-97174-565-0	04	1	9811-				●
81	00.429 SCREW; ADJ,ROCKER ARM M8X30	8-94152-283-1	08	1	9811-	●	●	●
81	00.429 SCREW; ADJ,ROCKER ARM	8-94367-526-2	08	1	9811-				●
83	00.787 NUT; ADJ SCREW,LK 08.915 M8	9-09111-508-0	08	1	9811-	●	●	●
83	00.787 NUT; ADJ SCREW,LK 06.822 M10	9-09111-410-0	08	1	9811-				●
84	00.349 BRACKET; ROCKER SHAFT,INTER	8-94152-345-1	04	1	9811-	●	●	●
84	00.349 BRACKET; ROCKER SHAFT,INTER JBK	8-94388-109-3	03	1	9811-				●
84	00.349 BRACKET; ROCKER SHAFT,INTER KEIHIN SEIMITSU	8-97174-568-0	03	1	9811-				●
85	00.349 BOLT; BRKT M8X15,M10X60 L=82	8-94433-304-0	03	1	9811-	●	●	●
85	00.349 BOLT; BRKT M10X62 FLANGE	8-94393-131-0	03	1	9811-				●
85	00.349 BOLT; BRKT M10X62 FLANGE	8-97174-650-0	03	1	9811-				●
86	00.349 WASHER; ROCKER ARM FIX ID=10.5	9-09164-010-0	04	1	9811-	●	●	●
87	00.349 BOLT; ROCKER SHAFT M10X60	8-94433-302-0	01	1	9811-	●	●	●
87	00.349 BOLT; ROCKER SHAFT 03.415 M8X35 FLANGE	0-28080-835-0	02	1	9811-				●
88	00.426 ROD; PUSH	8-97071-673-0	08	1	9811-	●	●	●
89	00.459 TAPPET; VLV	8-94438-305-1	08	1	9811-	●	●	●
95	00.376 SPRING; ROCKER SHAFT	8-94341-905-0	03	1	9811-	●	●	●
95	00.376 SPRING; ROCKER SHAFT JBK	8-94397-263-0	04	1	9811-				●
95	00.376 SPRING; ROCKER SHAFT KEIHIN SEIMITSU	8-97174-654-0	04	1	9811-				●
101	00.724 BOLT; THRUST COLLAR TAIWAN EQUIPMENT(RWV) 03.330 M8X55 W/LK WASHER	5-09000-084-1	02	1	9811-9812	●
101	00.724 BOLT; THRUST COLLAR 03.330 M8X55 W/LK WASHER	5-09000-084-1	02	1	9811-9812		●
101	00.724 BOLT; THRUST COLLAR TAIWAN EQUIPMENT(RWV) 03.330 M8X55 W/LK WASHER	5-09000-084-1	02	1	9901-9904	●
101	00.724 BOLT; THRUST COLLAR EXC. TURBOCHARGER<K51> 03.330 M8X55 W/LK WASHER	5-09000-084-1	02	1	9901-9904		●
101	00.724 BOLT; THRUST COLLAR TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 03.330 M8X55 W/LK WASHER	5-09000-084-1	02	1	9901-9904		●
101	00.724 BOLT; THRUST COLLAR TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> M8X53 FLANGE	8-97223-999-0	02	1	9901-9904		●
101	00.724 BOLT; THRUST COLLAR TAIWAN EQUIPMENT(RWV) M8X53 FLANGE	8-97223-999-0	02	1	9905-0105	●
101	00.724 BOLT; THRUST COLLAR M8X53 FLANGE	8-97223-999-0	02	1	9905-0105		●
101	00.724 BOLT; THRUST COLLAR M8X53 FLANGE	8-97223-999-0	02	1	0106-0112		●
101	00.724 BOLT; THRUST COLLAR M8X53 FLANGE	8-97223-999-0	02	1	0201-		●	●
101	00.724 BOLT; THRUST COLLAR (A) M14X36.5	8-94372-221-1	01	1	9811-				●
101	00.724 BOLT; THRUST COLLAR (B) M8X14	8-97073-782-0	03	1	9811-0203				●
101	00.724 BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28090-816-0	03	1	0204-				●
101	00.724 BOLT; THRUST COLLAR (C) M14X25	9-92361-425-0	01	1	9811-				●
104	00.724 BOLT; SHAFT IDLE M12X77	8-94129-384-0	01	1	0201-			●
104	00.724 BOLT; SHAFT IDLE TAIWAN EQUIPMENT(RWV)	8-94109-706-1	01	1	9811-9811	●
104	00.724 BOLT; SHAFT IDLE EXC. TURBOCHARGER<K51>	8-94109-706-1	01	1	9811-9811		●
104	00.724 BOLT; SHAFT IDLE TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL>	8-94109-706-1	01	1	9811-9811		●
104	00.724 BOLT; SHAFT IDLE TAIWAN EQUIPMENT(RWV)	8-94109-706-1	01	1	9812-0105	●
104	00.724 BOLT; SHAFT IDLE	8-94109-706-1	01	1	9812-0105		●
104	00.724 BOLT; SHAFT IDLE	8-94109-706-1	01	1	0106-		●
104	00.724 BOLT; SHAFT IDLE TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> M12X57	1-09040-044-0	01	1	9811-9811		●
106	00.724 WASHER; IDLE GEAR SHAFT TAIWAN EQUIPMENT(RWV) 00.738 ID=13 OD=36	5-12519-002-1	01	1	9811-0105	●
106	00.724 WASHER; IDLE GEAR SHAFT 00.738 ID=13 OD=36	5-12519-002-1	01	1	9811-0105		●
106	00.724 WASHER; IDLE GEAR SHAFT 00.738 ID=13 OD=36	5-12519-002-1	01	1	0106-0112		●
106	00.724 WASHER; IDLE GEAR SHAFT 00.738 ID=13 OD=36	5-12519-002-1	01	1	0201-		●	●
107	00.724 SHAFT; IDLE GEAR	8-97240-021-0	01	1	0201-			●
107	00.724 SHAFT; IDLE GEAR TAIWAN EQUIPMENT(RWV)	8-94139-758-1	01	1	9811-0105	●
107	00.724 SHAFT; IDLE GEAR EXC. TURBOCHARGER<K51>	8-94139-758-1	01	1	9811-0105		●
107	00.724 SHAFT; IDLE GEAR TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL>	8-94139-758-1	01	1	9811-0105		●
107	00.724 SHAFT; IDLE GEAR EXC. TURBOCHARGER<K51>	8-94139-758-1	01	1	0106-		●
107	00.724 SHAFT; IDLE GEAR TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL>	8-94139-758-1	01	1	0106-		●
107	00.724 SHAFT; IDLE GEAR TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97218-993-0	01	1	9811-0207		●
107	00.724 SHAFT; IDLE GEAR TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97920-007-0	01	1	0208-		●
107	00.724 SHAFT; IDLE GEAR (D)	8-97104-380-0	01	1	9811-				●
107	00.724 SHAFT; IDLE GEAR (B)	8-97186-398-1	01	1	9811-				●
107	00.724 SHAFT; IDLE GEAR (C)	8-97189-244-0	01	1	9811-0203				●
107	00.724 SHAFT; IDLE GEAR (C)	8-97350-021-0	01	1	0204-				●
107	00.724 SHAFT; IDLE GEAR POWER STEERING<N40> (A)	8-94334-682-0	01	1	9811-				●
109	00.724 SHAFT; IDLE GEAR	8-97240-023-1	01	1	0201-			●
109	00.724 SHAFT; IDLE GEAR TAIWAN EQUIPMENT(RWV)	8-94109-913-1	01	1	9811-0105	●
109	00.724 SHAFT; IDLE GEAR EXC. TURBOCHARGER<K51>	8-94109-913-1	01	1	9811-0105		●
109	00.724 SHAFT; IDLE GEAR TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL>	8-94109-913-1	01	1	9811-0105		●
109	00.724 SHAFT; IDLE GEAR EXC. TURBOCHARGER<K51>	8-94109-913-1	01	1	0106-		●
109	00.724 SHAFT; IDLE GEAR TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL>	8-94109-913-1	01	1	0106-		●
109	00.724 SHAFT; IDLE GEAR TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97218-780-0	01	1	9811-		●
111	00.724 COLLAR; THRUST,IDLE GEAR	8-94171-289-0	01	1	0201-			●
111	00.724 COLLAR; THRUST,IDLE GEAR TAIWAN EQUIPMENT(RWV)	8-94141-937-1	01	1	9811-0105	●
111	00.724 COLLAR; THRUST,IDLE GEAR	8-94141-937-1	01	1	9811-0105		●
111	00.724 COLLAR; THRUST,IDLE GEAR	8-94141-937-1	01	1	0106-		●
111	00.724 COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-1	03	1	9811-				●
111	00.724 COLLAR; THRUST,IDLE GEAR POWER STEERING<N40> ID=14.5 OD=46	8-97209-728-1	01	1	9811-				●
112	00.724 GEAR; IDLE Z=43	8-97240-014-1	01	1	0201-			●
112	00.724 GEAR; IDLE TAIWAN EQUIPMENT(RWV) Z=31	8-97164-773-0	01	1	9811-0105	●
112	00.724 GEAR; IDLE EXC. TURBOCHARGER<K51> Z=31	8-97164-773-0	01	1	9811-0105		●
112	00.724 GEAR; IDLE TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> Z=31	8-97164-773-0	01	1	9811-0105		●
112	00.724 GEAR; IDLE EXC. TURBOCHARGER<K51> Z=31	8-97164-773-0	01	1	0106-		●
112	00.724 GEAR; IDLE TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> Z=31	8-97164-773-0	01	1	0106-		●
112	00.724 GEAR; IDLE TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> Z=31	8-97218-063-0	01	1	9811-9904		●
112	00.724 GEAR; IDLE TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> Z=31	8-97229-601-0	01	1	9905-		●
112	00.724 GEAR; IDLE (C) Z=122	8-97088-053-1	01	1	9811-				●
112	00.724 GEAR; IDLE (D) Z=82	8-97088-055-1	01	1	9811-				●
112	00.724 GEAR; IDLE (A) Z=72-60	8-97114-602-1	01	1	9811-9902				●
112	00.724 GEAR; IDLE (A) Z=72-60	8-97227-213-0	01	1	9903-				●
112	00.724 GEAR; IDLE POWER STEERING<N40> (B) Z=34	8-97120-005-0	01	1	9811-				●
113	00.724 GEAR; IDLE TAIWAN EQUIPMENT(RWV) Z=37	8-94139-761-0	01	1	9811-0105	●
113	00.724 GEAR; IDLE EXC. TURBOCHARGER<K51> Z=37	8-94139-761-0	01	1	9811-0105		●
113	00.724 GEAR; IDLE TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> Z=37	8-94139-761-0	01	1	9811-0105		●
113	00.724 GEAR; IDLE EXC. TURBOCHARGER<K51> Z=37	8-94139-761-0	01	1	0106-		●
113	00.724 GEAR; IDLE TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> Z=37	8-94139-761-0	01	1	0106-		●
113	00.724 GEAR; IDLE TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> Z=37	8-97218-065-1	01	1	9811-9904		●
113	00.724 GEAR; IDLE TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> Z=37	8-97229-602-0	01	1	9905-		●
196	00.724 RING; SNAP	8-97245-684-1	02	1	0201-			●
275	00.724 PIN; IDLE GEAR OD=5 L=7.5	8-97245-683-0	04	1	0201-			●
282	00.738 SPRING; GEAR	8-97245-337-0	02	1	0201-			●
305	00.724 BEARING; IDLE GEAR	8-97240-019-1	01	1	0201-			●
305	00.724 BEARING; IDLE GEAR TAIWAN EQUIPMENT(RWV)	8-94110-271-0	01	1	9811-0105	●
305	00.724 BEARING; IDLE GEAR EXC. TURBOCHARGER<K51>	8-94110-271-0	01	1	9811-0105		●
305	00.724 BEARING; IDLE GEAR TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL>	8-94110-271-0	01	1	9811-0105		●
305	00.724 BEARING; IDLE GEAR EXC. TURBOCHARGER<K51>	8-94110-271-0	01	1	0106-		●
305	00.724 BEARING; IDLE GEAR TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL>	8-94110-271-0	01	1	0106-		●
305	00.724 BEARING; IDLE GEAR TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97218-947-1	01	1	9811-		●
333	00.724 GEAR; IDLE,MAIN Z=52	8-97240-018-2	01	1	0201-			●
334	00.724 GEAR; IDLE,FRT Z=52	8-97245-232-2	01	1	0201-			●
335	00.724 GEAR; IDLE,RR Z=52	8-97245-231-1	01	1	0201-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
