Sayfa 0-13 - Isuzu EPC

0-13 — OIL PAN AND LEVEL GAUGE (#43190) — 277 parça

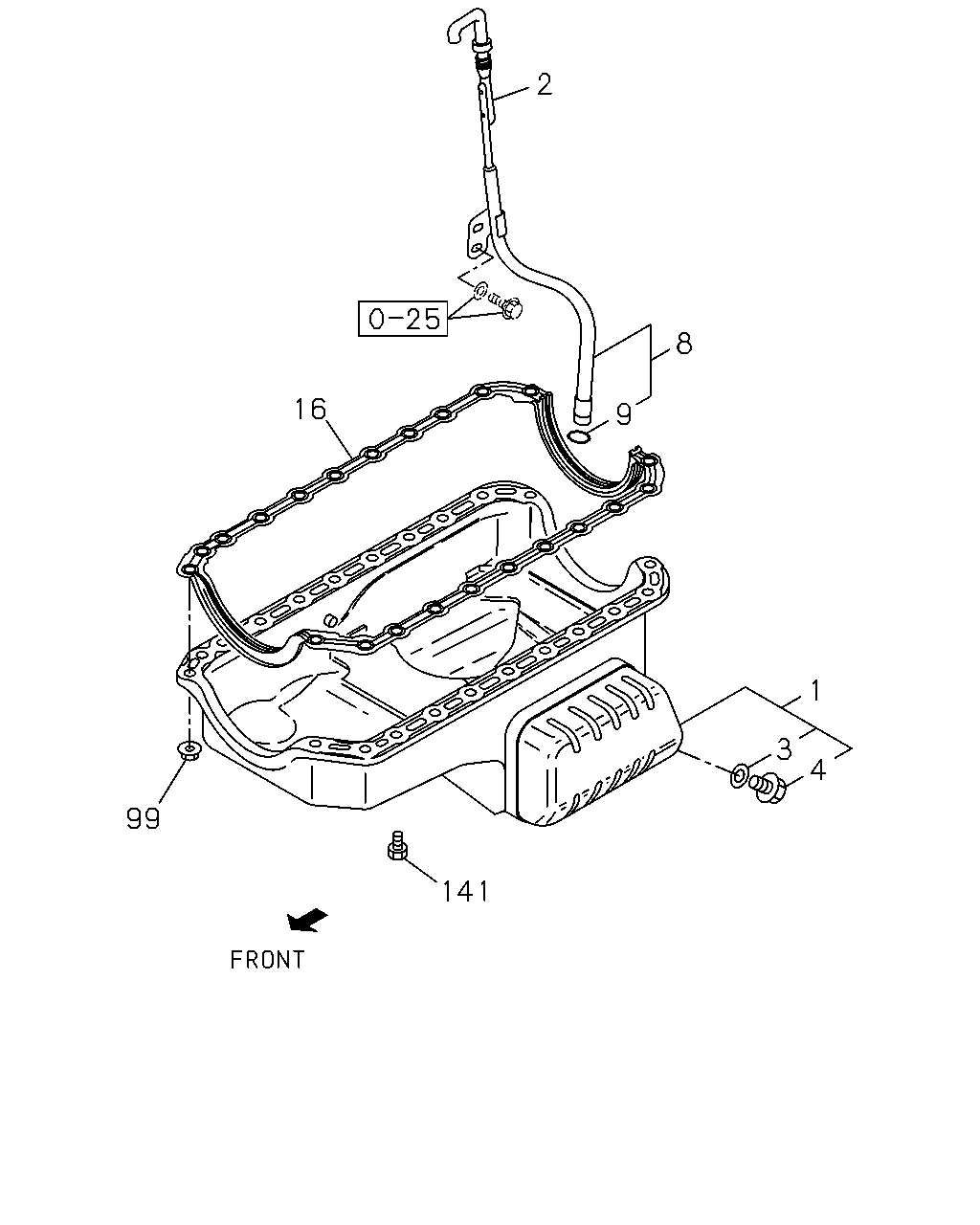

2 8 16 9 1 3 4 99 141

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	01.426 PAN ASM; OIL	8-97083-322-3	01	1	9811-	●
1	01.426 PAN ASM; OIL EXC. TURBOCHARGER<K51>	8-97083-322-3	01	1	9811-		●
1	01.426 PAN ASM; OIL TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL>	8-97083-322-3	01	1	9811-		●
1	01.426 PAN ASM; OIL TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97204-195-0	01	1	9811-9901		●
1	01.426 PAN ASM; OIL TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97223-955-0	01	1	9902-0112		●
1	01.426 PAN ASM; OIL TURBOCHARGER<K51>	8-97223-955-0	01	1	0201-		●
1	01.426 PAN ASM; OIL	8-97223-955-0	01	1	0201-			●
1	01.426 PAN ASM; OIL	8-97087-642-2	01	1	9811-0012				●
1	01.426 PAN ASM; OIL	8-97305-077-0	01	1	0101-				●
2	01.516 GAUGE; OIL LEVEL	8-97092-924-0	01	1	9811-9905	●	●
2	01.516 GAUGE; OIL LEVEL	8-97092-924-0	01	1	9906-9906	●
2	01.516 GAUGE; OIL LEVEL EXC. TURBOCHARGER<K51>	8-97092-924-0	01	1	9906-9906		●
2	01.516 GAUGE; OIL LEVEL TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL>	8-97092-924-0	01	1	9906-9906		●
2	01.516 GAUGE; OIL LEVEL	8-97092-924-0	01	1	9906-	●
2	01.516 GAUGE; OIL LEVEL EXC. TURBOCHARGER<K51>	8-97092-924-0	01	1	9906-		●
2	01.516 GAUGE; OIL LEVEL TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97231-295-0	01	1	9906-9906		●
2	01.516 GAUGE; OIL LEVEL TURBOCHARGER<K51>	8-97231-295-0	01	1	9906-		●
2	01.516 GAUGE; OIL LEVEL	8-97231-295-0	01	1	9906-			●
2	01.516 GAUGE; OIL LEVEL	8-97094-460-2	01	1	9811-				●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE).	8-94158-328-0	01	1	9811-0012	●			●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). EXC. TURBOCHARGER<K51> ID=14.2 OD=24	8-94158-328-0	01	1	9811-0012		●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> ID=14.2 OD=24	8-94158-328-0	01	1	9811-0012		●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE).	8-94158-328-0	01	1	0101-0103	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). EXC. TURBOCHARGER<K51> ID=14.2 OD=24	8-94158-328-0	01	1	0101-0103		●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> ID=14.2 OD=24	8-94158-328-0	01	1	0101-0103		●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	0104-	●	●	●	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	9811-0012	●			●
4	01.453 PLUG; DRAIN,OIL EXC. TURBOCHARGER<K51> 03.001 M14X14	8-94152-613-0	01	1	9811-0012		●
4	01.453 PLUG; DRAIN,OIL TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 03.001 M14X14	8-94152-613-0	01	1	9811-0012		●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	0101-0103	●
4	01.453 PLUG; DRAIN,OIL EXC. TURBOCHARGER<K51> 03.001 M14X14	8-94152-613-0	01	1	0101-0103		●
4	01.453 PLUG; DRAIN,OIL TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 03.001 M14X14	8-94152-613-0	01	1	0101-0103		●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	0104-	●	●	●	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97239-977-0	01	1	0201-			●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97044-886-0	01	1	9811-	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE EXC. TURBOCHARGER<K51>	8-97044-886-0	01	1	9811-		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL>	8-97044-886-0	01	1	9811-		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97204-197-0	01	1	9811-9812		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97221-497-0	01	1	9901-		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97101-907-1	01	1	9811-				●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	01	1	9811-0112	●	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE).	5-09623-002-0	01	1	0201-0205	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). EXC. TURBOCHARGER<K51> ID=11	5-09623-002-0	01	1	0201-0205		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> ID=11	5-09623-002-0	01	1	0201-0205		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE).	5-09623-002-0	01	1	0206-	●		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). EXC. TURBOCHARGER<K51> ID=11	5-09623-002-0	01	1	0206-		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> ID=11	5-09623-002-0	01	1	0206-		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	9811-				●
16	01.429 GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97080-194-0	01	1	9811-	●	●	●
99	01.453 NUT; BRKT TO OIL PAN FIX 06.164 M8 FLANGE	5-09440-010-0	10	1	9811-	●	●	●
141	01.428 BOLT; BRKT TO OIL PAN FIX	8-94133-973-2	12	1	9811-	●	●	●

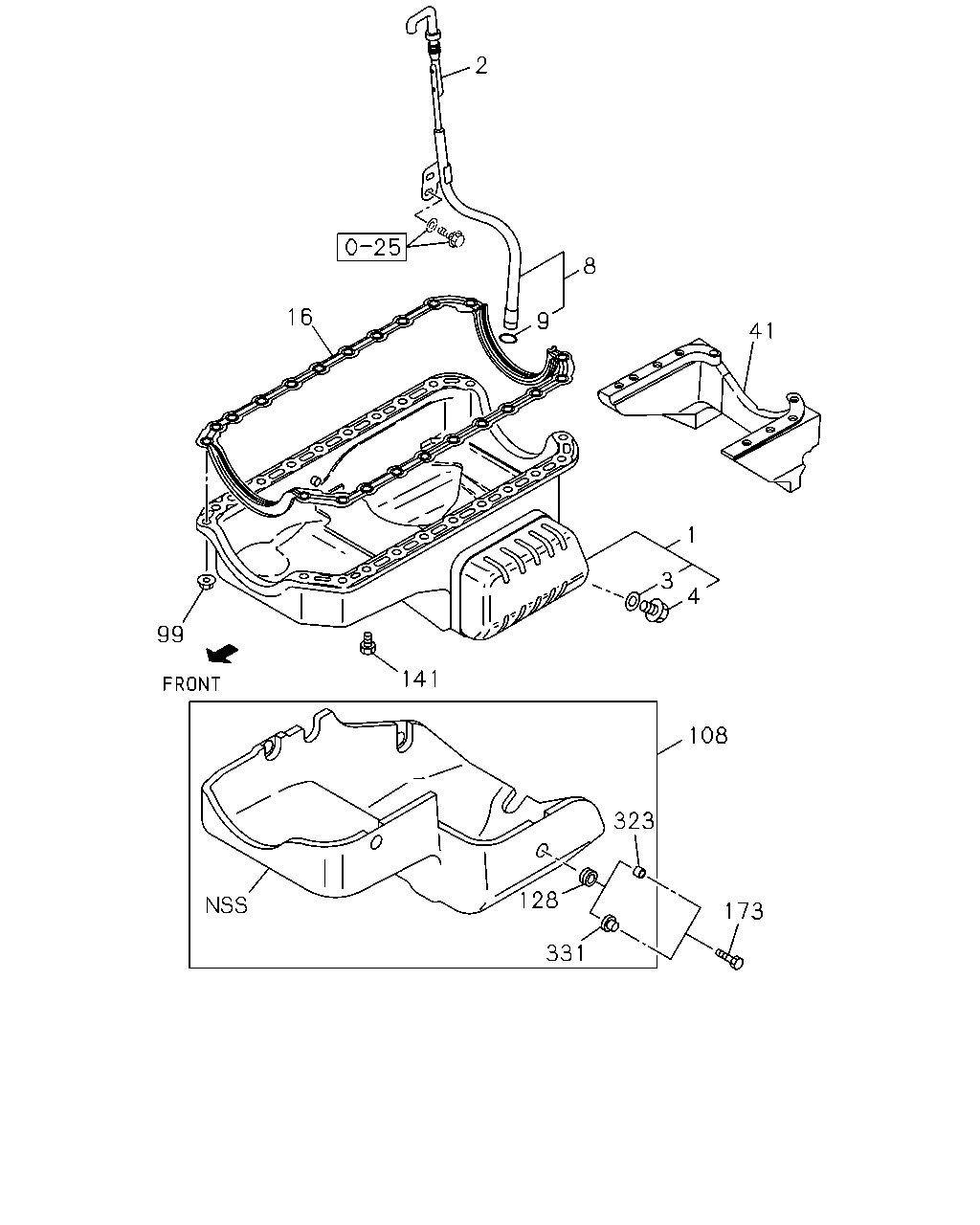

2 8 16 9 41 1 3 4 99 141 108 323 128 173 331

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	01.426 PAN ASM; OIL	8-97083-322-3	01	1	9811-	●
1	01.426 PAN ASM; OIL EXC. TURBOCHARGER<K51>	8-97083-322-3	01	1	9811-		●
1	01.426 PAN ASM; OIL TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL>	8-97083-322-3	01	1	9811-		●
1	01.426 PAN ASM; OIL TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97204-195-0	01	1	9811-9901		●
1	01.426 PAN ASM; OIL TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97223-955-0	01	1	9902-0112		●
1	01.426 PAN ASM; OIL TURBOCHARGER<K51>	8-97223-955-0	01	1	0201-		●
1	01.426 PAN ASM; OIL	8-97223-955-0	01	1	0201-			●
1	01.426 PAN ASM; OIL	8-97087-642-2	01	1	9811-0012				●
1	01.426 PAN ASM; OIL	8-97305-077-0	01	1	0101-				●
2	01.516 GAUGE; OIL LEVEL	8-97092-924-0	01	1	9811-9905	●	●
2	01.516 GAUGE; OIL LEVEL	8-97092-924-0	01	1	9906-9906	●
2	01.516 GAUGE; OIL LEVEL EXC. TURBOCHARGER<K51>	8-97092-924-0	01	1	9906-9906		●
2	01.516 GAUGE; OIL LEVEL TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL>	8-97092-924-0	01	1	9906-9906		●
2	01.516 GAUGE; OIL LEVEL	8-97092-924-0	01	1	9906-	●
2	01.516 GAUGE; OIL LEVEL EXC. TURBOCHARGER<K51>	8-97092-924-0	01	1	9906-		●
2	01.516 GAUGE; OIL LEVEL TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97231-295-0	01	1	9906-9906		●
2	01.516 GAUGE; OIL LEVEL TURBOCHARGER<K51>	8-97231-295-0	01	1	9906-		●
2	01.516 GAUGE; OIL LEVEL	8-97231-295-0	01	1	9906-			●
2	01.516 GAUGE; OIL LEVEL	8-97094-460-2	01	1	9811-				●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE).	8-94158-328-0	01	1	9811-0012	●			●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). EXC. TURBOCHARGER<K51> ID=14.2 OD=24	8-94158-328-0	01	1	9811-0012		●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> ID=14.2 OD=24	8-94158-328-0	01	1	9811-0012		●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE).	8-94158-328-0	01	1	0101-0103	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). EXC. TURBOCHARGER<K51> ID=14.2 OD=24	8-94158-328-0	01	1	0101-0103		●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> ID=14.2 OD=24	8-94158-328-0	01	1	0101-0103		●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	0104-	●	●	●	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	9811-0012	●			●
4	01.453 PLUG; DRAIN,OIL EXC. TURBOCHARGER<K51> 03.001 M14X14	8-94152-613-0	01	1	9811-0012		●
4	01.453 PLUG; DRAIN,OIL TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 03.001 M14X14	8-94152-613-0	01	1	9811-0012		●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	0101-0103	●
4	01.453 PLUG; DRAIN,OIL EXC. TURBOCHARGER<K51> 03.001 M14X14	8-94152-613-0	01	1	0101-0103		●
4	01.453 PLUG; DRAIN,OIL TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 03.001 M14X14	8-94152-613-0	01	1	0101-0103		●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	0104-	●	●	●	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97239-977-0	01	1	0201-			●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97044-886-0	01	1	9811-	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE EXC. TURBOCHARGER<K51>	8-97044-886-0	01	1	9811-		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL>	8-97044-886-0	01	1	9811-		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97204-197-0	01	1	9811-9812		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97221-497-0	01	1	9901-		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97101-907-1	01	1	9811-				●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	01	1	9811-0112	●	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE).	5-09623-002-0	01	1	0201-0205	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). EXC. TURBOCHARGER<K51> ID=11	5-09623-002-0	01	1	0201-0205		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> ID=11	5-09623-002-0	01	1	0201-0205		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE).	5-09623-002-0	01	1	0206-	●		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). EXC. TURBOCHARGER<K51> ID=11	5-09623-002-0	01	1	0206-		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> ID=11	5-09623-002-0	01	1	0206-		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	9811-				●
16	01.429 GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97080-194-0	01	1	9811-	●	●	●
41	00.137 RUBBER; SPACE TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97095-936-0	01	1	9811-0004		●
41	00.137 RUBBER; SPACE TAIWAN EQUIPMENT(RWV),TURKISH EQUIPMENT(S6S) EXC. TURBOCHARGER<K51>	8-97095-936-0	01	1	0005-0105	●	●
41	00.137 RUBBER; SPACE TURBOCHARGER<K51>	8-97095-936-0	01	1	0005-0105		●
41	00.137 RUBBER; SPACE EXC. BRAZIL EQUIPMENT(RWF)	8-97286-992-0	01	1	0106-0112	●
41	00.137 RUBBER; SPACE TAIWAN EQUIPMENT(RWV),TURKISH EQUIPMENT(S6S) EXC. TURBOCHARGER<K51>	8-97286-992-0	01	1	0106-0112		●
41	00.137 RUBBER; SPACE TURBOCHARGER<K51>	8-97286-992-0	01	1	0106-0112		●
41	00.137 RUBBER; SPACE EXC. BRAZIL EQUIPMENT(RWF)	8-97286-992-0	01	1	0201-	●
41	00.137 RUBBER; SPACE TURBOCHARGER<K51>	8-97286-992-0	01	1	0201-		●
41	00.137 RUBBER; SPACE TURKISH EQUIPMENT(S6S) EXC. TURBOCHARGER<K51>	8-97286-992-0	01	1	0201-		●
41	00.137 RUBBER; SPACE	8-97286-992-0	01	1	0201-			●
99	01.453 NUT; BRKT TO OIL PAN FIX 06.164 M8 FLANGE	5-09440-010-0	10	1	9811-	●	●	●
108	01.426 COVER; OIL PAN	8-97248-296-2	01	1	0201-			●
108	01.426 COVER; OIL PAN TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97204-196-2	01	1	9811-9901		●
108	01.426 COVER; OIL PAN TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97224-447-1	01	1	9902-0004		●
108	01.426 COVER; OIL PAN TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> EXC. COLOMBIA EQUIPMENT(X74)	8-97224-447-1	01	1	0005-0105		●
128	01.516 RUBBER; MTG,OIL PAN	8-97227-521-0	04	1	0201-			●
128	01.516 RUBBER; MTG,OIL PAN TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 00.034 OD=22	8-94140-428-1	04	1	9811-9901		●
128	01.516 RUBBER; MTG,OIL PAN TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97224-449-0	04	1	9902-9902		●
128	01.516 RUBBER; MTG,OIL PAN TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97227-521-0	04	1	9903-0004		●
128	01.516 RUBBER; MTG,OIL PAN TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> EXC. COLOMBIA EQUIPMENT(X74)	8-97227-521-0	04	1	0005-0105		●
141	01.428 BOLT; BRKT TO OIL PAN FIX	8-94133-973-2	12	1	9811-	●	●	●
173	01.428 BOLT; COVER 00.034 M8X22 W/LK&PL WASHER	8-94329-953-1	04	1	0201-			●
173	01.428 BOLT; COVER TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE	0-28080-816-0	04	1	9811-9901		●
173	01.428 BOLT; COVER TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 00.034 M8X22 W/LK&PL WASHER	8-94329-953-1	04	1	9902-0004		●
173	01.428 BOLT; COVER TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> EXC. COLOMBIA EQUIPMENT(X74) 00.034 M8X22 W/LK&PL WASHER	8-94329-953-1	04	1	0005-0105		●
323	01.516 BUSHING; MTG RUBBER TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 00.034 OD=13 T=9.5	8-94140-427-1	04	1	9811-9901		●
331	01.516 COLLAR; MTG RUBBER	8-97224-450-0	04	1	0201-			●
331	01.516 COLLAR; MTG RUBBER TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97224-450-0	04	1	9902-0004		●
331	01.516 COLLAR; MTG RUBBER TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> EXC. COLOMBIA EQUIPMENT(X74)	8-97224-450-0	04	1	0005-0105		●

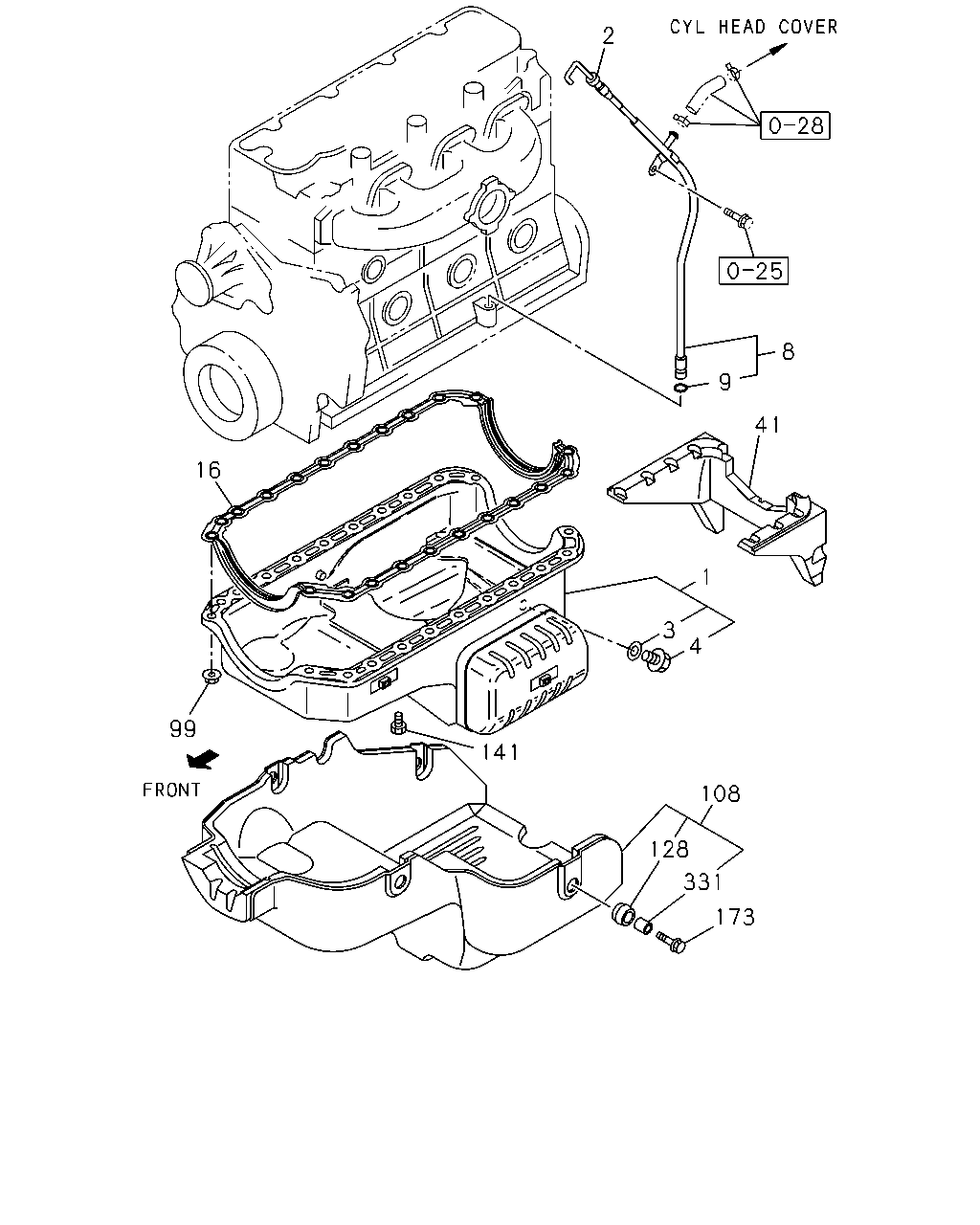

2 8 9 41 16 1 3 4 141 99 108 128 331 173

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	01.426 PAN ASM; OIL	8-97083-322-3	01	1	9811-	●
1	01.426 PAN ASM; OIL EXC. TURBOCHARGER<K51>	8-97083-322-3	01	1	9811-		●
1	01.426 PAN ASM; OIL TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL>	8-97083-322-3	01	1	9811-		●
1	01.426 PAN ASM; OIL TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97204-195-0	01	1	9811-9901		●
1	01.426 PAN ASM; OIL TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97223-955-0	01	1	9902-0112		●
1	01.426 PAN ASM; OIL TURBOCHARGER<K51>	8-97223-955-0	01	1	0201-		●
1	01.426 PAN ASM; OIL	8-97223-955-0	01	1	0201-			●
1	01.426 PAN ASM; OIL	8-97087-642-2	01	1	9811-0012				●
1	01.426 PAN ASM; OIL	8-97305-077-0	01	1	0101-				●
2	01.516 GAUGE; OIL LEVEL	8-97092-924-0	01	1	9811-9905	●	●
2	01.516 GAUGE; OIL LEVEL	8-97092-924-0	01	1	9906-9906	●
2	01.516 GAUGE; OIL LEVEL EXC. TURBOCHARGER<K51>	8-97092-924-0	01	1	9906-9906		●
2	01.516 GAUGE; OIL LEVEL TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL>	8-97092-924-0	01	1	9906-9906		●
2	01.516 GAUGE; OIL LEVEL	8-97092-924-0	01	1	9906-	●
2	01.516 GAUGE; OIL LEVEL EXC. TURBOCHARGER<K51>	8-97092-924-0	01	1	9906-		●
2	01.516 GAUGE; OIL LEVEL TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97231-295-0	01	1	9906-9906		●
2	01.516 GAUGE; OIL LEVEL TURBOCHARGER<K51>	8-97231-295-0	01	1	9906-		●
2	01.516 GAUGE; OIL LEVEL	8-97231-295-0	01	1	9906-			●
2	01.516 GAUGE; OIL LEVEL	8-97094-460-2	01	1	9811-				●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE).	8-94158-328-0	01	1	9811-0012	●			●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). EXC. TURBOCHARGER<K51> ID=14.2 OD=24	8-94158-328-0	01	1	9811-0012		●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> ID=14.2 OD=24	8-94158-328-0	01	1	9811-0012		●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE).	8-94158-328-0	01	1	0101-0103	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). EXC. TURBOCHARGER<K51> ID=14.2 OD=24	8-94158-328-0	01	1	0101-0103		●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> ID=14.2 OD=24	8-94158-328-0	01	1	0101-0103		●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	0104-	●	●	●	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	9811-0012	●			●
4	01.453 PLUG; DRAIN,OIL EXC. TURBOCHARGER<K51> 03.001 M14X14	8-94152-613-0	01	1	9811-0012		●
4	01.453 PLUG; DRAIN,OIL TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 03.001 M14X14	8-94152-613-0	01	1	9811-0012		●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	0101-0103	●
4	01.453 PLUG; DRAIN,OIL EXC. TURBOCHARGER<K51> 03.001 M14X14	8-94152-613-0	01	1	0101-0103		●
4	01.453 PLUG; DRAIN,OIL TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 03.001 M14X14	8-94152-613-0	01	1	0101-0103		●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	0104-	●	●	●	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97239-977-0	01	1	0201-			●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97044-886-0	01	1	9811-	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE EXC. TURBOCHARGER<K51>	8-97044-886-0	01	1	9811-		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL>	8-97044-886-0	01	1	9811-		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97204-197-0	01	1	9811-9812		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97221-497-0	01	1	9901-		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97101-907-1	01	1	9811-				●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	01	1	9811-0112	●	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE).	5-09623-002-0	01	1	0201-0205	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). EXC. TURBOCHARGER<K51> ID=11	5-09623-002-0	01	1	0201-0205		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> ID=11	5-09623-002-0	01	1	0201-0205		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE).	5-09623-002-0	01	1	0206-	●		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). EXC. TURBOCHARGER<K51> ID=11	5-09623-002-0	01	1	0206-		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> ID=11	5-09623-002-0	01	1	0206-		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	9811-				●
16	01.429 GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97080-194-0	01	1	9811-	●	●	●
41	00.137 RUBBER; SPACE TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97095-936-0	01	1	9811-0004		●
41	00.137 RUBBER; SPACE TAIWAN EQUIPMENT(RWV),TURKISH EQUIPMENT(S6S) EXC. TURBOCHARGER<K51>	8-97095-936-0	01	1	0005-0105	●	●
41	00.137 RUBBER; SPACE TURBOCHARGER<K51>	8-97095-936-0	01	1	0005-0105		●
41	00.137 RUBBER; SPACE EXC. BRAZIL EQUIPMENT(RWF)	8-97286-992-0	01	1	0106-0112	●
41	00.137 RUBBER; SPACE TAIWAN EQUIPMENT(RWV),TURKISH EQUIPMENT(S6S) EXC. TURBOCHARGER<K51>	8-97286-992-0	01	1	0106-0112		●
41	00.137 RUBBER; SPACE TURBOCHARGER<K51>	8-97286-992-0	01	1	0106-0112		●
41	00.137 RUBBER; SPACE EXC. BRAZIL EQUIPMENT(RWF)	8-97286-992-0	01	1	0201-	●
41	00.137 RUBBER; SPACE TURBOCHARGER<K51>	8-97286-992-0	01	1	0201-		●
41	00.137 RUBBER; SPACE TURKISH EQUIPMENT(S6S) EXC. TURBOCHARGER<K51>	8-97286-992-0	01	1	0201-		●
41	00.137 RUBBER; SPACE	8-97286-992-0	01	1	0201-			●
99	01.453 NUT; BRKT TO OIL PAN FIX 06.164 M8 FLANGE	5-09440-010-0	10	1	9811-	●	●	●
108	01.426 COVER; OIL PAN	8-97248-296-2	01	1	0201-			●
108	01.426 COVER; OIL PAN TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97204-196-2	01	1	9811-9901		●
108	01.426 COVER; OIL PAN TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97224-447-1	01	1	9902-0004		●
108	01.426 COVER; OIL PAN TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> EXC. COLOMBIA EQUIPMENT(X74)	8-97224-447-1	01	1	0005-0105		●
128	01.516 RUBBER; MTG,OIL PAN	8-97227-521-0	04	1	0201-			●
128	01.516 RUBBER; MTG,OIL PAN TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 00.034 OD=22	8-94140-428-1	04	1	9811-9901		●
128	01.516 RUBBER; MTG,OIL PAN TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97224-449-0	04	1	9902-9902		●
128	01.516 RUBBER; MTG,OIL PAN TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97227-521-0	04	1	9903-0004		●
128	01.516 RUBBER; MTG,OIL PAN TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> EXC. COLOMBIA EQUIPMENT(X74)	8-97227-521-0	04	1	0005-0105		●
141	01.428 BOLT; BRKT TO OIL PAN FIX	8-94133-973-2	12	1	9811-	●	●	●
173	01.428 BOLT; COVER 00.034 M8X22 W/LK&PL WASHER	8-94329-953-1	04	1	0201-			●
173	01.428 BOLT; COVER TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE	0-28080-816-0	04	1	9811-9901		●
173	01.428 BOLT; COVER TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 00.034 M8X22 W/LK&PL WASHER	8-94329-953-1	04	1	9902-0004		●
173	01.428 BOLT; COVER TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> EXC. COLOMBIA EQUIPMENT(X74) 00.034 M8X22 W/LK&PL WASHER	8-94329-953-1	04	1	0005-0105		●
331	01.516 COLLAR; MTG RUBBER	8-97224-450-0	04	1	0201-			●
331	01.516 COLLAR; MTG RUBBER TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97224-450-0	04	1	9902-0004		●
331	01.516 COLLAR; MTG RUBBER TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> EXC. COLOMBIA EQUIPMENT(X74)	8-97224-450-0	04	1	0005-0105		●

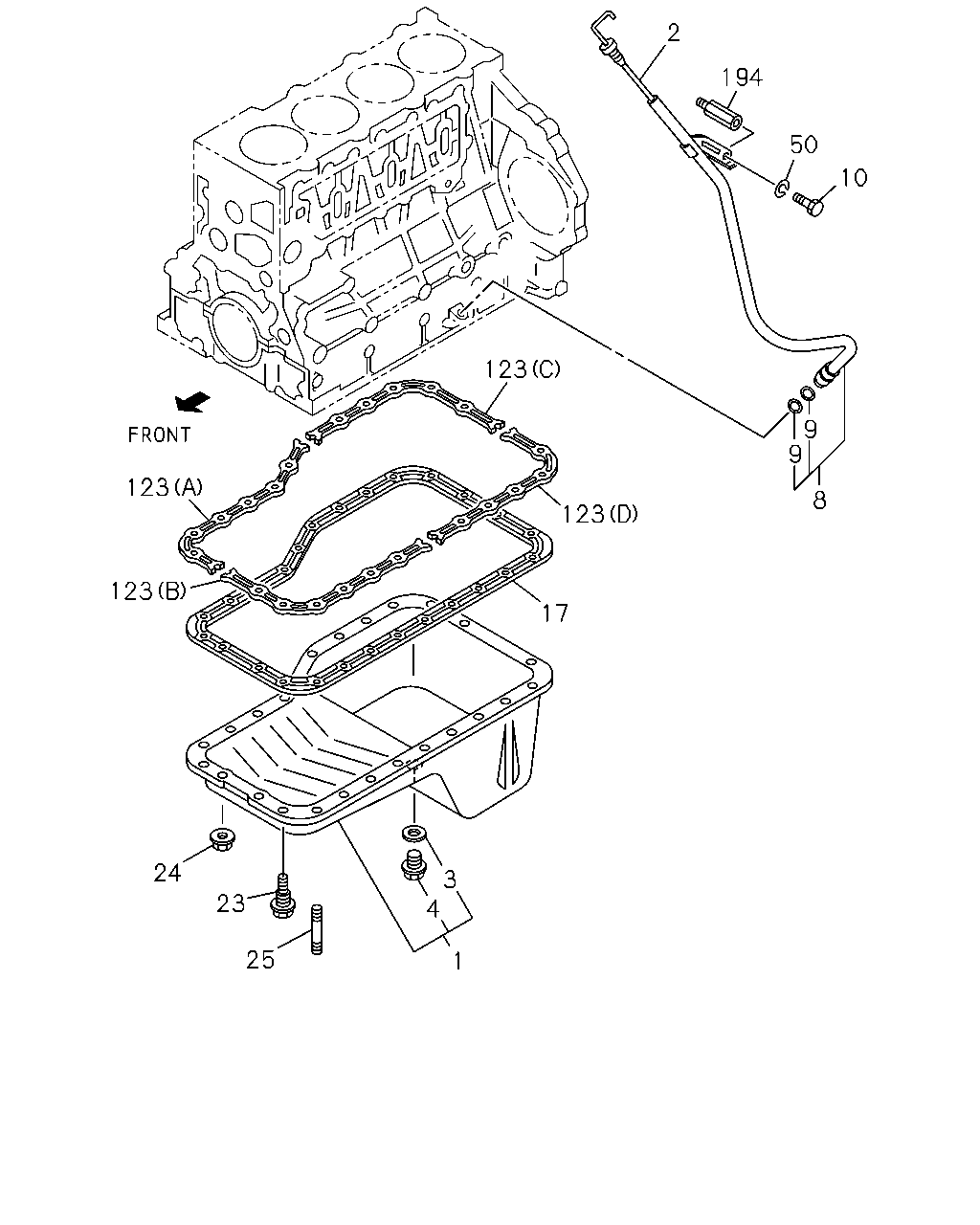

2 194 50 10 123 9 9 123 8 123 123 17 24 3 4 23 25 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	01.426 PAN ASM; OIL	8-97083-322-3	01	1	9811-	●
1	01.426 PAN ASM; OIL EXC. TURBOCHARGER<K51>	8-97083-322-3	01	1	9811-		●
1	01.426 PAN ASM; OIL TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL>	8-97083-322-3	01	1	9811-		●
1	01.426 PAN ASM; OIL TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97204-195-0	01	1	9811-9901		●
1	01.426 PAN ASM; OIL TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97223-955-0	01	1	9902-0112		●
1	01.426 PAN ASM; OIL TURBOCHARGER<K51>	8-97223-955-0	01	1	0201-		●
1	01.426 PAN ASM; OIL	8-97223-955-0	01	1	0201-			●
1	01.426 PAN ASM; OIL	8-97087-642-2	01	1	9811-0012				●
1	01.426 PAN ASM; OIL	8-97305-077-0	01	1	0101-				●
2	01.516 GAUGE; OIL LEVEL	8-97092-924-0	01	1	9811-9905	●	●
2	01.516 GAUGE; OIL LEVEL	8-97092-924-0	01	1	9906-9906	●
2	01.516 GAUGE; OIL LEVEL EXC. TURBOCHARGER<K51>	8-97092-924-0	01	1	9906-9906		●
2	01.516 GAUGE; OIL LEVEL TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL>	8-97092-924-0	01	1	9906-9906		●
2	01.516 GAUGE; OIL LEVEL	8-97092-924-0	01	1	9906-	●
2	01.516 GAUGE; OIL LEVEL EXC. TURBOCHARGER<K51>	8-97092-924-0	01	1	9906-		●
2	01.516 GAUGE; OIL LEVEL TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97231-295-0	01	1	9906-9906		●
2	01.516 GAUGE; OIL LEVEL TURBOCHARGER<K51>	8-97231-295-0	01	1	9906-		●
2	01.516 GAUGE; OIL LEVEL	8-97231-295-0	01	1	9906-			●
2	01.516 GAUGE; OIL LEVEL	8-97094-460-2	01	1	9811-				●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE).	8-94158-328-0	01	1	9811-0012	●			●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). EXC. TURBOCHARGER<K51> ID=14.2 OD=24	8-94158-328-0	01	1	9811-0012		●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> ID=14.2 OD=24	8-94158-328-0	01	1	9811-0012		●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE).	8-94158-328-0	01	1	0101-0103	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). EXC. TURBOCHARGER<K51> ID=14.2 OD=24	8-94158-328-0	01	1	0101-0103		●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> ID=14.2 OD=24	8-94158-328-0	01	1	0101-0103		●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	0104-	●	●	●	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	9811-0012	●			●
4	01.453 PLUG; DRAIN,OIL EXC. TURBOCHARGER<K51> 03.001 M14X14	8-94152-613-0	01	1	9811-0012		●
4	01.453 PLUG; DRAIN,OIL TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 03.001 M14X14	8-94152-613-0	01	1	9811-0012		●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	0101-0103	●
4	01.453 PLUG; DRAIN,OIL EXC. TURBOCHARGER<K51> 03.001 M14X14	8-94152-613-0	01	1	0101-0103		●
4	01.453 PLUG; DRAIN,OIL TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 03.001 M14X14	8-94152-613-0	01	1	0101-0103		●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	0104-	●	●	●	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97239-977-0	01	1	0201-			●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97044-886-0	01	1	9811-	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE EXC. TURBOCHARGER<K51>	8-97044-886-0	01	1	9811-		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL>	8-97044-886-0	01	1	9811-		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97204-197-0	01	1	9811-9812		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97221-497-0	01	1	9901-		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97101-907-1	01	1	9811-				●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	01	1	9811-0112	●	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE).	5-09623-002-0	01	1	0201-0205	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). EXC. TURBOCHARGER<K51> ID=11	5-09623-002-0	01	1	0201-0205		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> ID=11	5-09623-002-0	01	1	0201-0205		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE).	5-09623-002-0	01	1	0206-	●		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). EXC. TURBOCHARGER<K51> ID=11	5-09623-002-0	01	1	0206-		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> ID=11	5-09623-002-0	01	1	0206-		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	9811-				●
10	01.516 BOLT; GUIDE TUBE 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9811-				●
17	01.429 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE).	8-97146-148-2	01	1	9811-0012				●
17	01.429 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE).	8-97190-191-1	01	1	0101-				●
23	01.428 BOLT; OIL PAN M8X12.8 W/PL WASHER,RUBBER TUBE	8-97087-634-0	11	1	9811-0005				●
23	01.428 BOLT; OIL PAN M8X12.8 W/PL WASHER,RUBBER TUBE	8-97087-634-0	13	1	0006-0012				●
23	01.428 BOLT; OIL PAN M8X12.8 W/PL WASHER,RUBBER TUBE	8-97190-390-0	13	1	0101-				●
24	01.453 NUT; OIL PAN 07.633 M8 FLANGE	0-91150-108-0	15	1	9811-0005				●
24	01.453 NUT; OIL PAN 07.633 M8 FLANGE	0-91150-108-0	13	1	0006-				●
25	01.453 STUD; OIL PAN 01.428 M8X12.8 M8X16.5 L=43.1 W/WASHER&RUBBER	8-97087-632-2	10	1	9811-0005				●
25	01.453 STUD; OIL PAN 01.428 M8X12.8 M8X16.5 L=43.1 W/WASHER&RUBBER	8-97087-632-2	09	1	0006-0012				●
25	01.453 STUD; OIL PAN 01.428 M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE	8-97190-392-0	09	1	0101-				●
25	01.453 STUD; OIL PAN M8X10.8 M8X16.5 L=41.1 W/WASHER&RUBBER	8-97087-680-2	01	1	9811-0012				●
25	01.453 STUD; OIL PAN M8X16,M8X17 L=37 W/PL WASHER,RUBBER TUBE	8-97190-391-0	01	1	0101-				●
50	01.516 WASHER; PL,GUIDE TUBE 04.085 ID=10.5 OD=22	9-09164-610-0	01	1	9811-				●
123	01.516 RUBBER; SEAL OIL (A)	8-97087-619-2	01	1	9811-0012				●
123	01.516 RUBBER; SEAL OIL (A)	8-97186-988-0	01	1	0101-				●
123	01.516 RUBBER; SEAL OIL (B)	8-97087-622-2	01	1	9811-0012				●
123	01.516 RUBBER; SEAL OIL (B)	8-97186-994-0	01	1	0101-				●
123	01.516 RUBBER; SEAL OIL (C)	8-97087-625-2	01	1	9811-0012				●
123	01.516 RUBBER; SEAL OIL (C)	8-97186-998-0	01	1	0101-				●
123	01.516 RUBBER; SEAL OIL (D)	8-97087-628-2	01	1	9811-0012				●
123	01.516 RUBBER; SEAL OIL (D)	8-97187-000-0	01	1	0101-				●
194	01.429 SPACER; GUIDE TUBE	8-97101-215-0	01	1	9811-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
