◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50809 - NKR-LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-11 - CYLINDER HEAD ▶
0-11 — CYLINDER HEAD (#43188) — 370 parça

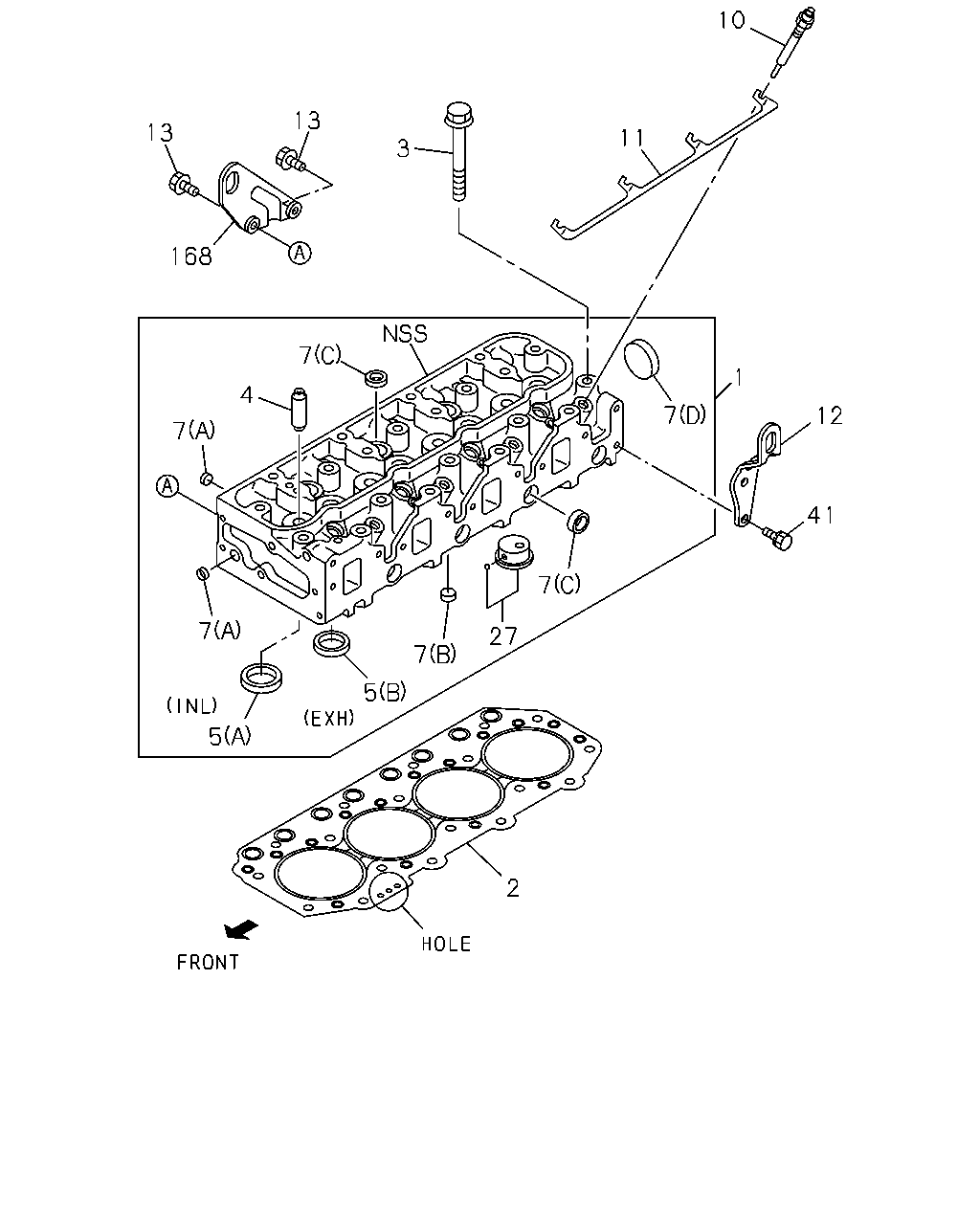

çizim 46359
10 13 13 11 3 168 7 1 4 12 7 7 41 7 7 27 7 5 5 2
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 00.269 HEAD ASM; CYL 8-97239-922-2 01 1 0201- ●
1 00.269 HEAD ASM; CYL
CHILE EQUIPMENT(6KB) 		8-97120-278-4 01 1 9811-0012 ●
1 00.269 HEAD ASM; CYL
BRAZIL EQUIPMENT(RWF),CHILE EQUIPMENT(6KB) 		8-97120-278-4 01 1 0101-0105 ●
1 00.269 HEAD ASM; CYL 8-97120-278-6 01 1 0106- ●
1 00.269 HEAD ASM; CYL
TAIWAN EQUIPMENT(RWV) 		8-97089-280-2 01 1 9811-0105 ●
1 00.269 HEAD ASM; CYL
OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 		8-97120-178-3 01 1 9811-0211 ●
1 00.269 HEAD ASM; CYL
EXC. TURBOCHARGER<K51> 		8-97120-178-3 01 1 0212- ●
1 00.269 HEAD ASM; CYL
EXC. OIL COOLER<KC4>,TURBOCHARGER<K51> 		8-97109-642-3 01 1 9811-0211 ●
1 00.269 HEAD ASM; CYL
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 		8-97204-376-5 01 1 9811- ●
1 00.269 HEAD ASM; CYL
TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 		8-97176-424-6 01 1 9811- ●
1 00.269 HEAD ASM; CYL 8-97146-520-2 01 1 9811-0006 ●
1 00.269 HEAD ASM; CYL 8-97186-589-5 01 1 0007- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.60 1-HOLE 		8-97066-196-0 01 1 9811- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.65 2-HOLE 		8-97066-197-0 01 1 9811- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.70 3-HOLE 		8-97066-198-0 01 1 9811- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.60 1-NOTCH 		8-94332-326-0 01 1 9811-0212 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.60 1-NOTCH 		8-97350-318-0 01 1 0301- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.65 2-NOTCH 		8-94332-327-0 01 1 9811-0212 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.65 2-NOTCH 		8-97350-319-0 01 1 0301- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.70 3-NOTCH 		8-94332-328-0 01 1 9811-0212 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.70 3-NOTCH 		8-97350-320-0 01 1 0301- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.70 WO/NOTCH 		8-97105-871-0 01 1 9811-9904 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.475 NON-HOLE 		8-97223-762-0 01 1 9905-9908 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.475 NON-HOLE 		8-97233-756-0 01 1 9909-0006 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.475 NON-HOLE 		8-97262-940-1 01 1 0007-0210 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.475 NON-HOLE 		8-97349-483-0 01 1 0211- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.75 1-NOTCH 		8-97105-872-0 01 1 9811-9904 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.525 1-HOLE 		8-97223-763-0 01 1 9905-9908 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.525 1-HOLE 		8-97233-757-0 01 1 9909-0006 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.525 1-HOLE 		8-97262-941-1 01 1 0007-0210 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.525 1-HOLE 		8-97349-484-0 01 1 0211- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.80 2-NOTCH 		8-97105-873-0 01 1 9811-9904 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.575 2-HOLE 		8-97223-764-0 01 1 9905-9908 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.575 2-HOLE 		8-97233-758-0 01 1 9909-0006 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.575 2-HOLE 		8-97262-942-1 01 1 0007-0210 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.575 2-HOLE 		8-97349-485-0 01 1 0211- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.30 1-NOTCH 		8-97259-601-0 01 1 0201- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.35 2-NOTCH 		8-97259-602-0 01 1 0201- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.40 3-NOTCH 		8-97259-603-0 01 1 0201- ●
3 00.293 BOLT; CYL HD TO BLOCK
M11X122 		8-97133-416-1 18 1 9811- ● ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(A) M10X73 		8-94399-554-0 01 1 9811- ●
3 00.293 BOLT; CYL HD TO BLOCK
(B) M10X43 		8-94399-555-0 01 1 9811- ●
3 00.293 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-97077-638-0 18 1 9811- ●
4 00.283 GUIDE; VLV
L=50 		5-11721-016-0 08 1 9811- ● ● ●
4 00.283 GUIDE; VLV 8-94396-598-0 08 1 9811- ●
5 00.253 SEAT; VLV INSERT
(B) EXHAUST 		8-94130-559-0 04 1 9811-0008 ●
5 00.253 SEAT; VLV INSERT
EXC. TURBOCHARGER<K51> (B) EXHAUST 		8-94130-559-0 04 1 9811-0008 ●
5 00.253 SEAT; VLV INSERT
(B) EXHAUST 		8-94130-559-0 04 1 0009-0104 ●
5 00.253 SEAT; VLV INSERT
(B) EXHAUST 		8-94130-559-0 04 1 0105-0207 ●
5 00.253 SEAT; VLV INSERT
EXC. TURBOCHARGER<K51> (B) EXHAUST 		8-94130-559-0 04 1 0105-0207 ●
5 00.253 SEAT; VLV INSERT
(A) INLET 		8-97083-162-0 04 1 9811-0003 ●
5 00.253 SEAT; VLV INSERT
(A) INLET OD=42.7 		8-97254-813-0 04 1 0004- ● ●
5 00.253 SEAT; VLV INSERT
TURBOCHARGER<K51> (A) INLET 		8-94431-521-0 04 1 9811-0003 ●
5 00.253 SEAT; VLV INSERT
TURBOCHARGER<K51> (A) INLET 		8-97254-814-0 04 1 0004-0207 ●
5 00.253 SEAT; VLV INSERT
(A) INLET 		8-97254-814-0 04 1 0004-0207 ●
5 00.253 SEAT; VLV INSERT
(A) INLET 		8-97231-228-0 04 1 0208- ●
5 00.253 SEAT; VLV INSERT
TURBOCHARGER<K51> (B) EXHAUST 		8-94431-522-0 04 1 9811-0003 ●
5 00.253 SEAT; VLV INSERT
(B) EXHAUST 		8-94431-522-0 04 1 9811-0003 ●
5 00.253 SEAT; VLV INSERT
TURBOCHARGER<K51> (B) EXHAUST 		8-97254-815-0 04 1 0004-0207 ●
5 00.253 SEAT; VLV INSERT
(B) EXHAUST 		8-97254-815-0 04 1 0004-0207 ●
5 00.253 SEAT; VLV INSERT
(B) EXHAUST OD=36.7 		8-97231-229-0 04 1 0208- ● ● ●
5 00.253 SEAT; VLV INSERT
EXC. TURBOCHARGER<K51> (A) INLET 		8-94130-558-0 04 1 9811-0008 ●
5 00.253 SEAT; VLV INSERT
EXC. TURBOCHARGER<K51> (A) INLET 		8-94130-558-0 04 1 0009-0104 ●
5 00.253 SEAT; VLV INSERT
EXC. TURBOCHARGER<K51> (B) EXHAUST 		8-94130-559-0 04 1 0009-0104 ●
5 00.253 SEAT; VLV INSERT
(A) INLET 		8-94394-127-0 04 1 9811- ●
5 00.253 SEAT; VLV INSERT
(B) EXHAUST 		8-94396-172-0 04 1 9811- ●
7 00.253 CUP; SEALING,CYL HEAD
EXC. OIL COOLER<KC4>,TURBOCHARGER<K51> (C) OD=22 		8-97209-609-0 07 1 0105-0211 ●
7 00.253 CUP; SEALING,CYL HEAD
EXC. OIL COOLER<KC4>,TURBOCHARGER<K51> (C) OD=22 		8-97209-609-0 01 1 0212- ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=22 		1-09600-011-2 06 1 9811-9901 ●
7 00.253 CUP; SEALING,CYL HEAD
TURBOCHARGER<K51> (C) OD=22 		1-09600-011-2 06 1 9811-9901 ●
7 00.253 CUP; SEALING,CYL HEAD
OIL COOLER<KC4> EXC. TURBOCHARGER<K51> (C) OD=22 		1-09600-011-2 06 1 9811-9901 ●
7 00.253 CUP; SEALING,CYL HEAD
TAIWAN EQUIPMENT(RWV) (C) OD=22 		1-09600-011-2 06 1 9902-9905 ●
7 00.253 CUP; SEALING,CYL HEAD
TURBOCHARGER<K51> (C) OD=22 		1-09600-011-2 06 1 9902-9905 ●
7 00.253 CUP; SEALING,CYL HEAD
OIL COOLER<KC4> EXC. TURBOCHARGER<K51> (C) OD=22 		1-09600-011-2 06 1 9902-9905 ●
7 00.253 CUP; SEALING,CYL HEAD
CHILE EQUIPMENT(6KB) (C) OD=22 		8-97209-609-0 06 1 9902-9905 ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=22 		8-97209-609-0 06 1 9906-0008 ●
7 00.253 CUP; SEALING,CYL HEAD
TURBOCHARGER<K51> (C) OD=22 		8-97209-609-0 06 1 9906-0008 ●
7 00.253 CUP; SEALING,CYL HEAD
OIL COOLER<KC4> EXC. TURBOCHARGER<K51> (C) OD=22 		8-97209-609-0 06 1 9906-0008 ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=22 		8-97209-609-0 06 1 0009-0104 ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=22 		8-97209-609-0 06 1 0105-0112 ●
7 00.253 CUP; SEALING,CYL HEAD
OIL COOLER<KC4> EXC. TURBOCHARGER<K51> (C) OD=22 		8-97209-609-0 06 1 0105-0112 ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=22 		8-97209-609-0 06 1 0201-0211 ● ●
7 00.253 CUP; SEALING,CYL HEAD
OIL COOLER<KC4> EXC. TURBOCHARGER<K51> (C) OD=22 		8-97209-609-0 06 1 0201-0211 ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=22 		8-97209-609-0 06 1 0212- ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=45 		1-09600-005-1 01 1 9811-0207 ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=45 		8-97351-451-0 01 1 0208- ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=12.3 		5-09600-013-0 05 1 9811- ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=16 		5-11129-006-0 03 1 9811- ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
EXC. OIL COOLER<KC4>,TURBOCHARGER<K51> (C) OD=22 		1-09600-011-2 07 1 9811-9905 ●
7 00.253 CUP; SEALING,CYL HEAD
EXC. OIL COOLER<KC4>,TURBOCHARGER<K51> (C) OD=22 		8-97209-609-0 07 1 9906-0008 ●
7 00.253 CUP; SEALING,CYL HEAD
00.293 (B) OD=25 		1-09600-016-0 02 1 9811-0105 ●
7 00.253 CUP; SEALING,CYL HEAD
00.293 (B) OD=25 		1-09600-016-0 02 1 0106- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=12 		8-97036-335-1 04 1 9811-0105 ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=12 		8-97036-335-1 04 1 0106- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=32 		8-97096-821-0 12 1 9811-0105 ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=32 		8-97096-821-0 12 1 0106- ● ●
10 02.270 PLUG; GLOW
NGK 		8-97043-744-3 04 1 9811- ● ●
10 02.270 PLUG; GLOW 8-94133-759-8 04 1 9811- ● ●
10 02.270 PLUG; GLOW
NGK 		8-94175-158-1 04 1 9811- ●
10 02.270 PLUG; GLOW
BOSCH 		1-82513-044-0 04 1 9811-0105 ●
10 02.270 PLUG; GLOW
BOSCH 		1-82513-044-2 04 1 0106- ● ●
10 02.270 PLUG; GLOW
NGK 		8-97033-761-0 04 1 9811-0105 ●
10 02.270 PLUG; GLOW
NGK 		8-97033-761-1 04 1 0106- ● ●
11 02.251 CONNECTOR; GLOW PLUG 8-97146-518-0 01 1 9811- ●
11 02.251 CONNECTOR; GLOW PLUG 8-97146-517-0 01 1 9811- ● ●
11 02.251 CONNECTOR; GLOW PLUG 8-97136-565-0 01 1 9811-0105 ●
11 02.251 CONNECTOR; GLOW PLUG 8-97136-565-0 01 1 0106- ● ●
12 00.004 HANGER; ENG,RR 8-97107-739-0 01 1 9811- ● ● ●
12 00.004 HANGER; ENG,RR 8-97071-960-0 01 1 9811- ●
13 00.004 BOLT; HANGER
03.417 M10X25 FLANGE 		0-28081-025-0 01 1 9811-9812 ●
13 00.004 BOLT; HANGER
EXC. TURBOCHARGER<K51> 03.417 M10X25 FLANGE 		0-28081-025-0 01 1 9811-9812 ●
13 00.004 BOLT; HANGER
TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 03.417 M10X25 FLANGE 		0-28081-025-0 01 1 9811-9812 ●
13 00.004 BOLT; HANGER
03.417 M10X25 FLANGE 		0-28081-025-0 01 1 9901- ● ● ●
13 00.004 BOLT; HANGER
01.073 M8X25 W/LK WASHER 		0-50040-825-0 01 1 9811- ● ● ●
27 00.253 PLUG; HOT
CHILE EQUIPMENT(6KB) 		8-97120-280-0 04 1 9811-0012 ●
27 00.253 PLUG; HOT
BRAZIL EQUIPMENT(RWF),CHILE EQUIPMENT(6KB) 		8-97120-280-0 04 1 0101-0105 ●
27 00.253 PLUG; HOT 8-97120-280-0 04 1 0106- ●
27 00.253 PLUG; HOT
TAIWAN EQUIPMENT(RWV) 		8-97089-278-0 04 1 9811-0105 ●
41 09.181 BOLT; ENG HANGER
04.785 M8X18 W/LK WASHER 		0-50040-818-0 02 1 9811- ● ● ●
41 09.181 BOLT; ENG HANGER
ENGINE POWER N-SPEC(7QV) 04.785 M10X20 FLANGE 		0-28781-020-0 02 1 9811-0002 ●
41 09.181 BOLT; ENG HANGER
ENGINE POWER N-SPEC(7QV) 02.483 M12X20 FLANGE 		0-28181-220-0 02 1 0003- ●
168 00.004 HANGER; ENG,FRT 8-94379-714-1 01 1 9811- ● ● ●
168 00.004 HANGER; ENG,FRT 8-97104-515-1 01 1 9811-0001 ●
168 00.004 HANGER; ENG,FRT 8-97127-373-0 01 1 0002- ●

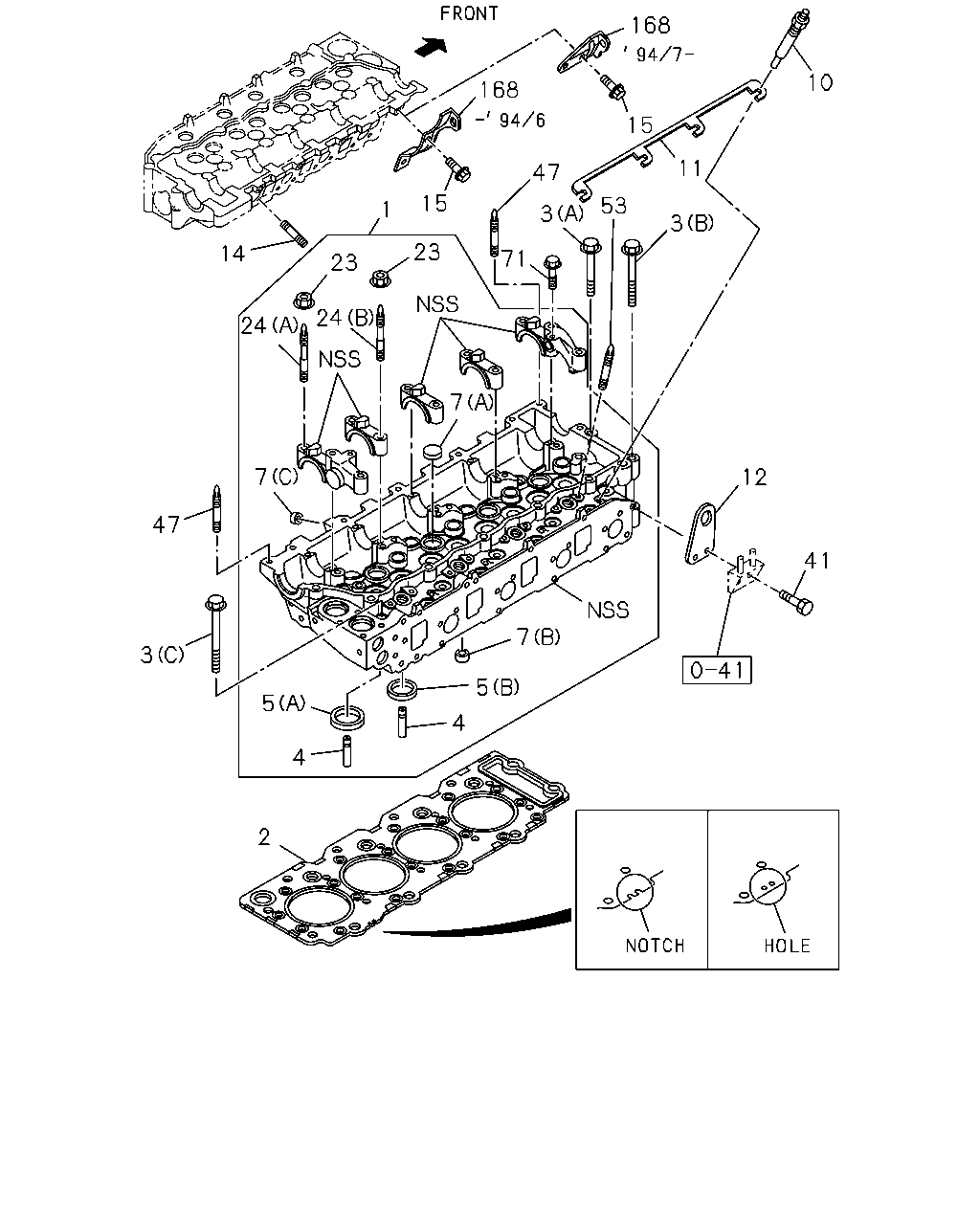

çizim 47414
168 10 168 15 11 47 15 53 1 3 3 23 14 71 23 24 24 7 7 12 47 41 7 3 5 5 4 4 2
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 00.269 HEAD ASM; CYL 8-97239-922-2 01 1 0201- ●
1 00.269 HEAD ASM; CYL
CHILE EQUIPMENT(6KB) 		8-97120-278-4 01 1 9811-0012 ●
1 00.269 HEAD ASM; CYL
BRAZIL EQUIPMENT(RWF),CHILE EQUIPMENT(6KB) 		8-97120-278-4 01 1 0101-0105 ●
1 00.269 HEAD ASM; CYL 8-97120-278-6 01 1 0106- ●
1 00.269 HEAD ASM; CYL
TAIWAN EQUIPMENT(RWV) 		8-97089-280-2 01 1 9811-0105 ●
1 00.269 HEAD ASM; CYL
OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 		8-97120-178-3 01 1 9811-0211 ●
1 00.269 HEAD ASM; CYL
EXC. TURBOCHARGER<K51> 		8-97120-178-3 01 1 0212- ●
1 00.269 HEAD ASM; CYL
EXC. OIL COOLER<KC4>,TURBOCHARGER<K51> 		8-97109-642-3 01 1 9811-0211 ●
1 00.269 HEAD ASM; CYL
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 		8-97204-376-5 01 1 9811- ●
1 00.269 HEAD ASM; CYL
TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 		8-97176-424-6 01 1 9811- ●
1 00.269 HEAD ASM; CYL 8-97146-520-2 01 1 9811-0006 ●
1 00.269 HEAD ASM; CYL 8-97186-589-5 01 1 0007- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.60 1-HOLE 		8-97066-196-0 01 1 9811- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.65 2-HOLE 		8-97066-197-0 01 1 9811- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.70 3-HOLE 		8-97066-198-0 01 1 9811- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.60 1-NOTCH 		8-94332-326-0 01 1 9811-0212 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.60 1-NOTCH 		8-97350-318-0 01 1 0301- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.65 2-NOTCH 		8-94332-327-0 01 1 9811-0212 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.65 2-NOTCH 		8-97350-319-0 01 1 0301- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.70 3-NOTCH 		8-94332-328-0 01 1 9811-0212 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.70 3-NOTCH 		8-97350-320-0 01 1 0301- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.70 WO/NOTCH 		8-97105-871-0 01 1 9811-9904 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.475 NON-HOLE 		8-97223-762-0 01 1 9905-9908 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.475 NON-HOLE 		8-97233-756-0 01 1 9909-0006 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.475 NON-HOLE 		8-97262-940-1 01 1 0007-0210 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.475 NON-HOLE 		8-97349-483-0 01 1 0211- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.75 1-NOTCH 		8-97105-872-0 01 1 9811-9904 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.525 1-HOLE 		8-97223-763-0 01 1 9905-9908 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.525 1-HOLE 		8-97233-757-0 01 1 9909-0006 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.525 1-HOLE 		8-97262-941-1 01 1 0007-0210 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.525 1-HOLE 		8-97349-484-0 01 1 0211- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.80 2-NOTCH 		8-97105-873-0 01 1 9811-9904 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.575 2-HOLE 		8-97223-764-0 01 1 9905-9908 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.575 2-HOLE 		8-97233-758-0 01 1 9909-0006 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.575 2-HOLE 		8-97262-942-1 01 1 0007-0210 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.575 2-HOLE 		8-97349-485-0 01 1 0211- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.30 1-NOTCH 		8-97259-601-0 01 1 0201- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.35 2-NOTCH 		8-97259-602-0 01 1 0201- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.40 3-NOTCH 		8-97259-603-0 01 1 0201- ●
3 00.293 BOLT; CYL HD TO BLOCK
M11X122 		8-97133-416-1 18 1 9811- ● ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(A) M10X73 		8-94399-554-0 01 1 9811- ●
3 00.293 BOLT; CYL HD TO BLOCK
(B) M10X43 		8-94399-555-0 01 1 9811- ●
3 00.293 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-97077-638-0 18 1 9811- ●
4 00.283 GUIDE; VLV
L=50 		5-11721-016-0 08 1 9811- ● ● ●
4 00.283 GUIDE; VLV 8-94396-598-0 08 1 9811- ●
5 00.253 SEAT; VLV INSERT
(B) EXHAUST 		8-94130-559-0 04 1 9811-0008 ●
5 00.253 SEAT; VLV INSERT
EXC. TURBOCHARGER<K51> (B) EXHAUST 		8-94130-559-0 04 1 9811-0008 ●
5 00.253 SEAT; VLV INSERT
(B) EXHAUST 		8-94130-559-0 04 1 0009-0104 ●
5 00.253 SEAT; VLV INSERT
(B) EXHAUST 		8-94130-559-0 04 1 0105-0207 ●
5 00.253 SEAT; VLV INSERT
EXC. TURBOCHARGER<K51> (B) EXHAUST 		8-94130-559-0 04 1 0105-0207 ●
5 00.253 SEAT; VLV INSERT
(A) INLET 		8-97083-162-0 04 1 9811-0003 ●
5 00.253 SEAT; VLV INSERT
(A) INLET OD=42.7 		8-97254-813-0 04 1 0004- ● ●
5 00.253 SEAT; VLV INSERT
TURBOCHARGER<K51> (A) INLET 		8-94431-521-0 04 1 9811-0003 ●
5 00.253 SEAT; VLV INSERT
TURBOCHARGER<K51> (A) INLET 		8-97254-814-0 04 1 0004-0207 ●
5 00.253 SEAT; VLV INSERT
(A) INLET 		8-97254-814-0 04 1 0004-0207 ●
5 00.253 SEAT; VLV INSERT
(A) INLET 		8-97231-228-0 04 1 0208- ●
5 00.253 SEAT; VLV INSERT
TURBOCHARGER<K51> (B) EXHAUST 		8-94431-522-0 04 1 9811-0003 ●
5 00.253 SEAT; VLV INSERT
(B) EXHAUST 		8-94431-522-0 04 1 9811-0003 ●
5 00.253 SEAT; VLV INSERT
TURBOCHARGER<K51> (B) EXHAUST 		8-97254-815-0 04 1 0004-0207 ●
5 00.253 SEAT; VLV INSERT
(B) EXHAUST 		8-97254-815-0 04 1 0004-0207 ●
5 00.253 SEAT; VLV INSERT
(B) EXHAUST OD=36.7 		8-97231-229-0 04 1 0208- ● ● ●
5 00.253 SEAT; VLV INSERT
EXC. TURBOCHARGER<K51> (A) INLET 		8-94130-558-0 04 1 9811-0008 ●
5 00.253 SEAT; VLV INSERT
EXC. TURBOCHARGER<K51> (A) INLET 		8-94130-558-0 04 1 0009-0104 ●
5 00.253 SEAT; VLV INSERT
EXC. TURBOCHARGER<K51> (B) EXHAUST 		8-94130-559-0 04 1 0009-0104 ●
5 00.253 SEAT; VLV INSERT
(A) INLET 		8-94394-127-0 04 1 9811- ●
5 00.253 SEAT; VLV INSERT
(B) EXHAUST 		8-94396-172-0 04 1 9811- ●
7 00.253 CUP; SEALING,CYL HEAD
EXC. OIL COOLER<KC4>,TURBOCHARGER<K51> (C) OD=22 		8-97209-609-0 07 1 0105-0211 ●
7 00.253 CUP; SEALING,CYL HEAD
EXC. OIL COOLER<KC4>,TURBOCHARGER<K51> (C) OD=22 		8-97209-609-0 01 1 0212- ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=22 		1-09600-011-2 06 1 9811-9901 ●
7 00.253 CUP; SEALING,CYL HEAD
TURBOCHARGER<K51> (C) OD=22 		1-09600-011-2 06 1 9811-9901 ●
7 00.253 CUP; SEALING,CYL HEAD
OIL COOLER<KC4> EXC. TURBOCHARGER<K51> (C) OD=22 		1-09600-011-2 06 1 9811-9901 ●
7 00.253 CUP; SEALING,CYL HEAD
TAIWAN EQUIPMENT(RWV) (C) OD=22 		1-09600-011-2 06 1 9902-9905 ●
7 00.253 CUP; SEALING,CYL HEAD
TURBOCHARGER<K51> (C) OD=22 		1-09600-011-2 06 1 9902-9905 ●
7 00.253 CUP; SEALING,CYL HEAD
OIL COOLER<KC4> EXC. TURBOCHARGER<K51> (C) OD=22 		1-09600-011-2 06 1 9902-9905 ●
7 00.253 CUP; SEALING,CYL HEAD
CHILE EQUIPMENT(6KB) (C) OD=22 		8-97209-609-0 06 1 9902-9905 ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=22 		8-97209-609-0 06 1 9906-0008 ●
7 00.253 CUP; SEALING,CYL HEAD
TURBOCHARGER<K51> (C) OD=22 		8-97209-609-0 06 1 9906-0008 ●
7 00.253 CUP; SEALING,CYL HEAD
OIL COOLER<KC4> EXC. TURBOCHARGER<K51> (C) OD=22 		8-97209-609-0 06 1 9906-0008 ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=22 		8-97209-609-0 06 1 0009-0104 ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=22 		8-97209-609-0 06 1 0105-0112 ●
7 00.253 CUP; SEALING,CYL HEAD
OIL COOLER<KC4> EXC. TURBOCHARGER<K51> (C) OD=22 		8-97209-609-0 06 1 0105-0112 ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=22 		8-97209-609-0 06 1 0201-0211 ● ●
7 00.253 CUP; SEALING,CYL HEAD
OIL COOLER<KC4> EXC. TURBOCHARGER<K51> (C) OD=22 		8-97209-609-0 06 1 0201-0211 ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=22 		8-97209-609-0 06 1 0212- ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=45 		1-09600-005-1 01 1 9811-0207 ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=45 		8-97351-451-0 01 1 0208- ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=12.3 		5-09600-013-0 05 1 9811- ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=16 		5-11129-006-0 03 1 9811- ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
EXC. OIL COOLER<KC4>,TURBOCHARGER<K51> (C) OD=22 		1-09600-011-2 07 1 9811-9905 ●
7 00.253 CUP; SEALING,CYL HEAD
EXC. OIL COOLER<KC4>,TURBOCHARGER<K51> (C) OD=22 		8-97209-609-0 07 1 9906-0008 ●
7 00.253 CUP; SEALING,CYL HEAD
00.293 (B) OD=25 		1-09600-016-0 02 1 9811-0105 ●
7 00.253 CUP; SEALING,CYL HEAD
00.293 (B) OD=25 		1-09600-016-0 02 1 0106- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=12 		8-97036-335-1 04 1 9811-0105 ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=12 		8-97036-335-1 04 1 0106- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=32 		8-97096-821-0 12 1 9811-0105 ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=32 		8-97096-821-0 12 1 0106- ● ●
10 02.270 PLUG; GLOW
NGK 		8-97043-744-3 04 1 9811- ● ●
10 02.270 PLUG; GLOW 8-94133-759-8 04 1 9811- ● ●
10 02.270 PLUG; GLOW
NGK 		8-94175-158-1 04 1 9811- ●
10 02.270 PLUG; GLOW
BOSCH 		1-82513-044-0 04 1 9811-0105 ●
10 02.270 PLUG; GLOW
BOSCH 		1-82513-044-2 04 1 0106- ● ●
10 02.270 PLUG; GLOW
NGK 		8-97033-761-0 04 1 9811-0105 ●
10 02.270 PLUG; GLOW
NGK 		8-97033-761-1 04 1 0106- ● ●
11 02.251 CONNECTOR; GLOW PLUG 8-97146-518-0 01 1 9811- ●
11 02.251 CONNECTOR; GLOW PLUG 8-97146-517-0 01 1 9811- ● ●
11 02.251 CONNECTOR; GLOW PLUG 8-97136-565-0 01 1 9811-0105 ●
11 02.251 CONNECTOR; GLOW PLUG 8-97136-565-0 01 1 0106- ● ●
12 00.004 HANGER; ENG,RR 8-97107-739-0 01 1 9811- ● ● ●
12 00.004 HANGER; ENG,RR 8-97071-960-0 01 1 9811- ●
14 03.275 STUD; EXH MANIF
M10X60 L=75 		8-94397-286-0 02 1 9811- ●
15 00.004 BOLT; HANGER,FRT
04.785 M10X20 FLANGE 		0-28781-020-0 02 1 9811- ●
23 00.349 NUT; CAM BRKT
01.540 M8 FLANGE 		0-91150-208-0 10 1 9811- ●
24 00.413 STUD; CM/SHF BRKT
(B) M8X54 L=79 		8-94322-512-2 02 1 9811- ●
24 00.413 STUD; CM/SHF BRKT
(A) M8X41 L=66 		8-94322-513-2 08 1 9811- ●
41 09.181 BOLT; ENG HANGER
04.785 M8X18 W/LK WASHER 		0-50040-818-0 02 1 9811- ● ● ●
41 09.181 BOLT; ENG HANGER
ENGINE POWER N-SPEC(7QV) 04.785 M10X20 FLANGE 		0-28781-020-0 02 1 9811-0002 ●
41 09.181 BOLT; ENG HANGER
ENGINE POWER N-SPEC(7QV) 02.483 M12X20 FLANGE 		0-28181-220-0 02 1 0003- ●
47 00.413 STUD; CYL HD
M8X30 L=41 		8-97016-313-0 02 1 9811-0205 ●
47 00.413 STUD; CYL HD
03.163 M8X40 L=57 		0-49740-840-0 02 1 0206- ●
47 00.413 STUD; CYL HD
M8X65 L=76 TORQUES 		8-97167-299-1 02 1 9811- ●
53 03.332 STUD; INJ NOZZLE
M8X64 L=85 		8-97178-608-0 08 1 9811- ●
71 00.413 BOLT; CAM BRKT
03.415 M8X35 FLANGE 		0-28080-835-0 02 1 9811- ●
168 00.004 HANGER; ENG,FRT 8-94379-714-1 01 1 9811- ● ● ●
168 00.004 HANGER; ENG,FRT 8-97104-515-1 01 1 9811-0001 ●
168 00.004 HANGER; ENG,FRT 8-97127-373-0 01 1 0002- ●

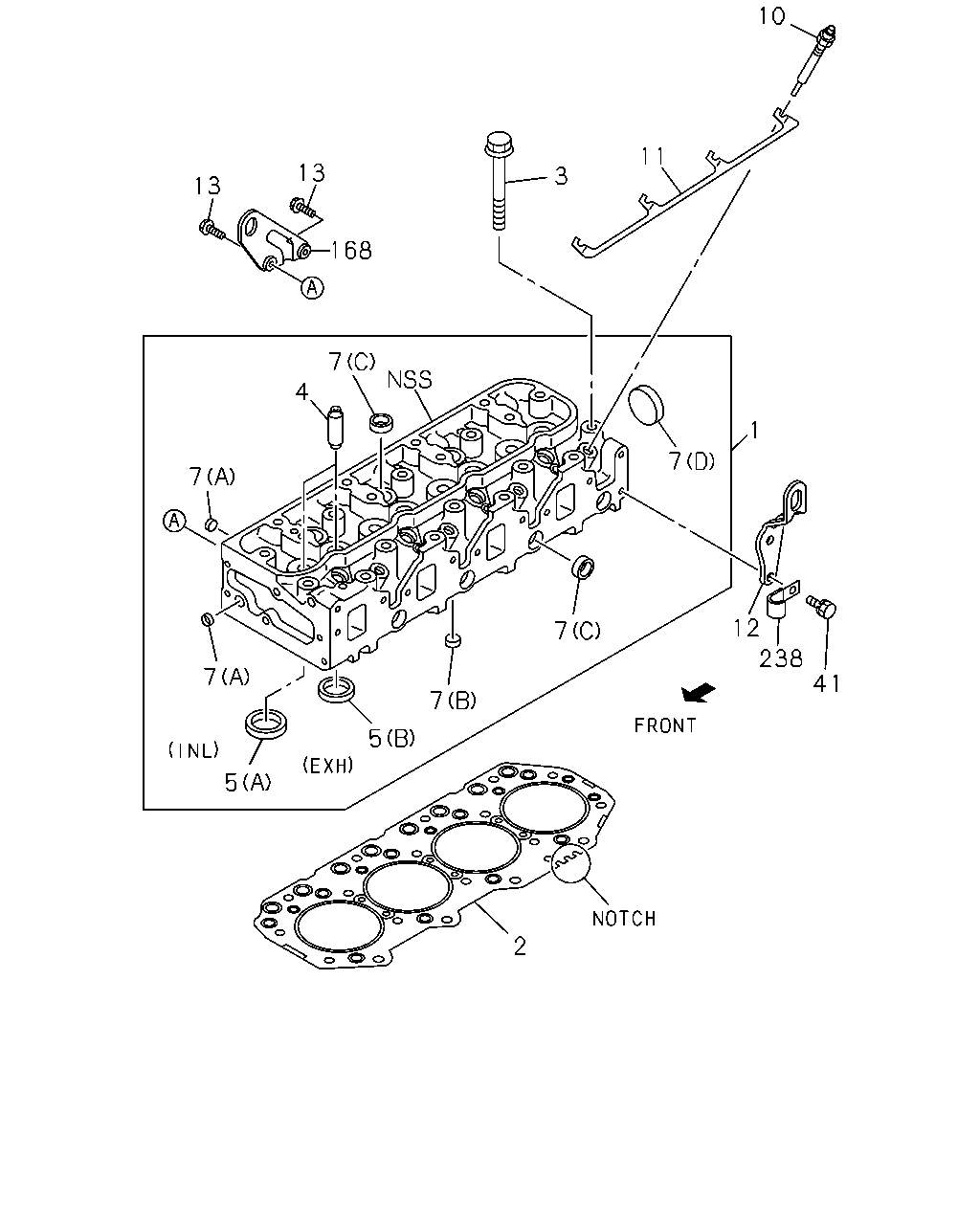

çizim 47429
10 11 13 3 13 168 7 4 1 7 7 12 7 238 41 7 7 5 5 2
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 00.269 HEAD ASM; CYL 8-97239-922-2 01 1 0201- ●
1 00.269 HEAD ASM; CYL
CHILE EQUIPMENT(6KB) 		8-97120-278-4 01 1 9811-0012 ●
1 00.269 HEAD ASM; CYL
BRAZIL EQUIPMENT(RWF),CHILE EQUIPMENT(6KB) 		8-97120-278-4 01 1 0101-0105 ●
1 00.269 HEAD ASM; CYL 8-97120-278-6 01 1 0106- ●
1 00.269 HEAD ASM; CYL
TAIWAN EQUIPMENT(RWV) 		8-97089-280-2 01 1 9811-0105 ●
1 00.269 HEAD ASM; CYL
OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 		8-97120-178-3 01 1 9811-0211 ●
1 00.269 HEAD ASM; CYL
EXC. TURBOCHARGER<K51> 		8-97120-178-3 01 1 0212- ●
1 00.269 HEAD ASM; CYL
EXC. OIL COOLER<KC4>,TURBOCHARGER<K51> 		8-97109-642-3 01 1 9811-0211 ●
1 00.269 HEAD ASM; CYL
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 		8-97204-376-5 01 1 9811- ●
1 00.269 HEAD ASM; CYL
TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 		8-97176-424-6 01 1 9811- ●
1 00.269 HEAD ASM; CYL 8-97146-520-2 01 1 9811-0006 ●
1 00.269 HEAD ASM; CYL 8-97186-589-5 01 1 0007- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.60 1-HOLE 		8-97066-196-0 01 1 9811- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.65 2-HOLE 		8-97066-197-0 01 1 9811- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.70 3-HOLE 		8-97066-198-0 01 1 9811- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.60 1-NOTCH 		8-94332-326-0 01 1 9811-0212 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.60 1-NOTCH 		8-97350-318-0 01 1 0301- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.65 2-NOTCH 		8-94332-327-0 01 1 9811-0212 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.65 2-NOTCH 		8-97350-319-0 01 1 0301- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.70 3-NOTCH 		8-94332-328-0 01 1 9811-0212 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.70 3-NOTCH 		8-97350-320-0 01 1 0301- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.70 WO/NOTCH 		8-97105-871-0 01 1 9811-9904 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.475 NON-HOLE 		8-97223-762-0 01 1 9905-9908 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.475 NON-HOLE 		8-97233-756-0 01 1 9909-0006 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.475 NON-HOLE 		8-97262-940-1 01 1 0007-0210 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.475 NON-HOLE 		8-97349-483-0 01 1 0211- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.75 1-NOTCH 		8-97105-872-0 01 1 9811-9904 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.525 1-HOLE 		8-97223-763-0 01 1 9905-9908 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.525 1-HOLE 		8-97233-757-0 01 1 9909-0006 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.525 1-HOLE 		8-97262-941-1 01 1 0007-0210 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.525 1-HOLE 		8-97349-484-0 01 1 0211- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.80 2-NOTCH 		8-97105-873-0 01 1 9811-9904 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.575 2-HOLE 		8-97223-764-0 01 1 9905-9908 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.575 2-HOLE 		8-97233-758-0 01 1 9909-0006 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.575 2-HOLE 		8-97262-942-1 01 1 0007-0210 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.575 2-HOLE 		8-97349-485-0 01 1 0211- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.30 1-NOTCH 		8-97259-601-0 01 1 0201- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.35 2-NOTCH 		8-97259-602-0 01 1 0201- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.40 3-NOTCH 		8-97259-603-0 01 1 0201- ●
3 00.293 BOLT; CYL HD TO BLOCK
M11X122 		8-97133-416-1 18 1 9811- ● ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(A) M10X73 		8-94399-554-0 01 1 9811- ●
3 00.293 BOLT; CYL HD TO BLOCK
(B) M10X43 		8-94399-555-0 01 1 9811- ●
3 00.293 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-97077-638-0 18 1 9811- ●
4 00.283 GUIDE; VLV
L=50 		5-11721-016-0 08 1 9811- ● ● ●
4 00.283 GUIDE; VLV 8-94396-598-0 08 1 9811- ●
5 00.253 SEAT; VLV INSERT
(B) EXHAUST 		8-94130-559-0 04 1 9811-0008 ●
5 00.253 SEAT; VLV INSERT
EXC. TURBOCHARGER<K51> (B) EXHAUST 		8-94130-559-0 04 1 9811-0008 ●
5 00.253 SEAT; VLV INSERT
(B) EXHAUST 		8-94130-559-0 04 1 0009-0104 ●
5 00.253 SEAT; VLV INSERT
(B) EXHAUST 		8-94130-559-0 04 1 0105-0207 ●
5 00.253 SEAT; VLV INSERT
EXC. TURBOCHARGER<K51> (B) EXHAUST 		8-94130-559-0 04 1 0105-0207 ●
5 00.253 SEAT; VLV INSERT
(A) INLET 		8-97083-162-0 04 1 9811-0003 ●
5 00.253 SEAT; VLV INSERT
(A) INLET OD=42.7 		8-97254-813-0 04 1 0004- ● ●
5 00.253 SEAT; VLV INSERT
TURBOCHARGER<K51> (A) INLET 		8-94431-521-0 04 1 9811-0003 ●
5 00.253 SEAT; VLV INSERT
TURBOCHARGER<K51> (A) INLET 		8-97254-814-0 04 1 0004-0207 ●
5 00.253 SEAT; VLV INSERT
(A) INLET 		8-97254-814-0 04 1 0004-0207 ●
5 00.253 SEAT; VLV INSERT
(A) INLET 		8-97231-228-0 04 1 0208- ●
5 00.253 SEAT; VLV INSERT
TURBOCHARGER<K51> (B) EXHAUST 		8-94431-522-0 04 1 9811-0003 ●
5 00.253 SEAT; VLV INSERT
(B) EXHAUST 		8-94431-522-0 04 1 9811-0003 ●
5 00.253 SEAT; VLV INSERT
TURBOCHARGER<K51> (B) EXHAUST 		8-97254-815-0 04 1 0004-0207 ●
5 00.253 SEAT; VLV INSERT
(B) EXHAUST 		8-97254-815-0 04 1 0004-0207 ●
5 00.253 SEAT; VLV INSERT
(B) EXHAUST OD=36.7 		8-97231-229-0 04 1 0208- ● ● ●
5 00.253 SEAT; VLV INSERT
EXC. TURBOCHARGER<K51> (A) INLET 		8-94130-558-0 04 1 9811-0008 ●
5 00.253 SEAT; VLV INSERT
EXC. TURBOCHARGER<K51> (A) INLET 		8-94130-558-0 04 1 0009-0104 ●
5 00.253 SEAT; VLV INSERT
EXC. TURBOCHARGER<K51> (B) EXHAUST 		8-94130-559-0 04 1 0009-0104 ●
5 00.253 SEAT; VLV INSERT
(A) INLET 		8-94394-127-0 04 1 9811- ●
5 00.253 SEAT; VLV INSERT
(B) EXHAUST 		8-94396-172-0 04 1 9811- ●
7 00.253 CUP; SEALING,CYL HEAD
EXC. OIL COOLER<KC4>,TURBOCHARGER<K51> (C) OD=22 		8-97209-609-0 07 1 0105-0211 ●
7 00.253 CUP; SEALING,CYL HEAD
EXC. OIL COOLER<KC4>,TURBOCHARGER<K51> (C) OD=22 		8-97209-609-0 01 1 0212- ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=22 		1-09600-011-2 06 1 9811-9901 ●
7 00.253 CUP; SEALING,CYL HEAD
TURBOCHARGER<K51> (C) OD=22 		1-09600-011-2 06 1 9811-9901 ●
7 00.253 CUP; SEALING,CYL HEAD
OIL COOLER<KC4> EXC. TURBOCHARGER<K51> (C) OD=22 		1-09600-011-2 06 1 9811-9901 ●
7 00.253 CUP; SEALING,CYL HEAD
TAIWAN EQUIPMENT(RWV) (C) OD=22 		1-09600-011-2 06 1 9902-9905 ●
7 00.253 CUP; SEALING,CYL HEAD
TURBOCHARGER<K51> (C) OD=22 		1-09600-011-2 06 1 9902-9905 ●
7 00.253 CUP; SEALING,CYL HEAD
OIL COOLER<KC4> EXC. TURBOCHARGER<K51> (C) OD=22 		1-09600-011-2 06 1 9902-9905 ●
7 00.253 CUP; SEALING,CYL HEAD
CHILE EQUIPMENT(6KB) (C) OD=22 		8-97209-609-0 06 1 9902-9905 ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=22 		8-97209-609-0 06 1 9906-0008 ●
7 00.253 CUP; SEALING,CYL HEAD
TURBOCHARGER<K51> (C) OD=22 		8-97209-609-0 06 1 9906-0008 ●
7 00.253 CUP; SEALING,CYL HEAD
OIL COOLER<KC4> EXC. TURBOCHARGER<K51> (C) OD=22 		8-97209-609-0 06 1 9906-0008 ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=22 		8-97209-609-0 06 1 0009-0104 ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=22 		8-97209-609-0 06 1 0105-0112 ●
7 00.253 CUP; SEALING,CYL HEAD
OIL COOLER<KC4> EXC. TURBOCHARGER<K51> (C) OD=22 		8-97209-609-0 06 1 0105-0112 ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=22 		8-97209-609-0 06 1 0201-0211 ● ●
7 00.253 CUP; SEALING,CYL HEAD
OIL COOLER<KC4> EXC. TURBOCHARGER<K51> (C) OD=22 		8-97209-609-0 06 1 0201-0211 ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=22 		8-97209-609-0 06 1 0212- ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=45 		1-09600-005-1 01 1 9811-0207 ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=45 		8-97351-451-0 01 1 0208- ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=12.3 		5-09600-013-0 05 1 9811- ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=16 		5-11129-006-0 03 1 9811- ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
EXC. OIL COOLER<KC4>,TURBOCHARGER<K51> (C) OD=22 		1-09600-011-2 07 1 9811-9905 ●
7 00.253 CUP; SEALING,CYL HEAD
EXC. OIL COOLER<KC4>,TURBOCHARGER<K51> (C) OD=22 		8-97209-609-0 07 1 9906-0008 ●
7 00.253 CUP; SEALING,CYL HEAD
00.293 (B) OD=25 		1-09600-016-0 02 1 9811-0105 ●
7 00.253 CUP; SEALING,CYL HEAD
00.293 (B) OD=25 		1-09600-016-0 02 1 0106- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=12 		8-97036-335-1 04 1 9811-0105 ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=12 		8-97036-335-1 04 1 0106- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=32 		8-97096-821-0 12 1 9811-0105 ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=32 		8-97096-821-0 12 1 0106- ● ●
10 02.270 PLUG; GLOW
NGK 		8-97043-744-3 04 1 9811- ● ●
10 02.270 PLUG; GLOW 8-94133-759-8 04 1 9811- ● ●
10 02.270 PLUG; GLOW
NGK 		8-94175-158-1 04 1 9811- ●
10 02.270 PLUG; GLOW
BOSCH 		1-82513-044-0 04 1 9811-0105 ●
10 02.270 PLUG; GLOW
BOSCH 		1-82513-044-2 04 1 0106- ● ●
10 02.270 PLUG; GLOW
NGK 		8-97033-761-0 04 1 9811-0105 ●
10 02.270 PLUG; GLOW
NGK 		8-97033-761-1 04 1 0106- ● ●
11 02.251 CONNECTOR; GLOW PLUG 8-97146-518-0 01 1 9811- ●
11 02.251 CONNECTOR; GLOW PLUG 8-97146-517-0 01 1 9811- ● ●
11 02.251 CONNECTOR; GLOW PLUG 8-97136-565-0 01 1 9811-0105 ●
11 02.251 CONNECTOR; GLOW PLUG 8-97136-565-0 01 1 0106- ● ●
12 00.004 HANGER; ENG,RR 8-97107-739-0 01 1 9811- ● ● ●
12 00.004 HANGER; ENG,RR 8-97071-960-0 01 1 9811- ●
13 00.004 BOLT; HANGER
03.417 M10X25 FLANGE 		0-28081-025-0 01 1 9811-9812 ●
13 00.004 BOLT; HANGER
EXC. TURBOCHARGER<K51> 03.417 M10X25 FLANGE 		0-28081-025-0 01 1 9811-9812 ●
13 00.004 BOLT; HANGER
TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 03.417 M10X25 FLANGE 		0-28081-025-0 01 1 9811-9812 ●
13 00.004 BOLT; HANGER
03.417 M10X25 FLANGE 		0-28081-025-0 01 1 9901- ● ● ●
13 00.004 BOLT; HANGER
01.073 M8X25 W/LK WASHER 		0-50040-825-0 01 1 9811- ● ● ●
41 09.181 BOLT; ENG HANGER
04.785 M8X18 W/LK WASHER 		0-50040-818-0 02 1 9811- ● ● ●
41 09.181 BOLT; ENG HANGER
ENGINE POWER N-SPEC(7QV) 04.785 M10X20 FLANGE 		0-28781-020-0 02 1 9811-0002 ●
41 09.181 BOLT; ENG HANGER
ENGINE POWER N-SPEC(7QV) 02.483 M12X20 FLANGE 		0-28181-220-0 02 1 0003- ●
168 00.004 HANGER; ENG,FRT 8-94379-714-1 01 1 9811- ● ● ●
168 00.004 HANGER; ENG,FRT 8-97104-515-1 01 1 9811-0001 ●
168 00.004 HANGER; ENG,FRT 8-97127-373-0 01 1 0002- ●
238 02.559 CLIP; GLOW HARNESS
04.205 L=60 		1-09700-304-0 01 1 0201- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
