◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 50808 - NHR ▶ 9 - Tools ▶ 9-01 - TOOLS ▶
9-01 — TOOLS (#43180) — 27 parça

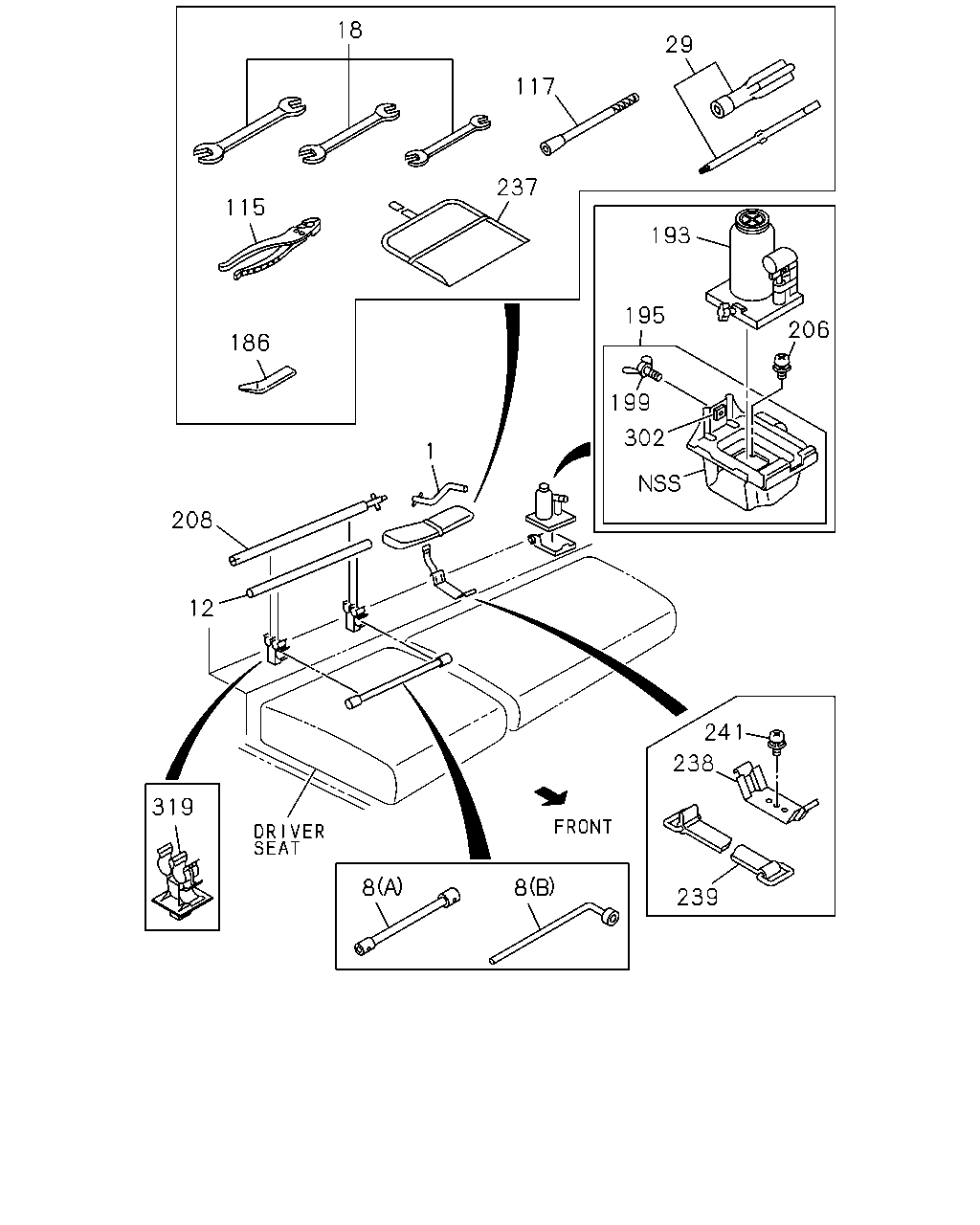

çizim 45688
18 29 117 237 115 193 195 206 186 199 302 1 208 12 241 238 319 8 8 239
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 07.629 HANDLE; SPARE TIRE CARRIER
08.820 		9-85512-608-0 01 1 9811-9908 ● ● ● ● ● ●
1 07.629 HANDLE; SPARE TIRE CARRIER 8-97218-985-0 01 1 9909- ● ● ● ● ● ●
8 08.821 WRENCH; WHEEL
(B) B=23 L=300 		9-85113-935-0 01 1 9811- ● ● ● ● ● ●
8 08.821 WRENCH; WHEEL
(A) B=35X17 L=300 		8-94341-283-1 01 1 9811- ● ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
OD=25 L=590 		8-94430-092-0 01 1 9811-0204 ● ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
OD=25 L=590 		8-97332-988-0 01 1 0205- ● ●
18 08.821 WRENCH KIT 9-85161-902-0 01 1 9811- ● ● ● ● ● ●
29 08.821 DRIVER; SCREW
<+>,<-> L=160 		8-94242-798-1 01 1 9811- ● ● ● ● ● ●
115 08.821 PLIER 5-85171-002-0 01 1 9811- ● ● ● ● ● ●
117 08.821 WRENCH; VALVE CAP 9-85163-906-1 01 1 9811- ● ●
186 08.821 ADJUSTER; BRAKE 5-85269-001-0 01 1 9811- ● ●
193 08.820 JACK ASM
4TON 		8-97131-075-2 01 1 9811- ● ● ● ●
193 08.820 JACK ASM
3TON 		8-97131-073-2 01 1 9811- ● ●
195 08.820 BRACKET; JACK 8-94262-068-2 01 1 9811- ● ● ● ●
195 08.820 BRACKET; JACK 8-97856-997-3 01 1 9811- ● ●
199 08.820 BOLT; JACK
M8X50 WING 		8-94279-136-0 01 1 9811- ● ● ● ● ● ●
206 08.820 SCREW; OIL JACK BRKT
16.320 M6X20 W/LK&PL WASHER 		8-94279-403-0 01 1 9811- ● ● ● ● ● ●
208 08.820 HANDLE; JACK 9-85512-607-0 01 1 9811-9909 ● ● ● ● ● ●
208 08.820 HANDLE; JACK
L=642 		8-97217-800-0 01 1 9910- ● ● ● ● ● ●
237 08.821 BAG; TOOL 8-97130-902-0 01 1 9811-9907 ● ● ● ● ● ●
237 08.821 BAG; TOOL 8-97130-903-0 01 1 9908- ● ● ● ● ● ●
238 08.820 SUPPORT; TOOL BAG 8-97866-879-0 01 1 9811-0101 ● ● ● ●
238 08.820 SUPPORT; TOOL BAG 8-97994-977-0 01 1 0102- ● ● ● ●
239 08.820 BAND; TOOL BAG
L=100 		5-73997-026-1 01 1 9811- ● ● ● ● ● ●
241 08.820 SCREW; TOOL BAG SUPPORT
16.320 M6X20 W/LK&PL WASHER 		8-94279-403-0 01 1 9811- ● ● ● ●
302 08.820 NUT; JACK BRKT 8-94279-522-0 01 1 9811- ● ● ● ● ● ●
319 08.821 CLIP; TOOL BAR 8-97853-077-2 02 1 9811- ● ● ● ● ● ●
