◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10720 - CXZ RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-07C - CLUTCH BOOSTER; MINIPACK ▶

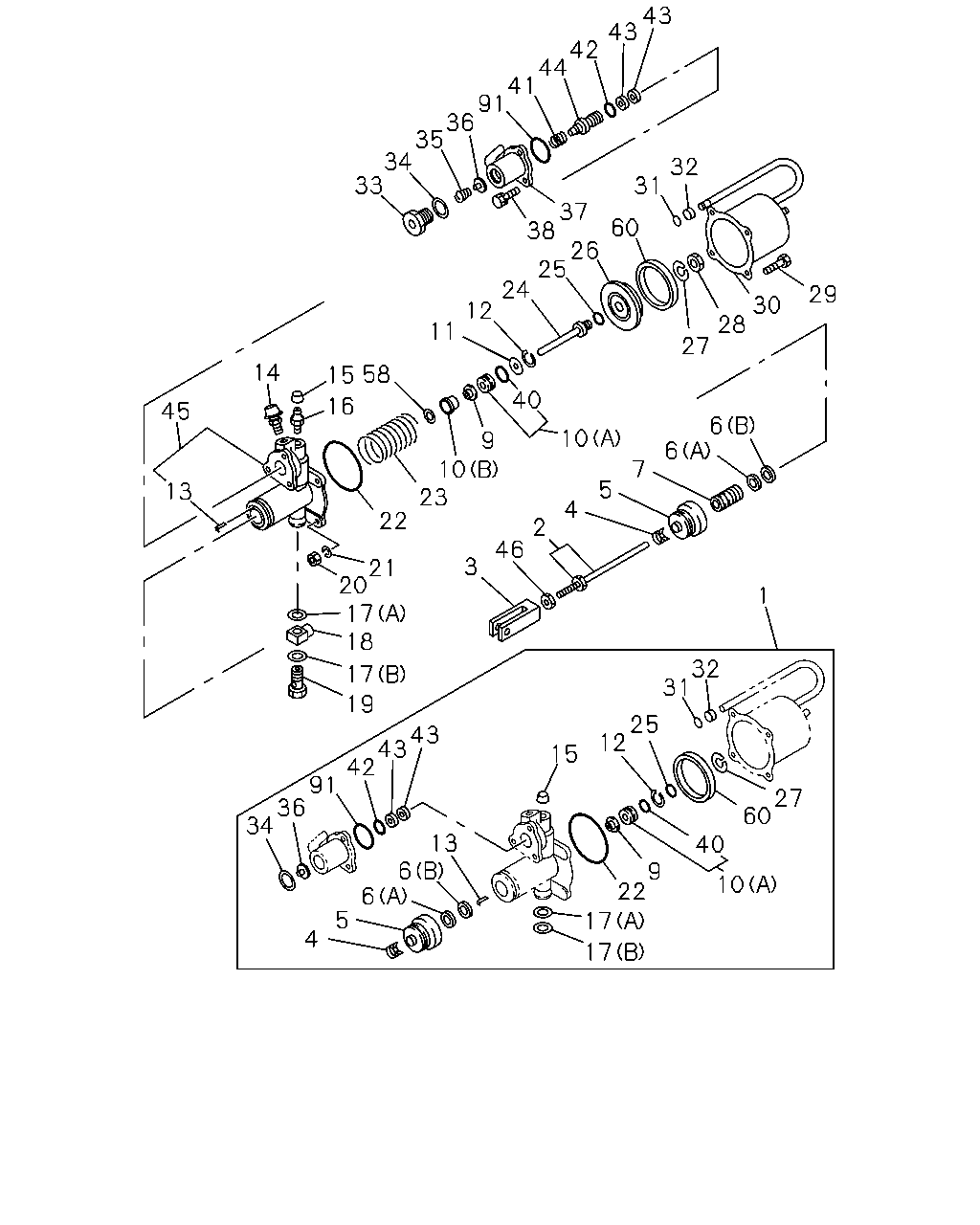

2-07C — CLUTCH BOOSTER; MINIPACK (#4318) — 195 parça
çizim 6274
43 43 42 44 41 91 36 35 34 33 32 31 37 38 60 26 25 24 12 29 30 28 27 11 14 40 16 45 6 10 9 10 23 6 7 5 13 4 22 2 46 3 21 20 17 18 1 32 31 17 19 25 12 43 43 42 15 27 60 91 36 34 13 6 40 9 22 17 10 6 5 4 17 15 58
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 REPAIR KIT; CLU BOOSTER 1-31829-330-0 01 1 9603-9904 ● ●
1 REPAIR KIT; CLU BOOSTER 1-31829-330-0 01 1 9905-9907 ● ● ●
1 REPAIR KIT; CLU BOOSTER 1-31829-330-0 01 1 9908- ● ● ● ●
2 ROD; PUSH,CLU BOOSTER 1-31824-172-0 01 1 9603-9904 ● ●
2 ROD; PUSH,CLU BOOSTER 1-31824-172-0 01 1 9905-9907 ● ● ●
2 ROD; PUSH,CLU BOOSTER 1-31824-172-0 01 1 9908- ● ● ● ●
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-187-0 01 1 9603-9904 ● ●
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-187-0 01 1 9905-9907 ● ● ●
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-187-0 01 1 9908- ● ● ● ●
4 CLAMP; BOOSTER 1-31829-168-0 01 1 9603-9904 ● ●
4 CLAMP; BOOSTER 1-31829-168-0 01 1 9905-9907 ● ● ●
4 CLAMP; BOOSTER 1-31829-168-0 01 1 9908- ● ● ● ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-174-0 01 1 9603-9705 ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-174-0 01 1 9706-9904 ● ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-174-0 01 1 9905-9907 ● ● ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-174-0 01 1 9908-9910 ● ● ● ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-174-0 01 1 9911-0011 ● ● ● ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-174-0 01 1 0012- ● ● ● ●
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-055-0 01 1 9603-9705 ●
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-055-0 01 1 9706-9904 ● ●
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-055-0 01 1 9905-9907 ● ● ●
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-055-0 01 1 9908-9910 ● ● ● ●
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-055-0 01 1 9911- ● ● ● ●
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-056-0 01 1 9603-9705 ●
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-056-0 01 1 9706-9904 ● ●
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-056-0 01 1 9905-9907 ● ● ●
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-056-0 01 1 9908-9910 ● ● ● ●
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-056-0 01 1 9911- ● ● ● ●
7 PISTON; CLU BOOSTER 1-31821-013-0 01 1 9603-9904 ● ●
7 PISTON; CLU BOOSTER 1-31821-013-0 01 1 9905- ● ● ●
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-251-0 01 1 9603-9705 ●
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-251-0 01 1 9706-9904 ● ●
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-251-0 01 1 9905-9907 ● ● ●
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-251-0 01 1 9908-9910 ● ● ● ●
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-251-0 01 1 9911- ● ● ● ●
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-293-0 01 1 9603-9706 ●
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-293-0 01 1 9707-9904 ● ●
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-293-0 01 1 9905-9907 ● ● ●
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-293-0 01 1 9908-9910 ● ● ● ●
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-293-0 01 1 9911-0011 ● ● ● ●
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-293-0 01 1 0012- ● ● ● ●
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-285-0 01 1 9603-9705 ●
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-285-0 01 1 9706-9904 ● ●
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-285-0 01 1 9905-9907 ● ● ●
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-285-0 01 1 9908-9910 ● ● ● ●
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-285-0 01 1 9911- ● ● ● ●
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 9603-9705 ●
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 9706-9904 ● ●
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 9905-9907 ● ● ●
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 9908-9910 ● ● ● ●
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 9911- ● ● ● ●
12 RING; RET,CLU BOOSTER 1-31829-142-0 01 1 9603-9705 ●
12 RING; RET,CLU BOOSTER 1-31829-142-0 01 1 9706-9904 ● ●
12 RING; RET,CLU BOOSTER 1-31829-142-0 01 1 9905-9907 ● ● ●
12 RING; RET,CLU BOOSTER 1-31829-142-0 01 1 9908-9910 ● ● ● ●
12 RING; RET,CLU BOOSTER 1-31829-142-0 01 1 9911- ● ● ● ●
13 PIN; SPR 1-31829-109-0 01 1 9603-9705 ●
13 PIN; SPR 1-31829-109-0 01 1 9706-9904 ● ●
13 PIN; SPR 1-31829-109-0 01 1 9905-9907 ● ● ●
13 PIN; SPR 1-31829-109-0 01 1 9908-9910 ● ● ● ●
13 PIN; SPR 1-31829-109-0 01 1 9911- ● ● ● ●
14 COVER; EXH,CLU BOOSTER 1-31829-415-0 01 1 9603-9904 ● ●
14 COVER; EXH,CLU BOOSTER 1-31829-415-0 01 1 9905-9907 ● ● ●
14 COVER; EXH,CLU BOOSTER 1-31829-415-0 01 1 9908- ● ● ● ●
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 9603-9705 ●
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 9706-9904 ● ●
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 9905-9907 ● ● ●
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 9908-9910 ● ● ● ●
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 9911- ● ● ● ●
16 PLUG; END PLATE,CLU BOOSTER 9-83331-704-0 01 1 9603-9705 ●
16 PLUG; END PLATE,CLU BOOSTER 9-83331-704-0 01 1 9706-9904 ● ●
16 PLUG; END PLATE,CLU BOOSTER 9-83331-704-0 01 1 9905-9907 ● ● ●
16 PLUG; END PLATE,CLU BOOSTER 9-83331-704-0 01 1 9908-9910 ● ● ● ●
16 PLUG; END PLATE,CLU BOOSTER 9-83331-704-0 01 1 9911- ● ● ● ●
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 9603-9705 ●
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 9706-9904 ● ●
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 9905-9907 ● ● ●
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 9908-9910 ● ● ● ●
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 9911- ● ● ● ●
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 9603-9705 ●
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 9706-9904 ● ●
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 9905-9907 ● ● ●
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 9908-9910 ● ● ● ●
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 9911- ● ● ● ●
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 9603-9705 ●
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 9706-9904 ● ●
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 9905-9907 ● ● ●
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 9908-9910 ● ● ● ●
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 9911- ● ● ● ●
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 9603-9705 ●
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 9706-9904 ● ●
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 9905-9907 ● ● ●
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 9908-9910 ● ● ● ●
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 9911- ● ● ● ●
20 NUT; END PLATE TO SHELL,CLU BOOSTER 9-83315-085-0 04 1 9603-9904 ● ●
20 NUT; END PLATE TO SHELL,CLU BOOSTER 9-83315-085-0 04 1 9905-9907 ● ● ●
20 NUT; END PLATE TO SHELL,CLU BOOSTER 9-83315-085-0 04 1 9908- ● ● ● ●
21 WASHER; END PLATE TO SHELL,CLU BOOSTER
ID=8.2 		9-09150-508-0 04 1 9603-9904 ● ●
21 WASHER; END PLATE TO SHELL,CLU BOOSTER
ID=8.2 		9-09150-508-0 04 1 9905-9907 ● ● ●
21 WASHER; END PLATE TO SHELL,CLU BOOSTER
ID=8.2 		9-09150-508-0 04 1 9908- ● ● ● ●
22 GASKET; END PLATE TO SHELL,CLU BOOSTER 1-09623-327-0 01 1 9603-9904 ● ●
22 GASKET; END PLATE TO SHELL,CLU BOOSTER 1-09623-327-0 01 1 9905-9907 ● ● ●
22 GASKET; END PLATE TO SHELL,CLU BOOSTER 1-09623-327-0 01 1 9908- ● ● ● ●
23 SPRING; SHELL,CLU BOOSTER 1-31829-358-0 01 1 9603-9904 ● ●
23 SPRING; SHELL,CLU BOOSTER 1-31829-358-0 01 1 9905-9907 ● ● ●
23 SPRING; SHELL,CLU BOOSTER 1-31829-358-0 01 1 9908- ● ● ● ●
24 ROD; PUSH,CLU BOOSTER 1-31829-340-0 01 1 9603-9904 ● ●
24 ROD; PUSH,CLU BOOSTER 1-31829-340-0 01 1 9905- ● ● ●
25 GASKET; PUSH ROD,CLU BOOSTER 1-09623-321-0 01 1 9603-9904 ● ●
25 GASKET; PUSH ROD,CLU BOOSTER 1-09623-321-0 01 1 9905- ● ● ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-057-0 01 1 9603-9904 ● ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-057-0 01 1 9905-9907 ● ● ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-057-0 01 1 9908- ● ● ● ●
27 SPRING; CLU BOOSTER 1-31829-111-0 01 1 9603-9904 ● ●
27 SPRING; CLU BOOSTER 1-31829-111-0 01 1 9905- ● ● ●
28 NUT; PUSH ROD,CLU BOOSTER 9-88510-365-0 01 1 9603-9904 ● ●
28 NUT; PUSH ROD,CLU BOOSTER 9-88510-365-0 01 1 9905- ● ● ●
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 1-31829-015-0 04 1 9603-9904 ● ●
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 1-31829-015-0 04 1 9905-9907 ● ● ●
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 1-31829-015-0 04 1 9908- ● ● ● ●
30 SHELL; CYL,CLU BOOSTER 1-31811-026-0 01 1 9603-9904 ● ●
30 SHELL; CYL,CLU BOOSTER 1-31811-026-0 01 1 9905-9907 ● ● ●
30 SHELL; CYL,CLU BOOSTER 1-31811-026-0 01 1 9908- ● ● ● ●
31 GASKET; SHELL,CLU BOOSTER 1-31829-113-0 01 1 9603-9904 ● ●
31 GASKET; SHELL,CLU BOOSTER 1-31829-113-0 01 1 9905-9907 ● ● ●
31 GASKET; SHELL,CLU BOOSTER 1-31829-113-0 01 1 9908- ● ● ● ●
32 BUSHING; SHELL,CLU BOOSTER 1-31829-114-0 01 1 9603-9904 ● ●
32 BUSHING; SHELL,CLU BOOSTER 1-31829-114-0 01 1 9905-9907 ● ● ●
32 BUSHING; SHELL,CLU BOOSTER 1-31829-114-0 01 1 9908- ● ● ● ●
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-214-0 01 1 9603-9705 ●
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-214-0 01 1 9706-9904 ● ●
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-214-0 01 1 9905-9907 ● ● ●
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-214-0 01 1 9908-9910 ● ● ● ●
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-214-0 01 1 9911- ● ● ● ●
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 9603-9705 ●
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 9706-9904 ● ●
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 9905-9907 ● ● ●
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 9908-9910 ● ● ● ●
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 9911- ● ● ● ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-077-0 01 1 9603-9705 ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-077-0 01 1 9706-9904 ● ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-077-0 01 1 9905-9907 ● ● ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-077-0 01 1 9908-9910 ● ● ● ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-077-0 01 1 9911-0011 ● ● ● ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-077-0 01 1 0012- ● ● ● ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-016-0 01 1 9603-9705 ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-016-0 01 1 9706-9904 ● ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-016-0 01 1 9905-9907 ● ● ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-016-0 01 1 9908-9910 ● ● ● ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-016-0 01 1 9911-0011 ● ● ● ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-016-0 01 1 0012- ● ● ● ●
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-014-0 01 1 9603-9904 ● ●
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-014-0 01 1 9905-9907 ● ● ●
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-014-0 01 1 9908- ● ● ● ●
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 9603-9705 ●
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 9706-9904 ● ●
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 9905-9907 ● ● ●
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 9908-9910 ● ● ● ●
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 9911- ● ● ● ●
40 GASKET; PISTON,CLU BOOSTER 1-31829-037-0 01 1 9603-9705 ●
40 GASKET; PISTON,CLU BOOSTER 1-31829-037-0 01 1 9706-9904 ● ●
40 GASKET; PISTON,CLU BOOSTER 1-31829-037-0 01 1 9905-9907 ● ● ●
40 GASKET; PISTON,CLU BOOSTER 1-31829-037-0 01 1 9908-9910 ● ● ● ●
40 GASKET; PISTON,CLU BOOSTER 1-31829-037-0 01 1 9911- ● ● ● ●
41 SPRING; DIAPH,CLU BOOSTER 1-31829-104-0 01 1 9603-9904 ● ●
41 SPRING; DIAPH,CLU BOOSTER 1-31829-104-0 01 1 9905-9907 ● ● ●
41 SPRING; DIAPH,CLU BOOSTER 1-31829-104-0 01 1 9908- ● ● ● ●
42 GASKET; FITTING,CLU BOOSTER 1-31829-123-0 01 1 9603-9904 ● ●
42 GASKET; FITTING,CLU BOOSTER 1-31829-123-0 01 1 9905-9907 ● ● ●
42 GASKET; FITTING,CLU BOOSTER 1-31829-123-0 01 1 9908- ● ● ● ●
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-083-0 02 1 9603-9904 ● ●
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-083-0 02 1 9905-9907 ● ● ●
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-083-0 02 1 9908- ● ● ● ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-030-0 01 1 9603-9904 ● ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-030-0 01 1 9905-9907 ● ● ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-030-0 01 1 9908- ● ● ● ●
45 PLATE; END,CLU BOOSTER 1-31811-064-0 01 1 9603-9904 ● ●
45 PLATE; END,CLU BOOSTER 1-31811-064-0 01 1 9905-9907 ● ● ●
45 PLATE; END,CLU BOOSTER 1-31811-064-0 01 1 9908- ● ● ● ●
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 01 1 9603-9705 ●
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 01 1 9706-9904 ● ●
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 01 1 9905-9907 ● ● ●
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 01 1 9908-9910 ● ● ● ●
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 01 1 9911-0011 ● ● ● ●
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 01 1 0012- ● ● ● ●
58 WASHER; PISTON,CLU BOOSTER 1-31829-301-0 01 1 9603-9904 ● ●
58 WASHER; PISTON,CLU BOOSTER 1-31829-301-0 01 1 9905- ● ● ●
60 GASKET; SHELL,CLU BOOSTER 1-31829-066-0 01 1 9603-9904 ● ●
60 GASKET; SHELL,CLU BOOSTER 1-31829-066-0 01 1 9905-9907 ● ● ●
60 GASKET; SHELL,CLU BOOSTER 1-31829-066-0 01 1 9908- ● ● ● ●
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 9603-9705 ●
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 9706-9904 ● ●
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 9905-9907 ● ● ●
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 9908-9910 ● ● ● ●
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 9911- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
