6-01 — FRONT BUMPER (#43169) — 81 parça

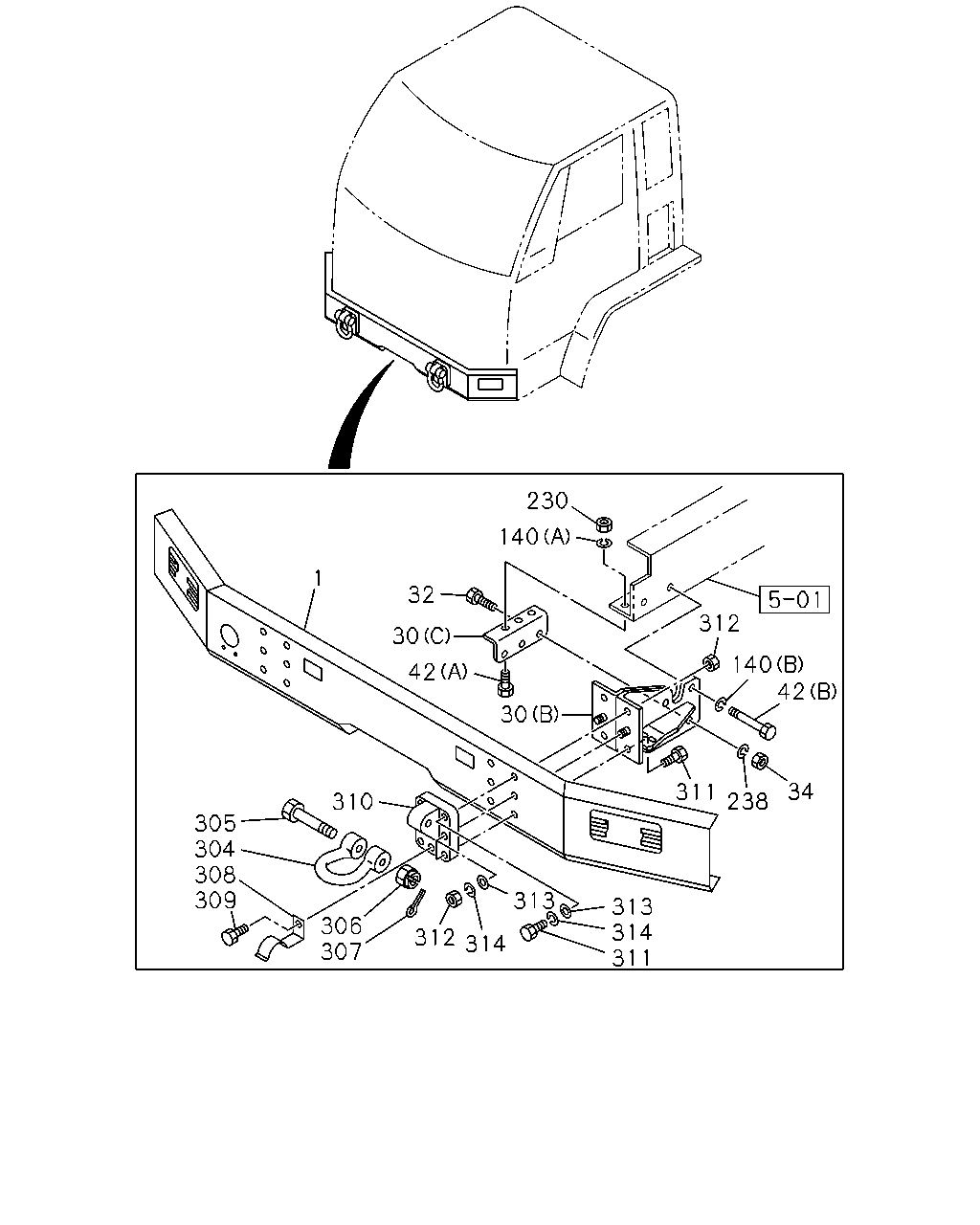

230 140 1 32 312 30 140 42 42 30 34 311 238 310 305 304 308 309 313 313 314 311 306 307 312 314

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BUMPER ASM; FRT REINFORCEMENT BUMPER<VG7> BAN	1-71210-947-1	01	1	0008-
1	BUMPER ASM; FRT EXC. REINFORCEMENT BUMPER<VG7> WHITE	1-71210-583-4	01	1	0008-
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (B)	1-53497-638-1	01	1	0008-
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (B)	1-53497-639-1	01	1	0008-
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (C)	1-53497-583-0	01	1	0008-
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (C)	1-53497-584-0	01	1	0008-
30	BRACKET; FRT BUMPER EXC. REINFORCEMENT BUMPER<VG7> (A)	1-71230-207-3	01	1	0008-0111
30	BRACKET; FRT BUMPER EXC. REINFORCEMENT BUMPER<VG7> (A)	1-71230-568-1	01	1	0112-
30	BRACKET; FRT BUMPER EXC. REINFORCEMENT BUMPER<VG7> (A)	1-71230-208-3	01	1	0008-
32	BOLT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> M14X40	0-20801-440-0	06	1	0008-0512
32	BOLT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> M14X40	0-20851-440-0	06	1	0601-
32	BOLT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> M10X30 FLANGE	0-28681-030-0	06	1	0008-0512
32	BOLT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> M10X30 FLANGE	0-28651-030-0	06	1	0601-
34	NUT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> M14	9-99110-414-0	06	1	0008-0512
34	NUT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> M14	0-91110-514-0	06	1	0601-
34	NUT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> M10 FLANGE	0-91150-210-0	06	1	0008-0602
34	NUT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> M10 FLANGE	0-91180-210-0	06	1	0603-
42	BOLT; BUMPER REINFORCEMENT BUMPER<VG7> (A) M14X40	0-20801-440-0	06	1	0008-0512
42	BOLT; BUMPER REINFORCEMENT BUMPER<VG7> (A) M14X40	0-20851-440-0	06	1	0601-
42	BOLT; BUMPER REINFORCEMENT BUMPER<VG7> (B) M16X40	0-20801-640-0	04	1	0008-0512
42	BOLT; BUMPER REINFORCEMENT BUMPER<VG7> (B) M16X40	0-20851-640-0	04	1	0601-
140	WASHER; LK,BRKT REINFORCEMENT BUMPER<VG7> (A) ID=14.2	9-09150-514-0	06	1	0008-0603
140	WASHER; LK,BRKT REINFORCEMENT BUMPER<VG7> (A) ID=14.2	0-91510-514-0	06	1	0604-
140	WASHER; LK,BRKT REINFORCEMENT BUMPER<VG7> (B) ID=16.2	9-09150-516-0	04	1	0008-0603
140	WASHER; LK,BRKT REINFORCEMENT BUMPER<VG7> (B) ID=16.2	0-91510-516-0	04	1	0604-
230	NUT; BRK,HD LAMP,LWR REINFORCEMENT BUMPER<VG7> M14	9-99110-414-0	06	1	0008-0512
230	NUT; BRK,HD LAMP,LWR REINFORCEMENT BUMPER<VG7> M14	0-91110-514-0	06	1	0601-
238	WASHER; LK,BUMPER BRKT REINFORCEMENT BUMPER<VG7> ID=14.2	9-09150-514-0	06	1	0008-0603
238	WASHER; LK,BUMPER BRKT REINFORCEMENT BUMPER<VG7> ID=14.2	0-91510-514-0	06	1	0604-
304	LOOP; FRT REINFORCEMENT BUMPER<VG7>	1-57181-023-1	02	1	0008-
305	BOLT; LOOP REINFORCEMENT BUMPER<VG7> M24X124.5	1-09042-026-1	02	1	0008-
306	NUT; LOOP REINFORCEMENT BUMPER<VG7> M24 SLOTTED	1-09442-020-0	02	1	0008-0805
306	NUT; LOOP REINFORCEMENT BUMPER<VG7> M24	1-09442-032-0	02	1	0806-
307	PIN; SPLIT,LOOP REINFORCEMENT BUMPER<VG7> OD=4.6 L=35	9-08115-035-0	02	1	0008-0606
307	PIN; SPLIT,LOOP REINFORCEMENT BUMPER<VG7> OD=4.6 L=35	0-81125-035-0	02	1	0607-
308	CLIP; LOOP REINFORCEMENT BUMPER<VG7>	1-09700-971-0	02	1	0008-
309	BOLT; CLIP REINFORCEMENT BUMPER<VG7> M8X16 FLANGE	0-28080-816-0	02	1	0008-0512
309	BOLT; CLIP REINFORCEMENT BUMPER<VG7> M8X16 FLANGE	0-28050-816-0	02	1	0601-
310	BRACKET; LOOP REINFORCEMENT BUMPER<VG7>	1-57189-177-3	02	1	0008-
311	BOLT; BRKT REINFORCEMENT BUMPER<VG7> M14X50	0-10806-450-0	08	1	0008-0512
311	BOLT; BRKT REINFORCEMENT BUMPER<VG7> M14X50	0-10856-450-0	08	1	0601-
312	NUT; BRKT REINFORCEMENT BUMPER<VG7> M14	9-99110-414-0	12	1	0008-0512
312	NUT; BRKT REINFORCEMENT BUMPER<VG7> M14	0-91110-514-0	12	1	0601-
313	WASHER; PL BRKT REINFORCEMENT BUMPER<VG7> ID=15	9-09160-514-0	12	1	0008-0605
313	WASHER; PL BRKT REINFORCEMENT BUMPER<VG7> ID=15	0-91610-514-0	12	1	0606-
314	WASHER; LK BRKT REINFORCEMENT BUMPER<VG7> ID=14.2	9-09150-514-0	12	1	0008-0603
314	WASHER; LK BRKT REINFORCEMENT BUMPER<VG7> ID=14.2	0-91510-514-0	12	1	0604-

301 301 34 32 84 1 93 43 93 94 94 30 101 101 101 74 254

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BUMPER ASM; FRT REINFORCEMENT BUMPER<VG7> BAN	1-71210-947-1	01	1	0008-
1	BUMPER ASM; FRT EXC. REINFORCEMENT BUMPER<VG7> WHITE	1-71210-583-4	01	1	0008-
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (B)	1-53497-638-1	01	1	0008-
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (B)	1-53497-639-1	01	1	0008-
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (C)	1-53497-583-0	01	1	0008-
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (C)	1-53497-584-0	01	1	0008-
30	BRACKET; FRT BUMPER EXC. REINFORCEMENT BUMPER<VG7> (A)	1-71230-207-3	01	1	0008-0111
30	BRACKET; FRT BUMPER EXC. REINFORCEMENT BUMPER<VG7> (A)	1-71230-568-1	01	1	0112-
30	BRACKET; FRT BUMPER EXC. REINFORCEMENT BUMPER<VG7> (A)	1-71230-208-3	01	1	0008-
32	BOLT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> M14X40	0-20801-440-0	06	1	0008-0512
32	BOLT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> M14X40	0-20851-440-0	06	1	0601-
32	BOLT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> M10X30 FLANGE	0-28681-030-0	06	1	0008-0512
32	BOLT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> M10X30 FLANGE	0-28651-030-0	06	1	0601-
34	NUT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> M14	9-99110-414-0	06	1	0008-0512
34	NUT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> M14	0-91110-514-0	06	1	0601-
34	NUT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> M10 FLANGE	0-91150-210-0	06	1	0008-0602
34	NUT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> M10 FLANGE	0-91180-210-0	06	1	0603-
43	NUT; BRKT TO BUMPER EXC. REINFORCEMENT BUMPER<VG7> M10 FLANGE	0-91150-210-0	04	1	0008-0602
43	NUT; BRKT TO BUMPER EXC. REINFORCEMENT BUMPER<VG7> M10 FLANGE	0-91180-210-0	04	1	0603-
74	CLIP; FOG LAMP HARNESS EXC. REINFORCEMENT BUMPER<VG7>	1-09701-203-0	05	1	0008-
84	HOOK EXC. REINFORCEMENT BUMPER<VG7>	1-57181-017-2	01	1	0008-
93	WASHER; LK,HOOK EXC. REINFORCEMENT BUMPER<VG7> ID=14.2	9-09150-514-0	02	1	0008-0603
93	WASHER; LK,HOOK EXC. REINFORCEMENT BUMPER<VG7> ID=14.2	0-91510-514-0	02	1	0604-
94	NUT; HOOK EXC. REINFORCEMENT BUMPER<VG7> M14	9-99110-414-0	02	1	0008-0512
94	NUT; HOOK EXC. REINFORCEMENT BUMPER<VG7> M14	0-91110-514-0	02	1	0601-
101	STEP; BUMPER EXC. REINFORCEMENT BUMPER<VG7> (A)	1-71260-080-1	01	1	0008-
101	STEP; BUMPER EXC. REINFORCEMENT BUMPER<VG7> (A)	1-71260-081-1	01	1	0008-
101	STEP; BUMPER EXC. REINFORCEMENT BUMPER<VG7> (B)	1-71260-082-1	01	1	0008-
254	NUT; STEP EXC. REINFORCEMENT BUMPER<VG7> M8 FLANGE	0-91150-108-0	11	1	0008-0602
254	NUT; STEP EXC. REINFORCEMENT BUMPER<VG7> M8 FLANGE	0-91180-108-0	11	1	0603-
301	BOLT; HOOK TO FRAME EXC. REINFORCEMENT BUMPER<VG7> (A) M14X60	0-10811-460-0	01	1	0008-0512
301	BOLT; HOOK TO FRAME EXC. REINFORCEMENT BUMPER<VG7> (A) M14X60	0-10861-460-0	01	1	0601-
301	BOLT; HOOK TO FRAME EXC. REINFORCEMENT BUMPER<VG7> (B) M14X70	0-10811-470-0	01	1	0008-0512
301	BOLT; HOOK TO FRAME EXC. REINFORCEMENT BUMPER<VG7> (B) M14X70	0-10861-470-0	01	1	0601-
