◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 11433 - FSS(BANGLADESH) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-80 - ROAD WHEEL ▶
4-80 — ROAD WHEEL (#43163) — 24 parça

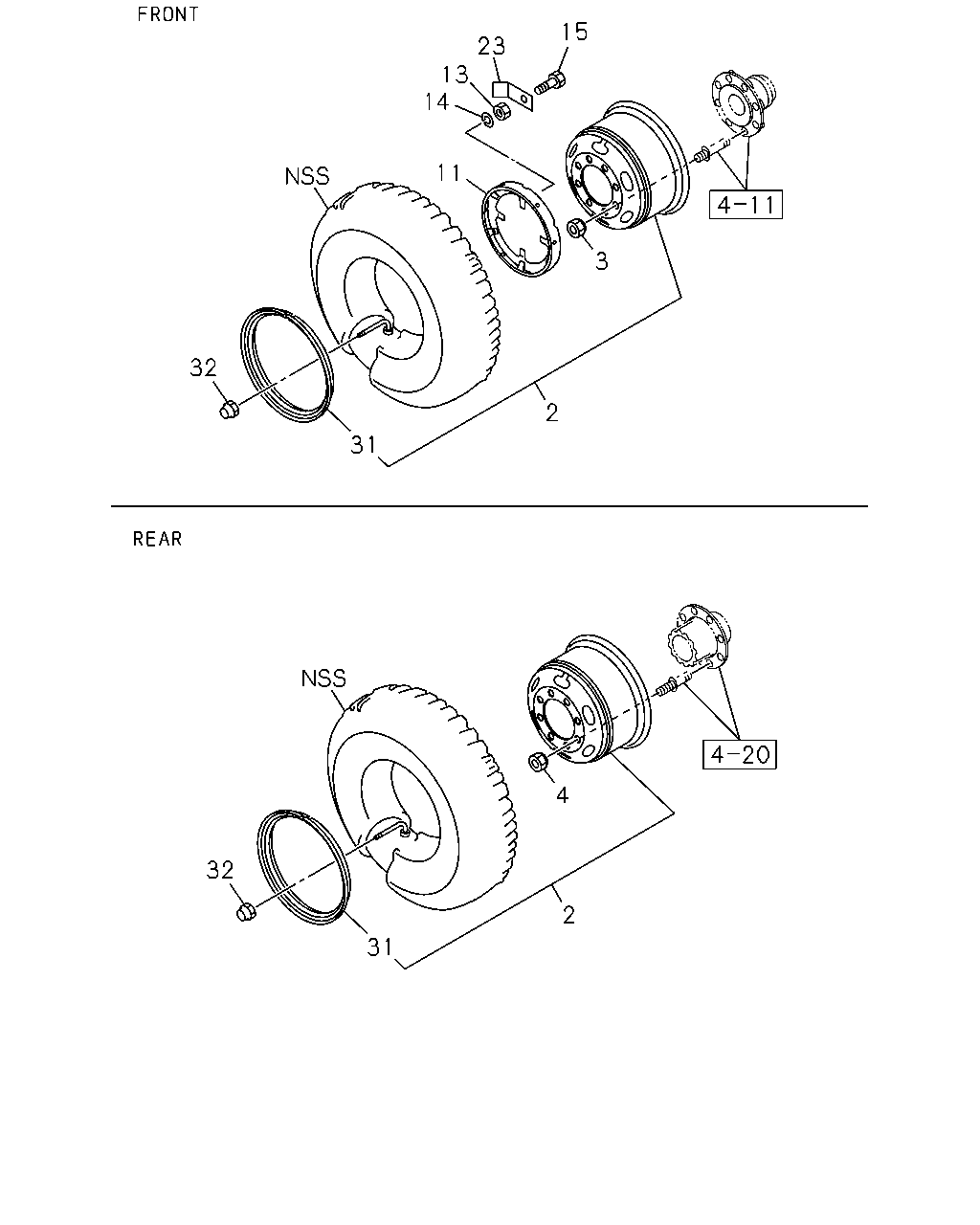

çizim 97567
15 23 13 14 11 3 32 2 31 4 32 2 31
BalonParca AdiParca NoAdetTipApplied Date
2 WHEEL; DISC
DISC WHEEL SPARE<N79> WHEEL 8STUD 7.00TX20 152-12(SDP) SPARE 		1-42350-195-1 01 1 0008-
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL RR<R46> WHEEL 8STUD 7.00TX20 152-12(SDP) SPARE 		1-42350-195-1 01 1 0008-
2 WHEEL; DISC
DISC WHEEL SPARE<N79> EXC. WHEEL 8STUD 7.00TX20 152-12(SDP) SPARE 		1-42350-189-1 01 1 0008-
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL RR<R46> EXC. WHEEL 8STUD 7.00TX20 152-12(SDP) SPARE 		1-42350-189-1 01 1 0008-
2 WHEEL; DISC
WHEEL 8STUD 7.00TX20 152-12(SDP) FRONT,REAR 		1-42350-195-1 04 1 0008-
2 WHEEL; DISC
EXC. WHEEL 8STUD 7.00TX20 152-12(SDP) FRONT,REAR 		1-42350-189-1 04 1 0008-
3 NUT; WHEEL,FRT AXLE
M24 BAN 		1-42333-022-3 08 1 0008-
3 NUT; WHEEL,FRT AXLE
M24 LH THREAD BAN 		1-42334-022-3 08 1 0008-
4 NUT; WHEEL,RR AXLE
M24 BAN 		1-42333-022-3 08 1 0008-
4 NUT; WHEEL,RR AXLE
M24 LH THREAD BAN 		1-42334-022-3 08 1 0008-
11 STEP; DISC WHEEL SIDE 1-43139-019-1 02 1 0008-
13 NUT; STEP DISC
M10 		9-09110-510-0 06 1 0008-0512
13 NUT; STEP DISC
M10 		0-91110-510-0 06 1 0601-
14 WASHER; LK,STEP DISC
ID=10.2 		9-09150-510-0 06 1 0008-0603
14 WASHER; LK,STEP DISC
ID=10.2 		0-91510-510-0 06 1 0604-
15 BOLT; STEP DISC
M10X45 		0-10806-045-0 06 1 0008-
23 PLATE; CLAMP,STEP DISC 1-43139-020-0 06 1 0008-
31 RING; SIDE,DISC WHEEL
DISC WHEEL SPARE<N79> WHEEL 8STUD 7.00TX20 152-12(SDP) SPARE 		1-42355-003-1 01 1 0008-
31 RING; SIDE,DISC WHEEL
SPARE TIRE & DISC WHEEL RR<R46> WHEEL 8STUD 7.00TX20 152-12(SDP) SPARE 		1-42355-003-1 01 1 0008-
31 RING; SIDE,DISC WHEEL
DISC WHEEL SPARE<N79> EXC. WHEEL 8STUD 7.00TX20 152-12(SDP) SPARE 		1-42355-004-1 01 1 0008-
31 RING; SIDE,DISC WHEEL
SPARE TIRE & DISC WHEEL RR<R46> EXC. WHEEL 8STUD 7.00TX20 152-12(SDP) SPARE 		1-42355-004-1 01 1 0008-
31 RING; SIDE,DISC WHEEL
WHEEL 8STUD 7.00TX20 152-12(SDP) FRONT,REAR 		1-42355-003-1 04 1 0008-
31 RING; SIDE,DISC WHEEL
EXC. WHEEL 8STUD 7.00TX20 152-12(SDP) FRONT,REAR 		1-42355-004-1 04 1 0008-
32 CAP; VALVE
BAN 		1-42374-001-0 05 1 0008-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
