◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 11433 - FSS(BANGLADESH) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-65 - REAR LEAF SPRING ▶
4-65 — REAR LEAF SPRING (#43162) — 30 parça

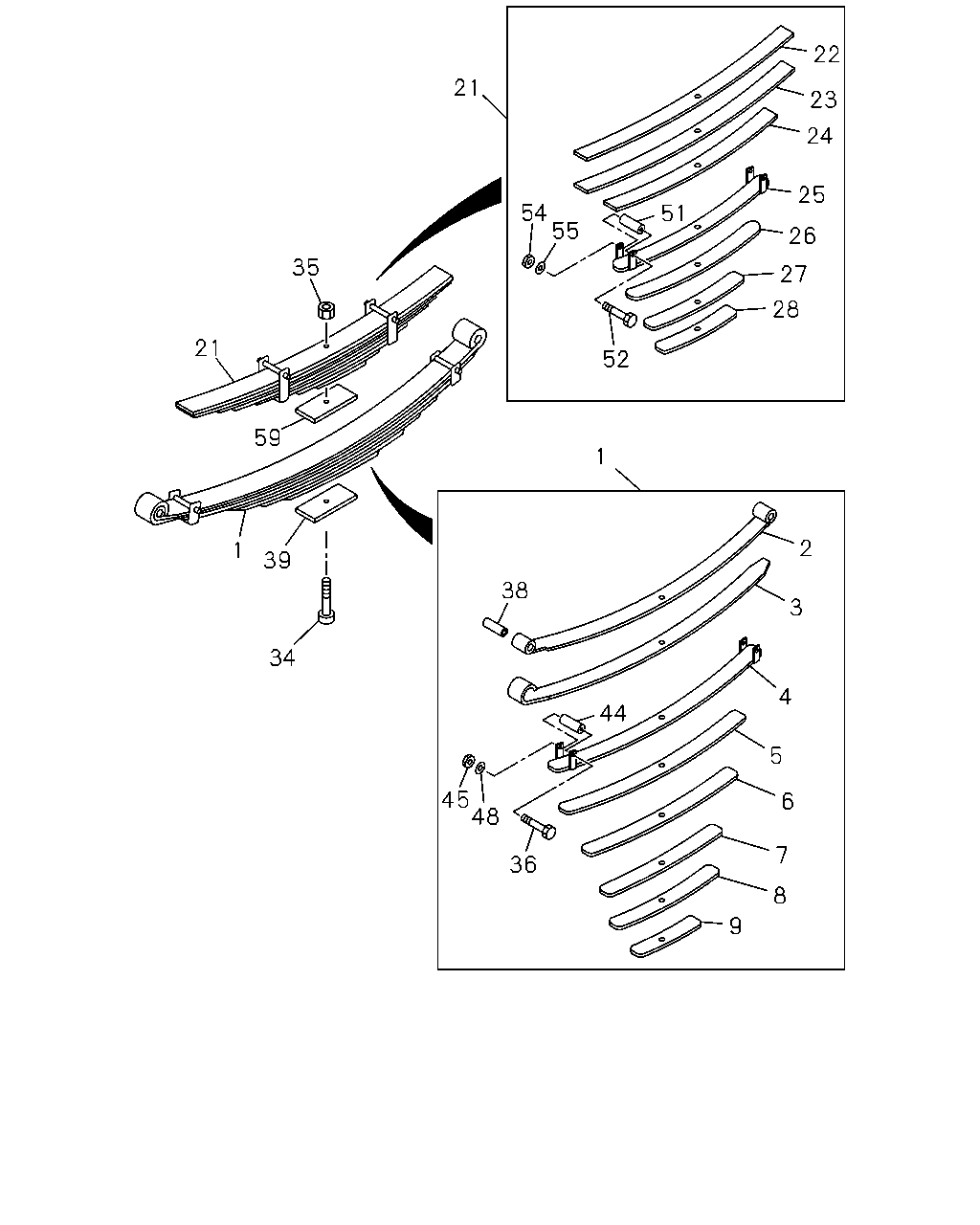

çizim 97946
22 21 23 24 25 54 55 51 26 35 27 28 21 52 59 1 2 1 39 38 3 34 4 44 5 45 48 6 7 36 8 9
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING ASM; LEAF,RR MAIN
BAN ASM PART: A = 1-51300-521-0 		1-51410-102-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
BAN ASM PART: A = 1-51300-521-0 		1-51411-102-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
BAN ASM PART: A = 1-51300-521-0 		1-51412-102-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
W/CLIP, BAN ASM PART: A = 1-51300-521-0 		1-51413-102-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
BAN ASM PART: A = 1-51300-521-0 		1-51414-102-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
BAN ASM PART: A = 1-51300-521-0 		1-51415-102-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
BAN ASM PART: A = 1-51300-521-0 		1-51416-102-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
BAN ASM PART: A = 1-51300-521-0 		1-51417-102-0 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
BAN ASM PART: A = 1-51300-521-0 		1-51418-102-0 01 1 -
21 SPRING ASM; LEAF,RR SUB
BAN ASM PART: A = 1-51300-521-0 		1-51340-617-0 01 1 -
22 SPRING; LEAF,NO 1,RR SUB
BAN ASM PART: A = 1-51300-521-0 		1-51341-617-0 01 1 -
23 SPRING; LEAF,NO 2,RR SUB
BAN ASM PART: A = 1-51300-521-0 		1-51342-617-0 01 1 -
24 SPRING; LEAF,NO 3,RR SUB
BAN ASM PART: A = 1-51300-521-0 		1-51343-617-0 01 1 -
25 SPRING; LEAF,NO 4,RR SUB
W/CLIP, BAN ASM PART: A = 1-51300-521-0 		1-51344-617-0 01 1 -
26 SPRING; LEAF,NO 5,RR SUB
BAN ASM PART: A = 1-51300-521-0 		1-51345-617-0 01 1 -
27 SPRING; LEAF,NO 6,RR SUB
BAN ASM PART: A = 1-51300-521-0 		1-51346-617-0 01 1 -
28 SPRING; LEAF,NO 7,RR SUB
BAN ASM PART: A = 1-51300-521-0 		1-51347-617-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=200, BAN ASM PART: A = 1-51300-521-0 		1-51356-215-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
M12 ASM PART: A = 1-51300-521-0 		9-99110-512-0 01 1 -
36 BOLT; CLIP,LEAF SPR,RR
BAN ASM PART: A = 1-51300-521-0 		1-09000-390-0 02 1 -
38 BUSHING; LEAF SPR,RR
ID=25 ASM PART: A = 1-51300-521-0 		9-51151-032-0 02 1 -
39 SEAT; LEAF SPR,RR MAIN
T=9, BAN ASM PART: A = 1-51300-521-0 		1-51377-352-0 01 1 -
44 PIPE; CLIP,LEAF SPR,RR MAIN
BAN ASM PART: A = 1-51300-521-0 		1-51153-006-0 02 1 -
45 NUT; CLIP,LEAF SPR,RR MAIN
M8 ASM PART: A = 1-51300-521-0 		9-09110-008-0 02 1 -
48 WASHER; CLIP,LEAF SPR
ID=8.2 ASM PART: A = 1-51300-521-0 		9-09150-508-0 02 1 -
51 PIPE; CLIP,LEAF SPR,RR SUB
BAN ASM PART: A = 1-51300-521-0 		1-51153-006-0 02 1 -
52 BOLT; CLIP,LEAF SPR,RR SUB
BAN ASM PART: A = 1-51300-521-0 		1-09000-390-0 02 1 -
54 NUT; CLIP,LEAF SPR,RR SUB
M8 ASM PART: A = 1-51300-521-0 		9-09110-008-0 02 1 -
55 WASHER; CLIP,LEAF SPR,RR SUB
ID=8.2 ASM PART: A = 1-51300-521-0 		9-09150-508-0 02 1 -
59 SEAT; RR SPRING,SUB
T=4.5, BAN ASM PART: A = 1-51300-521-0 		1-51377-140-0 01 1 -
