◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 11433 - FSS(BANGLADESH) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-61 - SHOCK ABSORBER; REAR SUSPENSION ▶
4-61 — SHOCK ABSORBER; REAR SUSPENSION (#43161) — 36 parça

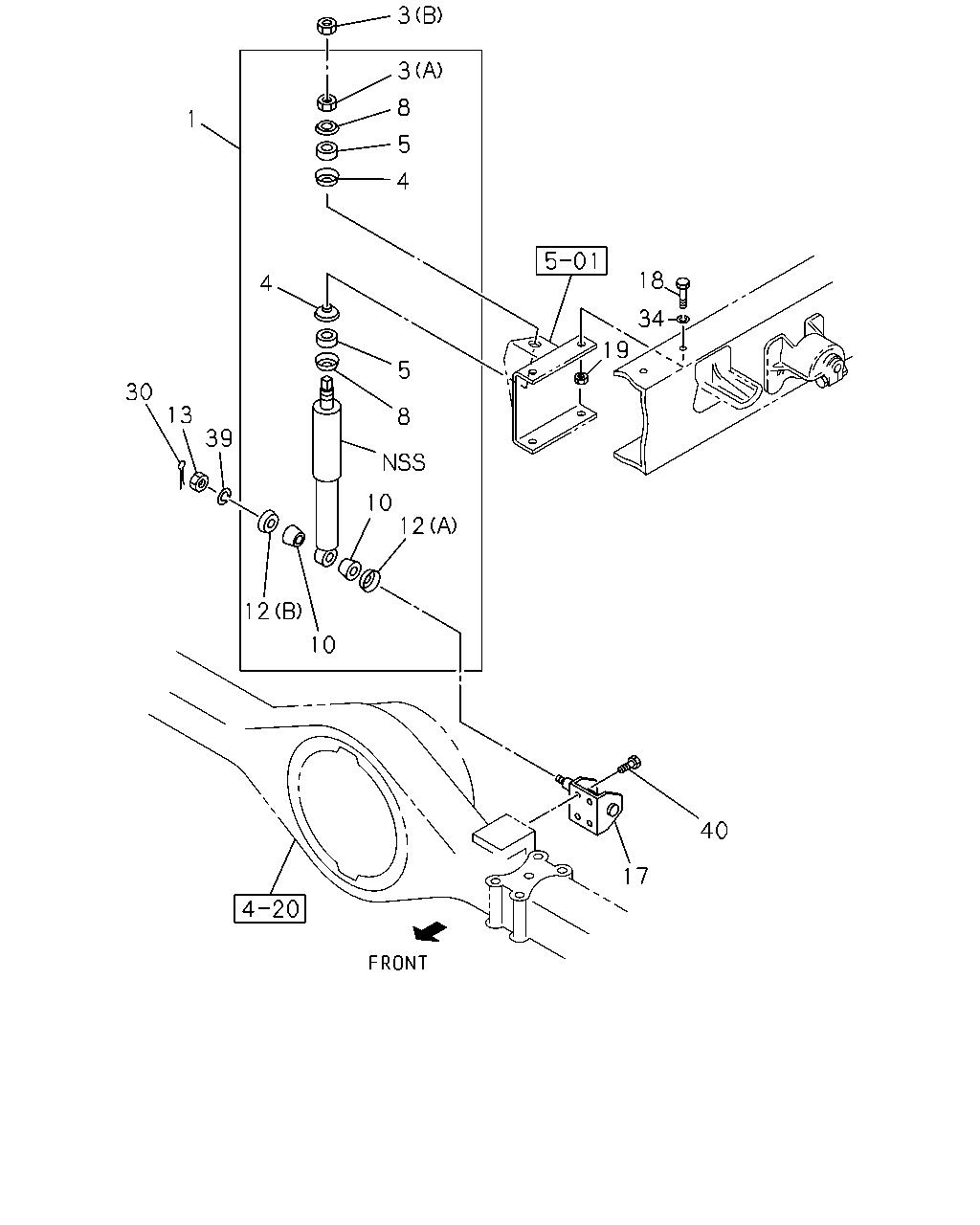

çizim 96996
3 3 8 1 5 4 18 4 34 19 5 30 13 8 39 10 12 12 10 40 17
BalonParca AdiParca NoAdetTipApplied Date
1 ABSORBER ASM; SHOCK,RR
BAN 		1-51630-457-0 02 1 0008-
3 NUT; S/ABS
(A) M14 		9-99111-414-0 02 1 0008-
3 NUT; S/ABS
(B) M14 		0-91111-514-0 02 1 0008-
4 WASHER; CENTER,S/ABS
ID=24 BAN 		1-51631-067-0 04 1 0008-
5 BUSHING; RUBBER,S/ABS,UPR
ID=16 T=25 BAN 		1-51631-069-0 04 1 0008-
8 WASHER; S/ABS
ID=16.5 BAN 		1-51631-068-0 04 1 0008-
10 BUSHING; RUBBER,S/ABS 9-51631-026-0 08 1 0008-
12 WASHER; S/ABS TO RR AXLE
(A) ID=27 		9-51631-027-0 02 1 0008-
12 WASHER; S/ABS TO RR AXLE
(B) ID=21 		9-51631-028-0 02 1 0008-
13 NUT; LWR,RR S/ABS
M20 SLOTTED 		9-99116-420-0 02 1 0008-
17 BRACKET; S/ABS LWR 1-51681-471-0 02 1 0008-
18 BOLT; S/ABS BRKT
M12X35 		0-20801-235-0 08 1 0008-0512
18 BOLT; S/ABS BRKT
M12X35 		0-20851-235-0 08 1 0601-
19 NUT; S/ABS BRKT
M12 		9-99110-412-0 08 1 0008-0302
19 NUT; S/ABS BRKT
REINFORCEMENT BUMPER<VG7> EXC. REAR STABILIZER SHAFT<F61>,BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M12 		9-99110-412-0 08 1 0303-0403
19 NUT; S/ABS BRKT
PINTLE HOOK<PP7> REINFORCEMENT BUMPER<VG7> EXC. USER EXP GOVERNMENT<D6M>,REAR STABILIZER SHAFT<F61>,BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M12 		9-99110-412-0 08 1 0404-0509
19 NUT; S/ABS BRKT
USER EXP GOVERNMENT<D6M> PINTLE HOOK<PP7> EXC. REAR STABILIZER SHAFT<F61>,BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M12 		9-99110-412-0 08 1 0404-0509
19 NUT; S/ABS BRKT
REINFORCEMENT BUMPER<VG7> EXC. REAR STABILIZER SHAFT<F61>,PINTLE HOOK<PP7>, BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M12 		9-99110-412-0 08 1 0404-0509
19 NUT; S/ABS BRKT
USER EXP GOVERNMENT<D6M> PINTLE HOOK<PP7> EXC. REAR STABILIZER SHAFT<F61>,BATTERY 95E41R N100<SJ1>,REINFORCEMENT BUMPER<VG7>,BATTERY 115E41R NS120<W73> M12 		9-99110-412-0 08 1 0510-0512
19 NUT; S/ABS BRKT
REINFORCEMENT BUMPER<VG7> EXC. REAR STABILIZER SHAFT<F61>,BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M12 		9-99110-412-0 08 1 0510-0512
19 NUT; S/ABS BRKT
M12 		0-91110-512-0 08 1 0601-
19 NUT; S/ABS BRKT
USER EXP GOVERNMENT<D6M> PINTLE HOOK<PP7> BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> REINFORCEMENT BUMPER<VG7> M12 		9-99110-512-0 08 1 0303-0512
30 PIN; SPLIT,S/ABS,RR SUSP
OD=3.7 L=30 		9-08114-030-0 02 1 0008-0606
30 PIN; SPLIT,S/ABS,RR SUSP
OD=3.7 L=30 		0-81124-030-0 02 1 0607-
34 WASHER; LK,S/ABS BRKT
ID=12.2 		9-09150-512-0 08 1 0008-0603
34 WASHER; LK,S/ABS BRKT
ID=12.2 		0-91510-512-0 08 1 0604-
39 WASHER; PL,S/ABS
ID=21 		9-09160-520-0 02 1 0008-0605
39 WASHER; PL,S/ABS
ID=21 		0-91610-520-0 02 1 0606-
40 BOLT; LWR BRKT
M12X25 W/LK WASHER 		0-50041-225-0 08 1 0008-0512
40 BOLT; LWR BRKT
M12X25 W/LK WASHER 		0-50541-225-0 08 1 0601-

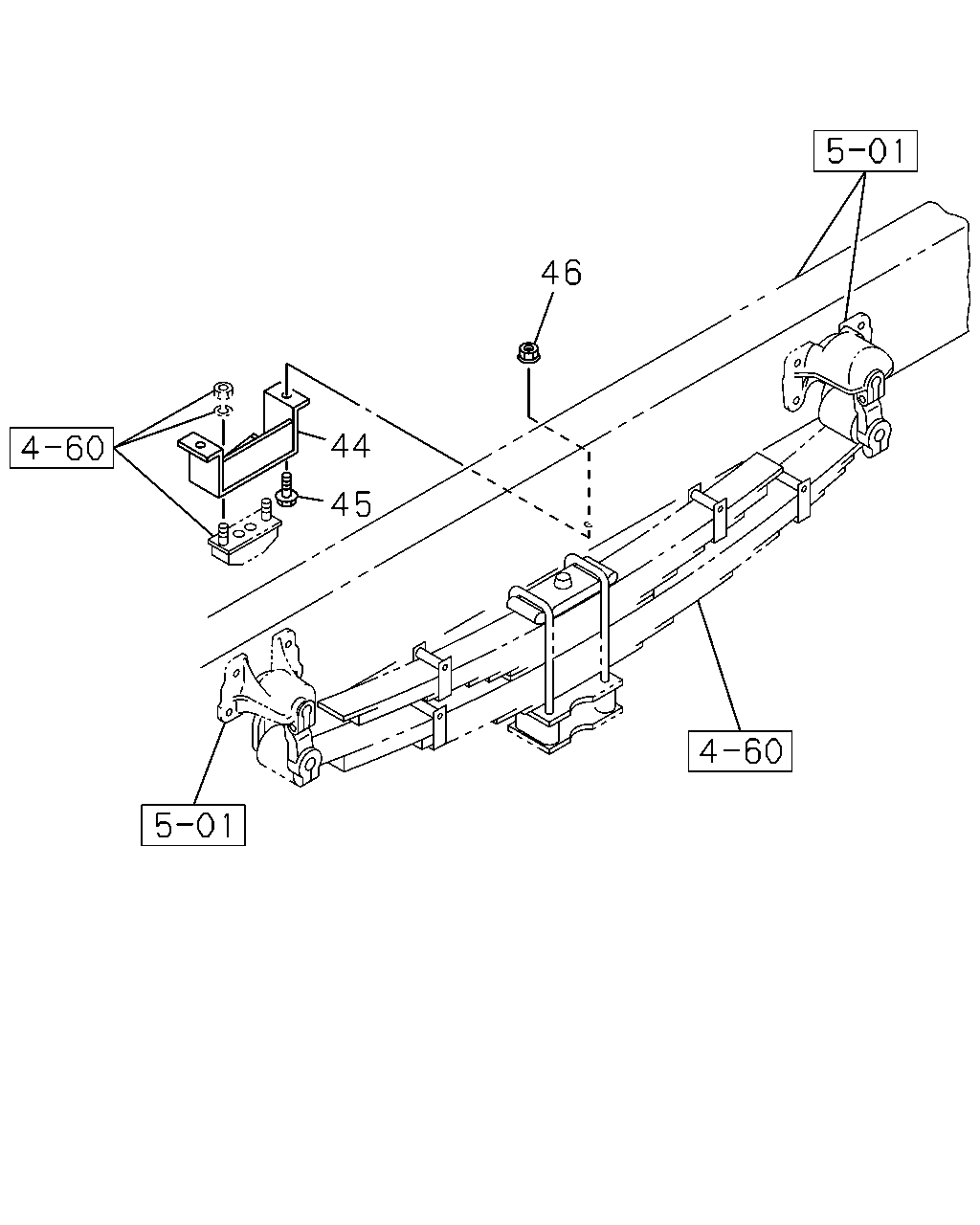

çizim 97544
46 44 45
BalonParca AdiParca NoAdetTipApplied Date
44 SEAT; CUSHION RUBBER 1-53369-008-1 02 1 0008-
45 BOLT; SEAT
M12X35 FLANGE 		0-28681-235-0 04 1 0008-0512
45 BOLT; SEAT
M12X35 FLANGE 		0-28651-235-0 04 1 0601-
46 NUT; SEAT
M10 FLANGE 		0-91150-210-0 04 1 0008-0012
46 NUT; SEAT
M12 FLANGE 		0-91150-212-0 04 1 0101-0602
46 NUT; SEAT
M12 FLANGE 		0-91180-212-0 04 1 0603-
