4-60 — REAR SUSPENSION (#43160) — 66 parça

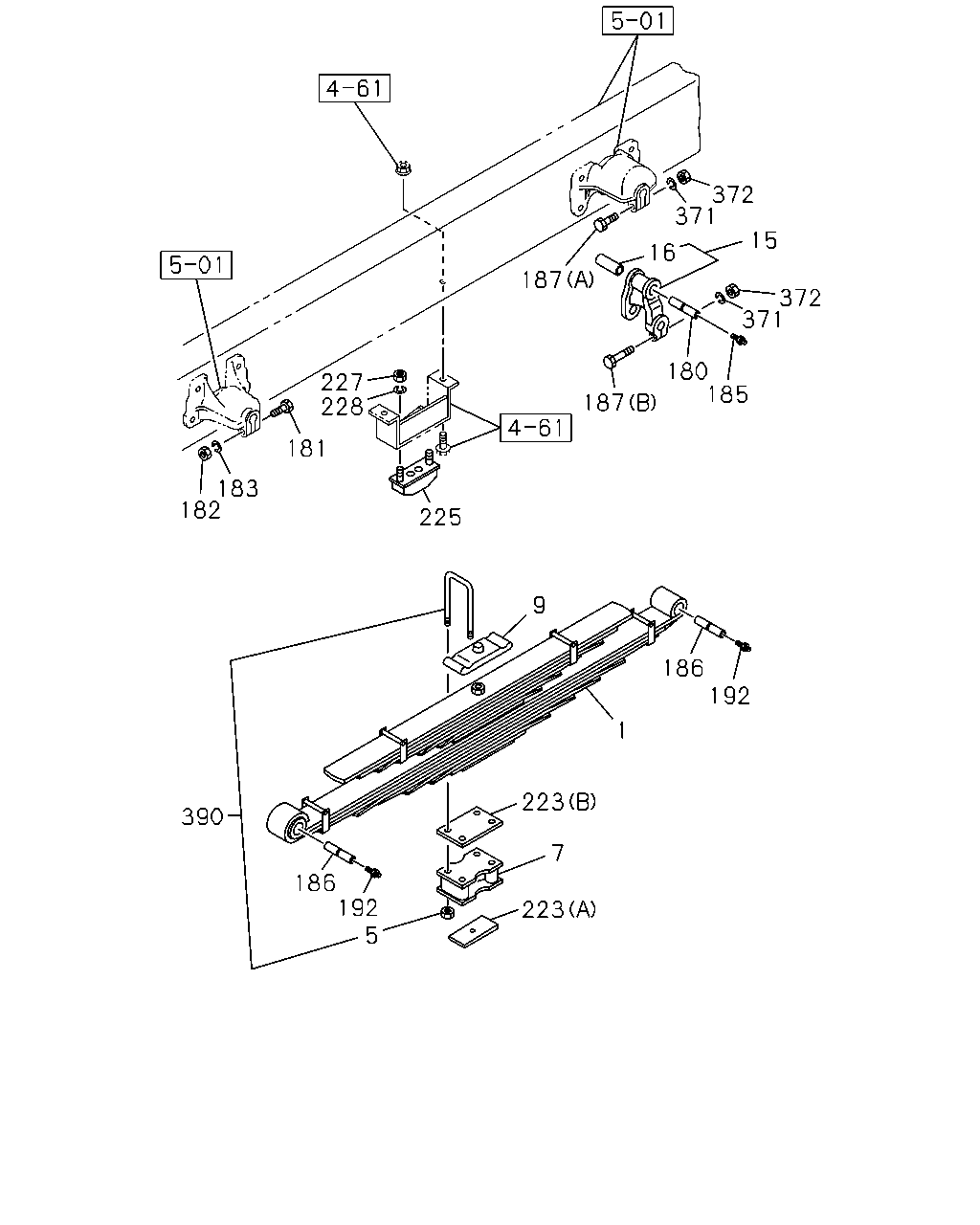

372 371 15 16 187 372 371 180 185 227 228 187 181 183 182 225 9 186 192 1 223 390 7 186 192 5 223

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. BAN	1-51300-521-0	02	1	0008-
5	NUT; U-BOLT,RR SPR M18 FLANGE	1-09440-039-1	08	1	0008-
7	SEAT; SPR,LWR	1-51385-087-1	02	1	0008-
9	PAD; U BOLT,RR SPR	1-51372-066-0	02	1	0008-
15	SHACKLE; RR SPR	1-51362-038-2	02	1	0008-
16	BUSHING; SHACKLE,RR SPR ID=25	9-51151-032-0	02	1	0008-0902
16	BUSHING; SHACKLE,RR SPR ID=25	8-98082-176-0	02	1	0903-
180	PIN; RR SPR DO=25 L=115 PT1/8 BAN	1-51361-016-0	02	1	0008-
181	BOLT; SPR & SHACKLE M12X55	0-10811-255-0	02	1	0008-
182	NUT; PIN,RR SPR M12	9-99110-512-0	02	1	0008-0512
182	NUT; PIN,RR SPR M12	0-91110-512-0	02	1	0601-
183	WASHER; LK,PIN,RR SPR ID=12.2	9-09150-612-0	02	1	0008-0603
183	WASHER; LK,PIN,RR SPR ID=12.2	0-91510-612-0	02	1	0604-
185	NIPPLE; GREASE,PIN,RR SPR PT1/8 STRAIGHT	9-09031-010-0	02	1	0008-0512
185	NIPPLE; GREASE,PIN,RR SPR PT1/8 STRAIGHT	0-90301-410-0	02	1	0601-
186	PIN; SHACKLE,RR SPR DO=25 L=115 PT1/8 BAN	1-51361-016-0	04	1	0008-
187	BOLT; SPR & SHACKLE (A) M12X55	0-10811-255-0	02	1	0008-
187	BOLT; SPR & SHACKLE (B) M12X65	0-10811-265-0	02	1	0008-
192	NIPPLE; GREASE,SHACKLE PIN PT1/8 STRAIGHT	9-09031-010-0	04	1	0008-0512
192	NIPPLE; GREASE,SHACKLE PIN PT1/8 STRAIGHT	0-90301-410-0	04	1	0601-
223	SPACER; U BOLT,RR SPR (B) T=4.5	1-51377-307-0	01	1	0008-
223	SPACER; U BOLT,RR SPR (A)	1-51377-329-1	02	1	0008-
225	RUBBER; CUSHION,RR SPR	9-53366-021-1	02	1	0008-
227	NUT; CUSHION RUBBER M10 FLANGE	0-91150-210-0	04	1	0008-0602
227	NUT; CUSHION RUBBER M10 FLANGE	0-91180-210-0	04	1	0603-
228	WASHER; LK,CUSHION RUBBER ID=10.2	9-09150-510-0	04	1	0008-0603
228	WASHER; LK,CUSHION RUBBER ID=10.2	0-91510-510-0	04	1	0604-
371	WASHER; LK,SHACKLE ID=12.2	9-09150-612-0	04	1	0008-0603
371	WASHER; LK,SHACKLE ID=12.2	0-91510-612-0	04	1	0604-
372	NUT; SHACKLE M12	9-99110-512-0	04	1	0008-0512
372	NUT; SHACKLE M12	0-91110-512-0	04	1	0601-
390	U-BOLT SET; RR SPRING REAR STABILIZER SHAFT<F61> L=540	1-87870-429-0	04	1	0008-
390	U-BOLT SET; RR SPRING EXC. REAR STABILIZER SHAFT<F61> L=525	1-87870-379-0	04	1	0008-

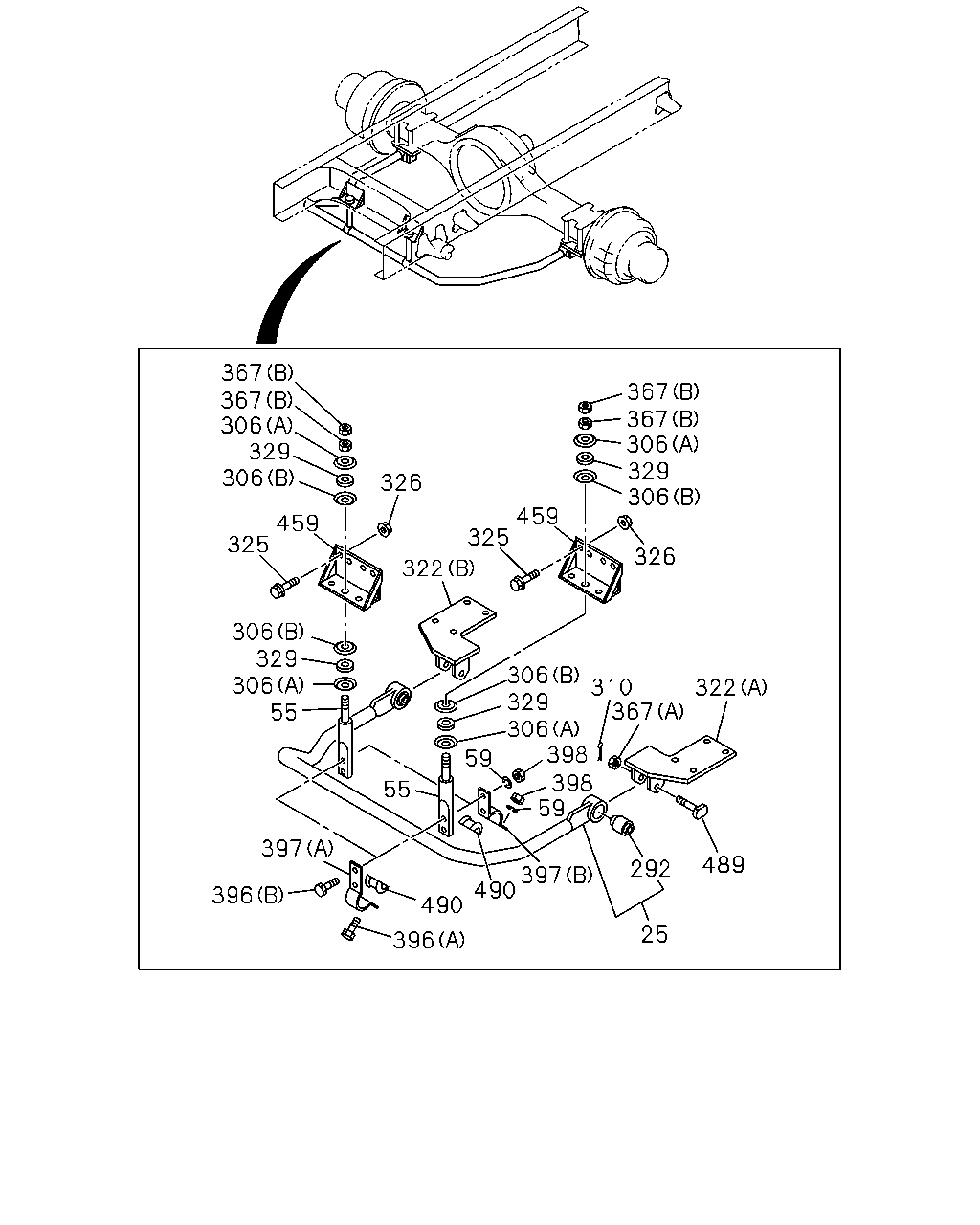

367 367 306 329 306 367 367 306 329 306 326 459 325 459 325 326 322 306 329 306 55 306 329 306 398 310 367 322 59 398 59 55 397 489 292 397 490 396 490 25 396

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	BAR ASM; STAB,RR SUSP REAR STABILIZER SHAFT<F61>	1-51770-166-0	01	1	0008-
55	ROD; STAB REAR STABILIZER SHAFT<F61>	1-51773-077-0	02	1	0008-
59	WASHER; LK,CLAMP REAR STABILIZER SHAFT<F61> ID=12.2	9-09150-512-0	06	1	0008-0603
59	WASHER; LK,CLAMP REAR STABILIZER SHAFT<F61> ID=12.2	0-91510-512-0	06	1	0604-
292	BUSHING; RUBBER,STAB REAR STABILIZER SHAFT<F61>	1-51779-066-0	02	1	0008-
306	WASHER; ROD REAR STABILIZER SHAFT<F61> (B) ID=16.8	1-51631-022-0	04	1	0008-
306	WASHER; ROD REAR STABILIZER SHAFT<F61> (A) ID=14.5	9-51631-051-0	04	1	0008-
310	PIN; SPLIT,STAB ROD REAR STABILIZER SHAFT<F61> OD=4.6 L=45	9-08115-045-0	02	1	0008-0606
310	PIN; SPLIT,STAB ROD REAR STABILIZER SHAFT<F61> OD=4.6 L=45	0-81125-045-0	02	1	0607-
322	BRACKET; STAB BAR TO RR AXLE REAR STABILIZER SHAFT<F61> (A)	1-51781-140-0	01	1	0008-
322	BRACKET; STAB BAR TO RR AXLE REAR STABILIZER SHAFT<F61> (B)	1-51781-141-0	01	1	0008-
325	BOLT; BRKT TO FRAME REAR STABILIZER SHAFT<F61> M10X30 FLANGE	0-28081-030-0	04	1	0008-0512
325	BOLT; BRKT TO FRAME REAR STABILIZER SHAFT<F61> M10X30 FLANGE	0-28051-030-0	04	1	0601-0803
325	BOLT; BRKT TO FRAME REAR STABILIZER SHAFT<F61> M10X30 FLANGE	0-28051-030-0	08	1	0804-
326	NUT; BRKT TO FRAME REAR STABILIZER SHAFT<F61> M10 FLANGE	0-91150-210-0	06	1	0008-0602
326	NUT; BRKT TO FRAME REAR STABILIZER SHAFT<F61> M10 FLANGE	0-91180-210-0	06	1	0603-0803
326	NUT; BRKT TO FRAME REAR STABILIZER SHAFT<F61> M10 FLANGE	0-91180-210-0	08	1	0804-
329	BUSHING; STAB ROD REAR STABILIZER SHAFT<F61>	9-51631-050-0	04	1	0008-
367	NUT REAR STABILIZER SHAFT<F61> (A) M22	9-09116-522-0	02	1	0008-0512
367	NUT REAR STABILIZER SHAFT<F61> (A) M22	0-91116-522-0	02	1	0601-
367	NUT REAR STABILIZER SHAFT<F61> (B) M14	9-99111-414-0	04	1	0008-0512
367	NUT REAR STABILIZER SHAFT<F61> (B) M14	0-91111-514-0	04	1	0601-
396	BOLT; CLAMP REAR STABILIZER SHAFT<F61> (A) M12X30 FLANGE	0-28081-230-0	02	1	0008-0512
396	BOLT; CLAMP REAR STABILIZER SHAFT<F61> (A) M12X30 FLANGE	0-28051-230-0	02	1	0601-
396	BOLT; CLAMP REAR STABILIZER SHAFT<F61> (B) M12X50 FLANGE	0-28081-250-0	04	1	0008-0512
396	BOLT; CLAMP REAR STABILIZER SHAFT<F61> (B) M12X50 FLANGE	0-28051-250-0	04	1	0601-
397	CLAMP; STABILIZER REAR STABILIZER SHAFT<F61> (A)	1-51789-027-2	02	1	0008-
397	CLAMP; STABILIZER REAR STABILIZER SHAFT<F61> (B)	1-51789-028-1	02	1	0008-
398	NUT; CLAMP REAR STABILIZER SHAFT<F61> M12	9-99110-512-0	06	1	0008-0512
398	NUT; CLAMP REAR STABILIZER SHAFT<F61> M12	0-91110-512-0	06	1	0601-
459	BRACKET; ROD REAR STABILIZER SHAFT<F61>	1-51781-142-0	02	1	0008-
489	PIN; LWR REAR STABILIZER SHAFT<F61>	1-51682-159-0	02	1	0008-
490	BUSHING; CLAMP REAR STABILIZER SHAFT<F61>	1-51779-079-1	04	1	0008-
