2-07A — CLUTCH BOOSTER; MINIPACK (#4316) — 229 parça

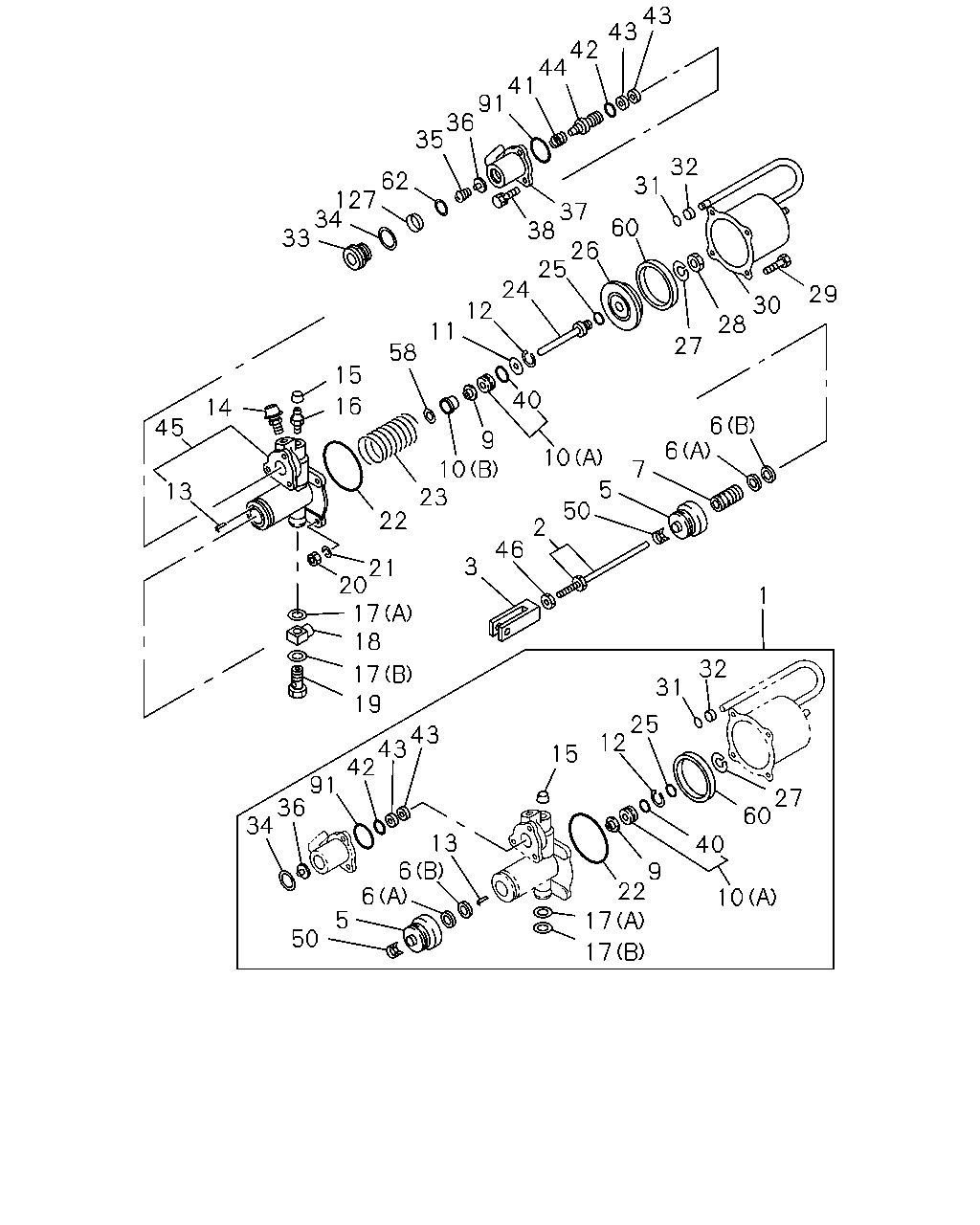

çizim 8175
43 43 42 44 41 91 36 35 32 62 127 34 33 31 37 38 60 26 25 24 12 29 30 28 11 27 58 15 40 16 14 6 45 9 10 23 6 10 7 5 50 13 22 2 46 3 21 20 17 18 1 32 17 31 19 25 12 43 43 42 15 27 60 91 36 34 13 6 40 9 22 17 6 10 5 50 17
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 REPAIR KIT; CLU BOOSTER
6WA1 TC-S(56L),10PE1S(60L) 		1-31829-354-0 01 1 9603-9904 ● ● ● ●
1 REPAIR KIT; CLU BOOSTER
6WA1 TC-N(54L),6WA1 TC-C(55L),10PE1S(60L), 10PE1N(61L),10PE1H(68L) 		1-31829-354-0 01 1 9905-0011 ● ● ● ● ● ●
1 REPAIR KIT; CLU BOOSTER
6WA1 TC-N(54L),6WA1 TC-C(55L),10PE1S(60L), 10PE1N(61L),10PE1H(68L) 		1-31829-500-0 01 1 0012- ● ● ● ● ● ●
1 REPAIR KIT; CLU BOOSTER
8PE1S(59L) 		1-31829-355-0 01 1 9603- ● ● ● ●
2 ROD; PUSH,CLU BOOSTER
6WA1 TC-N(54L),6WA1 TC-C(55L),10PE1S(60L), 10PE1N(61L),10PE1H(68L) 		1-31824-208-0 01 1 0012- ● ● ● ● ● ●
2 ROD; PUSH,CLU BOOSTER 1-31824-159-0 01 1 9603-9910 ● ● ● ● ●
2 ROD; PUSH,CLU BOOSTER 1-31824-159-0 01 1 9911-0011 ● ● ● ● ● ●
2 ROD; PUSH,CLU BOOSTER
8PE1S(59L) 		1-31824-159-0 01 1 0012- ● ● ● ●
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-287-0 01 1 9603-9910 ● ● ● ● ●
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-287-0 01 1 9911- ● ● ● ● ● ●
5 GUARD; PISTON,CLU BOOSTER
6WA1 TC-N(54L),6WA1 TC-C(55L),10PE1S(60L), 10PE1N(61L),10PE1H(68L) 		1-31829-503-0 01 1 0012- ● ● ● ● ● ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-174-0 01 1 9603-9705 ● ● ● ● ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-174-0 01 1 9706-9904 ● ● ● ● ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-174-0 01 1 9905-9907 ● ● ● ● ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-174-0 01 1 9908-9910 ● ● ● ● ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-174-0 01 1 9911-0011 ● ● ● ● ● ●
5 GUARD; PISTON,CLU BOOSTER
8PE1S(59L) 		1-31829-174-0 01 1 0012- ● ● ● ●
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-055-0 01 1 9603-9705 ● ● ● ● ●
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-055-0 01 1 9706-9904 ● ● ● ● ●
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-055-0 01 1 9905-9907 ● ● ● ● ●
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-055-0 01 1 9908-9910 ● ● ● ● ●
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-055-0 01 1 9911- ● ● ● ● ● ●
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-056-0 01 1 9603-9705 ● ● ● ● ●
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-056-0 01 1 9706-9904 ● ● ● ● ●
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-056-0 01 1 9905-9907 ● ● ● ● ●
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-056-0 01 1 9908-9910 ● ● ● ● ●
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-056-0 01 1 9911- ● ● ● ● ● ●
7 PISTON; CLU BOOSTER
6WA1 TC-S(56L),10PE1S(60L) 		1-31821-048-0 01 1 9603-9904 ● ● ● ●
7 PISTON; CLU BOOSTER
6WA1 TC-N(54L),6WA1 TC-C(55L),10PE1S(60L), 10PE1N(61L),10PE1H(68L) 		1-31821-048-0 01 1 9905-9910 ● ● ● ●
7 PISTON; CLU BOOSTER 1-31821-048-0 01 1 9911- ● ● ● ● ● ●
7 PISTON; CLU BOOSTER
8PE1S(59L) 		1-31821-013-0 01 1 9603-9904 ● ● ● ●
7 PISTON; CLU BOOSTER
8PE1S(59L) 		1-31821-013-0 01 1 9905- ● ● ● ●
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-251-0 01 1 9603-9705 ● ● ● ● ●
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-251-0 01 1 9706-9904 ● ● ● ● ●
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-251-0 01 1 9905-9907 ● ● ● ● ●
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-251-0 01 1 9908-9910 ● ● ● ● ●
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-251-0 01 1 9911- ● ● ● ● ● ●
10 RETAINER; PISTON,CLU BOOSTER
6WA1 TC-S(56L),10PE1S(60L) (B) 		1-31829-293-0 01 1 9603-9706 ●
10 RETAINER; PISTON,CLU BOOSTER
10PE1S(60L) (B) 		1-31829-293-0 01 1 9603-9706 ● ● ●
10 RETAINER; PISTON,CLU BOOSTER
6WA1 TC-S(56L),10PE1S(60L) (B) 		1-31829-293-0 01 1 9707-9904 ●
10 RETAINER; PISTON,CLU BOOSTER
10PE1S(60L) (B) 		1-31829-293-0 01 1 9707-9904 ● ● ●
10 RETAINER; PISTON,CLU BOOSTER
6WA1 TC-N(54L),6WA1 TC-C(55L),10PE1S(60L), 10PE1N(61L),10PE1H(68L) (B) 		1-31829-293-0 01 1 9905-9907 ● ● ● ●
10 RETAINER; PISTON,CLU BOOSTER
6WA1 TC-N(54L),6WA1 TC-C(55L),10PE1S(60L), 10PE1N(61L),10PE1H(68L) (B) 		1-31829-293-0 01 1 9908-9910 ● ● ● ●
10 RETAINER; PISTON,CLU BOOSTER
6WA1 TC-N(54L),6WA1 TC-C(55L),10PE1S(60L), 10PE1N(61L),10PE1H(68L) (B) 		1-31829-293-0 01 1 9911-0011 ● ● ● ● ●
10 RETAINER; PISTON,CLU BOOSTER
6WA1 TC-N(54L),6WA1 TC-C(55L),10PE1S(60L), 10PE1N(61L),10PE1H(68L) (B) 		1-31829-428-0 01 1 0012- ● ● ● ● ● ●
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-285-0 01 1 9603-9705 ● ● ● ● ●
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-285-0 01 1 9706-9904 ● ● ● ● ●
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-285-0 01 1 9905-9907 ● ● ● ● ●
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-285-0 01 1 9908-9910 ● ● ● ● ●
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-285-0 01 1 9911- ● ● ● ● ● ●
10 RETAINER; PISTON,CLU BOOSTER
8PE1S(59L) (B) 		1-31829-300-0 01 1 9603- ● ● ● ●
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 9603-9705 ● ● ● ● ●
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 9706-9904 ● ● ● ● ●
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 9905-9907 ● ● ● ● ●
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 9908-9910 ● ● ● ● ●
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 9911- ● ● ● ● ● ●
12 RING; RET,CLU BOOSTER 1-31829-142-0 01 1 9603-9705 ● ● ● ● ●
12 RING; RET,CLU BOOSTER 1-31829-142-0 01 1 9706-9904 ● ● ● ● ●
12 RING; RET,CLU BOOSTER 1-31829-142-0 01 1 9905-9907 ● ● ● ● ●
12 RING; RET,CLU BOOSTER 1-31829-142-0 01 1 9908-9910 ● ● ● ● ●
12 RING; RET,CLU BOOSTER 1-31829-142-0 01 1 9911- ● ● ● ● ● ●
13 PIN; SPR 1-31829-109-0 01 1 9603-9705 ● ● ● ● ●
13 PIN; SPR 1-31829-109-0 01 1 9706-9904 ● ● ● ● ●
13 PIN; SPR 1-31829-109-0 01 1 9905-9907 ● ● ● ● ●
13 PIN; SPR 1-31829-109-0 01 1 9908-9910 ● ● ● ● ●
13 PIN; SPR 1-31829-109-0 01 1 9911- ● ● ● ● ● ●
14 COVER; EXH,CLU BOOSTER
6WA1 TC-N(54L),6WA1 TC-C(55L),10PE1S(60L), 10PE1N(61L),10PE1H(68L) 		1-31829-365-0 01 1 0012- ● ● ● ● ● ●
14 COVER; EXH,CLU BOOSTER 1-31829-102-0 01 1 9603-9910 ● ● ● ● ●
14 COVER; EXH,CLU BOOSTER 1-31829-102-0 01 1 9911-0001 ● ● ● ● ● ●
14 COVER; EXH,CLU BOOSTER
6WA1 TC-N(54L),6WA1 TC-C(55L),10PE1S(60L), 10PE1N(61L),10PE1H(68L) 		1-31829-102-0 01 1 0002-0011 ● ● ● ● ● ●
14 COVER; EXH,CLU BOOSTER
8PE1S(59L) 		1-31829-102-0 01 1 0012- ● ● ● ●
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 9603-9705 ● ● ● ● ●
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 9706-9904 ● ● ● ● ●
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 9905-9907 ● ● ● ● ●
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 9908-9910 ● ● ● ● ●
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 9911- ● ● ● ● ● ●
16 PLUG; END PLATE,CLU BOOSTER 9-83331-704-0 01 1 9603-9705 ● ● ● ● ●
16 PLUG; END PLATE,CLU BOOSTER 9-83331-704-0 01 1 9706-9904 ● ● ● ● ●
16 PLUG; END PLATE,CLU BOOSTER 9-83331-704-0 01 1 9905-9907 ● ● ● ● ●
16 PLUG; END PLATE,CLU BOOSTER 9-83331-704-0 01 1 9908-9910 ● ● ● ● ●
16 PLUG; END PLATE,CLU BOOSTER 9-83331-704-0 01 1 9911- ● ● ● ● ● ●
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 9603-9705 ● ● ● ● ●
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 9706-9904 ● ● ● ● ●
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 9905-9907 ● ● ● ● ●
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 9908-9910 ● ● ● ● ●
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 9911- ● ● ● ● ● ●
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 9603-9705 ● ● ● ● ●
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 9706-9904 ● ● ● ● ●
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 9905-9907 ● ● ● ● ●
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 9908-9910 ● ● ● ● ●
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 9911- ● ● ● ● ● ●
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 9603-9705 ● ● ● ● ●
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 9706-9904 ● ● ● ● ●
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 9905-9907 ● ● ● ● ●
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 9908-9910 ● ● ● ● ●
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 9911- ● ● ● ● ● ●
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 9603-9705 ● ● ● ● ●
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 9706-9904 ● ● ● ● ●
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 9905-9907 ● ● ● ● ●
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 9908-9910 ● ● ● ● ●
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 9911- ● ● ● ● ● ●
20 NUT; END PLATE TO SHELL,CLU BOOSTER
M10 		9-09111-410-0 04 1 9603-9910 ● ● ● ● ●
20 NUT; END PLATE TO SHELL,CLU BOOSTER
M10 		9-09111-410-0 04 1 9911- ● ● ● ● ● ●
21 WASHER; END PLATE TO SHELL,CLU BOOSTER
ID=10.2 		9-09150-510-0 04 1 9603-9910 ● ● ● ● ●
21 WASHER; END PLATE TO SHELL,CLU BOOSTER
ID=10.2 		9-09150-510-0 04 1 9911- ● ● ● ● ● ●
22 GASKET; END PLATE TO SHELL,CLU BOOSTER
6WA1 TC-S(56L),10PE1S(60L) 		1-31829-281-0 01 1 9603-9904 ● ● ● ●
22 GASKET; END PLATE TO SHELL,CLU BOOSTER
6WA1 TC-N(54L),6WA1 TC-C(55L),10PE1S(60L), 10PE1N(61L),10PE1H(68L) 		1-31829-281-0 01 1 9905-9910 ● ● ● ●
22 GASKET; END PLATE TO SHELL,CLU BOOSTER 1-31829-281-0 01 1 9911- ● ● ● ● ● ●
22 GASKET; END PLATE TO SHELL,CLU BOOSTER
8PE1S(59L) 		1-09623-322-0 01 1 9603- ● ● ● ●
23 SPRING; SHELL,CLU BOOSTER
6WA1 TC-S(56L),10PE1S(60L) 		1-31829-350-0 01 1 9603-9904 ● ● ● ●
23 SPRING; SHELL,CLU BOOSTER
6WA1 TC-N(54L),6WA1 TC-C(55L),10PE1S(60L), 10PE1N(61L),10PE1H(68L) 		1-31829-350-0 01 1 9905-9910 ● ● ● ●
23 SPRING; SHELL,CLU BOOSTER 1-31829-350-0 01 1 9911- ● ● ● ● ● ●
23 SPRING; SHELL,CLU BOOSTER
8PE1S(59L) 		1-31829-110-0 01 1 9603- ● ● ● ●
24 ROD; PUSH,CLU BOOSTER
6WA1 TC-S(56L),10PE1S(60L) 		1-31824-158-0 01 1 9603-9904 ● ● ● ●
24 ROD; PUSH,CLU BOOSTER
6WA1 TC-N(54L),6WA1 TC-C(55L),10PE1S(60L), 10PE1N(61L),10PE1H(68L) 		1-31824-158-0 01 1 9905-9910 ● ● ● ●
24 ROD; PUSH,CLU BOOSTER 1-31824-158-0 01 1 9911- ● ● ● ● ● ●
24 ROD; PUSH,CLU BOOSTER
8PE1S(59L) 		1-31829-340-0 01 1 9603-9904 ● ● ● ●
24 ROD; PUSH,CLU BOOSTER
8PE1S(59L) 		1-31829-340-0 01 1 9905- ● ● ● ●
25 GASKET; PUSH ROD,CLU BOOSTER
6WA1 TC-S(56L),10PE1S(60L) 		1-31829-277-0 01 1 9603-9904 ● ● ● ●
25 GASKET; PUSH ROD,CLU BOOSTER
6WA1 TC-N(54L),6WA1 TC-C(55L),10PE1S(60L), 10PE1N(61L),10PE1H(68L) 		1-31829-277-0 01 1 9905-9910 ● ● ● ●
25 GASKET; PUSH ROD,CLU BOOSTER 1-31829-277-0 01 1 9911- ● ● ● ● ● ●
25 GASKET; PUSH ROD,CLU BOOSTER
8PE1S(59L) 		1-09623-321-0 01 1 9603-9904 ● ● ● ●
25 GASKET; PUSH ROD,CLU BOOSTER
8PE1S(59L) 		1-09623-321-0 01 1 9905- ● ● ● ●
26 PISTON; SHELL,CLU BOOSTER
6WA1 TC-S(56L),10PE1S(60L) 		1-31821-060-0 01 1 9603-9904 ● ● ● ●
26 PISTON; SHELL,CLU BOOSTER
6WA1 TC-N(54L),6WA1 TC-C(55L),10PE1S(60L), 10PE1N(61L),10PE1H(68L) 		1-31821-060-0 01 1 9905-9910 ● ● ● ●
26 PISTON; SHELL,CLU BOOSTER
6WA1 TC-N(54L),6WA1 TC-C(55L),10PE1S(60L), 10PE1N(61L),10PE1H(68L) 		1-31821-060-0 01 1 9911-0011 ● ● ● ● ● ●
26 PISTON; SHELL,CLU BOOSTER
6WA1 TC-N(54L),6WA1 TC-C(55L),10PE1S(60L), 10PE1N(61L),10PE1H(68L) 		1-31821-072-0 01 1 0012- ● ● ● ● ● ●
26 PISTON; SHELL,CLU BOOSTER
8PE1S(59L) 		1-31821-017-0 01 1 9603- ● ● ● ●
27 SPRING; CLU BOOSTER
6WA1 TC-S(56L),10PE1S(60L) 		1-31829-291-0 01 1 9603-9904 ● ● ● ●
27 SPRING; CLU BOOSTER
6WA1 TC-N(54L),6WA1 TC-C(55L),10PE1S(60L), 10PE1N(61L),10PE1H(68L) 		1-31829-291-0 01 1 9905-9910 ● ● ● ●
27 SPRING; CLU BOOSTER 1-31829-291-0 01 1 9911- ● ● ● ● ● ●
27 SPRING; CLU BOOSTER
8PE1S(59L) 		1-31829-111-0 01 1 9603-9904 ● ● ● ●
27 SPRING; CLU BOOSTER
8PE1S(59L) 		1-31829-111-0 01 1 9905- ● ● ● ●
28 NUT; PUSH ROD,CLU BOOSTER
6WA1 TC-S(56L),10PE1S(60L) 		1-31829-290-0 01 1 9603-9904 ● ● ● ●
28 NUT; PUSH ROD,CLU BOOSTER
6WA1 TC-N(54L),6WA1 TC-C(55L),10PE1S(60L), 10PE1N(61L),10PE1H(68L) 		1-31829-290-0 01 1 9905-9910 ● ● ● ●
28 NUT; PUSH ROD,CLU BOOSTER 1-31829-290-0 01 1 9911- ● ● ● ● ● ●
28 NUT; PUSH ROD,CLU BOOSTER
8PE1S(59L) 		9-88510-365-0 01 1 9603-9904 ● ● ● ●
28 NUT; PUSH ROD,CLU BOOSTER
8PE1S(59L) 		9-88510-365-0 01 1 9905- ● ● ● ●
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 9-83315-099-0 04 1 9603-9910 ● ● ● ● ●
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 9-83315-099-0 04 1 9911- ● ● ● ● ● ●
30 SHELL; CYL,CLU BOOSTER
6WA1 TC-S(56L),10PE1S(60L) 		1-31811-076-0 01 1 9603-9904 ● ● ● ●
30 SHELL; CYL,CLU BOOSTER
6WA1 TC-N(54L),6WA1 TC-C(55L),10PE1S(60L), 10PE1N(61L),10PE1H(68L) 		1-31811-076-0 01 1 9905-0011 ● ● ● ● ● ●
30 SHELL; CYL,CLU BOOSTER
6WA1 TC-N(54L),6WA1 TC-C(55L),10PE1S(60L), 10PE1N(61L),10PE1H(68L) 		1-31811-117-0 01 1 0012- ● ● ● ● ● ●
30 SHELL; CYL,CLU BOOSTER
8PE1S(59L) 		1-31811-061-0 01 1 9603- ● ● ● ●
31 GASKET; SHELL,CLU BOOSTER 1-31829-279-0 01 1 9603-9910 ● ● ● ● ●
31 GASKET; SHELL,CLU BOOSTER 1-31829-279-0 01 1 9911- ● ● ● ● ● ●
32 BUSHING; SHELL,CLU BOOSTER 1-31829-280-0 01 1 9603-9910 ● ● ● ● ●
32 BUSHING; SHELL,CLU BOOSTER 1-31829-280-0 01 1 9911- ● ● ● ● ● ●
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-214-0 01 1 9603-9705 ● ● ● ● ●
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-214-0 01 1 9706-9904 ● ● ● ● ●
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-214-0 01 1 9905-9907 ● ● ● ● ●
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-214-0 01 1 9908-9910 ● ● ● ● ●
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-214-0 01 1 9911- ● ● ● ● ● ●
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 9603-9705 ● ● ● ● ●
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 9706-9904 ● ● ● ● ●
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 9905-9907 ● ● ● ● ●
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 9908-9910 ● ● ● ● ●
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 9911- ● ● ● ● ● ●
35 SPRING; POPPET VLV,CLU BOOSTER
6WA1 TC-N(54L),6WA1 TC-C(55L),10PE1S(60L), 10PE1N(61L),10PE1H(68L) 		1-31829-451-0 01 1 0012- ● ● ● ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-077-0 01 1 9603-9705 ● ● ● ● ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-077-0 01 1 9706-9904 ● ● ● ● ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-077-0 01 1 9905-9907 ● ● ● ● ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-077-0 01 1 9908-9910 ● ● ● ● ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-077-0 01 1 9911-0011 ● ● ● ● ● ●
35 SPRING; POPPET VLV,CLU BOOSTER
8PE1S(59L) 		1-31829-077-0 01 1 0012- ● ● ● ●
36 VALVE; POPPET,CLU BOOSTER
6WA1 TC-N(54L),6WA1 TC-C(55L),10PE1S(60L), 10PE1N(61L),10PE1H(68L) 		1-31829-452-0 01 1 0012- ● ● ● ● ● ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-016-0 01 1 9603-9705 ● ● ● ● ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-016-0 01 1 9706-9904 ● ● ● ● ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-016-0 01 1 9905-9907 ● ● ● ● ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-016-0 01 1 9908-9910 ● ● ● ● ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-016-0 01 1 9911-0011 ● ● ● ● ● ●
36 VALVE; POPPET,CLU BOOSTER
8PE1S(59L) 		1-31829-016-0 01 1 0012- ● ● ● ●
37 BODY; UPR,VLV,CLU BOOSTER
6WA1 TC-N(54L),6WA1 TC-C(55L),10PE1S(60L), 10PE1N(61L),10PE1H(68L) 		1-31811-085-0 01 1 0012- ● ● ● ● ● ●
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-085-0 01 1 9603-9910 ● ● ● ● ●
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-085-0 01 1 9911-0005 ● ● ● ● ● ●
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-066-0 01 1 0006-0011 ● ● ● ● ● ●
37 BODY; UPR,VLV,CLU BOOSTER
8PE1S(59L) 		1-31811-066-0 01 1 0012- ● ● ● ●
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 9603-9705 ● ● ● ● ●
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 9706-9904 ● ● ● ● ●
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 9905-9907 ● ● ● ● ●
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 9908-9910 ● ● ● ● ●
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 9911- ● ● ● ● ● ●
40 GASKET; PISTON,CLU BOOSTER 1-31829-037-0 01 1 9603-9705 ● ● ● ● ●
40 GASKET; PISTON,CLU BOOSTER 1-31829-037-0 01 1 9706-9904 ● ● ● ● ●
40 GASKET; PISTON,CLU BOOSTER 1-31829-037-0 01 1 9905-9907 ● ● ● ● ●
40 GASKET; PISTON,CLU BOOSTER 1-31829-037-0 01 1 9908-9910 ● ● ● ● ●
40 GASKET; PISTON,CLU BOOSTER 1-31829-037-0 01 1 9911- ● ● ● ● ● ●
41 SPRING; DIAPH,CLU BOOSTER
6WA1 TC-S(56L),10PE1S(60L) 		1-31829-422-0 01 1 9603-9904 ● ● ● ●
41 SPRING; DIAPH,CLU BOOSTER
6WA1 TC-N(54L),6WA1 TC-C(55L),10PE1S(60L), 10PE1N(61L),10PE1H(68L) 		1-31829-422-0 01 1 9905-9910 ● ● ● ●
41 SPRING; DIAPH,CLU BOOSTER 1-31829-422-0 01 1 9911-0005 ● ● ● ● ● ●
41 SPRING; DIAPH,CLU BOOSTER
6WA1 TC-N(54L),6WA1 TC-C(55L),10PE1S(60L), 10PE1N(61L),10PE1H(68L) 		1-31829-288-0 01 1 0006- ● ● ● ● ● ●
41 SPRING; DIAPH,CLU BOOSTER
8PE1S(59L) 		1-31829-299-0 01 1 9603- ● ● ● ●
42 GASKET; FITTING,CLU BOOSTER 1-31829-148-0 01 1 9603-9910 ● ● ● ● ●
42 GASKET; FITTING,CLU BOOSTER 1-31829-148-0 01 1 9911- ● ● ● ● ● ●
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-060-0 02 1 9603-9910 ● ● ● ● ●
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-060-0 02 1 9911- ● ● ● ● ● ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-058-0 01 1 9603-9910 ● ● ● ● ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-058-0 01 1 9911- ● ● ● ● ● ●
45 PLATE; END,CLU BOOSTER
6WA1 TC-S(56L),10PE1S(60L) 		1-31811-067-0 01 1 9603-9904 ● ● ● ●
45 PLATE; END,CLU BOOSTER
6WA1 TC-N(54L),6WA1 TC-C(55L),10PE1S(60L), 10PE1N(61L),10PE1H(68L) 		1-31811-067-0 01 1 9905-9910 ● ● ● ●
45 PLATE; END,CLU BOOSTER 1-31811-067-0 01 1 9911- ● ● ● ● ● ●
45 PLATE; END,CLU BOOSTER
8PE1S(59L) 		1-31811-057-1 01 1 9603- ● ● ● ●
46 NUT; PUSH ROD,CLU BOOSTER
6WA1 TC-N(54L),6WA1 TC-C(55L),10PE1S(60L), 10PE1N(61L),10PE1H(68L) 		1-31824-126-0 01 1 0012- ● ● ● ● ● ●
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 01 1 9603-9705 ● ● ● ● ●
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 01 1 9706-9904 ● ● ● ● ●
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 01 1 9905-9907 ● ● ● ● ●
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 01 1 9908-9910 ● ● ● ● ●
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 01 1 9911-0011 ● ● ● ● ● ●
46 NUT; PUSH ROD,CLU BOOSTER
8PE1S(59L) M10 		9-09111-410-0 01 1 0012- ● ● ● ●
50 CLAMP; PISTON GUARD,CLU BOOSTER
6WA1 TC-N(54L),6WA1 TC-C(55L),10PE1S(60L), 10PE1N(61L),10PE1H(68L) 		1-31829-504-0 01 1 0012- ● ● ● ● ● ●
50 CLAMP; PISTON GUARD,CLU BOOSTER 1-31829-168-0 01 1 9603-9910 ● ● ● ● ●
50 CLAMP; PISTON GUARD,CLU BOOSTER 1-31829-168-0 01 1 9911-0011 ● ● ● ● ● ●
50 CLAMP; PISTON GUARD,CLU BOOSTER
8PE1S(59L) 		1-31829-168-0 01 1 0012- ● ● ● ●
58 WASHER; PISTON,CLU BOOSTER
6WA1 TC-S(56L),10PE1S(60L) 		1-31829-294-0 01 1 9603-9904 ● ● ● ●
58 WASHER; PISTON,CLU BOOSTER
6WA1 TC-N(54L),6WA1 TC-C(55L),10PE1S(60L), 10PE1N(61L),10PE1H(68L) 		1-31829-294-0 01 1 9905-9910 ● ● ● ●
58 WASHER; PISTON,CLU BOOSTER 1-31829-294-0 01 1 9911-0011 ● ● ● ● ● ●
58 WASHER; PISTON,CLU BOOSTER
8PE1S(59L) 		1-31829-301-0 01 1 9603-9904 ● ● ● ●
58 WASHER; PISTON,CLU BOOSTER
8PE1S(59L) 		1-31829-301-0 01 1 9905- ● ● ● ●
60 GASKET; SHELL,CLU BOOSTER
6WA1 TC-S(56L),10PE1S(60L) 		1-31829-292-0 01 1 9603-9904 ● ● ● ●
60 GASKET; SHELL,CLU BOOSTER
6WA1 TC-N(54L),6WA1 TC-C(55L),10PE1S(60L), 10PE1N(61L),10PE1H(68L) 		1-31829-292-0 01 1 9905-0011 ● ● ● ● ● ●
60 GASKET; SHELL,CLU BOOSTER
6WA1 TC-N(54L),6WA1 TC-C(55L),10PE1S(60L), 10PE1N(61L),10PE1H(68L) 		1-31829-454-0 01 1 0012- ● ● ● ● ● ●
60 GASKET; SHELL,CLU BOOSTER
8PE1S(59L) 		1-31829-058-0 01 1 9603- ● ● ● ●
62 RETAINER; POPPET 1-31829-489-0 01 1 0006- ● ● ● ● ● ●
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 9603-9705 ● ● ● ● ●
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 9706-9904 ● ● ● ● ●
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 9905-9907 ● ● ● ● ●
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 9908-9910 ● ● ● ● ●
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 9911- ● ● ● ● ● ●
127 FILTER; POPPET 1-31829-495-0 01 1 0006- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
