4-50 — FRONT SUSPENSION (#43158) — 63 parça

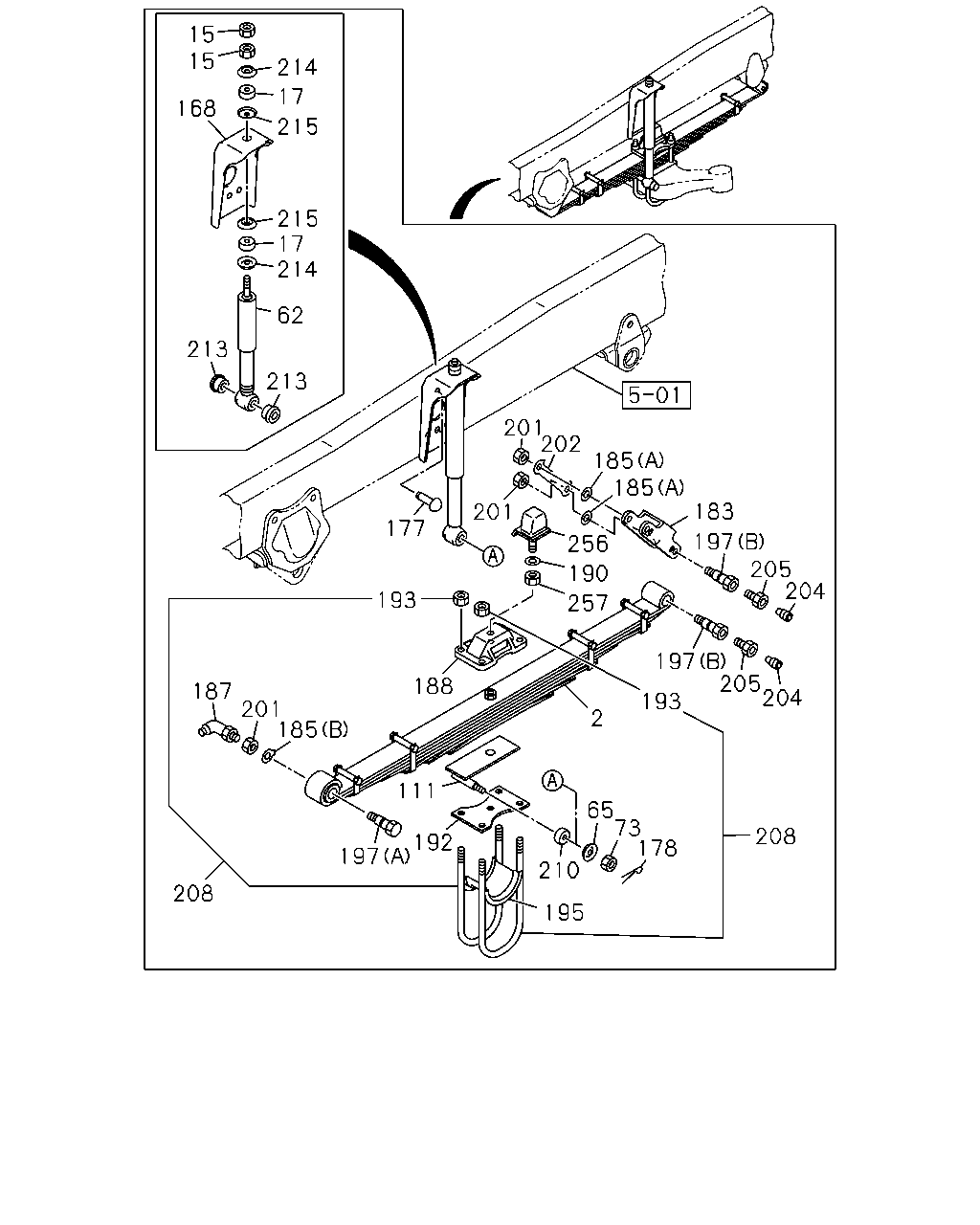

çizim 97563
15 15 214 17 168 215 215 17 214 62 213 213 201 202 185 185 183 201 177 256 197 205 204 190 193 257 197 205 204 188 187 201 185 193 2 111 65 73 178 208 192 210 197 208 195
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. BAN 		1-51130-566-0 02 1 0008-
15 NUT; S/ABS,UPR
M12 		1-09400-006-0 04 1 0008-0910
15 NUT; S/ABS,UPR
M12 		8-98010-412-0 04 1 0911-
17 BUSHING; RUBBER,S/ABS 9-51631-050-0 04 1 0008-
62 ABSORBER ASM; SHOCK,FRT
BAN 		1-51630-180-4 02 1 0008-
62 ABSORBER ASM; SHOCK,FRT
BEST VALUE PARTS BAN 		1-87610-153-0 02 1 0008-1412
65 WASHER; S/ABS
ID=23 		1-51631-019-0 02 1 0008-
73 NUT; BRKT,SHOCK
M16 SLOTTED 		9-99116-416-0 02 1 0008-0605
73 NUT; BRKT,SHOCK
M16 SLOTTED 		0-91116-516-0 02 1 0606-1204
73 NUT; BRKT,SHOCK
M16 SLOTTED 		8-98049-689-0 02 1 1205-
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-528-3 01 1 0008-
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-529-3 01 1 0008-
168 BRACKET; S/ABS,FRT SUSP
BAN 		1-51681-360-0 02 1 0008-
177 RIVET; BRKT,S/ABS
D13X36 PLATED TAPER END 		9-06771-336-0 08 1 0008-0302
177 RIVET; BRKT,S/ABS
REINFORCEMENT BUMPER<VG7> EXC. REAR STABILIZER SHAFT<F61>,BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> D13X36 PLATED TAPER END 		9-06771-336-0 08 1 0303-0403
177 RIVET; BRKT,S/ABS
PINTLE HOOK<PP7> REINFORCEMENT BUMPER<VG7> EXC. USER EXP GOVERNMENT<D6M>,REAR STABILIZER SHAFT<F61>,BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> D13X36 PLATED TAPER END 		9-06771-336-0 08 1 0404-0509
177 RIVET; BRKT,S/ABS
USER EXP GOVERNMENT<D6M> PINTLE HOOK<PP7> EXC. REAR STABILIZER SHAFT<F61>,BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> D13X36 PLATED TAPER END 		9-06771-336-0 08 1 0404-0509
177 RIVET; BRKT,S/ABS
REINFORCEMENT BUMPER<VG7> EXC. REAR STABILIZER SHAFT<F61>,PINTLE HOOK<PP7>, BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> D13X36 PLATED TAPER END 		9-06771-336-0 08 1 0404-0509
177 RIVET; BRKT,S/ABS
USER EXP GOVERNMENT<D6M> PINTLE HOOK<PP7> EXC. REAR STABILIZER SHAFT<F61>,BATTERY 95E41R N100<SJ1>,REINFORCEMENT BUMPER<VG7>,BATTERY 115E41R NS120<W73> D13X36 PLATED TAPER END 		9-06771-336-0 08 1 0510-0607
177 RIVET; BRKT,S/ABS
REINFORCEMENT BUMPER<VG7> EXC. REAR STABILIZER SHAFT<F61>,BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> D13X36 PLATED TAPER END 		9-06771-336-0 08 1 0510-0607
177 RIVET; BRKT,S/ABS
USER EXP GOVERNMENT<D6M> PINTLE HOOK<PP7> EXC. REAR STABILIZER SHAFT<F61>,BATTERY 95E41R N100<SJ1>,REINFORCEMENT BUMPER<VG7>,BATTERY 115E41R NS120<W73> D13X36 PLATED TAPER END 		0-67901-336-0 08 1 0608-
177 RIVET; BRKT,S/ABS
REINFORCEMENT BUMPER<VG7> EXC. REAR STABILIZER SHAFT<F61>,BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> D13X36 PLATED TAPER END 		0-67901-336-0 08 1 0608-
177 RIVET; BRKT,S/ABS
USER EXP GOVERNMENT<D6M> PINTLE HOOK<PP7> BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> REINFORCEMENT BUMPER<VG7> D10X30 PLATED TAPER END 		9-06761-030-0 08 1 0303-0607
177 RIVET; BRKT,S/ABS
USER EXP GOVERNMENT<D6M> PINTLE HOOK<PP7> BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> REINFORCEMENT BUMPER<VG7> D10X30 PLATED TAPER END 		0-67801-030-0 08 1 0608-
178 PIN; SPLIT,S/ABS
OD=3.7 L=25 		9-08114-025-0 02 1 0008-0606
178 PIN; SPLIT,S/ABS
OD=3.7 L=25 		0-81124-025-0 02 1 0607-
183 SHACKLE; FRT SUSP 1-51162-028-0 02 1 0008-
185 WASHER; LK,PIN
(A) ID=25.5 		1-09503-011-0 04 1 0008-0910
185 WASHER; LK,PIN
(A) ID=25.5 		8-98010-404-0 04 1 0911-
185 WASHER; LK,PIN
(B) ID=23 		1-51169-003-0 02 1 0008-0910
185 WASHER; LK,PIN
(B) ID=23 		8-98010-411-0 02 1 0911-
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		9-09031-210-0 02 1 0008-0512
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		0-90301-610-0 02 1 0601-
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51173-019-0 02 1 0008-
190 WASHER; LK,CUSHION RUBBER
ID=12.2 		9-09150-512-0 02 1 0008-0603
190 WASHER; LK,CUSHION RUBBER
ID=12.2 		0-91510-512-0 02 1 0604-
192 PIECE; DIST 1-51177-207-2 01 1 0008-
192 PIECE; DIST 1-51177-215-1 01 1 0008-
193 NUT; U BOLT
M16 		1-09440-028-1 08 1 0008-0503
193 NUT; U BOLT
M16 		8-94107-767-0 08 1 0504-0706
193 NUT; U BOLT
M16 		8-97360-121-0 08 1 0707-
195 BRACKET; U BOLT,FRT SUSP 1-43219-029-2 01 1 0008-
197 PIN; FRT SPR,FRT
(A) BAN 		1-51161-004-3 02 1 0008-0911
197 PIN; FRT SPR,FRT
(A) BAN 		8-98060-335-0 02 1 0912-
197 PIN; FRT SPR,FRT
(B) BAN 		1-51161-005-3 02 1 0008-0911
197 PIN; FRT SPR,FRT
(B) BAN 		1-51161-005-3 02 1 0008-0911
197 PIN; FRT SPR,FRT
(B) BAN 		8-98060-333-0 02 1 0912-
197 PIN; FRT SPR,FRT
(B) BAN 		8-98060-333-0 02 1 0912-
201 NUT; PIN LK
M22 		9-09111-522-0 06 1 0008-0512
201 NUT; PIN LK
M22 		0-91111-522-0 06 1 0601-
202 PLATE; LK,SPR PIN 1-51169-015-0 02 1 0008-
204 NIPPLE; GREASE,RR
PT1/8 STRAIGHT 		9-09031-010-0 04 1 0008-0512
204 NIPPLE; GREASE,RR
PT1/8 STRAIGHT 		0-90301-410-0 04 1 0601-
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 04 1 0008-
208 U-BOLT SET; FRT SPRING
L=300 		1-87870-377-0 04 1 0008-0503
208 U-BOLT SET; FRT SPRING
L=300 		1-87870-453-1 04 1 0504-
210 WASHER; S/ABS,OUTER
ID=17 		1-51631-020-0 02 1 0008-
213 BUSHING; RUBBER,LWR 1-51631-009-1 04 1 0008-
214 WASHER; S/ABS,UPR,INNER
ID=16.8 		1-51631-022-0 04 1 0008-
215 WASHER; S/ABS,UPR,OUTER
ID=14.5 		9-51631-051-0 04 1 0008-
256 RUBBER; CUSHION,FRT SPR 1-51174-019-0 02 1 0008-
257 NUT; CUSHION RUBBER
M12 		9-99110-512-0 02 1 0008-0512
257 NUT; CUSHION RUBBER
M12 		0-91110-512-0 02 1 0601-
