4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#43154) — 53 parça

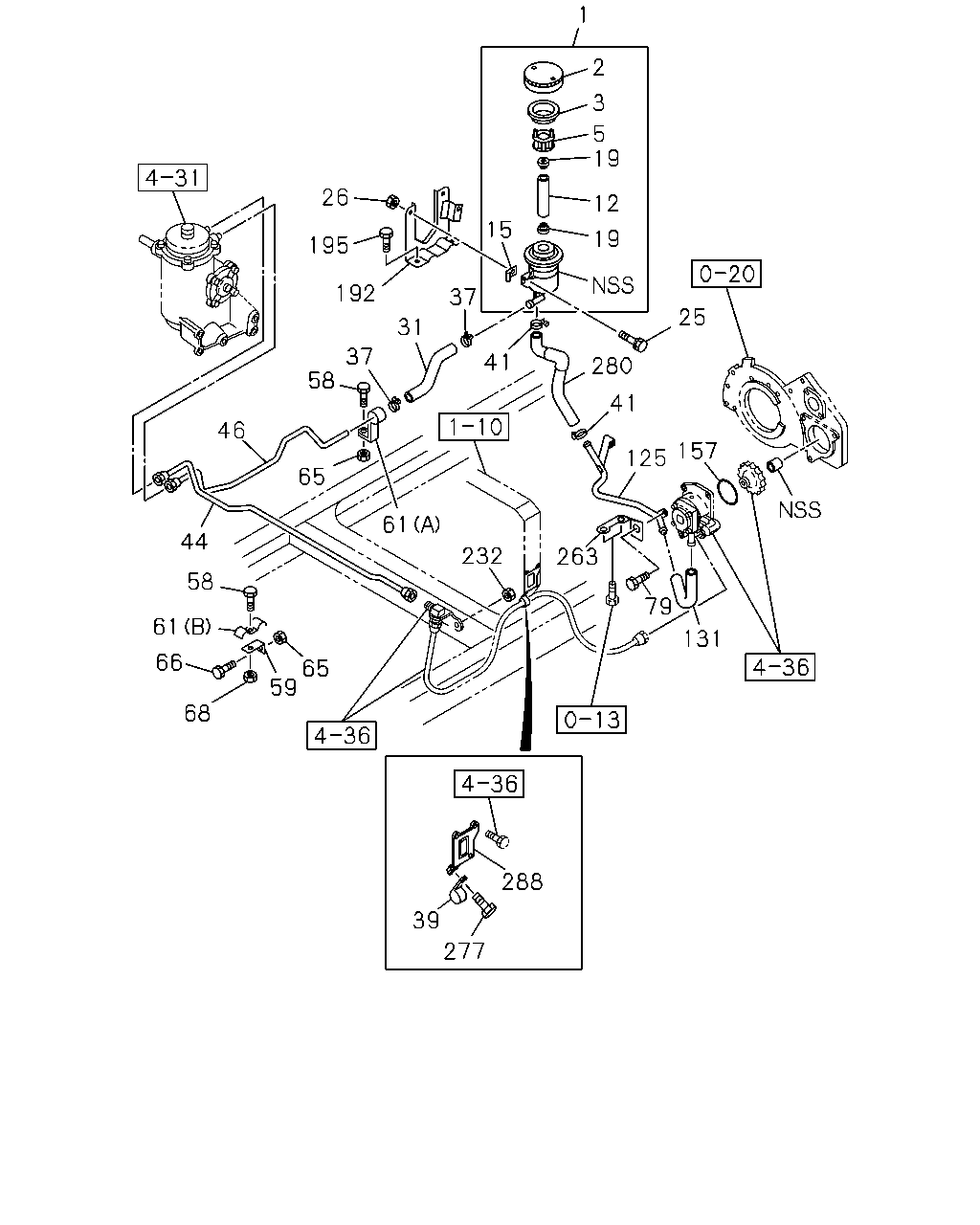

çizim 96998
1 2 3 5 19 26 12 15 19 195 192 37 25 31 37 41 280 58 41 46 157 125 65 61 44 232 263 58 79 61 131 65 59 66 68 288 39 277
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; OIL,P/S 1-21210-205-0 01 1 0008-0508
1 TANK ASM; OIL,P/S 1-21210-238-1 01 1 0509-1006
1 TANK ASM; OIL,P/S 8-98166-928-0 01 1 1007-
2 CAP; OIL TANK,P/S 1-21241-004-4 01 1 0008-1006
2 CAP; OIL TANK,P/S 8-98166-876-0 01 1 1007-
3 GASKET; OIL TANK,P/S 1-21249-003-1 01 1 0008-
5 STRAINER; OIL TANK,P/S 1-21235-007-1 01 1 0008-
12 FILTER; MICROBON,OIL TANK,P/S 1-21235-011-0 01 1 0008-
15 PLATE; FILTER,OIL TANK 1-21249-007-1 02 1 0008-0508
15 PLATE; FILTER,OIL TANK 1-21249-016-0 02 1 0509-
19 SEAT; OIL TANK 1-21249-004-0 02 1 0008-
25 BOLT; OIL TANK BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0008-0512
25 BOLT; OIL TANK BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0601-
26 NUT; OIL TANK TO BRKT
M8 FLANGE 		0-91150-108-0 02 1 0008-0602
26 NUT; OIL TANK TO BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603-
31 HOSE; P/S OIL TANK,INL 1-21113-591-1 01 1 0008-
37 CLIP; HOSE,P/S
ID=26 		1-09704-082-0 02 1 0008-
39 CLIP; FLEX HOSE
ID=40 		8-94226-553-0 01 1 0008-
41 CLIP; HOSE,P/S
ID=32 		1-09704-085-0 02 1 0008-
44 PIPE; OIL,P/S UNIT TO NIPPLE
L=1086 		1-21115-361-0 01 1 0008-0408
44 PIPE; OIL,P/S UNIT TO NIPPLE 1-21117-616-0 01 1 0409-
46 PIPE; OIL,P/S UNIT TO OIL TANK 1-21114-768-3 01 1 0008-
58 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 01 1 0008-0512
58 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 01 1 0008-0512
58 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0601-
58 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0601-
59 BRACKET; CLIP,OIL PIPE
L=60 		1-47475-455-0 01 1 0008-
61 CLIP; OIL PIPE
(A) ID=15 H=24 L=20 		1-09700-606-0 01 1 0008-
61 CLIP; OIL PIPE
(B) ID=16 & 13 L=18 & 17 		1-09700-658-0 01 1 0008-
65 NUT; BRKT
M8 FLANGE 		0-91150-108-0 03 1 0008-0010
65 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 0008-0010
65 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0011-0602
65 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603-
66 BOLT; BRKT,OIL PIPE
M8X20 FLANGE 		0-28680-820-0 01 1 0008-0512
66 BOLT; BRKT,OIL PIPE
M8X20 FLANGE 		0-28650-820-0 01 1 0601-
68 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91150-108-0 01 1 0008-0602
68 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91180-108-0 01 1 0603-
79 BOLT; BRKT
M8X12 FLANGE 		0-28080-812-0 02 1 0008-0512
79 BOLT; BRKT
M8X12 FLANGE 		0-28050-812-0 02 1 0601-
125 CONNECTOR; P/S PUMP 8-97600-113-0 01 1 0008-
131 HOSE; RUBBER,P/S 8-94396-331-1 01 1 0008-
157 GASKET; P/S PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). ID=96.4 		1-09623-178-0 01 1 0008-
192 BRACKET; P/S OIL TANK 1-21119-115-5 01 1 0008-
195 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 02 1 0008-0406
195 BOLT; BRKT
M10X25 FLANGE 		0-28081-025-0 02 1 0407-0512
195 BOLT; BRKT
M10X25 FLANGE 		0-28051-025-0 02 1 0601-
232 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0008-0602
232 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603-
263 BRACKET; P/S PIPE 8-97600-117-0 01 1 0008-
277 BOLT; HOSE CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 0008-0512
277 BOLT; HOSE CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 0601-
280 HOSE; P/S OIL PUMP,INL 1-21115-230-1 01 1 0008-
288 BRACKET; CLIP,P/S 1-82659-149-0 01 1 0008-
