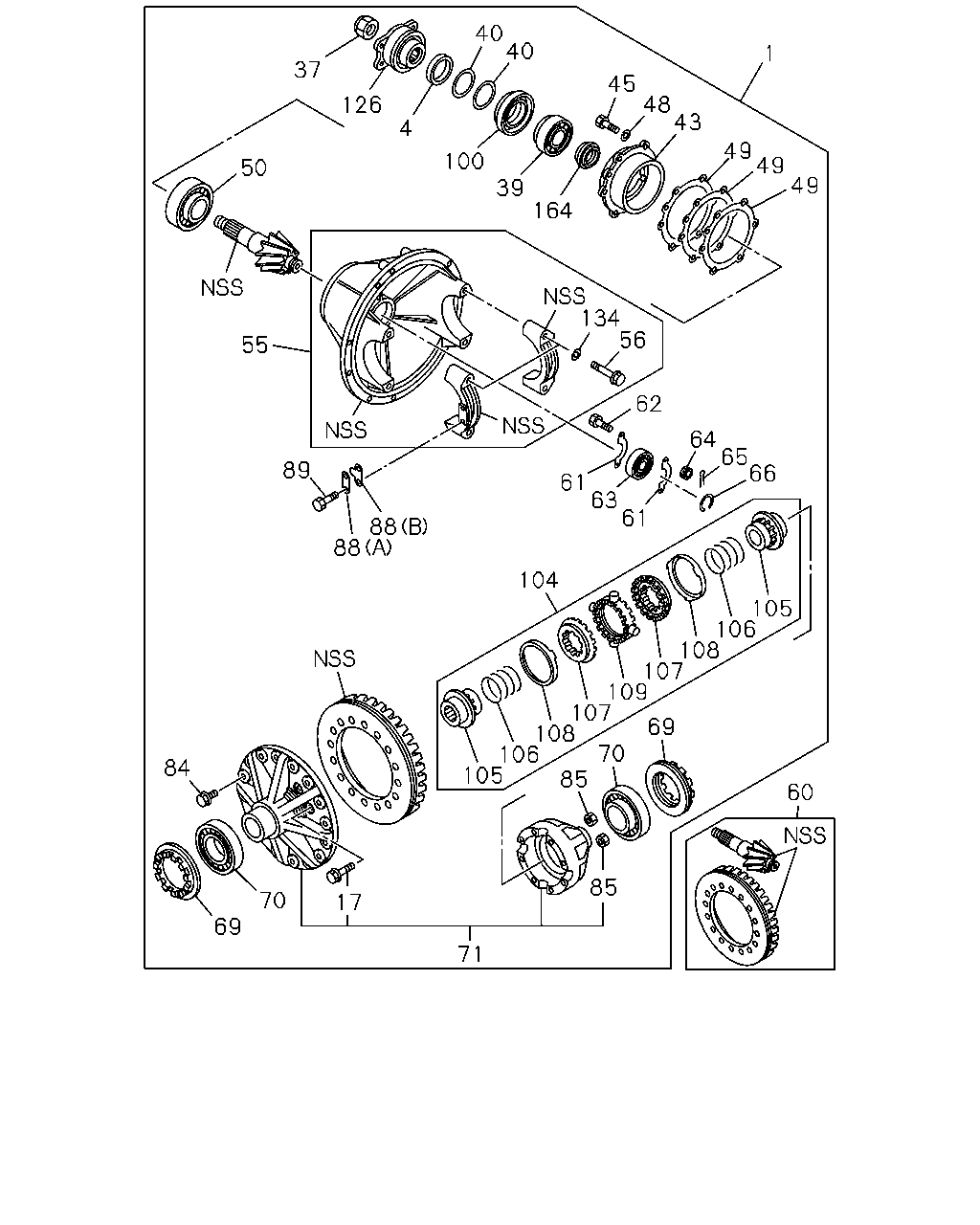

4-25 — REAR FINAL DRIVE (#43150) — 84 parça

40 40 1 37 45 48 43 126 4 49 49 49 100 50 39 164 134 56 55 62 64 65 66 89 61 63 61 88 88 104 105 106 108 107 109 107 108 106 105 69 70 84 85 60 85 70 17 69 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRIVE ASM; FINAL,RR 39/7	1-41000-922-0	01	1	0008-	●
1	DRIVE ASM; FINAL,RR 39/6	1-41000-846-0	01	1	0008-		●
4	GASKET; FLANGE,FINAL PINION ID=37.5 T=4	1-09623-582-0	01	1	0008-	●	●
17	BOLT; DIFF CAGE SETTING M14X121 FLANGE	1-09044-006-0	04	1	0008-	●	●
17	BOLT; DIFF CAGE SETTING M14X95 FLANGE	1-09044-007-0	04	1	0008-	●	●
37	NUT; DRIVING PINION M36 FLANGE	1-09449-058-2	01	1	0008-0804	●	●
37	NUT; DRIVING PINION M36 FLANGE	1-09449-083-0	01	1	0805-	●	●
39	BEARING; FINAL PINION NSK	1-09812-026-0	01	1	0008-1001	●	●
39	BEARING; FINAL PINION NSK	5-09812-063-0	01	1	1002-	●	●
39	BEARING; FINAL PINION JTEKT	5-09812-062-1	01	1	1001-	●	●
40	SHIM; FINAL PINION T=1.60	1-41229-179-0	AR	1	0008-	●	●
40	SHIM; FINAL PINION T=1.61	1-41229-180-0	AR	1	0008-	●	●
40	SHIM; FINAL PINION T=1.62	1-41229-181-0	AR	1	0008-	●	●
40	SHIM; FINAL PINION T=1.63	1-41229-182-0	AR	1	0008-	●	●
40	SHIM; FINAL PINION T=1.64	1-41229-183-0	AR	1	0008-	●	●
40	SHIM; FINAL PINION T=1.65	1-41229-184-0	AR	1	0008-	●	●
40	SHIM; FINAL PINION T=1.66	1-41229-185-0	AR	1	0008-	●	●
40	SHIM; FINAL PINION T=1.67	1-41229-186-0	AR	1	0008-	●	●
40	SHIM; FINAL PINION T=1.68	1-41229-187-0	AR	1	0008-	●	●
40	SHIM; FINAL PINION T=1.69	1-41229-188-0	AR	1	0008-	●	●
40	SHIM; FINAL PINION T=1.70	1-41229-189-0	AR	1	0008-	●	●
43	CAGE; FINAL PINION	1-41151-027-0	01	1	0008-	●	●
45	BOLT; FINAL PINION CAGE M12X40	9-02361-240-0	06	1	0008-	●	●
48	WASHER; LK,FINAL PINION ID=12.2	9-09150-512-0	06	1	0008-0603	●	●
48	WASHER; LK,FINAL PINION ID=12.2	0-91510-512-0	06	1	0604-	●	●
49	SHIM; FINAL PINION CAGE T=0.50	1-41154-021-1	AR	1	0008-	●	●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-051-1	AR	1	0008-	●	●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-052-1	AR	1	0008-	●	●
49	SHIM; FINAL PINION CAGE T=1.00	1-41154-053-1	AR	1	0008-	●	●
50	BEARING; FINAL PINION NSK	1-09812-041-2	01	1	0008-	●	●
50	BEARING; FINAL PINION JTEKT	1-09812-042-1	01	1	0612-	●	●
55	CARRIER; DIFF	1-41110-048-1	01	1	0008-0112	●	●
55	CARRIER; DIFF LIMITED SLIP DIFF VAR2(G86)	1-41110-048-1	01	1	0201-1006	●	●
55	CARRIER; DIFF	1-41110-129-0	01	1	1007-	●	●
56	BOLT; BRG CAP M16X100	9-91661-600-0	04	1	0008-0104	●	●
56	BOLT; BRG CAP M16X100 FLANGE	1-09070-047-0	04	1	0105-	●	●
60	GEAR SET; FINAL DRIVE,RR 39/7	1-41210-391-2	01	1	0008-	●
60	GEAR SET; FINAL DRIVE,RR 39/6	1-41210-394-2	01	1	0008-		●
61	RETAINER; PILOT BRG,PINION T=2.3	1-41227-006-0	02	1	0008-	●	●
62	BOLT; RET M8X35 W/PIN HOLE	1-09042-034-0	02	1	0008-0804	●	●
62	BOLT; RET M8X35 W/PIN HOLE	1-09042-046-0	02	1	0805-	●	●
63	BEARING; PINION PILOT NSK	1-09810-073-2	01	1	0008-	●	●
63	BEARING; PINION PILOT JTEKT	1-09810-074-1	01	1	0008-	●	●
64	NUT; RET M8 SLOTTED	9-09117-508-0	02	1	0008-0512	●	●
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	0601-	●	●
65	PIN; SPLIT,RET	9-08112-012-0	02	1	0008-0805	●	●
65	PIN; SPLIT,RET	0-81122-012-0	02	1	0806-	●	●
66	RING; SNAP,PILOT BRG OD=34.2	1-09588-066-1	01	1	0008-1109	●	●
66	RING; SNAP,PILOT BRG OD=34.2	1-09588-214-0	01	1	1110-	●	●
69	NUT; ADJ,DIFF CAGE M128 H=22	1-41121-013-0	01	1	0008-	●	●
69	NUT; ADJ,DIFF CAGE M128 H=30	1-41121-015-0	01	1	0008-	●	●
70	BEARING; DIFF CAGE NSK ID=70 OD=125 T=33.3	1-09812-056-1	01	1	0008-	●	●
70	BEARING; DIFF CAGE NSK ID=70 OD=125 T=26.3	1-09812-058-1	01	1	0008-	●	●
70	BEARING; DIFF CAGE JTEKT ID=70 OD=125 T=33.3	1-09812-062-2	01	1	0008-	●	●
70	BEARING; DIFF CAGE JTEKT ID=70 OD=125 T=26.3	1-09812-063-1	01	1	0008-0704	●	●
70	BEARING; DIFF CAGE JTEKT ID=70 OD=125 T=26.3	1-09812-249-0	01	1	0705-	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-112-0	01	1	0008-0112	●	●
71	CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF VAR2(G86)	1-41510-112-0	01	1	0201-1006	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-343-0	01	1	1007-	●	●
84	BOLT; FINAL DRIVE GEAR M16X34.5 FLANGE	9-09802-575-1	16	1	0008-	●	●
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	08	1	0008-	●	●
88	PLATE; LK,ADJ NUT (A) T=1.0	9-41124-005-0	02	1	0008-	●	●
88	PLATE; LK,ADJ NUT (B) T=2.3	9-41124-015-0	02	1	0008-	●	●
89	BOLT; LK PLATE M8X16	0-20800-816-0	04	1	0008-0512	●	●
89	BOLT; LK PLATE M8X16	0-20850-816-0	04	1	0601-	●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-484-1	01	1	0008-	●	●
100	SEAL; OIL,FINAL PINION TKK	1-09625-637-0	01	1	0008-	●	●
104	DIFF ASM; NO SPIN	1-41530-020-1	01	1	0008-	●	●
105	GEAR; SIDE	1-41539-019-1	02	1	0008-	●	●
106	SPRING; NO SPIN DIFF	1-41539-006-0	02	1	0008-	●	●
107	CLUTCH; DRIVEN	1-41539-003-0	02	1	0008-	●	●
108	RING; HOLD OUT	1-41539-004-0	02	1	0008-	●	●
109	SPIDER; DIFF	1-41539-014-0	01	1	0008-	●	●
126	COUPLING; DRIVING PINION	1-37245-069-6	01	1	0008-	●	●
134	WASHER; LK,BRG CAP ID=16.2	9-09150-516-0	04	1	0008-0104	●	●
164	COLLAR; DIST,PINION T=10.7	1-36355-031-0	01	1	0008-	●	●
164	COLLAR; DIST,PINION T=10.90	1-36355-033-0	01	1	0008-	●	●
164	COLLAR; DIST,PINION T=11.10	1-36355-035-0	01	1	0008-	●	●
164	COLLAR; DIST,PINION T=11.30	1-36355-037-0	01	1	0008-	●	●
164	COLLAR; DIST,PINION T=11.50	1-36355-039-0	01	1	0008-	●	●
164	COLLAR; DIST,PINION T=11.70	1-36355-041-0	01	1	0008-	●	●
164	COLLAR; DIST,PINION T=11.9	1-36355-043-0	01	1	0008-	●	●
164	COLLAR; DIST,PINION T=12.10	1-36355-045-0	01	1	0008-	●	●
164	COLLAR; DIST,PINION T=12.30	1-36355-047-0	01	1	0008-	●	●
