2-05C — CLUTCH PIPING (#4315) — 154 parça

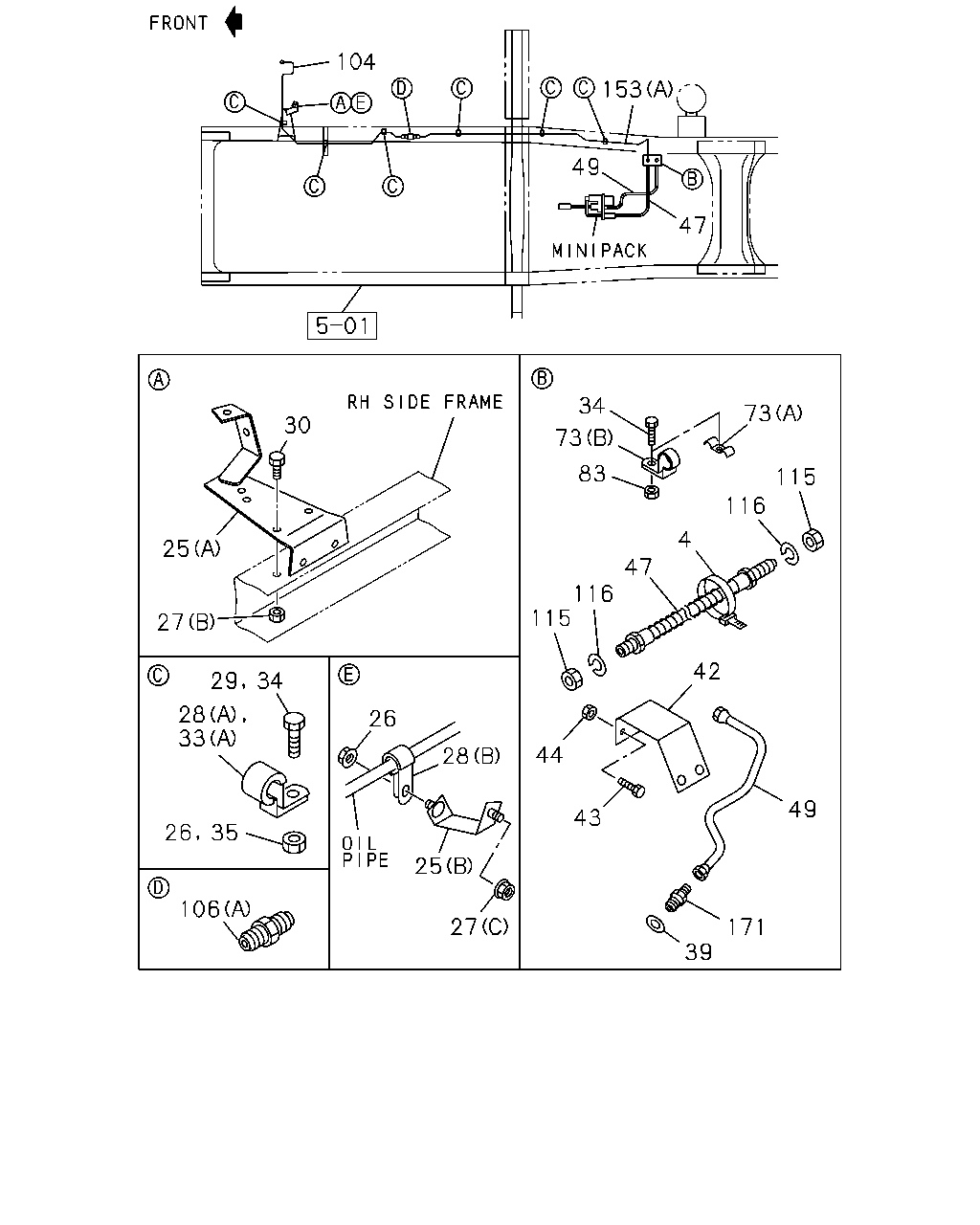

çizim 6843
104 153 49 47 34 73 30 73 83 115 116 4 25 47 116 115 27 42 34 29 28 33 26 44 28 49 43 26 35 25 106 27 171 39
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
4 CLIP; FLEX HOSE,CLU CONT
L=140 		5-09707-031-0 01 1 9603-9605 ● ● ● ● ● ●
25 BRACKET; OIL PIPE
(B) 		1-47477-597-2 01 1 9603-9904 ● ●
25 BRACKET; OIL PIPE
(B) 		1-47477-597-2 01 1 9905-0002 ● ● ●
25 BRACKET; OIL PIPE
(A) 		1-47477-604-2 01 1 9603- ● ● ● ● ● ●
26 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91150-108-0 03 1 0003- ● ● ●
26 NUT; CLIP,OIL PIPE
M8 		9-09110-508-0 02 1 9606-9606 ● ●
26 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91150-108-0 02 1 9607-9904 ● ●
26 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91150-108-0 01 1 9905-9905 ● ● ●
26 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91150-108-0 02 1 9905-0002 ● ● ● ● ● ●
26 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91150-108-0 02 1 9905-0002 ● ● ●
26 NUT; CLIP,OIL PIPE
6WA1 TC-S(56L) M8 		9-09110-508-0 01 1 9603-9605 ●
26 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91150-108-0 02 1 9905-9905 ● ● ● ● ● ●
27 NUT; BRKT
(C) M8 		9-09110-508-0 01 1 9603-9606 ● ●
27 NUT; BRKT
(C) M8 FLANGE 		0-91150-108-0 01 1 9607-9904 ● ●
27 NUT; BRKT
(C) M8 FLANGE 		0-91150-108-0 01 1 9905-0002 ● ● ●
27 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 02 1 9603- ● ● ● ● ● ●
27 NUT; BRKT
(A) M6 FLANGE W/RUBBER 		1-09984-180-0 01 1 9603- ● ● ● ● ● ●
27 NUT; BRKT
(C) M8 		9-09110-508-0 02 1 9603-9606 ● ● ● ● ● ●
27 NUT; BRKT
(C) M8 FLANGE 		0-91150-108-0 02 1 9607- ● ● ● ● ● ●
28 CLIP; OIL PIPE
(B) ID=9 		9-09524-845-0 01 1 9603-9904 ● ●
28 CLIP; OIL PIPE
(B) ID=9 		9-09524-845-0 01 1 9905-9905 ● ● ●
28 CLIP; OIL PIPE
(B) ID=9 		9-09524-845-0 01 1 9906-0002 ● ● ● ● ● ●
28 CLIP; OIL PIPE
(A) ID=8 H=20 L=20 		1-09700-604-0 03 1 0003- ● ● ● ●
28 CLIP; OIL PIPE
(A) ID=8 H=20 L=20 		1-09700-604-0 02 1 9603-0002 ● ● ● ● ● ●
29 BOLT; CLIP,OIL PIPE
M8X30 FLANGE 		0-28680-830-0 02 1 0003- ● ● ●
29 BOLT; CLIP,OIL PIPE
M8X20 FLANGE 		0-28080-820-0 02 1 9603-9606 ● ● ● ● ● ●
29 BOLT; CLIP,OIL PIPE
M8X25 FLANGE 		0-28680-825-0 02 1 9607-9904 ● ● ● ● ● ●
29 BOLT; CLIP,OIL PIPE
M8X25 FLANGE 		0-28680-825-0 03 1 9905-0002 ● ● ● ● ● ●
29 BOLT; CLIP,OIL PIPE
L TYPE ENG<90L> M8X25 FLANGE 		0-28680-825-0 01 1 0003- ● ● ● ●
30 BOLT; BRKT
M8X30 FLANGE 		0-28080-830-0 02 1 9603-9606 ● ● ● ● ● ●
30 BOLT; BRKT
M8X35 FLANGE 		0-28680-835-0 02 1 9607- ● ● ● ● ● ●
33 CLIP; OIL PIPE
(A) ID=8 H=20 L=20 		1-09700-604-0 02 1 9707-9904 ● ●
33 CLIP; OIL PIPE
(A) ID=8 H=20 L=20 		1-09700-604-0 02 1 9905- ● ● ●
33 CLIP; OIL PIPE
(A) ID=8 H=20 L=20 		1-09700-604-0 01 1 9603-9904 ● ● ● ● ● ●
33 CLIP; OIL PIPE
(A) ID=8 H=20 L=20 		1-09700-604-0 01 1 9905- ● ● ●
34 BOLT; PIPE CLIP
M8X25 FLANGE 		0-28080-825-0 02 1 9603-9606 ●
34 BOLT; PIPE CLIP
M8X30 FLANGE 		0-28680-830-0 02 1 9607-9706 ●
34 BOLT; PIPE CLIP
M8X30 FLANGE 		0-28680-830-0 02 1 9707-9904 ● ●
34 BOLT; PIPE CLIP
M8X30 FLANGE 		0-28680-830-0 02 1 9905- ● ● ●
34 BOLT; PIPE CLIP
M8X25 FLANGE 		0-28080-825-0 01 1 9603-9606 ● ● ● ● ● ●
34 BOLT; PIPE CLIP
M8X30 FLANGE 		0-28680-830-0 01 1 9607-9904 ● ● ● ● ● ●
34 BOLT; PIPE CLIP
M8X30 FLANGE 		0-28680-830-0 01 1 9905- ● ● ●
34 BOLT; PIPE CLIP
M8X20 FLANGE 		0-28080-820-0 01 1 9603-9904 ● ●
34 BOLT; PIPE CLIP
M8X20 FLANGE 		0-28080-820-0 01 1 9905- ● ● ●
35 NUT; PIPE CLIP
M8 FLANGE 		0-91150-108-0 02 1 9707-9904 ● ●
35 NUT; PIPE CLIP
M8 FLANGE 		0-91150-108-0 02 1 9905- ● ● ●
35 NUT; PIPE CLIP
M8 		9-09110-508-0 01 1 9603-9606 ● ● ● ● ● ●
35 NUT; PIPE CLIP
M8 FLANGE 		0-91150-108-0 01 1 9607-9904 ● ● ● ● ● ●
35 NUT; PIPE CLIP
M8 FLANGE 		0-91150-108-0 01 1 9905- ● ● ●
39 GASKET; CONNECTOR
ID=10.2 OD=16.0 		9-09571-410-0 01 1 9603-9904 ● ●
39 GASKET; CONNECTOR
ID=10.2 OD=16.0 		9-09571-410-0 01 1 9905- ● ● ●
42 BRACKET; FLEX HOSE,CLU CONT 1-47477-724-0 01 1 9603-9904 ● ●
42 BRACKET; FLEX HOSE,CLU CONT 1-47477-724-0 01 1 9905- ● ● ● ●
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
FRAME EQUIPMENT HEAVY DUTY<F03> M8X30 FLANGE 		0-28080-830-0 02 1 9603-9606 ●
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
FRAME EQUIPMENT HEAVY DUTY<F03> M8X35 FLANGE 		0-28680-835-0 02 1 9607-9904 ● ●
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
FRAME EQUIPMENT HEAVY DUTY<F03> M8X35 FLANGE 		0-28680-835-0 02 1 9905-0102 ● ● ●
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
FRAME EQUIPMENT HEAVY DUTY<F03> M8X35 FLANGE 		0-28680-835-0 02 1 0103- ● ● ●
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M8X25 FLANGE 		0-28080-825-0 02 1 9603-9606 ●
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M8X30 FLANGE 		0-28680-830-0 02 1 9607-9904 ● ●
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M8X30 FLANGE 		0-28680-830-0 02 1 9905-0102 ● ● ●
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M8X30 FLANGE 		0-28680-830-0 02 1 0103- ● ● ●
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
M8 		9-09110-508-0 02 1 9603-9606 ● ●
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
M8 FLANGE 		0-91150-108-0 02 1 9607-9904 ● ●
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
M8 FLANGE 		0-91150-108-0 02 1 9905-0102 ● ● ●
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
M8 FLANGE 		0-91150-108-0 02 1 0103- ● ● ●
47 HOSE; FLEX,CLU CONT
L=420 		1-09364-615-0 01 1 9603- ● ● ● ●
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER 1-47428-380-0 01 1 9603-9606 ● ●
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER 1-47429-986-0 01 1 9607-9608 ● ●
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER 1-49161-120-0 01 1 9609-9904 ● ●
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER 1-49161-120-0 01 1 9905- ● ● ●
73 CLIP; OIL PIPE
(A) ID=16 & 9 L=21 & 18 		1-09700-676-0 01 1 9603-9904 ● ●
73 CLIP; OIL PIPE
(A) ID=16 & 9 L=21 & 18 		1-09700-676-0 01 1 9905- ● ● ●
73 CLIP; OIL PIPE
(B) ID=35 H=45 L=33 		1-09700-947-0 01 1 9603-9606 ● ●
83 NUT; PIPE CLIP
M8 		9-09110-408-0 01 1 9603-9904 ● ●
83 NUT; PIPE CLIP
M8 		9-09110-408-0 01 1 9905- ● ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
L=1589 		1-49164-423-0 01 1 9905-0002 ● ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
L=1595 		1-49165-436-0 01 1 0003- ● ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
L=1521 SERVICED BY L=1550 		1-47426-390-0 01 1 9603-9702 ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
L=1539 SERVICED BY L=1550 		1-47426-390-0 01 1 9703-9711 ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
L=1536 SERVICED BY L=1550 		1-47426-390-0 01 1 9712-9904 ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
L TYPE ENG<90L> L=1589 		1-49164-423-0 01 1 9905- ● ● ● ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
8PE1S(59L) L=1540 SERVICED BY L=1550 		1-47426-390-0 01 1 9603-9904 ● ● ● ● ● ●
106 UNION; OIL PIPE
(A) M14 STRAIGHT 		9-09223-008-1 01 1 9603-9706 ●
106 UNION; OIL PIPE
(A) M14 STRAIGHT 		9-09223-008-1 01 1 9707-9904 ● ●
106 UNION; OIL PIPE
(A) M14 STRAIGHT 		9-09223-008-1 01 1 9905-9905 ● ● ● ● ● ●
106 UNION; OIL PIPE
(A) M14 STRAIGHT 		9-09223-008-1 01 1 9906- ● ● ● ●
115 NUT; FLEX HOSE,CLU CONT
M14 		9-99111-414-0 02 1 9603-9904 ● ●
115 NUT; FLEX HOSE,CLU CONT
M14 		9-99111-414-0 02 1 9905- ● ● ● ●
116 WASHER; FLEX HOSE,CLU CONT
ID=14.2 		9-09150-514-0 02 1 9603-9904 ● ●
116 WASHER; FLEX HOSE,CLU CONT
ID=14.2 		9-09150-514-0 02 1 9905- ● ● ● ●
153 PIPE ASM; CLU,UNION TO FLEX
(B) L=464 		1-47424-530-2 01 1 9603- ● ● ● ● ● ●
153 PIPE ASM; CLU,UNION TO FLEX
(A) L=1523 SERVICED BY L=1550 		1-47426-390-0 01 1 9603-9904 ● ●
153 PIPE ASM; CLU,UNION TO FLEX
(A) L=1523 SERVICED BY L=1550 		1-47426-390-0 01 1 9905- ● ● ●
171 CONNECTOR; CLU BOOSTER 1-09650-256-1 01 1 9603-9904 ● ●
171 CONNECTOR; CLU BOOSTER 1-09650-256-1 01 1 9905- ● ● ●

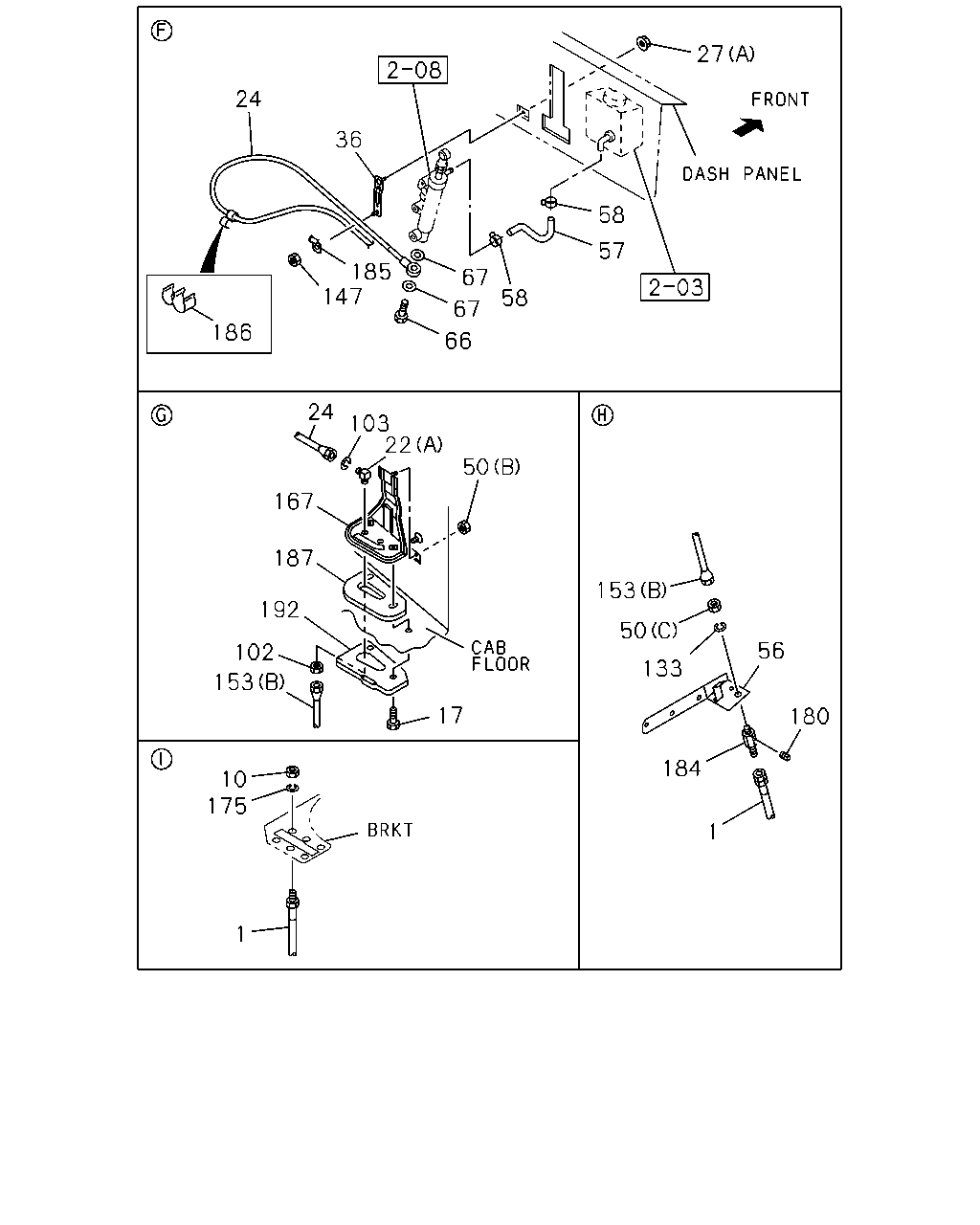

çizim 40217
27 24 36 58 57 185 147 67 58 67 186 66 24 103 22 50 167 187 153 192 50 56 102 133 153 17 180 184 10 175 1 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 HOSE; FLEX,CLU CONT
CAB UP +110MM<TGG> L=520 		1-09364-948-1 01 1 9905- ●
1 HOSE; FLEX,CLU CONT
L=520 		1-09364-948-1 01 1 9905- ● ●
1 HOSE; FLEX,CLU CONT
L=430 		1-09364-859-0 01 1 9603-9904 ● ● ● ● ● ●
1 HOSE; FLEX,CLU CONT
EXC. CAB UP +110MM<TGG> L=430 		1-09364-859-1 01 1 9905- ●
10 NUT; FLEX HOSE,CLU CONT
M14 		9-99111-414-0 01 1 9603- ● ● ● ● ● ●
17 BOLT; BRKT
M8X20 W/LK&PL WASHER 		8-94279-216-0 02 1 9603- ● ● ● ● ● ●
22 UNION; CLU PIPE
(A) M14 		9-09225-208-1 01 1 9710- ● ● ● ● ● ●
24 PIPE ASM; CLU,M/CYL TO UNION
L=643 		1-47424-529-2 01 1 9603-9904 ● ●
24 PIPE ASM; CLU,M/CYL TO UNION
L=643 		1-47424-529-2 01 1 9905- ● ● ● ●
27 NUT; BRKT
(C) M8 		9-09110-508-0 01 1 9603-9606 ● ●
27 NUT; BRKT
(C) M8 FLANGE 		0-91150-108-0 01 1 9607-9904 ● ●
27 NUT; BRKT
(C) M8 FLANGE 		0-91150-108-0 01 1 9905-0002 ● ● ●
27 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 02 1 9603- ● ● ● ● ● ●
27 NUT; BRKT
(A) M6 FLANGE W/RUBBER 		1-09984-180-0 01 1 9603- ● ● ● ● ● ●
27 NUT; BRKT
(C) M8 		9-09110-508-0 02 1 9603-9606 ● ● ● ● ● ●
27 NUT; BRKT
(C) M8 FLANGE 		0-91150-108-0 02 1 9607- ● ● ● ● ● ●
36 BRACKET; CLIP 1-71117-191-1 01 1 9603- ● ● ● ● ● ●
50 NUT; UNION
(B) M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 9603- ● ● ● ● ● ●
50 NUT; UNION
(C) M14 		9-99111-414-0 01 1 9603- ● ● ● ● ● ●
56 BRACKET; FLEX HOSE 1-47477-602-1 01 1 9603-9912 ● ● ● ● ● ●
56 BRACKET; FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-47477-602-1 01 1 0001- ● ● ● ● ● ●
56 BRACKET; FLEX HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-47478-840-0 01 1 0001- ● ● ● ● ● ●
57 HOSE; CLU M/CYL TO OIL TANK 1-47424-533-0 01 1 9603- ● ● ● ● ● ●
58 CLIP; RUBBER HOSE TO M/CYL
ID=14 		8-94238-572-0 02 1 9603- ● ● ● ● ● ●
66 BOLT; EYE JOINT,CLU M/CYL
M14X30 EYE-BOLT 		1-09675-146-0 01 1 9603- ● ● ● ● ● ●
67 GASKET; EYE JOINT,CLU M/CYL
ID=14.2 OD=19.2 		1-09630-085-0 02 1 9603- ● ● ● ● ● ●
102 NUT; FLEX HOSE,CLU CONT
M14 		9-99111-414-0 01 1 9710- ● ● ● ● ● ●
103 WASHER; LK,FLEX HOSE,CLU CONT
ID=14.2 		9-09150-514-0 01 1 9710- ● ● ● ● ● ●
133 WASHER; LK,UNION
ID=14.2 		9-09150-514-0 01 1 9603- ● ● ● ● ● ●
147 NUT; CLIP FIX
M8 FLANGE 		8-94279-517-0 01 1 9603-9611 ● ● ● ● ● ●
147 NUT; CLIP FIX
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 01 1 9612- ● ● ● ● ● ●
153 PIPE ASM; CLU,UNION TO FLEX
(B) L=464 		1-47424-530-2 01 1 9603- ● ● ● ● ● ●
153 PIPE ASM; CLU,UNION TO FLEX
(A) L=1523 SERVICED BY L=1550 		1-47426-390-0 01 1 9603-9904 ● ●
153 PIPE ASM; CLU,UNION TO FLEX
(A) L=1523 SERVICED BY L=1550 		1-47426-390-0 01 1 9905- ● ● ●
167 BRACKET; UNION 1-71117-183-3 01 1 9603- ● ● ● ● ● ●
175 WASER; LK,FLEX HOSE,CLU CONT
ID=14.2 		9-09150-514-0 01 1 9603- ● ● ● ● ● ●
180 PLUG; PIPE 9-09204-510-0 01 1 9603- ● ● ● ● ● ●
184 UNION; FLEX HOSE
3WAY 		1-09656-679-0 01 1 9603- ● ● ● ● ● ●
185 CLIP; BRKT
ID=9 L=20 		9-09545-108-0 01 1 9603- ● ● ● ● ● ●
186 HOLDER; CLIP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-94107-710-0 02 1 9603-0011 ● ● ● ● ● ●
186 HOLDER; CLIP
DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-94107-710-0 02 1 0012- ● ● ● ● ● ●
187 SEAL; BRKT 1-71117-222-0 01 1 9603- ● ● ● ● ● ●
192 PLATE 1-71117-221-0 01 1 9603- ● ● ● ● ● ●

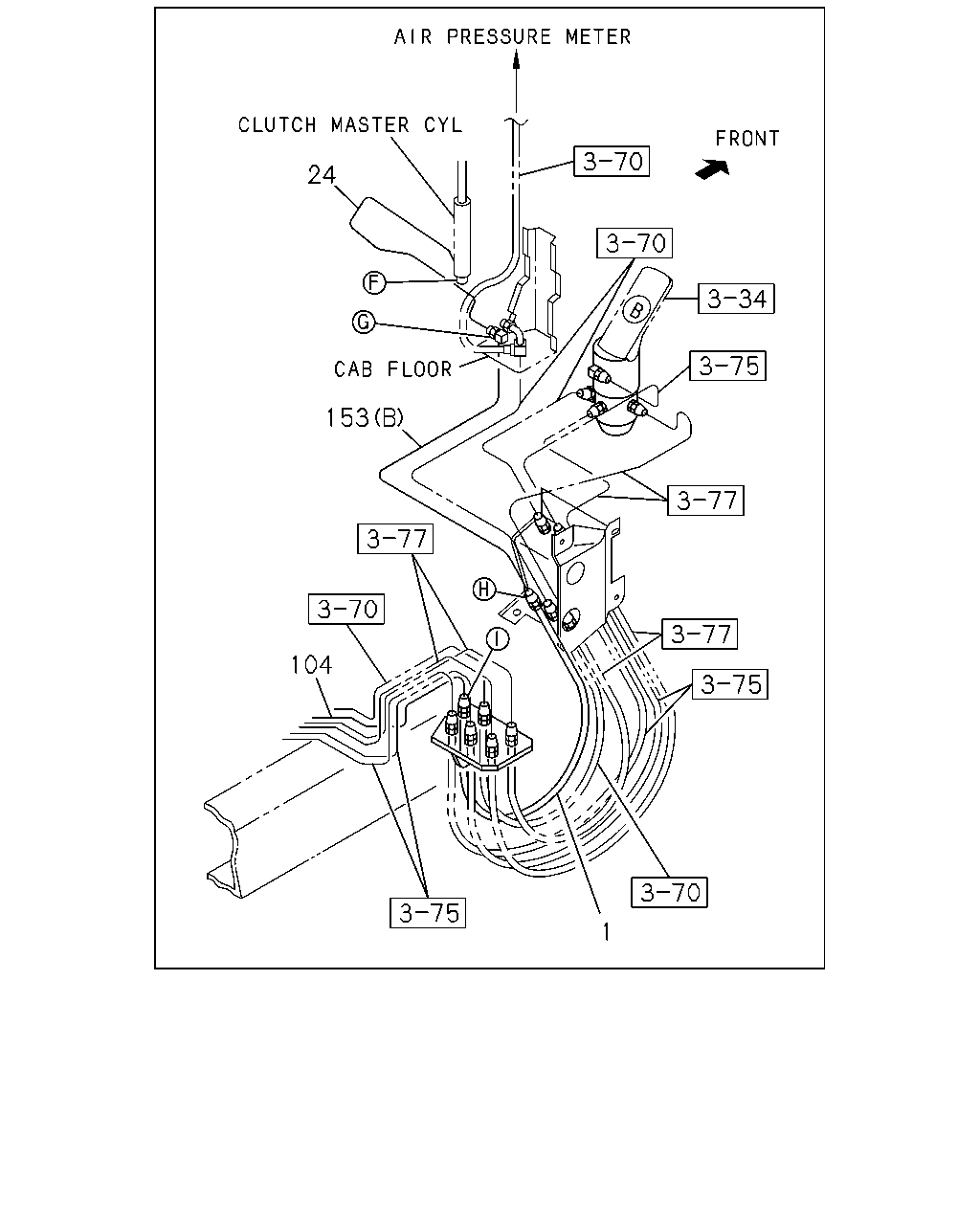

çizim 40762
24 153 104 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 HOSE; FLEX,CLU CONT
CAB UP +110MM<TGG> L=520 		1-09364-948-1 01 1 9905- ●
1 HOSE; FLEX,CLU CONT
L=520 		1-09364-948-1 01 1 9905- ● ●
1 HOSE; FLEX,CLU CONT
L=430 		1-09364-859-0 01 1 9603-9904 ● ● ● ● ● ●
1 HOSE; FLEX,CLU CONT
EXC. CAB UP +110MM<TGG> L=430 		1-09364-859-1 01 1 9905- ●
24 PIPE ASM; CLU,M/CYL TO UNION
L=643 		1-47424-529-2 01 1 9603-9904 ● ●
24 PIPE ASM; CLU,M/CYL TO UNION
L=643 		1-47424-529-2 01 1 9905- ● ● ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
L=1589 		1-49164-423-0 01 1 9905-0002 ● ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
L=1595 		1-49165-436-0 01 1 0003- ● ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
L=1521 SERVICED BY L=1550 		1-47426-390-0 01 1 9603-9702 ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
L=1539 SERVICED BY L=1550 		1-47426-390-0 01 1 9703-9711 ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
L=1536 SERVICED BY L=1550 		1-47426-390-0 01 1 9712-9904 ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
L TYPE ENG<90L> L=1589 		1-49164-423-0 01 1 9905- ● ● ● ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
8PE1S(59L) L=1540 SERVICED BY L=1550 		1-47426-390-0 01 1 9603-9904 ● ● ● ● ● ●
153 PIPE ASM; CLU,UNION TO FLEX
(B) L=464 		1-47424-530-2 01 1 9603- ● ● ● ● ● ●
153 PIPE ASM; CLU,UNION TO FLEX
(A) L=1523 SERVICED BY L=1550 		1-47426-390-0 01 1 9603-9904 ● ●
153 PIPE ASM; CLU,UNION TO FLEX
(A) L=1523 SERVICED BY L=1550 		1-47426-390-0 01 1 9905- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
