Sayfa 4-15 - Isuzu EPC

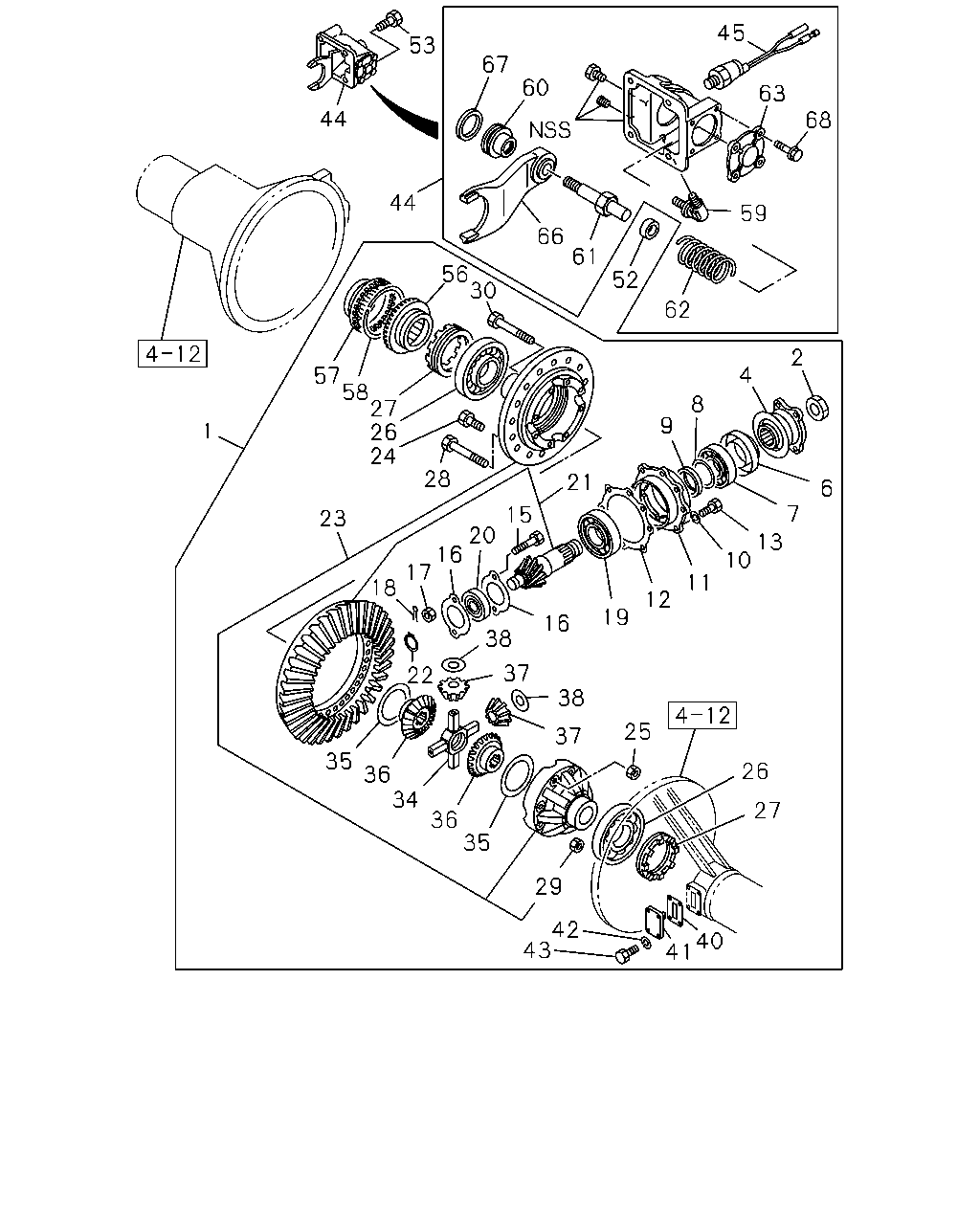

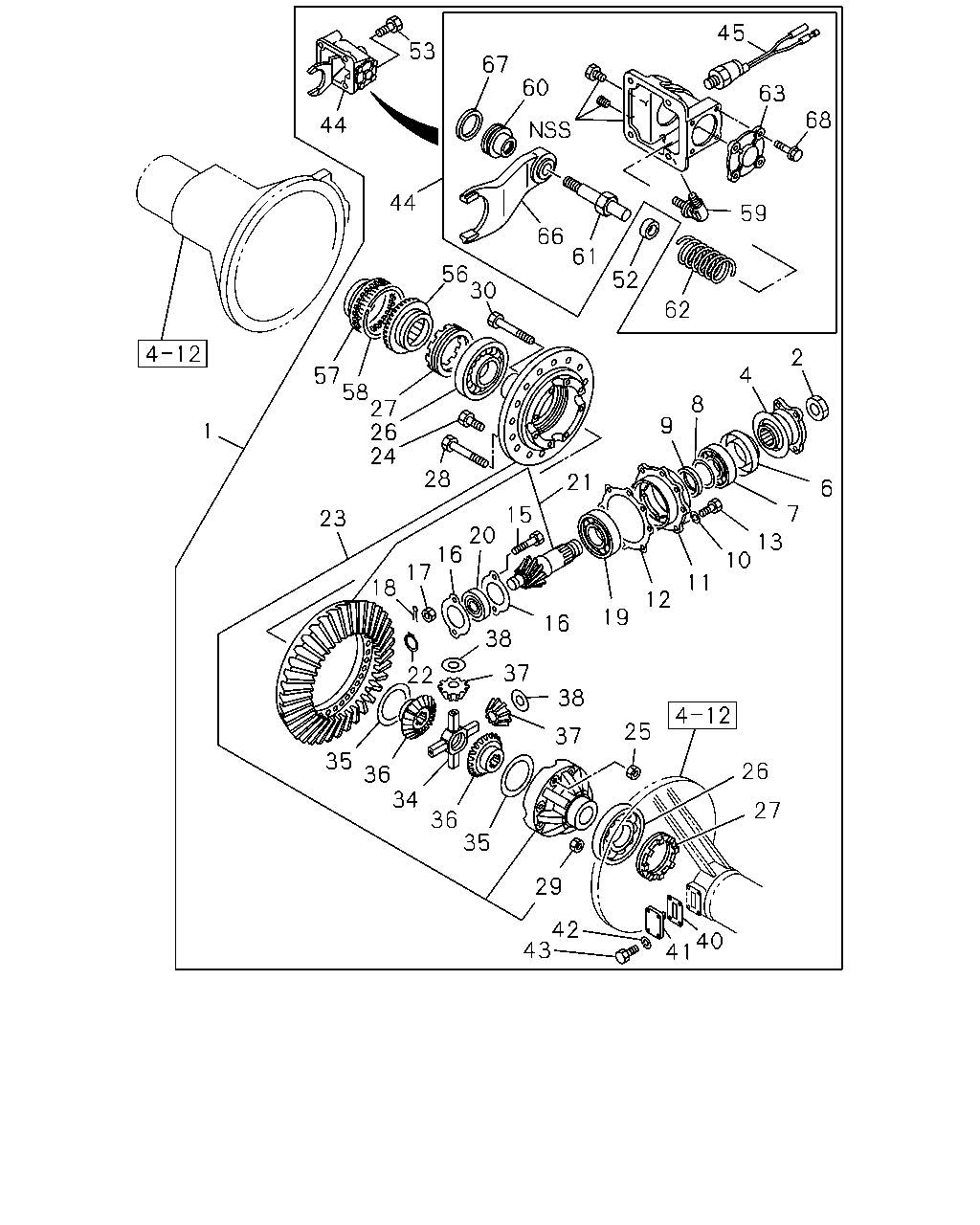

4-15 — FRONT FINAL DRIVE (#43148) — 374 parça

45 53 67 60 63 44 68 44 59 66 61 56 30 52 62 2 4 57 58 27 26 24 8 9 1 28 21 6 7 15 23 20 16 17 13 10 11 18 12 19 16 38 37 22 38 25 37 35 26 36 34 27 36 35 29 42 43 40 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DRIVE ASM; FINAL,FRT FRONT AXLE 39/6 14.4" SPIRAL(W9C) DIFF LOCK<C3N> 39/6	1-41002-151-0	01	1	0008-0312
1	DRIVE ASM; FINAL,FRT FRONT AXLE 39/6 14.4" SPIRAL(W9C) DIFF LOCK<C3N> 39/6	1-41003-169-0	01	1	0401-
1	DRIVE ASM; FINAL,FRT FRONT AXLE 39/6 14.4" SPIRAL(W9C) EXC. DIFF LOCK<C3N> 39/6	1-41002-149-0	01	1	0008-0312
1	DRIVE ASM; FINAL,FRT FRONT AXLE 39/6 14.4" SPIRAL(W9C) EXC. DIFF LOCK<C3N> 39/6	1-41003-168-0	01	1	0401-
1	DRIVE ASM; FINAL,FRT FRONT AXLE 39/7 14.4" SPIRAL(W9A) DIFF LOCK<C3N> 39/7	1-41001-746-0	01	1	0008-0312
1	DRIVE ASM; FINAL,FRT FRONT AXLE 39/7 14.4" SPIRAL(W9A) DIFF LOCK<C3N> 39/7	1-41003-166-0	01	1	0401-
1	DRIVE ASM; FINAL,FRT FRONT AXLE 39/7 14.4" SPIRAL(W9A) EXC. DIFF LOCK<C3N> 39/7	1-41002-148-0	01	1	0008-0312
1	DRIVE ASM; FINAL,FRT FRONT AXLE 39/7 14.4" SPIRAL(W9A) EXC. DIFF LOCK<C3N> 39/7	1-41003-167-0	01	1	0401-
2	NUT; FINAL DRIVE PINION M30 FLANGE	1-09449-066-1	01	1	0008-
4	COUPLING; FINAL DRIVE PINION	1-37245-067-4	01	1	0008-
6	SEAL; OIL,FINAL PINION NOK	1-09625-484-1	01	1	0008-
6	SEAL; OIL,FINAL PINION TKK	1-09625-637-0	01	1	0008-
7	BEARING; PINION,OUTER NSK	1-09812-026-0	01	1	0008-1001
7	BEARING; PINION,OUTER NSK	5-09812-063-0	01	1	1002-
7	BEARING; PINION,OUTER JTEKT	5-09812-062-1	01	1	1001-
8	SHIM; PINION,FINAL DRIVE T=1.60	1-41229-179-0	AR	1	0008-
8	SHIM; PINION,FINAL DRIVE T=1.61	1-41229-180-0	AR	1	0008-
8	SHIM; PINION,FINAL DRIVE T=1.62	1-41229-181-0	AR	1	0008-
8	SHIM; PINION,FINAL DRIVE T=1.63	1-41229-182-0	AR	1	0008-
8	SHIM; PINION,FINAL DRIVE T=1.64	1-41229-183-0	AR	1	0008-
8	SHIM; PINION,FINAL DRIVE T=1.65	1-41229-184-0	AR	1	0008-
8	SHIM; PINION,FINAL DRIVE T=1.66	1-41229-185-0	AR	1	0008-
8	SHIM; PINION,FINAL DRIVE T=1.67	1-41229-186-0	AR	1	0008-
8	SHIM; PINION,FINAL DRIVE T=1.68	1-41229-187-0	AR	1	0008-
8	SHIM; PINION,FINAL DRIVE T=1.69	1-41229-188-0	AR	1	0008-
8	SHIM; PINION,FINAL DRIVE T=1.70	1-41229-189-0	AR	1	0008-
9	COLLAR; DIST,PINION T=10.7	1-36355-031-0	01	1	0008-
9	COLLAR; DIST,PINION T=10.90	1-36355-033-0	01	1	0008-
9	COLLAR; DIST,PINION T=11.10	1-36355-035-0	01	1	0008-
9	COLLAR; DIST,PINION T=11.30	1-36355-037-0	01	1	0008-
9	COLLAR; DIST,PINION T=11.50	1-36355-039-0	01	1	0008-
9	COLLAR; DIST,PINION T=11.70	1-36355-041-0	01	1	0008-
9	COLLAR; DIST,PINION T=11.9	1-36355-043-0	01	1	0008-
9	COLLAR; DIST,PINION T=12.10	1-36355-045-0	01	1	0008-
9	COLLAR; DIST,PINION T=12.30	1-36355-047-0	01	1	0008-
10	WASHER; LK,FINAL PINION ID=12.2	9-09150-512-0	06	1	0008-0603
10	WASHER; LK,FINAL PINION ID=12.2	0-91510-512-0	06	1	0604-
11	CAGE; FINAL PINION	1-41151-063-0	01	1	0008-
12	SHIM; FINAL PINION CAGE T=0.50	1-41154-021-1	AR	1	0008-
12	SHIM; FINAL PINION CAGE T=0.30	1-41154-051-1	AR	1	0008-
12	SHIM; FINAL PINION CAGE T=0.40	1-41154-052-1	AR	1	0008-
12	SHIM; FINAL PINION CAGE T=1.00	1-41154-053-1	AR	1	0008-
13	BOLT; FINAL PINION CAGE M12X40	9-02361-240-0	06	1	0008-
15	BOLT; RET M8X36 W/PIN HOLE	1-09042-035-0	02	1	0008-
16	RETAINER; PILOT BRG,PINION	9-41227-004-0	02	1	0008-
17	NUT; RET M8 SLOTTED	9-09117-508-0	02	1	0008-0512
17	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	0601-
18	PIN; SPLIT,RET	9-08112-012-0	02	1	0008-0805
18	PIN; SPLIT,RET	0-81122-012-0	02	1	0806-
19	BEARING; PINION,INNER NSK	1-09812-041-2	01	1	0008-
19	BEARING; PINION,INNER JTEKT	1-09812-042-1	01	1	0612-
20	BEARING; FINAL DRIVE PINION	9-00094-081-0	01	1	0008-
21	GEAR SET; FINAL DRIVE,FRT FRONT AXLE 39/6 14.4" SPIRAL(W9C) 39/6	1-41210-357-1	01	1	0008-
21	GEAR SET; FINAL DRIVE,FRT FRONT AXLE 39/7 14.4" SPIRAL(W9A) 39/7	1-41210-259-2	01	1	0008-
22	RING; SNAP,FINAL DRIVE PINION	9-09952-005-0	01	1	0008-
23	CAGE ASM; DIFF,FINAL DRIVE	1-41510-194-1	01	1	0008-
24	BOLT; FINAL DRIVE GEAR M16X34.5 FLANGE	9-09802-575-1	16	1	0008-0201
24	BOLT; FINAL DRIVE GEAR M16X37.5 FLANGE	1-09020-167-0	16	1	0202-0204
24	BOLT; FINAL DRIVE GEAR M16X34.5 FLANGE	9-09802-575-1	16	1	0205-
25	NUT; DIFF CAGE SETTING M14	1-09400-077-1	04	1	0008-
26	BEARING; DIFF CAGE NSK ID=70 OD=125 T=26.3	1-09812-011-0	01	1	0008-
26	BEARING; DIFF CAGE NACHI ID=70 OD=125 T=26.3	1-09812-024-0	01	1	0008-
26	BEARING; DIFF CAGE JTEKT ID=70 OD=125 T=26.3	1-09812-071-0	01	1	0008-0704
26	BEARING; DIFF CAGE JTEKT ID=70 OD=125 T=26.3	1-09812-249-0	01	1	0705-
26	BEARING; DIFF CAGE JTEKT	1-09812-134-0	01	1	0008-
27	NUT; ADJ,DIFF CAGE M120	1-41121-027-0	01	1	0008-
27	NUT; ADJ,DIFF CAGE M120	9-41121-007-0	01	1	0008-
28	BOLT; DIFF CAGE SETTING M14X107	1-09044-024-0	04	1	0008-
29	NUT; DIFF CAGE SETTING M14	1-09400-077-1	04	1	0008-
30	BOLT; DIFF CAGE SETTING M14X95 FLANGE	1-09044-007-0	04	1	0008-
34	PIN; CROSS,DIFF PINION	1-41521-050-2	01	1	0008-
35	WASHER; THRUST,SIDE GEAR T=2.80	1-41562-061-0	AR	1	0008-
35	WASHER; THRUST,SIDE GEAR T=3.00	1-41562-062-0	AR	1	0008-
35	WASHER; THRUST,SIDE GEAR T=3.20	1-41562-063-0	AR	1	0008-
35	WASHER; THRUST,SIDE GEAR T=3.40	1-41562-064-0	AR	1	0008-
35	WASHER; THRUST,SIDE GEAR T=2.90	1-41562-080-0	AR	1	0008-
35	WASHER; THRUST,SIDE GEAR T=3.10	1-41562-081-0	AR	1	0008-
35	WASHER; THRUST,SIDE GEAR T=3.30	1-41562-082-0	AR	1	0008-
36	GEAR; SIDE,DIFF DIFF LOCK<C3N> Z=16	1-41561-107-0	02	1	0008-0407
36	GEAR; SIDE,DIFF DIFF LOCK<C3N> Z=16	1-41561-135-0	02	1	0408-0905
36	GEAR; SIDE,DIFF DIFF LOCK<C3N> Z=16	1-41561-155-0	02	1	0906-
36	GEAR; SIDE,DIFF EXC. DIFF LOCK<C3N> Z=16	1-41561-115-0	02	1	0008-0407
36	GEAR; SIDE,DIFF EXC. DIFF LOCK<C3N> Z=16	1-41561-144-0	02	1	0408-0905
36	GEAR; SIDE,DIFF EXC. DIFF LOCK<C3N> Z=16	1-41561-158-0	02	1	0906-
37	GEAR; PINION DIFF Z=10	1-41551-032-0	04	1	0008-0407
37	GEAR; PINION DIFF Z=10	1-41551-042-0	04	1	0408-0905
37	GEAR; PINION DIFF Z=10	1-41551-049-0	04	1	0906-
38	WASHER; THRUST,PINION GEAR ID=29 OD=60	1-41562-119-0	04	1	0008-
40	GASKET; LK PLATE,ADJ NUT DIFF LOCK<C3N>	9-43213-006-1	02	1	0008-0312
40	GASKET; LK PLATE,ADJ NUT	9-43213-006-1	01	1	0401-
40	GASKET; LK PLATE,ADJ NUT EXC. DIFF LOCK<C3N>	9-43213-006-1	01	1	0008-0312
41	PLATE; LK,ADJ NUT	1-41124-011-0	01	1	0008-
41	PLATE; LK,ADJ NUT	9-41124-004-0	01	1	0008-
42	WASHER; LK,LOCK PLATE ID=8.2	9-09150-508-0	04	1	0008-0603
42	WASHER; LK,LOCK PLATE ID=8.2	0-91510-508-0	04	1	0604-
43	BOLT; LK PLATE M8X16	0-20800-816-0	02	1	0008-0512
43	BOLT; LK PLATE M8X16	0-20850-816-0	02	1	0601-
43	BOLT; LK PLATE M8X20	0-20800-820-0	04	1	0008-0512
43	BOLT; LK PLATE M8X20	0-20850-820-0	04	1	0601-
44	SHIFT UNIT; DIFF LOCK DIFF LOCK<C3N>	1-48260-045-2	01	1	0008-
45	SWITCH; SHIFT UNIT,DIFF LOCK DIFF LOCK<C3N>	1-82440-043-0	01	1	0008-
52	STOPPER; STROKE,SHIFT UNIT DIFF LOCK<C3N> T=7.0	1-48269-024-0	AR	1	0008-
52	STOPPER; STROKE,SHIFT UNIT DIFF LOCK<C3N> T=7.3	1-48269-025-0	AR	1	0008-
52	STOPPER; STROKE,SHIFT UNIT DIFF LOCK<C3N> T=7.6	1-48269-026-0	AR	1	0008-
52	STOPPER; STROKE,SHIFT UNIT DIFF LOCK<C3N> T=7.9	1-48269-027-0	AR	1	0008-
52	STOPPER; STROKE,SHIFT UNIT DIFF LOCK<C3N> T=8.2	1-48269-028-0	AR	1	0008-
52	STOPPER; STROKE,SHIFT UNIT DIFF LOCK<C3N> T=8.5	1-48269-029-0	AR	1	0008-
52	STOPPER; STROKE,SHIFT UNIT DIFF LOCK<C3N> T=8.8	1-48269-030-0	AR	1	0008-
52	STOPPER; STROKE,SHIFT UNIT DIFF LOCK<C3N> T=9.1	1-48269-031-0	AR	1	0008-
52	STOPPER; STROKE,SHIFT UNIT DIFF LOCK<C3N> T=9.4	1-48269-032-0	AR	1	0008-
52	STOPPER; STROKE,SHIFT UNIT DIFF LOCK<C3N> T=9.7	1-48269-033-0	AR	1	0008-
52	STOPPER; STROKE,SHIFT UNIT DIFF LOCK<C3N> T=10.0	1-48269-034-0	AR	1	0008-
52	STOPPER; STROKE,SHIFT UNIT DIFF LOCK<C3N> T=10.3	1-48269-035-0	AR	1	0008-
52	STOPPER; STROKE,SHIFT UNIT DIFF LOCK<C3N> T=10.6	1-48269-036-0	AR	1	0008-
52	STOPPER; STROKE,SHIFT UNIT DIFF LOCK<C3N> T=10.9	1-48269-037-0	AR	1	0008-
52	STOPPER; STROKE,SHIFT UNIT DIFF LOCK<C3N> T=11.2	1-48269-038-0	AR	1	0008-
52	STOPPER; STROKE,SHIFT UNIT DIFF LOCK<C3N> T=11.5	1-48269-039-0	AR	1	0008-
52	STOPPER; STROKE,SHIFT UNIT DIFF LOCK<C3N> T=11.8	1-48269-040-0	AR	1	0008-
52	STOPPER; STROKE,SHIFT UNIT DIFF LOCK<C3N> T=12.1	1-48269-041-0	AR	1	0008-
52	STOPPER; STROKE,SHIFT UNIT DIFF LOCK<C3N> T=12.4	1-48269-042-0	AR	1	0008-
52	STOPPER; STROKE,SHIFT UNIT DIFF LOCK<C3N> T=12.7	1-48269-043-0	AR	1	0008-
53	BOLT; SHIFT UNIT DIFF LOCK<C3N> M10X50 FLANGE	0-28181-050-0	01	1	0008-0512
53	BOLT; SHIFT UNIT DIFF LOCK<C3N> M10X50 FLANGE	0-28151-050-0	01	1	0601-
53	BOLT; SHIFT UNIT DIFF LOCK<C3N> M10X25 FLANGE	0-28781-025-0	03	1	0008-0512
53	BOLT; SHIFT UNIT DIFF LOCK<C3N> M10X25 FLANGE	0-28751-025-0	03	1	0601-
56	CLUTCH; CLAW,FRT DIFF DIFF LOCK<C3N>	1-41266-008-0	01	1	0008-
57	SLEEVE; CLU,FRT DIFF DIFF LOCK<C3N>	1-41266-009-0	01	1	0008-
58	RING; SNAP,CLAW CLU DIFF LOCK<C3N>	1-09587-074-0	01	1	0008-
59	NIPPLE; SHIFT UNIT,DIFF LOCK DIFF LOCK<C3N> M20 & PT1/4 ELBOW	1-48269-012-0	01	1	0008-
60	PISTON; SHIFT UNIT DIFF LOCK<C3N>	1-48262-026-0	01	1	0008-
61	ROD; SHIFT DIFF LOCK<C3N>	1-48263-017-0	01	1	0008-
62	SPRING; PISTON DIFF LOCK<C3N>	1-48265-007-0	01	1	0008-
63	COVER DIFF LOCK<C3N>	1-48266-011-0	01	1	0008-
66	FORK; SHIFT DIFF LOCK<C3N>	1-48269-143-0	01	1	0008-
67	GASKET; PISTON DIFF LOCK<C3N>	1-48269-064-0	01	1	0008-
68	BOLT; COVER DIFF LOCK<C3N>	1-48269-144-0	04	1	0008-

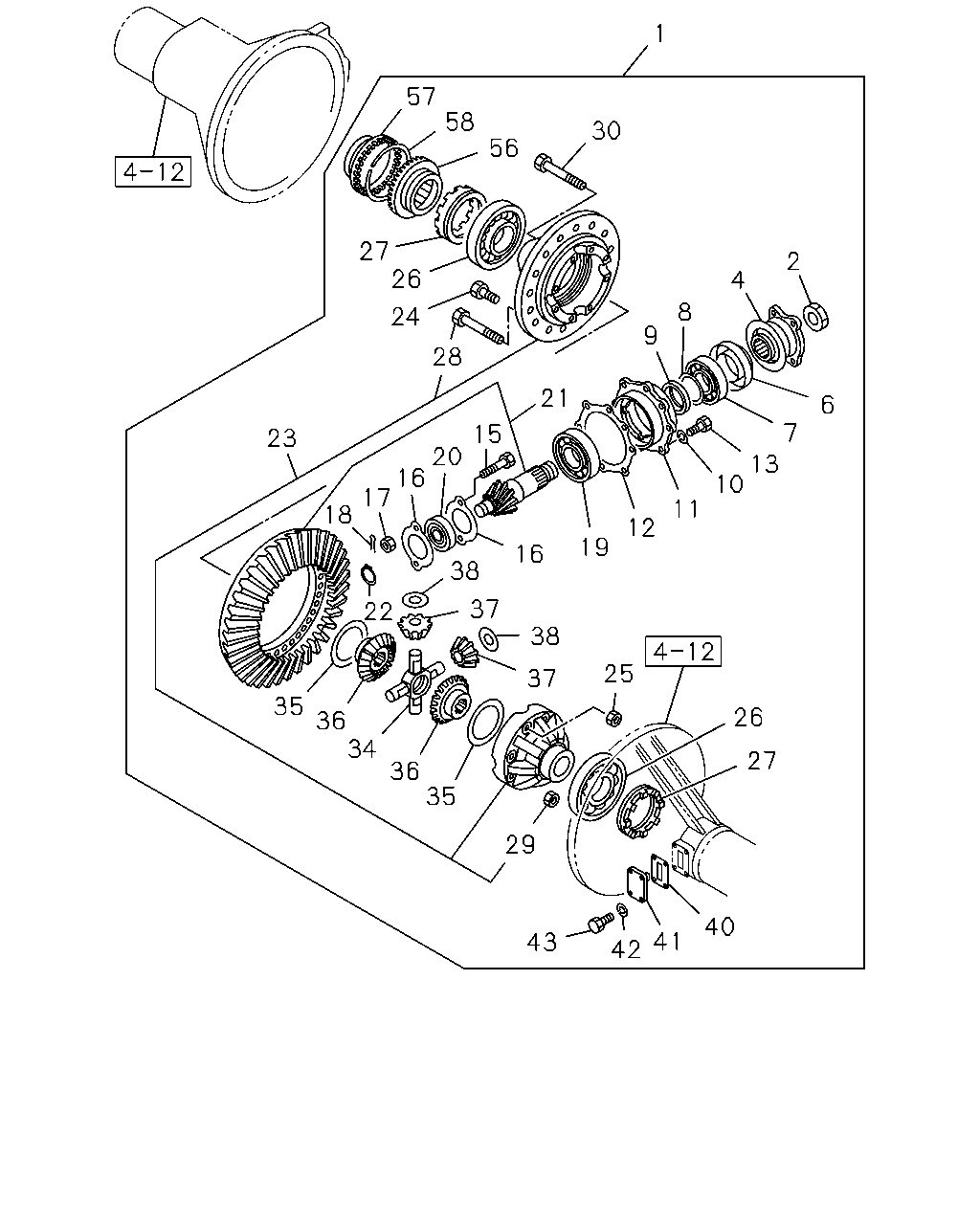

1 57 58 30 56 27 26 2 4 8 24 9 28 21 6 7 13 10 15 23 20 16 17 11 18 12 19 16 38 37 22 38 25 37 35 26 36 34 27 36 35 29 40 41 43 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DRIVE ASM; FINAL,FRT FRONT AXLE 39/6 14.4" SPIRAL(W9C) DIFF LOCK<C3N> 39/6	1-41002-151-0	01	1	0008-0312
1	DRIVE ASM; FINAL,FRT FRONT AXLE 39/6 14.4" SPIRAL(W9C) DIFF LOCK<C3N> 39/6	1-41003-169-0	01	1	0401-
1	DRIVE ASM; FINAL,FRT FRONT AXLE 39/6 14.4" SPIRAL(W9C) EXC. DIFF LOCK<C3N> 39/6	1-41002-149-0	01	1	0008-0312
1	DRIVE ASM; FINAL,FRT FRONT AXLE 39/6 14.4" SPIRAL(W9C) EXC. DIFF LOCK<C3N> 39/6	1-41003-168-0	01	1	0401-
1	DRIVE ASM; FINAL,FRT FRONT AXLE 39/7 14.4" SPIRAL(W9A) DIFF LOCK<C3N> 39/7	1-41001-746-0	01	1	0008-0312
1	DRIVE ASM; FINAL,FRT FRONT AXLE 39/7 14.4" SPIRAL(W9A) DIFF LOCK<C3N> 39/7	1-41003-166-0	01	1	0401-
1	DRIVE ASM; FINAL,FRT FRONT AXLE 39/7 14.4" SPIRAL(W9A) EXC. DIFF LOCK<C3N> 39/7	1-41002-148-0	01	1	0008-0312
1	DRIVE ASM; FINAL,FRT FRONT AXLE 39/7 14.4" SPIRAL(W9A) EXC. DIFF LOCK<C3N> 39/7	1-41003-167-0	01	1	0401-
2	NUT; FINAL DRIVE PINION M30 FLANGE	1-09449-066-1	01	1	0008-
4	COUPLING; FINAL DRIVE PINION	1-37245-067-4	01	1	0008-
6	SEAL; OIL,FINAL PINION NOK	1-09625-484-1	01	1	0008-
6	SEAL; OIL,FINAL PINION TKK	1-09625-637-0	01	1	0008-
7	BEARING; PINION,OUTER NSK	1-09812-026-0	01	1	0008-1001
7	BEARING; PINION,OUTER NSK	5-09812-063-0	01	1	1002-
7	BEARING; PINION,OUTER JTEKT	5-09812-062-1	01	1	1001-
8	SHIM; PINION,FINAL DRIVE T=1.60	1-41229-179-0	AR	1	0008-
8	SHIM; PINION,FINAL DRIVE T=1.61	1-41229-180-0	AR	1	0008-
8	SHIM; PINION,FINAL DRIVE T=1.62	1-41229-181-0	AR	1	0008-
8	SHIM; PINION,FINAL DRIVE T=1.63	1-41229-182-0	AR	1	0008-
8	SHIM; PINION,FINAL DRIVE T=1.64	1-41229-183-0	AR	1	0008-
8	SHIM; PINION,FINAL DRIVE T=1.65	1-41229-184-0	AR	1	0008-
8	SHIM; PINION,FINAL DRIVE T=1.66	1-41229-185-0	AR	1	0008-
8	SHIM; PINION,FINAL DRIVE T=1.67	1-41229-186-0	AR	1	0008-
8	SHIM; PINION,FINAL DRIVE T=1.68	1-41229-187-0	AR	1	0008-
8	SHIM; PINION,FINAL DRIVE T=1.69	1-41229-188-0	AR	1	0008-
8	SHIM; PINION,FINAL DRIVE T=1.70	1-41229-189-0	AR	1	0008-
9	COLLAR; DIST,PINION T=10.7	1-36355-031-0	01	1	0008-
9	COLLAR; DIST,PINION T=10.90	1-36355-033-0	01	1	0008-
9	COLLAR; DIST,PINION T=11.10	1-36355-035-0	01	1	0008-
9	COLLAR; DIST,PINION T=11.30	1-36355-037-0	01	1	0008-
9	COLLAR; DIST,PINION T=11.50	1-36355-039-0	01	1	0008-
9	COLLAR; DIST,PINION T=11.70	1-36355-041-0	01	1	0008-
9	COLLAR; DIST,PINION T=11.9	1-36355-043-0	01	1	0008-
9	COLLAR; DIST,PINION T=12.10	1-36355-045-0	01	1	0008-
9	COLLAR; DIST,PINION T=12.30	1-36355-047-0	01	1	0008-
10	WASHER; LK,FINAL PINION ID=12.2	9-09150-512-0	06	1	0008-0603
10	WASHER; LK,FINAL PINION ID=12.2	0-91510-512-0	06	1	0604-
11	CAGE; FINAL PINION	1-41151-063-0	01	1	0008-
12	SHIM; FINAL PINION CAGE T=0.50	1-41154-021-1	AR	1	0008-
12	SHIM; FINAL PINION CAGE T=0.30	1-41154-051-1	AR	1	0008-
12	SHIM; FINAL PINION CAGE T=0.40	1-41154-052-1	AR	1	0008-
12	SHIM; FINAL PINION CAGE T=1.00	1-41154-053-1	AR	1	0008-
13	BOLT; FINAL PINION CAGE M12X40	9-02361-240-0	06	1	0008-
15	BOLT; RET M8X36 W/PIN HOLE	1-09042-035-0	02	1	0008-
16	RETAINER; PILOT BRG,PINION	9-41227-004-0	02	1	0008-
17	NUT; RET M8 SLOTTED	9-09117-508-0	02	1	0008-0512
17	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	0601-
18	PIN; SPLIT,RET	9-08112-012-0	02	1	0008-0805
18	PIN; SPLIT,RET	0-81122-012-0	02	1	0806-
19	BEARING; PINION,INNER NSK	1-09812-041-2	01	1	0008-
19	BEARING; PINION,INNER JTEKT	1-09812-042-1	01	1	0612-
20	BEARING; FINAL DRIVE PINION	9-00094-081-0	01	1	0008-
21	GEAR SET; FINAL DRIVE,FRT FRONT AXLE 39/6 14.4" SPIRAL(W9C) 39/6	1-41210-357-1	01	1	0008-
21	GEAR SET; FINAL DRIVE,FRT FRONT AXLE 39/7 14.4" SPIRAL(W9A) 39/7	1-41210-259-2	01	1	0008-
22	RING; SNAP,FINAL DRIVE PINION	9-09952-005-0	01	1	0008-
23	CAGE ASM; DIFF,FINAL DRIVE	1-41510-194-1	01	1	0008-
24	BOLT; FINAL DRIVE GEAR M16X34.5 FLANGE	9-09802-575-1	16	1	0008-0201
24	BOLT; FINAL DRIVE GEAR M16X37.5 FLANGE	1-09020-167-0	16	1	0202-0204
24	BOLT; FINAL DRIVE GEAR M16X34.5 FLANGE	9-09802-575-1	16	1	0205-
25	NUT; DIFF CAGE SETTING M14	1-09400-077-1	04	1	0008-
26	BEARING; DIFF CAGE NSK ID=70 OD=125 T=26.3	1-09812-011-0	01	1	0008-
26	BEARING; DIFF CAGE NACHI ID=70 OD=125 T=26.3	1-09812-024-0	01	1	0008-
26	BEARING; DIFF CAGE JTEKT ID=70 OD=125 T=26.3	1-09812-071-0	01	1	0008-0704
26	BEARING; DIFF CAGE JTEKT ID=70 OD=125 T=26.3	1-09812-249-0	01	1	0705-
26	BEARING; DIFF CAGE JTEKT	1-09812-134-0	01	1	0008-
27	NUT; ADJ,DIFF CAGE M120	1-41121-027-0	01	1	0008-
27	NUT; ADJ,DIFF CAGE M120	9-41121-007-0	01	1	0008-
28	BOLT; DIFF CAGE SETTING M14X107	1-09044-024-0	04	1	0008-
29	NUT; DIFF CAGE SETTING M14	1-09400-077-1	04	1	0008-
30	BOLT; DIFF CAGE SETTING M14X95 FLANGE	1-09044-007-0	04	1	0008-
34	PIN; CROSS,DIFF PINION	1-41521-050-2	01	1	0008-
35	WASHER; THRUST,SIDE GEAR T=2.80	1-41562-061-0	AR	1	0008-
35	WASHER; THRUST,SIDE GEAR T=3.00	1-41562-062-0	AR	1	0008-
35	WASHER; THRUST,SIDE GEAR T=3.20	1-41562-063-0	AR	1	0008-
35	WASHER; THRUST,SIDE GEAR T=3.40	1-41562-064-0	AR	1	0008-
35	WASHER; THRUST,SIDE GEAR T=2.90	1-41562-080-0	AR	1	0008-
35	WASHER; THRUST,SIDE GEAR T=3.10	1-41562-081-0	AR	1	0008-
35	WASHER; THRUST,SIDE GEAR T=3.30	1-41562-082-0	AR	1	0008-
36	GEAR; SIDE,DIFF DIFF LOCK<C3N> Z=16	1-41561-107-0	02	1	0008-0407
36	GEAR; SIDE,DIFF DIFF LOCK<C3N> Z=16	1-41561-135-0	02	1	0408-0905
36	GEAR; SIDE,DIFF DIFF LOCK<C3N> Z=16	1-41561-155-0	02	1	0906-
36	GEAR; SIDE,DIFF EXC. DIFF LOCK<C3N> Z=16	1-41561-115-0	02	1	0008-0407
36	GEAR; SIDE,DIFF EXC. DIFF LOCK<C3N> Z=16	1-41561-144-0	02	1	0408-0905
36	GEAR; SIDE,DIFF EXC. DIFF LOCK<C3N> Z=16	1-41561-158-0	02	1	0906-
37	GEAR; PINION DIFF Z=10	1-41551-032-0	04	1	0008-0407
37	GEAR; PINION DIFF Z=10	1-41551-042-0	04	1	0408-0905
37	GEAR; PINION DIFF Z=10	1-41551-049-0	04	1	0906-
38	WASHER; THRUST,PINION GEAR ID=29 OD=60	1-41562-119-0	04	1	0008-
40	GASKET; LK PLATE,ADJ NUT DIFF LOCK<C3N>	9-43213-006-1	02	1	0008-0312
40	GASKET; LK PLATE,ADJ NUT	9-43213-006-1	01	1	0401-
40	GASKET; LK PLATE,ADJ NUT EXC. DIFF LOCK<C3N>	9-43213-006-1	01	1	0008-0312
41	PLATE; LK,ADJ NUT	1-41124-011-0	01	1	0008-
41	PLATE; LK,ADJ NUT	9-41124-004-0	01	1	0008-
42	WASHER; LK,LOCK PLATE ID=8.2	9-09150-508-0	04	1	0008-0603
42	WASHER; LK,LOCK PLATE ID=8.2	0-91510-508-0	04	1	0604-
43	BOLT; LK PLATE M8X16	0-20800-816-0	02	1	0008-0512
43	BOLT; LK PLATE M8X16	0-20850-816-0	02	1	0601-
43	BOLT; LK PLATE M8X20	0-20800-820-0	04	1	0008-0512
43	BOLT; LK PLATE M8X20	0-20850-820-0	04	1	0601-
56	CLUTCH; CLAW,FRT DIFF DIFF LOCK<C3N>	1-41266-008-0	01	1	0008-
57	SLEEVE; CLU,FRT DIFF DIFF LOCK<C3N>	1-41266-009-0	01	1	0008-
58	RING; SNAP,CLAW CLU DIFF LOCK<C3N>	1-09587-074-0	01	1	0008-

45 53 67 60 63 68 44 44 59 66 61 56 30 52 62 2 4 57 58 27 26 24 8 9 1 28 21 6 7 15 23 20 16 17 13 10 11 18 12 19 16 38 37 22 38 25 37 35 26 36 34 27 36 35 29 42 43 40 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DRIVE ASM; FINAL,FRT FRONT AXLE 39/6 14.4" SPIRAL(W9C) DIFF LOCK<C3N> 39/6	1-41002-151-0	01	1	0008-0312
1	DRIVE ASM; FINAL,FRT FRONT AXLE 39/6 14.4" SPIRAL(W9C) DIFF LOCK<C3N> 39/6	1-41003-169-0	01	1	0401-
1	DRIVE ASM; FINAL,FRT FRONT AXLE 39/6 14.4" SPIRAL(W9C) EXC. DIFF LOCK<C3N> 39/6	1-41002-149-0	01	1	0008-0312
1	DRIVE ASM; FINAL,FRT FRONT AXLE 39/6 14.4" SPIRAL(W9C) EXC. DIFF LOCK<C3N> 39/6	1-41003-168-0	01	1	0401-
1	DRIVE ASM; FINAL,FRT FRONT AXLE 39/7 14.4" SPIRAL(W9A) DIFF LOCK<C3N> 39/7	1-41001-746-0	01	1	0008-0312
1	DRIVE ASM; FINAL,FRT FRONT AXLE 39/7 14.4" SPIRAL(W9A) DIFF LOCK<C3N> 39/7	1-41003-166-0	01	1	0401-
1	DRIVE ASM; FINAL,FRT FRONT AXLE 39/7 14.4" SPIRAL(W9A) EXC. DIFF LOCK<C3N> 39/7	1-41002-148-0	01	1	0008-0312
1	DRIVE ASM; FINAL,FRT FRONT AXLE 39/7 14.4" SPIRAL(W9A) EXC. DIFF LOCK<C3N> 39/7	1-41003-167-0	01	1	0401-
2	NUT; FINAL DRIVE PINION M30 FLANGE	1-09449-066-1	01	1	0008-
4	COUPLING; FINAL DRIVE PINION	1-37245-067-4	01	1	0008-
6	SEAL; OIL,FINAL PINION NOK	1-09625-484-1	01	1	0008-
6	SEAL; OIL,FINAL PINION TKK	1-09625-637-0	01	1	0008-
7	BEARING; PINION,OUTER NSK	1-09812-026-0	01	1	0008-1001
7	BEARING; PINION,OUTER NSK	5-09812-063-0	01	1	1002-
7	BEARING; PINION,OUTER JTEKT	5-09812-062-1	01	1	1001-
8	SHIM; PINION,FINAL DRIVE T=1.60	1-41229-179-0	AR	1	0008-
8	SHIM; PINION,FINAL DRIVE T=1.61	1-41229-180-0	AR	1	0008-
8	SHIM; PINION,FINAL DRIVE T=1.62	1-41229-181-0	AR	1	0008-
8	SHIM; PINION,FINAL DRIVE T=1.63	1-41229-182-0	AR	1	0008-
8	SHIM; PINION,FINAL DRIVE T=1.64	1-41229-183-0	AR	1	0008-
8	SHIM; PINION,FINAL DRIVE T=1.65	1-41229-184-0	AR	1	0008-
8	SHIM; PINION,FINAL DRIVE T=1.66	1-41229-185-0	AR	1	0008-
8	SHIM; PINION,FINAL DRIVE T=1.67	1-41229-186-0	AR	1	0008-
8	SHIM; PINION,FINAL DRIVE T=1.68	1-41229-187-0	AR	1	0008-
8	SHIM; PINION,FINAL DRIVE T=1.69	1-41229-188-0	AR	1	0008-
8	SHIM; PINION,FINAL DRIVE T=1.70	1-41229-189-0	AR	1	0008-
9	COLLAR; DIST,PINION T=10.7	1-36355-031-0	01	1	0008-
9	COLLAR; DIST,PINION T=10.90	1-36355-033-0	01	1	0008-
9	COLLAR; DIST,PINION T=11.10	1-36355-035-0	01	1	0008-
9	COLLAR; DIST,PINION T=11.30	1-36355-037-0	01	1	0008-
9	COLLAR; DIST,PINION T=11.50	1-36355-039-0	01	1	0008-
9	COLLAR; DIST,PINION T=11.70	1-36355-041-0	01	1	0008-
9	COLLAR; DIST,PINION T=11.9	1-36355-043-0	01	1	0008-
9	COLLAR; DIST,PINION T=12.10	1-36355-045-0	01	1	0008-
9	COLLAR; DIST,PINION T=12.30	1-36355-047-0	01	1	0008-
10	WASHER; LK,FINAL PINION ID=12.2	9-09150-512-0	06	1	0008-0603
10	WASHER; LK,FINAL PINION ID=12.2	0-91510-512-0	06	1	0604-
11	CAGE; FINAL PINION	1-41151-063-0	01	1	0008-
12	SHIM; FINAL PINION CAGE T=0.50	1-41154-021-1	AR	1	0008-
12	SHIM; FINAL PINION CAGE T=0.30	1-41154-051-1	AR	1	0008-
12	SHIM; FINAL PINION CAGE T=0.40	1-41154-052-1	AR	1	0008-
12	SHIM; FINAL PINION CAGE T=1.00	1-41154-053-1	AR	1	0008-
13	BOLT; FINAL PINION CAGE M12X40	9-02361-240-0	06	1	0008-
15	BOLT; RET M8X36 W/PIN HOLE	1-09042-035-0	02	1	0008-
16	RETAINER; PILOT BRG,PINION	9-41227-004-0	02	1	0008-
17	NUT; RET M8 SLOTTED	9-09117-508-0	02	1	0008-0512
17	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	0601-
18	PIN; SPLIT,RET	9-08112-012-0	02	1	0008-0805
18	PIN; SPLIT,RET	0-81122-012-0	02	1	0806-
19	BEARING; PINION,INNER NSK	1-09812-041-2	01	1	0008-
19	BEARING; PINION,INNER JTEKT	1-09812-042-1	01	1	0612-
20	BEARING; FINAL DRIVE PINION	9-00094-081-0	01	1	0008-
21	GEAR SET; FINAL DRIVE,FRT FRONT AXLE 39/6 14.4" SPIRAL(W9C) 39/6	1-41210-357-1	01	1	0008-
21	GEAR SET; FINAL DRIVE,FRT FRONT AXLE 39/7 14.4" SPIRAL(W9A) 39/7	1-41210-259-2	01	1	0008-
22	RING; SNAP,FINAL DRIVE PINION	9-09952-005-0	01	1	0008-
23	CAGE ASM; DIFF,FINAL DRIVE	1-41510-194-1	01	1	0008-
24	BOLT; FINAL DRIVE GEAR M16X34.5 FLANGE	9-09802-575-1	16	1	0008-0201
24	BOLT; FINAL DRIVE GEAR M16X37.5 FLANGE	1-09020-167-0	16	1	0202-0204
24	BOLT; FINAL DRIVE GEAR M16X34.5 FLANGE	9-09802-575-1	16	1	0205-
25	NUT; DIFF CAGE SETTING M14	1-09400-077-1	04	1	0008-
26	BEARING; DIFF CAGE NSK ID=70 OD=125 T=26.3	1-09812-011-0	01	1	0008-
26	BEARING; DIFF CAGE NACHI ID=70 OD=125 T=26.3	1-09812-024-0	01	1	0008-
26	BEARING; DIFF CAGE JTEKT ID=70 OD=125 T=26.3	1-09812-071-0	01	1	0008-0704
26	BEARING; DIFF CAGE JTEKT ID=70 OD=125 T=26.3	1-09812-249-0	01	1	0705-
26	BEARING; DIFF CAGE JTEKT	1-09812-134-0	01	1	0008-
27	NUT; ADJ,DIFF CAGE M120	1-41121-027-0	01	1	0008-
27	NUT; ADJ,DIFF CAGE M120	9-41121-007-0	01	1	0008-
28	BOLT; DIFF CAGE SETTING M14X107	1-09044-024-0	04	1	0008-
29	NUT; DIFF CAGE SETTING M14	1-09400-077-1	04	1	0008-
30	BOLT; DIFF CAGE SETTING M14X95 FLANGE	1-09044-007-0	04	1	0008-
34	PIN; CROSS,DIFF PINION	1-41521-050-2	01	1	0008-
35	WASHER; THRUST,SIDE GEAR T=2.80	1-41562-061-0	AR	1	0008-
35	WASHER; THRUST,SIDE GEAR T=3.00	1-41562-062-0	AR	1	0008-
35	WASHER; THRUST,SIDE GEAR T=3.20	1-41562-063-0	AR	1	0008-
35	WASHER; THRUST,SIDE GEAR T=3.40	1-41562-064-0	AR	1	0008-
35	WASHER; THRUST,SIDE GEAR T=2.90	1-41562-080-0	AR	1	0008-
35	WASHER; THRUST,SIDE GEAR T=3.10	1-41562-081-0	AR	1	0008-
35	WASHER; THRUST,SIDE GEAR T=3.30	1-41562-082-0	AR	1	0008-
36	GEAR; SIDE,DIFF DIFF LOCK<C3N> Z=16	1-41561-107-0	02	1	0008-0407
36	GEAR; SIDE,DIFF DIFF LOCK<C3N> Z=16	1-41561-135-0	02	1	0408-0905
36	GEAR; SIDE,DIFF DIFF LOCK<C3N> Z=16	1-41561-155-0	02	1	0906-
36	GEAR; SIDE,DIFF EXC. DIFF LOCK<C3N> Z=16	1-41561-115-0	02	1	0008-0407
36	GEAR; SIDE,DIFF EXC. DIFF LOCK<C3N> Z=16	1-41561-144-0	02	1	0408-0905
36	GEAR; SIDE,DIFF EXC. DIFF LOCK<C3N> Z=16	1-41561-158-0	02	1	0906-
37	GEAR; PINION DIFF Z=10	1-41551-032-0	04	1	0008-0407
37	GEAR; PINION DIFF Z=10	1-41551-042-0	04	1	0408-0905
37	GEAR; PINION DIFF Z=10	1-41551-049-0	04	1	0906-
38	WASHER; THRUST,PINION GEAR ID=29 OD=60	1-41562-119-0	04	1	0008-
40	GASKET; LK PLATE,ADJ NUT DIFF LOCK<C3N>	9-43213-006-1	02	1	0008-0312
40	GASKET; LK PLATE,ADJ NUT	9-43213-006-1	01	1	0401-
40	GASKET; LK PLATE,ADJ NUT EXC. DIFF LOCK<C3N>	9-43213-006-1	01	1	0008-0312
41	PLATE; LK,ADJ NUT	1-41124-011-0	01	1	0008-
41	PLATE; LK,ADJ NUT	9-41124-004-0	01	1	0008-
42	WASHER; LK,LOCK PLATE ID=8.2	9-09150-508-0	04	1	0008-0603
42	WASHER; LK,LOCK PLATE ID=8.2	0-91510-508-0	04	1	0604-
43	BOLT; LK PLATE M8X16	0-20800-816-0	02	1	0008-0512
43	BOLT; LK PLATE M8X16	0-20850-816-0	02	1	0601-
43	BOLT; LK PLATE M8X20	0-20800-820-0	04	1	0008-0512
43	BOLT; LK PLATE M8X20	0-20850-820-0	04	1	0601-
44	SHIFT UNIT; DIFF LOCK DIFF LOCK<C3N>	1-48260-045-2	01	1	0008-
45	SWITCH; SHIFT UNIT,DIFF LOCK DIFF LOCK<C3N>	1-82440-043-0	01	1	0008-
52	STOPPER; STROKE,SHIFT UNIT DIFF LOCK<C3N> T=7.0	1-48269-024-0	AR	1	0008-
52	STOPPER; STROKE,SHIFT UNIT DIFF LOCK<C3N> T=7.3	1-48269-025-0	AR	1	0008-
52	STOPPER; STROKE,SHIFT UNIT DIFF LOCK<C3N> T=7.6	1-48269-026-0	AR	1	0008-
52	STOPPER; STROKE,SHIFT UNIT DIFF LOCK<C3N> T=7.9	1-48269-027-0	AR	1	0008-
52	STOPPER; STROKE,SHIFT UNIT DIFF LOCK<C3N> T=8.2	1-48269-028-0	AR	1	0008-
52	STOPPER; STROKE,SHIFT UNIT DIFF LOCK<C3N> T=8.5	1-48269-029-0	AR	1	0008-
52	STOPPER; STROKE,SHIFT UNIT DIFF LOCK<C3N> T=8.8	1-48269-030-0	AR	1	0008-
52	STOPPER; STROKE,SHIFT UNIT DIFF LOCK<C3N> T=9.1	1-48269-031-0	AR	1	0008-
52	STOPPER; STROKE,SHIFT UNIT DIFF LOCK<C3N> T=9.4	1-48269-032-0	AR	1	0008-
52	STOPPER; STROKE,SHIFT UNIT DIFF LOCK<C3N> T=9.7	1-48269-033-0	AR	1	0008-
52	STOPPER; STROKE,SHIFT UNIT DIFF LOCK<C3N> T=10.0	1-48269-034-0	AR	1	0008-
52	STOPPER; STROKE,SHIFT UNIT DIFF LOCK<C3N> T=10.3	1-48269-035-0	AR	1	0008-
52	STOPPER; STROKE,SHIFT UNIT DIFF LOCK<C3N> T=10.6	1-48269-036-0	AR	1	0008-
52	STOPPER; STROKE,SHIFT UNIT DIFF LOCK<C3N> T=10.9	1-48269-037-0	AR	1	0008-
52	STOPPER; STROKE,SHIFT UNIT DIFF LOCK<C3N> T=11.2	1-48269-038-0	AR	1	0008-
52	STOPPER; STROKE,SHIFT UNIT DIFF LOCK<C3N> T=11.5	1-48269-039-0	AR	1	0008-
52	STOPPER; STROKE,SHIFT UNIT DIFF LOCK<C3N> T=11.8	1-48269-040-0	AR	1	0008-
52	STOPPER; STROKE,SHIFT UNIT DIFF LOCK<C3N> T=12.1	1-48269-041-0	AR	1	0008-
52	STOPPER; STROKE,SHIFT UNIT DIFF LOCK<C3N> T=12.4	1-48269-042-0	AR	1	0008-
52	STOPPER; STROKE,SHIFT UNIT DIFF LOCK<C3N> T=12.7	1-48269-043-0	AR	1	0008-
53	BOLT; SHIFT UNIT DIFF LOCK<C3N> M10X50 FLANGE	0-28181-050-0	01	1	0008-0512
53	BOLT; SHIFT UNIT DIFF LOCK<C3N> M10X50 FLANGE	0-28151-050-0	01	1	0601-
53	BOLT; SHIFT UNIT DIFF LOCK<C3N> M10X25 FLANGE	0-28781-025-0	03	1	0008-0512
53	BOLT; SHIFT UNIT DIFF LOCK<C3N> M10X25 FLANGE	0-28751-025-0	03	1	0601-
56	CLUTCH; CLAW,FRT DIFF DIFF LOCK<C3N>	1-41266-008-0	01	1	0008-
57	SLEEVE; CLU,FRT DIFF DIFF LOCK<C3N>	1-41266-009-0	01	1	0008-
58	RING; SNAP,CLAW CLU DIFF LOCK<C3N>	1-09587-074-0	01	1	0008-
59	NIPPLE; SHIFT UNIT,DIFF LOCK DIFF LOCK<C3N> M20 & PT1/4 ELBOW	1-48269-012-0	01	1	0008-
60	PISTON; SHIFT UNIT DIFF LOCK<C3N>	1-48262-026-0	01	1	0008-
61	ROD; SHIFT DIFF LOCK<C3N>	1-48263-017-0	01	1	0008-
62	SPRING; PISTON DIFF LOCK<C3N>	1-48265-007-0	01	1	0008-
63	COVER DIFF LOCK<C3N>	1-48266-011-0	01	1	0008-
66	FORK; SHIFT DIFF LOCK<C3N>	1-48269-143-0	01	1	0008-
67	GASKET; PISTON DIFF LOCK<C3N>	1-48269-064-0	01	1	0008-
68	BOLT; COVER DIFF LOCK<C3N>	1-48269-144-0	04	1	0008-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
