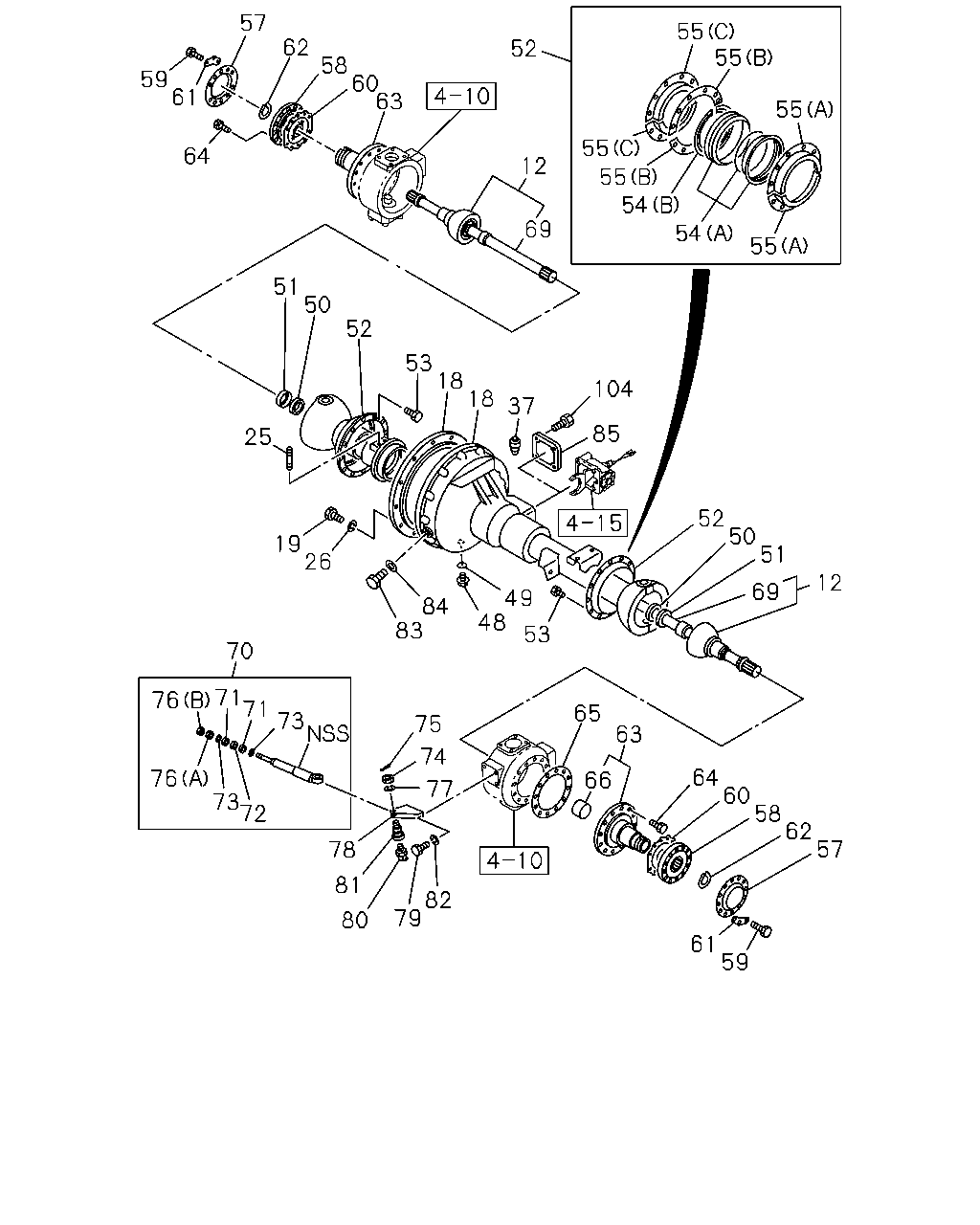

4-12 — FRONT DRIVE SHAFT (#43147) — 69 parça

57 55 55 62 52 58 60 63 59 61 55 55 64 12 55 54 69 54 55 51 50 52 53 18 18 104 37 85 25 52 50 51 19 26 12 69 49 48 84 83 53 70 76 71 71 65 73 75 63 74 64 60 58 62 57 76 73 72 66 77 78 81 82 79 80 61 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	JOINT ASM	1-43330-018-0	02	1	0008-
18	CASE; FRT AXLE	1-43210-098-2	01	1	0008-
18	CASE; FRT AXLE	1-43210-108-2	01	1	0008-
19	BOLT; FRT AXLE M12X30	9-02361-230-0	13	1	0008-
25	STUD; AXLE CASE TO SPRING SEAT	9-09831-011-1	04	1	0008-
26	WASHER; LK,CASE,FRT AXLE ID=12.2	9-09150-812-0	13	1	0008-0603
26	WASHER; LK,CASE,FRT AXLE ID=12.2	0-91510-812-0	13	1	0604-
37	BREATHER; FRT AXLE CASE	9-36122-001-0	01	1	0008-
48	PLUG; DRAIN,AXLE CASE M24X17 FLANGE	1-09604-023-0	01	1	0008-
49	GASKET; DRAIN PLUG ID=26.8	9-09920-605-0	01	1	0008-
50	SEAL; OIL,SHAFT,FRT AXLE	1-09625-192-0	02	1	0008-
51	GUIDE; OIL,FRT AXLE	9-43339-003-0	02	1	0008-
52	SEAL; OIL,KNUCKLE	1-09625-004-0	02	1	0008-
53	BOLT; OIL SEAL M8X12 FLANGE	0-28080-812-0	22	1	0008-0512
53	BOLT; OIL SEAL M8X12 FLANGE	0-28050-812-0	22	1	0601-
53	BOLT; OIL SEAL M8X16 FLANGE	0-28080-816-0	02	1	0008-0512
53	BOLT; OIL SEAL M8X16 FLANGE	0-28050-816-0	02	1	0601-
54	GASKET; OIL SEAL (A)	1-09625-241-0	02	1	0008-
54	GASKET; OIL SEAL (B)	1-09625-242-0	02	1	0008-
55	RING; OIL SEAL (A)	1-09625-243-0	04	1	0008-
55	RING; OIL SEAL (B)	1-09625-244-0	04	1	0008-
55	RING; OIL SEAL (C)	1-09625-245-0	04	1	0008-
57	COVER; FLANGE,FRT AXLE SHAFT	9-42313-116-0	02	1	0008-
58	FLANGE; AXLE SHAFT,FRT	1-42312-028-0	02	1	0008-
59	BOLT; FLANGE,FRT AXLE SHAFT M12X45	9-09804-239-1	20	1	0008-
60	GASKET; FLANGE,FRT AXLE SHAFT	1-42175-001-0	02	1	0008-
61	PLATE; LK,FLANGE	1-43319-005-0	08	1	0008-
62	RING; SNAP,AXLE SHAFT ID=38.5 T=2.00	9-09952-253-0	02	1	0008-
63	SPINDLE; KNUCKLE,FRT AXLE SHAFT	1-43241-028-1	02	1	0008-0902
63	SPINDLE; KNUCKLE,FRT AXLE SHAFT	1-43241-061-0	02	1	0903-
64	BOLT; SPINDLE M12X30 FLANGE	0-28691-230-0	08	1	0008-0512
64	BOLT; SPINDLE M12X30 FLANGE	0-28661-230-0	08	1	0601-0912
64	BOLT; SPINDLE M12X30 FLANGE	0-28061-230-0	08	1	1001-
64	BOLT; SPINDLE M12X45 FLANGE	0-29291-245-0	16	1	0008-0512
64	BOLT; SPINDLE M12X45 FLANGE	0-29261-245-0	16	1	0601-
65	GASKET; KNUCKLE TO SPINDLE	9-43254-005-0	02	1	0008-
66	BUSHING; SPINDLE,FRT AXLE SHAFT	1-43321-008-0	02	1	0008-0902
66	BUSHING; SPINDLE,FRT AXLE SHAFT	1-43321-011-0	02	1	0903-
69	SHAFT; AXLE,FRT INNER DIFF LOCK<C3N>	1-43311-039-2	01	1	0008-1102
69	SHAFT; AXLE,FRT INNER DIFF LOCK<C3N>	1-43311-065-0	01	1	1103-
69	SHAFT; AXLE,FRT INNER DIFF LOCK<C3N>	1-43311-040-2	01	1	0008-1102
69	SHAFT; AXLE,FRT INNER DIFF LOCK<C3N>	1-43311-066-0	01	1	1103-
69	SHAFT; AXLE,FRT INNER EXC. DIFF LOCK<C3N>	1-43311-035-0	01	1	0008-
69	SHAFT; AXLE,FRT INNER EXC. DIFF LOCK<C3N>	1-43311-036-0	01	1	0008-
70	ABSORBER ASM; SHOCK,SHIMMY	1-51600-337-0	01	1	0008-
71	BUSHING; RUB,LWR,FRT S/ABS OD=25.4	9-51631-602-0	02	1	0008-
72	WASHER; CENTER,LWR,FRT S/ABS ID=15.0 OD=32	9-51631-049-0	01	1	0008-
73	WASHER; LWR,FRT S/ABS ID=10.5 OD=32	9-51631-048-0	02	1	0008-
74	NUT; S/ABS M12	9-99116-412-0	01	1	0008-0805
74	NUT; S/ABS M12	0-91116-512-0	01	1	0806-
75	PIN; SPLIT,S/ABS OD=2.8 L=20	9-08113-020-0	01	1	0008-0606
75	PIN; SPLIT,S/ABS OD=2.8 L=20	0-81123-020-0	01	1	0607-
76	NUT; LWR,FRT S/ABS (A) M10	9-09110-410-0	01	1	0008-
76	NUT; LWR,FRT S/ABS (B) M10	9-09111-410-0	01	1	0008-
77	WASHER; LK,S/ABS ID=12.2	9-09150-512-0	01	1	0008-0603
77	WASHER; LK,S/ABS ID=12.2	0-91510-512-0	01	1	0604-
78	BRACKET; SHIMMY DAMPER	1-43219-017-0	01	1	0008-
79	BOLT; BRKT M12X20	0-20801-220-0	02	1	0008-
79	BOLT; BRKT M12X25	0-20801-225-0	02	1	0008-
80	NIPPLE; GREASE,BRKT PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	01	1	0008-0512
80	NIPPLE; GREASE,BRKT PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	0601-
81	PIN; SHIMMY DAMPER	1-43219-018-0	01	1	0008-
82	WASHER; LK,BRKT ID=12.2	9-09150-512-0	04	1	0008-0603
82	WASHER; LK,BRKT ID=12.2	0-91510-512-0	04	1	0604-
83	PLUG; OIL FILLER M24X17 FLANGE	1-09604-022-0	01	1	0008-
84	GASKET; PLUG,OIL FILLER ID=26.8	9-09920-605-0	01	1	0008-
85	COVER; AXLE CASE EXC. DIFF LOCK<C3N>	1-43219-030-0	01	1	0008-
104	BOLT; COVER,AXLE CASE EXC. DIFF LOCK<C3N> M10X25 FLANGE	0-28781-025-0	04	1	0008-0512
104	BOLT; COVER,AXLE CASE EXC. DIFF LOCK<C3N> M10X25 FLANGE	0-28751-025-0	04	1	0601-
