Sayfa 2-05B - Isuzu EPC

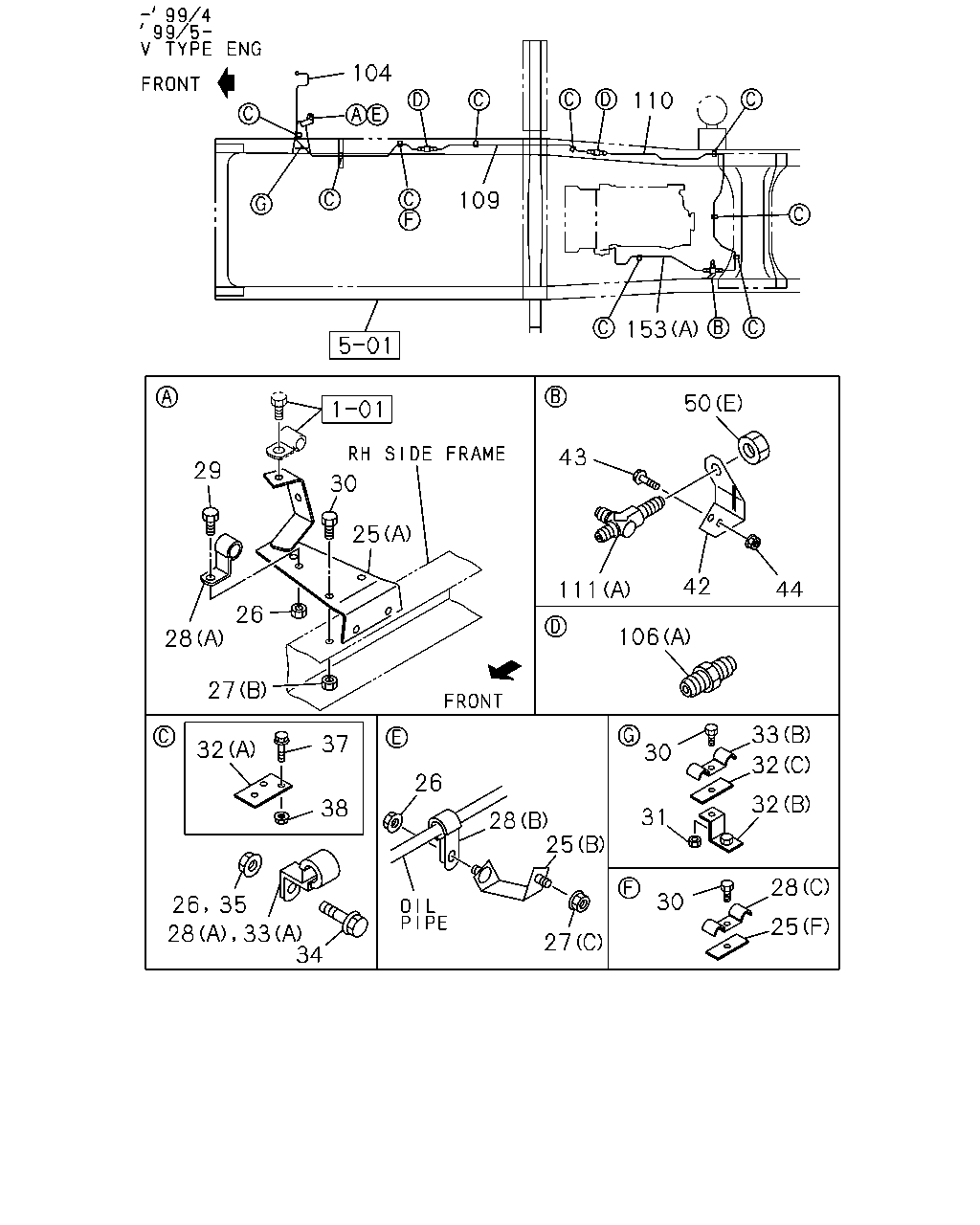

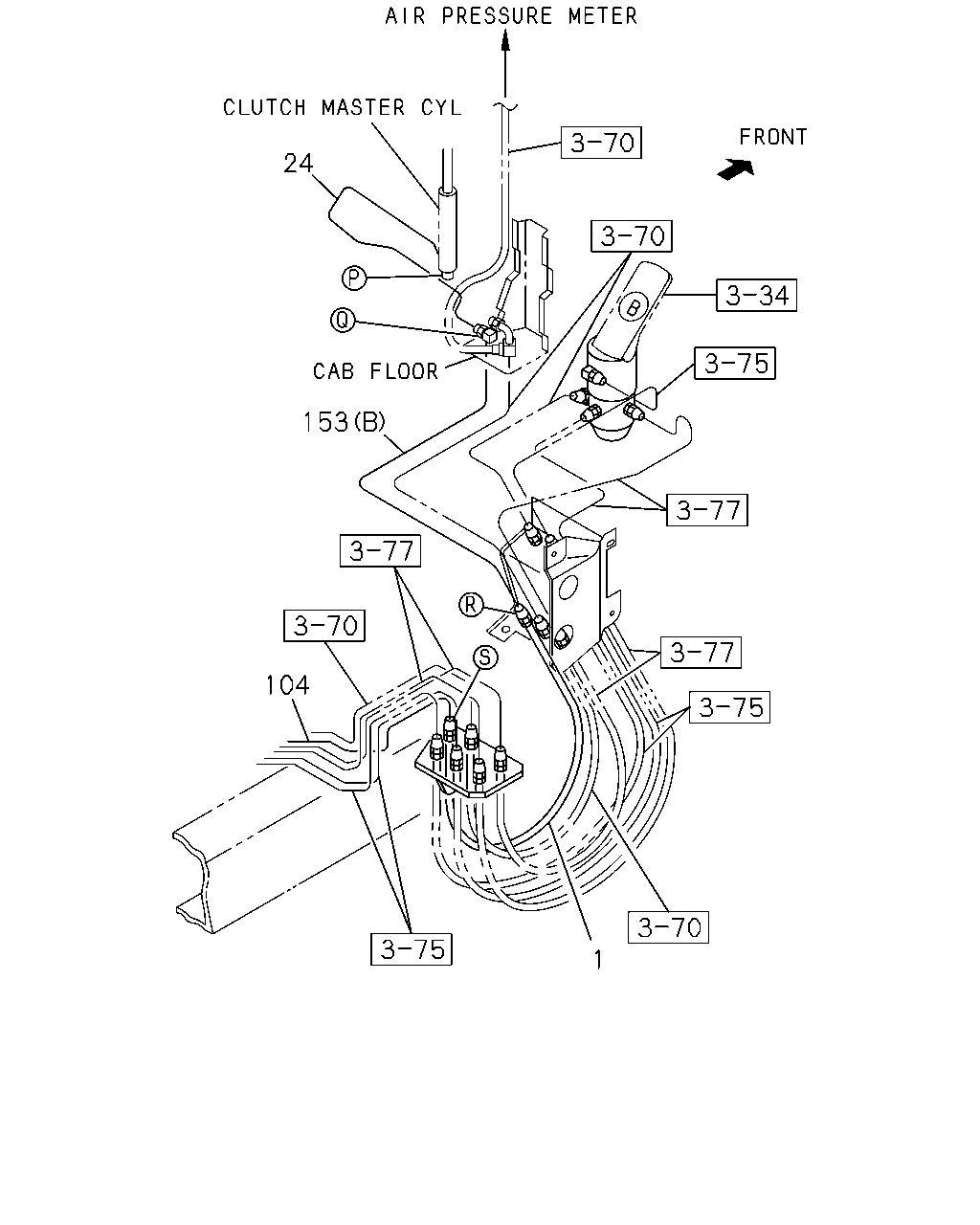

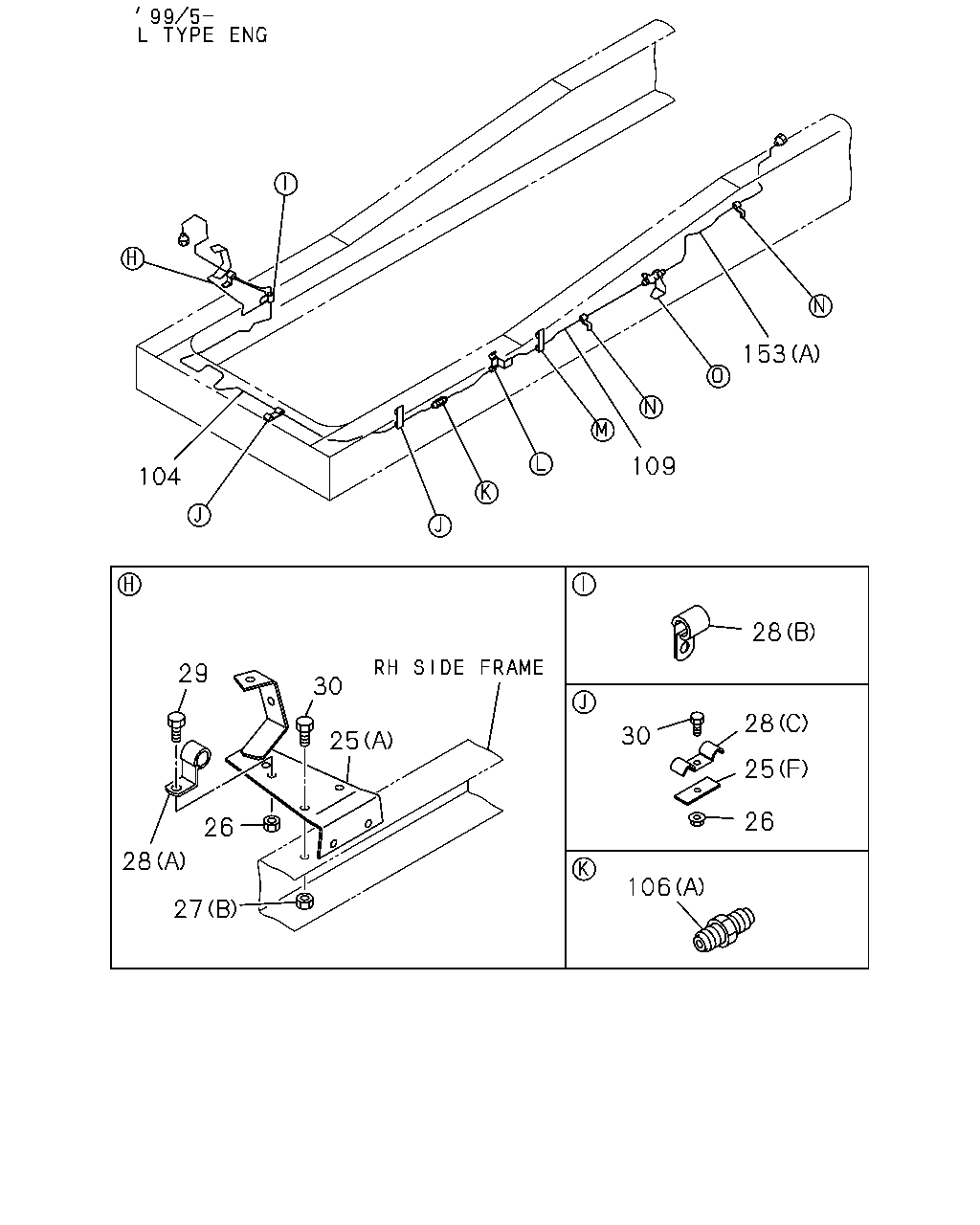

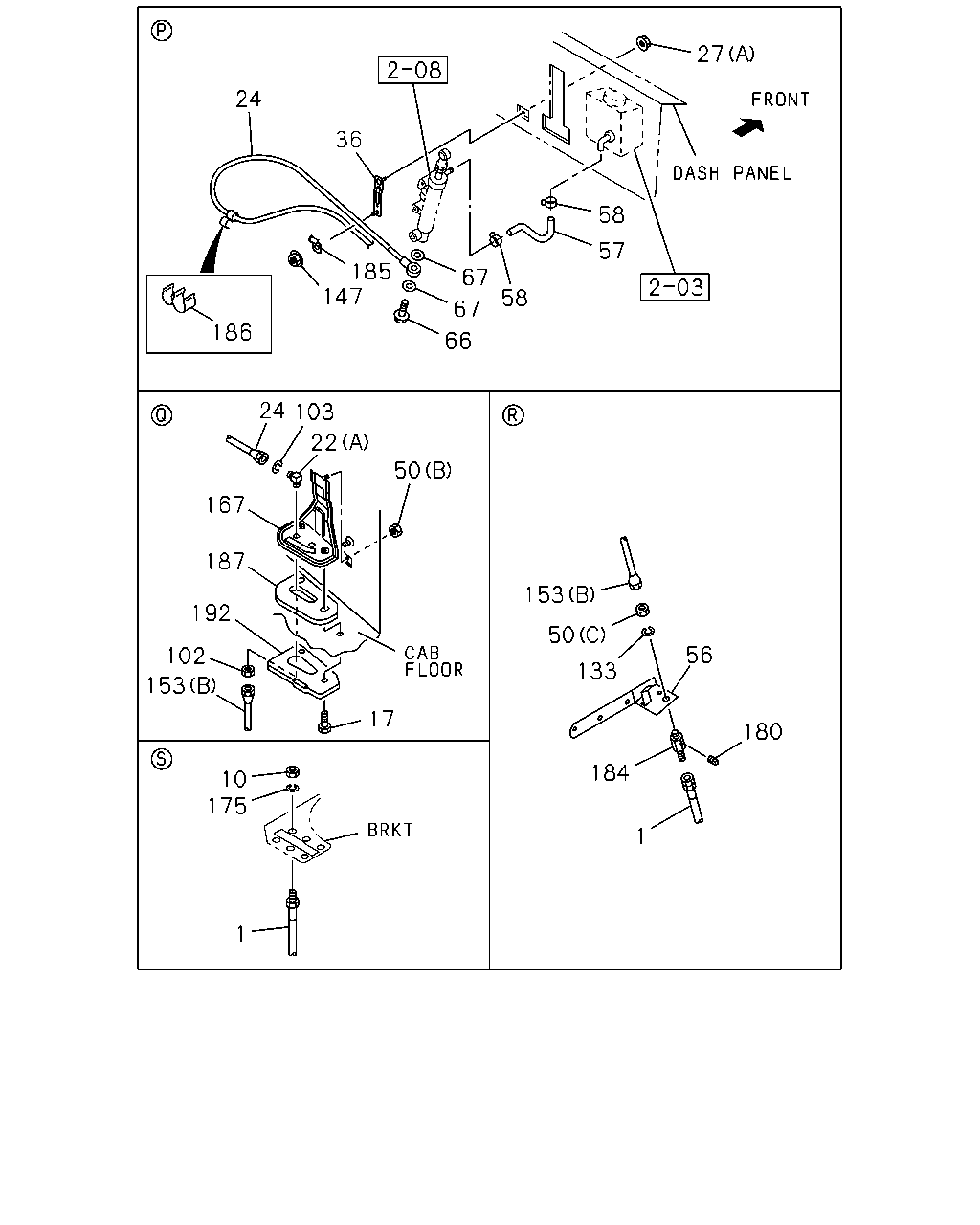

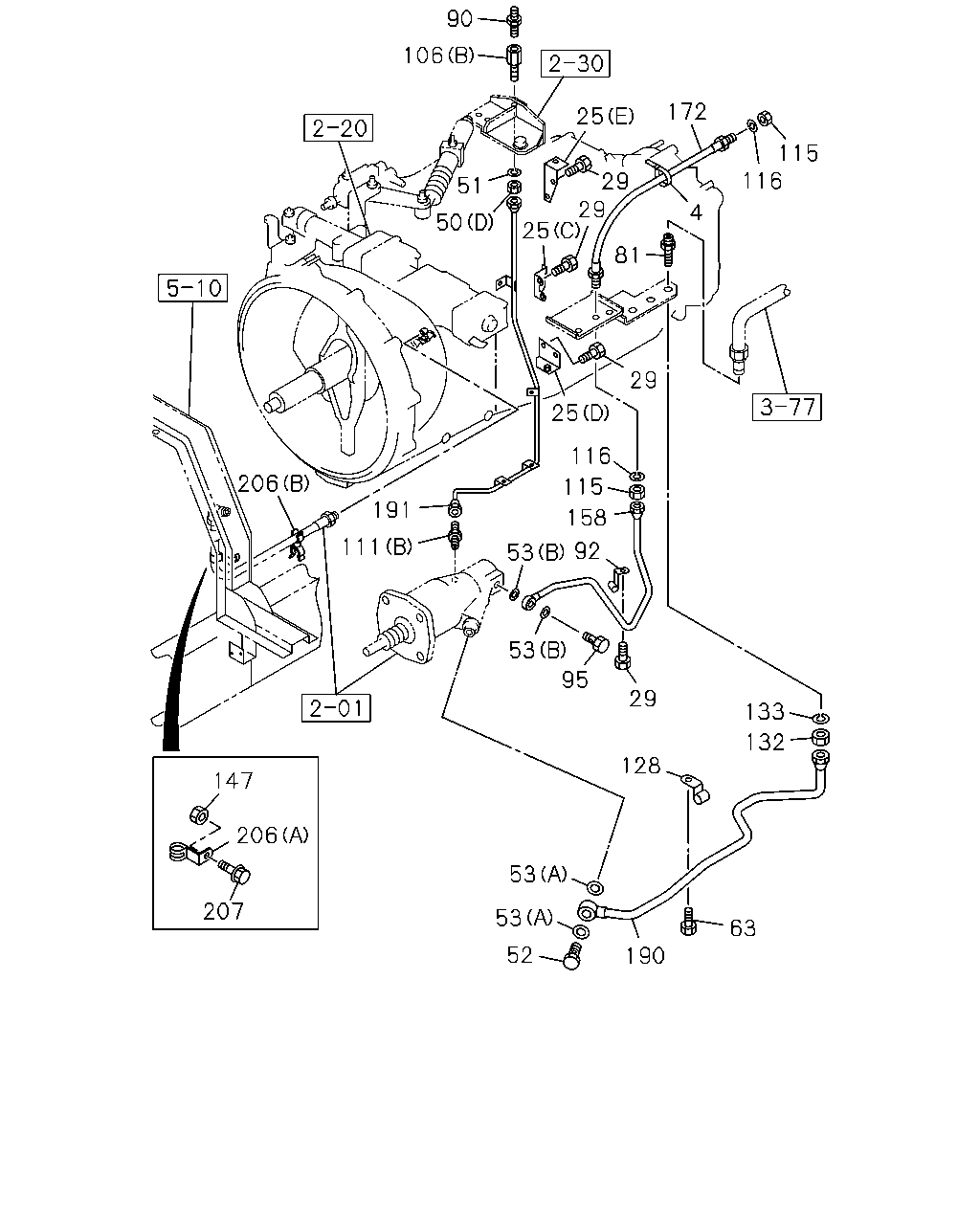

2-05B — CLUTCH PIPING (#4314) — 488 parça

104 110 109 153 50 43 29 30 25 42 44 111 26 106 28 27 33 30 37 32 32 26 32 38 31 28 25 28 30 26 35 25 28 33 34 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
25	BRACKET; OIL PIPE 6WA1 TC-S(56L) (B)	1-47477-597-2	01	1	9603-9904	●
25	BRACKET; OIL PIPE (A)	1-47477-604-2	01	1	9603-	●	●
25	BRACKET; OIL PIPE (D)	1-47477-498-1	01	1	9603-9904	●
25	BRACKET; OIL PIPE (D)	1-47477-498-1	01	1	9905-	●	●
25	BRACKET; OIL PIPE (C)	1-47477-499-1	01	1	9603-9904	●
25	BRACKET; OIL PIPE (C)	1-47477-499-1	01	1	9905-	●	●
25	BRACKET; OIL PIPE (E)	1-47478-406-0	01	1	9905-	●	●
25	BRACKET; OIL PIPE L TYPE ENG<90L> (F) L=50	1-47475-299-2	02	1	9905-9905	●	●
25	BRACKET; OIL PIPE L TYPE ENG<90L> (F) L=50	1-47475-299-2	03	1	9905-	●	●
25	BRACKET; OIL PIPE V TYPE ENG<91L> (F) L=50	1-47475-299-2	01	1	9906-	●	●
26	NUT; CLIP,OIL PIPE 10PE1S(60L),10PE1N(61L),10PE1H(68L) M8 FLANGE	0-91150-108-0	01	1	9906-0002	●	●
26	NUT; CLIP,OIL PIPE L TYPE ENG<90L> M8 FLANGE	0-91150-108-0	04	1	0003-	●	●
26	NUT; CLIP,OIL PIPE 6WA1 TC-S(56L) M8	9-09110-508-0	02	1	9606-9606	●
26	NUT; CLIP,OIL PIPE 6WA1 TC-S(56L) M8 FLANGE	0-91150-108-0	02	1	9607-9904	●
26	NUT; CLIP,OIL PIPE L TYPE ENG<90L> M8 FLANGE	0-91150-108-0	01	1	9905-9905	●	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	9905-0002	●	●
26	NUT; CLIP,OIL PIPE L TYPE ENG<90L> M8 FLANGE	0-91150-108-0	02	1	9905-0002	●	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	0003-	●	●
26	NUT; CLIP,OIL PIPE 10PE1S(60L) M8	9-09110-508-0	01	1	9603-9605	●
26	NUT; CLIP,OIL PIPE 10PE1S(60L) M8	9-09110-508-0	01	1	9606-9606	●
26	NUT; CLIP,OIL PIPE 10PE1S(60L) M8 FLANGE	0-91150-108-0	01	1	9607-9709	●
26	NUT; CLIP,OIL PIPE 10PE1S(60L) M8 FLANGE	0-91150-108-0	01	1	9710-9904	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	9905-9905	●	●
27	NUT; BRKT 6WA1 TC-S(56L) (C) M8	9-09110-508-0	01	1	9603-9606	●
27	NUT; BRKT 6WA1 TC-S(56L) (C) M8 FLANGE	0-91150-108-0	01	1	9607-9904	●
27	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	9603-	●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9603-	●	●
27	NUT; BRKT (C) M8	9-09110-508-0	02	1	9603-9606	●	●
27	NUT; BRKT (C) M8 FLANGE	0-91150-108-0	02	1	9607-	●	●
28	CLIP; OIL PIPE 6WA1 TC-S(56L) (B) ID=9	9-09524-845-0	01	1	9603-9904	●
28	CLIP; OIL PIPE (B) ID=9	9-09524-845-0	01	1	9906-0002	●	●
28	CLIP; OIL PIPE (B) ID=9 L=20	9-09524-835-0	01	1	0003-	●
28	CLIP; OIL PIPE 10PE1S(60L) (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9603-9709	●
28	CLIP; OIL PIPE 10PE1S(60L) (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9710-9905	●
28	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	02	1	9603-0002	●	●
28	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	01	1	0003-	●
28	CLIP; OIL PIPE L TYPE ENG<90L> (C) ID=16 & 9 L=21 & 18	1-09700-676-0	02	1	9905-9905	●	●
28	CLIP; OIL PIPE L TYPE ENG<90L> (C) ID=16 & 9 L=21 & 18	1-09700-676-0	03	1	9905-	●	●
28	CLIP; OIL PIPE V TYPE ENG<91L> (C) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	9906-	●	●
29	BOLT; CLIP,OIL PIPE 10PE1S(60L) M8X25 FLANGE	0-28080-825-0	01	1	9603-9606	●
29	BOLT; CLIP,OIL PIPE 10PE1S(60L) M8X30 FLANGE	0-28680-830-0	01	1	9607-9709	●
29	BOLT; CLIP,OIL PIPE 10PE1S(60L) M8X30 FLANGE	0-28680-830-0	01	1	9710-9905	●
29	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28080-820-0	02	1	9603-9606	●	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	02	1	9607-9904	●	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	03	1	9905-0002	●	●
29	BOLT; CLIP,OIL PIPE L TYPE ENG<90L> M8X25 FLANGE	0-28680-825-0	01	1	0003-	●	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	02	1	0003-	●	●
29	BOLT; CLIP,OIL PIPE M8X16 FLANGE	0-28080-816-0	04	1	9603-9904	●
29	BOLT; CLIP,OIL PIPE M8X16 FLANGE	0-28080-816-0	05	1	9905-	●	●
29	BOLT; CLIP,OIL PIPE M8X40 FLANGE	0-28680-840-0	01	1	9603-9904	●
29	BOLT; CLIP,OIL PIPE L TYPE ENG<90L> M8X20 FLANGE	0-28680-820-0	03	1	0003-	●	●
29	BOLT; CLIP,OIL PIPE V TYPE ENG<91L> M8X20 FLANGE	0-28680-820-0	01	1	0003-	●	●
30	BOLT; BRKT M8X30 FLANGE	0-28080-830-0	02	1	9603-9606	●	●
30	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	02	1	9607-	●	●
30	BOLT; BRKT L TYPE ENG<90L> M8X30 FLANGE	0-28680-830-0	01	1	9905-	●	●
31	NUT; BRKT L TYPE ENG<90L> M8 FLANGE	0-91150-108-0	01	1	9905-	●	●
32	BRACKET; CLIP OIL PIPE (A)	1-47475-303-1	01	1	9603-9904	●
32	BRACKET; CLIP OIL PIPE L TYPE ENG<90L> (C) L=50	1-47475-299-2	01	1	9905-	●	●
32	BRACKET; CLIP OIL PIPE L TYPE ENG<90L> (B)	1-47475-881-0	01	1	9905-	●	●
33	CLIP; OIL PIPE 6WA1 TC-S(56L),10PE1S(60L) (A) ID=8 H=20 L=20	1-09700-604-0	02	1	9603-9706	●
33	CLIP; OIL PIPE V TYPE ENG<91L> (A) ID=8 H=20 L=20	1-09700-604-0	02	1	9707-9904	●
33	CLIP; OIL PIPE V TYPE ENG<91L> (A) ID=8 H=20 L=20	1-09700-604-0	02	1	9905-	●	●
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9603-9904	●	●
33	CLIP; OIL PIPE L TYPE ENG<90L> (B) ID=16 & 9 L=18 & 17	1-09700-669-0	01	1	9905-	●	●
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	03	1	9603-9904	●
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9905-	●	●
33	CLIP; OIL PIPE L TYPE ENG<90L> (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9905-	●	●
33	CLIP; OIL PIPE L TYPE ENG<90L> (B) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	9905-	●	●
34	BOLT; PIPE CLIP 6WA1 TC-S(56L),10PE1S(60L) M8X25 FLANGE	0-28080-825-0	02	1	9603-9606	●
34	BOLT; PIPE CLIP 6WA1 TC-S(56L),10PE1S(60L) M8X30 FLANGE	0-28680-830-0	02	1	9607-9706	●
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	02	1	9707-9904	●
34	BOLT; PIPE CLIP V TYPE ENG<91L> M8X30 FLANGE	0-28680-830-0	02	1	9905-	●	●
34	BOLT; PIPE CLIP M8X25 FLANGE	0-28080-825-0	01	1	9603-9606	●	●
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	01	1	9607-9904	●	●
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	01	1	9905-	●	●
34	BOLT; PIPE CLIP L TYPE ENG<90L> M8X30 FLANGE	0-28680-830-0	01	1	9905-	●	●
34	BOLT; PIPE CLIP M8X16 FLANGE	0-28080-816-0	01	1	9603-9606	●
34	BOLT; PIPE CLIP M8X20 FLANGE	0-28680-820-0	01	1	9607-9904	●
34	BOLT; PIPE CLIP L TYPE ENG<90L> M8X20 FLANGE	0-28680-820-0	02	1	9905-	●	●
35	NUT; PIPE CLIP 6WA1 TC-S(56L),10PE1S(60L) M8	9-09110-508-0	02	1	9603-9606	●
35	NUT; PIPE CLIP 6WA1 TC-S(56L),10PE1S(60L) M8 FLANGE	0-91150-108-0	02	1	9607-9706	●
35	NUT; PIPE CLIP V TYPE ENG<91L> M8 FLANGE	0-91150-108-0	02	1	9707-9904	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	02	1	9905-	●	●
35	NUT; PIPE CLIP M8	9-09110-508-0	01	1	9603-9606	●	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	01	1	9607-9904	●	●
35	NUT; PIPE CLIP M8	9-09110-508-0	03	1	9603-9606	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	03	1	9607-9904	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	01	1	9905-	●	●
35	NUT; PIPE CLIP L TYPE ENG<90L> M8 FLANGE	0-91150-108-0	01	1	9905-	●	●
37	BOLT; CLIP BRKT M8X20 FLANGE	0-28080-820-0	02	1	9603-9606	●
37	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	02	1	9607-9904	●
38	NUT; CLIP BRKT M8	9-09110-508-0	02	1	9603-9606	●
38	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	02	1	9607-9904	●
42	BRACKET; FLEX HOSE,CLU CONT	1-47477-563-0	01	1	9603-0102	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER FRAME EQUIPMENT HEAVY DUTY<F03> M8X30 FLANGE	0-28080-830-0	02	1	9603-9606	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER FRAME EQUIPMENT HEAVY DUTY<F03> M8X35 FLANGE	0-28680-835-0	02	1	9607-9904	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER FRAME EQUIPMENT HEAVY DUTY<F03> M8X35 FLANGE	0-28680-835-0	02	1	9905-0102	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER FRAME EQUIPMENT HEAVY DUTY<F03> M8X35 FLANGE	0-28680-835-0	02	1	0103-	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M8X25 FLANGE	0-28080-825-0	02	1	9603-9606	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M8X30 FLANGE	0-28680-830-0	02	1	9607-9904	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M8X30 FLANGE	0-28680-830-0	02	1	9905-0102	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M8X30 FLANGE	0-28680-830-0	02	1	0103-	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8	9-09110-508-0	02	1	9603-9606	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	9607-9904	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	9905-0102	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	0103-	●	●
50	NUT; UNION (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9603-	●	●
50	NUT; UNION (C) M14	9-99111-414-0	01	1	9603-	●	●
50	NUT; UNION (D) M10 H=8	1-09400-029-0	01	1	9603-9606	●
50	NUT; UNION (D) M12	9-09840-280-0	01	1	9607-9904	●
50	NUT; UNION (D) M12	9-09840-280-0	01	1	9905-	●	●
50	NUT; UNION (E) M12	9-99111-412-0	01	1	9603-9904	●
50	NUT; UNION (E) M12 FLANGE	0-91150-212-0	01	1	9905-9905	●
50	NUT; UNION L TYPE ENG<90L> (E) M12 FLANGE	0-91150-212-0	01	1	9906-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 6WA1 TC-S(56L) L=1521 SERVICED BY L=1550	1-47426-390-0	01	1	9603-9702	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 6WA1 TC-S(56L) L=1539 SERVICED BY L=1550	1-47426-390-0	01	1	9703-9711	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 6WA1 TC-S(56L) L=1536 SERVICED BY L=1550	1-47426-390-0	01	1	9712-9904	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L TYPE ENG<90L> L=2897 SERVICED BY L=3000	1-47426-397-0	01	1	9905-9905	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L TYPE ENG<90L> L=2889	1-49164-483-0	01	1	9905-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 10PE1S(60L) L=1543 SERVICED BY L=1550	1-47426-390-0	01	1	9603-9904	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 10PE1S(60L),10PE1N(61L),10PE1H(68L) L=1543 SERVICED BY L=1550	1-47426-390-0	01	1	9905-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 8PE1S(59L) L=1540 SERVICED BY L=1550	1-47426-390-0	01	1	9603-9904	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L TYPE ENG<90L> L=2889	1-49164-483-0	01	1	9905-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR V TYPE ENG<91L> L=2495	1-49163-209-0	01	1	9906-	●	●
106	UNION; OIL PIPE (A) M14 STRAIGHT	9-09223-008-1	01	1	9603-9706	●
106	UNION; OIL PIPE (A) M14 STRAIGHT	9-09223-008-1	01	1	9603-9706	●
106	UNION; OIL PIPE (A) M14 STRAIGHT	9-09223-008-1	01	1	9707-9904	●
106	UNION; OIL PIPE (A) M14 STRAIGHT	9-09223-008-1	01	1	9707-9904	●
106	UNION; OIL PIPE (A) M14 STRAIGHT	9-09223-008-1	01	1	9905-9905	●	●
106	UNION; OIL PIPE V TYPE ENG<91L> (A) M14 STRAIGHT	9-09223-008-1	01	1	9906-	●	●
106	UNION; OIL PIPE (A) M14 STRAIGHT	9-09223-008-1	01	1	9906-	●	●
106	UNION; OIL PIPE (B)	1-09654-368-0	01	1	9603-9606	●
106	UNION; OIL PIPE (B)	1-09654-384-0	01	1	9607-9904	●
106	UNION; OIL PIPE (B)	1-09654-384-0	01	1	9905-	●	●
109	PIPE; AIR,UNION TO UNION L=1380 SERVICED BY L=1400	1-47426-389-0	01	1	9603-9904	●
109	PIPE; AIR,UNION TO UNION L=1117	1-49163-208-0	01	1	9905-9905	●
109	PIPE; AIR,UNION TO UNION L TYPE ENG<90L> L=1106 SERVICED BY L=1100	1-47426-387-0	01	1	9906-	●	●
109	PIPE; AIR,UNION TO UNION V TYPE ENG<91L> L=942 SERVICED BY L=1000	1-47426-386-0	01	1	9906-	●	●
110	PIPE; OIL,UNION TO UNION L=2215 SERVICED BY L=2400	1-47426-395-0	01	1	9603-9904	●
111	UNION; OIL PIPE (A) M14 2WAY	1-09654-176-2	01	1	9603-9904	●
111	UNION; OIL PIPE (A) M14 2WAY	1-09654-176-2	01	1	9905-9905	●
111	UNION; OIL PIPE L TYPE ENG<90L> (A) M14 2WAY	1-09654-176-2	01	1	9906-	●	●
111	UNION; OIL PIPE (B) M8 & M10 STRAIGHT	1-09654-369-0	01	1	9603-9606	●
111	UNION; OIL PIPE (B) M8 & M12 STRAIGHT	1-09654-383-0	01	1	9607-9904	●
111	UNION; OIL PIPE (B) M8 & M12 STRAIGHT	1-09654-383-0	01	1	9905-	●	●
111	UNION; OIL PIPE V TYPE ENG<91L> (A) M14 STRAIGHT	9-09223-008-1	01	1	9908-	●	●
153	PIPE ASM; CLU,UNION TO FLEX (B) L=464	1-47424-530-2	01	1	9603-	●	●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=892 SERVICED BY L=900	1-47426-384-0	01	1	9603-9701	●
153	PIPE ASM; CLU,UNION TO FLEX 10PE1S(60L) (A) L=892 SERVICED BY L=900	1-47426-384-0	01	1	9702-9904	●
153	PIPE ASM; CLU,UNION TO FLEX 10PE1S(60L),10PE1N(61L),10PE1H(68L) (A) L=892 SERVICED BY L=900	1-47426-384-0	01	1	9905-9905	●	●
153	PIPE ASM; CLU,UNION TO FLEX 10PE1S(60L),10PE1N(61L),10PE1H(68L) (A) L=897	1-49164-397-0	01	1	9905-9907	●	●
153	PIPE ASM; CLU,UNION TO FLEX 10PE1S(60L),10PE1N(61L),10PE1H(68L) (A) L=1453 SERVICED BY L=1550	1-47426-390-0	01	1	9908-	●	●
153	PIPE ASM; CLU,UNION TO FLEX L TYPE ENG<90L> (A) L=955	1-49163-430-0	01	1	9905-	●	●

24 153 104 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,CLU CONT CAB UP +110MM<TGG> L=520	1-09364-948-1	01	1	9905-	●	●
1	HOSE; FLEX,CLU CONT L=430	1-09364-859-0	01	1	9603-9904	●	●
1	HOSE; FLEX,CLU CONT EXC. CAB UP +110MM<TGG> L=430	1-09364-859-1	01	1	9905-	●	●
24	PIPE ASM; CLU,M/CYL TO UNION	1-47427-608-0	01	1	9603-9904	●
24	PIPE ASM; CLU,M/CYL TO UNION	1-47427-608-0	01	1	9905-	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 6WA1 TC-S(56L) L=1521 SERVICED BY L=1550	1-47426-390-0	01	1	9603-9702	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 6WA1 TC-S(56L) L=1539 SERVICED BY L=1550	1-47426-390-0	01	1	9703-9711	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 6WA1 TC-S(56L) L=1536 SERVICED BY L=1550	1-47426-390-0	01	1	9712-9904	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L TYPE ENG<90L> L=2897 SERVICED BY L=3000	1-47426-397-0	01	1	9905-9905	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L TYPE ENG<90L> L=2889	1-49164-483-0	01	1	9905-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 10PE1S(60L) L=1543 SERVICED BY L=1550	1-47426-390-0	01	1	9603-9904	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 10PE1S(60L),10PE1N(61L),10PE1H(68L) L=1543 SERVICED BY L=1550	1-47426-390-0	01	1	9905-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 8PE1S(59L) L=1540 SERVICED BY L=1550	1-47426-390-0	01	1	9603-9904	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L TYPE ENG<90L> L=2889	1-49164-483-0	01	1	9905-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR V TYPE ENG<91L> L=2495	1-49163-209-0	01	1	9906-	●	●
153	PIPE ASM; CLU,UNION TO FLEX (B) L=464	1-47424-530-2	01	1	9603-	●	●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=892 SERVICED BY L=900	1-47426-384-0	01	1	9603-9701	●
153	PIPE ASM; CLU,UNION TO FLEX 10PE1S(60L) (A) L=892 SERVICED BY L=900	1-47426-384-0	01	1	9702-9904	●
153	PIPE ASM; CLU,UNION TO FLEX 10PE1S(60L),10PE1N(61L),10PE1H(68L) (A) L=892 SERVICED BY L=900	1-47426-384-0	01	1	9905-9905	●	●
153	PIPE ASM; CLU,UNION TO FLEX 10PE1S(60L),10PE1N(61L),10PE1H(68L) (A) L=897	1-49164-397-0	01	1	9905-9907	●	●
153	PIPE ASM; CLU,UNION TO FLEX 10PE1S(60L),10PE1N(61L),10PE1H(68L) (A) L=1453 SERVICED BY L=1550	1-47426-390-0	01	1	9908-	●	●
153	PIPE ASM; CLU,UNION TO FLEX L TYPE ENG<90L> (A) L=955	1-49163-430-0	01	1	9905-	●	●

90 106 172 25 115 116 29 29 25 51 4 50 81 29 25 116 206 115 191 158 111 92 53 53 95 29 133 132 128 147 206 53 207 53 63 52 190

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	CLIP; FLEX HOSE,CLU CONT L=140	5-09707-031-0	01	1	9603-9605	●	●
25	BRACKET; OIL PIPE 6WA1 TC-S(56L) (B)	1-47477-597-2	01	1	9603-9904	●
25	BRACKET; OIL PIPE (A)	1-47477-604-2	01	1	9603-	●	●
25	BRACKET; OIL PIPE (D)	1-47477-498-1	01	1	9603-9904	●
25	BRACKET; OIL PIPE (D)	1-47477-498-1	01	1	9905-	●	●
25	BRACKET; OIL PIPE (C)	1-47477-499-1	01	1	9603-9904	●
25	BRACKET; OIL PIPE (C)	1-47477-499-1	01	1	9905-	●	●
25	BRACKET; OIL PIPE (E)	1-47478-406-0	01	1	9905-	●	●
25	BRACKET; OIL PIPE L TYPE ENG<90L> (F) L=50	1-47475-299-2	02	1	9905-9905	●	●
25	BRACKET; OIL PIPE L TYPE ENG<90L> (F) L=50	1-47475-299-2	03	1	9905-	●	●
25	BRACKET; OIL PIPE V TYPE ENG<91L> (F) L=50	1-47475-299-2	01	1	9906-	●	●
29	BOLT; CLIP,OIL PIPE 10PE1S(60L) M8X25 FLANGE	0-28080-825-0	01	1	9603-9606	●
29	BOLT; CLIP,OIL PIPE 10PE1S(60L) M8X30 FLANGE	0-28680-830-0	01	1	9607-9709	●
29	BOLT; CLIP,OIL PIPE 10PE1S(60L) M8X30 FLANGE	0-28680-830-0	01	1	9710-9905	●
29	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28080-820-0	02	1	9603-9606	●	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	02	1	9607-9904	●	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	03	1	9905-0002	●	●
29	BOLT; CLIP,OIL PIPE L TYPE ENG<90L> M8X25 FLANGE	0-28680-825-0	01	1	0003-	●	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	02	1	0003-	●	●
29	BOLT; CLIP,OIL PIPE M8X16 FLANGE	0-28080-816-0	04	1	9603-9904	●
29	BOLT; CLIP,OIL PIPE M8X16 FLANGE	0-28080-816-0	05	1	9905-	●	●
29	BOLT; CLIP,OIL PIPE M8X40 FLANGE	0-28680-840-0	01	1	9603-9904	●
29	BOLT; CLIP,OIL PIPE L TYPE ENG<90L> M8X20 FLANGE	0-28680-820-0	03	1	0003-	●	●
29	BOLT; CLIP,OIL PIPE V TYPE ENG<91L> M8X20 FLANGE	0-28680-820-0	01	1	0003-	●	●
50	NUT; UNION (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9603-	●	●
50	NUT; UNION (C) M14	9-99111-414-0	01	1	9603-	●	●
50	NUT; UNION (D) M10 H=8	1-09400-029-0	01	1	9603-9606	●
50	NUT; UNION (D) M12	9-09840-280-0	01	1	9607-9904	●
50	NUT; UNION (D) M12	9-09840-280-0	01	1	9905-	●	●
50	NUT; UNION (E) M12	9-99111-412-0	01	1	9603-9904	●
50	NUT; UNION (E) M12 FLANGE	0-91150-212-0	01	1	9905-9905	●
50	NUT; UNION L TYPE ENG<90L> (E) M12 FLANGE	0-91150-212-0	01	1	9906-	●	●
51	WASHER; LK ID=10.2	9-09150-510-0	01	1	9603-9606	●
51	WASHER; LK ID=12.2	9-09150-512-0	01	1	9607-9904	●
51	WASHER; LK ID=12.2	9-09150-512-0	01	1	9905-	●	●
52	BOLT; EYE,AIR PIPE M16X30	1-09675-026-0	01	1	9603-9904	●
52	BOLT; EYE,AIR PIPE M16X30	1-09675-026-0	01	1	9905-	●	●
53	GASKET; JOINT BOLT (A) ID=16.2	1-09630-086-0	02	1	9603-9904	●
53	GASKET; JOINT BOLT (A) ID=16.2	1-09630-086-0	02	1	9905-	●	●
53	GASKET; JOINT BOLT (B) ID=14.2 OD=20.0	9-09571-414-0	02	1	9603-9904	●
53	GASKET; JOINT BOLT (B) ID=14.2 OD=20.0	9-09571-414-0	02	1	9905-	●	●
63	BOLT; CLIP,PIPE M8X16 FLANGE	0-28080-816-0	01	1	9603-9904	●
63	BOLT; CLIP,PIPE M8X16 FLANGE	0-28080-816-0	01	1	9905-	●	●
81	UNION; AIR PIPE	1-09664-233-0	01	1	9603-9904	●
81	UNION; AIR PIPE	1-09664-233-0	01	1	9905-	●	●
90	NIPPLE; OIL PIPE	1-31829-485-0	01	1	9603-9904	●
90	NIPPLE; OIL PIPE	1-31829-485-0	01	1	9905-	●	●
92	CLIP; OIL PIPE ID=9 H=32 L=24	1-09701-221-0	01	1	9603-9904	●
92	CLIP; OIL PIPE ID=9 L=32	9-09524-865-0	01	1	9905-	●	●
95	BOLT; EYE,OIL PIPE M14X27 FLANGE	1-09675-086-0	01	1	9603-9904	●
95	BOLT; EYE,OIL PIPE M14X27 FLANGE	1-09675-086-0	01	1	9905-	●	●
106	UNION; OIL PIPE (A) M14 STRAIGHT	9-09223-008-1	01	1	9603-9706	●
106	UNION; OIL PIPE (A) M14 STRAIGHT	9-09223-008-1	01	1	9603-9706	●
106	UNION; OIL PIPE (A) M14 STRAIGHT	9-09223-008-1	01	1	9707-9904	●
106	UNION; OIL PIPE (A) M14 STRAIGHT	9-09223-008-1	01	1	9707-9904	●
106	UNION; OIL PIPE (A) M14 STRAIGHT	9-09223-008-1	01	1	9905-9905	●	●
106	UNION; OIL PIPE V TYPE ENG<91L> (A) M14 STRAIGHT	9-09223-008-1	01	1	9906-	●	●
106	UNION; OIL PIPE (A) M14 STRAIGHT	9-09223-008-1	01	1	9906-	●	●
106	UNION; OIL PIPE (B)	1-09654-368-0	01	1	9603-9606	●
106	UNION; OIL PIPE (B)	1-09654-384-0	01	1	9607-9904	●
106	UNION; OIL PIPE (B)	1-09654-384-0	01	1	9905-	●	●
111	UNION; OIL PIPE (A) M14 2WAY	1-09654-176-2	01	1	9603-9904	●
111	UNION; OIL PIPE (A) M14 2WAY	1-09654-176-2	01	1	9905-9905	●
111	UNION; OIL PIPE L TYPE ENG<90L> (A) M14 2WAY	1-09654-176-2	01	1	9906-	●	●
111	UNION; OIL PIPE (B) M8 & M10 STRAIGHT	1-09654-369-0	01	1	9603-9606	●
111	UNION; OIL PIPE (B) M8 & M12 STRAIGHT	1-09654-383-0	01	1	9607-9904	●
111	UNION; OIL PIPE (B) M8 & M12 STRAIGHT	1-09654-383-0	01	1	9905-	●	●
111	UNION; OIL PIPE V TYPE ENG<91L> (A) M14 STRAIGHT	9-09223-008-1	01	1	9908-	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9603-9709	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9603-9709	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9710-9904	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9905-9910	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9905-9910	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9911-	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9911-	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9603-9709	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9603-9709	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9710-9904	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9905-9910	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9905-9910	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9911-	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9911-	●	●
128	CLIP; AIR PIPE ID=13 H=18 L=20	1-09701-232-0	01	1	9603-9904	●
128	CLIP; AIR PIPE ID=13	1-09701-030-1	01	1	9905-	●	●
132	NUT; UNION,AIR PIPE M20	9-99111-420-0	01	1	9603-9812	●
133	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	9603-	●	●
133	WASHER; LK,UNION ID=20.2	9-09150-520-0	01	1	9603-9810	●
147	NUT; CLIP FIX M8 FLANGE	8-94279-517-0	01	1	9603-9611	●	●
147	NUT; CLIP FIX M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	9612-	●	●
147	NUT; CLIP FIX M8 FLANGE	0-91150-208-0	01	1	9705-	●
158	PIPE; OIL,FLEX HOSE TO CLU BOOSTER	1-47428-571-0	01	1	9603-9608	●
158	PIPE; OIL,FLEX HOSE TO CLU BOOSTER	1-49161-059-0	01	1	9609-9904	●
158	PIPE; OIL,FLEX HOSE TO CLU BOOSTER	1-49119-466-2	01	1	9905-	●	●
172	HOSE; FLEX,CLU BOOSTER L TYPE ENG<90L>	1-09364-316-0	01	1	9603-9904	●
172	HOSE; FLEX,CLU BOOSTER 10PE1S(60L) L=400	1-09364-263-0	01	1	9607-9904	●
172	HOSE; FLEX,CLU BOOSTER L=470	1-09364-929-0	01	1	9905-9905	●	●
172	HOSE; FLEX,CLU BOOSTER 6WA1 TC-N(54L),6WA1 TC-C(55L) L=470	1-09364-929-0	01	1	9905-	●	●
172	HOSE; FLEX,CLU BOOSTER 10PE1S(60L),10PE1N(61L),10PE1H(68L) L=400	1-09364-263-0	01	1	9905-	●	●
190	PIPE; AIR,UNION TO MINIPAC	1-49115-023-0	01	1	9603-9608	●
190	PIPE; AIR,UNION TO MINIPAC	1-49161-065-0	01	1	9609-9904	●
190	PIPE; AIR,UNION TO MINIPAC	1-49119-465-1	01	1	9905-	●	●
191	PIPE; OIL,UNION TO MINIPAC	1-47429-328-0	01	1	9603-9606	●
191	PIPE; OIL,UNION TO MINIPAC	1-47429-927-0	01	1	9607-9904	●
191	PIPE; OIL,UNION TO MINIPAC	1-49163-427-0	01	1	9905-	●	●
206	CLIP; TUBE (A) ID=16 H=30 L=30	1-09701-080-0	01	1	9705-9901	●
206	CLIP; TUBE (A) ID=18 L=28 H=30	1-09701-110-0	01	1	9902-	●
206	CLIP; TUBE (B) ID=13 & 12	8-94178-797-0	01	1	9705-	●
206	CLIP; TUBE L TYPE ENG<90L> (A) ID=13-18 L=14.5	1-09709-290-0	01	1	0008-	●	●
207	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	01	1	9705-	●

27 24 36 58 57 185 147 67 58 67 186 66 24 103 22 50 167 187 153 192 50 56 102 133 153 17 180 184 10 175 1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,CLU CONT CAB UP +110MM<TGG> L=520	1-09364-948-1	01	1	9905-	●	●
1	HOSE; FLEX,CLU CONT L=430	1-09364-859-0	01	1	9603-9904	●	●
1	HOSE; FLEX,CLU CONT EXC. CAB UP +110MM<TGG> L=430	1-09364-859-1	01	1	9905-	●	●
10	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9603-	●	●
17	BOLT; BRKT M8X20 W/LK&PL WASHER	8-94279-216-0	02	1	9603-	●	●
22	UNION; CLU PIPE (A) M14	9-09225-208-1	01	1	9710-	●	●
24	PIPE ASM; CLU,M/CYL TO UNION	1-47427-608-0	01	1	9603-9904	●
24	PIPE ASM; CLU,M/CYL TO UNION	1-47427-608-0	01	1	9905-	●
27	NUT; BRKT 6WA1 TC-S(56L) (C) M8	9-09110-508-0	01	1	9603-9606	●
27	NUT; BRKT 6WA1 TC-S(56L) (C) M8 FLANGE	0-91150-108-0	01	1	9607-9904	●
27	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	9603-	●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9603-	●	●
27	NUT; BRKT (C) M8	9-09110-508-0	02	1	9603-9606	●	●
27	NUT; BRKT (C) M8 FLANGE	0-91150-108-0	02	1	9607-	●	●
36	BRACKET; CLIP	1-71117-191-1	01	1	9603-	●	●
50	NUT; UNION (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9603-	●	●
50	NUT; UNION (C) M14	9-99111-414-0	01	1	9603-	●	●
50	NUT; UNION (D) M10 H=8	1-09400-029-0	01	1	9603-9606	●
50	NUT; UNION (D) M12	9-09840-280-0	01	1	9607-9904	●
50	NUT; UNION (D) M12	9-09840-280-0	01	1	9905-	●	●
50	NUT; UNION (E) M12	9-99111-412-0	01	1	9603-9904	●
50	NUT; UNION (E) M12 FLANGE	0-91150-212-0	01	1	9905-9905	●
50	NUT; UNION L TYPE ENG<90L> (E) M12 FLANGE	0-91150-212-0	01	1	9906-	●	●
56	BRACKET; FLEX HOSE	1-47477-602-1	01	1	9603-9912	●	●
56	BRACKET; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47477-602-1	01	1	0001-	●	●
56	BRACKET; FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47478-840-0	01	1	0001-	●	●
57	HOSE; CLU M/CYL TO OIL TANK	1-47424-533-0	01	1	9603-	●	●
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	9603-	●	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	9603-	●	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	9603-	●	●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9710-	●	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9710-	●	●
133	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	9603-	●	●
133	WASHER; LK,UNION ID=20.2	9-09150-520-0	01	1	9603-9810	●
147	NUT; CLIP FIX M8 FLANGE	8-94279-517-0	01	1	9603-9611	●	●
147	NUT; CLIP FIX M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	9612-	●	●
147	NUT; CLIP FIX M8 FLANGE	0-91150-208-0	01	1	9705-	●
153	PIPE ASM; CLU,UNION TO FLEX (B) L=464	1-47424-530-2	01	1	9603-	●	●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=892 SERVICED BY L=900	1-47426-384-0	01	1	9603-9701	●
153	PIPE ASM; CLU,UNION TO FLEX 10PE1S(60L) (A) L=892 SERVICED BY L=900	1-47426-384-0	01	1	9702-9904	●
153	PIPE ASM; CLU,UNION TO FLEX 10PE1S(60L),10PE1N(61L),10PE1H(68L) (A) L=892 SERVICED BY L=900	1-47426-384-0	01	1	9905-9905	●	●
153	PIPE ASM; CLU,UNION TO FLEX 10PE1S(60L),10PE1N(61L),10PE1H(68L) (A) L=897	1-49164-397-0	01	1	9905-9907	●	●
153	PIPE ASM; CLU,UNION TO FLEX 10PE1S(60L),10PE1N(61L),10PE1H(68L) (A) L=1453 SERVICED BY L=1550	1-47426-390-0	01	1	9908-	●	●
153	PIPE ASM; CLU,UNION TO FLEX L TYPE ENG<90L> (A) L=955	1-49163-430-0	01	1	9905-	●	●
167	BRACKET; UNION	1-71117-183-3	01	1	9603-	●	●
175	WASER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9603-	●	●
180	PLUG; PIPE	9-09204-510-0	01	1	9603-	●	●
184	UNION; FLEX HOSE 3WAY	1-09656-679-0	01	1	9603-	●	●
185	CLIP; BRKT ID=9 L=20	9-09545-108-0	01	1	9603-	●	●
186	HOLDER; CLIP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-94107-710-0	02	1	9603-0011	●	●
186	HOLDER; CLIP DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-94107-710-0	02	1	0012-	●	●
187	SEAL; BRKT	1-71117-222-0	01	1	9603-	●	●
192	PLATE	1-71117-221-0	01	1	9603-	●	●

33 33 30 30 35 32 33 34 31 32 50 43 42 111 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
30	BOLT; BRKT M8X30 FLANGE	0-28080-830-0	02	1	9603-9606	●	●
30	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	02	1	9607-	●	●
30	BOLT; BRKT L TYPE ENG<90L> M8X30 FLANGE	0-28680-830-0	01	1	9905-	●	●
31	NUT; BRKT L TYPE ENG<90L> M8 FLANGE	0-91150-108-0	01	1	9905-	●	●
32	BRACKET; CLIP OIL PIPE (A)	1-47475-303-1	01	1	9603-9904	●
32	BRACKET; CLIP OIL PIPE L TYPE ENG<90L> (C) L=50	1-47475-299-2	01	1	9905-	●	●
32	BRACKET; CLIP OIL PIPE L TYPE ENG<90L> (B)	1-47475-881-0	01	1	9905-	●	●
33	CLIP; OIL PIPE 6WA1 TC-S(56L),10PE1S(60L) (A) ID=8 H=20 L=20	1-09700-604-0	02	1	9603-9706	●
33	CLIP; OIL PIPE V TYPE ENG<91L> (A) ID=8 H=20 L=20	1-09700-604-0	02	1	9707-9904	●
33	CLIP; OIL PIPE V TYPE ENG<91L> (A) ID=8 H=20 L=20	1-09700-604-0	02	1	9905-	●	●
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9603-9904	●	●
33	CLIP; OIL PIPE L TYPE ENG<90L> (B) ID=16 & 9 L=18 & 17	1-09700-669-0	01	1	9905-	●	●
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	03	1	9603-9904	●
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9905-	●	●
33	CLIP; OIL PIPE L TYPE ENG<90L> (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9905-	●	●
33	CLIP; OIL PIPE L TYPE ENG<90L> (B) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	9905-	●	●
34	BOLT; PIPE CLIP 6WA1 TC-S(56L),10PE1S(60L) M8X25 FLANGE	0-28080-825-0	02	1	9603-9606	●
34	BOLT; PIPE CLIP 6WA1 TC-S(56L),10PE1S(60L) M8X30 FLANGE	0-28680-830-0	02	1	9607-9706	●
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	02	1	9707-9904	●
34	BOLT; PIPE CLIP V TYPE ENG<91L> M8X30 FLANGE	0-28680-830-0	02	1	9905-	●	●
34	BOLT; PIPE CLIP M8X25 FLANGE	0-28080-825-0	01	1	9603-9606	●	●
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	01	1	9607-9904	●	●
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	01	1	9905-	●	●
34	BOLT; PIPE CLIP L TYPE ENG<90L> M8X30 FLANGE	0-28680-830-0	01	1	9905-	●	●
34	BOLT; PIPE CLIP M8X16 FLANGE	0-28080-816-0	01	1	9603-9606	●
34	BOLT; PIPE CLIP M8X20 FLANGE	0-28680-820-0	01	1	9607-9904	●
34	BOLT; PIPE CLIP L TYPE ENG<90L> M8X20 FLANGE	0-28680-820-0	02	1	9905-	●	●
35	NUT; PIPE CLIP 6WA1 TC-S(56L),10PE1S(60L) M8	9-09110-508-0	02	1	9603-9606	●
35	NUT; PIPE CLIP 6WA1 TC-S(56L),10PE1S(60L) M8 FLANGE	0-91150-108-0	02	1	9607-9706	●
35	NUT; PIPE CLIP V TYPE ENG<91L> M8 FLANGE	0-91150-108-0	02	1	9707-9904	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	02	1	9905-	●	●
35	NUT; PIPE CLIP M8	9-09110-508-0	01	1	9603-9606	●	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	01	1	9607-9904	●	●
35	NUT; PIPE CLIP M8	9-09110-508-0	03	1	9603-9606	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	03	1	9607-9904	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	01	1	9905-	●	●
35	NUT; PIPE CLIP L TYPE ENG<90L> M8 FLANGE	0-91150-108-0	01	1	9905-	●	●
42	BRACKET; FLEX HOSE,CLU CONT	1-47477-563-0	01	1	9603-0102	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER FRAME EQUIPMENT HEAVY DUTY<F03> M8X30 FLANGE	0-28080-830-0	02	1	9603-9606	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER FRAME EQUIPMENT HEAVY DUTY<F03> M8X35 FLANGE	0-28680-835-0	02	1	9607-9904	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER FRAME EQUIPMENT HEAVY DUTY<F03> M8X35 FLANGE	0-28680-835-0	02	1	9905-0102	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER FRAME EQUIPMENT HEAVY DUTY<F03> M8X35 FLANGE	0-28680-835-0	02	1	0103-	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M8X25 FLANGE	0-28080-825-0	02	1	9603-9606	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M8X30 FLANGE	0-28680-830-0	02	1	9607-9904	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M8X30 FLANGE	0-28680-830-0	02	1	9905-0102	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M8X30 FLANGE	0-28680-830-0	02	1	0103-	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8	9-09110-508-0	02	1	9603-9606	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	9607-9904	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	9905-0102	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	0103-	●	●
50	NUT; UNION (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9603-	●	●
50	NUT; UNION (C) M14	9-99111-414-0	01	1	9603-	●	●
50	NUT; UNION (D) M10 H=8	1-09400-029-0	01	1	9603-9606	●
50	NUT; UNION (D) M12	9-09840-280-0	01	1	9607-9904	●
50	NUT; UNION (D) M12	9-09840-280-0	01	1	9905-	●	●
50	NUT; UNION (E) M12	9-99111-412-0	01	1	9603-9904	●
50	NUT; UNION (E) M12 FLANGE	0-91150-212-0	01	1	9905-9905	●
50	NUT; UNION L TYPE ENG<90L> (E) M12 FLANGE	0-91150-212-0	01	1	9906-	●	●
111	UNION; OIL PIPE (A) M14 2WAY	1-09654-176-2	01	1	9603-9904	●
111	UNION; OIL PIPE (A) M14 2WAY	1-09654-176-2	01	1	9905-9905	●
111	UNION; OIL PIPE L TYPE ENG<90L> (A) M14 2WAY	1-09654-176-2	01	1	9906-	●	●
111	UNION; OIL PIPE (B) M8 & M10 STRAIGHT	1-09654-369-0	01	1	9603-9606	●
111	UNION; OIL PIPE (B) M8 & M12 STRAIGHT	1-09654-383-0	01	1	9607-9904	●
111	UNION; OIL PIPE (B) M8 & M12 STRAIGHT	1-09654-383-0	01	1	9905-	●	●
111	UNION; OIL PIPE V TYPE ENG<91L> (A) M14 STRAIGHT	9-09223-008-1	01	1	9908-	●	●

153 109 104 28 29 30 28 30 25 25 26 26 28 27 106

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
25	BRACKET; OIL PIPE 6WA1 TC-S(56L) (B)	1-47477-597-2	01	1	9603-9904	●
25	BRACKET; OIL PIPE (A)	1-47477-604-2	01	1	9603-	●	●
25	BRACKET; OIL PIPE (D)	1-47477-498-1	01	1	9603-9904	●
25	BRACKET; OIL PIPE (D)	1-47477-498-1	01	1	9905-	●	●
25	BRACKET; OIL PIPE (C)	1-47477-499-1	01	1	9603-9904	●
25	BRACKET; OIL PIPE (C)	1-47477-499-1	01	1	9905-	●	●
25	BRACKET; OIL PIPE (E)	1-47478-406-0	01	1	9905-	●	●
25	BRACKET; OIL PIPE L TYPE ENG<90L> (F) L=50	1-47475-299-2	02	1	9905-9905	●	●
25	BRACKET; OIL PIPE L TYPE ENG<90L> (F) L=50	1-47475-299-2	03	1	9905-	●	●
25	BRACKET; OIL PIPE V TYPE ENG<91L> (F) L=50	1-47475-299-2	01	1	9906-	●	●
26	NUT; CLIP,OIL PIPE 10PE1S(60L),10PE1N(61L),10PE1H(68L) M8 FLANGE	0-91150-108-0	01	1	9906-0002	●	●
26	NUT; CLIP,OIL PIPE L TYPE ENG<90L> M8 FLANGE	0-91150-108-0	04	1	0003-	●	●
26	NUT; CLIP,OIL PIPE 6WA1 TC-S(56L) M8	9-09110-508-0	02	1	9606-9606	●
26	NUT; CLIP,OIL PIPE 6WA1 TC-S(56L) M8 FLANGE	0-91150-108-0	02	1	9607-9904	●
26	NUT; CLIP,OIL PIPE L TYPE ENG<90L> M8 FLANGE	0-91150-108-0	01	1	9905-9905	●	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	9905-0002	●	●
26	NUT; CLIP,OIL PIPE L TYPE ENG<90L> M8 FLANGE	0-91150-108-0	02	1	9905-0002	●	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	0003-	●	●
26	NUT; CLIP,OIL PIPE 10PE1S(60L) M8	9-09110-508-0	01	1	9603-9605	●
26	NUT; CLIP,OIL PIPE 10PE1S(60L) M8	9-09110-508-0	01	1	9606-9606	●
26	NUT; CLIP,OIL PIPE 10PE1S(60L) M8 FLANGE	0-91150-108-0	01	1	9607-9709	●
26	NUT; CLIP,OIL PIPE 10PE1S(60L) M8 FLANGE	0-91150-108-0	01	1	9710-9904	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	9905-9905	●	●
27	NUT; BRKT 6WA1 TC-S(56L) (C) M8	9-09110-508-0	01	1	9603-9606	●
27	NUT; BRKT 6WA1 TC-S(56L) (C) M8 FLANGE	0-91150-108-0	01	1	9607-9904	●
27	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	9603-	●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9603-	●	●
27	NUT; BRKT (C) M8	9-09110-508-0	02	1	9603-9606	●	●
27	NUT; BRKT (C) M8 FLANGE	0-91150-108-0	02	1	9607-	●	●
28	CLIP; OIL PIPE 6WA1 TC-S(56L) (B) ID=9	9-09524-845-0	01	1	9603-9904	●
28	CLIP; OIL PIPE (B) ID=9	9-09524-845-0	01	1	9906-0002	●	●
28	CLIP; OIL PIPE (B) ID=9 L=20	9-09524-835-0	01	1	0003-	●
28	CLIP; OIL PIPE 10PE1S(60L) (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9603-9709	●
28	CLIP; OIL PIPE 10PE1S(60L) (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9710-9905	●
28	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	02	1	9603-0002	●	●
28	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	01	1	0003-	●
28	CLIP; OIL PIPE L TYPE ENG<90L> (C) ID=16 & 9 L=21 & 18	1-09700-676-0	02	1	9905-9905	●	●
28	CLIP; OIL PIPE L TYPE ENG<90L> (C) ID=16 & 9 L=21 & 18	1-09700-676-0	03	1	9905-	●	●
28	CLIP; OIL PIPE V TYPE ENG<91L> (C) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	9906-	●	●
29	BOLT; CLIP,OIL PIPE 10PE1S(60L) M8X25 FLANGE	0-28080-825-0	01	1	9603-9606	●
29	BOLT; CLIP,OIL PIPE 10PE1S(60L) M8X30 FLANGE	0-28680-830-0	01	1	9607-9709	●
29	BOLT; CLIP,OIL PIPE 10PE1S(60L) M8X30 FLANGE	0-28680-830-0	01	1	9710-9905	●
29	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28080-820-0	02	1	9603-9606	●	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	02	1	9607-9904	●	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	03	1	9905-0002	●	●
29	BOLT; CLIP,OIL PIPE L TYPE ENG<90L> M8X25 FLANGE	0-28680-825-0	01	1	0003-	●	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	02	1	0003-	●	●
29	BOLT; CLIP,OIL PIPE M8X16 FLANGE	0-28080-816-0	04	1	9603-9904	●
29	BOLT; CLIP,OIL PIPE M8X16 FLANGE	0-28080-816-0	05	1	9905-	●	●
29	BOLT; CLIP,OIL PIPE M8X40 FLANGE	0-28680-840-0	01	1	9603-9904	●
29	BOLT; CLIP,OIL PIPE L TYPE ENG<90L> M8X20 FLANGE	0-28680-820-0	03	1	0003-	●	●
29	BOLT; CLIP,OIL PIPE V TYPE ENG<91L> M8X20 FLANGE	0-28680-820-0	01	1	0003-	●	●
30	BOLT; BRKT M8X30 FLANGE	0-28080-830-0	02	1	9603-9606	●	●
30	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	02	1	9607-	●	●
30	BOLT; BRKT L TYPE ENG<90L> M8X30 FLANGE	0-28680-830-0	01	1	9905-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 6WA1 TC-S(56L) L=1521 SERVICED BY L=1550	1-47426-390-0	01	1	9603-9702	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 6WA1 TC-S(56L) L=1539 SERVICED BY L=1550	1-47426-390-0	01	1	9703-9711	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 6WA1 TC-S(56L) L=1536 SERVICED BY L=1550	1-47426-390-0	01	1	9712-9904	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L TYPE ENG<90L> L=2897 SERVICED BY L=3000	1-47426-397-0	01	1	9905-9905	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L TYPE ENG<90L> L=2889	1-49164-483-0	01	1	9905-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 10PE1S(60L) L=1543 SERVICED BY L=1550	1-47426-390-0	01	1	9603-9904	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 10PE1S(60L),10PE1N(61L),10PE1H(68L) L=1543 SERVICED BY L=1550	1-47426-390-0	01	1	9905-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 8PE1S(59L) L=1540 SERVICED BY L=1550	1-47426-390-0	01	1	9603-9904	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L TYPE ENG<90L> L=2889	1-49164-483-0	01	1	9905-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR V TYPE ENG<91L> L=2495	1-49163-209-0	01	1	9906-	●	●
106	UNION; OIL PIPE (A) M14 STRAIGHT	9-09223-008-1	01	1	9603-9706	●
106	UNION; OIL PIPE (A) M14 STRAIGHT	9-09223-008-1	01	1	9603-9706	●
106	UNION; OIL PIPE (A) M14 STRAIGHT	9-09223-008-1	01	1	9707-9904	●
106	UNION; OIL PIPE (A) M14 STRAIGHT	9-09223-008-1	01	1	9707-9904	●
106	UNION; OIL PIPE (A) M14 STRAIGHT	9-09223-008-1	01	1	9905-9905	●	●
106	UNION; OIL PIPE V TYPE ENG<91L> (A) M14 STRAIGHT	9-09223-008-1	01	1	9906-	●	●
106	UNION; OIL PIPE (A) M14 STRAIGHT	9-09223-008-1	01	1	9906-	●	●
106	UNION; OIL PIPE (B)	1-09654-368-0	01	1	9603-9606	●
106	UNION; OIL PIPE (B)	1-09654-384-0	01	1	9607-9904	●
106	UNION; OIL PIPE (B)	1-09654-384-0	01	1	9905-	●	●
109	PIPE; AIR,UNION TO UNION L=1380 SERVICED BY L=1400	1-47426-389-0	01	1	9603-9904	●
109	PIPE; AIR,UNION TO UNION L=1117	1-49163-208-0	01	1	9905-9905	●
109	PIPE; AIR,UNION TO UNION L TYPE ENG<90L> L=1106 SERVICED BY L=1100	1-47426-387-0	01	1	9906-	●	●
109	PIPE; AIR,UNION TO UNION V TYPE ENG<91L> L=942 SERVICED BY L=1000	1-47426-386-0	01	1	9906-	●	●
153	PIPE ASM; CLU,UNION TO FLEX (B) L=464	1-47424-530-2	01	1	9603-	●	●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=892 SERVICED BY L=900	1-47426-384-0	01	1	9603-9701	●
153	PIPE ASM; CLU,UNION TO FLEX 10PE1S(60L) (A) L=892 SERVICED BY L=900	1-47426-384-0	01	1	9702-9904	●
153	PIPE ASM; CLU,UNION TO FLEX 10PE1S(60L),10PE1N(61L),10PE1H(68L) (A) L=892 SERVICED BY L=900	1-47426-384-0	01	1	9905-9905	●	●
153	PIPE ASM; CLU,UNION TO FLEX 10PE1S(60L),10PE1N(61L),10PE1H(68L) (A) L=897	1-49164-397-0	01	1	9905-9907	●	●
153	PIPE ASM; CLU,UNION TO FLEX 10PE1S(60L),10PE1N(61L),10PE1H(68L) (A) L=1453 SERVICED BY L=1550	1-47426-390-0	01	1	9908-	●	●
153	PIPE ASM; CLU,UNION TO FLEX L TYPE ENG<90L> (A) L=955	1-49163-430-0	01	1	9905-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
