3-75 — BRAKE PIPING; AIR,FRONT (#43139) — 86 parça

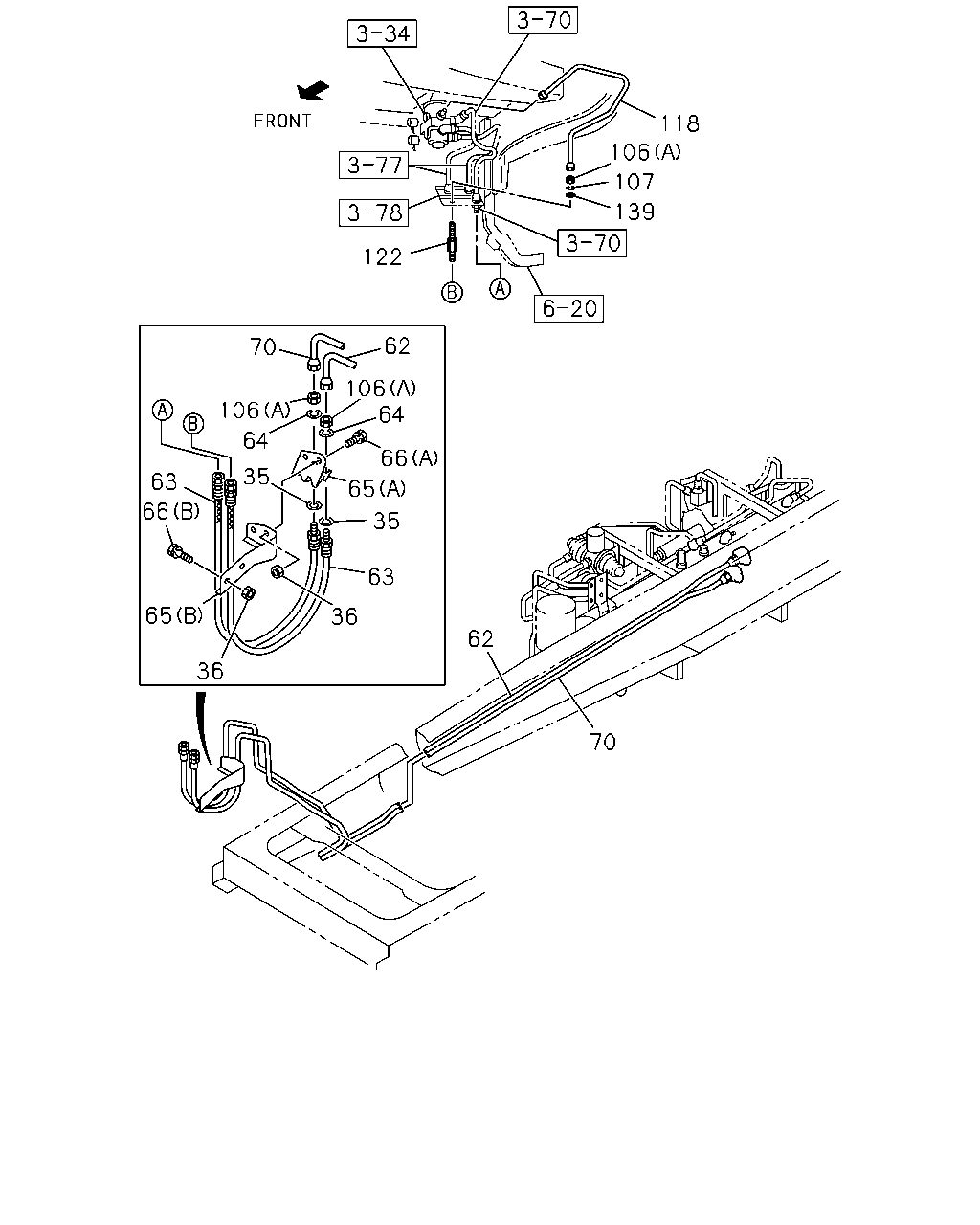

çizim 97584
118 106 107 139 122 62 70 106 64 106 64 66 35 63 65 66 35 63 65 36 62 36 70
BalonParca AdiParca NoAdetTipApplied Date
35 GASKET; FLEX HOSE
ID=11 OD=18 		9-09572-510-0 02 1 0008-0209
36 NUT; HOSE BRKT
M8 FLANGE 		0-91150-108-0 02 1 0008-0010
36 NUT; HOSE BRKT
M8 FLANGE 		0-91150-108-0 02 1 0011-0310
36 NUT; HOSE BRKT
DIFF LOCK<C3N> M8 FLANGE 		0-91150-108-0 02 1 0011-0310
36 NUT; HOSE BRKT
M8 FLANGE 		0-91150-108-0 02 1 0311-0602
36 NUT; HOSE BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603-
36 NUT; HOSE BRKT
M10 FLANGE 		0-91150-210-0 02 1 0008-0010
62 PIPE; AIR,UNION TO FLEX HOSE
L=2677 SERVICED BY L=2900 		1-47426-425-0 01 1 0008-
63 HOSE; FLEX,BRK LINE,CAB SIDE
L=710 		0-07474-710-1 02 1 0008-0209
63 HOSE; FLEX,BRK LINE,CAB SIDE
L=700 		1-09363-604-1 02 1 0210-
64 WASHER; LK,FLEX HOSE
ID=16.2 		9-09150-516-0 02 1 0008-0603
64 WASHER; LK,FLEX HOSE
ID=16.2 		0-91510-516-0 02 1 0604-
65 BRACKET; FLEX HOSE
(A) 		1-47476-761-1 01 1 0008-
65 BRACKET; FLEX HOSE
(B) 		1-47476-762-0 01 1 0008-
66 BOLT; HOSE BRKT
(B) M10X16 FLANGE 		0-28181-016-0 02 1 0008-0512
66 BOLT; HOSE BRKT
(B) M10X16 FLANGE 		0-28151-016-0 02 1 0601-
66 BOLT; HOSE BRKT
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0008-0512
66 BOLT; HOSE BRKT
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0601-
66 BOLT; HOSE BRKT
DIFF LOCK<C3N> (C) M8X25 FLANGE 		0-28680-825-0 02 1 0008-0512
66 BOLT; HOSE BRKT
DIFF LOCK<C3N> (C) M8X25 FLANGE 		0-28650-825-0 02 1 0601-
70 PIPE; AIR,FLEX HOSE TO UNION
L=2883 SERVICED BY L=2900 		1-47426-425-0 01 1 0008-
106 NUT; FLEX HOSE
(A) M16 		9-99111-416-0 02 1 0008-0512
106 NUT; FLEX HOSE
(A) M16 		9-99111-416-0 02 1 0008-0512
106 NUT; FLEX HOSE
(A) M16 		0-91111-516-0 02 1 0601-
106 NUT; FLEX HOSE
(A) M16 		0-91111-516-0 02 1 0601-
106 NUT; FLEX HOSE
DIFF LOCK<C3N> (B) M12 		9-09840-280-0 01 1 0008-
107 WASHER; LK,FLEX HOSE
ID=16.2 		9-09150-516-0 02 1 0008-0603
107 WASHER; LK,FLEX HOSE
ID=16.2 		0-91510-516-0 02 1 0604-
118 PIPE; AIR,BRK VLV TO FLEX HOSE
L=419 		1-49115-942-3 01 1 0008-
122 CONNECTOR; FLEX HOSE 1-09654-324-0 01 1 0008-0209
122 CONNECTOR; FLEX HOSE
M16 STRAIGHT 		1-09654-380-0 01 1 0210-
139 WASHER; PL,CONNECTOR
ID=17 		9-09160-516-0 01 1 0008-0605
139 WASHER; PL,CONNECTOR
ID=17 OD=30 		0-91610-516-0 01 1 0606-

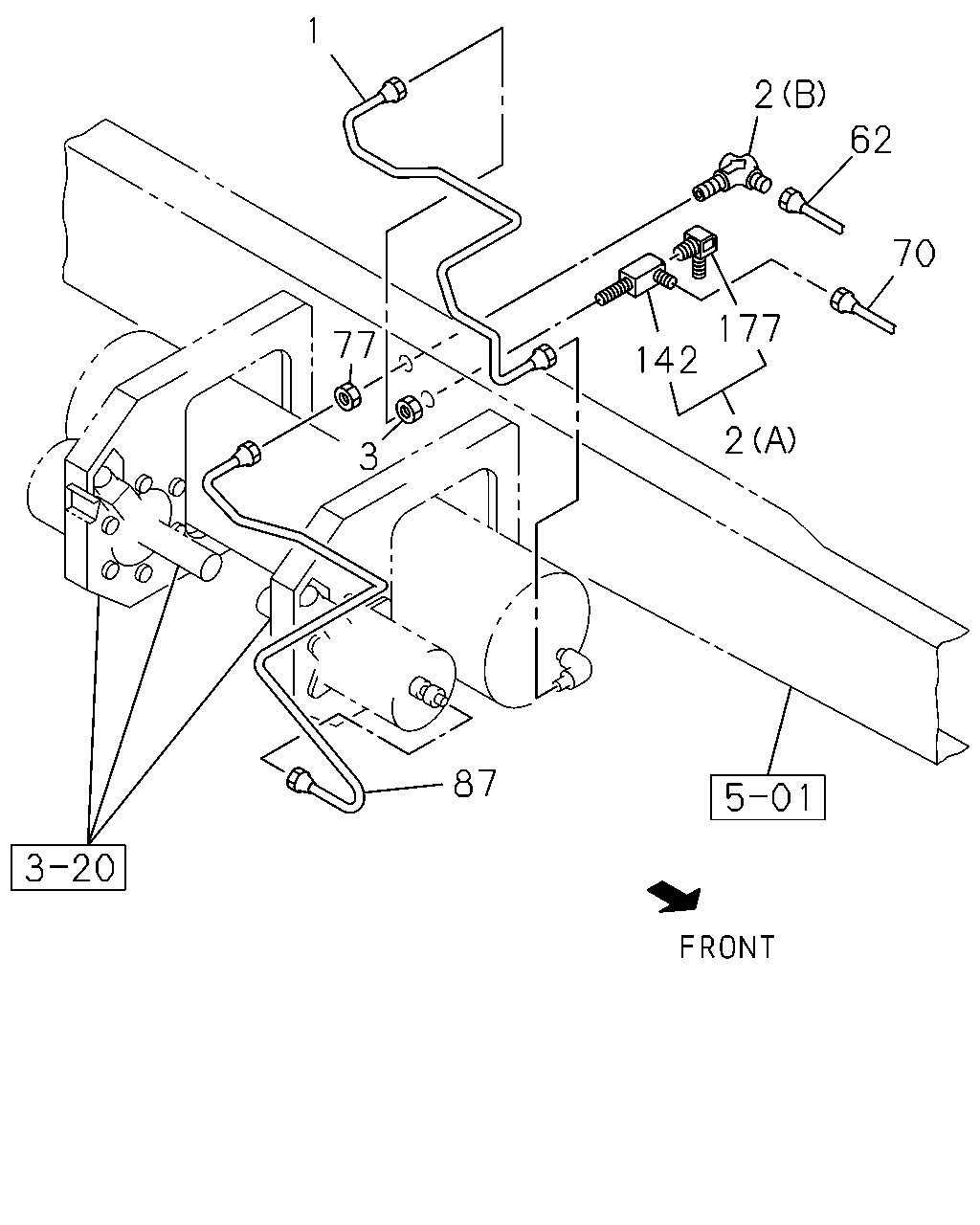

çizim 97594
1 2 62 70 177 77 142 2 3 87
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; AIR,AIR TANK TO UNION 1-49119-044-0 01 1 0008-
2 UNION; AIR PIPE
(B) M16 ELBOW 		9-09235-210-1 01 1 0008-0607
2 UNION; AIR PIPE
EXC. TRAILER BRAKE CONTROL<J91> (B) M16 ELBOW 		9-09235-210-1 01 1 0008-0607
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 01 1 0608-
2 UNION; AIR PIPE
EXC. TRAILER BRAKE CONTROL<J91> (B) M16 ELBOW 		0-92135-210-0 01 1 0608-
2 UNION; AIR PIPE
TRAILER BRAKE CONTROL<J91> (A) 		1-09654-377-0 01 1 0008-
3 NUT; PIPE UNION
M16 		9-99111-416-0 01 1 0008-0512
3 NUT; PIPE UNION
M16 		0-91111-516-0 01 1 0601-
62 PIPE; AIR,UNION TO FLEX HOSE
L=2677 SERVICED BY L=2900 		1-47426-425-0 01 1 0008-
70 PIPE; AIR,FLEX HOSE TO UNION
L=2883 SERVICED BY L=2900 		1-47426-425-0 01 1 0008-
77 NUT; PIPE UNION
M16 		9-99111-416-0 01 1 0008-0512
77 NUT; PIPE UNION
M16 		0-91111-516-0 01 1 0601-
87 PIPE; AIR,UNION TO AIR MASTER 1-49117-730-0 01 1 0008-
142 UNION; 3-WAY
TRAILER BRAKE CONTROL<J91> 		1-09656-561-1 01 1 0008-
177 CONNECTOR
TRAILER BRAKE CONTROL<J91> M16 & PT1/4 ELBOW 		1-09650-434-0 01 1 0008-0607
177 CONNECTOR
TRAILER BRAKE CONTROL<J91> M16 & PT1/4 ELBOW 		0-92134-310-0 01 1 0608-

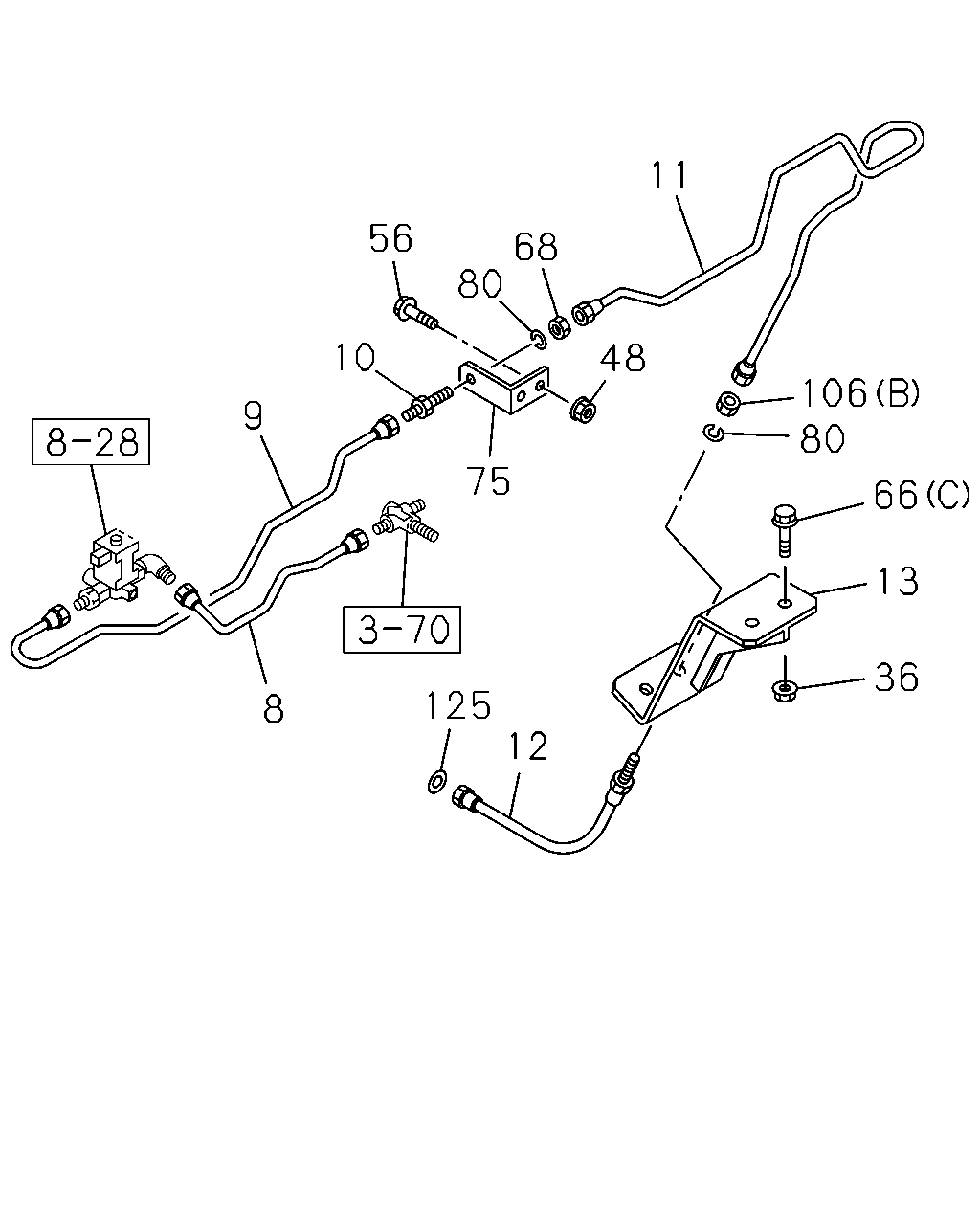

çizim 97739
11 56 68 80 10 48 106 80 9 75 66 13 36 125 8 12
BalonParca AdiParca NoAdetTipApplied Date
8 PIPE; AIR,UNION TO MAG VLV
DIFF LOCK<C3N> 		1-49117-832-0 01 1 0008-0310
8 PIPE; AIR,UNION TO MAG VLV
DIFF LOCK<C3N> L=301 		1-49124-313-0 01 1 0311-
9 PIPE; AIR,MAG VLV TO UNION
DIFF LOCK<C3N> 		1-49122-037-0 01 1 0008-0205
9 PIPE; AIR,MAG VLV TO UNION
DIFF LOCK<C3N> 		1-49123-599-0 01 1 0206-
10 UNION; AIR PIPE
DIFF LOCK<C3N> M12 L=40 		9-09223-006-1 01 1 0008-0010
10 UNION; AIR PIPE
DIFF LOCK<C3N> M12 L=56.5 		9-09223-106-1 01 1 0011-0607
10 UNION; AIR PIPE
DIFF LOCK<C3N> M12 L=56.5 		0-92113-106-0 01 1 0608-
11 PIPE; AIR,UNION TO FLEX HOSE,DIFF LOCK
DIFF LOCK<C3N> L=1152 SERVICED BY L=1200 		1-47426-352-0 01 1 0008-0310
11 PIPE; AIR,UNION TO FLEX HOSE,DIFF LOCK
DIFF LOCK<C3N> L=1141 SERVICED BY L=1200 		1-47428-816-0 01 1 0311-
12 HOSE; FLEX,DIFF LOCK
DIFF LOCK<C3N> 		0-07120-470-0 01 1 0008-
13 BRACKET; FLEX HOSE,DIFF LOCK
DIFF LOCK<C3N> 		1-47477-897-0 01 1 0008-
36 NUT; HOSE BRKT
M8 FLANGE 		0-91150-108-0 02 1 0008-0010
36 NUT; HOSE BRKT
M8 FLANGE 		0-91150-108-0 02 1 0011-0310
36 NUT; HOSE BRKT
DIFF LOCK<C3N> M8 FLANGE 		0-91150-108-0 02 1 0011-0310
36 NUT; HOSE BRKT
M8 FLANGE 		0-91150-108-0 02 1 0311-0602
36 NUT; HOSE BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603-
36 NUT; HOSE BRKT
M10 FLANGE 		0-91150-210-0 02 1 0008-0010
48 NUT; UNION BRKT
DIFF LOCK<C3N> M8 FLANGE 		0-91150-108-0 02 1 0008-0602
48 NUT; UNION BRKT
DIFF LOCK<C3N> M8 FLANGE 		0-91180-108-0 02 1 0603-
56 BOLT; UNION BRKT
DIFF LOCK<C3N> M8X20 FLANGE 		0-28680-820-0 02 1 0008-0512
56 BOLT; UNION BRKT
DIFF LOCK<C3N> M8X20 FLANGE 		0-28650-820-0 02 1 0601-
66 BOLT; HOSE BRKT
(B) M10X16 FLANGE 		0-28181-016-0 02 1 0008-0512
66 BOLT; HOSE BRKT
(B) M10X16 FLANGE 		0-28151-016-0 02 1 0601-
66 BOLT; HOSE BRKT
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0008-0512
66 BOLT; HOSE BRKT
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0601-
66 BOLT; HOSE BRKT
DIFF LOCK<C3N> (C) M8X25 FLANGE 		0-28680-825-0 02 1 0008-0512
66 BOLT; HOSE BRKT
DIFF LOCK<C3N> (C) M8X25 FLANGE 		0-28650-825-0 02 1 0601-
68 NUT; UNION
DIFF LOCK<C3N> M12 		9-09840-280-0 01 1 0008-
75 BRACKET; UNION
DIFF LOCK<C3N> 		1-47478-018-0 01 1 0008-
80 WASHER; LK,UNION
DIFF LOCK<C3N> ID=12.2 		9-09150-512-0 02 1 0008-0603
80 WASHER; LK,UNION
DIFF LOCK<C3N> ID=12.2 		0-91510-512-0 02 1 0604-
106 NUT; FLEX HOSE
(A) M16 		9-99111-416-0 02 1 0008-0512
106 NUT; FLEX HOSE
(A) M16 		9-99111-416-0 02 1 0008-0512
106 NUT; FLEX HOSE
(A) M16 		0-91111-516-0 02 1 0601-
106 NUT; FLEX HOSE
(A) M16 		0-91111-516-0 02 1 0601-
106 NUT; FLEX HOSE
DIFF LOCK<C3N> (B) M12 		9-09840-280-0 01 1 0008-
125 GASKET; FLEX HOSE
DIFF LOCK<C3N> ID=11 OD=18 		9-09572-510-0 01 1 0008-
