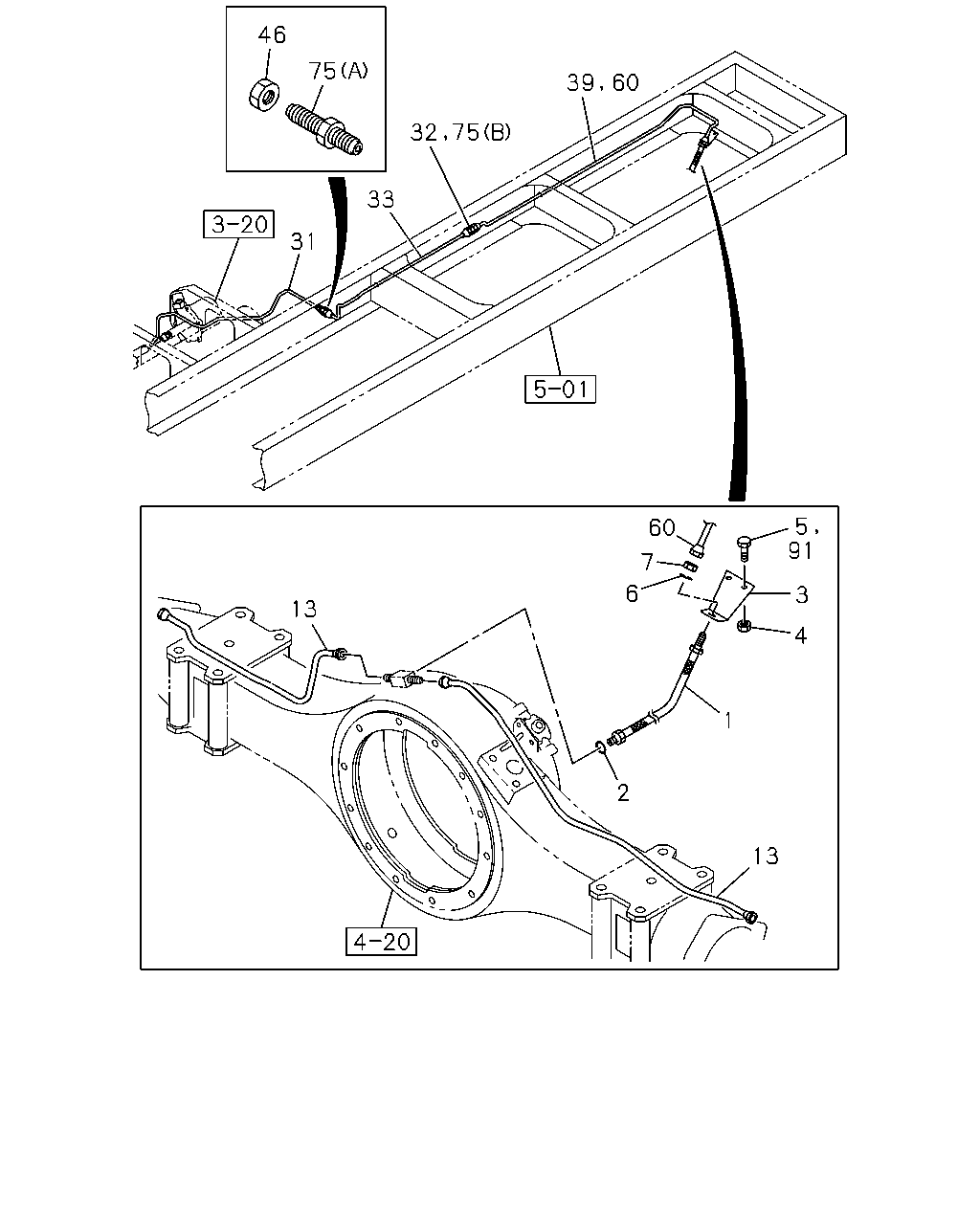

3-55 — BRAKE PIPING; OIL,REAR (#43136) — 26 parça

46 75 33 31 5 91 60 7 6 3 13 4 1 2 13 39 60 32 75

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,RR BRK L=650	0-05312-650-0	01	1	0008-
2	GASKET; FLEX HOSE,RR BRK ID=9 OD=17	9-09920-472-0	01	1	0008-
3	BRACKET; FLEX HOSE,RR BRK	1-47475-675-1	01	1	0008-
4	NUT; BRKT,FLEX HOSE,RR BRK M8 FLANGE	0-91150-108-0	02	1	0008-0602
4	NUT; BRKT,FLEX HOSE,RR BRK M8 FLANGE	0-91180-108-0	02	1	0603-
5	BOLT; BRKT,FLEX HOSE,RR BRK M8X25 FLANGE	0-28680-825-0	02	1	0008-0112
6	WASHER; LK,FLEX HOSE ID=12.2	9-09150-512-0	01	1	0008-0603
6	WASHER; LK,FLEX HOSE ID=12.2	0-91510-512-0	01	1	0604-
7	NUT; FLEX HOSE M12	9-09840-280-0	01	1	0008-
13	PIPE; BRK,RR AXLE	1-47429-630-0	01	1	0008-
13	PIPE; BRK,RR AXLE	1-47429-631-0	01	1	0008-
31	PIPE; OIL,AIR MASTER TO UNION L=889	1-47429-269-0	01	1	0008-0012
31	PIPE; OIL,AIR MASTER TO UNION	1-49166-020-0	01	1	0101-
32	UNION; OIL PIPE M12 L=40	9-09223-006-1	01	1	0008-0112
33	PIPE; OIL,UNION TO UNION L=1217 SERVICED BY L=1250	1-47426-353-0	01	1	0008-0310
33	PIPE; OIL,UNION TO UNION L=1228 SERVICED BY L=1250	1-47426-353-0	01	1	0311-
39	PIPE; OIL,UNION TO RR FLEX HOSE	1-49164-617-0	01	1	0008-0112
46	NUT; UNION,OIL PIPE M12	9-09840-280-0	01	1	0008-
60	PIPE ASM; BRK	1-49164-617-0	01	1	0201-0310
60	PIPE ASM; BRK L=832	1-49167-152-0	01	1	0311-
75	UNION; OIL PIPE (A) M12 L=66.5	9-09223-306-1	01	1	0008-0607
75	UNION; OIL PIPE (A) M12 L=66.5	0-92113-306-0	01	1	0608-
75	UNION; OIL PIPE (B) M12 L=40	9-09223-006-1	01	1	0201-0607
75	UNION; OIL PIPE (B) M12 L=40	0-92113-006-0	01	1	0608-
91	BOLT; BRK M8X25 FLANGE	0-28680-825-0	02	1	0201-0512
91	BOLT; BRK M8X25 FLANGE	0-28650-825-0	02	1	0601-
