3-33 — AIR MASTER (#43133) — 112 parça

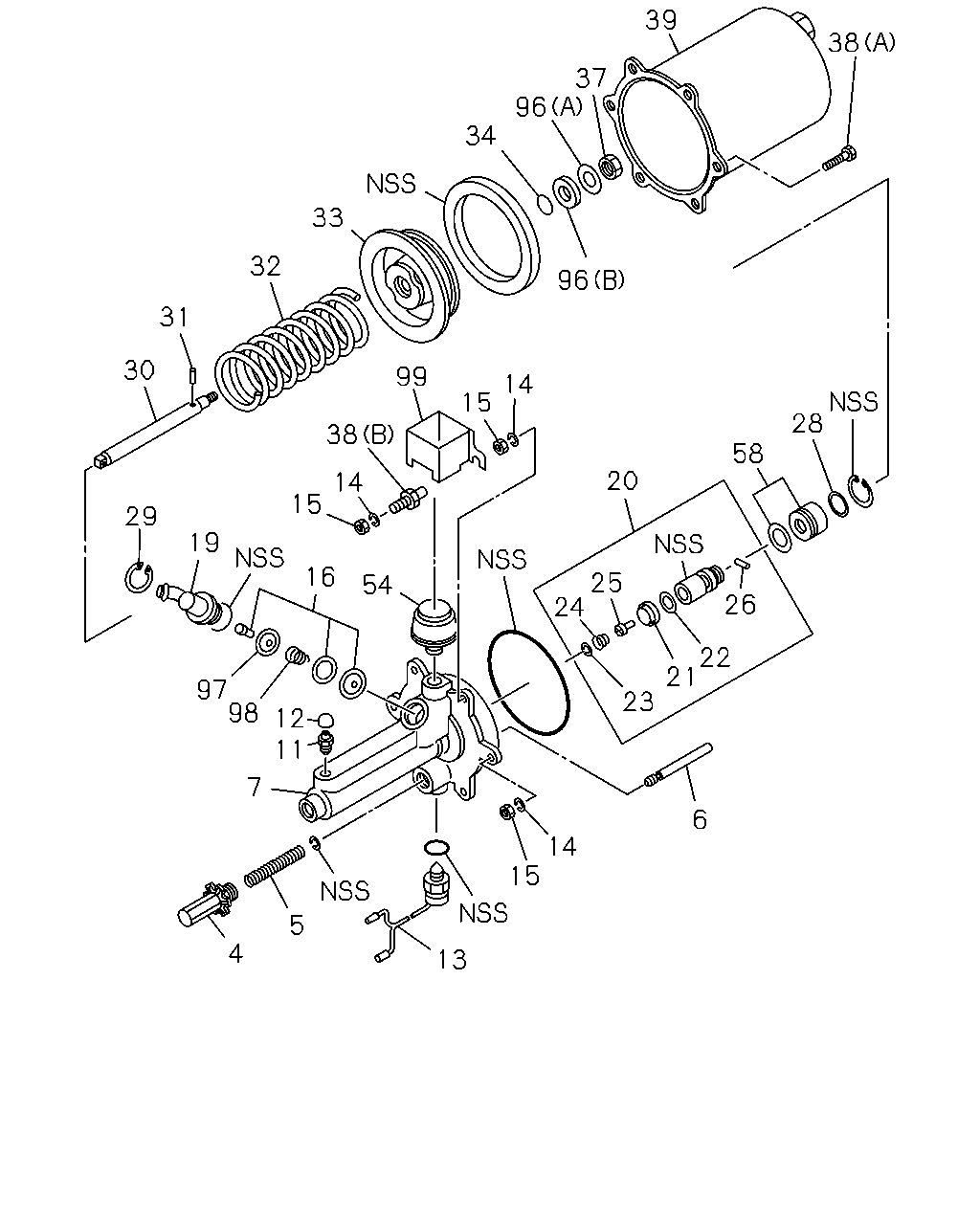

39 38 37 96 34 33 32 96 31 30 99 14 28 15 38 58 20 14 15 29 19 16 25 24 54 26 22 21 97 98 23 12 11 7 6 14 15 5 4 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	RETAINER; PUSH ROD,WARNING SW,AIR MAST ASM PART: A = 1-47800-467-0	1-47829-022-0	01	1	-
4	RETAINER; PUSH ROD,WARNING SW,AIR MAST ASM PART: B = 1-47800-500-2	1-47829-070-0	01	1	-
5	SPRING; PUSH ROD,WARNING SW,AIR MASTER ASM PART: A = 1-47800-467-0	1-47824-019-0	01	1	-
5	SPRING; PUSH ROD,WARNING SW,AIR MASTER ASM PART: B = 1-47800-500-2	1-47824-027-0	01	1	-
6	ROD; PUSH,WARNING SW,AIR MASTER ASM PART: A = 1-47800-467-0, B = 1-47800-500-2	1-47829-043-0	01	1	-
7	PLATE; END,AIR MASTER ASM PART: A = 1-47800-467-0	1-47841-052-0	01	1	-
7	PLATE; END,AIR MASTER ASM PART: B = 1-47800-500-2	1-47841-072-0	01	1	-
11	PLUG; CAP,AIR MASTER ASM PART: A = 1-47800-467-0, B = 1-47800-500-2	9-83331-704-0	01	1	-
12	PROTECTOR; CAP,AIR MASTER ASM PART: A = 1-47800-467-0, B = 1-47800-500-2	9-83335-044-0	01	1	-
13	SWITCH; WARNING,AIR MASTER ASM PART: A = 1-47800-467-0, B = 1-47800-500-2	1-47819-170-0	01	1	-
14	WASHER; END PLATE TO SHELL,AIR MASTER ID=8.2 ASM PART: A = 1-47800-467-0	9-09150-508-0	07	1	-
15	NUT; END PLATE TO SHELL,AIR MASTER ASM PART: B = 1-47800-500-2	1-47829-069-0	07	1	-
15	NUT; END PLATE TO SHELL,AIR MASTER ASM PART: A = 1-47800-467-0	9-83315-085-0	07	1	-
16	VALVE ASM ASM PART: A = 1-47800-467-0, B = 1-47800-500-2	1-47842-009-0	01	1	-
19	CONNECTOR; END PLATE,AIR MASTER ASM PART: B = 1-47800-500-2	1-47819-174-1	01	1	-
19	CONNECTOR; END PLATE,AIR MASTER ASM PART: A = 1-47800-467-0	1-47849-031-0	01	1	-
20	PISTON ASM; HYDRAULIC ASM PART: A = 1-47800-467-0, B = 1-47800-500-2	1-47821-019-0	01	1	-
21	GASKET; CUP ASM PART: A = 1-47800-467-0, B = 1-47800-500-2	1-47829-037-0	01	1	-
22	RING; PISTON,HYDRAULIC ASM PART: A = 1-47800-467-0, B = 1-47800-500-2	1-47829-036-0	01	1	-
23	RING; RET ASM PART: A = 1-47800-467-0	1-46366-111-0	01	1	-
23	RING; RET ASM PART: B = 1-47800-500-2	9-83315-102-0	01	1	-
24	SPRING; HYD PISTON,AIR MASTER ASM PART: A = 1-47800-467-0, B = 1-47800-500-2	1-47824-017-0	01	1	-
25	SEAL; VALVE ASM PART: B = 1-47800-500-2	1-47827-038-0	01	1	-
25	SEAL; VALVE ASM PART: A = 1-47800-467-0	1-47829-038-0	01	1	-
26	PIN; HYD PISTON,AIR MASTER ASM PART: A = 1-47800-467-0, B = 1-47800-500-2	1-47829-039-0	01	1	-
28	WASHER; OIL SEAL,HYD PISTON,AIR MASTER ASM PART: A = 1-47800-467-0	1-47819-164-0	01	1	-
28	WASHER; OIL SEAL,HYD PISTON,AIR MASTER ASM PART: B = 1-47800-500-2	1-47819-173-0	01	1	-
29	RING; RET,VLV,AIR MASTER ASM PART: A = 1-47800-467-0, B = 1-47800-500-2	1-47829-057-0	01	1	-
30	ROD; PUSH,AIR MASTER ASM PART: A = 1-47800-467-0, B = 1-47800-500-2	1-47825-021-0	01	1	-
31	PIN; STRAIGHT ASM PART: A = 1-47800-467-0, B = 1-47800-500-2	1-47829-054-0	01	1	-
32	SPRING; CYL SHELL,AIR MASTER ASM PART: A = 1-47800-467-0, B = 1-47800-500-2	1-47824-018-0	01	1	-
33	PLATE; PISTON,SHELL,AIR MASTER ASM PART: A = 1-47800-467-0	1-47821-028-0	01	1	-
33	PLATE; PISTON,SHELL,AIR MASTER ASM PART: B = 1-47800-500-2	1-47822-008-0	01	1	-
34	GASKET ID=11.0 ASM PART: A = 1-47800-467-0, B = 1-47800-500-2	9-09561-111-0	01	1	-
37	NUT; PUSH ROD,SHELL,AIR MASTER M12 ASM PART: A = 1-47800-467-0, B = 1-47800-500-2	9-99111-412-0	01	1	-
38	BOLT; END PLATE TO SHELL,AIR MASTER (A) ASM PART: A = 1-47800-467-0, B = 1-47800-500-2	1-31829-015-0	05	1	-
38	BOLT; END PLATE TO SHELL,AIR MASTER (B) ASM PART: A = 1-47800-467-0, B = 1-47800-500-2	1-47829-065-0	01	1	-
39	SHELL; CYL,AIR MASTER ASM PART: A = 1-47800-467-0, B = 1-47800-500-2	1-47811-116-0	01	1	-
54	COVER; EXH,END PLATE,AIR MASTER ASM PART: A = 1-47800-467-0, B = 1-47800-500-2	1-47819-039-0	01	1	-
58	RETAINER; HYD PISTON,AIR MASTER ASM PART: A = 1-47800-467-0, B = 1-47800-500-2	1-47829-056-0	01	1	-
96	WASHER (B) ASM PART: A = 1-47800-467-0, B = 1-47800-500-2	1-47829-032-0	01	1	-
96	WASHER (A) ASM PART: B = 1-47800-500-2	1-47829-053-0	01	1	-
96	WASHER (A) ASM PART: A = 1-47800-467-0	1-47829-064-0	01	1	-
97	RETAINER; VALVE ASM PART: A = 1-47800-467-0, B = 1-47800-500-2	1-47824-023-0	01	1	-
98	SPRING; VALVE ASM PART: A = 1-47800-467-0, B = 1-47800-500-2	1-47843-006-0	01	1	-
99	BRACKET; AIR MASTER ASM PART: A = 1-47800-467-0	1-47819-123-0	01	1	-
99	BRACKET; AIR MASTER ASM PART: B = 1-47800-500-2	1-47819-172-0	01	1	-

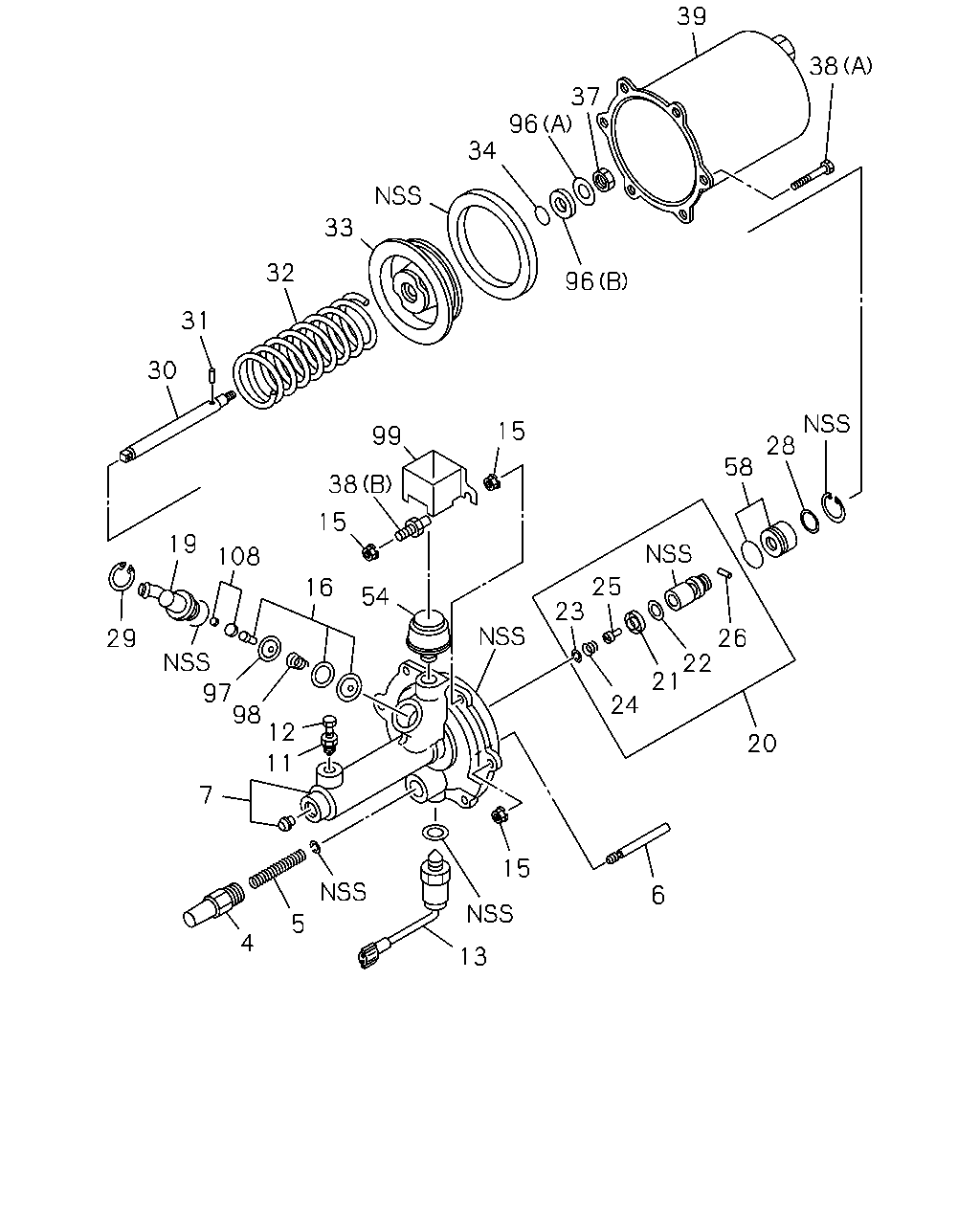

39 38 37 96 34 33 32 96 31 30 28 15 99 58 38 15 19 108 25 23 16 54 26 22 21 29 97 98 12 24 20 11 7 15 6 5 4 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	RETAINER; PUSH ROD,WARNING SW,AIR MAST ASM PART: A = 1-47800-467-0	1-47829-022-0	01	1	-
4	RETAINER; PUSH ROD,WARNING SW,AIR MAST ASM PART: B = 1-47800-500-2	1-47829-070-0	01	1	-
5	SPRING; PUSH ROD,WARNING SW,AIR MASTER ASM PART: A = 1-47800-467-0	1-47824-019-0	01	1	-
5	SPRING; PUSH ROD,WARNING SW,AIR MASTER ASM PART: B = 1-47800-500-2	1-47824-027-0	01	1	-
6	ROD; PUSH,WARNING SW,AIR MASTER ASM PART: A = 1-47800-467-0, B = 1-47800-500-2	1-47829-043-0	01	1	-
7	PLATE; END,AIR MASTER ASM PART: A = 1-47800-467-0	1-47841-052-0	01	1	-
7	PLATE; END,AIR MASTER ASM PART: B = 1-47800-500-2	1-47841-072-0	01	1	-
11	PLUG; CAP,AIR MASTER ASM PART: A = 1-47800-467-0, B = 1-47800-500-2	9-83331-704-0	01	1	-
12	PROTECTOR; CAP,AIR MASTER ASM PART: A = 1-47800-467-0, B = 1-47800-500-2	9-83335-044-0	01	1	-
13	SWITCH; WARNING,AIR MASTER ASM PART: A = 1-47800-467-0, B = 1-47800-500-2	1-47819-170-0	01	1	-
15	NUT; END PLATE TO SHELL,AIR MASTER ASM PART: B = 1-47800-500-2	1-47829-069-0	07	1	-
15	NUT; END PLATE TO SHELL,AIR MASTER ASM PART: A = 1-47800-467-0	9-83315-085-0	07	1	-
16	VALVE ASM ASM PART: A = 1-47800-467-0, B = 1-47800-500-2	1-47842-009-0	01	1	-
19	CONNECTOR; END PLATE,AIR MASTER ASM PART: B = 1-47800-500-2	1-47819-174-1	01	1	-
19	CONNECTOR; END PLATE,AIR MASTER ASM PART: A = 1-47800-467-0	1-47849-031-0	01	1	-
20	PISTON ASM; HYDRAULIC ASM PART: A = 1-47800-467-0, B = 1-47800-500-2	1-47821-019-0	01	1	-
21	GASKET; CUP ASM PART: A = 1-47800-467-0, B = 1-47800-500-2	1-47829-037-0	01	1	-
22	RING; PISTON,HYDRAULIC ASM PART: A = 1-47800-467-0, B = 1-47800-500-2	1-47829-036-0	01	1	-
23	RING; RET ASM PART: A = 1-47800-467-0	1-46366-111-0	01	1	-
23	RING; RET ASM PART: B = 1-47800-500-2	9-83315-102-0	01	1	-
24	SPRING; HYD PISTON,AIR MASTER ASM PART: A = 1-47800-467-0, B = 1-47800-500-2	1-47824-017-0	01	1	-
25	SEAL; VALVE ASM PART: B = 1-47800-500-2	1-47827-038-0	01	1	-
25	SEAL; VALVE ASM PART: A = 1-47800-467-0	1-47829-038-0	01	1	-
26	PIN; HYD PISTON,AIR MASTER ASM PART: A = 1-47800-467-0, B = 1-47800-500-2	1-47829-039-0	01	1	-
28	WASHER; OIL SEAL,HYD PISTON,AIR MASTER ASM PART: A = 1-47800-467-0	1-47819-164-0	01	1	-
28	WASHER; OIL SEAL,HYD PISTON,AIR MASTER ASM PART: B = 1-47800-500-2	1-47819-173-0	01	1	-
29	RING; RET,VLV,AIR MASTER ASM PART: A = 1-47800-467-0, B = 1-47800-500-2	1-47829-057-0	01	1	-
30	ROD; PUSH,AIR MASTER ASM PART: A = 1-47800-467-0, B = 1-47800-500-2	1-47825-021-0	01	1	-
31	PIN; STRAIGHT ASM PART: A = 1-47800-467-0, B = 1-47800-500-2	1-47829-054-0	01	1	-
32	SPRING; CYL SHELL,AIR MASTER ASM PART: A = 1-47800-467-0, B = 1-47800-500-2	1-47824-018-0	01	1	-
33	PLATE; PISTON,SHELL,AIR MASTER ASM PART: A = 1-47800-467-0	1-47821-028-0	01	1	-
33	PLATE; PISTON,SHELL,AIR MASTER ASM PART: B = 1-47800-500-2	1-47822-008-0	01	1	-
34	GASKET ID=11.0 ASM PART: A = 1-47800-467-0, B = 1-47800-500-2	9-09561-111-0	01	1	-
37	NUT; PUSH ROD,SHELL,AIR MASTER M12 ASM PART: A = 1-47800-467-0, B = 1-47800-500-2	9-99111-412-0	01	1	-
38	BOLT; END PLATE TO SHELL,AIR MASTER (A) ASM PART: A = 1-47800-467-0, B = 1-47800-500-2	1-31829-015-0	05	1	-
38	BOLT; END PLATE TO SHELL,AIR MASTER (B) ASM PART: A = 1-47800-467-0, B = 1-47800-500-2	1-47829-065-0	01	1	-
39	SHELL; CYL,AIR MASTER ASM PART: A = 1-47800-467-0, B = 1-47800-500-2	1-47811-116-0	01	1	-
54	COVER; EXH,END PLATE,AIR MASTER ASM PART: A = 1-47800-467-0, B = 1-47800-500-2	1-47819-039-0	01	1	-
58	RETAINER; HYD PISTON,AIR MASTER ASM PART: A = 1-47800-467-0, B = 1-47800-500-2	1-47829-056-0	01	1	-
96	WASHER (B) ASM PART: A = 1-47800-467-0, B = 1-47800-500-2	1-47829-032-0	01	1	-
96	WASHER (A) ASM PART: B = 1-47800-500-2	1-47829-053-0	01	1	-
96	WASHER (A) ASM PART: A = 1-47800-467-0	1-47829-064-0	01	1	-
97	RETAINER; VALVE ASM PART: A = 1-47800-467-0, B = 1-47800-500-2	1-47824-023-0	01	1	-
98	SPRING; VALVE ASM PART: A = 1-47800-467-0, B = 1-47800-500-2	1-47843-006-0	01	1	-
99	BRACKET; AIR MASTER ASM PART: A = 1-47800-467-0	1-47819-123-0	01	1	-
99	BRACKET; AIR MASTER ASM PART: B = 1-47800-500-2	1-47819-172-0	01	1	-
108	FILTER; OIL ASM PART: B = 1-47800-500-2	1-47819-175-0	01	1	-

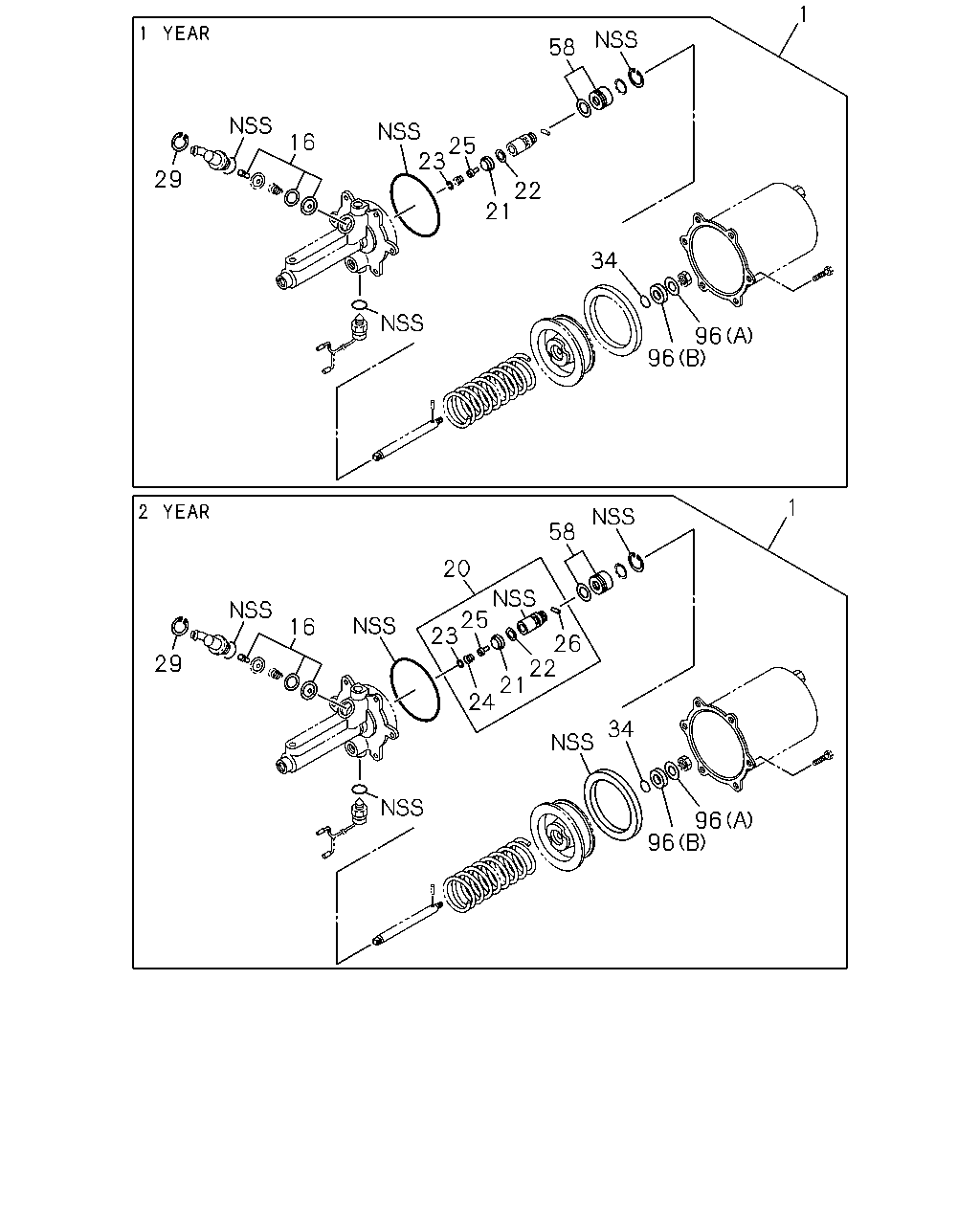

1 58 16 25 23 29 22 21 34 96 96 1 58 20 25 23 16 26 22 21 24 29 34 96 96

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; AIR MASTER 1 YEAR ASM PART: A = 1-47800-467-0, B = 1-47800-500-2	1-87830-393-0	01	1	-
1	REPAIR KIT; AIR MASTER 2 YEAR ASM PART: A = 1-47800-467-0, B = 1-47800-500-2	1-87830-394-0	01	1	-
16	VALVE ASM ASM PART: A = 1-47800-467-0, B = 1-47800-500-2	1-47842-009-0	01	1	-
20	PISTON ASM; HYDRAULIC ASM PART: A = 1-47800-467-0, B = 1-47800-500-2	1-47821-019-0	01	1	-
21	GASKET; CUP ASM PART: A = 1-47800-467-0, B = 1-47800-500-2	1-47829-037-0	01	1	-
22	RING; PISTON,HYDRAULIC ASM PART: A = 1-47800-467-0, B = 1-47800-500-2	1-47829-036-0	01	1	-
23	RING; RET ASM PART: A = 1-47800-467-0	1-46366-111-0	01	1	-
23	RING; RET ASM PART: B = 1-47800-500-2	9-83315-102-0	01	1	-
24	SPRING; HYD PISTON,AIR MASTER ASM PART: A = 1-47800-467-0, B = 1-47800-500-2	1-47824-017-0	01	1	-
25	SEAL; VALVE ASM PART: B = 1-47800-500-2	1-47827-038-0	01	1	-
25	SEAL; VALVE ASM PART: A = 1-47800-467-0	1-47829-038-0	01	1	-
26	PIN; HYD PISTON,AIR MASTER ASM PART: A = 1-47800-467-0, B = 1-47800-500-2	1-47829-039-0	01	1	-
29	RING; RET,VLV,AIR MASTER ASM PART: A = 1-47800-467-0, B = 1-47800-500-2	1-47829-057-0	01	1	-
34	GASKET ID=11.0 ASM PART: A = 1-47800-467-0, B = 1-47800-500-2	9-09561-111-0	01	1	-
58	RETAINER; HYD PISTON,AIR MASTER ASM PART: A = 1-47800-467-0, B = 1-47800-500-2	1-47829-056-0	01	1	-
96	WASHER (B) ASM PART: A = 1-47800-467-0, B = 1-47800-500-2	1-47829-032-0	01	1	-
96	WASHER (A) ASM PART: B = 1-47800-500-2	1-47829-053-0	01	1	-
96	WASHER (A) ASM PART: A = 1-47800-467-0	1-47829-064-0	01	1	-
