3-20 — AIR TANK (#43131) — 84 parça

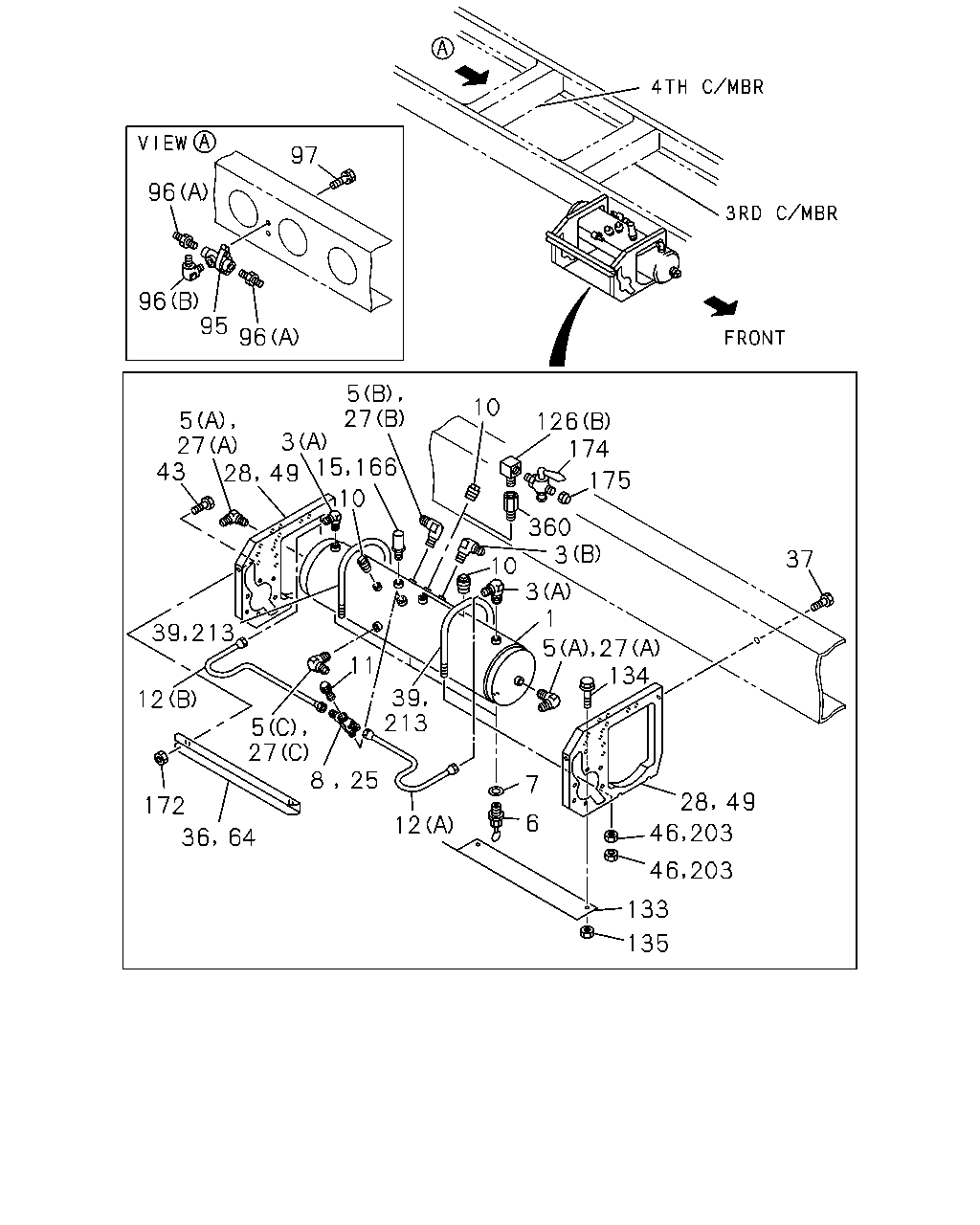

çizim 97566
97 96 96 95 96 5 27 10 5 27 126 174 3 175 10 360 37 10 3 1 5 27 134 11 39 213 12 5 27 8 25 7 172 6 12 36 64 133 135 213 39 166 15 49 28 43 3 46 203 46 203 28 49
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; AIR 1-48330-686-1 01 1 0008-
3 VALVE; CHECK,AIR TANK
(B) M22 & PT3/4 ELBOW 		1-48410-134-3 01 1 0008-
3 VALVE; CHECK,AIR TANK
(A) M20 & PT3/4 ELBOW 		1-48410-412-0 02 1 0008-
5 UNION; AIR TANK
EXC. TIRE INFLATOR DEVICE<SG4> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0008-
5 UNION; AIR TANK
EXC. TIRE INFLATOR DEVICE<SG4> (A) M16 & PT1/4 ELBOW 		1-09650-434-0 02 1 0008-0607
5 UNION; AIR TANK
EXC. TIRE INFLATOR DEVICE<SG4> (A) M16 & PT1/4 ELBOW 		0-92134-310-0 02 1 0608-
5 UNION; AIR TANK
EXC. TIRE INFLATOR DEVICE<SG4> (B) M16 & PT3/8 ELBOW 		1-09650-438-0 01 1 0008-
6 COCK; DRAIN,AIR TANK 1-48312-015-0 03 1 0008-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 03 1 0008-
8 CONNECTOR; AIR TANK
EXC. TIRE INFLATOR DEVICE<SG4> 		1-09656-699-0 01 1 0008-
10 PLUG; AIR TANK
PT1/4 		9-99204-513-0 02 1 0008-
10 PLUG; AIR TANK
EXC. TIRE INFLATOR DEVICE<SG4> PT3/8 		9-09204-517-0 01 1 0008-
11 VALVE; SAFETY,AIR TANK 1-48320-012-2 01 1 0008-
12 PIPE ASM; AIR,AIR TANK TO AIR TANK
(A) 		1-47497-008-0 01 1 0008-
12 PIPE ASM; AIR,AIR TANK TO AIR TANK
(B) 		1-47497-009-0 01 1 0008-
15 SWITCH; LOW PRESS,AIR TANK
TIRE INFLATOR DEVICE<SG4> 530KPA 		1-48340-054-1 01 1 0008-
25 UNION; 4 WAY
TIRE INFLATOR DEVICE<SG4> 		1-09656-699-0 01 1 0008-
27 UNION; ELBOW,AIR TANK
TIRE INFLATOR DEVICE<SG4> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0008-
27 UNION; ELBOW,AIR TANK
TIRE INFLATOR DEVICE<SG4> (A) M16 & PT1/4 ELBOW 		1-09650-434-0 02 1 0008-0607
27 UNION; ELBOW,AIR TANK
TIRE INFLATOR DEVICE<SG4> (A) M16 & PT1/4 ELBOW 		0-92134-310-0 02 1 0608-
27 UNION; ELBOW,AIR TANK
TIRE INFLATOR DEVICE<SG4> (B) M16 & PT3/8 ELBOW 		1-09650-438-0 01 1 0008-
28 BRACKET; AIR TANK
EXC. TIRE INFLATOR DEVICE<SG4> 		1-48317-709-4 02 1 0008-
36 STAY; MAIN TANK
TIRE INFLATOR DEVICE<SG4> 		1-48317-307-2 01 1 0008-
37 BOLT; AIR TANK
M10X35 FLANGE 		0-28681-035-0 04 1 0008-0512
37 BOLT; AIR TANK
M10X35 FLANGE 		0-28651-035-0 04 1 0601-
39 U-BOLT; AIR TANK
EXC. TIRE INFLATOR DEVICE<SG4> L=250 		1-48317-308-0 02 1 0008-
43 BOLT; STAY,AIR TANK,MAIN
M8X20 FLANGE 		0-28680-820-0 02 1 0008-0512
43 BOLT; STAY,AIR TANK,MAIN
M8X20 FLANGE 		0-28650-820-0 02 1 0601-
46 NUT; U-BOLT
EXC. TIRE INFLATOR DEVICE<SG4> M8 		9-09110-408-0 08 1 0008-0512
46 NUT; U-BOLT
EXC. TIRE INFLATOR DEVICE<SG4> M8 		0-91110-508-0 08 1 0601-
49 BRACKET; AIR TANK
TIRE INFLATOR DEVICE<SG4> 		1-48317-709-4 02 1 0008-
64 STAY; AIR TANK,MAIN
EXC. TIRE INFLATOR DEVICE<SG4> 		1-48317-307-2 01 1 0008-
95 VALVE; DOUBLE CHECK
TRAILER BRAKE CONTROL<J91> 		1-48410-531-1 01 1 0008-
96 CONNECTOR; DOUBLE CHECK VLV
TRAILER BRAKE CONTROL<J91> (A) M16 & PT3/8 STRAIGHT 		1-09650-179-1 02 1 0008-
96 CONNECTOR; DOUBLE CHECK VLV
TRAILER BRAKE CONTROL<J91> (B) M16 & PT3/8 ELBOW 		1-09650-438-0 01 1 0008-
97 BOLT; BRKT,DBL CHECK VLV
TRAILER BRAKE CONTROL<J91> M8X16 FLANGE 		0-28080-816-0 02 1 0008-0512
97 BOLT; BRKT,DBL CHECK VLV
TRAILER BRAKE CONTROL<J91> M8X16 FLANGE 		0-28050-816-0 02 1 0601-
126 CONNECTOR; ELBOW
(A) M16 & PT3/8 ELBOW 		1-09650-438-0 02 1 0008-
126 CONNECTOR; ELBOW
TIRE INFLATOR DEVICE<SG4> (B) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0008-
133 COVER; AIR MASTER 1-48317-641-1 01 1 0008-
134 BOLT; COVER FIX
M8X20 FLANGE 		0-28680-820-0 04 1 0008-0512
134 BOLT; COVER FIX
M8X20 FLANGE 		0-28650-820-0 04 1 0601-
135 NUT; COVER
M8 FLANGE 		0-91150-108-0 04 1 0008-0602
135 NUT; COVER
M8 FLANGE 		0-91180-108-0 04 1 0603-
166 SWITCH ASM; LOW PRESSURE,MAIN TANK
EXC. TIRE INFLATOR DEVICE<SG4> 530KPA 		1-48340-054-1 01 1 0008-
172 NUT; STAY,AIR TANK,MAIN
M8 FLANGE 		0-91150-108-0 02 1 0008-0602
172 NUT; STAY,AIR TANK,MAIN
M8 FLANGE 		0-91180-108-0 02 1 0603-
174 COCK; AIR,INFLATOR
TIRE INFLATOR DEVICE<SG4> 		1-09680-036-0 01 1 0008-0009
174 COCK; AIR,INFLATOR
TIRE INFLATOR DEVICE<SG4> 		1-09680-099-0 01 1 0010-
175 CAP; AIR COCK
TIRE INFLATOR DEVICE<SG4> 		9-48319-102-0 01 1 0008-
203 NUT
TIRE INFLATOR DEVICE<SG4> M8 		9-09110-408-0 08 1 0008-0512
203 NUT
TIRE INFLATOR DEVICE<SG4> M8 		0-91110-508-0 08 1 0601-
213 BOLT; U AIR TANK
TIRE INFLATOR DEVICE<SG4> L=250 		1-48317-308-0 02 1 0008-
360 ADAPTER; INFLATOR
TIRE INFLATOR DEVICE<SG4> PT3/8 		1-48319-058-0 01 1 0008-

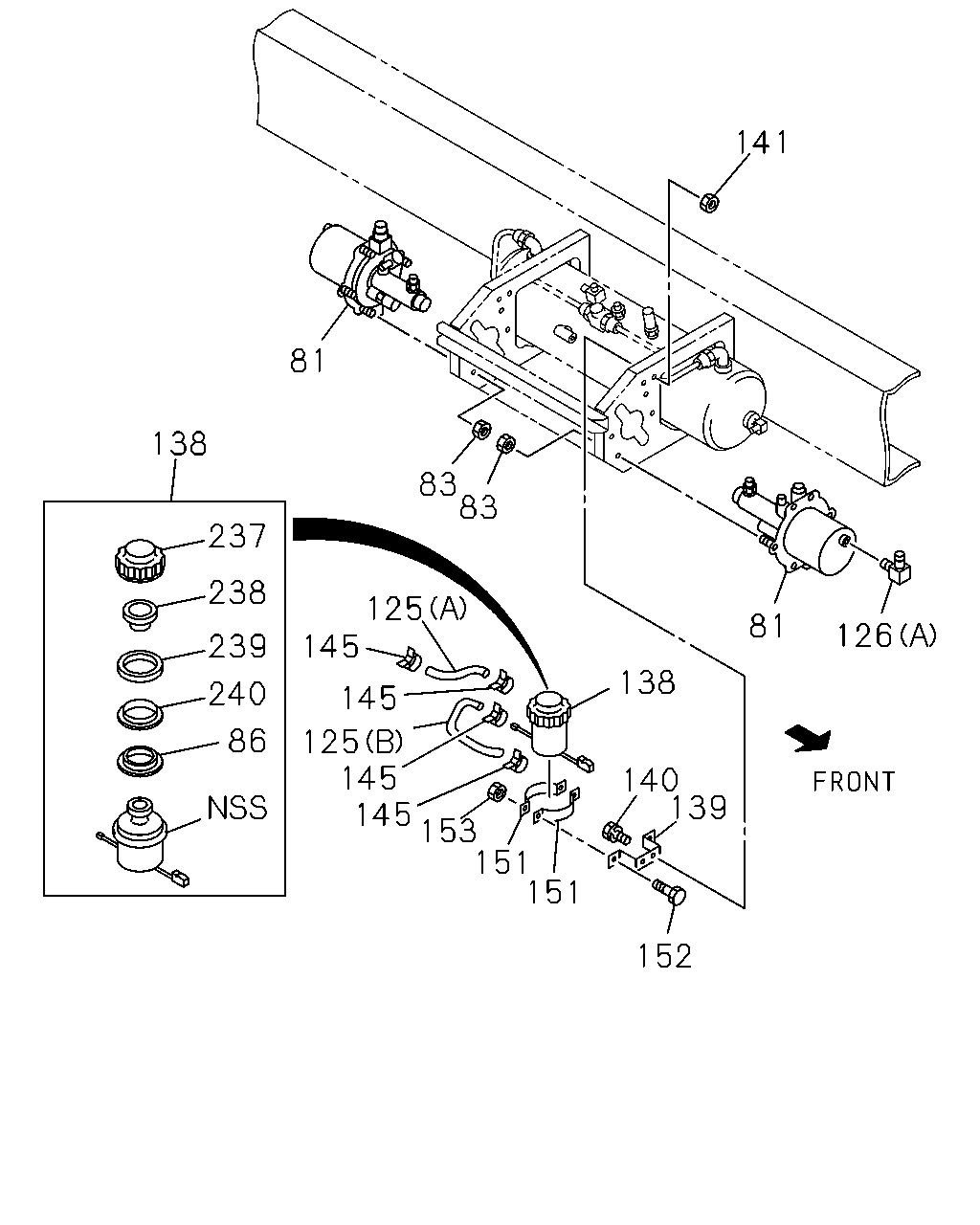

çizim 97586
141 81 138 83 83 237 238 125 145 81 126 239 138 240 145 86 12 145 145 153 151 151 140 139 152
BalonParca AdiParca NoAdetTipApplied Date
12 PIPE ASM; AIR,AIR TANK TO AIR TANK
(A) 		1-47497-008-0 01 1 0008-
12 PIPE ASM; AIR,AIR TANK TO AIR TANK
(B) 		1-47497-009-0 01 1 0008-
81 AIR MASTER ASM; BRK
SEE FIG-NO 3-33 FOR COMPONENT. 		1-47800-500-2 02 1 0008-0301
81 AIR MASTER ASM; BRK
SEE FIG-NO 3-33 FOR COMPONENT. 		1-47800-467-0 02 1 0302-
83 NUT; AIR MASTER
M8 FLANGE 		0-91150-108-0 08 1 0008-0602
83 NUT; AIR MASTER
M8 FLANGE 		0-91180-108-0 08 1 0603-
86 SEAL; DUST 1-47529-019-0 01 1 0008-
125 HOSE; OIL TANK TO AIR MASTER
(A) L=240 SERVICED BY L=1800 		1-09360-320-0 01 1 0008-
125 HOSE; OIL TANK TO AIR MASTER
(B) L=335 		1-47469-045-0 01 1 0008-
126 CONNECTOR; ELBOW
(A) M16 & PT3/8 ELBOW 		1-09650-438-0 02 1 0008-
126 CONNECTOR; ELBOW
TIRE INFLATOR DEVICE<SG4> (B) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0008-
138 TANK ASM; OIL,AIR MASTER 1-47530-170-1 01 1 0008-0011
138 TANK ASM; OIL,AIR MASTER 1-47530-184-0 01 1 0012-0206
138 TANK ASM; OIL,AIR MASTER 1-47530-185-1 01 1 0207-
139 BRACKET; OIL TANK 1-47537-123-1 01 1 0008-
140 BOLT; OIL TANK TO BRKT
M10X20 FLANGE 		0-28681-020-0 02 1 0008-0512
140 BOLT; OIL TANK TO BRKT
M10X20 FLANGE 		0-28651-020-0 02 1 0601-
141 NUT; OIL TANK TO BRKT
M10 FLANGE 		0-91150-210-0 02 1 0008-0602
141 NUT; OIL TANK TO BRKT
M10 FLANGE 		0-91180-210-0 02 1 0603-
145 CLIP; OIL TANK TO AIR MASTER HOSE
ID=14 		1-09704-102-0 04 1 0008-
151 BAND; OIL TANK,AIR MASTER 1-47537-056-2 02 1 0008-
152 BOLT; OIL TANK TO BAND
M8X20 FLANGE 		0-28680-820-0 02 1 0008-0512
152 BOLT; OIL TANK TO BAND
M8X20 FLANGE 		0-28650-820-0 02 1 0601-
153 NUT; OIL TANK TO BAND
M8 FLANGE 		0-91150-108-0 02 1 0008-0602
153 NUT; OIL TANK TO BAND
M8 FLANGE 		0-91180-108-0 02 1 0603-
237 CAP; OIL TANK 1-47525-024-0 01 1 0008-0011
237 CAP; OIL TANK 1-47525-030-0 01 1 0012-
238 PLATE; BAFFLE 1-47529-022-0 01 1 0008-
239 FILTER; DUST 1-47529-017-0 01 1 0008-
240 HOLDER; FILTER 1-47529-018-0 01 1 0008-
