2-05A — CLUTCH PIPING (#4313) — 311 parça

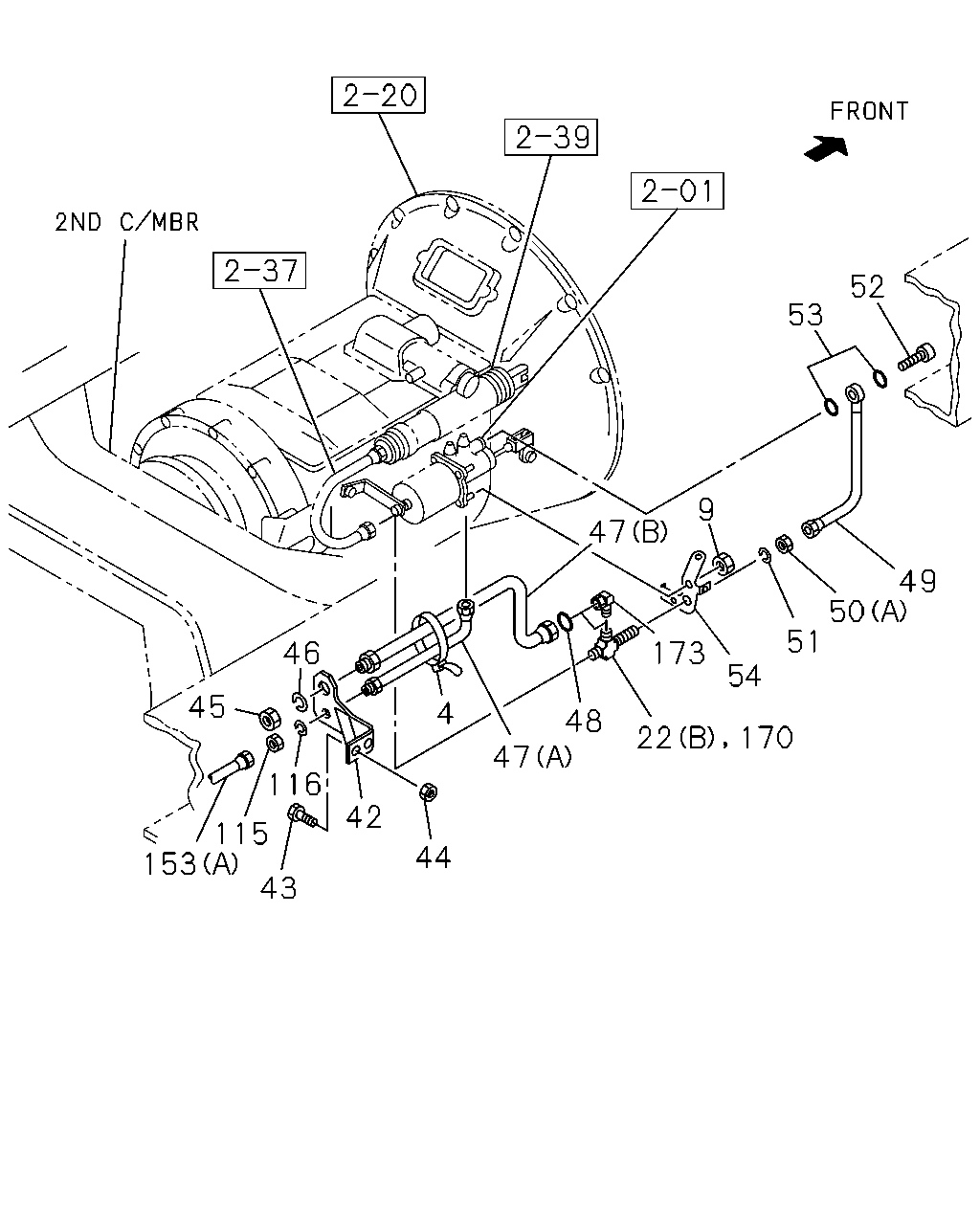

çizim 40498
52 53 9 47 49 50 173 51 46 54 45 4 48 22 170 47 116 42 115 153 44 43
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
4 CLIP; FLEX HOSE,CLU CONT
L=140 		5-09707-031-0 01 1 9603-9605 ● ● ● ● ● ●
9 NUT; BRKT,FLEX HOSE
M10 FLANGE 		0-91150-210-0 02 1 9603-9910 ● ● ● ● ●
9 NUT; BRKT,FLEX HOSE
M10 FLANGE 		0-91150-210-0 02 1 9911- ● ● ● ● ● ●
22 UNION; CLU PIPE
(A) M14 		9-09225-208-1 01 1 9710- ● ● ● ● ● ●
22 UNION; CLU PIPE
SHIFT CONTROL ASSISTER<WX8> (B) 		1-09656-181-1 01 1 9603- ● ● ●
42 BRACKET; FLEX HOSE,CLU CONT
6WA1 TC-S(56L) 		1-47477-414-0 01 1 9603- ●
42 BRACKET; FLEX HOSE,CLU CONT
V TYPE ENG<91L> 		1-47477-546-1 01 1 9603- ● ● ● ● ●
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
L TYPE ENG<90L> FRAME EQUIPMENT HEAVY DUTY<F03> M10X30 FLANGE 		0-28081-030-0 02 1 9603-9606 ●
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
L TYPE ENG<90L> FRAME EQUIPMENT HEAVY DUTY<F03> M10X35 FLANGE 		0-28681-035-0 02 1 9905- ●
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
L TYPE ENG<90L> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M10X25 FLANGE 		0-28081-025-0 02 1 9603-9606 ●
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
L TYPE ENG<90L> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M10X30 FLANGE 		0-28681-030-0 02 1 9905- ●
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
V TYPE ENG<91L> FRAME EQUIPMENT HEAVY DUTY<F03> M8X30 FLANGE 		0-28080-830-0 02 1 9603-9606 ● ● ● ● ●
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
FRAME EQUIPMENT HEAVY DUTY<F03> M8X35 FLANGE 		0-28680-835-0 02 1 9607-9904 ● ● ● ● ●
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
V TYPE ENG<91L> FRAME EQUIPMENT HEAVY DUTY<F03> M8X35 FLANGE 		0-28680-835-0 02 1 9905-0102 ●
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
FRAME EQUIPMENT HEAVY DUTY<F03> M8X35 FLANGE 		0-28680-835-0 02 1 9905-0102 ● ● ● ●
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
V TYPE ENG<91L> FRAME EQUIPMENT HEAVY DUTY<F03> M8X35 FLANGE 		0-28680-835-0 02 1 0103- ●
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
FRAME EQUIPMENT HEAVY DUTY<F03> M8X35 FLANGE 		0-28680-835-0 02 1 0103- ● ● ● ● ●
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
V TYPE ENG<91L> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M8X25 FLANGE 		0-28080-825-0 02 1 9603-9606 ● ● ● ● ●
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M8X30 FLANGE 		0-28680-830-0 02 1 9607-9904 ● ● ● ● ●
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
V TYPE ENG<91L> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M8X30 FLANGE 		0-28680-830-0 02 1 9905-0102 ●
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M8X30 FLANGE 		0-28680-830-0 02 1 9905-0102 ● ● ● ●
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
V TYPE ENG<91L> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M8X30 FLANGE 		0-28680-830-0 02 1 0103- ●
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M8X30 FLANGE 		0-28680-830-0 02 1 0103- ● ● ● ● ●
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
L TYPE ENG<90L> M10 		9-09110-510-0 02 1 9603-9606 ●
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
L TYPE ENG<90L> M10 FLANGE 		0-91150-210-0 02 1 9607- ●
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
V TYPE ENG<91L> M8 		9-09110-508-0 02 1 9603-9606 ● ● ● ● ●
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
V TYPE ENG<91L> M8 FLANGE 		0-91150-108-0 02 1 9607-9904 ● ● ● ● ●
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
L TYPE ENG<90L> M8 FLANGE 		0-91150-108-0 02 1 9905-0102 ●
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
M8 FLANGE 		0-91150-108-0 02 1 9905-0102 ● ● ● ●
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
V TYPE ENG<91L> M8 FLANGE 		0-91150-108-0 02 1 0103- ●
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
M8 FLANGE 		0-91150-108-0 02 1 0103- ● ● ● ● ●
45 NUT; FLEX HOSE,CLU CONT
SHIFT CONTROL ASSISTER<WX8> M20 		9-99111-420-0 01 1 9603- ● ● ● ● ●
45 NUT; FLEX HOSE,CLU CONT
EXC. SHIFT CONTROL ASSISTER<WX8> M20 		9-99111-420-0 02 1 9603- ● ● ● ● ●
46 WASHER; LK,FLEX HOSE,CLU CONT
SHIFT CONTROL ASSISTER<WX8> ID=20.2 		9-09150-520-0 01 1 9603- ● ● ● ● ●
46 WASHER; LK,FLEX HOSE,CLU CONT
EXC. SHIFT CONTROL ASSISTER<WX8> ID=20.2 		9-09150-520-0 02 1 9603- ● ● ● ● ●
47 HOSE; FLEX,CLU CONT
L TYPE ENG<90L> MIXER TRUCK<RA2> (B) L=500 		1-09364-329-0 01 1 9703-9910 ●
47 HOSE; FLEX,CLU CONT
L TYPE ENG<90L> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MIXER TRUCK<RA2> (B) L=500 		1-09364-329-0 01 1 9911- ● ● ● ● ● ●
47 HOSE; FLEX,CLU CONT
(B) L=550 		1-09364-434-0 01 1 9603-9702 ● ● ● ● ●
47 HOSE; FLEX,CLU CONT
V TYPE ENG<91L> (B) L=550 		1-09364-434-0 01 1 9703-9910 ● ● ● ● ●
47 HOSE; FLEX,CLU CONT
L TYPE ENG<90L> EXC. MIXER TRUCK<RA2> (B) L=550 		1-09364-434-0 01 1 9703-9910 ●
47 HOSE; FLEX,CLU CONT
L TYPE ENG<90L> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. MIXER TRUCK<RA2> (B) L=550 		1-09364-434-0 01 1 9911- ● ● ● ● ● ●
47 HOSE; FLEX,CLU CONT
V TYPE ENG<91L> (B) L=550 		1-09364-434-0 01 1 9911- ● ● ● ● ●
47 HOSE; FLEX,CLU CONT
6WA1 TC-C(55L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MIXER TRUCK<RA2> (B) L=550 		1-09364-434-0 01 1 9911- ● ●
47 HOSE; FLEX,CLU CONT
SHIFT CONTROL ASSISTER<WX8> (A) L=500 		0-07806-500-1 01 1 9603-9910 ● ● ● ● ●
47 HOSE; FLEX,CLU CONT
L TYPE ENG<90L> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SHIFT CONTROL ASSISTER<WX8> (A) L=500 		0-07806-500-1 01 1 9911- ● ● ● ● ● ●
47 HOSE; FLEX,CLU CONT
EXC. SHIFT CONTROL ASSISTER<WX8> (A) L=600 		0-07706-600-0 01 1 9603- ● ● ● ● ●
47 HOSE; FLEX,CLU CONT
6WA1 TC-C(55L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) SHIFT CONTROL ASSISTER<WX8> (A) L=560 		0-07806-560-1 01 1 9911- ● ●
47 HOSE; FLEX,CLU CONT
6WA1 TC-C(55L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. MIXER TRUCK<RA2> (B) L=600 		1-09364-705-0 01 1 9911- ● ●
48 GASKET; FLEX HOSE,CLU CONT
ID=10.2 OD=16.0 		9-09571-410-0 01 1 9603- ● ● ● ● ●
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
L=293 		1-49114-730-1 01 1 9603-9608 ● ● ● ● ●
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
L=293 		1-49117-734-0 01 1 9609-0006 ● ● ● ● ●
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) L=293 		1-49117-734-0 01 1 0007- ● ● ● ● ● ●
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) L=245 		1-49117-733-0 01 1 0007- ● ● ● ● ● ●
50 NUT; UNION
SHIFT CONTROL ASSISTER<WX8> (A) M20 		9-99111-420-0 01 1 9603- ● ● ● ● ●
50 NUT; UNION
(B) M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 9603- ● ● ● ● ● ●
50 NUT; UNION
(C) M14 		9-99111-414-0 01 1 9603- ● ● ● ● ● ●
51 WASHER; LK
SHIFT CONTROL ASSISTER<WX8> ID=20.2 		9-09150-520-0 01 1 9603- ● ● ● ● ●
52 BOLT; EYE,AIR PIPE
M14X27 FLANGE 		1-09675-086-0 01 1 9603- ● ● ● ● ●
53 GASKET; JOINT BOLT
ID=14.2 OD=19.2 		1-09630-085-0 02 1 9603- ● ● ● ● ●
53 GASKET; JOINT BOLT
LONG CHASSIS(CXZ5MF) 10PE1S(60L) FIRE ENGINE PACKAGE<WS2> ID=11 OD=18 		9-09572-510-0 01 1 9701- ●
54 BRACKET; AIR,FLEX HOSE 1-47477-284-1 01 1 9603-9910 ● ● ● ● ●
54 BRACKET; AIR,FLEX HOSE 1-47477-284-1 01 1 9911- ● ● ● ● ● ●
115 NUT; FLEX HOSE,CLU CONT
M14 		9-99111-414-0 01 1 9603-9709 ● ● ● ● ●
115 NUT; FLEX HOSE,CLU CONT
M14 		9-99111-414-0 01 1 9710-9904 ● ● ● ● ●
115 NUT; FLEX HOSE,CLU CONT
M14 		9-99111-414-0 01 1 9905-9910 ● ● ● ● ●
115 NUT; FLEX HOSE,CLU CONT
M14 		9-99111-414-0 01 1 9911- ● ● ● ● ● ●
116 WASHER; FLEX HOSE,CLU CONT
ID=14.2 		9-09150-514-0 01 1 9603-9709 ● ● ● ● ●
116 WASHER; FLEX HOSE,CLU CONT
ID=14.2 		9-09150-514-0 01 1 9710-9904 ● ● ● ● ●
116 WASHER; FLEX HOSE,CLU CONT
ID=14.2 		9-09150-514-0 01 1 9905-9910 ● ● ● ● ●
116 WASHER; FLEX HOSE,CLU CONT
ID=14.2 		9-09150-514-0 01 1 9911- ● ● ● ● ● ●
153 PIPE ASM; CLU,UNION TO FLEX
L TYPE ENG<90L> MIXER TRUCK<RA2> (A) L=1834 SERVICED BY L=1950 		1-47426-393-0 01 1 9703-9910 ●
153 PIPE ASM; CLU,UNION TO FLEX
L TYPE ENG<90L> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MIXER TRUCK<RA2> (A) L=1834 SERVICED BY L=1950 		1-47426-393-0 01 1 9911- ● ● ● ● ● ●
153 PIPE ASM; CLU,UNION TO FLEX
6WA1 TC-S(56L) (A) L=1830 SERVICED BY L=1950 		1-47426-393-0 01 1 9606-9702 ●
153 PIPE ASM; CLU,UNION TO FLEX
L TYPE ENG<90L> EXC. MIXER TRUCK<RA2> (A) L=1830 SERVICED BY L=1950 		1-47426-393-0 01 1 9703-9910 ●
153 PIPE ASM; CLU,UNION TO FLEX
L TYPE ENG<90L> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. MIXER TRUCK<RA2> (A) L=1830 SERVICED BY L=1950 		1-47426-393-0 01 1 9911- ● ●
153 PIPE ASM; CLU,UNION TO FLEX
V TYPE ENG<91L> (A) L=547 SERVICED BY L=550 		1-47426-377-0 01 1 9603-0003 ● ● ● ● ●
153 PIPE ASM; CLU,UNION TO FLEX
V TYPE ENG<91L> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=547 SERVICED BY L=550 		1-47426-377-0 01 1 0004- ● ● ● ● ●
153 PIPE ASM; CLU,UNION TO FLEX
V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=433 		1-47429-241-0 01 1 0004- ● ● ● ● ●
153 PIPE ASM; CLU,UNION TO FLEX
(B) L=464 		1-47424-530-2 01 1 9603- ● ● ● ● ● ●
153 PIPE ASM; CLU,UNION TO FLEX
6WA1 TC-C(55L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=1803 SERVICED BY L=1800 		1-47426-392-0 01 1 9911- ● ●
170 UNION; AIR PIPE
SHIFT CONTROL ASSISTER<WX8> 		1-09656-640-0 01 1 9603-9910 ●
170 UNION; AIR PIPE
SHIFT CONTROL ASSISTER<WX8> 		1-09656-640-0 01 1 9911- ● ● ●
173 CONNECTOR
SHIFT CONTROL ASSISTER<WX8> M20 & PT1/4 ELBOW 		1-09660-681-0 01 1 9603-9910 ●
173 CONNECTOR
SHIFT CONTROL ASSISTER<WX8> M20 & PT1/4 ELBOW 		1-09660-681-0 01 1 9911- ● ● ●

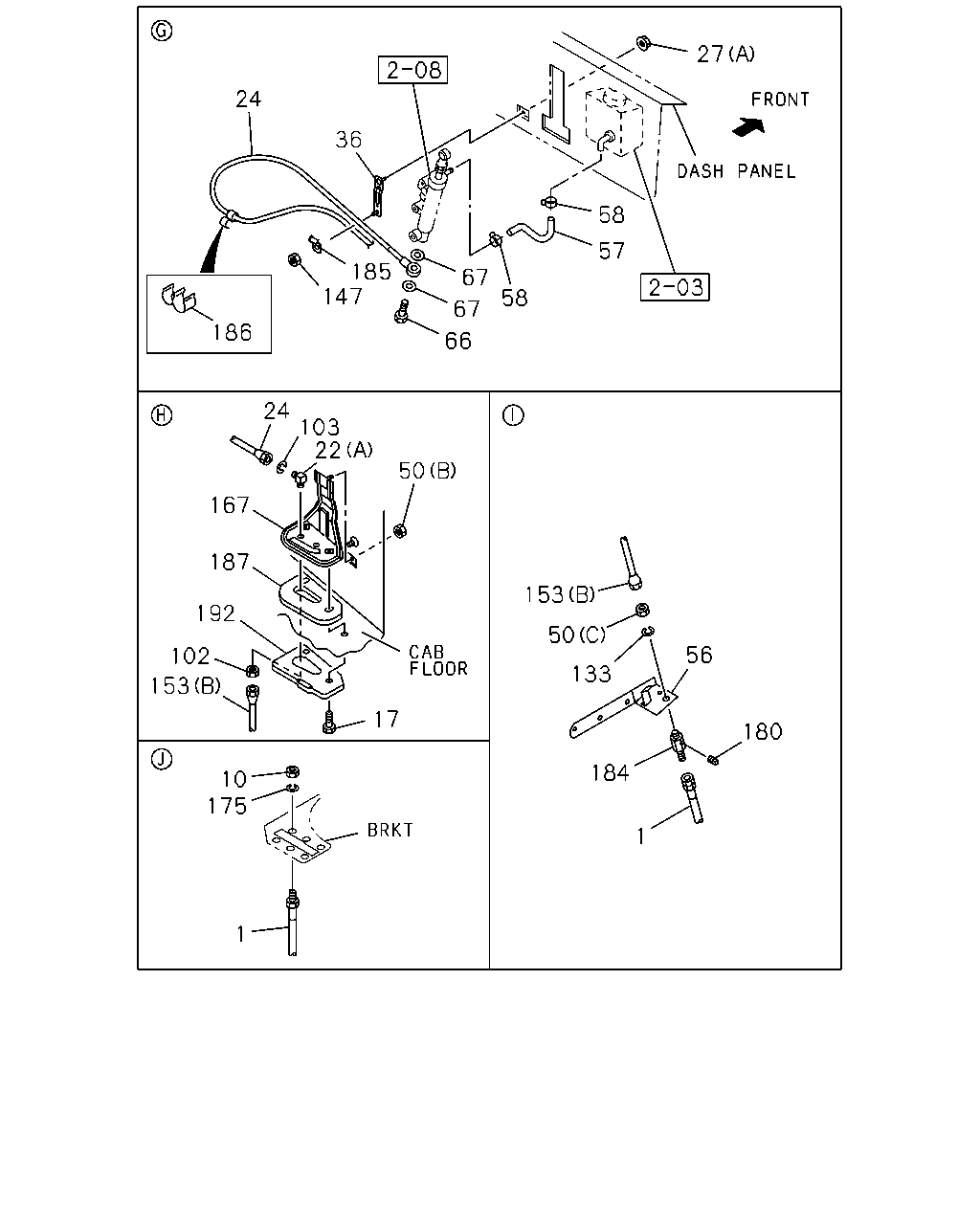

çizim 40796
27 24 36 58 57 185 147 67 58 67 186 66 24 103 22 50 167 187 153 192 50 56 102 133 153 17 180 184 10 175 1 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 HOSE; FLEX,CLU CONT
CAB UP +110MM<TGG> L=520 		1-09364-948-1 01 1 9905- ●
1 HOSE; FLEX,CLU CONT
L=430 		1-09364-859-0 01 1 9603-9904 ● ● ● ● ● ●
1 HOSE; FLEX,CLU CONT
EXC. CAB UP +110MM<TGG> L=430 		1-09364-859-1 01 1 9905- ●
1 HOSE; FLEX,CLU CONT
L=430 		1-09364-859-1 01 1 9905- ● ● ● ●
1 HOSE; FLEX,CLU CONT
LONG CHASSIS(CXZ5MF) 10PE1S(60L) FIRE ENGINE PACKAGE<WS2> L=470 		1-09364-692-0 01 1 9905- ●
10 NUT; FLEX HOSE,CLU CONT
M14 		9-99111-414-0 01 1 9603- ● ● ● ● ● ●
17 BOLT; BRKT
M8X20 W/LK&PL WASHER 		8-94279-216-0 02 1 9603- ● ● ● ● ● ●
22 UNION; CLU PIPE
(A) M14 		9-09225-208-1 01 1 9710- ● ● ● ● ● ●
22 UNION; CLU PIPE
SHIFT CONTROL ASSISTER<WX8> (B) 		1-09656-181-1 01 1 9603- ● ● ●
24 PIPE ASM; CLU,M/CYL TO UNION
L=643 		1-47424-529-2 01 1 9603-9904 ● ● ● ● ●
24 PIPE ASM; CLU,M/CYL TO UNION
L=643 		1-47424-529-2 01 1 9905- ● ● ● ● ● ●
27 NUT; BRKT
6WA1 TC-S(56L) (C) M8 		9-09110-508-0 01 1 9603-9606 ●
27 NUT; BRKT
6WA1 TC-S(56L) (C) M8 FLANGE 		0-91150-108-0 01 1 9607-9904 ●
27 NUT; BRKT
L TYPE ENG<90L> (C) M8 FLANGE 		0-91150-108-0 01 1 9905-0002 ●
27 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 02 1 9603- ● ● ● ● ● ●
27 NUT; BRKT
(A) M6 FLANGE W/RUBBER 		1-09984-180-0 01 1 9603- ● ● ● ● ● ●
27 NUT; BRKT
(C) M8 		9-09110-508-0 02 1 9603-9606 ● ● ● ● ● ●
27 NUT; BRKT
(C) M8 FLANGE 		0-91150-108-0 02 1 9607- ● ● ● ● ● ●
36 BRACKET; CLIP 1-71117-191-1 01 1 9603- ● ● ● ● ● ●
50 NUT; UNION
SHIFT CONTROL ASSISTER<WX8> (A) M20 		9-99111-420-0 01 1 9603- ● ● ● ● ●
50 NUT; UNION
(B) M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 9603- ● ● ● ● ● ●
50 NUT; UNION
(C) M14 		9-99111-414-0 01 1 9603- ● ● ● ● ● ●
56 BRACKET; FLEX HOSE 1-47477-602-1 01 1 9603-9912 ● ● ● ● ● ●
56 BRACKET; FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-47477-602-1 01 1 0001- ● ● ● ● ● ●
56 BRACKET; FLEX HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-47478-840-0 01 1 0001- ● ● ● ● ● ●
57 HOSE; CLU M/CYL TO OIL TANK 1-47424-533-0 01 1 9603- ● ● ● ● ● ●
58 CLIP; RUBBER HOSE TO M/CYL
ID=14 		8-94238-572-0 02 1 9603- ● ● ● ● ● ●
66 BOLT; EYE JOINT,CLU M/CYL
M14X30 EYE-BOLT 		1-09675-146-0 01 1 9603- ● ● ● ● ● ●
67 GASKET; EYE JOINT,CLU M/CYL
ID=14.2 OD=19.2 		1-09630-085-0 02 1 9603- ● ● ● ● ● ●
102 NUT; FLEX HOSE,CLU CONT
M14 		9-99111-414-0 01 1 9710- ● ● ● ● ● ●
103 WASHER; LK,FLEX HOSE,CLU CONT
ID=14.2 		9-09150-514-0 01 1 9710- ● ● ● ● ● ●
133 WASHER; LK,UNION
ID=14.2 		9-09150-514-0 01 1 9603- ● ● ● ● ● ●
147 NUT; CLIP FIX
M8 FLANGE 		8-94279-517-0 01 1 9603-9611 ● ● ● ● ● ●
147 NUT; CLIP FIX
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 01 1 9612- ● ● ● ● ● ●
153 PIPE ASM; CLU,UNION TO FLEX
L TYPE ENG<90L> MIXER TRUCK<RA2> (A) L=1834 SERVICED BY L=1950 		1-47426-393-0 01 1 9703-9910 ●
153 PIPE ASM; CLU,UNION TO FLEX
L TYPE ENG<90L> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MIXER TRUCK<RA2> (A) L=1834 SERVICED BY L=1950 		1-47426-393-0 01 1 9911- ● ● ● ● ● ●
153 PIPE ASM; CLU,UNION TO FLEX
6WA1 TC-S(56L) (A) L=1830 SERVICED BY L=1950 		1-47426-393-0 01 1 9606-9702 ●
153 PIPE ASM; CLU,UNION TO FLEX
L TYPE ENG<90L> EXC. MIXER TRUCK<RA2> (A) L=1830 SERVICED BY L=1950 		1-47426-393-0 01 1 9703-9910 ●
153 PIPE ASM; CLU,UNION TO FLEX
L TYPE ENG<90L> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. MIXER TRUCK<RA2> (A) L=1830 SERVICED BY L=1950 		1-47426-393-0 01 1 9911- ● ●
153 PIPE ASM; CLU,UNION TO FLEX
V TYPE ENG<91L> (A) L=547 SERVICED BY L=550 		1-47426-377-0 01 1 9603-0003 ● ● ● ● ●
153 PIPE ASM; CLU,UNION TO FLEX
V TYPE ENG<91L> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=547 SERVICED BY L=550 		1-47426-377-0 01 1 0004- ● ● ● ● ●
153 PIPE ASM; CLU,UNION TO FLEX
V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=433 		1-47429-241-0 01 1 0004- ● ● ● ● ●
153 PIPE ASM; CLU,UNION TO FLEX
(B) L=464 		1-47424-530-2 01 1 9603- ● ● ● ● ● ●
153 PIPE ASM; CLU,UNION TO FLEX
6WA1 TC-C(55L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=1803 SERVICED BY L=1800 		1-47426-392-0 01 1 9911- ● ●
167 BRACKET; UNION 1-71117-183-3 01 1 9603- ● ● ● ● ● ●
175 WASER; LK,FLEX HOSE,CLU CONT
ID=14.2 		9-09150-514-0 01 1 9603- ● ● ● ● ● ●
180 PLUG; PIPE 9-09204-510-0 01 1 9603- ● ● ● ● ● ●
184 UNION; FLEX HOSE
3WAY 		1-09656-679-0 01 1 9603- ● ● ● ● ● ●
185 CLIP; BRKT
ID=9 L=20 		9-09545-108-0 01 1 9603- ● ● ● ● ● ●
186 HOLDER; CLIP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-94107-710-0 02 1 9603-0011 ● ● ● ● ● ●
186 HOLDER; CLIP
DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-94107-710-0 02 1 0012- ● ● ● ● ● ●
187 SEAL; BRKT 1-71117-222-0 01 1 9603- ● ● ● ● ● ●
192 PLATE 1-71117-221-0 01 1 9603- ● ● ● ● ● ●

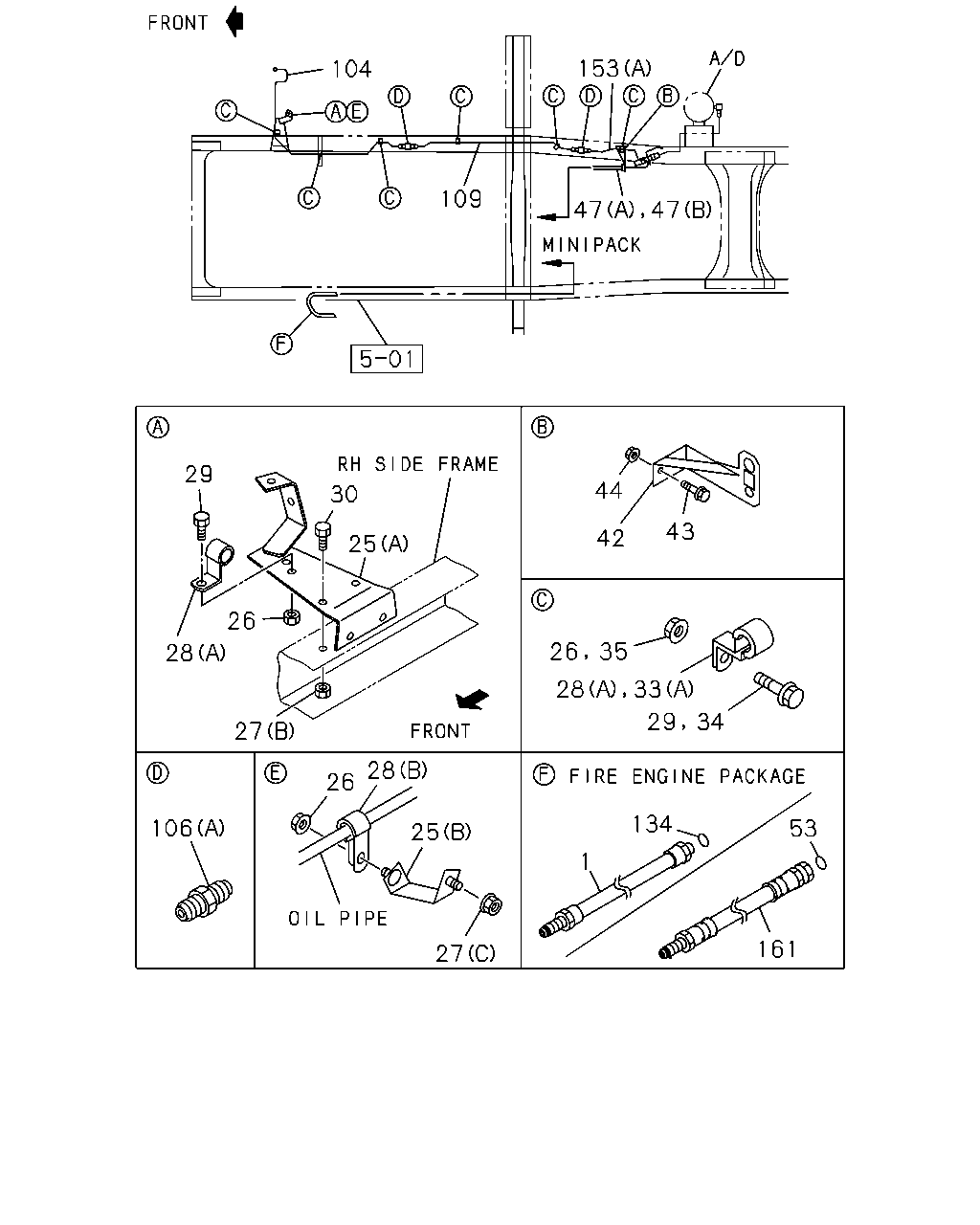

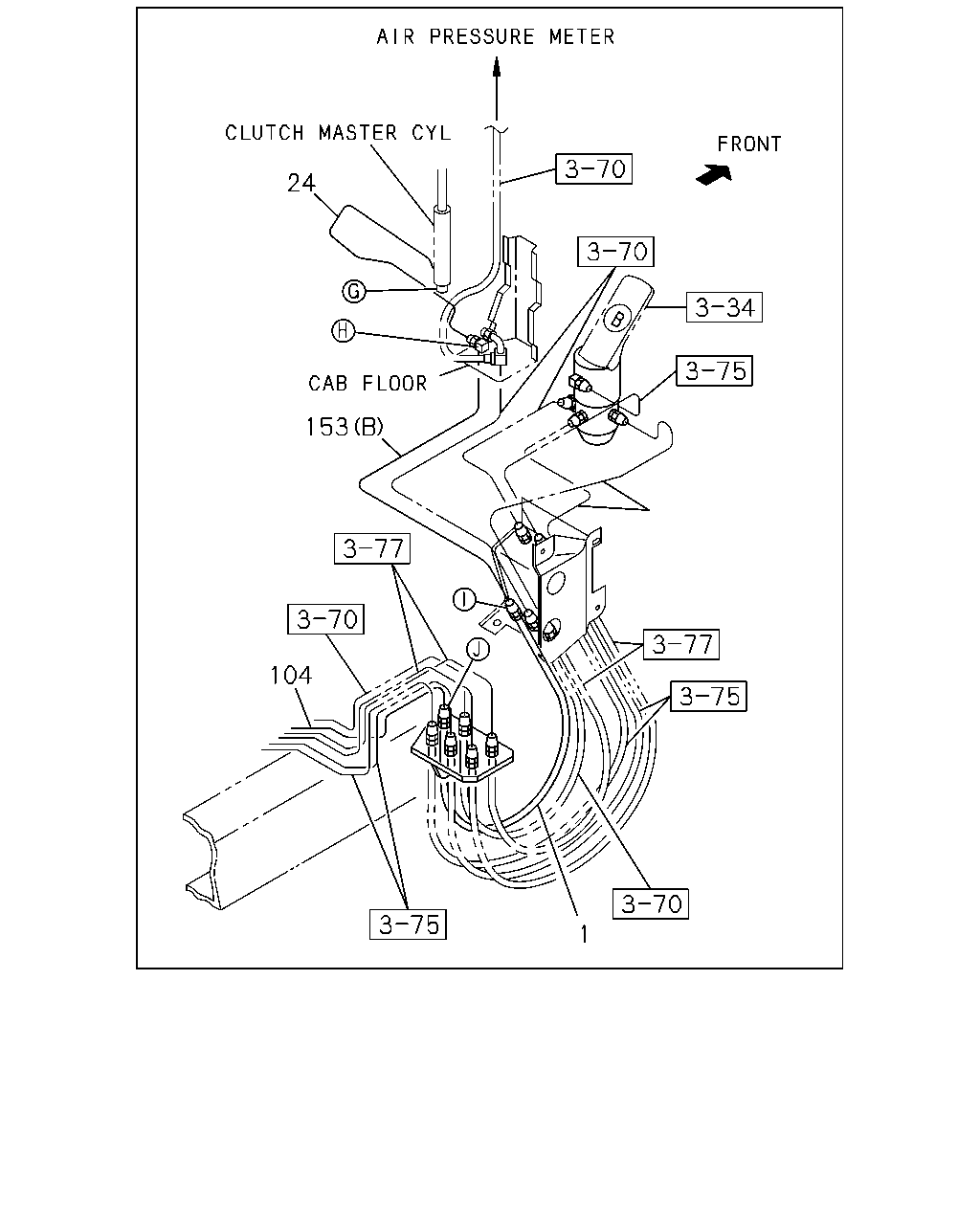

çizim 41486
153 104 109 47 47 29 44 30 43 42 25 26 35 26 28 28 33 29 34 27 28 26 134 106 53 25 1 161 27
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 HOSE; FLEX,CLU CONT
CAB UP +110MM<TGG> L=520 		1-09364-948-1 01 1 9905- ●
1 HOSE; FLEX,CLU CONT
L=430 		1-09364-859-0 01 1 9603-9904 ● ● ● ● ● ●
1 HOSE; FLEX,CLU CONT
EXC. CAB UP +110MM<TGG> L=430 		1-09364-859-1 01 1 9905- ●
1 HOSE; FLEX,CLU CONT
L=430 		1-09364-859-1 01 1 9905- ● ● ● ●
1 HOSE; FLEX,CLU CONT
LONG CHASSIS(CXZ5MF) 10PE1S(60L) FIRE ENGINE PACKAGE<WS2> L=470 		1-09364-692-0 01 1 9905- ●
25 BRACKET; OIL PIPE
6WA1 TC-S(56L) (B) 		1-47477-597-2 01 1 9603-9904 ●
25 BRACKET; OIL PIPE
L TYPE ENG<90L> (B) 		1-47477-597-2 01 1 9905-0002 ●
25 BRACKET; OIL PIPE
(A) 		1-47477-604-2 01 1 9603- ● ● ● ● ● ●
26 NUT; CLIP,OIL PIPE
L TYPE ENG<90L> M8 FLANGE 		0-91150-108-0 03 1 0003- ●
26 NUT; CLIP,OIL PIPE
6WA1 TC-S(56L) M8 		9-09110-508-0 02 1 9606-9606 ●
26 NUT; CLIP,OIL PIPE
6WA1 TC-S(56L) M8 FLANGE 		0-91150-108-0 02 1 9607-9904 ●
26 NUT; CLIP,OIL PIPE
L TYPE ENG<90L> M8 FLANGE 		0-91150-108-0 01 1 9905-9905 ●
26 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91150-108-0 02 1 9905-0002 ● ● ● ● ● ●
26 NUT; CLIP,OIL PIPE
L TYPE ENG<90L> M8 FLANGE 		0-91150-108-0 02 1 9905-0002 ●
26 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91150-108-0 02 1 0003- ● ● ● ● ● ●
26 NUT; CLIP,OIL PIPE
10PE1S(60L) M8 		9-09110-508-0 01 1 9603-9605 ● ● ● ●
26 NUT; CLIP,OIL PIPE
10PE1S(60L) M8 		9-09110-508-0 01 1 9606-9606 ● ● ● ●
26 NUT; CLIP,OIL PIPE
10PE1S(60L) M8 FLANGE 		0-91150-108-0 01 1 9607-9709 ● ● ● ●
26 NUT; CLIP,OIL PIPE
8PE1S(59L),10PE1S(60L) M8 FLANGE 		0-91150-108-0 01 1 9710-9904 ● ● ● ● ●
26 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91150-108-0 02 1 9905-9905 ● ● ● ● ● ●
27 NUT; BRKT
6WA1 TC-S(56L) (C) M8 		9-09110-508-0 01 1 9603-9606 ●
27 NUT; BRKT
6WA1 TC-S(56L) (C) M8 FLANGE 		0-91150-108-0 01 1 9607-9904 ●
27 NUT; BRKT
L TYPE ENG<90L> (C) M8 FLANGE 		0-91150-108-0 01 1 9905-0002 ●
27 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 02 1 9603- ● ● ● ● ● ●
27 NUT; BRKT
(A) M6 FLANGE W/RUBBER 		1-09984-180-0 01 1 9603- ● ● ● ● ● ●
27 NUT; BRKT
(C) M8 		9-09110-508-0 02 1 9603-9606 ● ● ● ● ● ●
27 NUT; BRKT
(C) M8 FLANGE 		0-91150-108-0 02 1 9607- ● ● ● ● ● ●
28 CLIP; OIL PIPE
6WA1 TC-S(56L) (B) ID=9 		9-09524-845-0 01 1 9603-9904 ●
28 CLIP; OIL PIPE
L TYPE ENG<90L> (B) ID=9 		9-09524-845-0 01 1 9905-9905 ●
28 CLIP; OIL PIPE
(B) ID=9 		9-09524-845-0 01 1 9906-0002 ● ● ● ● ● ●
28 CLIP; OIL PIPE
10PE1S(60L) (A) ID=8 H=20 L=20 		1-09700-604-0 01 1 9603-9709 ● ● ● ●
28 CLIP; OIL PIPE
8PE1S(59L),10PE1S(60L) (A) ID=8 H=20 L=20 		1-09700-604-0 01 1 9710-9905 ● ● ● ● ●
28 CLIP; OIL PIPE
8PE1S(59L),10PE1S(60L),10PE1N(61L),10PE1H(68L) (A) ID=8 H=20 L=20 		1-09700-604-0 01 1 9906-0002 ● ● ● ● ●
28 CLIP; OIL PIPE
(A) ID=8 H=20 L=20 		1-09700-604-0 03 1 0003- ● ● ● ● ● ●
28 CLIP; OIL PIPE
(A) ID=8 H=20 L=20 		1-09700-604-0 02 1 9603-0002 ● ● ● ● ● ●
29 BOLT; CLIP,OIL PIPE
10PE1S(60L) M8X25 FLANGE 		0-28080-825-0 01 1 9603-9606 ● ● ● ●
29 BOLT; CLIP,OIL PIPE
10PE1S(60L) M8X30 FLANGE 		0-28680-830-0 01 1 9607-9709 ● ● ● ●
29 BOLT; CLIP,OIL PIPE
8PE1S(59L),10PE1S(60L) M8X30 FLANGE 		0-28680-830-0 01 1 9710-9905 ● ● ● ● ●
29 BOLT; CLIP,OIL PIPE
8PE1S(59L),10PE1S(60L),10PE1N(61L),10PE1H(68L) M8X30 FLANGE 		0-28680-830-0 01 1 9906-0002 ● ● ● ● ●
29 BOLT; CLIP,OIL PIPE
L TYPE ENG<90L> M8X30 FLANGE 		0-28680-830-0 02 1 0003- ●
29 BOLT; CLIP,OIL PIPE
V TYPE ENG<91L> M8X30 FLANGE 		0-28680-830-0 01 1 0003- ● ● ● ● ●
29 BOLT; CLIP,OIL PIPE
M8X20 FLANGE 		0-28080-820-0 02 1 9603-9606 ● ● ● ● ● ●
29 BOLT; CLIP,OIL PIPE
M8X25 FLANGE 		0-28680-825-0 02 1 9607-9904 ● ● ● ● ● ●
29 BOLT; CLIP,OIL PIPE
M8X25 FLANGE 		0-28680-825-0 03 1 9905-0002 ● ● ● ● ● ●
29 BOLT; CLIP,OIL PIPE
L TYPE ENG<90L> M8X25 FLANGE 		0-28680-825-0 01 1 0003- ● ● ● ● ● ●
29 BOLT; CLIP,OIL PIPE
M8X25 FLANGE 		0-28680-825-0 02 1 0003- ● ● ● ● ● ●
30 BOLT; BRKT
M8X30 FLANGE 		0-28080-830-0 02 1 9603-9606 ● ● ● ● ● ●
30 BOLT; BRKT
M8X35 FLANGE 		0-28680-835-0 02 1 9607- ● ● ● ● ● ●
33 CLIP; OIL PIPE
6WA1 TC-S(56L),10PE1S(60L) (A) ID=8 H=20 L=20 		1-09700-604-0 02 1 9603-9706 ●
33 CLIP; OIL PIPE
10PE1S(60L) (A) ID=8 H=20 L=20 		1-09700-604-0 02 1 9603-9706 ● ● ●
33 CLIP; OIL PIPE
(A) ID=8 H=20 L=20 		1-09700-604-0 02 1 9707-9904 ● ● ● ● ●
33 CLIP; OIL PIPE
(A) ID=8 H=20 L=20 		1-09700-604-0 02 1 9905- ● ● ● ● ●
33 CLIP; OIL PIPE
(A) ID=8 H=20 L=20 		1-09700-604-0 01 1 9603-9904 ● ● ● ● ● ●
33 CLIP; OIL PIPE
(A) ID=8 H=20 L=20 		1-09700-604-0 01 1 9905- ● ● ● ● ●
34 BOLT; PIPE CLIP
6WA1 TC-S(56L),10PE1S(60L) M8X25 FLANGE 		0-28080-825-0 02 1 9603-9606 ●
34 BOLT; PIPE CLIP
10PE1S(60L) M8X25 FLANGE 		0-28080-825-0 02 1 9603-9606 ● ● ●
34 BOLT; PIPE CLIP
6WA1 TC-S(56L),10PE1S(60L) M8X30 FLANGE 		0-28680-830-0 02 1 9607-9706 ●
34 BOLT; PIPE CLIP
10PE1S(60L) M8X30 FLANGE 		0-28680-830-0 02 1 9607-9706 ● ● ●
34 BOLT; PIPE CLIP
6WA1 TC-S(56L),8PE1S(59L),10PE1S(60L) M8X30 FLANGE 		0-28680-830-0 02 1 9707-9904 ●
34 BOLT; PIPE CLIP
8PE1S(59L),10PE1S(60L) M8X30 FLANGE 		0-28680-830-0 02 1 9707-9904 ● ● ● ●
34 BOLT; PIPE CLIP
M8X30 FLANGE 		0-28680-830-0 02 1 9905- ● ● ● ● ●
34 BOLT; PIPE CLIP
M8X25 FLANGE 		0-28080-825-0 01 1 9603-9606 ● ● ● ● ● ●
34 BOLT; PIPE CLIP
M8X30 FLANGE 		0-28680-830-0 01 1 9607-9904 ● ● ● ● ● ●
34 BOLT; PIPE CLIP
M8X30 FLANGE 		0-28680-830-0 01 1 9905- ● ● ● ● ●
35 NUT; PIPE CLIP
6WA1 TC-S(56L),10PE1S(60L) M8 		9-09110-508-0 02 1 9603-9606 ●
35 NUT; PIPE CLIP
10PE1S(60L) M8 		9-09110-508-0 02 1 9603-9606 ● ● ●
35 NUT; PIPE CLIP
6WA1 TC-S(56L),10PE1S(60L) M8 FLANGE 		0-91150-108-0 02 1 9607-9706 ●
35 NUT; PIPE CLIP
10PE1S(60L) M8 FLANGE 		0-91150-108-0 02 1 9607-9706 ● ● ●
35 NUT; PIPE CLIP
M8 FLANGE 		0-91150-108-0 02 1 9707-9904 ● ● ● ● ●
35 NUT; PIPE CLIP
M8 FLANGE 		0-91150-108-0 02 1 9905- ● ● ● ● ●
35 NUT; PIPE CLIP
M8 		9-09110-508-0 01 1 9603-9606 ● ● ● ● ● ●
35 NUT; PIPE CLIP
M8 FLANGE 		0-91150-108-0 01 1 9607-9904 ● ● ● ● ● ●
35 NUT; PIPE CLIP
M8 FLANGE 		0-91150-108-0 01 1 9905- ● ● ● ● ●
42 BRACKET; FLEX HOSE,CLU CONT
6WA1 TC-S(56L) 		1-47477-414-0 01 1 9603- ●
42 BRACKET; FLEX HOSE,CLU CONT
V TYPE ENG<91L> 		1-47477-546-1 01 1 9603- ● ● ● ● ●
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
L TYPE ENG<90L> FRAME EQUIPMENT HEAVY DUTY<F03> M10X30 FLANGE 		0-28081-030-0 02 1 9603-9606 ●
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
L TYPE ENG<90L> FRAME EQUIPMENT HEAVY DUTY<F03> M10X35 FLANGE 		0-28681-035-0 02 1 9905- ●
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
L TYPE ENG<90L> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M10X25 FLANGE 		0-28081-025-0 02 1 9603-9606 ●
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
L TYPE ENG<90L> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M10X30 FLANGE 		0-28681-030-0 02 1 9905- ●
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
V TYPE ENG<91L> FRAME EQUIPMENT HEAVY DUTY<F03> M8X30 FLANGE 		0-28080-830-0 02 1 9603-9606 ● ● ● ● ●
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
FRAME EQUIPMENT HEAVY DUTY<F03> M8X35 FLANGE 		0-28680-835-0 02 1 9607-9904 ● ● ● ● ●
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
V TYPE ENG<91L> FRAME EQUIPMENT HEAVY DUTY<F03> M8X35 FLANGE 		0-28680-835-0 02 1 9905-0102 ●
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
FRAME EQUIPMENT HEAVY DUTY<F03> M8X35 FLANGE 		0-28680-835-0 02 1 9905-0102 ● ● ● ●
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
V TYPE ENG<91L> FRAME EQUIPMENT HEAVY DUTY<F03> M8X35 FLANGE 		0-28680-835-0 02 1 0103- ●
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
FRAME EQUIPMENT HEAVY DUTY<F03> M8X35 FLANGE 		0-28680-835-0 02 1 0103- ● ● ● ● ●
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
V TYPE ENG<91L> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M8X25 FLANGE 		0-28080-825-0 02 1 9603-9606 ● ● ● ● ●
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M8X30 FLANGE 		0-28680-830-0 02 1 9607-9904 ● ● ● ● ●
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
V TYPE ENG<91L> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M8X30 FLANGE 		0-28680-830-0 02 1 9905-0102 ●
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M8X30 FLANGE 		0-28680-830-0 02 1 9905-0102 ● ● ● ●
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
V TYPE ENG<91L> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M8X30 FLANGE 		0-28680-830-0 02 1 0103- ●
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M8X30 FLANGE 		0-28680-830-0 02 1 0103- ● ● ● ● ●
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
L TYPE ENG<90L> M10 		9-09110-510-0 02 1 9603-9606 ●
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
L TYPE ENG<90L> M10 FLANGE 		0-91150-210-0 02 1 9607- ●
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
V TYPE ENG<91L> M8 		9-09110-508-0 02 1 9603-9606 ● ● ● ● ●
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
V TYPE ENG<91L> M8 FLANGE 		0-91150-108-0 02 1 9607-9904 ● ● ● ● ●
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
L TYPE ENG<90L> M8 FLANGE 		0-91150-108-0 02 1 9905-0102 ●
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
M8 FLANGE 		0-91150-108-0 02 1 9905-0102 ● ● ● ●
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
V TYPE ENG<91L> M8 FLANGE 		0-91150-108-0 02 1 0103- ●
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
M8 FLANGE 		0-91150-108-0 02 1 0103- ● ● ● ● ●
47 HOSE; FLEX,CLU CONT
L TYPE ENG<90L> MIXER TRUCK<RA2> (B) L=500 		1-09364-329-0 01 1 9703-9910 ●
47 HOSE; FLEX,CLU CONT
L TYPE ENG<90L> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MIXER TRUCK<RA2> (B) L=500 		1-09364-329-0 01 1 9911- ● ● ● ● ● ●
47 HOSE; FLEX,CLU CONT
(B) L=550 		1-09364-434-0 01 1 9603-9702 ● ● ● ● ●
47 HOSE; FLEX,CLU CONT
V TYPE ENG<91L> (B) L=550 		1-09364-434-0 01 1 9703-9910 ● ● ● ● ●
47 HOSE; FLEX,CLU CONT
L TYPE ENG<90L> EXC. MIXER TRUCK<RA2> (B) L=550 		1-09364-434-0 01 1 9703-9910 ●
47 HOSE; FLEX,CLU CONT
L TYPE ENG<90L> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. MIXER TRUCK<RA2> (B) L=550 		1-09364-434-0 01 1 9911- ● ● ● ● ● ●
47 HOSE; FLEX,CLU CONT
V TYPE ENG<91L> (B) L=550 		1-09364-434-0 01 1 9911- ● ● ● ● ●
47 HOSE; FLEX,CLU CONT
6WA1 TC-C(55L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MIXER TRUCK<RA2> (B) L=550 		1-09364-434-0 01 1 9911- ● ●
47 HOSE; FLEX,CLU CONT
SHIFT CONTROL ASSISTER<WX8> (A) L=500 		0-07806-500-1 01 1 9603-9910 ● ● ● ● ●
47 HOSE; FLEX,CLU CONT
L TYPE ENG<90L> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SHIFT CONTROL ASSISTER<WX8> (A) L=500 		0-07806-500-1 01 1 9911- ● ● ● ● ● ●
47 HOSE; FLEX,CLU CONT
EXC. SHIFT CONTROL ASSISTER<WX8> (A) L=600 		0-07706-600-0 01 1 9603- ● ● ● ● ●
47 HOSE; FLEX,CLU CONT
6WA1 TC-C(55L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) SHIFT CONTROL ASSISTER<WX8> (A) L=560 		0-07806-560-1 01 1 9911- ● ●
47 HOSE; FLEX,CLU CONT
6WA1 TC-C(55L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. MIXER TRUCK<RA2> (B) L=600 		1-09364-705-0 01 1 9911- ● ●
53 GASKET; JOINT BOLT
ID=14.2 OD=19.2 		1-09630-085-0 02 1 9603- ● ● ● ● ●
53 GASKET; JOINT BOLT
LONG CHASSIS(CXZ5MF) 10PE1S(60L) FIRE ENGINE PACKAGE<WS2> ID=11 OD=18 		9-09572-510-0 01 1 9701- ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
L TYPE ENG<90L> L=1589 		1-49164-423-0 01 1 9905-0002 ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
L TYPE ENG<90L> L=1595 		1-49165-436-0 01 1 0003- ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
6WA1 TC-S(56L) L=1521 SERVICED BY L=1550 		1-47426-390-0 01 1 9603-9702 ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
6WA1 TC-S(56L) L=1539 SERVICED BY L=1550 		1-47426-390-0 01 1 9703-9711 ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
6WA1 TC-S(56L) L=1536 SERVICED BY L=1550 		1-47426-390-0 01 1 9712-9904 ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
10PE1S(60L) L=1543 SERVICED BY L=1550 		1-47426-390-0 01 1 9603-9904 ● ● ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
10PE1S(60L),10PE1N(61L),10PE1H(68L) L=1543 SERVICED BY L=1550 		1-47426-390-0 01 1 9905- ● ● ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
L TYPE ENG<90L> L=1589 		1-49164-423-0 01 1 9905- ● ● ● ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
8PE1S(59L) L=1540 SERVICED BY L=1550 		1-47426-390-0 01 1 9603-9904 ● ● ● ● ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
8PE1S(59L) SERVICED BY L=1550 		1-47426-390-0 01 1 9905- ● ● ● ●
106 UNION; OIL PIPE
(A) M14 STRAIGHT 		9-09223-008-1 01 1 9603-9706 ● ● ● ● ●
106 UNION; OIL PIPE
(A) M14 STRAIGHT 		9-09223-008-1 01 1 9603-9706 ● ● ● ● ●
106 UNION; OIL PIPE
(A) M14 STRAIGHT 		9-09223-008-1 01 1 9707-9904 ● ● ● ● ●
106 UNION; OIL PIPE
V TYPE ENG<91L> (A) M14 STRAIGHT 		9-09223-008-1 01 1 9707-9904 ● ● ● ● ●
106 UNION; OIL PIPE
(A) M14 STRAIGHT 		9-09223-008-1 01 1 9905-9905 ● ● ● ● ● ●
106 UNION; OIL PIPE
V TYPE ENG<91L> (A) M14 STRAIGHT 		9-09223-008-1 01 1 9905-9905 ●
106 UNION; OIL PIPE
(A) M14 STRAIGHT 		9-09223-008-1 01 1 9905-9905 ● ● ● ●
106 UNION; OIL PIPE
V TYPE ENG<91L> (A) M14 STRAIGHT 		9-09223-008-1 01 1 9906- ● ● ● ● ●
106 UNION; OIL PIPE
(A) M14 STRAIGHT 		9-09223-008-1 01 1 9906- ● ● ● ● ●
109 PIPE; AIR,UNION TO UNION
L=973 SERVICED BY L=1000 		1-47426-386-0 01 1 9603-9608 ● ● ● ● ●
109 PIPE; AIR,UNION TO UNION
V TYPE ENG<91L> L=973 SERVICED BY L=1000 		1-47426-386-0 01 1 9609- ● ● ● ● ●
134 GASKET
LONG CHASSIS(CXZ5MF) 10PE1S(60L) FIRE ENGINE PACKAGE<WS2> ID=10.2 OD=16.0 		9-09571-410-0 01 1 9905- ●
153 PIPE ASM; CLU,UNION TO FLEX
L TYPE ENG<90L> MIXER TRUCK<RA2> (A) L=1834 SERVICED BY L=1950 		1-47426-393-0 01 1 9703-9910 ●
153 PIPE ASM; CLU,UNION TO FLEX
L TYPE ENG<90L> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MIXER TRUCK<RA2> (A) L=1834 SERVICED BY L=1950 		1-47426-393-0 01 1 9911- ● ● ● ● ● ●
153 PIPE ASM; CLU,UNION TO FLEX
6WA1 TC-S(56L) (A) L=1830 SERVICED BY L=1950 		1-47426-393-0 01 1 9606-9702 ●
153 PIPE ASM; CLU,UNION TO FLEX
L TYPE ENG<90L> EXC. MIXER TRUCK<RA2> (A) L=1830 SERVICED BY L=1950 		1-47426-393-0 01 1 9703-9910 ●
153 PIPE ASM; CLU,UNION TO FLEX
L TYPE ENG<90L> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. MIXER TRUCK<RA2> (A) L=1830 SERVICED BY L=1950 		1-47426-393-0 01 1 9911- ● ●
153 PIPE ASM; CLU,UNION TO FLEX
V TYPE ENG<91L> (A) L=547 SERVICED BY L=550 		1-47426-377-0 01 1 9603-0003 ● ● ● ● ●
153 PIPE ASM; CLU,UNION TO FLEX
V TYPE ENG<91L> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=547 SERVICED BY L=550 		1-47426-377-0 01 1 0004- ● ● ● ● ●
153 PIPE ASM; CLU,UNION TO FLEX
V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=433 		1-47429-241-0 01 1 0004- ● ● ● ● ●
153 PIPE ASM; CLU,UNION TO FLEX
(B) L=464 		1-47424-530-2 01 1 9603- ● ● ● ● ● ●
153 PIPE ASM; CLU,UNION TO FLEX
6WA1 TC-C(55L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=1803 SERVICED BY L=1800 		1-47426-392-0 01 1 9911- ● ●
161 HOSE; FLEX,SLAVE CYL
LONG CHASSIS(CXZ5MF) 10PE1S(60L) FIRE ENGINE PACKAGE<WS2> L=450 		0-07806-450-1 01 1 9701- ●
çizim 43361
24 153 104 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 HOSE; FLEX,CLU CONT
CAB UP +110MM<TGG> L=520 		1-09364-948-1 01 1 9905- ●
1 HOSE; FLEX,CLU CONT
L=430 		1-09364-859-0 01 1 9603-9904 ● ● ● ● ● ●
1 HOSE; FLEX,CLU CONT
EXC. CAB UP +110MM<TGG> L=430 		1-09364-859-1 01 1 9905- ●
1 HOSE; FLEX,CLU CONT
L=430 		1-09364-859-1 01 1 9905- ● ● ● ●
1 HOSE; FLEX,CLU CONT
LONG CHASSIS(CXZ5MF) 10PE1S(60L) FIRE ENGINE PACKAGE<WS2> L=470 		1-09364-692-0 01 1 9905- ●
24 PIPE ASM; CLU,M/CYL TO UNION
L=643 		1-47424-529-2 01 1 9603-9904 ● ● ● ● ●
24 PIPE ASM; CLU,M/CYL TO UNION
L=643 		1-47424-529-2 01 1 9905- ● ● ● ● ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
L TYPE ENG<90L> L=1589 		1-49164-423-0 01 1 9905-0002 ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
L TYPE ENG<90L> L=1595 		1-49165-436-0 01 1 0003- ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
6WA1 TC-S(56L) L=1521 SERVICED BY L=1550 		1-47426-390-0 01 1 9603-9702 ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
6WA1 TC-S(56L) L=1539 SERVICED BY L=1550 		1-47426-390-0 01 1 9703-9711 ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
6WA1 TC-S(56L) L=1536 SERVICED BY L=1550 		1-47426-390-0 01 1 9712-9904 ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
10PE1S(60L) L=1543 SERVICED BY L=1550 		1-47426-390-0 01 1 9603-9904 ● ● ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
10PE1S(60L),10PE1N(61L),10PE1H(68L) L=1543 SERVICED BY L=1550 		1-47426-390-0 01 1 9905- ● ● ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
L TYPE ENG<90L> L=1589 		1-49164-423-0 01 1 9905- ● ● ● ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
8PE1S(59L) L=1540 SERVICED BY L=1550 		1-47426-390-0 01 1 9603-9904 ● ● ● ● ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
8PE1S(59L) SERVICED BY L=1550 		1-47426-390-0 01 1 9905- ● ● ● ●
153 PIPE ASM; CLU,UNION TO FLEX
L TYPE ENG<90L> MIXER TRUCK<RA2> (A) L=1834 SERVICED BY L=1950 		1-47426-393-0 01 1 9703-9910 ●
153 PIPE ASM; CLU,UNION TO FLEX
L TYPE ENG<90L> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MIXER TRUCK<RA2> (A) L=1834 SERVICED BY L=1950 		1-47426-393-0 01 1 9911- ● ● ● ● ● ●
153 PIPE ASM; CLU,UNION TO FLEX
6WA1 TC-S(56L) (A) L=1830 SERVICED BY L=1950 		1-47426-393-0 01 1 9606-9702 ●
153 PIPE ASM; CLU,UNION TO FLEX
L TYPE ENG<90L> EXC. MIXER TRUCK<RA2> (A) L=1830 SERVICED BY L=1950 		1-47426-393-0 01 1 9703-9910 ●
153 PIPE ASM; CLU,UNION TO FLEX
L TYPE ENG<90L> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. MIXER TRUCK<RA2> (A) L=1830 SERVICED BY L=1950 		1-47426-393-0 01 1 9911- ● ●
153 PIPE ASM; CLU,UNION TO FLEX
V TYPE ENG<91L> (A) L=547 SERVICED BY L=550 		1-47426-377-0 01 1 9603-0003 ● ● ● ● ●
153 PIPE ASM; CLU,UNION TO FLEX
V TYPE ENG<91L> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=547 SERVICED BY L=550 		1-47426-377-0 01 1 0004- ● ● ● ● ●
153 PIPE ASM; CLU,UNION TO FLEX
V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=433 		1-47429-241-0 01 1 0004- ● ● ● ● ●
153 PIPE ASM; CLU,UNION TO FLEX
(B) L=464 		1-47424-530-2 01 1 9603- ● ● ● ● ● ●
153 PIPE ASM; CLU,UNION TO FLEX
6WA1 TC-C(55L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=1803 SERVICED BY L=1800 		1-47426-392-0 01 1 9911- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
