3 - Brakes, Brake System
▶
3-08 - PARKING BRAKE
▶

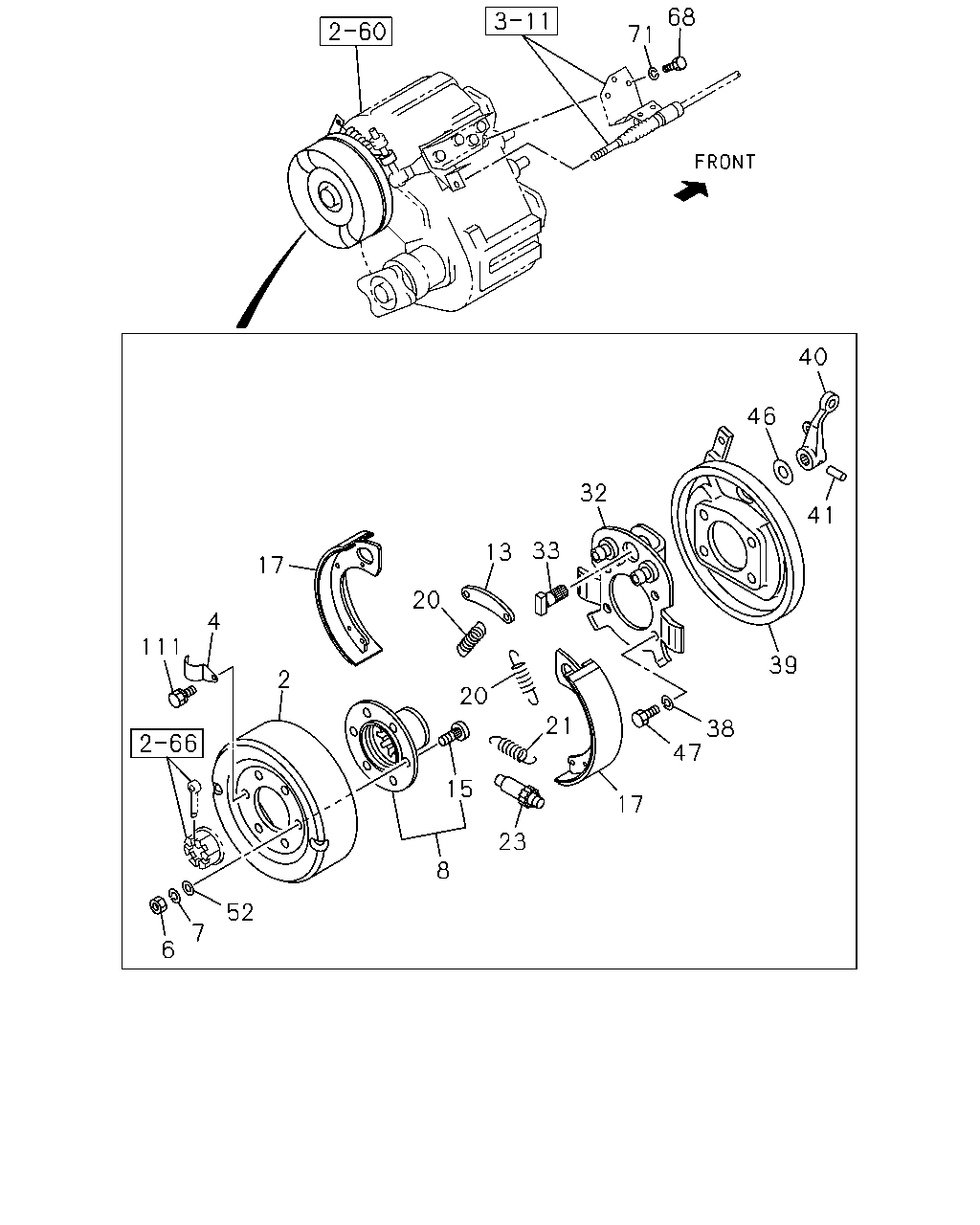

3-08 — PARKING BRAKE
(#43128) — 29 parça
68
71
40
46
32
41
33
13
17
20
4
111
39
2
20
21
38
47
15
17
23
8
52
7
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
DRUM; PARKING BRK
1-46211-004-1
01
1
0008-
4
COVER; ADJ HOLE
9-46219-015-1
02
1
0008-
6
NUT; FLANGE
M12
9-99110-512-0
04
1
0008-0512
6
NUT; FLANGE
M12
0-91110-512-0
04
1
0601-
7
WASHER; LK,FLANGE
ID=12.2
9-09150-512-0
04
1
0008-0603
7
WASHER; LK,FLANGE
ID=12.2
0-91510-512-0
04
1
0604-
8
FLANGE; PARKING BRK
1-37240-049-1
01
1
0008-
13
BRACE; PARKING BRK
9-46239-003-0
01
1
0008-
15
BOLT; FLANGE
M12X39
1-09046-001-2
04
1
0008-0707
15
BOLT; FLANGE
M12X39
8-97365-446-0
04
1
0708-
17
SHOE; PARKING BRK
1-46220-024-0
02
1
0008-
20
SPRING; RETURN,SECONDARY,PARKING BRK
9-09942-567-1
02
1
0008-
21
SPRING; RETURN,PARKING BRK SHOE
1-09583-268-0
01
1
0008-
23
SCREW; ADJ,PARKING BRK SHOE
9-46240-008-0
01
1
0008-
32
PLATE; SUPPORT,PARKING BRK
1-46213-023-0
01
1
0008-
33
SHAFT; CAM,PARKING BRK
1-46251-005-0
01
1
0008-
38
WASHER; LK,SUPPORT PLATE
ID=14.2
9-09150-514-0
04
1
0008-0603
38
WASHER; LK,SUPPORT PLATE
ID=14.2
0-91510-514-0
04
1
0604-
39
COVER; DUST,PARKING BRK
1-46213-020-0
01
1
0008-
40
LEVER; CM/SHF,PARKING BRK
1-46252-003-0
01
1
0008-
41
PIN; KNOCK,LEVER
9-09878-594-0
01
1
0008-
46
WASHER; LEVER
9-09855-367-0
01
1
0008-
47
BOLT; SUPPORT PLATE
M14X32
0-23801-432-0
04
1
0008-
52
WASHER; PL
ID=12.5
9-09164-512-0
04
1
0008-
68
BOLT; BRKT,PARKING BRK CONT
M10X20
0-23801-020-0
03
1
0008-
71
WASHER; LK,BRKT FIX,PARKING
ID=10.2
9-09150-510-0
03
1
0008-0603
71
WASHER; LK,BRKT FIX,PARKING
ID=10.2
0-91510-510-0
03
1
0604-
111
BOLT; COVER,CHECK HOLE
M8X18 W/LK WASHER
0-50040-818-0
02
1
0008-0906
111
BOLT; COVER,CHECK HOLE
M8X18 W/LK WASHER
0-50540-818-0
02
1
0907-
