Sayfa 3-60 - Isuzu EPC

3-60 — BRAKE PIPING; VACUUM (#43120) — 351 parça

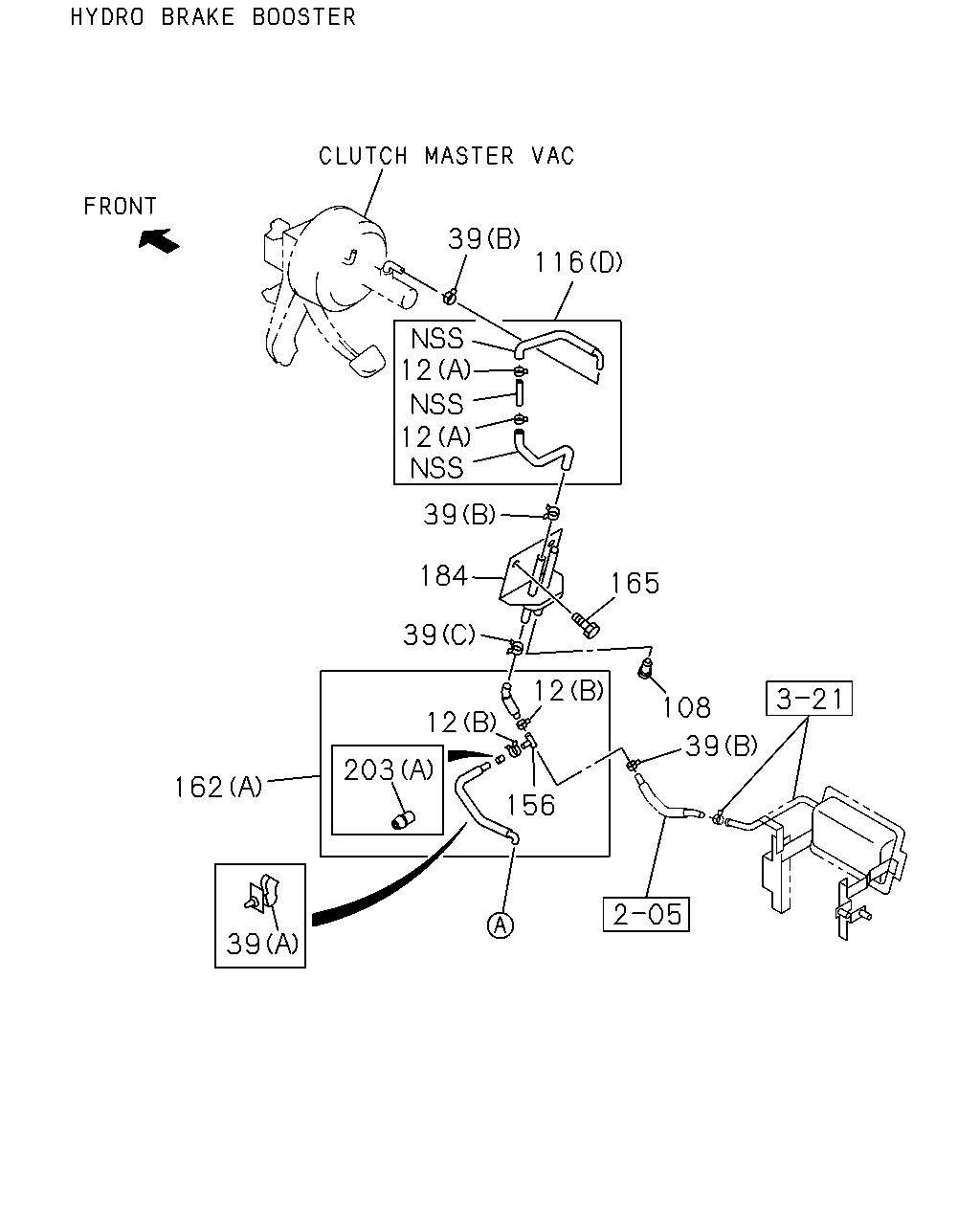

39 116 12 12 39 184 165 39 12 108 12 39 203 162 156 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
12	CLIP; HOSE FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH<S2T> (B) ID=15.5	8-94367-944-0	02	1	0508-	●
12	CLIP; HOSE POWER ASSIST CLUTCH<S2T> (B) ID=15.5	8-94367-944-0	02	1	0508-		●	●
12	CLIP; HOSE FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH<S2T> EXC. HYDRO BRAKE BOOSTER<7QQ> (A) ID=14.5	8-94167-480-0	02	1	0508-	●
12	CLIP; HOSE POWER ASSIST CLUTCH<S2T> (A) ID=14.5	8-94167-480-0	02	1	0508-		●
12	CLIP; HOSE EXC. HYDRO BRAKE BOOSTER<7QQ> (A) ID=14.5	8-94167-480-0	03	1	0508-	●
12	CLIP; HOSE (A) ID=14.5	8-94167-480-0	03	1	0508-		●
39	CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER<7QQ> (A) ID=25.5	8-97077-492-0	01	1	0508-	●
39	CLIP; HOSE,VAC FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH<S2T> HYDRO BRAKE BOOSTER<7QQ> (A) ID=25.5	8-97077-492-0	01	1	0508-	●
39	CLIP; HOSE,VAC (A) ID=25.5	8-97077-492-0	01	1	0508-		●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH<S2T> (A) ID=25.5	8-97077-492-0	01	1	0508-			●
39	CLIP; HOSE,VAC FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH<S2T> EXC. HYDRO BRAKE BOOSTER<7QQ> (B) ID=16	8-94238-568-0	06	1	0508-	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH<S2T> (B) ID=16	8-94238-568-0	06	1	0508-		●
39	CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH<S2T>,HYDRO BRAKE BOOSTER<7QQ> (B) ID=16	8-94238-568-0	03	1	0508-	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH<S2T> HYDRO BRAKE BOOSTER<7QQ> (B) ID=16	8-94238-568-0	03	1	0508-	●
39	CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH<S2T> (B) ID=16	8-94238-568-0	03	1	0508-		●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH<S2T> (B) ID=16	8-94238-568-0	03	1	0508-			●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH<S2T> HYDRO BRAKE BOOSTER<7QQ> (C) ID=16	5-09707-023-2	01	1	0508-	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH<S2T> (C) ID=16	5-09707-023-2	01	1	0508-			●
39	CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER<7QQ> (C) ID=16	5-09707-023-2	02	1	0508-	●
39	CLIP; HOSE,VAC (C) ID=16	5-09707-023-2	02	1	0508-		●
108	GROMMET; PIPE POWER ASSIST CLUTCH<S2T> HYDRO BRAKE BOOSTER<7QQ>	9-09956-353-0	01	1	0508-	●
108	GROMMET; PIPE POWER ASSIST CLUTCH<S2T>	9-09956-353-0	01	1	0508-			●
108	GROMMET; PIPE HYDRO BRAKE BOOSTER<7QQ> EXC. POWER ASSIST CLUTCH<S2T>	9-09956-353-0	02	1	0508-	●
108	GROMMET; PIPE EXC. POWER ASSIST CLUTCH<S2T>	9-09956-353-0	02	1	0508-			●
116	HOSE; VAC,M/VAC FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH<S2T> EXC. HYDRO BRAKE BOOSTER<7QQ> (B)	8-97379-286-1	01	1	0508-	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH<S2T> (B)	8-97379-286-1	01	1	0508-		●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH<S2T> HYDRO BRAKE BOOSTER<7QQ> (D)	8-97147-495-2	01	1	0508-	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH<S2T> (D)	8-97147-495-2	01	1	0508-			●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH<S2T> EXC. HYDRO BRAKE BOOSTER<7QQ> (A)	8-97314-596-1	01	1	0508-	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH<S2T> (A)	8-97314-596-1	01	1	0508-		●
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH<S2T>,HYDRO BRAKE BOOSTER<7QQ> (C)	8-97314-597-1	01	1	0508-	●
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH<S2T> (C)	8-97314-597-1	01	1	0508-		●
156	JOINT; 3 WAY FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH<S2T> 3WAY	8-94167-478-0	01	1	0508-	●
156	JOINT; 3 WAY POWER ASSIST CLUTCH<S2T> 3WAY	8-94167-478-0	01	1	0508-		●	●
162	HOSE; VAC FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH<S2T> (A)	8-98000-392-0	01	1	0508-	●
162	HOSE; VAC POWER ASSIST CLUTCH<S2T> (A)	8-98000-392-0	01	1	0508-		●	●
162	HOSE; VAC EXC. POWER ASSIST CLUTCH<S2T>,HYDRO BRAKE BOOSTER<7QQ> (B)	8-97040-991-2	01	1	0508-	●
162	HOSE; VAC EXC. POWER ASSIST CLUTCH<S2T> (B)	8-97040-991-2	01	1	0508-		●
162	HOSE; VAC 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> POWER ASSIST CLUTCH<S2T> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> (C) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0508-0509	●
162	HOSE; VAC 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER<7QQ> (C) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0508-0509	●
162	HOSE; VAC 4HE1-TCS ENG<RDS> POWER ASSIST CLUTCH<S2T> (C) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0508-0509			●
162	HOSE; VAC POWER ASSIST CLUTCH<S2T> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> (C) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0510-	●
162	HOSE; VAC FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER<7QQ> (C) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0510-	●
162	HOSE; VAC 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> POWER ASSIST CLUTCH<S2T> (C) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0510-			●
165	BOLT; BRKT M6X16 FLANGE	0-28680-616-0	02	1	0508-0611	●	●	●
165	BOLT; BRKT M6X16 FLANGE THA	0-28650-616-0	02	1	0612-0701	●	●	●
165	BOLT; BRKT EXC. HYDRO BRAKE BOOSTER<7QQ> M6X16 FLANGE THA	0-28650-616-0	02	1	0702-	●
165	BOLT; BRKT M6X16 FLANGE THA	0-28650-616-0	02	1	0702-		●
184	BRACKET; UNION FIX	8-97035-967-3	01	1	0508-	●	●	●
203	VALVE; CHECK FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH<S2T> (A)	8-94104-021-0	01	1	0508-	●
203	VALVE; CHECK POWER ASSIST CLUTCH<S2T> (A)	8-94104-021-0	01	1	0508-		●	●
203	VALVE; CHECK EXC. HYDRO BRAKE BOOSTER<7QQ> (B)	8-94386-540-0	01	1	0508-	●
203	VALVE; CHECK (B)	8-94386-540-0	01	1	0508-		●

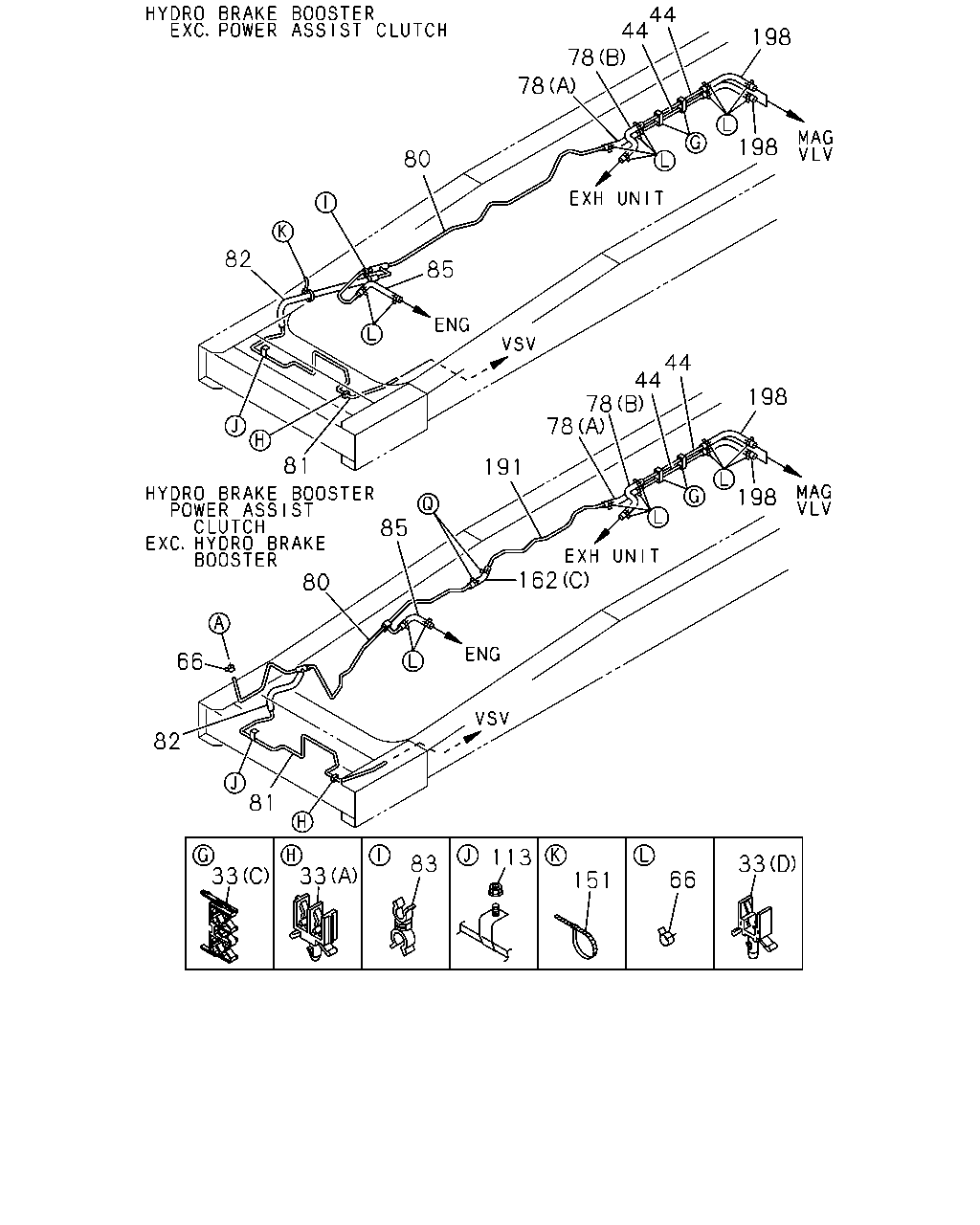

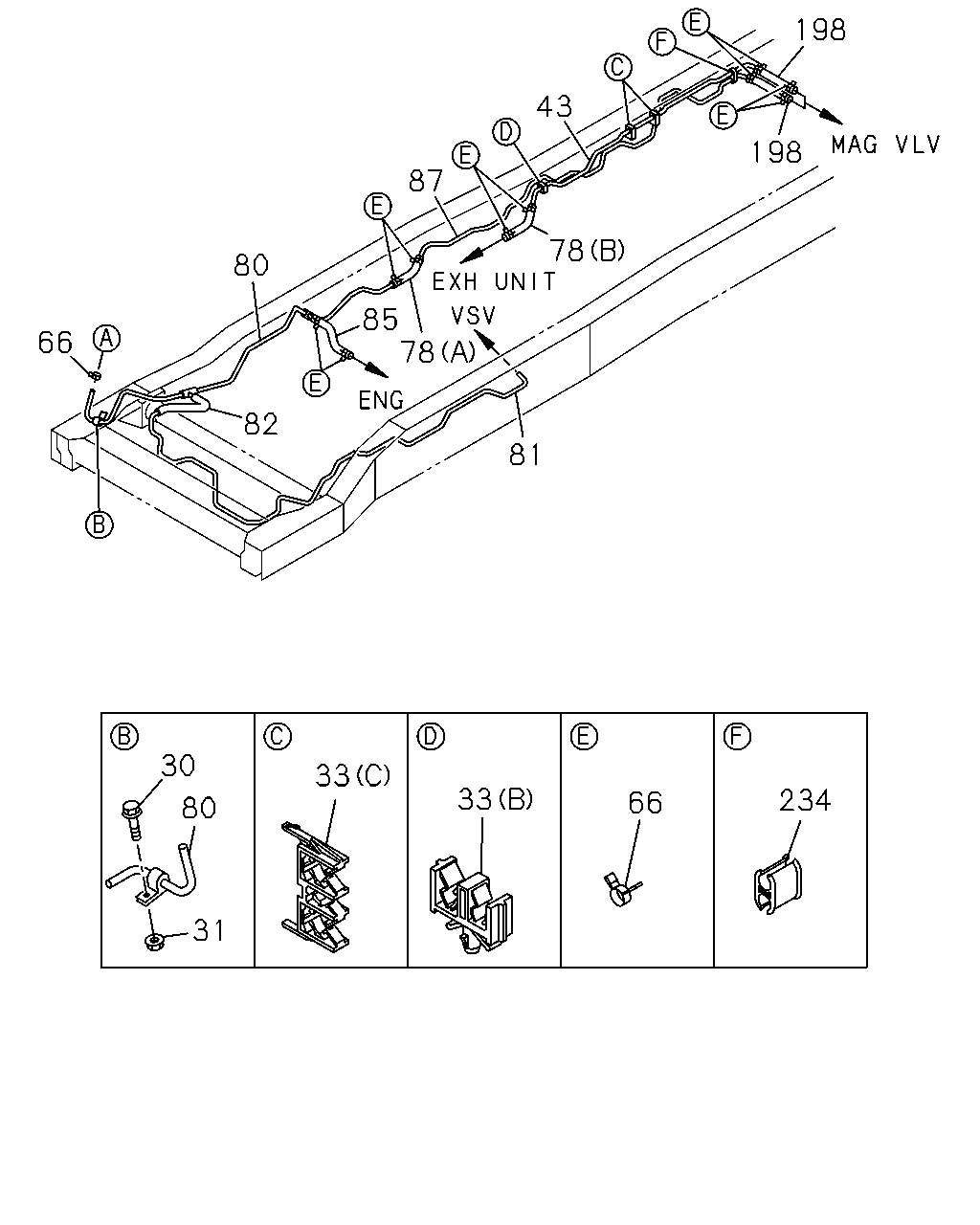

44 44 78 198 78 198 80 82 85 44 44 78 78 198 81 191 198 85 162 80 66 82 81 33 33 113 83 33 66 151

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
33	CLIP; VAC PIPE 4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=10X2 H=47.5	8-97018-605-0	01	1	0508-	●
33	CLIP; VAC PIPE 4HG1-T ENG<RDP> (B) ID=10X2 H=47.5	8-97018-605-0	01	1	0508-		●
33	CLIP; VAC PIPE (C) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	02	1	0508-	●
33	CLIP; VAC PIPE (C) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	04	1	0508-		●
33	CLIP; VAC PIPE (C) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	03	1	0508-			●
33	CLIP; VAC PIPE 4HE1-TCS ENG<RDS> (A) ID=4.8X2	8-94316-410-0	01	1	0508-	●		●
33	CLIP; VAC PIPE 4HE1-TCS ENG<RDS> POWER ASSIST CLUTCH<S2T> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> (D) ID=10 H=40	8-94462-219-0	02	1	0508-0509	●
33	CLIP; VAC PIPE 4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER<7QQ> (D) ID=10 H=40	8-94462-219-0	02	1	0508-0509	●
33	CLIP; VAC PIPE 4HE1-TCS ENG<RDS> POWER ASSIST CLUTCH<S2T> (D) ID=10 H=40	8-94462-219-0	02	1	0508-0509			●
33	CLIP; VAC PIPE 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> POWER ASSIST CLUTCH<S2T> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> (D) ID=10 H=40	8-94462-219-0	02	1	0510-	●
33	CLIP; VAC PIPE 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER<7QQ> (D) ID=10 H=40	8-94462-219-0	02	1	0510-	●
33	CLIP; VAC PIPE 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> POWER ASSIST CLUTCH<S2T> (D) ID=10 H=40	8-94462-219-0	02	1	0510-			●
44	PIPE; VAC,MAG VLV 4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ>	8-97096-971-0	02	1	0508-0509	●
44	PIPE; VAC,MAG VLV 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> FRAME STRAIGHT TYPE<7KJ>	8-97096-971-0	02	1	0510-	●
44	PIPE; VAC,MAG VLV 4HE1-TCS ENG<RDS>	8-97096-972-0	02	1	0508-0509			●
44	PIPE; VAC,MAG VLV 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS>	8-97096-972-0	02	1	0510-			●
66	CLIP; VAC HOSE,M/VAC EXC. FRAME STRAIGHT TYPE<7KJ> ID=16	8-94238-568-0	11	1	0508-0911	●
66	CLIP; VAC HOSE,M/VAC ID=16	8-94238-568-0	11	1	0508-0911		●
66	CLIP; VAC HOSE,M/VAC EXC. FRAME STRAIGHT TYPE<7KJ> ID=16	8-98008-098-0	11	1	0912-	●
66	CLIP; VAC HOSE,M/VAC ID=16	8-98008-098-0	11	1	0912-		●
66	CLIP; VAC HOSE,M/VAC 4HE1-TCS ENG<RDS> EXHAUST BRAKE<NF8> POWER ASSIST CLUTCH<S2T> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> ID=16	8-94238-568-0	13	1	0508-0509	●		●
66	CLIP; VAC HOSE,M/VAC 4HE1-TCS ENG<RDS> EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER<7QQ> ID=16	8-94238-568-0	13	1	0508-0509	●
66	CLIP; VAC HOSE,M/VAC 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> EXHAUST BRAKE<NF8> POWER ASSIST CLUTCH<S2T> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> ID=16	8-94238-568-0	13	1	0510-0911	●		●
66	CLIP; VAC HOSE,M/VAC 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER<7QQ> ID=16	8-94238-568-0	13	1	0510-0911	●
66	CLIP; VAC HOSE,M/VAC 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> EXHAUST BRAKE<NF8> POWER ASSIST CLUTCH<S2T> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> ID=16	8-98008-098-0	13	1	0912-	●		●
66	CLIP; VAC HOSE,M/VAC 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER<7QQ> ID=16	8-98008-098-0	13	1	0912-	●
66	CLIP; VAC HOSE,M/VAC 4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> EXC. POWER ASSIST CLUTCH<S2T> ID=16	8-94238-568-0	10	1	0508-0509	●
66	CLIP; VAC HOSE,M/VAC 4HE1-TCS ENG<RDS> EXC. POWER ASSIST CLUTCH<S2T> ID=16	8-94238-568-0	10	1	0508-0509			●
66	CLIP; VAC HOSE,M/VAC 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> EXC. POWER ASSIST CLUTCH<S2T> ID=16	8-94238-568-0	10	1	0510-0911	●
66	CLIP; VAC HOSE,M/VAC 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> EXC. POWER ASSIST CLUTCH<S2T> ID=16	8-94238-568-0	10	1	0510-0911			●
66	CLIP; VAC HOSE,M/VAC 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> EXC. POWER ASSIST CLUTCH<S2T> ID=16	8-98008-098-0	10	1	0912-	●
66	CLIP; VAC HOSE,M/VAC 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> EXC. POWER ASSIST CLUTCH<S2T> ID=16	8-98008-098-0	10	1	0912-			●
78	HOSE; VAC,PIPE TO PIPE 4HG1-T ENG<RDP> FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=400 SERVICED BY L=3000	0-08258-300-0	01	1	0508-	●
78	HOSE; VAC,PIPE TO PIPE 4HG1-T ENG<RDP> (B) L=400 SERVICED BY L=3000	0-08258-300-0	01	1	0508-		●
78	HOSE; VAC,PIPE TO PIPE 4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140 SERVICED BY L=3000	0-08258-300-0	01	1	0508-	●
78	HOSE; VAC,PIPE TO PIPE 4HG1-T ENG<RDP> (A) L=140 SERVICED BY L=3000	0-08258-300-0	01	1	0508-		●
78	HOSE; VAC,PIPE TO PIPE 4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> (A) L=300 SERVICED BY L=3000	0-08258-300-0	01	1	0508-0509	●
78	HOSE; VAC,PIPE TO PIPE 4HE1-TCS ENG<RDS> (A) L=300 SERVICED BY L=3000	0-08258-300-0	01	1	0508-0509			●
78	HOSE; VAC,PIPE TO PIPE 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> FRAME STRAIGHT TYPE<7KJ> (A) L=300 SERVICED BY L=3000	0-08258-300-0	01	1	0510-	●
78	HOSE; VAC,PIPE TO PIPE 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> (A) L=300 SERVICED BY L=3000	0-08258-300-0	01	1	0510-			●
78	HOSE; VAC,PIPE TO PIPE 4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> (B) L=430 SERVICED BY L=3000	0-08258-300-0	01	1	0508-0509	●
78	HOSE; VAC,PIPE TO PIPE 4HE1-TCS ENG<RDS> (B) L=430 SERVICED BY L=3000	0-08258-300-0	01	1	0508-0509			●
78	HOSE; VAC,PIPE TO PIPE 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> FRAME STRAIGHT TYPE<7KJ> (B) L=430 SERVICED BY L=3000	0-08258-300-0	01	1	0510-	●
78	HOSE; VAC,PIPE TO PIPE 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> (B) L=430 SERVICED BY L=3000	0-08258-300-0	01	1	0510-			●
80	PIPE; VAC,ENG SIDE 4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97325-793-0	01	1	0508-	●
80	PIPE; VAC,ENG SIDE 4HG1-T ENG<RDP>	8-97325-793-0	01	1	0508-		●
80	PIPE; VAC,ENG SIDE 4HE1-TCS ENG<RDS> POWER ASSIST CLUTCH<S2T> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ>	8-97356-592-0	01	1	0508-0509	●
80	PIPE; VAC,ENG SIDE 4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97356-592-0	01	1	0508-0509	●
80	PIPE; VAC,ENG SIDE 4HE1-TCS ENG<RDS> POWER ASSIST CLUTCH<S2T>	8-97356-592-0	01	1	0508-0509			●
80	PIPE; VAC,ENG SIDE 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> POWER ASSIST CLUTCH<S2T> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ>	8-97356-592-0	01	1	0510-	●
80	PIPE; VAC,ENG SIDE 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97356-592-0	01	1	0510-	●
80	PIPE; VAC,ENG SIDE 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> POWER ASSIST CLUTCH<S2T>	8-97356-592-0	01	1	0510-			●
80	PIPE; VAC,ENG SIDE 4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> EXC. POWER ASSIST CLUTCH<S2T>	8-97148-808-3	01	1	0508-0509	●
80	PIPE; VAC,ENG SIDE 4HE1-TCS ENG<RDS> EXC. POWER ASSIST CLUTCH<S2T>	8-97148-808-3	01	1	0508-0509			●
80	PIPE; VAC,ENG SIDE 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> EXC. POWER ASSIST CLUTCH<S2T>	8-97148-808-3	01	1	0510-	●
80	PIPE; VAC,ENG SIDE 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> EXC. POWER ASSIST CLUTCH<S2T>	8-97148-808-3	01	1	0510-			●
81	PIPE; VAC,VSV 4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97365-462-0	01	1	0508-	●
81	PIPE; VAC,VSV 4HG1-T ENG<RDP>	8-97365-462-0	01	1	0508-		●
81	PIPE; VAC,VSV 4HE1-TCS ENG<RDS>	8-97181-226-2	01	1	0508-	●		●
82	HOSE; VAC,VSV 4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> EXC. POWER ASSIST CLUTCH<S2T> L=960 SERVICED BY L=3000	0-04740-300-0	01	1	0508-	●
82	HOSE; VAC,VSV 4HE1-TCS ENG<RDS> EXC. POWER ASSIST CLUTCH<S2T> L=960 SERVICED BY L=3000	0-04740-300-0	01	1	0508-			●
82	HOSE; VAC,VSV 4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> L=120 SERVICED BY L=3000	0-04740-300-0	01	1	0508-	●
82	HOSE; VAC,VSV 4HE1-TCS ENG<RDS> POWER ASSIST CLUTCH<S2T> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> L=120 SERVICED BY L=3000	0-04740-300-0	01	1	0508-	●
82	HOSE; VAC,VSV 4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER<7QQ> L=120 SERVICED BY L=3000	0-04740-300-0	01	1	0508-	●
82	HOSE; VAC,VSV 4HG1-T ENG<RDP> L=120 SERVICED BY L=3000	0-04740-300-0	01	1	0508-		●
82	HOSE; VAC,VSV 4HE1-TCS ENG<RDS> POWER ASSIST CLUTCH<S2T> L=120 SERVICED BY L=3000	0-04740-300-0	01	1	0508-			●
83	CLIP; VSV HOSE 4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> EXC. POWER ASSIST CLUTCH<S2T> ID=8.3 & 16.5	8-94169-027-0	01	1	0508-	●
83	CLIP; VSV HOSE 4HE1-TCS ENG<RDS> EXC. POWER ASSIST CLUTCH<S2T> ID=8.3 & 16.5	8-94169-027-0	01	1	0508-			●
85	HOSE; VAC,ENG SIDE 4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97109-066-1	01	1	0508-	●
85	HOSE; VAC,ENG SIDE 4HG1-T ENG<RDP>	8-97109-066-1	01	1	0508-		●
85	HOSE; VAC,ENG SIDE 4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ>	8-97239-327-0	01	1	0508-0509	●
85	HOSE; VAC,ENG SIDE 4HE1-TCS ENG<RDS>	8-97239-327-0	01	1	0508-0509			●
85	HOSE; VAC,ENG SIDE 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> FRAME STRAIGHT TYPE<7KJ>	8-97239-327-0	01	1	0510-	●
85	HOSE; VAC,ENG SIDE 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS>	8-97239-327-0	01	1	0510-			●
113	NUT 4HE1-TCS ENG<RDS> M8 FLANGE	0-91150-108-0	01	1	0508-	●		●
151	CLIP; BAND 4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> EXC. POWER ASSIST CLUTCH<S2T> L=140	5-09707-031-1	03	1	0508-	●
151	CLIP; BAND 4HE1-TCS ENG<RDS> EXC. POWER ASSIST CLUTCH<S2T> L=140	5-09707-031-1	03	1	0508-			●
162	HOSE; VAC FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH<S2T> (A)	8-98000-392-0	01	1	0508-	●
162	HOSE; VAC POWER ASSIST CLUTCH<S2T> (A)	8-98000-392-0	01	1	0508-		●	●
162	HOSE; VAC EXC. POWER ASSIST CLUTCH<S2T>,HYDRO BRAKE BOOSTER<7QQ> (B)	8-97040-991-2	01	1	0508-	●
162	HOSE; VAC EXC. POWER ASSIST CLUTCH<S2T> (B)	8-97040-991-2	01	1	0508-		●
162	HOSE; VAC 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> POWER ASSIST CLUTCH<S2T> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> (C) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0508-0509	●
162	HOSE; VAC 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER<7QQ> (C) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0508-0509	●
162	HOSE; VAC 4HE1-TCS ENG<RDS> POWER ASSIST CLUTCH<S2T> (C) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0508-0509			●
162	HOSE; VAC POWER ASSIST CLUTCH<S2T> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> (C) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0510-	●
162	HOSE; VAC FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER<7QQ> (C) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0510-	●
162	HOSE; VAC 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> POWER ASSIST CLUTCH<S2T> (C) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0510-			●
191	PIPE; VAC 4HE1-TCS ENG<RDS> EXHAUST BRAKE<NF8> POWER ASSIST CLUTCH<S2T> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ>	8-97104-170-4	01	1	0508-0509	●		●
191	PIPE; VAC 4HE1-TCS ENG<RDS> EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97104-170-4	01	1	0508-0509	●
191	PIPE; VAC 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> EXHAUST BRAKE<NF8> POWER ASSIST CLUTCH<S2T> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ>	8-97104-170-4	01	1	0510-	●		●
191	PIPE; VAC 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97104-170-4	01	1	0510-	●
198	HOSE; VAC,PIPE TO MAG VLV 4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> L=160 SERVICED BY L=3000	0-08258-300-0	02	1	0508-	●
198	HOSE; VAC,PIPE TO MAG VLV 4HG1-T ENG<RDP> L=180 SERVICED BY L=3000	0-08258-300-0	02	1	0508-		●
198	HOSE; VAC,PIPE TO MAG VLV 4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> L=360 SERVICED BY L=3000	0-08258-300-0	02	1	0508-0509	●
198	HOSE; VAC,PIPE TO MAG VLV 4HE1-TCS ENG<RDS> L=360 SERVICED BY L=3000	0-08258-300-0	02	1	0508-0509			●
198	HOSE; VAC,PIPE TO MAG VLV 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> FRAME STRAIGHT TYPE<7KJ> L=360 SERVICED BY L=3000	0-08258-300-0	02	1	0510-	●
198	HOSE; VAC,PIPE TO MAG VLV 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> L=360 SERVICED BY L=3000	0-08258-300-0	02	1	0510-			●

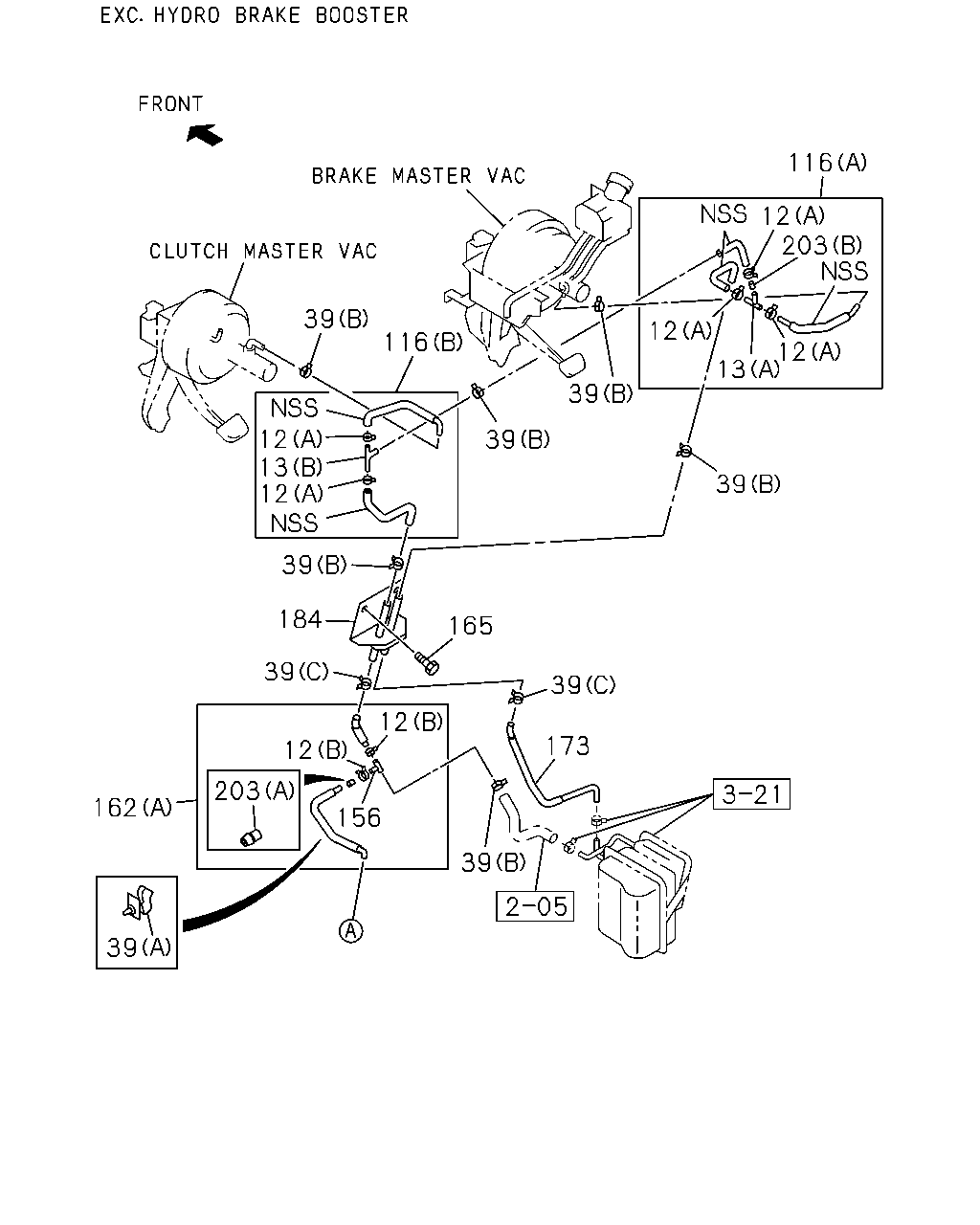

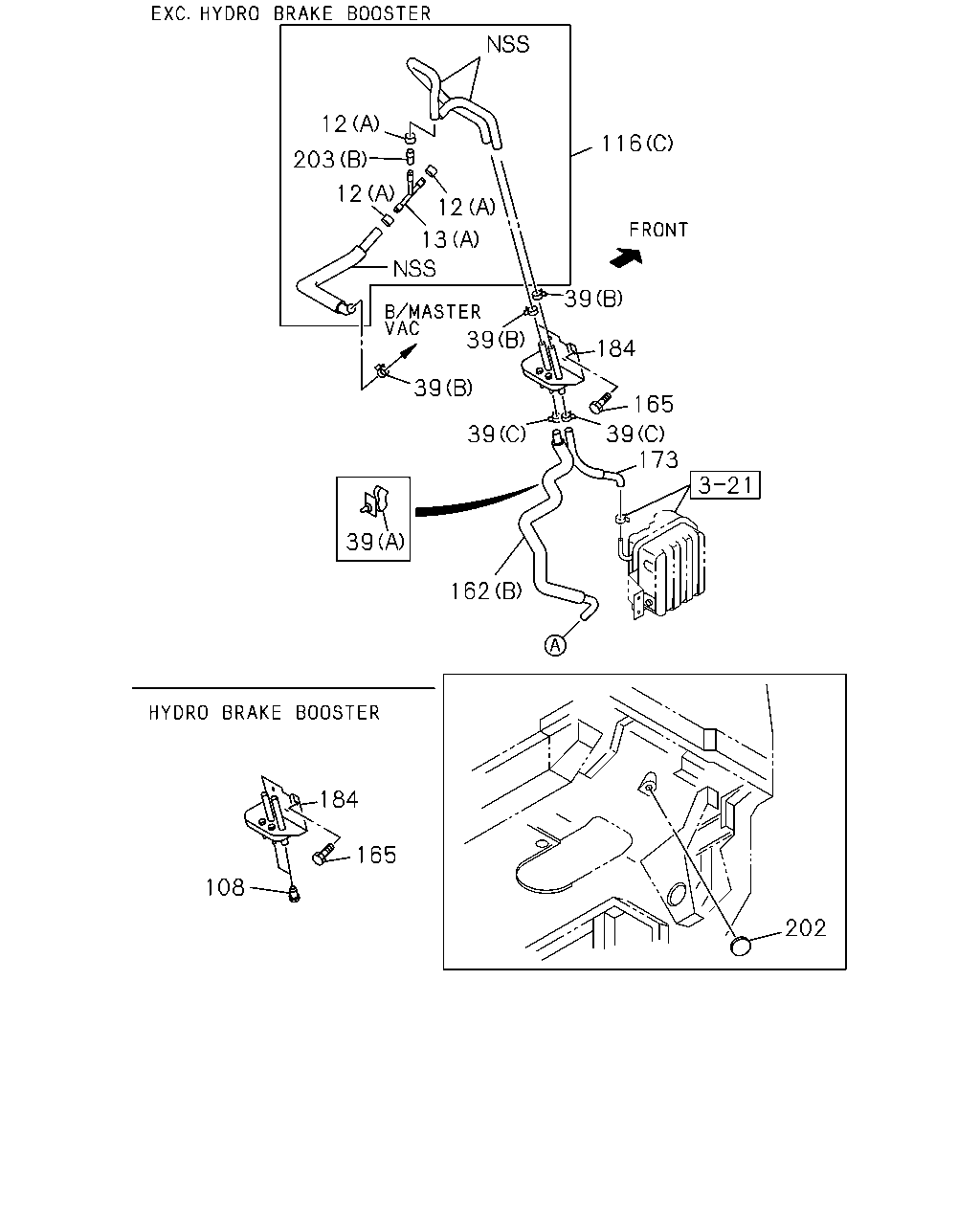

116 12 203 39 12 116 12 13 39 12 13 12 39 39 39 184 165 39 39 12 173 12 203 162 156 39 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
12	CLIP; HOSE FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH<S2T> (B) ID=15.5	8-94367-944-0	02	1	0508-	●
12	CLIP; HOSE POWER ASSIST CLUTCH<S2T> (B) ID=15.5	8-94367-944-0	02	1	0508-		●	●
12	CLIP; HOSE FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH<S2T> EXC. HYDRO BRAKE BOOSTER<7QQ> (A) ID=14.5	8-94167-480-0	02	1	0508-	●
12	CLIP; HOSE POWER ASSIST CLUTCH<S2T> (A) ID=14.5	8-94167-480-0	02	1	0508-		●
12	CLIP; HOSE EXC. HYDRO BRAKE BOOSTER<7QQ> (A) ID=14.5	8-94167-480-0	03	1	0508-	●
12	CLIP; HOSE (A) ID=14.5	8-94167-480-0	03	1	0508-		●
13	JOINT; HOSE,VAC FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH<S2T> EXC. HYDRO BRAKE BOOSTER<7QQ> (B) 3WAY	8-94167-478-0	01	1	0508-	●
13	JOINT; HOSE,VAC POWER ASSIST CLUTCH<S2T> (B) 3WAY	8-94167-478-0	01	1	0508-		●
13	JOINT; HOSE,VAC EXC. HYDRO BRAKE BOOSTER<7QQ> (A) 3WAY	8-94441-184-0	01	1	0508-	●
13	JOINT; HOSE,VAC (A) 3WAY	8-94441-184-0	01	1	0508-		●
39	CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER<7QQ> (A) ID=25.5	8-97077-492-0	01	1	0508-	●
39	CLIP; HOSE,VAC FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH<S2T> HYDRO BRAKE BOOSTER<7QQ> (A) ID=25.5	8-97077-492-0	01	1	0508-	●
39	CLIP; HOSE,VAC (A) ID=25.5	8-97077-492-0	01	1	0508-		●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH<S2T> (A) ID=25.5	8-97077-492-0	01	1	0508-			●
39	CLIP; HOSE,VAC FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH<S2T> EXC. HYDRO BRAKE BOOSTER<7QQ> (B) ID=16	8-94238-568-0	06	1	0508-	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH<S2T> (B) ID=16	8-94238-568-0	06	1	0508-		●
39	CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH<S2T>,HYDRO BRAKE BOOSTER<7QQ> (B) ID=16	8-94238-568-0	03	1	0508-	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH<S2T> HYDRO BRAKE BOOSTER<7QQ> (B) ID=16	8-94238-568-0	03	1	0508-	●
39	CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH<S2T> (B) ID=16	8-94238-568-0	03	1	0508-		●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH<S2T> (B) ID=16	8-94238-568-0	03	1	0508-			●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH<S2T> HYDRO BRAKE BOOSTER<7QQ> (C) ID=16	5-09707-023-2	01	1	0508-	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH<S2T> (C) ID=16	5-09707-023-2	01	1	0508-			●
39	CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER<7QQ> (C) ID=16	5-09707-023-2	02	1	0508-	●
39	CLIP; HOSE,VAC (C) ID=16	5-09707-023-2	02	1	0508-		●
116	HOSE; VAC,M/VAC FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH<S2T> EXC. HYDRO BRAKE BOOSTER<7QQ> (B)	8-97379-286-1	01	1	0508-	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH<S2T> (B)	8-97379-286-1	01	1	0508-		●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH<S2T> HYDRO BRAKE BOOSTER<7QQ> (D)	8-97147-495-2	01	1	0508-	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH<S2T> (D)	8-97147-495-2	01	1	0508-			●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH<S2T> EXC. HYDRO BRAKE BOOSTER<7QQ> (A)	8-97314-596-1	01	1	0508-	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH<S2T> (A)	8-97314-596-1	01	1	0508-		●
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH<S2T>,HYDRO BRAKE BOOSTER<7QQ> (C)	8-97314-597-1	01	1	0508-	●
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH<S2T> (C)	8-97314-597-1	01	1	0508-		●
156	JOINT; 3 WAY FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH<S2T> 3WAY	8-94167-478-0	01	1	0508-	●
156	JOINT; 3 WAY POWER ASSIST CLUTCH<S2T> 3WAY	8-94167-478-0	01	1	0508-		●	●
162	HOSE; VAC FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH<S2T> (A)	8-98000-392-0	01	1	0508-	●
162	HOSE; VAC POWER ASSIST CLUTCH<S2T> (A)	8-98000-392-0	01	1	0508-		●	●
162	HOSE; VAC EXC. POWER ASSIST CLUTCH<S2T>,HYDRO BRAKE BOOSTER<7QQ> (B)	8-97040-991-2	01	1	0508-	●
162	HOSE; VAC EXC. POWER ASSIST CLUTCH<S2T> (B)	8-97040-991-2	01	1	0508-		●
162	HOSE; VAC 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> POWER ASSIST CLUTCH<S2T> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> (C) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0508-0509	●
162	HOSE; VAC 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER<7QQ> (C) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0508-0509	●
162	HOSE; VAC 4HE1-TCS ENG<RDS> POWER ASSIST CLUTCH<S2T> (C) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0508-0509			●
162	HOSE; VAC POWER ASSIST CLUTCH<S2T> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> (C) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0510-	●
162	HOSE; VAC FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER<7QQ> (C) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0510-	●
162	HOSE; VAC 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> POWER ASSIST CLUTCH<S2T> (C) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0510-			●
165	BOLT; BRKT M6X16 FLANGE	0-28680-616-0	02	1	0508-0611	●	●	●
165	BOLT; BRKT M6X16 FLANGE THA	0-28650-616-0	02	1	0612-0701	●	●	●
165	BOLT; BRKT EXC. HYDRO BRAKE BOOSTER<7QQ> M6X16 FLANGE THA	0-28650-616-0	02	1	0702-	●
165	BOLT; BRKT M6X16 FLANGE THA	0-28650-616-0	02	1	0702-		●
173	HOSE; VAC,VAC TANK SIDE EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97129-875-0	01	1	0508-	●
173	HOSE; VAC,VAC TANK SIDE	8-97129-875-0	01	1	0508-		●
184	BRACKET; UNION FIX	8-97035-967-3	01	1	0508-	●	●	●
203	VALVE; CHECK FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH<S2T> (A)	8-94104-021-0	01	1	0508-	●
203	VALVE; CHECK POWER ASSIST CLUTCH<S2T> (A)	8-94104-021-0	01	1	0508-		●	●
203	VALVE; CHECK EXC. HYDRO BRAKE BOOSTER<7QQ> (B)	8-94386-540-0	01	1	0508-	●
203	VALVE; CHECK (B)	8-94386-540-0	01	1	0508-		●

198 43 198 87 78 80 85 78 66 82 81 30 33 33 234 66 80 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
30	BOLT; CLIP,VAC PIPE EXC. FRAME STRAIGHT TYPE<7KJ> M6X20 FLANGE	0-28680-620-0	01	1	0508-0512	●
30	BOLT; CLIP,VAC PIPE M6X20 FLANGE	0-28680-620-0	01	1	0508-0512		●
30	BOLT; CLIP,VAC PIPE EXC. FRAME STRAIGHT TYPE<7KJ> M6X20 FLANGE THA	0-28650-620-0	01	1	0601-	●
30	BOLT; CLIP,VAC PIPE M6X20 FLANGE THA	0-28650-620-0	01	1	0601-		●
31	NUT; CLIP,VAC PIPE EXC. FRAME STRAIGHT TYPE<7KJ> M6 FLANGE	0-91150-106-0	01	1	0508-0605	●
31	NUT; CLIP,VAC PIPE M6 FLANGE	0-91150-106-0	01	1	0508-0605		●
31	NUT; CLIP,VAC PIPE EXC. FRAME STRAIGHT TYPE<7KJ> M6 FLANGE THA	0-91180-106-0	01	1	0606-	●
31	NUT; CLIP,VAC PIPE M6 FLANGE THA	0-91180-106-0	01	1	0606-		●
33	CLIP; VAC PIPE 4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=10X2 H=47.5	8-97018-605-0	01	1	0508-	●
33	CLIP; VAC PIPE 4HG1-T ENG<RDP> (B) ID=10X2 H=47.5	8-97018-605-0	01	1	0508-		●
33	CLIP; VAC PIPE (C) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	02	1	0508-	●
33	CLIP; VAC PIPE (C) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	04	1	0508-		●
33	CLIP; VAC PIPE (C) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	03	1	0508-			●
33	CLIP; VAC PIPE 4HE1-TCS ENG<RDS> (A) ID=4.8X2	8-94316-410-0	01	1	0508-	●		●
33	CLIP; VAC PIPE 4HE1-TCS ENG<RDS> POWER ASSIST CLUTCH<S2T> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> (D) ID=10 H=40	8-94462-219-0	02	1	0508-0509	●
33	CLIP; VAC PIPE 4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER<7QQ> (D) ID=10 H=40	8-94462-219-0	02	1	0508-0509	●
33	CLIP; VAC PIPE 4HE1-TCS ENG<RDS> POWER ASSIST CLUTCH<S2T> (D) ID=10 H=40	8-94462-219-0	02	1	0508-0509			●
33	CLIP; VAC PIPE 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> POWER ASSIST CLUTCH<S2T> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> (D) ID=10 H=40	8-94462-219-0	02	1	0510-	●
33	CLIP; VAC PIPE 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER<7QQ> (D) ID=10 H=40	8-94462-219-0	02	1	0510-	●
33	CLIP; VAC PIPE 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> POWER ASSIST CLUTCH<S2T> (D) ID=10 H=40	8-94462-219-0	02	1	0510-			●
43	PIPE; VAC,MAG VLV TO UNION 4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ>	8-98021-598-0	01	1	0508-	●
43	PIPE; VAC,MAG VLV TO UNION 4HG1-T ENG<RDP>	8-97325-808-1	01	1	0508-		●
66	CLIP; VAC HOSE,M/VAC EXC. FRAME STRAIGHT TYPE<7KJ> ID=16	8-94238-568-0	11	1	0508-0911	●
66	CLIP; VAC HOSE,M/VAC ID=16	8-94238-568-0	11	1	0508-0911		●
66	CLIP; VAC HOSE,M/VAC EXC. FRAME STRAIGHT TYPE<7KJ> ID=16	8-98008-098-0	11	1	0912-	●
66	CLIP; VAC HOSE,M/VAC ID=16	8-98008-098-0	11	1	0912-		●
66	CLIP; VAC HOSE,M/VAC 4HE1-TCS ENG<RDS> EXHAUST BRAKE<NF8> POWER ASSIST CLUTCH<S2T> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> ID=16	8-94238-568-0	13	1	0508-0509	●		●
66	CLIP; VAC HOSE,M/VAC 4HE1-TCS ENG<RDS> EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER<7QQ> ID=16	8-94238-568-0	13	1	0508-0509	●
66	CLIP; VAC HOSE,M/VAC 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> EXHAUST BRAKE<NF8> POWER ASSIST CLUTCH<S2T> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> ID=16	8-94238-568-0	13	1	0510-0911	●		●
66	CLIP; VAC HOSE,M/VAC 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER<7QQ> ID=16	8-94238-568-0	13	1	0510-0911	●
66	CLIP; VAC HOSE,M/VAC 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> EXHAUST BRAKE<NF8> POWER ASSIST CLUTCH<S2T> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> ID=16	8-98008-098-0	13	1	0912-	●		●
66	CLIP; VAC HOSE,M/VAC 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER<7QQ> ID=16	8-98008-098-0	13	1	0912-	●
66	CLIP; VAC HOSE,M/VAC 4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> EXC. POWER ASSIST CLUTCH<S2T> ID=16	8-94238-568-0	10	1	0508-0509	●
66	CLIP; VAC HOSE,M/VAC 4HE1-TCS ENG<RDS> EXC. POWER ASSIST CLUTCH<S2T> ID=16	8-94238-568-0	10	1	0508-0509			●
66	CLIP; VAC HOSE,M/VAC 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> EXC. POWER ASSIST CLUTCH<S2T> ID=16	8-94238-568-0	10	1	0510-0911	●
66	CLIP; VAC HOSE,M/VAC 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> EXC. POWER ASSIST CLUTCH<S2T> ID=16	8-94238-568-0	10	1	0510-0911			●
66	CLIP; VAC HOSE,M/VAC 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> EXC. POWER ASSIST CLUTCH<S2T> ID=16	8-98008-098-0	10	1	0912-	●
66	CLIP; VAC HOSE,M/VAC 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> EXC. POWER ASSIST CLUTCH<S2T> ID=16	8-98008-098-0	10	1	0912-			●
78	HOSE; VAC,PIPE TO PIPE 4HG1-T ENG<RDP> FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=400 SERVICED BY L=3000	0-08258-300-0	01	1	0508-	●
78	HOSE; VAC,PIPE TO PIPE 4HG1-T ENG<RDP> (B) L=400 SERVICED BY L=3000	0-08258-300-0	01	1	0508-		●
78	HOSE; VAC,PIPE TO PIPE 4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140 SERVICED BY L=3000	0-08258-300-0	01	1	0508-	●
78	HOSE; VAC,PIPE TO PIPE 4HG1-T ENG<RDP> (A) L=140 SERVICED BY L=3000	0-08258-300-0	01	1	0508-		●
78	HOSE; VAC,PIPE TO PIPE 4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> (A) L=300 SERVICED BY L=3000	0-08258-300-0	01	1	0508-0509	●
78	HOSE; VAC,PIPE TO PIPE 4HE1-TCS ENG<RDS> (A) L=300 SERVICED BY L=3000	0-08258-300-0	01	1	0508-0509			●
78	HOSE; VAC,PIPE TO PIPE 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> FRAME STRAIGHT TYPE<7KJ> (A) L=300 SERVICED BY L=3000	0-08258-300-0	01	1	0510-	●
78	HOSE; VAC,PIPE TO PIPE 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> (A) L=300 SERVICED BY L=3000	0-08258-300-0	01	1	0510-			●
78	HOSE; VAC,PIPE TO PIPE 4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> (B) L=430 SERVICED BY L=3000	0-08258-300-0	01	1	0508-0509	●
78	HOSE; VAC,PIPE TO PIPE 4HE1-TCS ENG<RDS> (B) L=430 SERVICED BY L=3000	0-08258-300-0	01	1	0508-0509			●
78	HOSE; VAC,PIPE TO PIPE 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> FRAME STRAIGHT TYPE<7KJ> (B) L=430 SERVICED BY L=3000	0-08258-300-0	01	1	0510-	●
78	HOSE; VAC,PIPE TO PIPE 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> (B) L=430 SERVICED BY L=3000	0-08258-300-0	01	1	0510-			●
80	PIPE; VAC,ENG SIDE 4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97325-793-0	01	1	0508-	●
80	PIPE; VAC,ENG SIDE 4HG1-T ENG<RDP>	8-97325-793-0	01	1	0508-		●
80	PIPE; VAC,ENG SIDE 4HE1-TCS ENG<RDS> POWER ASSIST CLUTCH<S2T> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ>	8-97356-592-0	01	1	0508-0509	●
80	PIPE; VAC,ENG SIDE 4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97356-592-0	01	1	0508-0509	●
80	PIPE; VAC,ENG SIDE 4HE1-TCS ENG<RDS> POWER ASSIST CLUTCH<S2T>	8-97356-592-0	01	1	0508-0509			●
80	PIPE; VAC,ENG SIDE 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> POWER ASSIST CLUTCH<S2T> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ>	8-97356-592-0	01	1	0510-	●
80	PIPE; VAC,ENG SIDE 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97356-592-0	01	1	0510-	●
80	PIPE; VAC,ENG SIDE 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> POWER ASSIST CLUTCH<S2T>	8-97356-592-0	01	1	0510-			●
80	PIPE; VAC,ENG SIDE 4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> EXC. POWER ASSIST CLUTCH<S2T>	8-97148-808-3	01	1	0508-0509	●
80	PIPE; VAC,ENG SIDE 4HE1-TCS ENG<RDS> EXC. POWER ASSIST CLUTCH<S2T>	8-97148-808-3	01	1	0508-0509			●
80	PIPE; VAC,ENG SIDE 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> EXC. POWER ASSIST CLUTCH<S2T>	8-97148-808-3	01	1	0510-	●
80	PIPE; VAC,ENG SIDE 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> EXC. POWER ASSIST CLUTCH<S2T>	8-97148-808-3	01	1	0510-			●
81	PIPE; VAC,VSV 4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97365-462-0	01	1	0508-	●
81	PIPE; VAC,VSV 4HG1-T ENG<RDP>	8-97365-462-0	01	1	0508-		●
81	PIPE; VAC,VSV 4HE1-TCS ENG<RDS>	8-97181-226-2	01	1	0508-	●		●
82	HOSE; VAC,VSV 4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> EXC. POWER ASSIST CLUTCH<S2T> L=960 SERVICED BY L=3000	0-04740-300-0	01	1	0508-	●
82	HOSE; VAC,VSV 4HE1-TCS ENG<RDS> EXC. POWER ASSIST CLUTCH<S2T> L=960 SERVICED BY L=3000	0-04740-300-0	01	1	0508-			●
82	HOSE; VAC,VSV 4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> L=120 SERVICED BY L=3000	0-04740-300-0	01	1	0508-	●
82	HOSE; VAC,VSV 4HE1-TCS ENG<RDS> POWER ASSIST CLUTCH<S2T> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> L=120 SERVICED BY L=3000	0-04740-300-0	01	1	0508-	●
82	HOSE; VAC,VSV 4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER<7QQ> L=120 SERVICED BY L=3000	0-04740-300-0	01	1	0508-	●
82	HOSE; VAC,VSV 4HG1-T ENG<RDP> L=120 SERVICED BY L=3000	0-04740-300-0	01	1	0508-		●
82	HOSE; VAC,VSV 4HE1-TCS ENG<RDS> POWER ASSIST CLUTCH<S2T> L=120 SERVICED BY L=3000	0-04740-300-0	01	1	0508-			●
85	HOSE; VAC,ENG SIDE 4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97109-066-1	01	1	0508-	●
85	HOSE; VAC,ENG SIDE 4HG1-T ENG<RDP>	8-97109-066-1	01	1	0508-		●
85	HOSE; VAC,ENG SIDE 4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ>	8-97239-327-0	01	1	0508-0509	●
85	HOSE; VAC,ENG SIDE 4HE1-TCS ENG<RDS>	8-97239-327-0	01	1	0508-0509			●
85	HOSE; VAC,ENG SIDE 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> FRAME STRAIGHT TYPE<7KJ>	8-97239-327-0	01	1	0510-	●
85	HOSE; VAC,ENG SIDE 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS>	8-97239-327-0	01	1	0510-			●
87	PIPE; VAC,ENG TO MAG VLV 4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97325-803-3	01	1	0508-	●
87	PIPE; VAC,ENG TO MAG VLV 4HG1-T ENG<RDP>	8-97325-804-3	01	1	0508-		●
198	HOSE; VAC,PIPE TO MAG VLV 4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> L=160 SERVICED BY L=3000	0-08258-300-0	02	1	0508-	●
198	HOSE; VAC,PIPE TO MAG VLV 4HG1-T ENG<RDP> L=180 SERVICED BY L=3000	0-08258-300-0	02	1	0508-		●
198	HOSE; VAC,PIPE TO MAG VLV 4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> L=360 SERVICED BY L=3000	0-08258-300-0	02	1	0508-0509	●
198	HOSE; VAC,PIPE TO MAG VLV 4HE1-TCS ENG<RDS> L=360 SERVICED BY L=3000	0-08258-300-0	02	1	0508-0509			●
198	HOSE; VAC,PIPE TO MAG VLV 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> FRAME STRAIGHT TYPE<7KJ> L=360 SERVICED BY L=3000	0-08258-300-0	02	1	0510-	●
198	HOSE; VAC,PIPE TO MAG VLV 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> L=360 SERVICED BY L=3000	0-08258-300-0	02	1	0510-			●
234	CLAMP; PIPE EXC. FRAME STRAIGHT TYPE<7KJ> ID=10X2 H=22 THA	8-94252-455-2	01	1	0508-	●
234	CLAMP; PIPE ID=10X2 H=22 THA	8-94252-455-2	01	1	0508-		●

12 116 203 12 12 13 39 39 184 39 165 39 173 39 39 162 184 165 108 202

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
12	CLIP; HOSE FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH<S2T> (B) ID=15.5	8-94367-944-0	02	1	0508-	●
12	CLIP; HOSE POWER ASSIST CLUTCH<S2T> (B) ID=15.5	8-94367-944-0	02	1	0508-		●	●
12	CLIP; HOSE FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH<S2T> EXC. HYDRO BRAKE BOOSTER<7QQ> (A) ID=14.5	8-94167-480-0	02	1	0508-	●
12	CLIP; HOSE POWER ASSIST CLUTCH<S2T> (A) ID=14.5	8-94167-480-0	02	1	0508-		●
12	CLIP; HOSE EXC. HYDRO BRAKE BOOSTER<7QQ> (A) ID=14.5	8-94167-480-0	03	1	0508-	●
12	CLIP; HOSE (A) ID=14.5	8-94167-480-0	03	1	0508-		●
13	JOINT; HOSE,VAC FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH<S2T> EXC. HYDRO BRAKE BOOSTER<7QQ> (B) 3WAY	8-94167-478-0	01	1	0508-	●
13	JOINT; HOSE,VAC POWER ASSIST CLUTCH<S2T> (B) 3WAY	8-94167-478-0	01	1	0508-		●
13	JOINT; HOSE,VAC EXC. HYDRO BRAKE BOOSTER<7QQ> (A) 3WAY	8-94441-184-0	01	1	0508-	●
13	JOINT; HOSE,VAC (A) 3WAY	8-94441-184-0	01	1	0508-		●
39	CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER<7QQ> (A) ID=25.5	8-97077-492-0	01	1	0508-	●
39	CLIP; HOSE,VAC FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH<S2T> HYDRO BRAKE BOOSTER<7QQ> (A) ID=25.5	8-97077-492-0	01	1	0508-	●
39	CLIP; HOSE,VAC (A) ID=25.5	8-97077-492-0	01	1	0508-		●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH<S2T> (A) ID=25.5	8-97077-492-0	01	1	0508-			●
39	CLIP; HOSE,VAC FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH<S2T> EXC. HYDRO BRAKE BOOSTER<7QQ> (B) ID=16	8-94238-568-0	06	1	0508-	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH<S2T> (B) ID=16	8-94238-568-0	06	1	0508-		●
39	CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH<S2T>,HYDRO BRAKE BOOSTER<7QQ> (B) ID=16	8-94238-568-0	03	1	0508-	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH<S2T> HYDRO BRAKE BOOSTER<7QQ> (B) ID=16	8-94238-568-0	03	1	0508-	●
39	CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH<S2T> (B) ID=16	8-94238-568-0	03	1	0508-		●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH<S2T> (B) ID=16	8-94238-568-0	03	1	0508-			●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH<S2T> HYDRO BRAKE BOOSTER<7QQ> (C) ID=16	5-09707-023-2	01	1	0508-	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH<S2T> (C) ID=16	5-09707-023-2	01	1	0508-			●
39	CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER<7QQ> (C) ID=16	5-09707-023-2	02	1	0508-	●
39	CLIP; HOSE,VAC (C) ID=16	5-09707-023-2	02	1	0508-		●
108	GROMMET; PIPE POWER ASSIST CLUTCH<S2T> HYDRO BRAKE BOOSTER<7QQ>	9-09956-353-0	01	1	0508-	●
108	GROMMET; PIPE POWER ASSIST CLUTCH<S2T>	9-09956-353-0	01	1	0508-			●
108	GROMMET; PIPE HYDRO BRAKE BOOSTER<7QQ> EXC. POWER ASSIST CLUTCH<S2T>	9-09956-353-0	02	1	0508-	●
108	GROMMET; PIPE EXC. POWER ASSIST CLUTCH<S2T>	9-09956-353-0	02	1	0508-			●
116	HOSE; VAC,M/VAC FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH<S2T> EXC. HYDRO BRAKE BOOSTER<7QQ> (B)	8-97379-286-1	01	1	0508-	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH<S2T> (B)	8-97379-286-1	01	1	0508-		●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH<S2T> HYDRO BRAKE BOOSTER<7QQ> (D)	8-97147-495-2	01	1	0508-	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH<S2T> (D)	8-97147-495-2	01	1	0508-			●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH<S2T> EXC. HYDRO BRAKE BOOSTER<7QQ> (A)	8-97314-596-1	01	1	0508-	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH<S2T> (A)	8-97314-596-1	01	1	0508-		●
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH<S2T>,HYDRO BRAKE BOOSTER<7QQ> (C)	8-97314-597-1	01	1	0508-	●
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH<S2T> (C)	8-97314-597-1	01	1	0508-		●
162	HOSE; VAC FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH<S2T> (A)	8-98000-392-0	01	1	0508-	●
162	HOSE; VAC POWER ASSIST CLUTCH<S2T> (A)	8-98000-392-0	01	1	0508-		●	●
162	HOSE; VAC EXC. POWER ASSIST CLUTCH<S2T>,HYDRO BRAKE BOOSTER<7QQ> (B)	8-97040-991-2	01	1	0508-	●
162	HOSE; VAC EXC. POWER ASSIST CLUTCH<S2T> (B)	8-97040-991-2	01	1	0508-		●
162	HOSE; VAC 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> POWER ASSIST CLUTCH<S2T> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> (C) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0508-0509	●
162	HOSE; VAC 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER<7QQ> (C) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0508-0509	●
162	HOSE; VAC 4HE1-TCS ENG<RDS> POWER ASSIST CLUTCH<S2T> (C) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0508-0509			●
162	HOSE; VAC POWER ASSIST CLUTCH<S2T> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> (C) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0510-	●
162	HOSE; VAC FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER<7QQ> (C) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0510-	●
162	HOSE; VAC 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> POWER ASSIST CLUTCH<S2T> (C) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0510-			●
165	BOLT; BRKT M6X16 FLANGE	0-28680-616-0	02	1	0508-0611	●	●	●
165	BOLT; BRKT M6X16 FLANGE THA	0-28650-616-0	02	1	0612-0701	●	●	●
165	BOLT; BRKT EXC. HYDRO BRAKE BOOSTER<7QQ> M6X16 FLANGE THA	0-28650-616-0	02	1	0702-	●
165	BOLT; BRKT M6X16 FLANGE THA	0-28650-616-0	02	1	0702-		●
173	HOSE; VAC,VAC TANK SIDE EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97129-875-0	01	1	0508-	●
173	HOSE; VAC,VAC TANK SIDE	8-97129-875-0	01	1	0508-		●
184	BRACKET; UNION FIX	8-97035-967-3	01	1	0508-	●	●	●
202	SEAL EXC. POWER ASSIST CLUTCH<S2T> OD=20 T=0.05 BLACK	5-76777-036-0	01	1	0508-	●	●	●
203	VALVE; CHECK FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH<S2T> (A)	8-94104-021-0	01	1	0508-	●
203	VALVE; CHECK POWER ASSIST CLUTCH<S2T> (A)	8-94104-021-0	01	1	0508-		●	●
203	VALVE; CHECK EXC. HYDRO BRAKE BOOSTER<7QQ> (B)	8-94386-540-0	01	1	0508-	●
203	VALVE; CHECK (B)	8-94386-540-0	01	1	0508-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
