2-03 — CLUTCH PEDAL AND CONTROL (#4312) — 36 parça

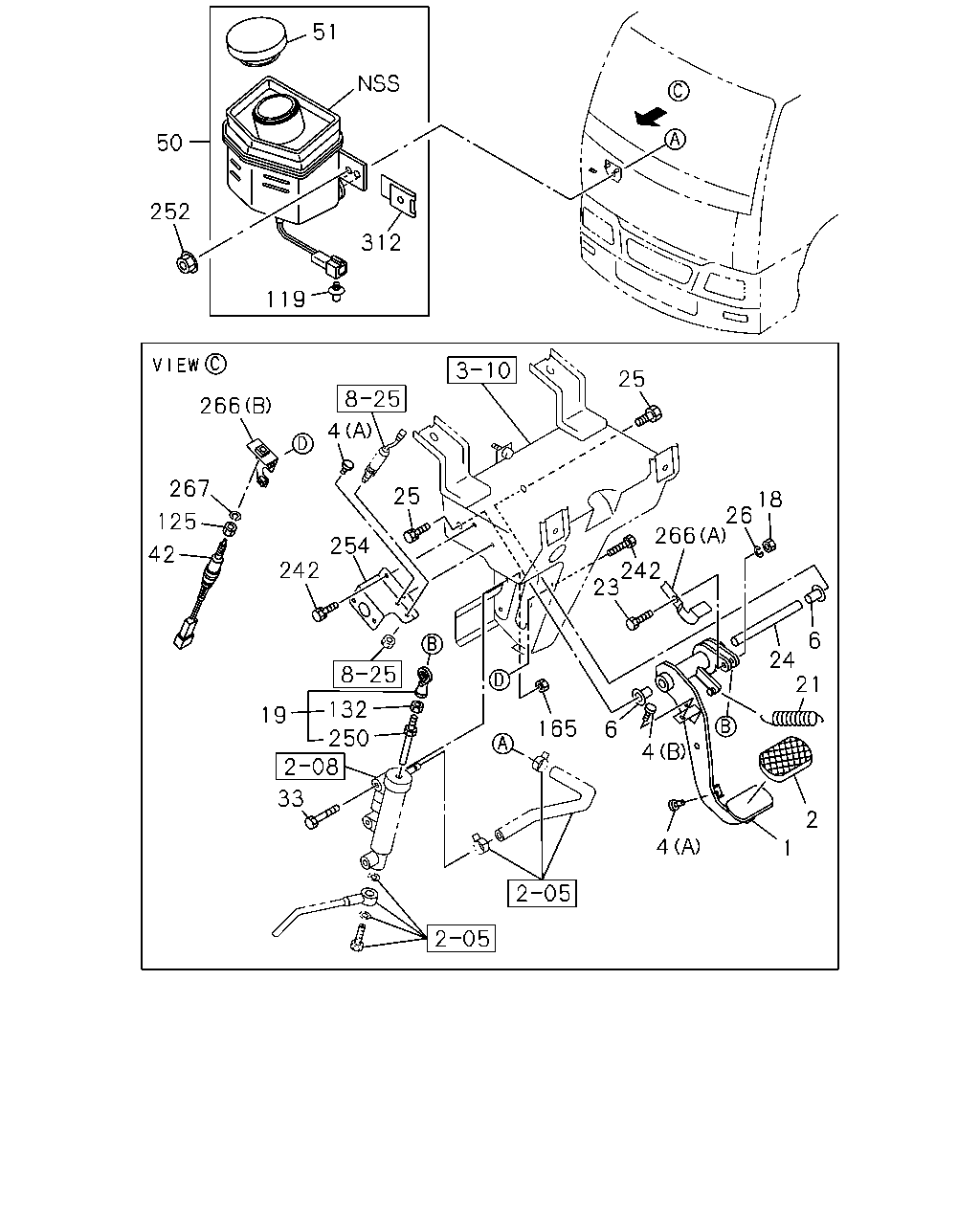

çizim 43328
51 50 252 312 119 25 266 4 267 25 18 26 125 254 266 42 242 242 23 6 24 21 132 19 165 6 250 4 33 2 4 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 PEDAL; CLU
ISUZU M/T<X9A>,FULLER M/T<X9B> 		1-73907-321-4 01 1 9603- ● ●
1 PEDAL; CLU
ZF M/T<X9E> 		1-73907-469-1 01 1 9603- ● ●
2 COVER; CLU PEDAL 8-94204-810-0 01 1 9603-0103 ● ●
2 COVER; CLU PEDAL 8-97893-618-1 01 1 0104- ● ●
4 STOPPER; CLU PEDAL
(A) 		1-47319-014-1 04 1 9603-0103 ● ●
4 STOPPER; CLU PEDAL
ISUZU M/T<X9A>,FULLER M/T<X9B> (A) 		1-47319-014-1 04 1 0104- ● ●
4 STOPPER; CLU PEDAL
(B) 		5-31419-003-0 01 1 9603-0103 ● ●
4 STOPPER; CLU PEDAL
ZF M/T<X9E> (A) 		1-47319-014-1 02 1 0104- ● ●
6 BUSHING; CLU PEDAL 1-09330-045-0 02 1 9603- ● ●
18 NUT; PUSH ROD
M8 		9-09110-508-0 01 1 9603- ● ●
19 ROD ASM; PUSH,CLU 1-73907-320-1 01 1 9603- ● ●
21 SPRING; RETURN,CLU PEDAL
ISUZU M/T<X9A>,FULLER M/T<X9B> 		1-73998-820-0 01 1 9603-9608 ● ●
21 SPRING; RETURN,CLU PEDAL
ISUZU M/T<X9A>,FULLER M/T<X9B> 		1-73908-265-0 01 1 9609- ● ●
21 SPRING; RETURN,CLU PEDAL
ZF M/T<X9E> 		1-73907-445-0 01 1 9603- ● ●
23 BOLT; PUSH ROD
M8X39.7 		1-09009-150-0 01 1 9603- ● ●
24 SHAFT; CLU PEDAL 1-73998-936-1 01 1 9603- ● ●
25 BOLT; PEDAL
M10X25 W/LK WASHER 		0-50051-025-0 02 1 9603- ● ●
26 WASHER; LK,PUSH ROD
ID=8.2 		9-09150-608-0 01 1 9603- ● ●
33 BOLT; CLU M/CYL TO BRKT
M10X65 		5-09030-024-1 02 1 9603-9703 ● ●
33 BOLT; CLU M/CYL TO BRKT
M10X60 FLANGE 		0-28081-060-0 02 1 9704- ● ●
42 SWITCH; CLU
ZF M/T<X9E> 		1-82380-114-2 01 1 0104- ● ●
50 TANK; OIL,CLU 1-47530-182-0 01 1 9603- ● ●
51 CAP; OIL TANK,CLU 8-94136-483-1 01 1 9603- ● ●
119 CLIP; CONNECTOR
OD=7 H=1.2 		8-94364-750-0 01 1 9903- ● ●
125 NUT; CLU SWITCH
ZF M/T<X9E> M10 		9-09110-510-0 01 1 0104- ● ●
132 NUT; LK,PUSH ROD
M8 		9-09110-408-0 01 1 9603- ● ●
165 NUT; CLU M/CYL
ZF M/T<X9E> M10 FLANGE 		0-91150-210-0 02 1 9603- ● ●
242 BOLT; BRKT,CLUTCH
ISUZU M/T<X9A>,FULLER M/T<X9B> M6X16 W/LK WASHER 		0-50040-616-0 02 1 9603- ● ●
242 BOLT; BRKT,CLUTCH
ZF M/T<X9E> M6X16 W/LK WASHER 		0-50040-616-0 04 1 9603- ● ●
250 ROD; PUSH,CLU 1-73996-219-0 01 1 9603- ● ●
252 NUT; OIL TANK
M8 FLANGE W/RUBBER 		1-09984-176-0 02 1 9603- ● ●
254 BRACKET; CLU SENSOR 1-73998-979-5 01 1 9603- ● ●
266 BRACKET; CLU SWITCH
ZF M/T<X9E> (A) 		1-73907-395-1 01 1 0104- ● ●
266 BRACKET; CLU SWITCH
ZF M/T<X9E> (B) 		1-73908-354-0 01 1 0104- ● ●
267 WASHER; LK,CLU SWITCH
ZF M/T<X9E> ID=10.2 		9-09150-510-0 01 1 0104- ● ●
312 PLATE; OIL TANK,CLU 1-21249-007-1 01 1 9603- ● ●
