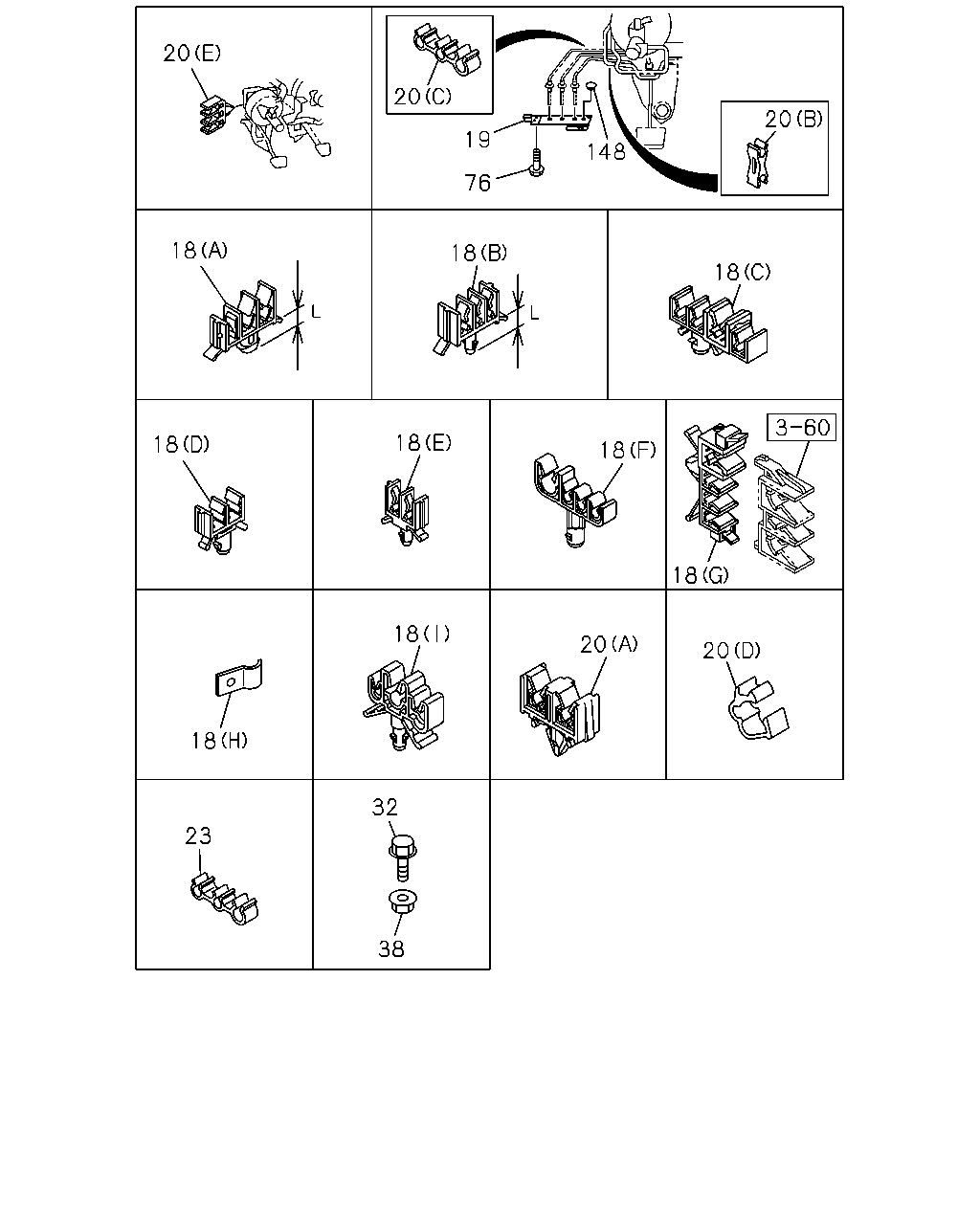

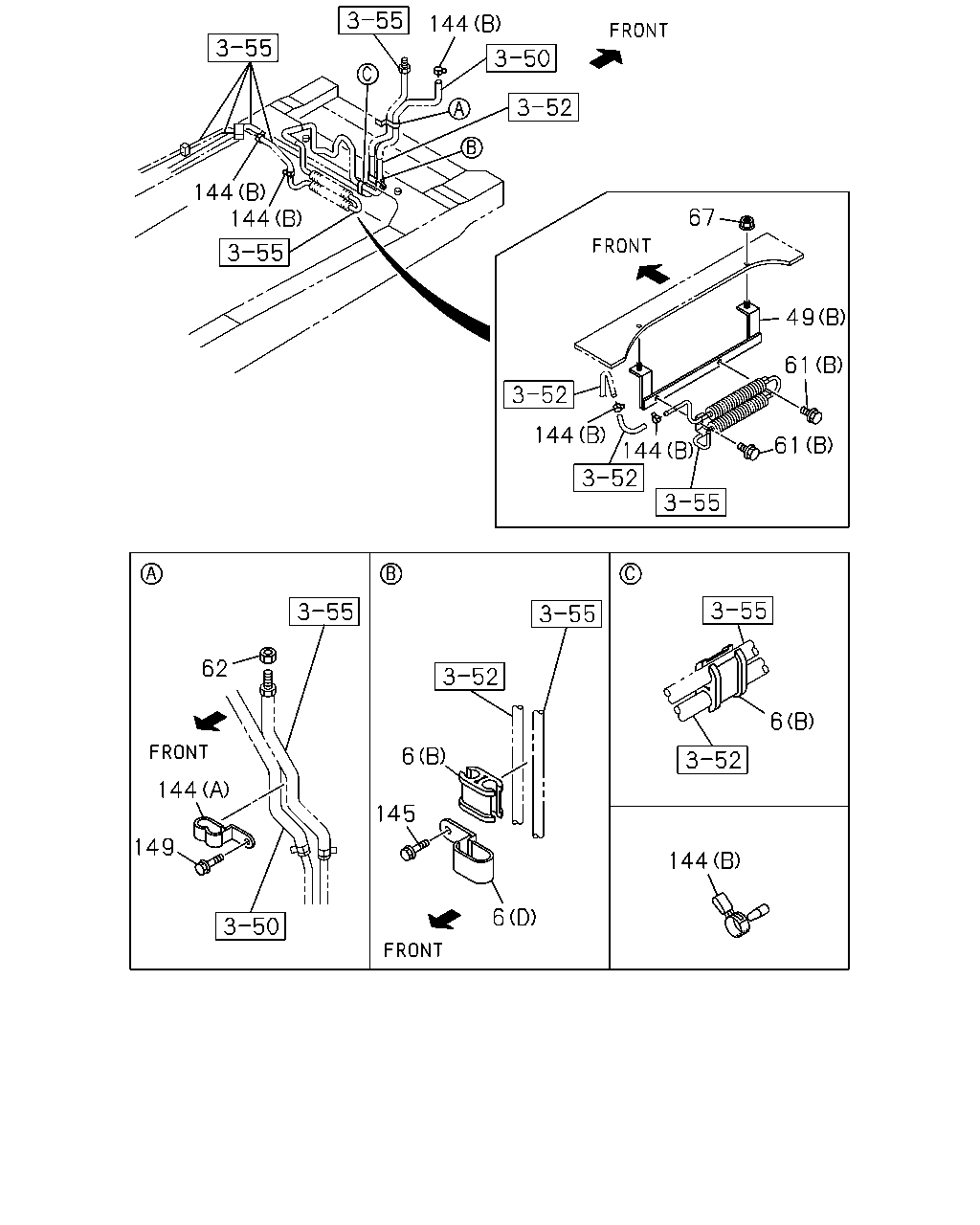

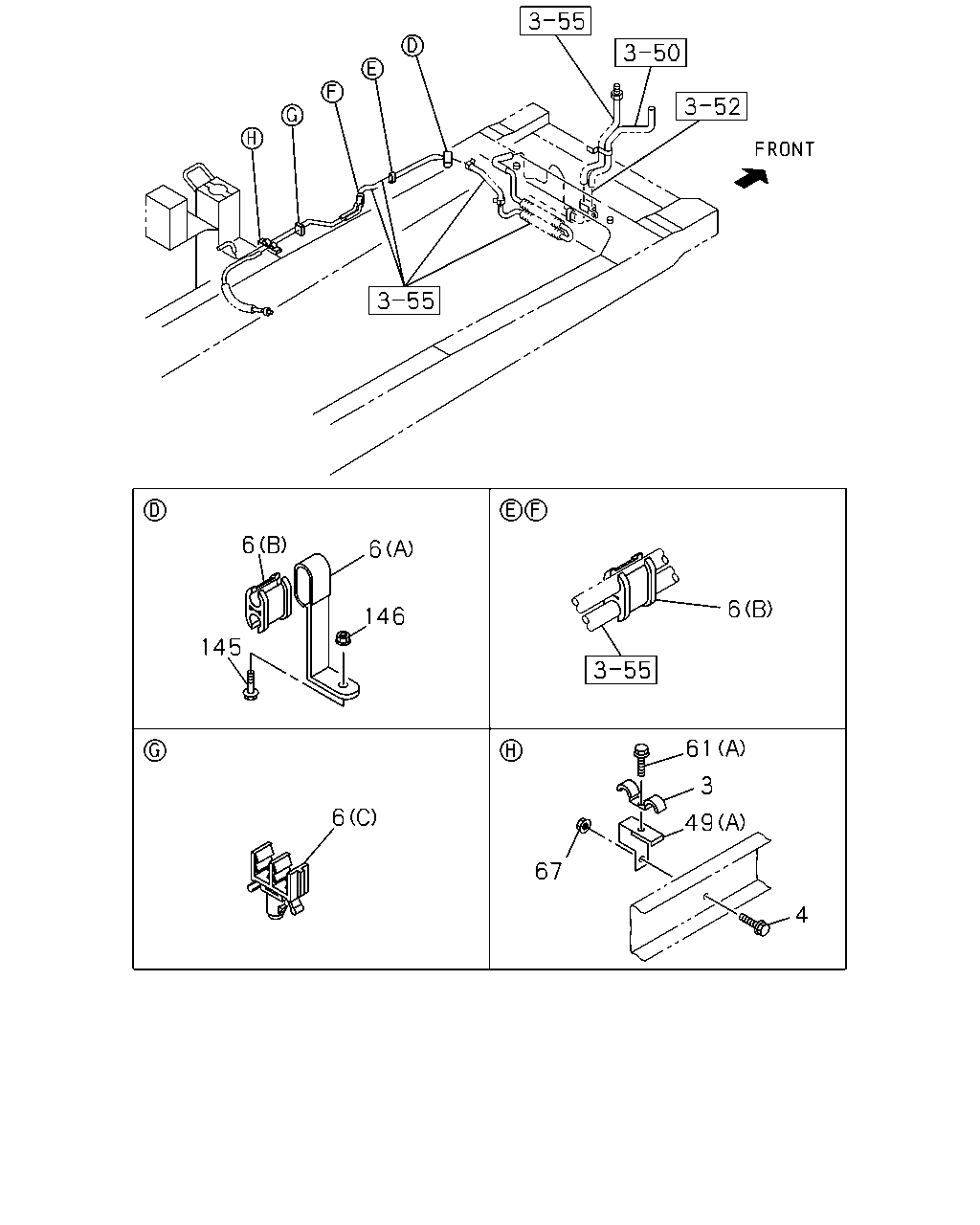

3-58 — FIXING PARTS; OIL PIPING (#43119) — 132 parça

20 20 20 148 19 76 18 18 18 18 18 18 18 18 20 20 18 32 23 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
18	CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=4.8X2 & 6.5 L=15	8-94131-710-2	01	1	0508-	●
18	CLIP; BRK PIPE FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> (B) ID=4.8X2 & 6.5 L=15	8-94131-710-2	01	1	0508-	●
18	CLIP; BRK PIPE (B) ID=4.8X2 & 6.5 L=15	8-94131-710-2	01	1	0508-		●	●
18	CLIP; BRK PIPE 4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=4.8X2 & 6.5 L=11	8-94249-689-2	02	1	0508-	●
18	CLIP; BRK PIPE 4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=4.8X2 & 6.5 L=17.5	8-94405-139-0	01	1	0508-	●	●
18	CLIP; BRK PIPE 4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=4.8X2 & 6.5 L=17.5	8-94405-139-0	01	1	0508-		●
18	CLIP; BRK PIPE 4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=4.8X2 & 6.5 L=21	8-94424-234-0	01	1	0508-	●
18	CLIP; BRK PIPE 4HG1-T ENG<RDP> (B) ID=4.8X2 & 6.5 L=21	8-94424-234-0	01	1	0508-		●
18	CLIP; BRK PIPE 4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=4.8X2 & 6.5 L=21	8-94424-234-0	02	1	0508-	●
18	CLIP; BRK PIPE 4HG1-T ENG<RDP> (B) ID=4.8X2 & 6.5 L=21	8-94424-234-0	02	1	0508-		●
18	CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> (G) ID=10 & 4.76X3	8-97326-158-1	04	1	0508-	●
18	CLIP; BRK PIPE (G) ID=10 & 4.76X3	8-97326-158-1	04	1	0508-		●
18	CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> (B) ID=4.8X2 & 6.5 L=15	8-94131-710-2	04	1	0508-	●
18	CLIP; BRK PIPE (B) ID=4.8X2 & 6.5 L=15	8-94131-710-2	04	1	0508-			●
18	CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> (D) ID=4.8X2	8-94316-410-0	01	1	0508-0508	●
18	CLIP; BRK PIPE (D) ID=4.8X2	8-94316-410-0	01	1	0508-0508			●
18	CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> (E) ID=4.8X2	8-94455-816-0	01	1	0508-	●
18	CLIP; BRK PIPE (E) ID=4.8X2	8-94455-816-0	01	1	0508-			●
18	CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> (F) ID=10 & 4.76X3	8-97168-819-0	02	1	0508-	●
18	CLIP; BRK PIPE (F) ID=10 & 4.76X3	8-97168-819-0	02	1	0508-			●
18	CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> (C) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-2	03	1	0508-0701	●
18	CLIP; BRK PIPE (C) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-2	03	1	0508-0701			●
18	CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> (C) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-2	02	1	0702-	●
18	CLIP; BRK PIPE (C) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-2	02	1	0702-			●
18	CLIP; BRK PIPE (G) ID=10 & 4.76X3	8-97326-158-1	08	1	0508-	●	●	●
18	CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (G) ID=10 & 4.76X3	8-97326-158-1	02	1	0508-	●
18	CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (H) B=18 L=20	1-09700-372-0	02	1	0508-	●
18	CLIP; BRK PIPE (H) B=18 L=20	1-09700-372-0	02	1	0508-		●
18	CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=4.8X2 & 6.5 L=11	8-94249-689-2	03	1	0508-	●
18	CLIP; BRK PIPE (A) ID=4.8X2 & 6.5 L=11	8-94249-689-2	03	1	0508-		●
18	CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (I) ID=12 & 6.35 & 4.76	8-97202-954-1	02	1	0508-	●
18	CLIP; BRK PIPE (I) ID=12 & 6.35 & 4.76	8-97202-954-1	02	1	0508-		●
18	CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-2	01	1	0508-	●
18	CLIP; BRK PIPE (C) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-2	01	1	0508-		●
18	CLIP; BRK PIPE 4HG1-T ENG<RDP> (A) ID=4.8X2 & 6.5 L=11	8-94249-689-2	01	1	0508-		●
18	CLIP; BRK PIPE (G) ID=10 & 4.76X3	8-97326-158-1	06	1	0508-			●
19	BRACKET; OIL PIPE THA	8-97917-182-0	01	1	0508-	●	●	●
20	CLIP; BRK PIPE (D) ID=6.35 & 4.76X2	8-94107-732-1	01	1	0508-	●	●	●
20	CLIP; BRK PIPE (A) ID=4.8X2	8-94113-470-0	01	1	0508-	●	●	●
20	CLIP; BRK PIPE (C) ID=6.4 & 4.8X2	8-94146-043-0	01	1	0508-	●	●	●
20	CLIP; BRK PIPE (B) ID=4.6X2 THA	8-94241-454-0	01	1	0508-	●	●	●
20	CLIP; BRK PIPE (E) ID=6.35 & 4.76X2	8-94250-923-2	01	1	0508-	●	●	●
23	CLAMP; PIPE EXC. FRAME STRAIGHT TYPE<7KJ> ID=6.4 & 4.8X2	8-94146-043-0	02	1	0508-	●
23	CLAMP; PIPE ID=6.4 & 4.8X2	8-94146-043-0	02	1	0508-		●
32	BOLT; CLIP,OIL PIPE 4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE	0-28680-825-0	01	1	0508-0611	●
32	BOLT; CLIP,OIL PIPE 4HG1-T ENG<RDP> M8X25 FLANGE	0-28680-825-0	01	1	0508-0611		●
32	BOLT; CLIP,OIL PIPE 4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE THA	0-28650-825-0	01	1	0612-	●
32	BOLT; CLIP,OIL PIPE 4HG1-T ENG<RDP> M8X25 FLANGE THA	0-28650-825-0	01	1	0612-		●
38	NUT; CLIP FIX EXC. FRAME STRAIGHT TYPE<7KJ> M8 FLANGE	0-91150-108-0	02	1	0508-	●
38	NUT; CLIP FIX M8 FLANGE	0-91150-108-0	02	1	0508-		●
76	BOLT; BRKT,OIL PIPE M8X25 FLANGE	0-28680-825-0	02	1	0508-0611	●	●	●
76	BOLT; BRKT,OIL PIPE M8X25 FLANGE THA	0-28650-825-0	02	1	0612-	●	●	●
148	GROMMET EXC. HYDRO BRAKE BOOSTER<7QQ>	8-94294-358-0	01	1	0508-	●
148	GROMMET	8-94294-358-0	01	1	0508-		●

6 6 6 146 145 61 3 6 49 67 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	C
3	CLIP; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> ID=13 & 13 L=16 & 16	1-09700-072-0	01	1	0508-	●
3	CLIP; BRK PIPE ID=13 & 13 L=16 & 16	1-09700-072-0	01	1	0508-		●
4	BOLT; BRKT HYDRO BRAKE BOOSTER<7QQ> M10X25 FLANGE	0-28681-025-0	01	1	0508-0611	●
4	BOLT; BRKT M10X25 FLANGE	0-28681-025-0	01	1	0508-0611		●
4	BOLT; BRKT HYDRO BRAKE BOOSTER<7QQ> M10X25 FLANGE THA	0-28651-025-0	01	1	0612-	●
4	BOLT; BRKT M10X25 FLANGE THA	0-28651-025-0	01	1	0612-		●
6	CLIP; PIPE HYDRO BRAKE BOOSTER<7QQ> (D) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0508-	●
6	CLIP; PIPE (D) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0508-		●
6	CLIP; PIPE HYDRO BRAKE BOOSTER<7QQ> (A) ID=14X29 H=30 L=25	1-09701-101-0	01	1	0508-	●
6	CLIP; PIPE (A) ID=14X29 H=30 L=25	1-09701-101-0	01	1	0508-		●
6	CLIP; PIPE HYDRO BRAKE BOOSTER<7QQ> (B) ID=10X2 H=22 THA	8-94252-455-2	05	1	0508-	●
6	CLIP; PIPE (B) ID=10X2 H=22 THA	8-94252-455-2	05	1	0508-		●
6	CLIP; PIPE HYDRO BRAKE BOOSTER<7QQ> (C) ID=10X2 H=37.5	8-97018-546-0	02	1	0508-	●
6	CLIP; PIPE (C) ID=10X2 H=37.5	8-97018-546-0	02	1	0508-		●
49	BRACKET; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> (A)	8-97174-638-0	01	1	0508-	●
49	BRACKET; BRK PIPE (A)	8-97174-638-0	01	1	0508-		●
49	BRACKET; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> (B)	8-97180-993-1	01	1	0508-	●
49	BRACKET; BRK PIPE (B)	8-97180-993-1	01	1	0508-		●
61	BOLT; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> (A) M6X12 FLANGE	0-28080-612-0	01	1	0508-0611	●
61	BOLT; BRK PIPE (A) M6X12 FLANGE	0-28080-612-0	01	1	0508-0611		●
61	BOLT; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> (A) M6X12 FLANGE THA	0-28050-612-0	01	1	0612-	●
61	BOLT; BRK PIPE (A) M6X12 FLANGE THA	0-28050-612-0	01	1	0612-		●
61	BOLT; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> (B) M10X25 FLANGE	0-28681-025-0	02	1	0508-0611	●
61	BOLT; BRK PIPE (B) M10X25 FLANGE	0-28681-025-0	02	1	0508-0611		●
61	BOLT; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> (B) M10X25 FLANGE THA	0-28651-025-0	02	1	0612-	●
61	BOLT; BRK PIPE (B) M10X25 FLANGE THA	0-28651-025-0	02	1	0612-		●
67	NUT; BRKT HYDRO BRAKE BOOSTER<7QQ> M10 FLANGE	0-91150-110-0	03	1	0508-0602	●
67	NUT; BRKT M10 FLANGE	0-91150-110-0	03	1	0508-0602		●
67	NUT; BRKT HYDRO BRAKE BOOSTER<7QQ> M10 FLANGE THA	0-91180-110-0	03	1	0603-	●
67	NUT; BRKT M10 FLANGE THA	0-91180-110-0	03	1	0603-		●
145	BOLT; PIPE HYDRO BRAKE BOOSTER<7QQ> M8X25 FLANGE	0-28680-825-0	02	1	0508-0611	●
145	BOLT; PIPE M8X25 FLANGE	0-28680-825-0	02	1	0508-0611		●
145	BOLT; PIPE HYDRO BRAKE BOOSTER<7QQ> M8X25 FLANGE THA	0-28650-825-0	02	1	0612-	●
145	BOLT; PIPE M8X25 FLANGE THA	0-28650-825-0	02	1	0612-		●
146	NUT; PIPE HYDRO BRAKE BOOSTER<7QQ> M8 FLANGE	0-91150-108-0	01	1	0508-	●
146	NUT; PIPE M8 FLANGE	0-91150-108-0	01	1	0508-		●

144 144 67 49 61 144 61 144 62 6 6 144 145 149 144 6 144

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	C
6	CLIP; PIPE HYDRO BRAKE BOOSTER<7QQ> (D) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0508-	●
6	CLIP; PIPE (D) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0508-		●
6	CLIP; PIPE HYDRO BRAKE BOOSTER<7QQ> (A) ID=14X29 H=30 L=25	1-09701-101-0	01	1	0508-	●
6	CLIP; PIPE (A) ID=14X29 H=30 L=25	1-09701-101-0	01	1	0508-		●
6	CLIP; PIPE HYDRO BRAKE BOOSTER<7QQ> (B) ID=10X2 H=22 THA	8-94252-455-2	05	1	0508-	●
6	CLIP; PIPE (B) ID=10X2 H=22 THA	8-94252-455-2	05	1	0508-		●
6	CLIP; PIPE HYDRO BRAKE BOOSTER<7QQ> (C) ID=10X2 H=37.5	8-97018-546-0	02	1	0508-	●
6	CLIP; PIPE (C) ID=10X2 H=37.5	8-97018-546-0	02	1	0508-		●
49	BRACKET; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> (A)	8-97174-638-0	01	1	0508-	●
49	BRACKET; BRK PIPE (A)	8-97174-638-0	01	1	0508-		●
49	BRACKET; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> (B)	8-97180-993-1	01	1	0508-	●
49	BRACKET; BRK PIPE (B)	8-97180-993-1	01	1	0508-		●
61	BOLT; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> (A) M6X12 FLANGE	0-28080-612-0	01	1	0508-0611	●
61	BOLT; BRK PIPE (A) M6X12 FLANGE	0-28080-612-0	01	1	0508-0611		●
61	BOLT; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> (A) M6X12 FLANGE THA	0-28050-612-0	01	1	0612-	●
61	BOLT; BRK PIPE (A) M6X12 FLANGE THA	0-28050-612-0	01	1	0612-		●
61	BOLT; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> (B) M10X25 FLANGE	0-28681-025-0	02	1	0508-0611	●
61	BOLT; BRK PIPE (B) M10X25 FLANGE	0-28681-025-0	02	1	0508-0611		●
61	BOLT; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> (B) M10X25 FLANGE THA	0-28651-025-0	02	1	0612-	●
61	BOLT; BRK PIPE (B) M10X25 FLANGE THA	0-28651-025-0	02	1	0612-		●
62	NUT HYDRO BRAKE BOOSTER<7QQ> M14	9-99111-414-0	01	1	0508-0512	●
62	NUT M14	9-99111-414-0	01	1	0508-0512		●
62	NUT HYDRO BRAKE BOOSTER<7QQ> M14	0-91111-514-0	01	1	0601-	●
62	NUT M14	0-91111-514-0	01	1	0601-		●
67	NUT; BRKT HYDRO BRAKE BOOSTER<7QQ> M10 FLANGE	0-91150-110-0	03	1	0508-0602	●
67	NUT; BRKT M10 FLANGE	0-91150-110-0	03	1	0508-0602		●
67	NUT; BRKT HYDRO BRAKE BOOSTER<7QQ> M10 FLANGE THA	0-91180-110-0	03	1	0603-	●
67	NUT; BRKT M10 FLANGE THA	0-91180-110-0	03	1	0603-		●
144	CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> (A) ID=19 & 19 L=53	1-09700-681-0	01	1	0508-	●
144	CLIP; HOSE (A) ID=19 & 19 L=53	1-09700-681-0	01	1	0508-		●
144	CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> (B) ID=11-19.5	8-94426-597-0	05	1	0508-1005	●
144	CLIP; HOSE (B) ID=11-19.5	8-94426-597-0	05	1	0508-1005		●
144	CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> (B) ID=11-17	8-98173-762-1	05	1	1006-	●
144	CLIP; HOSE (B) ID=11-17	8-98173-762-1	05	1	1006-		●
145	BOLT; PIPE HYDRO BRAKE BOOSTER<7QQ> M8X25 FLANGE	0-28680-825-0	02	1	0508-0611	●
145	BOLT; PIPE M8X25 FLANGE	0-28680-825-0	02	1	0508-0611		●
145	BOLT; PIPE HYDRO BRAKE BOOSTER<7QQ> M8X25 FLANGE THA	0-28650-825-0	02	1	0612-	●
145	BOLT; PIPE M8X25 FLANGE THA	0-28650-825-0	02	1	0612-		●
149	BOLT; HOSE HYDRO BRAKE BOOSTER<7QQ> M6X12 FLANGE	0-28080-612-0	01	1	0508-0611	●
149	BOLT; HOSE M6X12 FLANGE	0-28080-612-0	01	1	0508-0611		●
149	BOLT; HOSE HYDRO BRAKE BOOSTER<7QQ> M6X12 FLANGE THA	0-28050-612-0	01	1	0612-	●
149	BOLT; HOSE M6X12 FLANGE THA	0-28050-612-0	01	1	0612-		●
