3-55 — BRAKE PIPING; OIL,REAR (#43118) — 32 parça

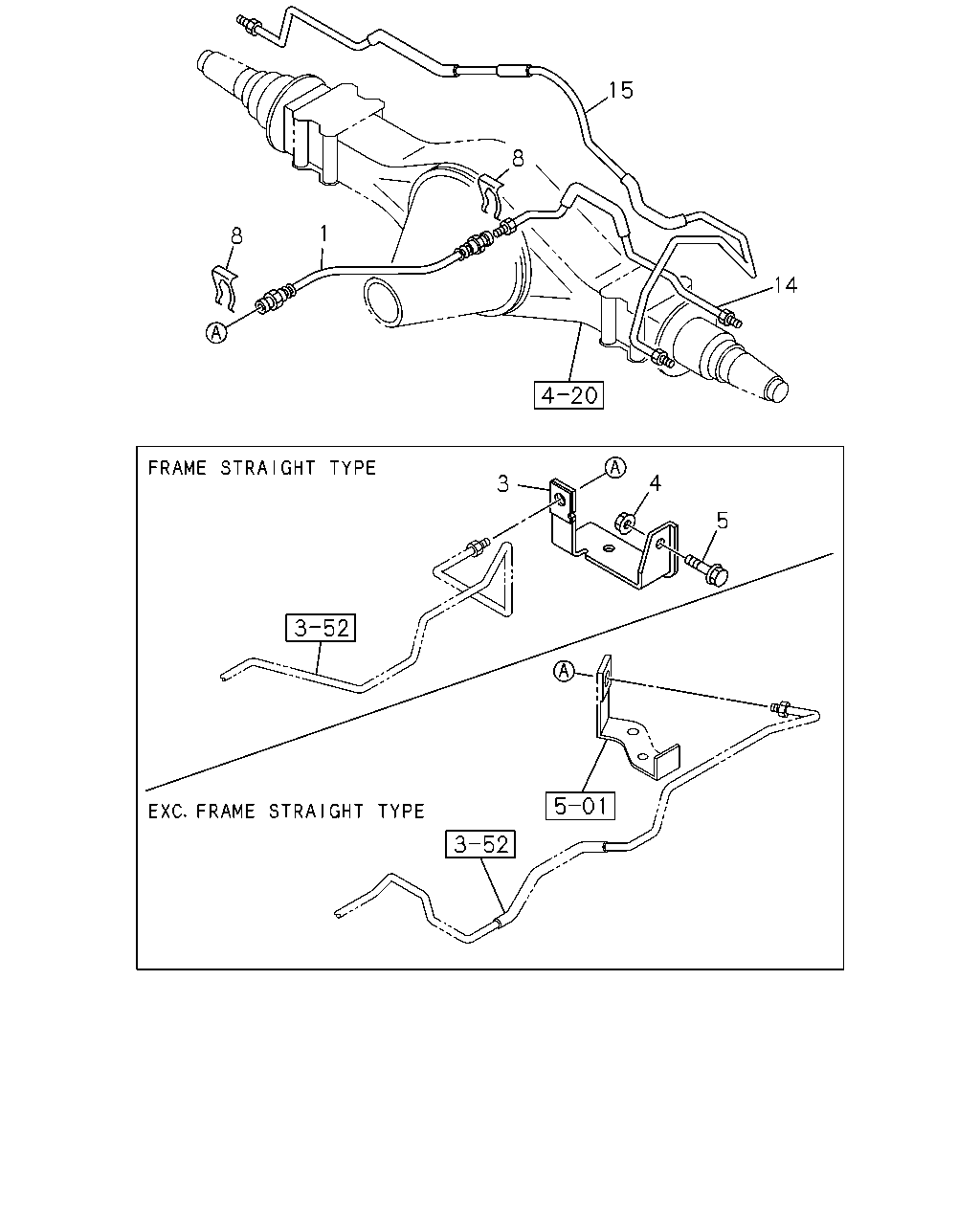

çizim 119358
15 8 1 8 14 4 3 5
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HOSE; FLEX,RR BRK
FRAME STRAIGHT TYPE<7KJ> THA 		8-97308-913-0 01 1 0508- ●
1 HOSE; FLEX,RR BRK
THA 		8-97308-913-0 01 1 0508- ●
1 HOSE; FLEX,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> L=370 THA 		8-97035-574-0 01 1 0508- ●
1 HOSE; FLEX,RR BRK
L=370 THA 		8-97035-574-0 01 1 0508- ●
3 BRACKET; FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> 		8-97205-714-1 01 1 0508- ●
3 BRACKET; FLEX HOSE,RR BRK 8-97205-714-1 01 1 0508- ●
4 NUT; BRKT,FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> M8 FLANGE 		0-91150-108-0 01 1 0508- ●
4 NUT; BRKT,FLEX HOSE,RR BRK
M8 FLANGE 		0-91150-108-0 01 1 0508- ●
5 BOLT; BRKT,FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE 		0-28680-825-0 01 1 0508-0611 ●
5 BOLT; BRKT,FLEX HOSE,RR BRK
M8X25 FLANGE 		0-28680-825-0 01 1 0508-0611 ●
5 BOLT; BRKT,FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE THA 		0-28650-825-0 01 1 0612- ●
5 BOLT; BRKT,FLEX HOSE,RR BRK
M8X25 FLANGE THA 		0-28650-825-0 01 1 0612- ●
8 CLIP; RR BRK 8-94137-662-0 02 1 0508-0610 ● ● ●
8 CLIP; RR BRK 8-97360-054-0 02 1 0611- ● ● ●
14 PIPE; BRK,FLEX HOSE TO WHEEL CYL
FRAME STRAIGHT TYPE<7KJ> THA 		8-97919-116-1 01 1 0508- ●
14 PIPE; BRK,FLEX HOSE TO WHEEL CYL
THA 		8-97919-116-1 01 1 0508- ●
14 PIPE; BRK,FLEX HOSE TO WHEEL CYL
EXC. FRAME STRAIGHT TYPE<7KJ> THA 		8-97916-816-0 01 1 0508- ●
14 PIPE; BRK,FLEX HOSE TO WHEEL CYL
THA 		8-97916-816-0 01 1 0508- ●
15 PIPE; BRK,WHEEL CYL TO WHEEL CYL
FRAME STRAIGHT TYPE<7KJ> THA 		8-97912-873-1 01 1 0508- ●
15 PIPE; BRK,WHEEL CYL TO WHEEL CYL
THA 		8-97912-873-1 01 1 0508- ●
15 PIPE; BRK,WHEEL CYL TO WHEEL CYL
EXC. FRAME STRAIGHT TYPE<7KJ> THA 		8-97916-842-0 01 1 0508- ●
15 PIPE; BRK,WHEEL CYL TO WHEEL CYL
THA 		8-97916-842-0 01 1 0508- ●

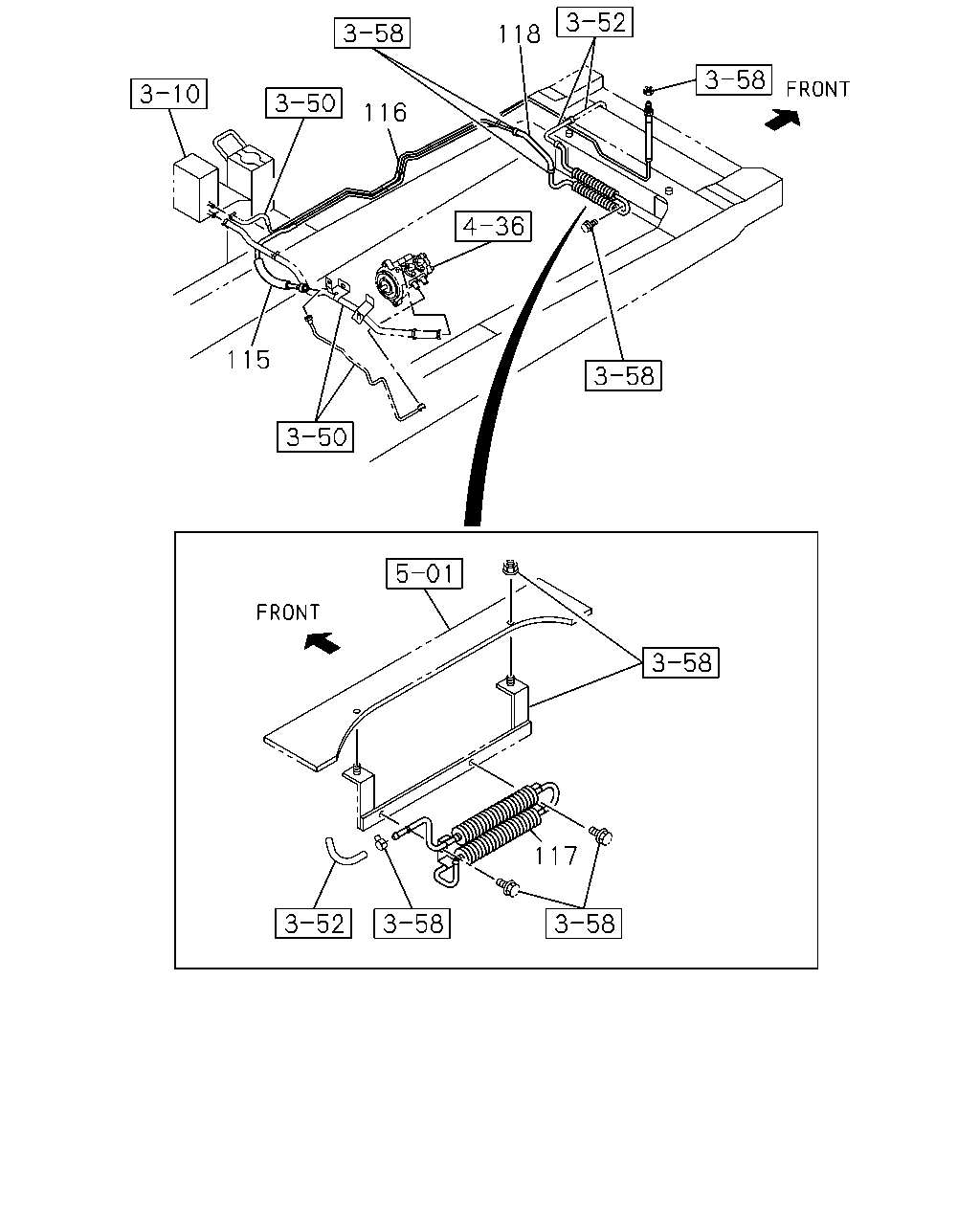

çizim 119367
118 116 115 117
BalonParca AdiParca NoAdetTipApplied Date A B C
115 PIPE; PRESS,HYDRAULIC BRK BOOSTER
4HE1-TCS ENG<RDS> HYDRO BRAKE BOOSTER<7QQ> 		8-98022-142-0 01 1 0508- ●
115 PIPE; PRESS,HYDRAULIC BRK BOOSTER
4HE1-TCS ENG<RDS> 		8-98022-142-0 01 1 0508- ●
115 PIPE; PRESS,HYDRAULIC BRK BOOSTER
4HK1-TCS ENG<RJS> HYDRO BRAKE BOOSTER<7QQ> 		8-97385-598-0 01 1 0510- ●
115 PIPE; PRESS,HYDRAULIC BRK BOOSTER
4HK1-TCS ENG<RJS> 		8-97385-598-0 01 1 0510- ●
116 PIPE; BRK,PIPE TO TANK
HYDRO BRAKE BOOSTER<7QQ> THA 		8-97922-916-0 01 1 0508- ●
116 PIPE; BRK,PIPE TO TANK
THA 		8-97922-916-0 01 1 0508- ●
117 PIPE; BRK,RETURN
HYDRO BRAKE BOOSTER<7QQ> 		8-97386-605-0 01 1 0508- ●
117 PIPE; BRK,RETURN 8-97386-605-0 01 1 0508- ●
118 HOSE; PIPE TO PIPE
HYDRO BRAKE BOOSTER<7QQ> 		8-97181-217-2 01 1 0508- ●
118 HOSE; PIPE TO PIPE 8-97181-217-2 01 1 0508- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
