◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51041 - NPR/NQR(THAILAND) ▶ 3 - Brakes, Brake System ▶ 3-52 - BRAKE PIPING; OIL,FRONT ▶
3-52 — BRAKE PIPING; OIL,FRONT (#43117) — 46 parça

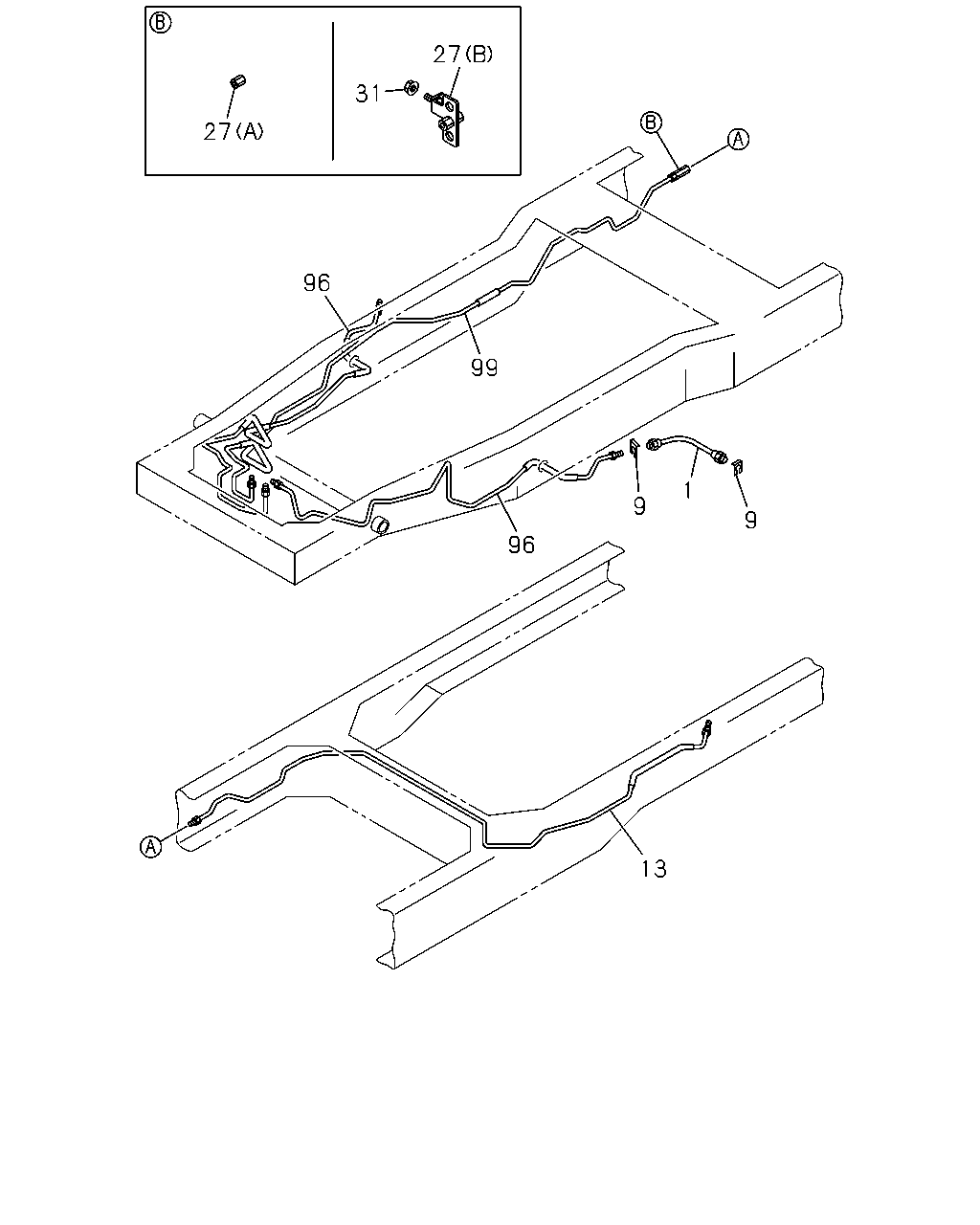

çizim 119341
27 31 27 96 99 1 9 9 96 13
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HOSE; FLEX,FRT BRK 8-97039-543-1 02 1 0508- ● ● ●
9 CLIP; FLEX HOSE,FRT BRK 8-94137-662-0 02 1 0508-0610 ● ● ●
9 CLIP; FLEX HOSE,FRT BRK 8-94137-662-0 02 1 0508-0610 ● ● ●
9 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 0611- ● ● ●
9 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 0611- ● ● ●
13 PIPE; OIL,UNION TO UNION
FRAME STRAIGHT TYPE<7KJ> THA 		8-97920-890-0 01 1 0508- ●
13 PIPE; OIL,UNION TO UNION
EXC. FRAME STRAIGHT TYPE<7KJ> THA 		8-97922-299-0 01 1 0508- ●
13 PIPE; OIL,UNION TO UNION
THA 		8-97922-300-0 01 1 0508- ●
13 PIPE; OIL,UNION TO UNION
THA 		8-97920-891-0 01 1 0508- ●
27 UNION; BRK PIPE
FRAME STRAIGHT TYPE<7KJ> (A) M10 STRAIGHT 		9-09227-005-0 01 1 0508-0607 ●
27 UNION; BRK PIPE
(A) M10 STRAIGHT 		9-09227-005-0 01 1 0508-0607 ●
27 UNION; BRK PIPE
FRAME STRAIGHT TYPE<7KJ> (A) M10 STRAIGHT 		0-92107-005-0 01 1 0608- ●
27 UNION; BRK PIPE
(A) M10 STRAIGHT 		0-92107-005-0 01 1 0608- ●
27 UNION; BRK PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97287-444-1 01 1 0508- ●
27 UNION; BRK PIPE
(B) 		8-97287-444-1 01 1 0508- ●
31 NUT; UNION CLIP
EXC. FRAME STRAIGHT TYPE<7KJ> M6 FLANGE 		0-91150-106-0 01 1 0508-0605 ●
31 NUT; UNION CLIP
M6 FLANGE 		0-91150-106-0 01 1 0508-0605 ●
31 NUT; UNION CLIP
EXC. FRAME STRAIGHT TYPE<7KJ> M6 FLANGE THA 		0-91180-106-0 01 1 0606- ●
31 NUT; UNION CLIP
M6 FLANGE THA 		0-91180-106-0 01 1 0606- ●
96 PIPE ASM; 6 WAY
FRAME STRAIGHT TYPE<7KJ> THA 		8-97920-887-0 01 1 0508- ●
96 PIPE ASM; 6 WAY
THA 		8-97920-887-0 01 1 0508- ●
96 PIPE ASM; 6 WAY
FRAME STRAIGHT TYPE<7KJ> THA 		8-97920-888-0 01 1 0508- ●
96 PIPE ASM; 6 WAY
THA 		8-97920-888-0 01 1 0508- ●
96 PIPE ASM; 6 WAY
EXC. FRAME STRAIGHT TYPE<7KJ> THA 		8-97922-296-0 01 1 0508- ●
96 PIPE ASM; 6 WAY
THA 		8-97922-296-0 01 1 0508- ●
96 PIPE ASM; 6 WAY
EXC. FRAME STRAIGHT TYPE<7KJ> THA 		8-97922-297-0 01 1 0508- ●
96 PIPE ASM; 6 WAY
THA 		8-97922-297-0 01 1 0508- ●
99 PIPE ASM; 4/5/6 WAY
FRAME STRAIGHT TYPE<7KJ> THA 		8-97920-889-0 01 1 0508- ●
99 PIPE ASM; 4/5/6 WAY
THA 		8-97920-889-0 01 1 0508- ●
99 PIPE ASM; 4/5/6 WAY
EXC. FRAME STRAIGHT TYPE<7KJ> THA 		8-97922-298-0 01 1 0508- ●
99 PIPE ASM; 4/5/6 WAY
THA 		8-97922-298-0 01 1 0508- ●

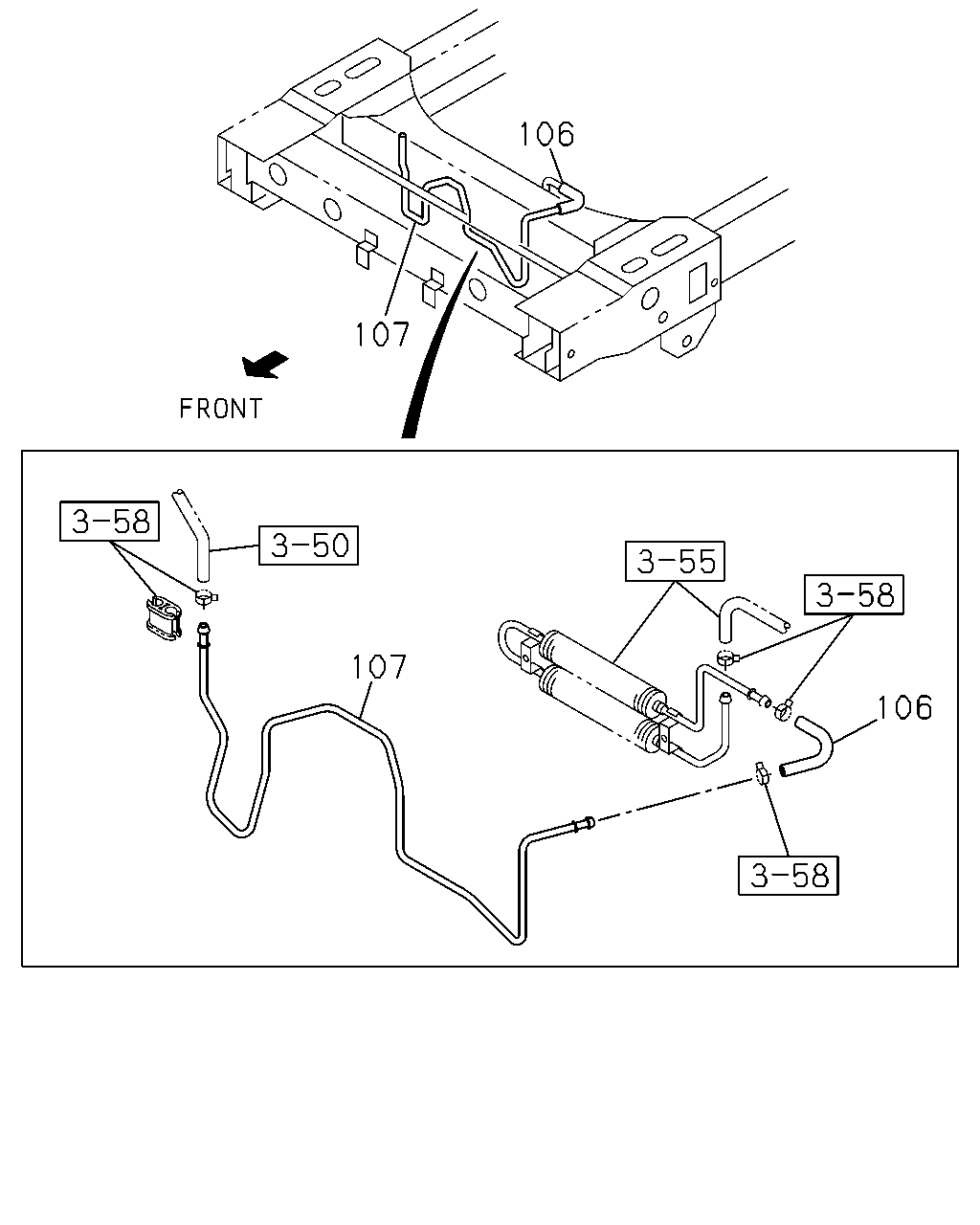

çizim 119342
106 107 107 106
BalonParca AdiParca NoAdetTipApplied Date A B C
106 HOSE; FIN PIPE TO PIPE
HYDRO BRAKE BOOSTER<7QQ> 		8-97386-589-0 01 1 0508- ●
106 HOSE; FIN PIPE TO PIPE 8-97386-589-0 01 1 0508- ●
107 PIPE; RETURN TO FIN PIPE
4HE1-TCS ENG<RDS> HYDRO BRAKE BOOSTER<7QQ> THA 		8-97922-956-0 01 1 0508- ●
107 PIPE; RETURN TO FIN PIPE
4HE1-TCS ENG<RDS> THA 		8-97922-956-0 01 1 0508- ●
107 PIPE; RETURN TO FIN PIPE
4HK1-TCS ENG<RJS> HYDRO BRAKE BOOSTER<7QQ> THA 		8-97922-917-0 01 1 0510- ●
107 PIPE; RETURN TO FIN PIPE
4HK1-TCS ENG<RJS> THA 		8-97922-917-0 01 1 0510- ●

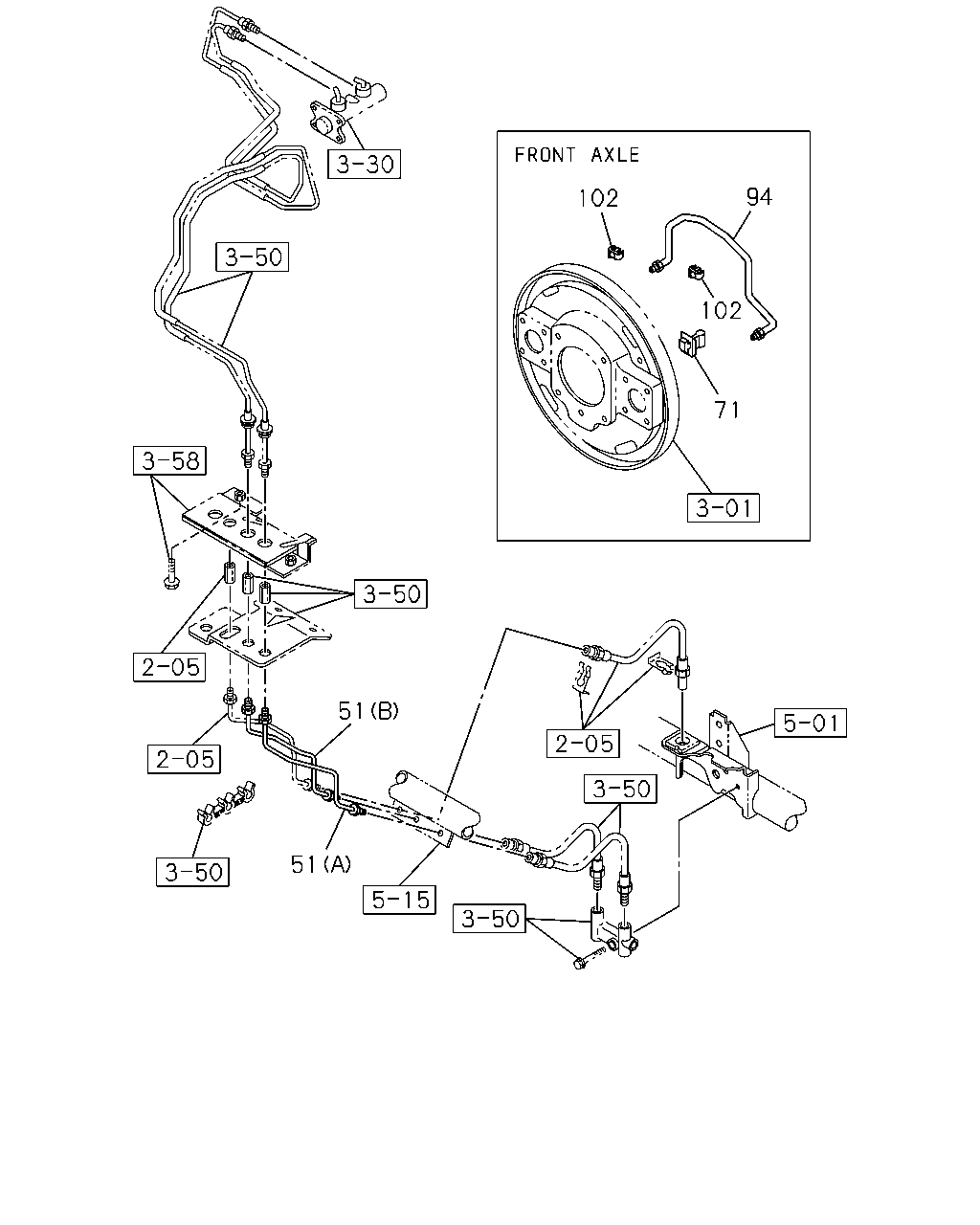

çizim 119352
94 102 102 71 51 51
BalonParca AdiParca NoAdetTipApplied Date A B C
51 PIPE; BRK
(A) FRONT THA 		8-97917-165-0 01 1 0508- ● ● ●
51 PIPE; BRK
(B) REAR THA 		8-97917-166-0 01 1 0508- ● ● ●
71 GROMMET; OIL PIPE 8-97044-742-1 02 1 0508- ● ●
71 GROMMET; OIL PIPE
FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT<9ZP> 		8-97044-742-1 02 1 0508- ●
94 PIPE; BRK,W/C TO W/C
THA 		8-97940-705-0 02 1 0508- ● ●
94 PIPE; BRK,W/C TO W/C
FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT<9ZP> THA 		8-97940-705-0 02 1 0508- ●
94 PIPE; BRK,W/C TO W/C
FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT<9BP> THA 		8-97079-847-0 02 1 0508- ●
102 CLIP; PIPE 8-97022-086-0 02 1 0508- ● ●
102 CLIP; PIPE
FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT<9ZP> 		8-97022-086-0 02 1 0508- ●
