3-50 — BRAKE PIPING; OIL,MASTER CYLINDER (#43116) — 95 parça

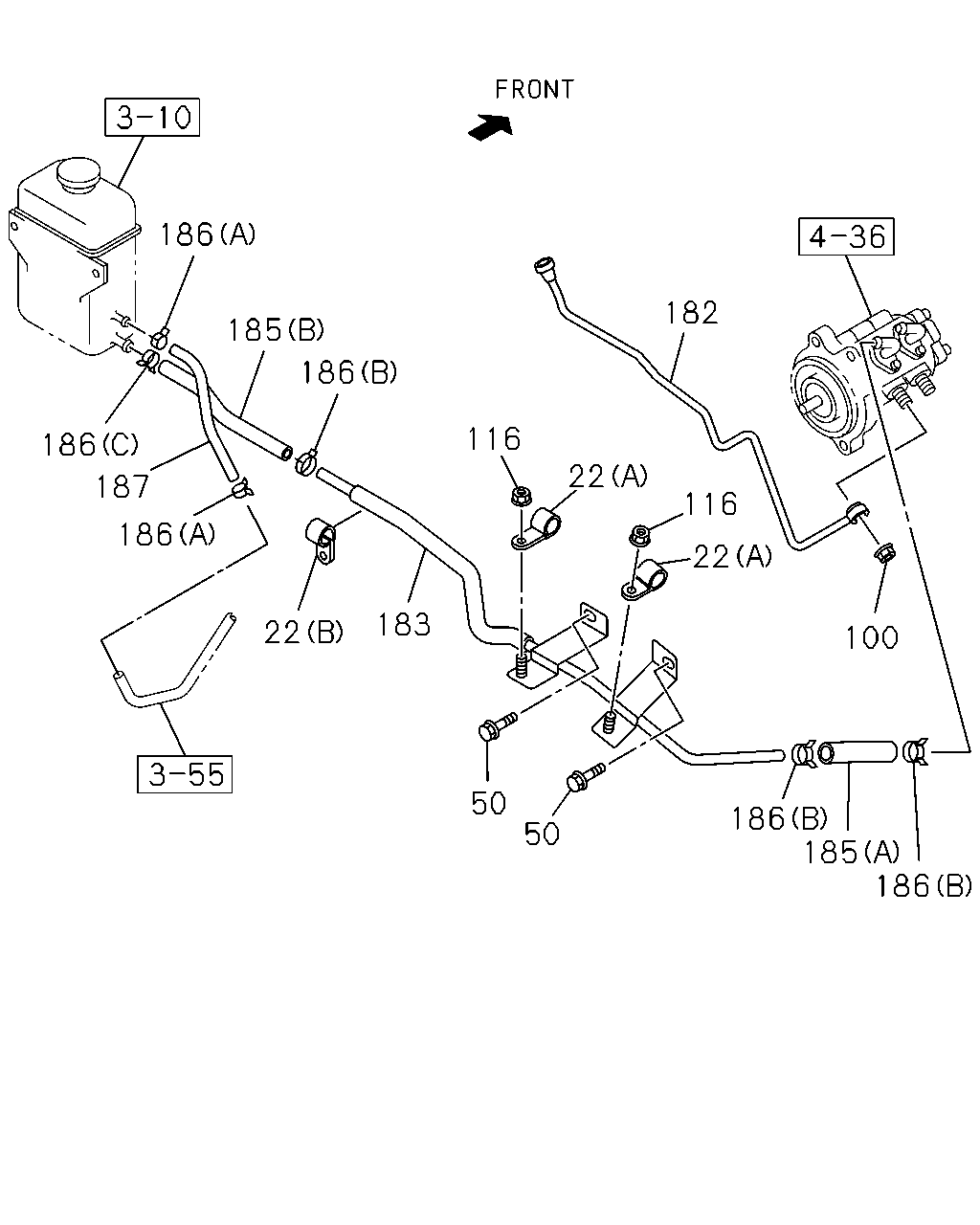

çizim 119340
186 182 185 186 116 186 22 187 116 186 22 183 22 100 50 186 185 186 50
BalonParca AdiParca NoAdetTipApplied Date A B C
22 CLIP
HYDRO BRAKE BOOSTER<7QQ> (A) ID=11 L=16 		9-09525-025-0 02 1 0508-0606 ●
22 CLIP
(A) ID=11 L=16 		9-09525-025-0 02 1 0508-0606 ●
22 CLIP
HYDRO BRAKE BOOSTER<7QQ> (A) ID=11 L=16 		0-95235-025-0 02 1 0607- ●
22 CLIP
(A) ID=11 L=16 		0-95235-025-0 02 1 0607- ●
22 CLIP
4HE1-TCS ENG<RDS> HYDRO BRAKE BOOSTER<7QQ> (B) ID=19 L=20 		9-09525-836-0 01 1 0508-0509 ●
22 CLIP
4HE1-TCS ENG<RDS> (B) ID=19 L=20 		9-09525-836-0 01 1 0508-0509 ●
22 CLIP
4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> HYDRO BRAKE BOOSTER<7QQ> (B) ID=19 L=20 		9-09525-836-0 01 1 0510-0606 ●
22 CLIP
4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> (B) ID=19 L=20 		9-09525-836-0 01 1 0510-0606 ●
22 CLIP
4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> HYDRO BRAKE BOOSTER<7QQ> (B) ID=19 L=20 		0-95235-836-0 01 1 0607- ●
22 CLIP
4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> (B) ID=19 L=20 		0-95235-836-0 01 1 0607- ●
50 BOLT; PIPE
HYDRO BRAKE BOOSTER<7QQ> M8X16 FLANGE 		0-28080-816-0 02 1 0508-0611 ●
50 BOLT; PIPE
M8X16 FLANGE 		0-28080-816-0 02 1 0508-0611 ●
50 BOLT; PIPE
HYDRO BRAKE BOOSTER<7QQ> M8X16 FLANGE THA 		0-28050-816-0 02 1 0612- ●
50 BOLT; PIPE
M8X16 FLANGE THA 		0-28050-816-0 02 1 0612- ●
100 NUT; HYDRAULIC UNIT
HYDRO BRAKE BOOSTER<7QQ> M12 SELF LOCK 		8-97028-390-1 01 1 0508- ●
100 NUT; HYDRAULIC UNIT
M12 SELF LOCK 		8-97028-390-1 01 1 0508- ●
116 NUT
HYDRO BRAKE BOOSTER<7QQ> M8 FLANGE 		0-91150-108-0 02 1 0508- ●
116 NUT
M8 FLANGE 		0-91150-108-0 02 1 0508- ●
182 PIPE; HYDRAULIC BRK BOOSTER
4HE1-TCS ENG<RDS> FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> 		8-97328-692-0 01 1 0508-0509 ●
182 PIPE; HYDRAULIC BRK BOOSTER
4HE1-TCS ENG<RDS> 		8-97328-692-0 01 1 0508-0509 ●
182 PIPE; HYDRAULIC BRK BOOSTER
4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> 		8-97328-692-0 01 1 0510- ●
182 PIPE; HYDRAULIC BRK BOOSTER
4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> 		8-97328-692-0 01 1 0510- ●
183 PIPE; SUCTION
4HE1-TCS ENG<RDS> FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> 		8-97328-693-0 01 1 0508-0509 ●
183 PIPE; SUCTION
4HE1-TCS ENG<RDS> 		8-97328-693-0 01 1 0508-0509 ●
183 PIPE; SUCTION
4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> 		8-97328-693-0 01 1 0510- ●
183 PIPE; SUCTION
4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> 		8-97328-693-0 01 1 0510- ●
185 HOSE; RUBBER,SUCTION
HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97330-513-0 01 1 0508- ●
185 HOSE; RUBBER,SUCTION
(A) 		8-97330-513-0 01 1 0508- ●
185 HOSE; RUBBER,SUCTION
4HE1-TCS ENG<RDS> HYDRO BRAKE BOOSTER<7QQ> (B) SERVICED BY L=300 		0-09814-300-0 01 1 0508-0509 ●
185 HOSE; RUBBER,SUCTION
4HE1-TCS ENG<RDS> (B) SERVICED BY L=300 		0-09814-300-0 01 1 0508-0509 ●
185 HOSE; RUBBER,SUCTION
4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> HYDRO BRAKE BOOSTER<7QQ> (B) SERVICED BY L=300 		0-09814-300-0 01 1 0510- ●
185 HOSE; RUBBER,SUCTION
4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> (B) SERVICED BY L=300 		0-09814-300-0 01 1 0510- ●
186 CLIP; HOSE
HYDRO BRAKE BOOSTER<7QQ> (A) ID=16 		8-94238-568-0 02 1 0508-0911 ●
186 CLIP; HOSE
(A) ID=16 		8-94238-568-0 02 1 0508-0911 ●
186 CLIP; HOSE
HYDRO BRAKE BOOSTER<7QQ> (A) ID=16 		8-98008-098-0 02 1 0912- ●
186 CLIP; HOSE
(A) ID=16 		8-98008-098-0 02 1 0912- ●
186 CLIP; HOSE
HYDRO BRAKE BOOSTER<7QQ> (B) ID=21 		8-94242-034-0 03 1 0508-0911 ●
186 CLIP; HOSE
(B) ID=21 		8-94242-034-0 03 1 0508-0911 ●
186 CLIP; HOSE
HYDRO BRAKE BOOSTER<7QQ> (B) ID=21 		8-98150-355-0 03 1 0912- ●
186 CLIP; HOSE
(B) ID=21 		8-98150-355-0 03 1 0912- ●
186 CLIP; HOSE
HYDRO BRAKE BOOSTER<7QQ> (C) ID=22 		8-94382-401-0 01 1 0508-1003 ●
186 CLIP; HOSE
(C) ID=22 		8-94382-401-0 01 1 0508-1003 ●
186 CLIP; HOSE
HYDRO BRAKE BOOSTER<7QQ> (C) ID=22 		8-97359-141-0 01 1 1004- ●
186 CLIP; HOSE
(C) ID=22 		8-97359-141-0 01 1 1004- ●
187 HOSE; RUBBER,OIL TANK
4HE1-TCS ENG<RDS> HYDRO BRAKE BOOSTER<7QQ> L=270 SERVICED BY L=3000 		0-19809-300-0 01 1 0508-0509 ●
187 HOSE; RUBBER,OIL TANK
4HE1-TCS ENG<RDS> L=270 SERVICED BY L=3000 		0-19809-300-0 01 1 0508-0509 ●
187 HOSE; RUBBER,OIL TANK
4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> HYDRO BRAKE BOOSTER<7QQ> L=270 SERVICED BY L=3000 		0-19809-300-0 01 1 0510- ●
187 HOSE; RUBBER,OIL TANK
4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> L=270 SERVICED BY L=3000 		0-19809-300-0 01 1 0510- ●

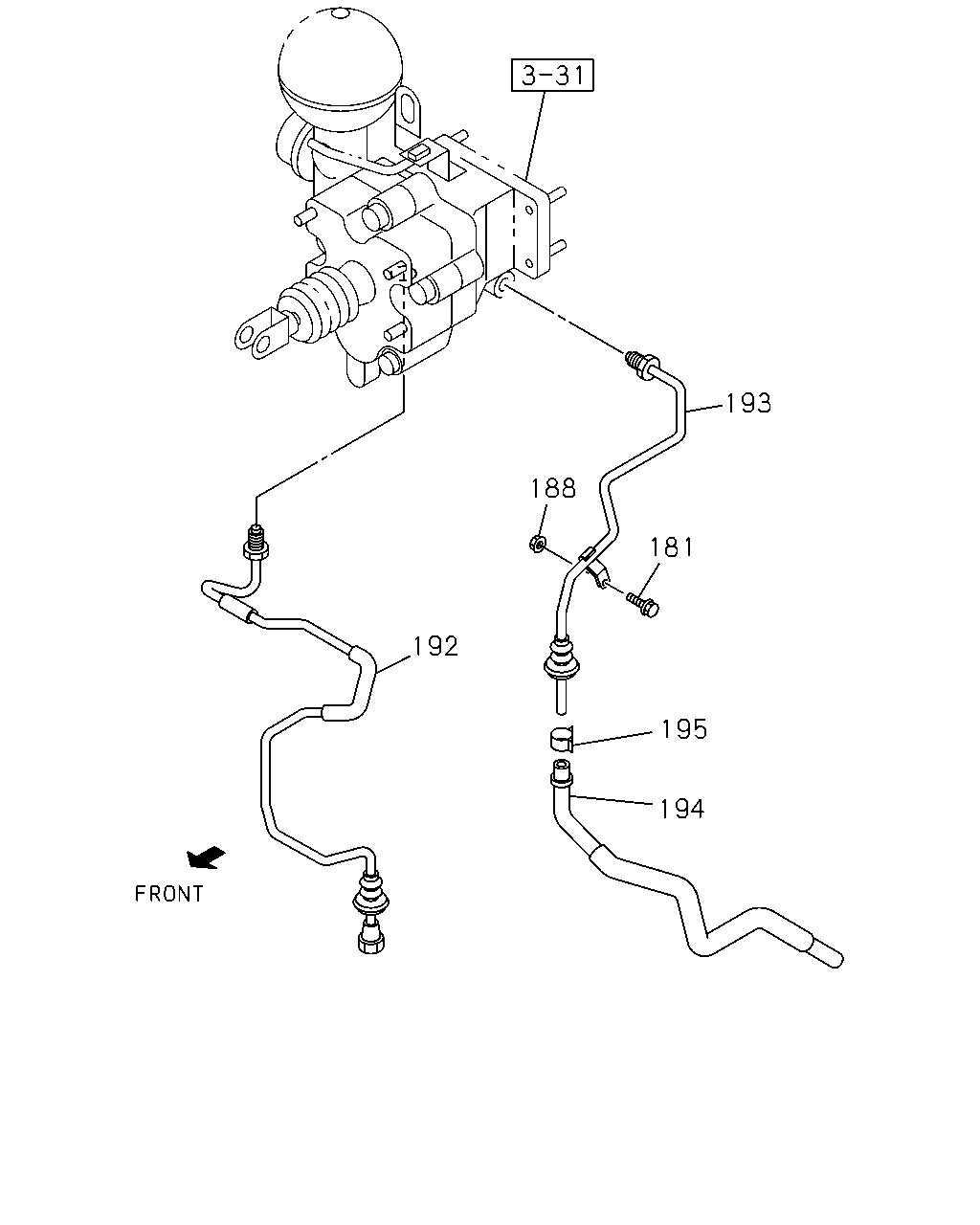

çizim 119348
193 188 181 192 195 194
BalonParca AdiParca NoAdetTipApplied Date A B C
181 BOLT; PIPE
HYDRO BRAKE BOOSTER<7QQ> M6X16 FLANGE 		0-28680-616-0 01 1 0508-0611 ●
181 BOLT; PIPE
M6X16 FLANGE 		0-28680-616-0 01 1 0508-0611 ●
181 BOLT; PIPE
HYDRO BRAKE BOOSTER<7QQ> M6X16 FLANGE THA 		0-28650-616-0 01 1 0612- ●
181 BOLT; PIPE
M6X16 FLANGE THA 		0-28650-616-0 01 1 0612- ●
188 NUT; PIPE
HYDRO BRAKE BOOSTER<7QQ> M6 FLANGE 		0-91150-106-0 01 1 0508-0605 ●
188 NUT; PIPE
M6 FLANGE 		0-91150-106-0 01 1 0508-0605 ●
188 NUT; PIPE
HYDRO BRAKE BOOSTER<7QQ> M6 FLANGE THA 		0-91180-106-0 01 1 0606- ●
188 NUT; PIPE
M6 FLANGE THA 		0-91180-106-0 01 1 0606- ●
192 PIPE; PRESSURE
HYDRO BRAKE BOOSTER<7QQ> THA 		8-97922-672-0 01 1 0508- ●
192 PIPE; PRESSURE
THA 		8-97922-672-0 01 1 0508- ●
193 PIPE; RETURN
HYDRO BRAKE BOOSTER<7QQ> THA 		8-97177-033-3 01 1 0508- ●
193 PIPE; RETURN
THA 		8-97177-033-3 01 1 0508- ●
194 HOSE; CAB TO PIPE
HYDRO BRAKE BOOSTER<7QQ> 		8-97177-089-5 01 1 0508- ●
194 HOSE; CAB TO PIPE 8-97177-089-5 01 1 0508- ●
195 CLIP; HOSE
HYDRO BRAKE BOOSTER<7QQ> ID=11-19.5 		8-94426-597-0 01 1 0508-1005 ●
195 CLIP; HOSE
ID=11-19.5 		8-94426-597-0 01 1 0508-1005 ●
195 CLIP; HOSE
HYDRO BRAKE BOOSTER<7QQ> ID=11-17 		8-98173-762-1 01 1 1006- ●
195 CLIP; HOSE
ID=11-17 		8-98173-762-1 01 1 1006- ●

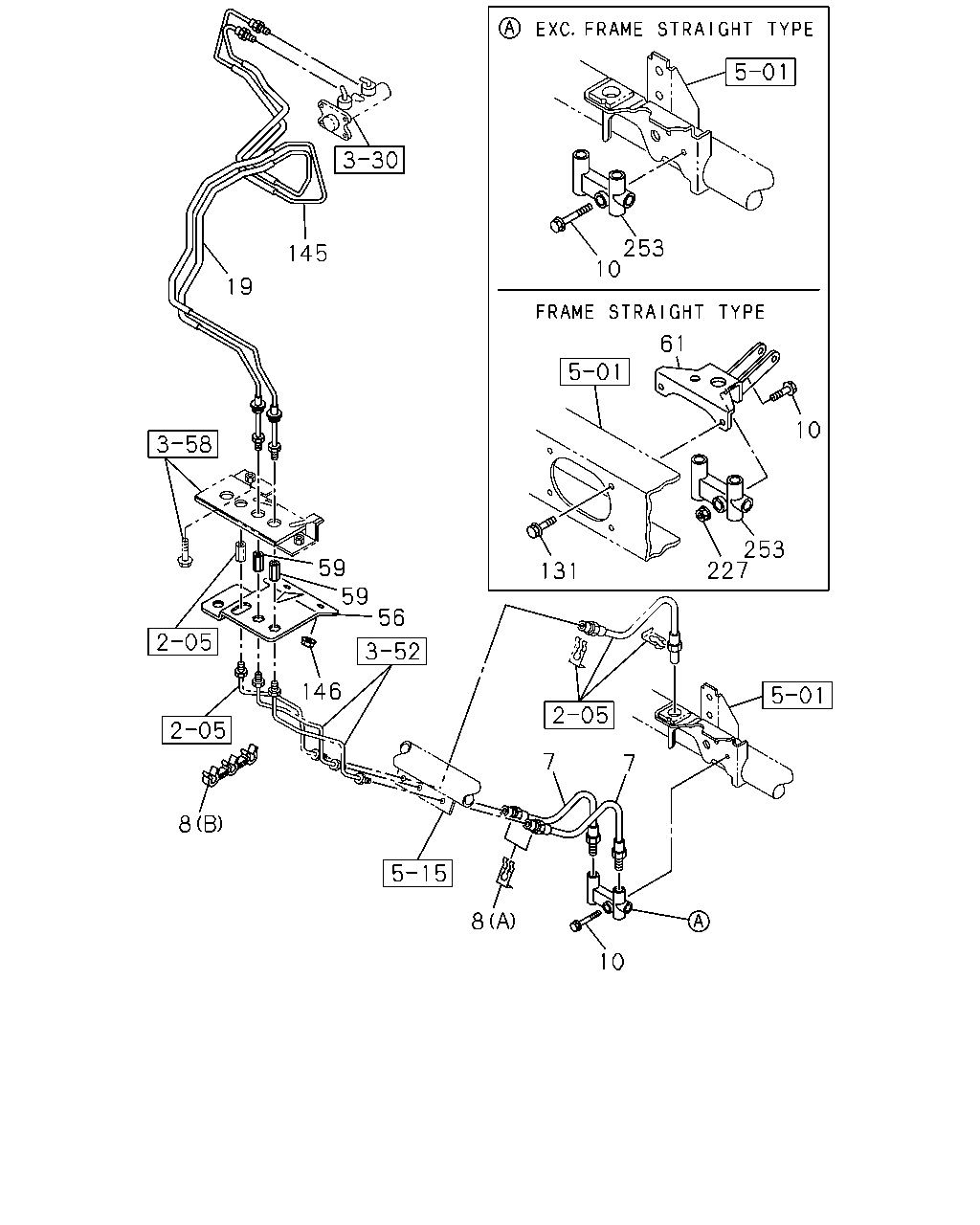

çizim 119350
253 10 145 19 61 10 253 227 59 59 131 56 146 7 7 8 8 10
BalonParca AdiParca NoAdetTipApplied Date A B C
7 HOSE; FLEX,PIPE TO 5 WAY JOINT 8-97171-031-0 02 1 0508- ● ● ●
8 CLIP; FLEX HOSE,CABLE SIDE
(A) 		8-94167-006-0 02 1 0508-0610 ● ● ●
8 CLIP; FLEX HOSE,CABLE SIDE
(A) 		8-97365-304-0 02 1 0611- ● ● ●
8 CLIP; FLEX HOSE,CABLE SIDE
(B) 		8-97076-471-0 01 1 0508- ● ● ●
10 BOLT; JOINT
M6X40 FLANGE 		0-28680-640-0 01 1 0508-0512 ● ● ●
10 BOLT; JOINT
M6X40 FLANGE 		0-28650-640-0 01 1 0601- ● ● ●
19 PIPE; BRK,M/CYL TO UNION
HYDRO BRAKE BOOSTER<7QQ> REAR THA 		8-97917-181-0 01 1 0508- ●
19 PIPE; BRK,M/CYL TO UNION
REAR THA 		8-97917-181-0 01 1 0508- ●
19 PIPE; BRK,M/CYL TO UNION
EXC. HYDRO BRAKE BOOSTER<7QQ> REAR THA 		8-97922-089-0 01 1 0508- ●
19 PIPE; BRK,M/CYL TO UNION
REAR THA 		8-97922-089-0 01 1 0508- ●
56 BRACKET; UNION,BRK 8-97149-604-1 01 1 0508- ● ● ●
59 UNION; BRK PIPE
M10 STRAIGHT 		9-09227-005-0 02 1 0508-0607 ● ● ●
59 UNION; BRK PIPE
M10 STRAIGHT 		0-92107-005-0 02 1 0608- ● ● ●
61 BRACKET; 5 WAY JOINT
FRAME STRAIGHT TYPE<7KJ> 		8-97170-632-0 01 1 0508- ●
61 BRACKET; 5 WAY JOINT 8-97170-632-0 01 1 0508- ●
131 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE 		0-28680-825-0 02 1 0508-0611 ●
131 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0508-0611 ●
131 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE THA 		0-28650-825-0 02 1 0612- ●
131 BOLT; BRKT
M8X25 FLANGE THA 		0-28650-825-0 02 1 0612- ●
145 PIPE; BRK,METERING VLV TO UNION
HYDRO BRAKE BOOSTER<7QQ> FRONT THA 		8-97917-180-0 01 1 0508- ●
145 PIPE; BRK,METERING VLV TO UNION
FRONT THA 		8-97917-180-0 01 1 0508- ●
145 PIPE; BRK,METERING VLV TO UNION
EXC. HYDRO BRAKE BOOSTER<7QQ> FRONT THA 		8-97922-088-0 01 1 0508- ●
145 PIPE; BRK,METERING VLV TO UNION
FRONT THA 		8-97922-088-0 01 1 0508- ●
146 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0508- ● ● ●
227 NUT; JOINT
FRAME STRAIGHT TYPE<7KJ> M6 FLANGE 		0-91150-106-0 01 1 0508-0605 ●
227 NUT; JOINT
M6 FLANGE 		0-91150-106-0 01 1 0508-0605 ●
227 NUT; JOINT
FRAME STRAIGHT TYPE<7KJ> M6 FLANGE THA 		0-91180-106-0 01 1 0606- ●
227 NUT; JOINT
M6 FLANGE THA 		0-91180-106-0 01 1 0606- ●
253 JOINT 5-47456-009-1 01 1 0508- ● ● ●
