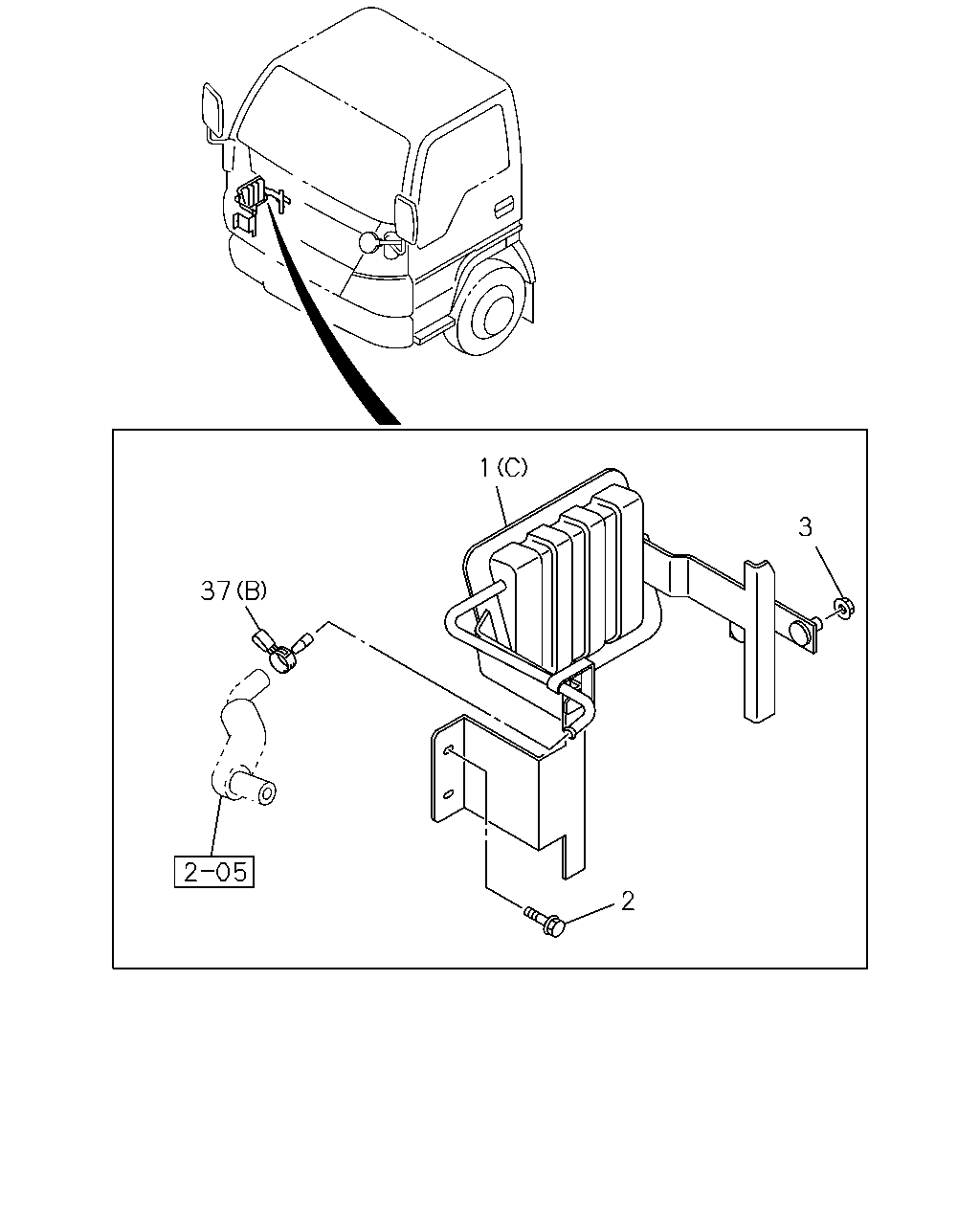

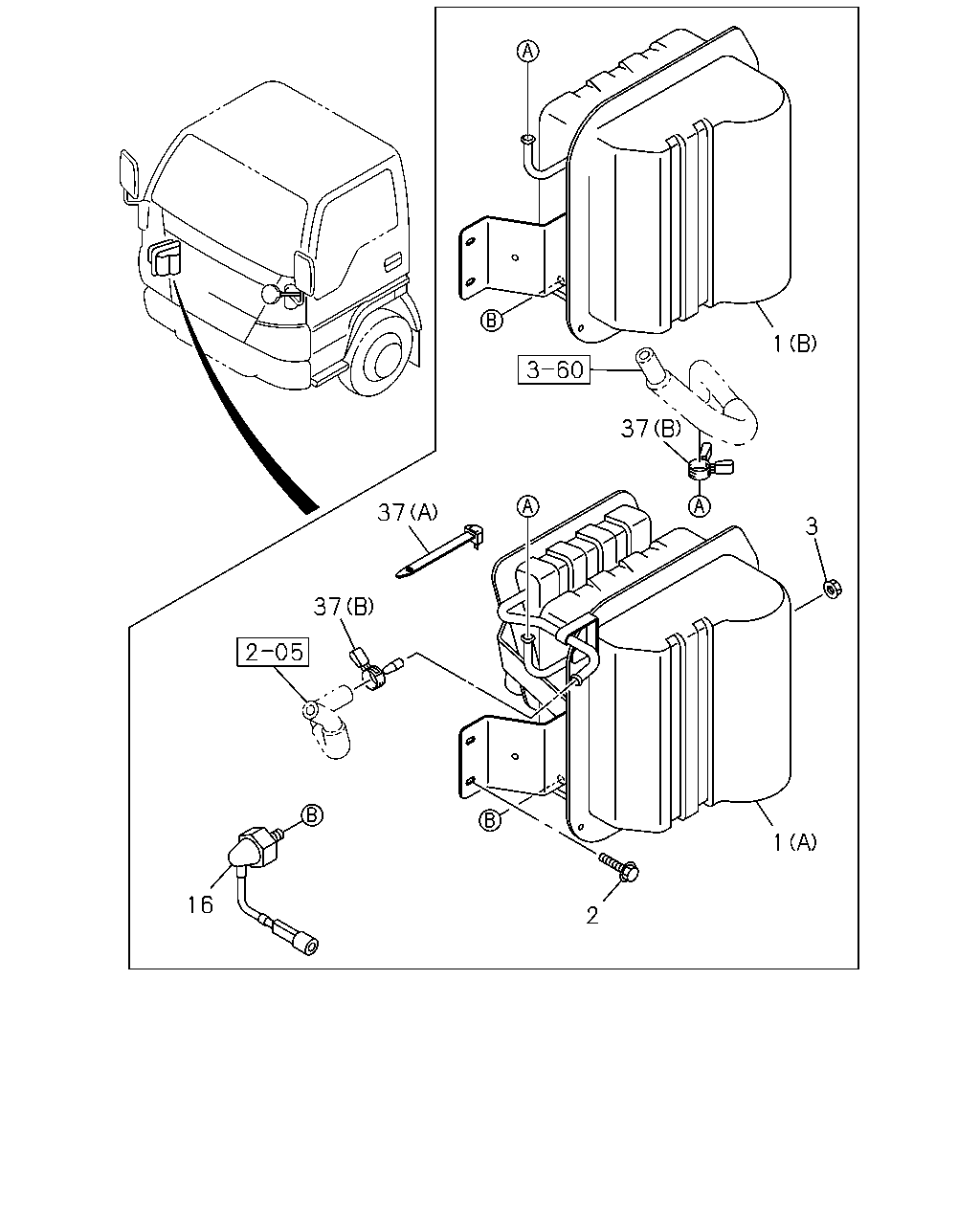

3-21 — VACUUM TANK (#43113) — 48 parça

1 3 37 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TANK; VAC,MAIN POWER ASSIST CLUTCH<S2T> HYDRO BRAKE BOOSTER<7QQ> (C)	8-97172-122-1	01	1	0508-	●
1	TANK; VAC,MAIN POWER ASSIST CLUTCH<S2T> (C)	8-97172-122-1	01	1	0508-		●
1	TANK; VAC,MAIN POWER ASSIST CLUTCH<S2T> EXC. HYDRO BRAKE BOOSTER<7QQ> (A)	8-97062-399-5	01	1	0508-	●
1	TANK; VAC,MAIN POWER ASSIST CLUTCH<S2T> (A)	8-97062-399-5	01	1	0508-			●
1	TANK; VAC,MAIN EXC. POWER ASSIST CLUTCH<S2T>,HYDRO BRAKE BOOSTER<7QQ> (B)	8-97073-471-4	01	1	0508-	●
1	TANK; VAC,MAIN EXC. POWER ASSIST CLUTCH<S2T> (B)	8-97073-471-4	01	1	0508-			●
2	BOLT; VAC TANK POWER ASSIST CLUTCH<S2T> M8X20 FLANGE	0-28680-820-0	02	1	0508-0611	●	●
2	BOLT; VAC TANK EXC. POWER ASSIST CLUTCH<S2T>,HYDRO BRAKE BOOSTER<7QQ> M8X20 FLANGE	0-28680-820-0	02	1	0508-0611	●
2	BOLT; VAC TANK M8X20 FLANGE	0-28680-820-0	02	1	0508-0611			●
2	BOLT; VAC TANK POWER ASSIST CLUTCH<S2T> M8X20 FLANGE THA	0-28650-820-0	02	1	0612-	●	●
2	BOLT; VAC TANK EXC. POWER ASSIST CLUTCH<S2T>,HYDRO BRAKE BOOSTER<7QQ> M8X20 FLANGE THA	0-28650-820-0	02	1	0612-	●
2	BOLT; VAC TANK M8X20 FLANGE THA	0-28650-820-0	02	1	0612-			●
3	NUT; VAC TANK TO BRKT POWER ASSIST CLUTCH<S2T> M8 FLANGE	0-91150-108-0	01	1	0508-	●	●
3	NUT; VAC TANK TO BRKT EXC. POWER ASSIST CLUTCH<S2T>,HYDRO BRAKE BOOSTER<7QQ> M8 FLANGE	0-91150-108-0	01	1	0508-	●
3	NUT; VAC TANK TO BRKT M8 FLANGE	0-91150-108-0	01	1	0508-			●
37	CLIP; RUBBER HOSE EXC. POWER ASSIST CLUTCH<S2T>,HYDRO BRAKE BOOSTER<7QQ> (B) ID=16	8-94238-568-0	01	1	0508-	●
37	CLIP; RUBBER HOSE POWER ASSIST CLUTCH<S2T> HYDRO BRAKE BOOSTER<7QQ> (B) ID=16	8-94238-568-0	01	1	0508-	●
37	CLIP; RUBBER HOSE EXC. POWER ASSIST CLUTCH<S2T> (B) ID=16	8-94238-568-0	01	1	0508-			●
37	CLIP; RUBBER HOSE POWER ASSIST CLUTCH<S2T> (B) ID=16	8-94238-568-0	01	1	0508-		●
37	CLIP; RUBBER HOSE POWER ASSIST CLUTCH<S2T> EXC. HYDRO BRAKE BOOSTER<7QQ> (A) L=219.5	1-09987-136-0	01	1	0508-	●
37	CLIP; RUBBER HOSE POWER ASSIST CLUTCH<S2T> (A) L=219.5	1-09987-136-0	01	1	0508-			●
37	CLIP; RUBBER HOSE POWER ASSIST CLUTCH<S2T> EXC. HYDRO BRAKE BOOSTER<7QQ> (B) ID=16	8-94238-568-0	02	1	0508-	●
37	CLIP; RUBBER HOSE POWER ASSIST CLUTCH<S2T> (B) ID=16	8-94238-568-0	02	1	0508-			●

1 37 37 3 37 1 16 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TANK; VAC,MAIN POWER ASSIST CLUTCH<S2T> HYDRO BRAKE BOOSTER<7QQ> (C)	8-97172-122-1	01	1	0508-	●
1	TANK; VAC,MAIN POWER ASSIST CLUTCH<S2T> (C)	8-97172-122-1	01	1	0508-		●
1	TANK; VAC,MAIN POWER ASSIST CLUTCH<S2T> EXC. HYDRO BRAKE BOOSTER<7QQ> (A)	8-97062-399-5	01	1	0508-	●
1	TANK; VAC,MAIN POWER ASSIST CLUTCH<S2T> (A)	8-97062-399-5	01	1	0508-			●
1	TANK; VAC,MAIN EXC. POWER ASSIST CLUTCH<S2T>,HYDRO BRAKE BOOSTER<7QQ> (B)	8-97073-471-4	01	1	0508-	●
1	TANK; VAC,MAIN EXC. POWER ASSIST CLUTCH<S2T> (B)	8-97073-471-4	01	1	0508-			●
2	BOLT; VAC TANK POWER ASSIST CLUTCH<S2T> M8X20 FLANGE	0-28680-820-0	02	1	0508-0611	●	●
2	BOLT; VAC TANK EXC. POWER ASSIST CLUTCH<S2T>,HYDRO BRAKE BOOSTER<7QQ> M8X20 FLANGE	0-28680-820-0	02	1	0508-0611	●
2	BOLT; VAC TANK M8X20 FLANGE	0-28680-820-0	02	1	0508-0611			●
2	BOLT; VAC TANK POWER ASSIST CLUTCH<S2T> M8X20 FLANGE THA	0-28650-820-0	02	1	0612-	●	●
2	BOLT; VAC TANK EXC. POWER ASSIST CLUTCH<S2T>,HYDRO BRAKE BOOSTER<7QQ> M8X20 FLANGE THA	0-28650-820-0	02	1	0612-	●
2	BOLT; VAC TANK M8X20 FLANGE THA	0-28650-820-0	02	1	0612-			●
3	NUT; VAC TANK TO BRKT POWER ASSIST CLUTCH<S2T> M8 FLANGE	0-91150-108-0	01	1	0508-	●	●
3	NUT; VAC TANK TO BRKT EXC. POWER ASSIST CLUTCH<S2T>,HYDRO BRAKE BOOSTER<7QQ> M8 FLANGE	0-91150-108-0	01	1	0508-	●
3	NUT; VAC TANK TO BRKT M8 FLANGE	0-91150-108-0	01	1	0508-			●
16	SWITCH; VAC EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97073-374-1	01	1	0508-	●
16	SWITCH; VAC	8-97073-374-1	01	1	0508-			●
37	CLIP; RUBBER HOSE EXC. POWER ASSIST CLUTCH<S2T>,HYDRO BRAKE BOOSTER<7QQ> (B) ID=16	8-94238-568-0	01	1	0508-	●
37	CLIP; RUBBER HOSE POWER ASSIST CLUTCH<S2T> HYDRO BRAKE BOOSTER<7QQ> (B) ID=16	8-94238-568-0	01	1	0508-	●
37	CLIP; RUBBER HOSE EXC. POWER ASSIST CLUTCH<S2T> (B) ID=16	8-94238-568-0	01	1	0508-			●
37	CLIP; RUBBER HOSE POWER ASSIST CLUTCH<S2T> (B) ID=16	8-94238-568-0	01	1	0508-		●
37	CLIP; RUBBER HOSE POWER ASSIST CLUTCH<S2T> EXC. HYDRO BRAKE BOOSTER<7QQ> (A) L=219.5	1-09987-136-0	01	1	0508-	●
37	CLIP; RUBBER HOSE POWER ASSIST CLUTCH<S2T> (A) L=219.5	1-09987-136-0	01	1	0508-			●
37	CLIP; RUBBER HOSE POWER ASSIST CLUTCH<S2T> EXC. HYDRO BRAKE BOOSTER<7QQ> (B) ID=16	8-94238-568-0	02	1	0508-	●
37	CLIP; RUBBER HOSE POWER ASSIST CLUTCH<S2T> (B) ID=16	8-94238-568-0	02	1	0508-			●
