Sayfa 3-11 - Isuzu EPC

3-11 — PARKING BRAKE CONTROL (#43112) — 200 parça

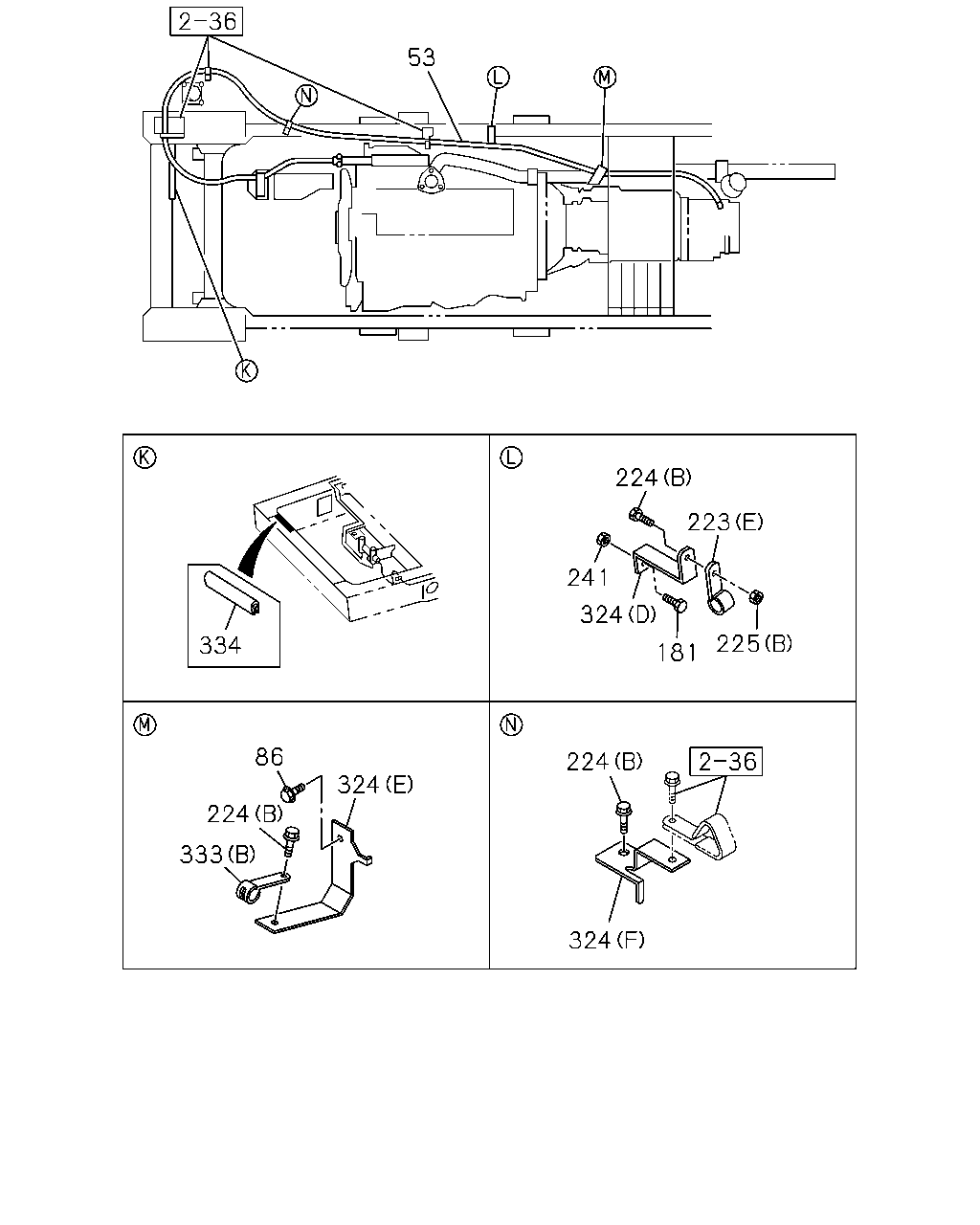

53 334 224 241 324 225 223 224 324 324 86 224 333 181

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
25	SCREW; SW,PARKING BRK	8-98152-463-0	01	1	0508-	●	●	●
53	CABLE; PARK BRK,FRT LWR 4HE1-TCS ENG<RDS> M/T MZZ6F<RSR> FRAME STRAIGHT TYPE<7KJ> THA	8-97922-893-0	01	1	0508-0509	●		●
53	CABLE; PARK BRK,FRT LWR 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M/T MZZ6F<RSR> FRAME STRAIGHT TYPE<7KJ> THA	8-97922-893-0	01	1	0510-	●		●
86	BOLT 4HE1-TCS ENG<RDS> M/T MZZ6F<RSR> FRAME STRAIGHT TYPE<7KJ> M10X16 FLANGE	0-28181-016-0	01	1	0508-0509	●		●
86	BOLT 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M/T MZZ6F<RSR> FRAME STRAIGHT TYPE<7KJ> M10X16 FLANGE	0-28181-016-0	01	1	0510-0512	●		●
86	BOLT 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M/T MZZ6F<RSR> FRAME STRAIGHT TYPE<7KJ> M10X16 FLANGE THA	0-28151-016-0	01	1	0601-	●		●
91	CLIP; PARKING BRK CABLE ID=20 L=50 THA	8-97916-115-0	01	1	0510-	●	●	●
181	BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> M10X30 FLANGE	0-28681-030-0	01	1	0508-0611	●
181	BOLT; BRKT M10X30 FLANGE	0-28681-030-0	01	1	0508-0611			●
181	BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> M10X30 FLANGE THA	0-28651-030-0	01	1	0612-	●
181	BOLT; BRKT M10X30 FLANGE THA	0-28651-030-0	01	1	0612-			●
181	BOLT; BRKT 4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE	0-28680-825-0	02	1	0508-0611	●
181	BOLT; BRKT 4HG1-T ENG<RDP> M8X25 FLANGE	0-28680-825-0	02	1	0508-0611		●
181	BOLT; BRKT 4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE THA	0-28650-825-0	02	1	0612-	●
181	BOLT; BRKT 4HG1-T ENG<RDP> M8X25 FLANGE THA	0-28650-825-0	02	1	0612-		●
223	CLIP; PARKING BRK CABLE 4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=11 H=20 L=25	1-09700-848-0	01	1	0508-	●
223	CLIP; PARKING BRK CABLE 4HG1-T ENG<RDP> (B) ID=11 H=20 L=25	1-09700-848-0	01	1	0508-		●
223	CLIP; PARKING BRK CABLE 4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=16	1-09701-075-0	01	1	0508-	●
223	CLIP; PARKING BRK CABLE 4HG1-T ENG<RDP> (A) ID=16	1-09701-075-0	01	1	0508-		●
223	CLIP; PARKING BRK CABLE 4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> (F) ID=13 L=20	1-09701-138-1	01	1	0508-	●
223	CLIP; PARKING BRK CABLE 4HG1-T ENG<RDP> (F) ID=13 L=20	1-09701-138-1	01	1	0508-		●
223	CLIP; PARKING BRK CABLE FRAME STRAIGHT TYPE<7KJ> (E) ID=16 L=28	9-09525-556-0	01	1	0508-0606	●
223	CLIP; PARKING BRK CABLE (E) ID=16 L=28	9-09525-556-0	01	1	0508-0606			●
223	CLIP; PARKING BRK CABLE FRAME STRAIGHT TYPE<7KJ> (E) ID=16 L=28	0-95235-556-0	01	1	0607-	●
223	CLIP; PARKING BRK CABLE (E) ID=16 L=28	0-95235-556-0	01	1	0607-			●
223	CLIP; PARKING BRK CABLE EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=19 L=39 H=21	1-09700-972-1	01	1	0508-	●
223	CLIP; PARKING BRK CABLE (C) ID=19 L=39 H=21	1-09700-972-1	01	1	0508-		●
223	CLIP; PARKING BRK CABLE EXC. FRAME STRAIGHT TYPE<7KJ> (D) ID=11 L=28	9-09525-055-0	01	1	0508-0606	●
223	CLIP; PARKING BRK CABLE (D) ID=11 L=28	9-09525-055-0	01	1	0508-0606		●
223	CLIP; PARKING BRK CABLE EXC. FRAME STRAIGHT TYPE<7KJ> (D) ID=11 L=28	0-95235-055-0	01	1	0607-	●
223	CLIP; PARKING BRK CABLE (D) ID=11 L=28	0-95235-055-0	01	1	0607-		●
224	BOLT; CABLE CLIP 4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> (D) M8X16 FLANGE	0-28080-816-0	01	1	0508-0611	●
224	BOLT; CABLE CLIP 4HG1-T ENG<RDP> (D) M8X16 FLANGE	0-28080-816-0	01	1	0508-0611		●
224	BOLT; CABLE CLIP 4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> (D) M8X16 FLANGE THA	0-28050-816-0	01	1	0612-	●
224	BOLT; CABLE CLIP 4HG1-T ENG<RDP> (D) M8X16 FLANGE THA	0-28050-816-0	01	1	0612-		●
224	BOLT; CABLE CLIP 4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> (C) M10X25 FLANGE	0-28681-025-0	01	1	0508-0611	●
224	BOLT; CABLE CLIP 4HG1-T ENG<RDP> (C) M10X25 FLANGE	0-28681-025-0	01	1	0508-0611		●
224	BOLT; CABLE CLIP 4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> (C) M10X25 FLANGE THA	0-28651-025-0	01	1	0612-	●
224	BOLT; CABLE CLIP 4HG1-T ENG<RDP> (C) M10X25 FLANGE THA	0-28651-025-0	01	1	0612-		●
224	BOLT; CABLE CLIP EXC. FRAME STRAIGHT TYPE<7KJ> (A) M8X20 FLANGE	0-28680-820-0	01	1	0508-0611	●
224	BOLT; CABLE CLIP (A) M8X20 FLANGE	0-28680-820-0	01	1	0508-0611		●
224	BOLT; CABLE CLIP EXC. FRAME STRAIGHT TYPE<7KJ> (A) M8X20 FLANGE THA	0-28650-820-0	01	1	0612-	●
224	BOLT; CABLE CLIP (A) M8X20 FLANGE THA	0-28650-820-0	01	1	0612-		●
224	BOLT; CABLE CLIP 4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> (B) M8X25 FLANGE	0-28680-825-0	01	1	0508-0509	●	●
224	BOLT; CABLE CLIP FRAME STRAIGHT TYPE<7KJ> (B) M8X25 FLANGE	0-28680-825-0	01	1	0508-0509	●		●
224	BOLT; CABLE CLIP 4HE1-TCS ENG<RDS> M/T MZZ6F<RSR> FRAME STRAIGHT TYPE<7KJ> (B) M8X25 FLANGE	0-28680-825-0	01	1	0508-0509	●		●
224	BOLT; CABLE CLIP 4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> (B) M8X25 FLANGE	0-28680-825-0	01	1	0510-0611	●	●
224	BOLT; CABLE CLIP FRAME STRAIGHT TYPE<7KJ> (B) M8X25 FLANGE	0-28680-825-0	01	1	0510-0611	●		●
224	BOLT; CABLE CLIP 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M/T MZZ6F<RSR> FRAME STRAIGHT TYPE<7KJ> (B) M8X25 FLANGE	0-28680-825-0	01	1	0510-0611	●		●
224	BOLT; CABLE CLIP 4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> (B) M8X25 FLANGE THA	0-28650-825-0	01	1	0612-	●	●
224	BOLT; CABLE CLIP FRAME STRAIGHT TYPE<7KJ> (B) M8X25 FLANGE THA	0-28650-825-0	01	1	0612-	●		●
224	BOLT; CABLE CLIP 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M/T MZZ6F<RSR> FRAME STRAIGHT TYPE<7KJ> (B) M8X25 FLANGE THA	0-28650-825-0	01	1	0612-	●		●
225	NUT; CABLE CLIP (B) M8 FLANGE	0-91150-108-0	01	1	0508-	●	●	●
225	NUT; CABLE CLIP POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ> (B) M8 FLANGE	0-91150-108-0	01	1	0508-	●	●
225	NUT; CABLE CLIP 4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> (B) M8 FLANGE	0-91150-108-0	01	1	0508-	●	●
225	NUT; CABLE CLIP 4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> (A) M10 FLANGE	0-91150-110-0	01	1	0508-0602	●
225	NUT; CABLE CLIP 4HG1-T ENG<RDP> (A) M10 FLANGE	0-91150-110-0	01	1	0508-0602		●
225	NUT; CABLE CLIP 4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> (A) M10 FLANGE THA	0-91180-110-0	01	1	0603-	●
225	NUT; CABLE CLIP 4HG1-T ENG<RDP> (A) M10 FLANGE THA	0-91180-110-0	01	1	0603-		●
241	NUT; BRKT FRAME STRAIGHT TYPE<7KJ> M10 FLANGE	0-91150-110-0	01	1	0508-0602	●
241	NUT; BRKT M10 FLANGE	0-91150-110-0	01	1	0508-0602			●
241	NUT; BRKT FRAME STRAIGHT TYPE<7KJ> M10 FLANGE THA	0-91180-110-0	01	1	0603-	●
241	NUT; BRKT M10 FLANGE THA	0-91180-110-0	01	1	0603-			●
324	BRACKET 4HK1-TCS ENG<RJS> FRAME STRAIGHT TYPE<7KJ> (F)	8-98012-620-1	01	1	0510-	●
324	BRACKET 4HK1-TCS ENG<RJS> (F)	8-98012-620-1	01	1	0510-			●
324	BRACKET POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97288-446-0	01	1	0508-	●
324	BRACKET POWER STEERING<N40> (A)	8-97288-446-0	01	1	0508-		●
324	BRACKET 4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-97042-771-0	01	1	0508-	●
324	BRACKET 4HG1-T ENG<RDP> (C)	8-97042-771-0	01	1	0508-		●
324	BRACKET 4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97071-354-2	01	1	0508-	●
324	BRACKET 4HG1-T ENG<RDP> (B)	8-97071-354-2	01	1	0508-		●
324	BRACKET 4HE1-TCS ENG<RDS> (D)	8-97188-151-0	01	1	0508-0509	●		●
324	BRACKET 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> (D)	8-97188-151-0	01	1	0510-	●		●
324	BRACKET 4HE1-TCS ENG<RDS> M/T MZZ6F<RSR> FRAME STRAIGHT TYPE<7KJ> (E)	8-97307-874-0	01	1	0508-0509	●		●
324	BRACKET 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M/T MZZ6F<RSR> FRAME STRAIGHT TYPE<7KJ> (E)	8-97307-874-0	01	1	0510-	●		●
333	CLIP; CABLE POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=11 L=28	9-09525-055-0	01	1	0508-0606	●
333	CLIP; CABLE POWER STEERING<N40> (A) ID=11 L=28	9-09525-055-0	01	1	0508-0606		●
333	CLIP; CABLE POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=11 L=28	0-95235-055-0	01	1	0607-	●
333	CLIP; CABLE POWER STEERING<N40> (A) ID=11 L=28	0-95235-055-0	01	1	0607-		●
333	CLIP; CABLE EXC. POWER STEERING<N40>,FRAME STRAIGHT TYPE<7KJ> (B) ID=11 L=60	9-09525-096-0	01	1	0508-0509	●
333	CLIP; CABLE 4HE1-TCS ENG<RDS> M/T MZZ6F<RSR> FRAME STRAIGHT TYPE<7KJ> (B) ID=11 L=60	9-09525-096-0	01	1	0508-0509	●
333	CLIP; CABLE EXC. POWER STEERING<N40> (B) ID=11 L=60	9-09525-096-0	01	1	0508-0509		●
333	CLIP; CABLE 4HE1-TCS ENG<RDS> M/T MZZ6F<RSR> (B) ID=11 L=60	9-09525-096-0	01	1	0508-0509			●
333	CLIP; CABLE EXC. POWER STEERING<N40>,FRAME STRAIGHT TYPE<7KJ> (B) ID=11 L=60	9-09525-096-0	01	1	0510-0606	●
333	CLIP; CABLE 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M/T MZZ6F<RSR> FRAME STRAIGHT TYPE<7KJ> (B) ID=11 L=60	9-09525-096-0	01	1	0510-0606	●
333	CLIP; CABLE EXC. POWER STEERING<N40> (B) ID=11 L=60	9-09525-096-0	01	1	0510-0606		●
333	CLIP; CABLE 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M/T MZZ6F<RSR> (B) ID=11 L=60	9-09525-096-0	01	1	0510-0606			●
333	CLIP; CABLE EXC. POWER STEERING<N40>,FRAME STRAIGHT TYPE<7KJ> (B) ID=11 L=60	0-95235-096-0	01	1	0607-	●
333	CLIP; CABLE 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M/T MZZ6F<RSR> FRAME STRAIGHT TYPE<7KJ> (B) ID=11 L=60	0-95235-096-0	01	1	0607-	●
333	CLIP; CABLE EXC. POWER STEERING<N40> (B) ID=11 L=60	0-95235-096-0	01	1	0607-		●
333	CLIP; CABLE 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M/T MZZ6F<RSR> (B) ID=11 L=60	0-95235-096-0	01	1	0607-			●
334	PROTECTOR; EDGE L=200	8-97096-423-0	01	1	0508-	●	●	●

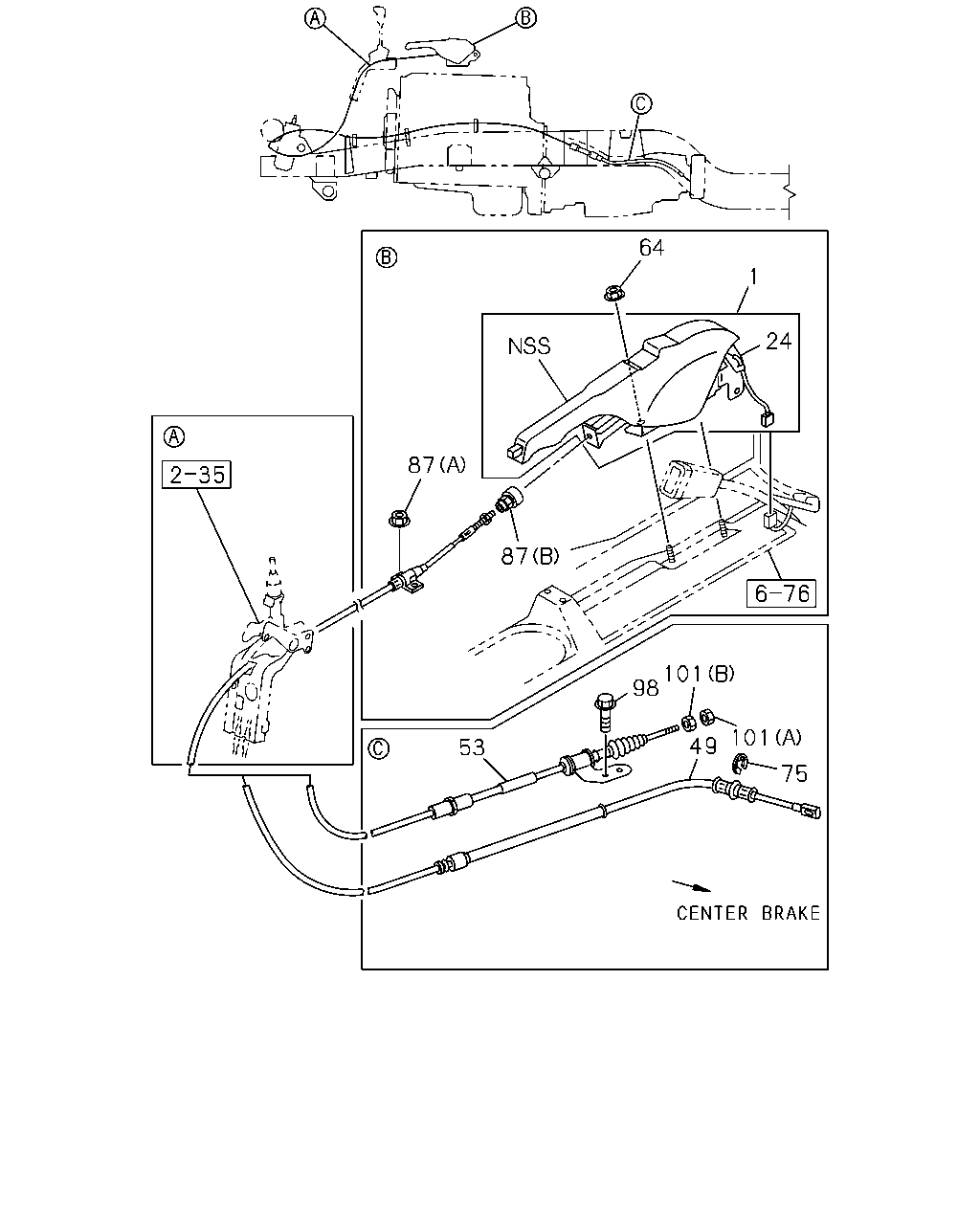

64 1 24 87 87 101 98 49 101 53 75

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	STEM ASM; PARKING BRK GRAY	8-97582-333-2	01	1	0508-0610	●	●	●
1	STEM ASM; PARKING BRK GRAY	8-97409-386-0	01	1	0611-1305	●	●	●
1	STEM ASM; PARKING BRK GRAY	8-97427-545-0	01	1	1306-	●	●	●
24	SWITCH ASM; PARK BRK	8-97995-828-1	01	1	0508-1305	●	●	●
24	SWITCH ASM; PARK BRK	8-98238-611-0	01	1	1306-	●	●	●
25	SCREW; SW,PARKING BRK	8-98152-463-0	01	1	0508-	●	●	●
49	CABLE; PARKING BRK 4HG1-T ENG<RDP> M/T MYY5T<RSM> EXC. FRAME STRAIGHT TYPE<7KJ> THA	8-97943-916-0	01	1	0508-	●	●
53	CABLE; PARK BRK,FRT LWR 4HE1-TCS ENG<RDS> M/T MZZ6F<RSR> FRAME STRAIGHT TYPE<7KJ> THA	8-97922-893-0	01	1	0508-0509	●		●
53	CABLE; PARK BRK,FRT LWR 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M/T MZZ6F<RSR> FRAME STRAIGHT TYPE<7KJ> THA	8-97922-893-0	01	1	0510-	●		●
64	NUT; PARKING BRK M8 W/LK WASHER	8-94327-073-0	02	1	0508-0610	●	●	●
64	NUT; PARKING BRK M8 LOCK NUT FLANGE	0-91380-008-0	02	1	0611-	●	●	●
75	RING; SNAP,HAND BRK CABLE M/T MYY5T<RSM> ID=12	9-09185-412-0	01	1	0508-0604	●	●
75	RING; SNAP,HAND BRK CABLE M/T MYY5T<RSM> ID=12	0-91805-512-0	01	1	0605-	●	●
87	NUT (A) M8 FLANGE	0-91150-108-0	02	1	0508-	●	●	●
87	NUT (B) M6	1-71996-312-0	01	1	0508-0611	●	●	●
87	NUT (B) M6	8-98034-313-1	01	1	0612-	●	●	●
91	CLIP; PARKING BRK CABLE ID=20 L=50 THA	8-97916-115-0	01	1	0510-	●	●	●
98	BOLT; RR COVER 4HE1-TCS ENG<RDS> M/T MZZ6F<RSR> FRAME STRAIGHT TYPE<7KJ> M10X30 FLANGE	0-28681-030-0	02	1	0508-0509	●		●
98	BOLT; RR COVER 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M/T MZZ6F<RSR> FRAME STRAIGHT TYPE<7KJ> M10X30 FLANGE	0-28681-030-0	02	1	0510-0611	●		●
98	BOLT; RR COVER 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M/T MZZ6F<RSR> FRAME STRAIGHT TYPE<7KJ> M10X30 FLANGE THA	0-28651-030-0	02	1	0612-	●		●
101	NUT; CABLE TO LEVER 4HE1-TCS ENG<RDS> M/T MZZ6F<RSR> FRAME STRAIGHT TYPE<7KJ> (B) M8 FLANGE	9-46259-016-0	01	1	0508-0509	●		●
101	NUT; CABLE TO LEVER 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M/T MZZ6F<RSR> FRAME STRAIGHT TYPE<7KJ> (B) M8 FLANGE	9-46259-016-0	01	1	0510-	●		●
101	NUT; CABLE TO LEVER 4HE1-TCS ENG<RDS> M/T MZZ6F<RSR> FRAME STRAIGHT TYPE<7KJ> (A) M8	9-09110-408-0	01	1	0508-0509	●		●
101	NUT; CABLE TO LEVER 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M/T MZZ6F<RSR> FRAME STRAIGHT TYPE<7KJ> (A) M8	9-09110-408-0	01	1	0510-	●		●

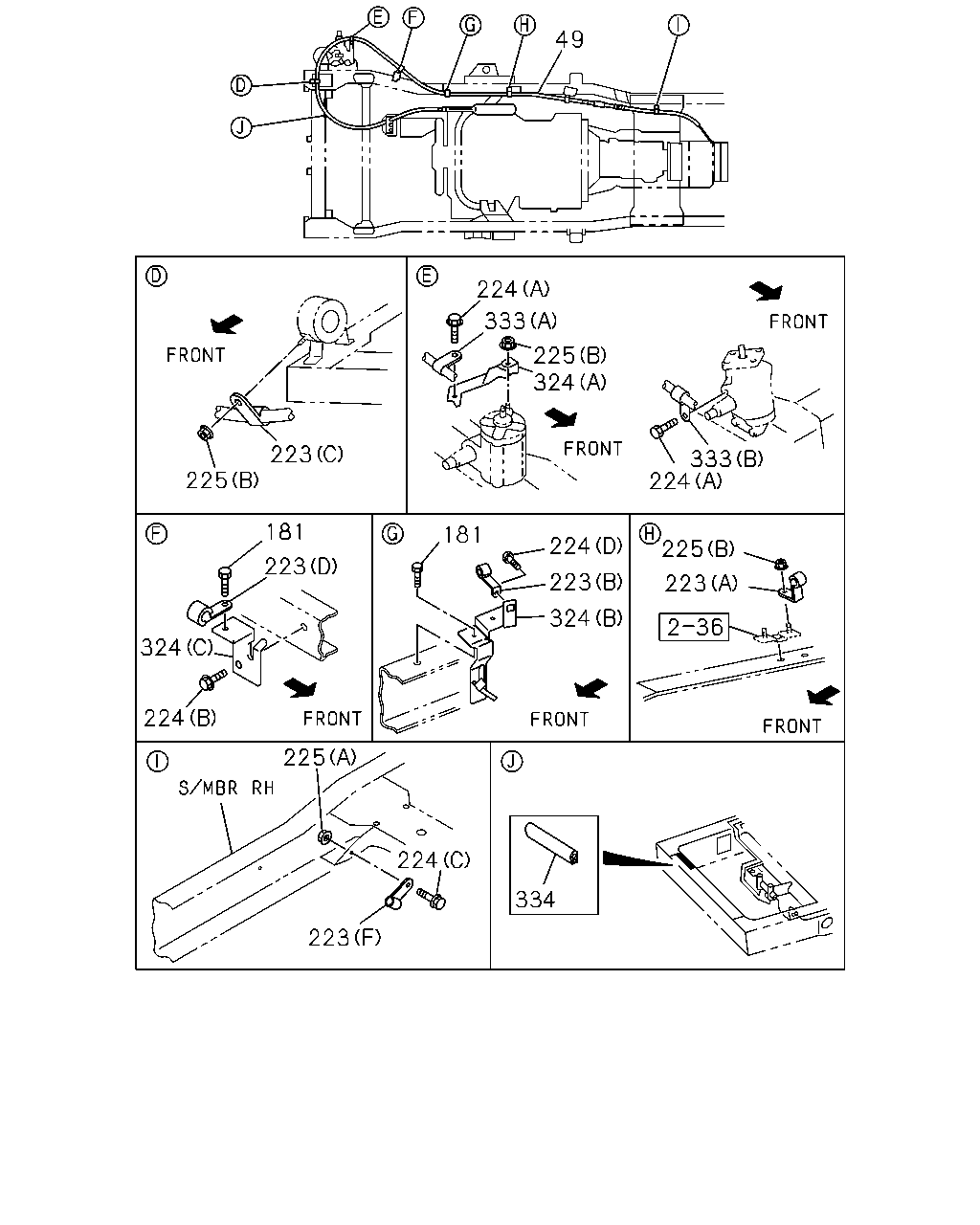

49 224 333 225 324 223 333 224 225 181 181 225 224 223 223 223 324 324 224 225 224 334 223

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
25	SCREW; SW,PARKING BRK	8-98152-463-0	01	1	0508-	●	●	●
49	CABLE; PARKING BRK 4HG1-T ENG<RDP> M/T MYY5T<RSM> EXC. FRAME STRAIGHT TYPE<7KJ> THA	8-97943-916-0	01	1	0508-	●	●
91	CLIP; PARKING BRK CABLE ID=20 L=50 THA	8-97916-115-0	01	1	0510-	●	●	●
181	BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> M10X30 FLANGE	0-28681-030-0	01	1	0508-0611	●
181	BOLT; BRKT M10X30 FLANGE	0-28681-030-0	01	1	0508-0611			●
181	BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> M10X30 FLANGE THA	0-28651-030-0	01	1	0612-	●
181	BOLT; BRKT M10X30 FLANGE THA	0-28651-030-0	01	1	0612-			●
181	BOLT; BRKT 4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE	0-28680-825-0	02	1	0508-0611	●
181	BOLT; BRKT 4HG1-T ENG<RDP> M8X25 FLANGE	0-28680-825-0	02	1	0508-0611		●
181	BOLT; BRKT 4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE THA	0-28650-825-0	02	1	0612-	●
181	BOLT; BRKT 4HG1-T ENG<RDP> M8X25 FLANGE THA	0-28650-825-0	02	1	0612-		●
223	CLIP; PARKING BRK CABLE 4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=11 H=20 L=25	1-09700-848-0	01	1	0508-	●
223	CLIP; PARKING BRK CABLE 4HG1-T ENG<RDP> (B) ID=11 H=20 L=25	1-09700-848-0	01	1	0508-		●
223	CLIP; PARKING BRK CABLE 4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=16	1-09701-075-0	01	1	0508-	●
223	CLIP; PARKING BRK CABLE 4HG1-T ENG<RDP> (A) ID=16	1-09701-075-0	01	1	0508-		●
223	CLIP; PARKING BRK CABLE 4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> (F) ID=13 L=20	1-09701-138-1	01	1	0508-	●
223	CLIP; PARKING BRK CABLE 4HG1-T ENG<RDP> (F) ID=13 L=20	1-09701-138-1	01	1	0508-		●
223	CLIP; PARKING BRK CABLE FRAME STRAIGHT TYPE<7KJ> (E) ID=16 L=28	9-09525-556-0	01	1	0508-0606	●
223	CLIP; PARKING BRK CABLE (E) ID=16 L=28	9-09525-556-0	01	1	0508-0606			●
223	CLIP; PARKING BRK CABLE FRAME STRAIGHT TYPE<7KJ> (E) ID=16 L=28	0-95235-556-0	01	1	0607-	●
223	CLIP; PARKING BRK CABLE (E) ID=16 L=28	0-95235-556-0	01	1	0607-			●
223	CLIP; PARKING BRK CABLE EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=19 L=39 H=21	1-09700-972-1	01	1	0508-	●
223	CLIP; PARKING BRK CABLE (C) ID=19 L=39 H=21	1-09700-972-1	01	1	0508-		●
223	CLIP; PARKING BRK CABLE EXC. FRAME STRAIGHT TYPE<7KJ> (D) ID=11 L=28	9-09525-055-0	01	1	0508-0606	●
223	CLIP; PARKING BRK CABLE (D) ID=11 L=28	9-09525-055-0	01	1	0508-0606		●
223	CLIP; PARKING BRK CABLE EXC. FRAME STRAIGHT TYPE<7KJ> (D) ID=11 L=28	0-95235-055-0	01	1	0607-	●
223	CLIP; PARKING BRK CABLE (D) ID=11 L=28	0-95235-055-0	01	1	0607-		●
224	BOLT; CABLE CLIP 4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> (D) M8X16 FLANGE	0-28080-816-0	01	1	0508-0611	●
224	BOLT; CABLE CLIP 4HG1-T ENG<RDP> (D) M8X16 FLANGE	0-28080-816-0	01	1	0508-0611		●
224	BOLT; CABLE CLIP 4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> (D) M8X16 FLANGE THA	0-28050-816-0	01	1	0612-	●
224	BOLT; CABLE CLIP 4HG1-T ENG<RDP> (D) M8X16 FLANGE THA	0-28050-816-0	01	1	0612-		●
224	BOLT; CABLE CLIP 4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> (C) M10X25 FLANGE	0-28681-025-0	01	1	0508-0611	●
224	BOLT; CABLE CLIP 4HG1-T ENG<RDP> (C) M10X25 FLANGE	0-28681-025-0	01	1	0508-0611		●
224	BOLT; CABLE CLIP 4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> (C) M10X25 FLANGE THA	0-28651-025-0	01	1	0612-	●
224	BOLT; CABLE CLIP 4HG1-T ENG<RDP> (C) M10X25 FLANGE THA	0-28651-025-0	01	1	0612-		●
224	BOLT; CABLE CLIP EXC. FRAME STRAIGHT TYPE<7KJ> (A) M8X20 FLANGE	0-28680-820-0	01	1	0508-0611	●
224	BOLT; CABLE CLIP (A) M8X20 FLANGE	0-28680-820-0	01	1	0508-0611		●
224	BOLT; CABLE CLIP EXC. FRAME STRAIGHT TYPE<7KJ> (A) M8X20 FLANGE THA	0-28650-820-0	01	1	0612-	●
224	BOLT; CABLE CLIP (A) M8X20 FLANGE THA	0-28650-820-0	01	1	0612-		●
224	BOLT; CABLE CLIP 4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> (B) M8X25 FLANGE	0-28680-825-0	01	1	0508-0509	●	●
224	BOLT; CABLE CLIP FRAME STRAIGHT TYPE<7KJ> (B) M8X25 FLANGE	0-28680-825-0	01	1	0508-0509	●		●
224	BOLT; CABLE CLIP 4HE1-TCS ENG<RDS> M/T MZZ6F<RSR> FRAME STRAIGHT TYPE<7KJ> (B) M8X25 FLANGE	0-28680-825-0	01	1	0508-0509	●		●
224	BOLT; CABLE CLIP 4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> (B) M8X25 FLANGE	0-28680-825-0	01	1	0510-0611	●	●
224	BOLT; CABLE CLIP FRAME STRAIGHT TYPE<7KJ> (B) M8X25 FLANGE	0-28680-825-0	01	1	0510-0611	●		●
224	BOLT; CABLE CLIP 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M/T MZZ6F<RSR> FRAME STRAIGHT TYPE<7KJ> (B) M8X25 FLANGE	0-28680-825-0	01	1	0510-0611	●		●
224	BOLT; CABLE CLIP 4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> (B) M8X25 FLANGE THA	0-28650-825-0	01	1	0612-	●	●
224	BOLT; CABLE CLIP FRAME STRAIGHT TYPE<7KJ> (B) M8X25 FLANGE THA	0-28650-825-0	01	1	0612-	●		●
224	BOLT; CABLE CLIP 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M/T MZZ6F<RSR> FRAME STRAIGHT TYPE<7KJ> (B) M8X25 FLANGE THA	0-28650-825-0	01	1	0612-	●		●
225	NUT; CABLE CLIP (B) M8 FLANGE	0-91150-108-0	01	1	0508-	●	●	●
225	NUT; CABLE CLIP POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ> (B) M8 FLANGE	0-91150-108-0	01	1	0508-	●	●
225	NUT; CABLE CLIP 4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> (B) M8 FLANGE	0-91150-108-0	01	1	0508-	●	●
225	NUT; CABLE CLIP 4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> (A) M10 FLANGE	0-91150-110-0	01	1	0508-0602	●
225	NUT; CABLE CLIP 4HG1-T ENG<RDP> (A) M10 FLANGE	0-91150-110-0	01	1	0508-0602		●
225	NUT; CABLE CLIP 4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> (A) M10 FLANGE THA	0-91180-110-0	01	1	0603-	●
225	NUT; CABLE CLIP 4HG1-T ENG<RDP> (A) M10 FLANGE THA	0-91180-110-0	01	1	0603-		●
324	BRACKET 4HK1-TCS ENG<RJS> FRAME STRAIGHT TYPE<7KJ> (F)	8-98012-620-1	01	1	0510-	●
324	BRACKET 4HK1-TCS ENG<RJS> (F)	8-98012-620-1	01	1	0510-			●
324	BRACKET POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97288-446-0	01	1	0508-	●
324	BRACKET POWER STEERING<N40> (A)	8-97288-446-0	01	1	0508-		●
324	BRACKET 4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-97042-771-0	01	1	0508-	●
324	BRACKET 4HG1-T ENG<RDP> (C)	8-97042-771-0	01	1	0508-		●
324	BRACKET 4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97071-354-2	01	1	0508-	●
324	BRACKET 4HG1-T ENG<RDP> (B)	8-97071-354-2	01	1	0508-		●
324	BRACKET 4HE1-TCS ENG<RDS> (D)	8-97188-151-0	01	1	0508-0509	●		●
324	BRACKET 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> (D)	8-97188-151-0	01	1	0510-	●		●
324	BRACKET 4HE1-TCS ENG<RDS> M/T MZZ6F<RSR> FRAME STRAIGHT TYPE<7KJ> (E)	8-97307-874-0	01	1	0508-0509	●		●
324	BRACKET 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M/T MZZ6F<RSR> FRAME STRAIGHT TYPE<7KJ> (E)	8-97307-874-0	01	1	0510-	●		●
333	CLIP; CABLE POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=11 L=28	9-09525-055-0	01	1	0508-0606	●
333	CLIP; CABLE POWER STEERING<N40> (A) ID=11 L=28	9-09525-055-0	01	1	0508-0606		●
333	CLIP; CABLE POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=11 L=28	0-95235-055-0	01	1	0607-	●
333	CLIP; CABLE POWER STEERING<N40> (A) ID=11 L=28	0-95235-055-0	01	1	0607-		●
333	CLIP; CABLE EXC. POWER STEERING<N40>,FRAME STRAIGHT TYPE<7KJ> (B) ID=11 L=60	9-09525-096-0	01	1	0508-0509	●
333	CLIP; CABLE 4HE1-TCS ENG<RDS> M/T MZZ6F<RSR> FRAME STRAIGHT TYPE<7KJ> (B) ID=11 L=60	9-09525-096-0	01	1	0508-0509	●
333	CLIP; CABLE EXC. POWER STEERING<N40> (B) ID=11 L=60	9-09525-096-0	01	1	0508-0509		●
333	CLIP; CABLE 4HE1-TCS ENG<RDS> M/T MZZ6F<RSR> (B) ID=11 L=60	9-09525-096-0	01	1	0508-0509			●
333	CLIP; CABLE EXC. POWER STEERING<N40>,FRAME STRAIGHT TYPE<7KJ> (B) ID=11 L=60	9-09525-096-0	01	1	0510-0606	●
333	CLIP; CABLE 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M/T MZZ6F<RSR> FRAME STRAIGHT TYPE<7KJ> (B) ID=11 L=60	9-09525-096-0	01	1	0510-0606	●
333	CLIP; CABLE EXC. POWER STEERING<N40> (B) ID=11 L=60	9-09525-096-0	01	1	0510-0606		●
333	CLIP; CABLE 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M/T MZZ6F<RSR> (B) ID=11 L=60	9-09525-096-0	01	1	0510-0606			●
333	CLIP; CABLE EXC. POWER STEERING<N40>,FRAME STRAIGHT TYPE<7KJ> (B) ID=11 L=60	0-95235-096-0	01	1	0607-	●
333	CLIP; CABLE 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M/T MZZ6F<RSR> FRAME STRAIGHT TYPE<7KJ> (B) ID=11 L=60	0-95235-096-0	01	1	0607-	●
333	CLIP; CABLE EXC. POWER STEERING<N40> (B) ID=11 L=60	0-95235-096-0	01	1	0607-		●
333	CLIP; CABLE 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M/T MZZ6F<RSR> (B) ID=11 L=60	0-95235-096-0	01	1	0607-			●
334	PROTECTOR; EDGE L=200	8-97096-423-0	01	1	0508-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
