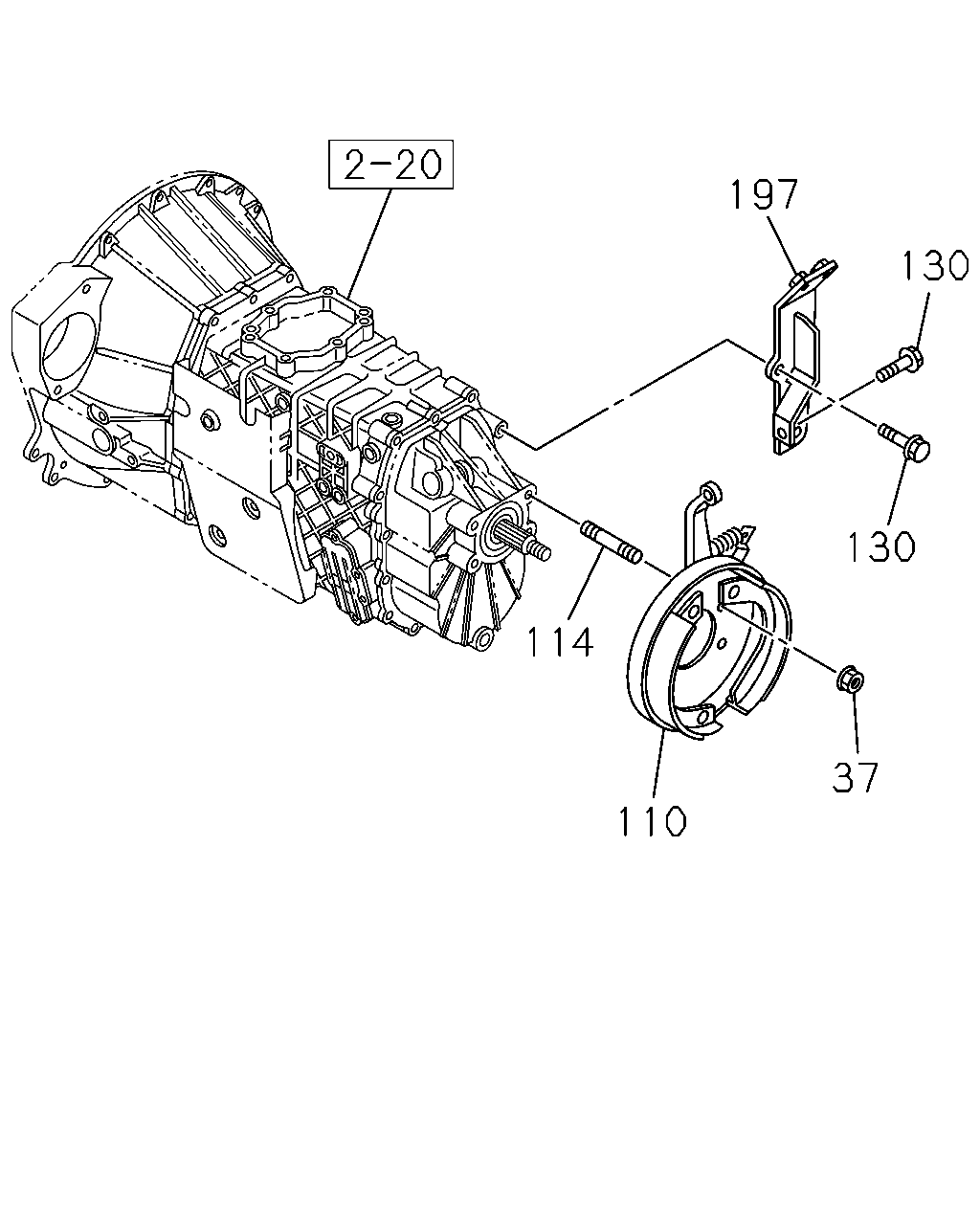

3-08 — PARKING BRAKE (#43110) — 117 parça

197 130 130 114 37 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
37	NUT; SUPPORT PLATE M/T MYY5T<RSM> M12 LOCK NUT	8-97248-173-0	04	1	0508-0604	●	●
37	NUT; SUPPORT PLATE M/T MYY5T<RSM> M12 LOCK NUT	8-98029-927-0	04	1	0605-	●	●
37	NUT; SUPPORT PLATE 4HE1-TCS ENG<RDS> M/T MZZ6F<RSR> M14 FLANGE	1-09440-048-0	04	1	0508-0509	●		●
37	NUT; SUPPORT PLATE 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M/T MZZ6F<RSR> M14 FLANGE	1-09440-048-0	04	1	0510-0604	●		●
37	NUT; SUPPORT PLATE 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M/T MZZ6F<RSR> M14 FLANGE	8-97365-444-0	04	1	0605-	●		●
110	BRAKE ASM; PARKING 4HE1-TCS ENG<RDS> M/T MZZ6F<RSR>	8-97205-628-0	01	1	0508-0509	●		●
110	BRAKE ASM; PARKING 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M/T MZZ6F<RSR>	8-97205-628-0	01	1	0510-0706	●		●
110	BRAKE ASM; PARKING 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M/T MZZ6F<RSR>	8-98034-305-0	01	1	0707-	●		●
114	STUD; SUPPORT PLATE M/T MYY5T<RSM>	8-97289-280-0	04	1	0508-0604	●	●
114	STUD; SUPPORT PLATE M/T MYY5T<RSM>	8-98029-929-0	04	1	0605-	●	●
114	STUD; SUPPORT PLATE 4HE1-TCS ENG<RDS> M/T MZZ6F<RSR> M14X22.5 L=42.5	1-09302-138-1	04	1	0508-0509	●		●
114	STUD; SUPPORT PLATE 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M/T MZZ6F<RSR> M14X22.5 L=42.5	1-09302-138-1	04	1	0510-0604	●		●
114	STUD; SUPPORT PLATE 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M/T MZZ6F<RSR> M14X22.5 L=42.5	8-97365-445-0	04	1	0605-	●		●
130	BOLT; BRKT 4HE1-TCS ENG<RDS> M/T MZZ6F<RSR> M10X25 FLANGE	0-28181-025-0	03	1	0508-0509	●		●
130	BOLT; BRKT 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M/T MZZ6F<RSR> M10X25 FLANGE	0-28181-025-0	03	1	0510-0512	●		●
130	BOLT; BRKT 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M/T MZZ6F<RSR> M10X25 FLANGE THA	0-28151-025-0	03	1	0601-	●		●
197	BRACKET; CENTER BRAKE CABLE 4HE1-TCS ENG<RDS> M/T MZZ6F<RSR>	8-97244-812-0	01	1	0508-0509	●		●
197	BRACKET; CENTER BRAKE CABLE 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M/T MZZ6F<RSR>	8-97244-812-0	01	1	0510-	●		●

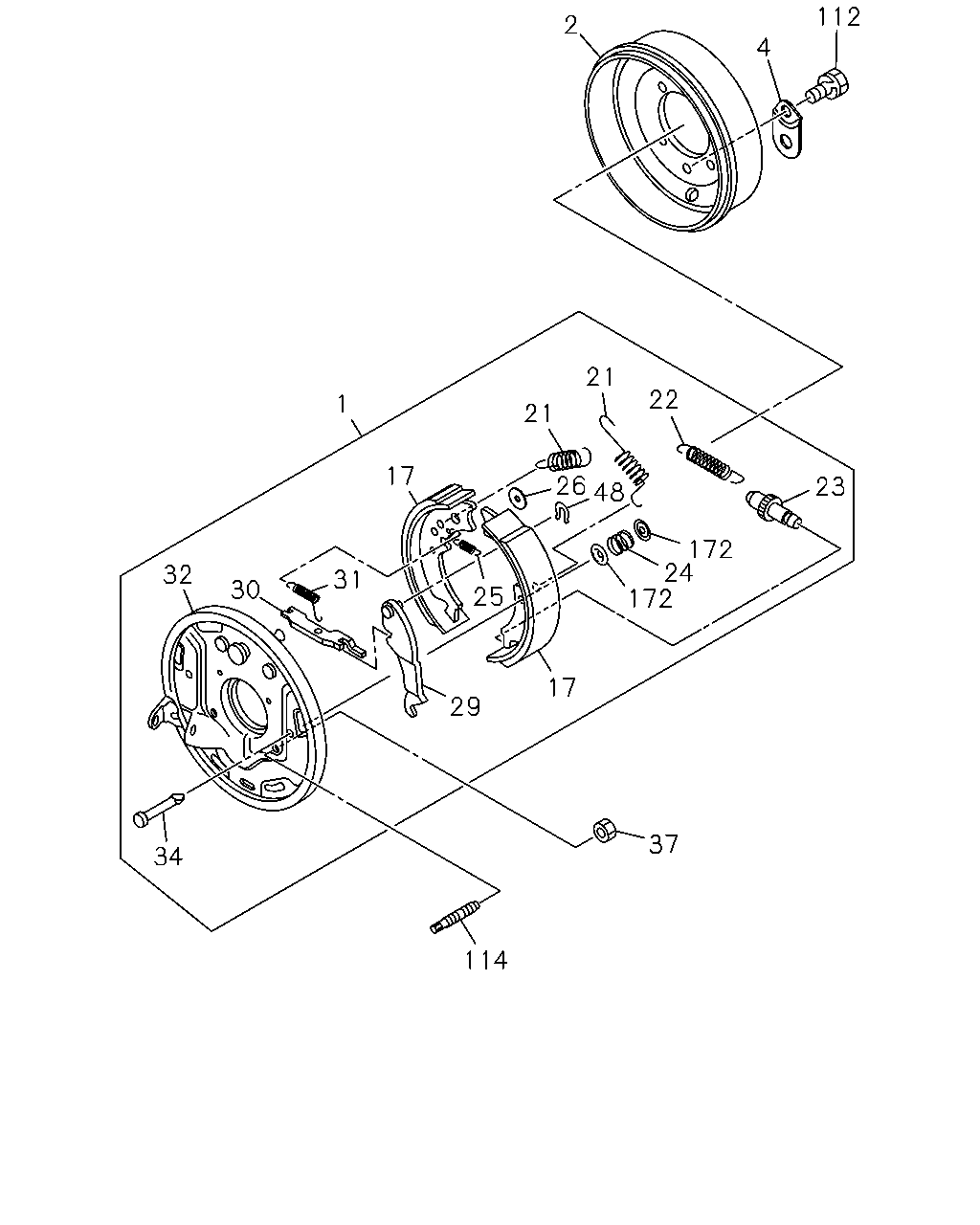

112 2 4 21 22 1 21 17 26 48 23 172 24 172 31 32 30 25 17 29 37 34 114

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	BRAKE ASM; CENTER,PARKING M/T MYY5T<RSM>	8-97308-175-0	01	1	0508-0611	●	●
1	BRAKE ASM; CENTER,PARKING M/T MYY5T<RSM>	8-98029-922-0	01	1	0612-	●	●
2	DRUM; PARKING BRK 4HE1-TCS ENG<RDS> M/T MZZ6F<RSR>	1-46211-057-0	01	1	0508-0509	●		●
2	DRUM; PARKING BRK 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M/T MZZ6F<RSR>	1-46211-057-0	01	1	0510-	●		●
2	DRUM; PARKING BRK M/T MYY5T<RSM> THA	8-97916-628-0	01	1	0508-	●	●
4	COVER; ADJ HOLE M/T MYY5T<RSM>	5-46219-001-0	01	1	0508-0604	●	●
4	COVER; ADJ HOLE M/T MYY5T<RSM>	8-98029-820-0	01	1	0605-	●	●
17	SHOE; PARKING BRK 4HE1-TCS ENG<RDS> M/T MZZ6F<RSR>	8-97042-934-1	02	1	0508-0509	●		●
17	SHOE; PARKING BRK 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M/T MZZ6F<RSR>	8-97042-934-1	02	1	0510-	●		●
17	SHOE; PARKING BRK M/T MYY5T<RSM>	8-97020-250-2	02	1	0508-	●	●
21	SPRING; RETURN,PARKING BRK SHOE 4HE1-TCS ENG<RDS> M/T MZZ6F<RSR>	1-09583-280-0	01	1	0508-0509	●		●
21	SPRING; RETURN,PARKING BRK SHOE 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M/T MZZ6F<RSR>	1-09583-280-0	01	1	0510-	●		●
21	SPRING; RETURN,PARKING BRK SHOE M/T MYY5T<RSM>	8-94132-157-0	02	1	0508-	●	●
22	SPRING; ADJ SCREW,PARKING BRK M/T MYY5T<RSM>	8-94107-618-0	01	1	0508-	●	●
23	SCREW; ADJ,PARKING BRK SHOE 4HE1-TCS ENG<RDS> M/T MZZ6F<RSR>	1-46240-004-0	01	1	0508-0509	●		●
23	SCREW; ADJ,PARKING BRK SHOE 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M/T MZZ6F<RSR>	1-46240-004-0	01	1	0510-0706	●		●
23	SCREW; ADJ,PARKING BRK SHOE 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M/T MZZ6F<RSR>	8-98043-963-0	01	1	0707-	●		●
23	SCREW; ADJ,PARKING BRK SHOE M/T MYY5T<RSM>	5-47165-025-0	01	1	0508-0611	●	●
23	SCREW; ADJ,PARKING BRK SHOE M/T MYY5T<RSM>	8-98043-954-0	01	1	0612-	●	●
24	SPRING; BRK SHOE M/T MYY5T<RSM>	8-94132-155-1	02	1	0508-	●	●
25	SPRING; SHOE ALIGNMENT M/T MYY5T<RSM>	8-94132-156-0	01	1	0508-	●	●
26	PLATE; SHOE GUIDE M/T MYY5T<RSM>	9-09851-986-0	01	1	0508-0611	●	●
26	PLATE; SHOE GUIDE M/T MYY5T<RSM>	8-98043-959-0	01	1	0612-	●	●
29	LEVER; PARKING BRK M/T MYY5T<RSM>	8-97027-125-0	01	1	0508-0611	●	●
29	LEVER; PARKING BRK M/T MYY5T<RSM>	8-98043-949-0	01	1	0612-	●	●
30	STRUT; PARKING BRK M/T MYY5T<RSM>	8-94311-779-0	01	1	0508-0611	●	●
30	STRUT; PARKING BRK M/T MYY5T<RSM>	8-98043-953-0	01	1	0612-	●	●
31	SPRING; SHOE TO STRUT M/T MYY5T<RSM>	8-94132-158-0	01	1	0508-	●	●
32	PLATE; SUPPORT,PARKING BRK 4HE1-TCS ENG<RDS> M/T MZZ6F<RSR>	1-46213-069-0	01	1	0508-0509	●		●
32	PLATE; SUPPORT,PARKING BRK 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M/T MZZ6F<RSR>	1-46213-069-0	01	1	0510-	●		●
32	PLATE; SUPPORT,PARKING BRK M/T MYY5T<RSM>	8-97308-176-0	01	1	0508-	●	●
34	PIN; BRK SHOE M/T MYY5T<RSM>	8-94132-159-0	02	1	0508-0611	●	●
34	PIN; BRK SHOE M/T MYY5T<RSM>	8-98043-955-0	02	1	0612-	●	●
37	NUT; SUPPORT PLATE M/T MYY5T<RSM> M12 LOCK NUT	8-97248-173-0	04	1	0508-0604	●	●
37	NUT; SUPPORT PLATE M/T MYY5T<RSM> M12 LOCK NUT	8-98029-927-0	04	1	0605-	●	●
37	NUT; SUPPORT PLATE 4HE1-TCS ENG<RDS> M/T MZZ6F<RSR> M14 FLANGE	1-09440-048-0	04	1	0508-0509	●		●
37	NUT; SUPPORT PLATE 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M/T MZZ6F<RSR> M14 FLANGE	1-09440-048-0	04	1	0510-0604	●		●
37	NUT; SUPPORT PLATE 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M/T MZZ6F<RSR> M14 FLANGE	8-97365-444-0	04	1	0605-	●		●
48	RETAINER; PIN,PARKING BRK M/T MYY5T<RSM>	9-46349-005-1	01	1	0508-0611	●	●
48	RETAINER; PIN,PARKING BRK M/T MYY5T<RSM>	8-98043-958-0	01	1	0612-	●	●
112	BOLT; COVER TO BRK DRUM M/T MYY5T<RSM> M6X16 W/LK WASHER	0-50040-616-0	01	1	0508-0701	●	●
112	BOLT; COVER TO BRK DRUM M/T MYY5T<RSM> M6X16 W/LK WASHER THA	0-50540-616-0	01	1	0702-	●	●
114	STUD; SUPPORT PLATE M/T MYY5T<RSM>	8-97289-280-0	04	1	0508-0604	●	●
114	STUD; SUPPORT PLATE M/T MYY5T<RSM>	8-98029-929-0	04	1	0605-	●	●
114	STUD; SUPPORT PLATE 4HE1-TCS ENG<RDS> M/T MZZ6F<RSR> M14X22.5 L=42.5	1-09302-138-1	04	1	0508-0509	●		●
114	STUD; SUPPORT PLATE 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M/T MZZ6F<RSR> M14X22.5 L=42.5	1-09302-138-1	04	1	0510-0604	●		●
114	STUD; SUPPORT PLATE 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M/T MZZ6F<RSR> M14X22.5 L=42.5	8-97365-445-0	04	1	0605-	●		●
172	CUP; SHOE HOLD M/T MYY5T<RSM>	9-47162-033-0	04	1	0508-0611	●	●
172	CUP; SHOE HOLD M/T MYY5T<RSM>	8-98043-956-0	04	1	0612-	●	●

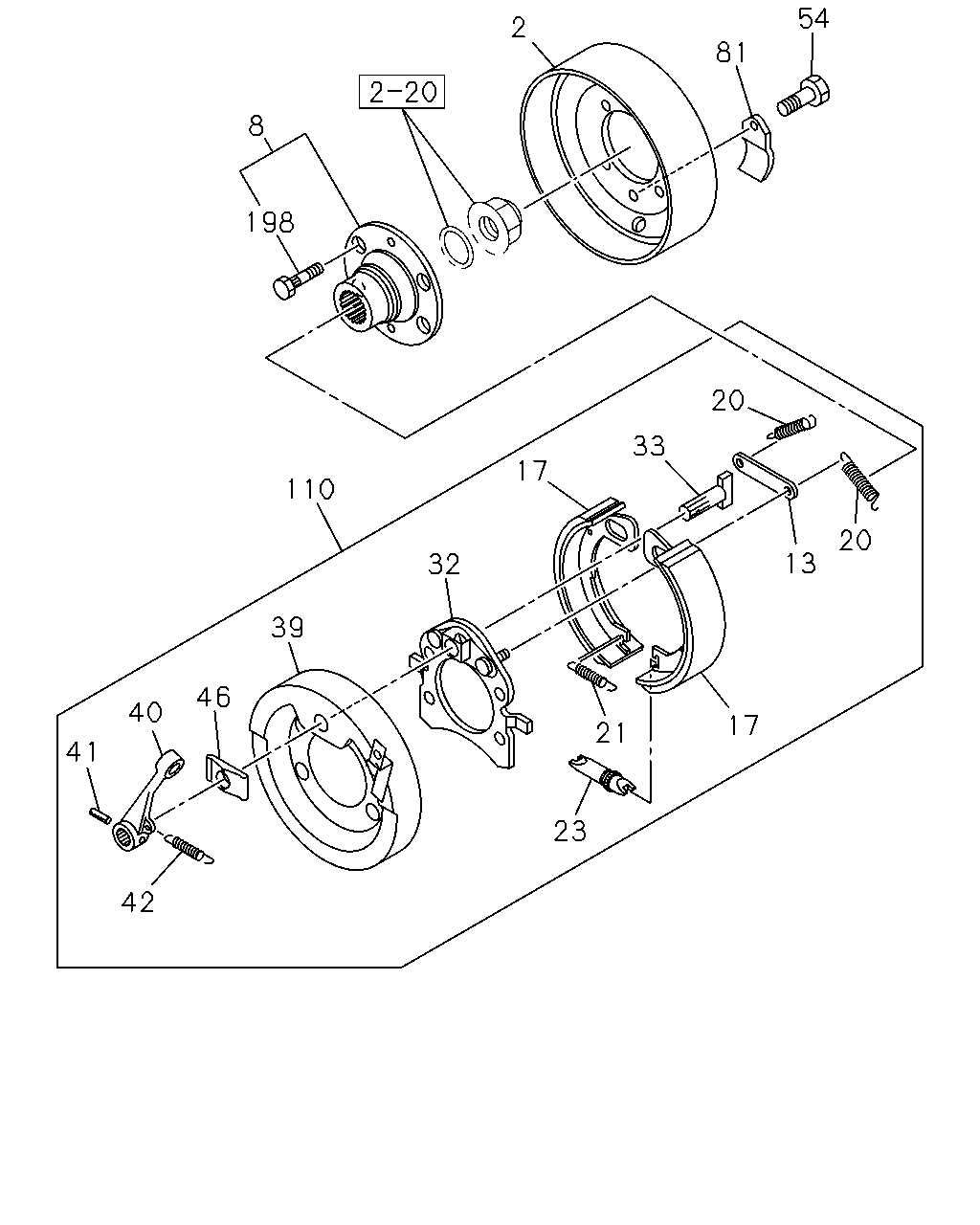

54 2 81 8 198 20 33 17 110 20 13 32 39 46 40 17 21 41 23 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	DRUM; PARKING BRK 4HE1-TCS ENG<RDS> M/T MZZ6F<RSR>	1-46211-057-0	01	1	0508-0509	●		●
2	DRUM; PARKING BRK 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M/T MZZ6F<RSR>	1-46211-057-0	01	1	0510-	●		●
2	DRUM; PARKING BRK M/T MYY5T<RSM> THA	8-97916-628-0	01	1	0508-	●	●
8	FLANGE; PARKING BRK 4HE1-TCS ENG<RDS> M/T MZZ6F<RSR>	8-97252-811-1	01	1	0508-0509	●		●
8	FLANGE; PARKING BRK 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M/T MZZ6F<RSR>	8-97252-811-1	01	1	0510-0604	●		●
8	FLANGE; PARKING BRK 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M/T MZZ6F<RSR>	8-98044-142-0	01	1	0605-	●		●
13	BRACE; PARKING BRK 4HE1-TCS ENG<RDS> M/T MZZ6F<RSR>	1-46239-003-0	01	1	0508-0509	●		●
13	BRACE; PARKING BRK 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M/T MZZ6F<RSR>	1-46239-003-0	01	1	0510-	●		●
17	SHOE; PARKING BRK 4HE1-TCS ENG<RDS> M/T MZZ6F<RSR>	8-97042-934-1	02	1	0508-0509	●		●
17	SHOE; PARKING BRK 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M/T MZZ6F<RSR>	8-97042-934-1	02	1	0510-	●		●
17	SHOE; PARKING BRK M/T MYY5T<RSM>	8-97020-250-2	02	1	0508-	●	●
20	SPRING; RETURN,SECONDARY,PARKING BRK 4HE1-TCS ENG<RDS> M/T MZZ6F<RSR>	1-09586-002-0	02	1	0508-0509	●		●
20	SPRING; RETURN,SECONDARY,PARKING BRK 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M/T MZZ6F<RSR>	1-09586-002-0	02	1	0510-	●		●
21	SPRING; RETURN,PARKING BRK SHOE 4HE1-TCS ENG<RDS> M/T MZZ6F<RSR>	1-09583-280-0	01	1	0508-0509	●		●
21	SPRING; RETURN,PARKING BRK SHOE 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M/T MZZ6F<RSR>	1-09583-280-0	01	1	0510-	●		●
21	SPRING; RETURN,PARKING BRK SHOE M/T MYY5T<RSM>	8-94132-157-0	02	1	0508-	●	●
23	SCREW; ADJ,PARKING BRK SHOE 4HE1-TCS ENG<RDS> M/T MZZ6F<RSR>	1-46240-004-0	01	1	0508-0509	●		●
23	SCREW; ADJ,PARKING BRK SHOE 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M/T MZZ6F<RSR>	1-46240-004-0	01	1	0510-0706	●		●
23	SCREW; ADJ,PARKING BRK SHOE 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M/T MZZ6F<RSR>	8-98043-963-0	01	1	0707-	●		●
23	SCREW; ADJ,PARKING BRK SHOE M/T MYY5T<RSM>	5-47165-025-0	01	1	0508-0611	●	●
23	SCREW; ADJ,PARKING BRK SHOE M/T MYY5T<RSM>	8-98043-954-0	01	1	0612-	●	●
32	PLATE; SUPPORT,PARKING BRK 4HE1-TCS ENG<RDS> M/T MZZ6F<RSR>	1-46213-069-0	01	1	0508-0509	●		●
32	PLATE; SUPPORT,PARKING BRK 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M/T MZZ6F<RSR>	1-46213-069-0	01	1	0510-	●		●
32	PLATE; SUPPORT,PARKING BRK M/T MYY5T<RSM>	8-97308-176-0	01	1	0508-	●	●
33	SHAFT; CAM,PARKING BRK 4HE1-TCS ENG<RDS> M/T MZZ6F<RSR>	1-46251-009-0	01	1	0508-0509	●		●
33	SHAFT; CAM,PARKING BRK 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M/T MZZ6F<RSR>	1-46251-009-0	01	1	0510-0706	●		●
33	SHAFT; CAM,PARKING BRK 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M/T MZZ6F<RSR>	8-98043-961-0	01	1	0707-	●		●
39	COVER; DUST,PARKING BRK 4HE1-TCS ENG<RDS> M/T MZZ6F<RSR>	1-46213-075-0	01	1	0508-0509	●		●
39	COVER; DUST,PARKING BRK 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M/T MZZ6F<RSR>	1-46213-075-0	01	1	0510-	●		●
40	LEVER; CM/SHF,PARKING BRK 4HE1-TCS ENG<RDS> M/T MZZ6F<RSR>	1-46252-041-0	01	1	0508-0509	●		●
40	LEVER; CM/SHF,PARKING BRK 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M/T MZZ6F<RSR>	1-46252-041-0	01	1	0510-0706	●		●
40	LEVER; CM/SHF,PARKING BRK 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M/T MZZ6F<RSR>	8-98047-550-0	01	1	0707-	●		●
41	PIN; KNOCK,LEVER 4HE1-TCS ENG<RDS> M/T MZZ6F<RSR>	9-09878-594-0	01	1	0508-0509	●		●
41	PIN; KNOCK,LEVER 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M/T MZZ6F<RSR>	9-09878-594-0	01	1	0510-	●		●
42	SPRING; RETURN,LEVER 4HE1-TCS ENG<RDS> M/T MZZ6F<RSR>	1-09583-041-0	01	1	0508-0509	●		●
42	SPRING; RETURN,LEVER 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M/T MZZ6F<RSR>	1-09583-041-0	01	1	0510-	●		●
46	WASHER; LEVER 4HE1-TCS ENG<RDS> M/T MZZ6F<RSR>	1-09509-057-0	01	1	0508-0509	●		●
46	WASHER; LEVER 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M/T MZZ6F<RSR>	1-09509-057-0	01	1	0510-	●		●
54	BOLT; COVER 4HE1-TCS ENG<RDS> M/T MZZ6F<RSR> M8X18 W/LK WASHER	0-50040-818-0	02	1	0508-0509	●		●
54	BOLT; COVER 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M/T MZZ6F<RSR> M8X18 W/LK WASHER	0-50040-818-0	02	1	0510-0604	●		●
54	BOLT; COVER 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M/T MZZ6F<RSR> M8X20 W/LK&PL WASHER	0-50640-820-0	02	1	0605-	●		●
81	COVER; CHECK HOLE,PARKING BRK 4HE1-TCS ENG<RDS> M/T MZZ6F<RSR>	1-46219-019-0	02	1	0508-0509	●		●
81	COVER; CHECK HOLE,PARKING BRK 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M/T MZZ6F<RSR>	1-46219-019-0	02	1	0510-0604	●		●
81	COVER; CHECK HOLE,PARKING BRK 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M/T MZZ6F<RSR>	8-98031-861-0	02	1	0605-	●		●
110	BRAKE ASM; PARKING 4HE1-TCS ENG<RDS> M/T MZZ6F<RSR>	8-97205-628-0	01	1	0508-0509	●		●
110	BRAKE ASM; PARKING 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M/T MZZ6F<RSR>	8-97205-628-0	01	1	0510-0706	●		●
110	BRAKE ASM; PARKING 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M/T MZZ6F<RSR>	8-98034-305-0	01	1	0707-	●		●
198	BOLT; KNURL 4HE1-TCS ENG<RDS> M/T MZZ6F<RSR> M12X39	1-09046-001-2	04	1	0508-0509	●		●
198	BOLT; KNURL 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M/T MZZ6F<RSR> M12X39	1-09046-001-2	04	1	0510-0604	●		●
198	BOLT; KNURL 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M/T MZZ6F<RSR> M12X39	8-97365-446-0	04	1	0605-	●		●
