◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10720 - CXZ RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-01C - CLUTCH ▶
2-01C — CLUTCH (#4311) — 105 parça

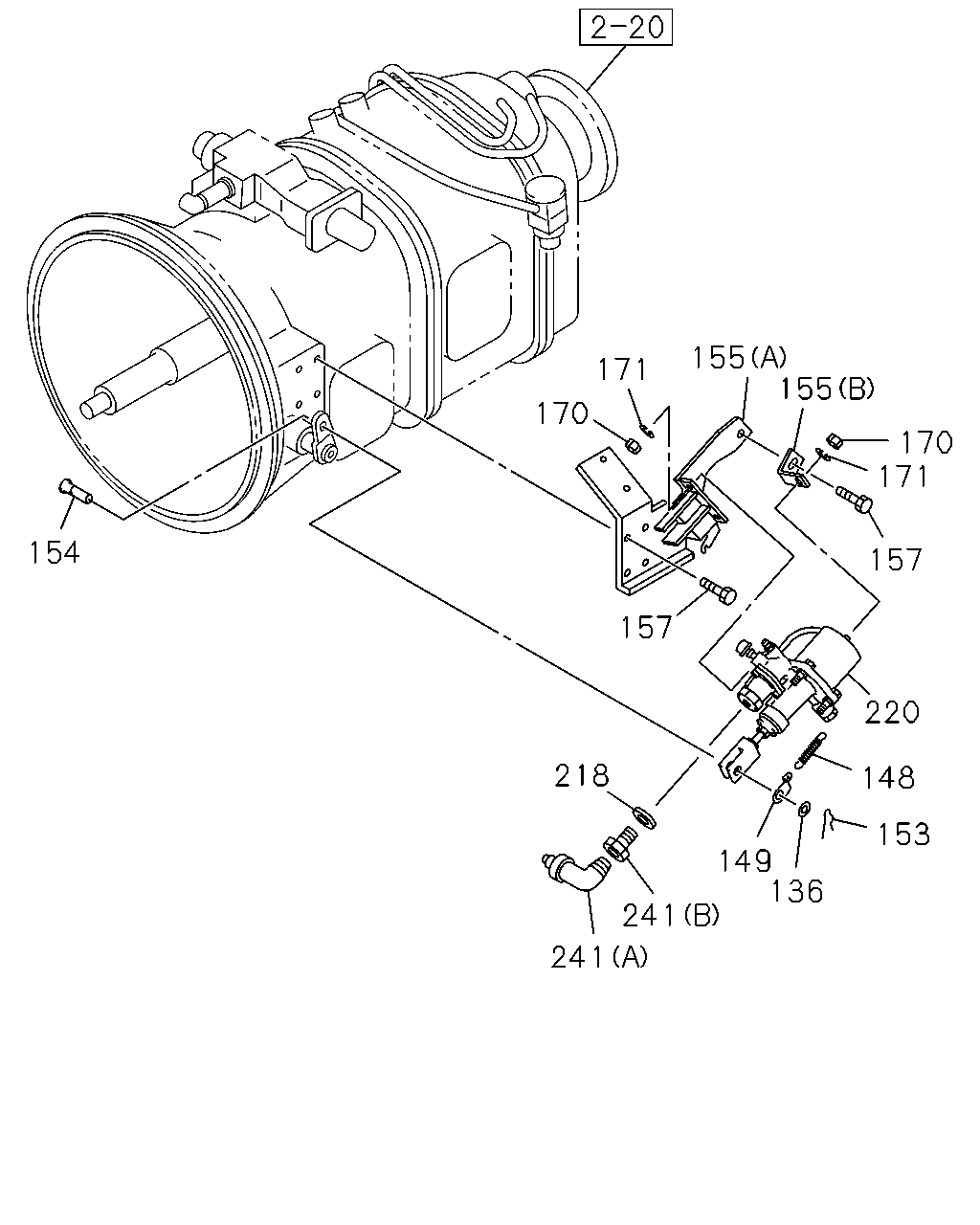

çizim 38954
155 155 171 170 170 171 154 157 157 220 218 148 153 149 136 241 241
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
136 WASHER; PL
ID=15 		9-09160-514-0 01 1 9603-9904 ● ●
136 WASHER; PL
ID=15 		9-09160-514-0 01 1 9905-9907 ● ● ●
136 WASHER; PL
ID=15 		9-09160-514-0 01 1 9908- ● ● ● ●
148 SPRING; CLU RETURN 9-09744-034-0 01 1 9603-9904 ● ●
148 SPRING; CLU RETURN 9-09744-034-0 01 1 9905-9907 ● ● ●
148 SPRING; CLU RETURN 9-09744-034-0 01 1 9908- ● ● ● ●
149 EYE; SPRING,RETURN SPRING 1-31426-025-0 01 1 9603-9904 ● ●
149 EYE; SPRING,RETURN SPRING 1-31426-025-0 01 1 9905-9907 ● ● ●
149 EYE; SPRING,RETURN SPRING 1-31426-025-0 01 1 9908- ● ● ● ●
153 PIN; SPLIT,CLU SHAFT 1-09747-009-0 01 1 9603-9904 ● ●
153 PIN; SPLIT,CLU SHAFT 1-09747-009-0 01 1 9905-9907 ● ● ●
153 PIN; SPLIT,CLU SHAFT 1-09747-009-0 01 1 9908- ● ● ● ●
154 PIN; JAW JOINT
L=35 		1-31424-003-0 01 1 9603-9904 ● ●
154 PIN; JAW JOINT
L=35 		1-31424-003-0 01 1 9905-9907 ● ● ●
154 PIN; JAW JOINT
L=35 		1-31424-003-0 01 1 9908- ● ● ● ●
155 BRACKET; MINIPACK
(A) 		1-31429-366-0 01 1 9603-9904 ● ●
155 BRACKET; MINIPACK
(A) 		1-31429-366-0 01 1 9905-9907 ● ● ●
155 BRACKET; MINIPACK
(A) 		1-31429-366-0 01 1 9908-0103 ● ● ● ●
155 BRACKET; MINIPACK
(A) 		1-31429-458-0 01 1 0104- ● ● ● ●
155 BRACKET; MINIPACK
(B) 		1-31429-367-0 01 1 9603-9904 ● ●
155 BRACKET; MINIPACK
(B) 		1-31429-367-0 01 1 9905-9907 ● ● ●
155 BRACKET; MINIPACK
(B) 		1-31429-367-0 01 1 9908- ● ● ● ●
157 BOLT; BRKT
M10X16 FLANGE 		0-28181-016-0 01 1 0104- ● ● ● ●
157 BOLT; BRKT
M10X25 W/LK WASHER 		0-50051-025-0 05 1 9603-9904 ● ●
157 BOLT; BRKT
M10X25 W/LK WASHER 		0-50051-025-0 05 1 9905-9907 ● ● ●
157 BOLT; BRKT
M10X25 W/LK WASHER 		0-50051-025-0 05 1 9908-0103 ● ● ● ●
157 BOLT; BRKT
M10X25 W/LK WASHER 		0-50051-025-0 04 1 0104- ● ● ● ●
170 NUT; BOOSTER FIX
M8 		9-09110-408-0 03 1 9603-9904 ● ●
170 NUT; BOOSTER FIX
M8 		9-09110-408-0 03 1 9905-9907 ● ● ●
170 NUT; BOOSTER FIX
M8 		9-09110-408-0 03 1 9908- ● ● ● ●
171 WASHER; LK,BOOSTER FIX
ID=8.2 		9-09150-508-0 03 1 9603-9904 ● ●
171 WASHER; LK,BOOSTER FIX
ID=8.2 		9-09150-508-0 03 1 9905-9907 ● ● ●
171 WASHER; LK,BOOSTER FIX
ID=8.2 		9-09150-508-0 03 1 9908- ● ● ● ●
218 GASKET
ID=14.2 OD=23.0 		9-09572-014-0 01 1 9603-9904 ● ●
218 GASKET
ID=14.2 OD=23.0 		9-09572-014-0 01 1 9905-9907 ● ● ●
218 GASKET
ID=14.2 OD=23.0 		9-09572-014-0 01 1 9908- ● ● ● ●
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-S(56L) EXC. SILENCER SINGLE VERTICAL<N28> 		1-31800-382-1 01 1 9911-0011 ● ● ● ● ● ●
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 6WA1 TC-C(55L) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> 		1-31800-382-1 01 1 9911-0011 ● ● ● ● ● ●
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-S(56L) EXC. SILENCER SINGLE VERTICAL<N28> 		1-31800-466-0 01 1 0012- ● ● ● ● ● ●
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 6WA1 TC-C(55L) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> 		1-31800-466-0 01 1 0012- ● ● ● ● ● ●
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 		1-31800-398-0 01 1 9603-9904 ● ●
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 		1-31800-398-0 01 1 9905-9907 ● ● ●
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 		1-31800-398-1 01 1 9908- ● ● ● ●
241 CONNECTOR
(A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9603-9904 ● ●
241 CONNECTOR
(A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9905-9907 ● ● ●
241 CONNECTOR
(A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9908- ● ● ● ●
241 CONNECTOR
(B) M14 & PT1/4 		9-48319-149-0 01 1 9603-9904 ● ●
241 CONNECTOR
(B) M14 & PT1/4 		9-48319-149-0 01 1 9905-9907 ● ● ●
241 CONNECTOR
(B) M14 & PT1/4 		9-48319-149-0 01 1 9908- ● ● ● ●

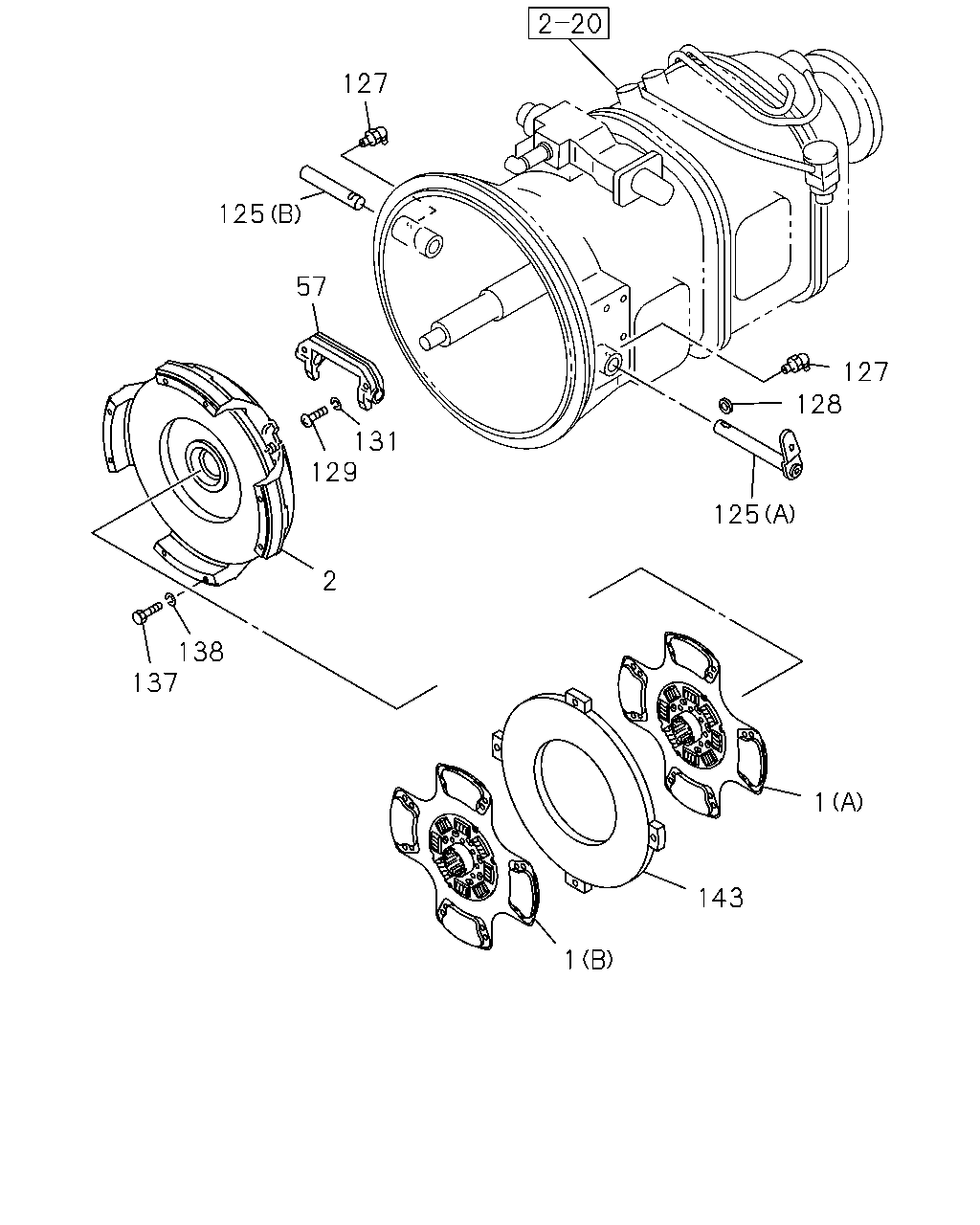

çizim 40500
127 57 127 128 131 129 125 2 138 137 1 143 1 125
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 DISC; CLUTCH
6WA1 TC-S(56L) (B) 15.5" 		1-31240-726-0 01 1 9603-9706 ●
1 DISC; CLUTCH
6WA1 TC-S(56L),6WG1 TC-N(71L) (B) 15.5" 		1-31240-726-0 01 1 9707-9904 ● ●
1 DISC; CLUTCH
6WA1 TC-S(56L) (B) 15.5" 		1-31240-726-0 01 1 9905-9905 ●
1 DISC; CLUTCH
6WA1 TC-S(56L) EXC. NEW ZEALAND EQUIPMENT(PK5) (B) 15.5" 		1-31240-726-0 01 1 9906- ● ● ●
1 DISC; CLUTCH
6WA1 TC-S(56L) (A) 15.5" 		1-31240-727-0 01 1 9603-9706 ●
1 DISC; CLUTCH
6WA1 TC-S(56L),6WG1 TC-N(71L) (A) 15.5" 		1-31240-727-0 01 1 9707-9904 ● ●
1 DISC; CLUTCH
6WA1 TC-S(56L) (A) 15.5" 		1-31240-727-0 01 1 9905-9905 ●
1 DISC; CLUTCH
6WA1 TC-S(56L) EXC. NEW ZEALAND EQUIPMENT(PK5) (A) 15.5" 		1-31240-727-0 01 1 9906- ● ● ●
1 DISC; CLUTCH
6WG1 TC-C(72L) (B) 15.5" 		1-31240-792-0 01 1 9905-9905 ● ● ●
1 DISC; CLUTCH
6WG1 TC-C(72L) (B) 15.5" 		1-31240-792-0 01 1 9906- ● ● ● ●
1 DISC; CLUTCH
6WA1 TC-S(56L) NEW ZEALAND EQUIPMENT(PK5) (B) 15.5" 		1-31240-792-0 01 1 9906- ● ● ●
1 DISC; CLUTCH
6WG1 TC-C(72L) (A) 15.5" 		1-31240-793-0 01 1 9905-9905 ● ● ●
1 DISC; CLUTCH
6WG1 TC-C(72L) (A) 15.5" 		1-31240-793-0 01 1 9906- ● ● ● ●
1 DISC; CLUTCH
6WA1 TC-S(56L) NEW ZEALAND EQUIPMENT(PK5) (A) 15.5" 		1-31240-793-0 01 1 9906- ● ● ●
2 PLATE ASM; PRESSURE,CLU
6WA1 TC-S(56L) 		1-31220-301-0 01 1 9603-9905 ●
2 PLATE ASM; PRESSURE,CLU
6WA1 TC-S(56L) EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-31220-301-0 01 1 9906- ● ● ●
2 PLATE ASM; PRESSURE,CLU
6WG1 TC-N(71L) 		1-31220-324-0 01 1 9707-9904 ● ●
2 PLATE ASM; PRESSURE,CLU
6WG1 TC-C(72L) 		1-31220-327-0 01 1 9905-9905 ● ● ●
2 PLATE ASM; PRESSURE,CLU
6WG1 TC-C(72L) 		1-31220-327-0 01 1 9906- ● ● ● ●
2 PLATE ASM; PRESSURE,CLU
6WA1 TC-S(56L) NEW ZEALAND EQUIPMENT(PK5) 		1-31220-327-0 01 1 9906- ● ● ●
57 FORK; SHIFT,CLU 1-31341-020-0 01 1 9603-9904 ● ●
57 FORK; SHIFT,CLU 1-31341-020-0 01 1 9905-9907 ● ● ●
57 FORK; SHIFT,CLU 1-31341-020-0 01 1 9908- ● ● ● ●
125 SHAFT; CLU
(A) 		1-31342-279-0 01 1 9603-9904 ● ●
125 SHAFT; CLU
(A) 		1-31342-279-0 01 1 9905-9907 ● ● ●
125 SHAFT; CLU
(A) 		1-31342-279-0 01 1 9908- ● ● ● ●
125 SHAFT; CLU
(B) L=146 		1-31342-283-0 01 1 9603-9904 ● ●
125 SHAFT; CLU
(B) L=146 		1-31342-283-0 01 1 9905-9907 ● ● ●
125 SHAFT; CLU
(B) L=146 		1-31342-283-0 01 1 9908- ● ● ● ●
127 NIPPLE; GREASE,CLU SHAFT
PT1/8 ELBOW 		9-09031-210-0 02 1 9603-9705 ●
127 NIPPLE; GREASE,CLU SHAFT
PT1/8 ELBOW 		9-09031-210-0 02 1 9706-9904 ● ●
127 NIPPLE; GREASE,CLU SHAFT
PT1/8 ELBOW 		9-09031-210-0 02 1 9905-9907 ● ● ●
127 NIPPLE; GREASE,CLU SHAFT
PT1/8 ELBOW 		9-09031-210-0 02 1 9908-9910 ● ● ● ●
127 NIPPLE; GREASE,CLU SHAFT
PT1/8 ELBOW 		9-09031-210-0 02 1 9911- ● ● ● ●
128 KEY; FEATHER,CLU SHAFT 1-31349-007-0 01 1 9603-9904 ● ●
128 KEY; FEATHER,CLU SHAFT 1-31349-007-0 01 1 9905-9907 ● ● ●
128 KEY; FEATHER,CLU SHAFT 1-31349-007-0 01 1 9908- ● ● ● ●
129 BOLT; SHIFT FORK 1-09087-021-0 02 1 9603-9904 ● ●
129 BOLT; SHIFT FORK 1-09087-021-0 02 1 9905-9907 ● ● ●
129 BOLT; SHIFT FORK 1-09087-021-0 02 1 9908- ● ● ● ●
131 WASHER; LK,SHIFT FORK
ID=11.4 		9-09850-072-0 02 1 9603-9904 ● ●
131 WASHER; LK,SHIFT FORK
ID=11.4 		9-09850-072-0 02 1 9905-9907 ● ● ●
131 WASHER; LK,SHIFT FORK
ID=11.4 		9-09850-072-0 02 1 9908- ● ● ● ●
137 BOLT; CLU COVER
6WA1 TC-S(56L) 		1-09087-022-0 08 1 9603-9706 ●
137 BOLT; CLU COVER
6WA1 TC-S(56L),6WG1 TC-N(71L) 		1-09087-022-0 08 1 9707-9904 ● ●
137 BOLT; CLU COVER 1-09087-022-0 08 1 9905- ● ● ●
138 WASHER; LK,CLU COVER
6WA1 TC-S(56L) ID=11.4 		9-09850-072-0 08 1 9603-9706 ●
138 WASHER; LK,CLU COVER
6WA1 TC-S(56L),6WG1 TC-N(71L) ID=11.4 		9-09850-072-0 08 1 9707-9904 ● ●
138 WASHER; LK,CLU COVER
ID=11.4 		9-09850-072-0 08 1 9905- ● ● ●
143 PLATE; INTERMEDIATE
6WA1 TC-S(56L) 		1-31221-098-0 01 1 9603-9706 ●
143 PLATE; INTERMEDIATE
6WA1 TC-S(56L),6WG1 TC-N(71L) 		1-31221-098-0 01 1 9707-9904 ● ●
143 PLATE; INTERMEDIATE
6WA1 TC-S(56L) 		1-31221-098-0 01 1 9905-9905 ●
143 PLATE; INTERMEDIATE
6WA1 TC-S(56L) EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-31221-098-0 01 1 9906- ● ● ●
143 PLATE; INTERMEDIATE
6WG1 TC-C(72L) 		1-31221-124-0 01 1 9905-9905 ● ● ●
143 PLATE; INTERMEDIATE
6WG1 TC-C(72L) 		1-31221-124-0 01 1 9906- ● ● ● ●
143 PLATE; INTERMEDIATE
6WA1 TC-S(56L) NEW ZEALAND EQUIPMENT(PK5) 		1-31221-124-0 01 1 9906- ● ● ●
