2-85 — POWER TAKE OFF CONTROL (#43107) — 124 parça

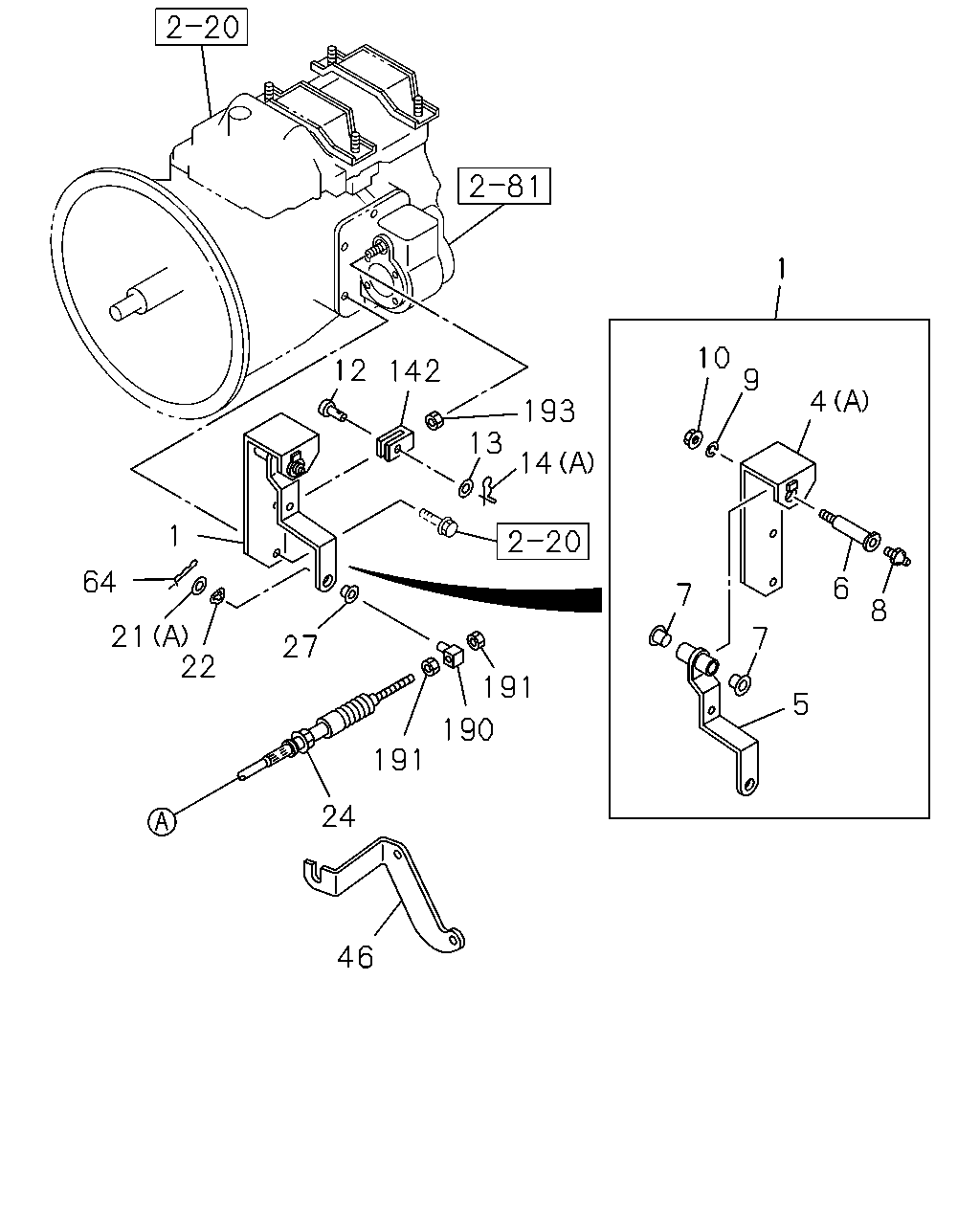

1 10 9 12 142 4 193 13 14 1 64 6 7 8 21 22 7 27 191 5 190 191 24 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LEVER ASM; PTO & DUMP CONT 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66>	8-97310-741-0	01	1	0508-	●
4	BRACKET; PTO CONT 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66> (A)	8-97310-740-0	01	1	0508-	●
4	BRACKET; PTO CONT PTO TRANSMISSION SIDE<V66> EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97114-534-1	01	1	0508-	●	●
5	LEVER; PTO SHIFT CONT 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66>	8-97310-747-0	01	1	0508-	●
6	SHAFT; PTO CONT 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66>	8-97204-596-0	01	1	0508-	●
7	BUSHING; LEVER,PTO 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66>	5-33659-053-0	02	1	0508-	●
8	NIPPLE; GREASE 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66> M6 STRAIGHT	9-09031-006-0	01	1	0508-0607	●
8	NIPPLE; GREASE 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66> M6 STRAIGHT THA	0-90301-406-0	01	1	0608-	●
9	WASHER; LK,SHAFT,PTO 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66> ID=8.2	9-09150-508-0	01	1	0508-0603	●
9	WASHER; LK,SHAFT,PTO 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66> ID=8.2	0-91510-508-0	01	1	0604-	●
10	NUT; SHAFT,PTO 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66> M8	9-09110-408-0	01	1	0508-0512	●
10	NUT; SHAFT,PTO 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66> M8	0-91110-508-0	01	1	0601-	●
12	JOINT; PIN,YOKE 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66>	8-94174-099-0	01	1	0508-0610	●
12	JOINT; PIN,YOKE 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66>	8-98031-692-0	01	1	0611-	●
13	WASHER; PL,YOKE 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66> ID=12.5	9-09160-512-0	01	1	0508-0605	●
13	WASHER; PL,YOKE 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66> ID=12.5 OD=22	0-91610-512-0	01	1	0606-	●
14	PIN; SPLIT,YOKE 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66> (A)	1-09987-158-1	01	1	0508-0805	●
14	PIN; SPLIT,YOKE 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66> (A)	8-97581-216-0	01	1	0806-	●
14	PIN; SPLIT,YOKE PTO TRANSMISSION SIDE<V66> FRAME STRAIGHT TYPE<7KJ> (B) OD=2.8 L=18	9-08113-018-0	01	1	0508-0606		●
14	PIN; SPLIT,YOKE PTO TRANSMISSION SIDE<V66> FRAME STRAIGHT TYPE<7KJ> (B) OD=2.8 L=18	0-81123-018-0	01	1	0607-		●
21	WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE<V66> (A) ID=8.4 OD=22	9-09164-708-0	01	1	0508-0605	●
21	WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE<V66> (A) ID=8.4 OD=22 THA	0-91614-708-0	01	1	0606-	●
21	WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE<V66> (B) ID=8.4 OD=22	9-09160-708-0	01	1	0508-0605	●	●
21	WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE<V66> (B) ID=8.4 OD=22	0-91610-708-0	01	1	0606-	●	●
22	WASHER; LK,LEVER PTO TRANSMISSION SIDE<V66> ID=8.5 T=0.3	5-09509-001-0	01	1	0508-	●
24	CABLE; PTO CONT 4HE1-TCS ENG<RDS> PTO TRANSMISSION SIDE<V66> FRAME STRAIGHT TYPE<7KJ> L=3340	8-97329-045-2	01	1	0508-		●
24	CABLE; PTO CONT PTO TRANSMISSION SIDE<V66> EXC. FRAME STRAIGHT TYPE<7KJ> L=3209	8-97352-391-1	01	1	0508-	●
24	CABLE; PTO CONT 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> FRAME STRAIGHT TYPE<7KJ> L=3341	8-97367-545-1	01	1	0510-		●
27	BUSHING; LEVER,PTO PTO TRANSMISSION SIDE<V66>	8-94367-367-0	01	1	0508-	●
46	BRACKET; PTO,TRANS SIDE 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66>	8-97264-954-1	01	1	0508-	●
64	PIN; SNAP,CONT CABLE JOINT PTO TRANSMISSION SIDE<V66> L=27.7	8-94111-137-0	01	1	0508-	●
142	CLEVIS; CONT BOX 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66>	8-97327-588-0	01	1	0508-	●
190	BOSS; LEVER,PTO PTO TRANSMISSION SIDE<V66>	8-94366-842-2	01	1	0508-	●
191	NUT; BOSS PTO TRANSMISSION SIDE<V66> M6	9-09110-506-0	02	1	0508-0512	●
191	NUT; BOSS PTO TRANSMISSION SIDE<V66> M6	0-91110-506-0	02	1	0601-	●
193	NUT 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66> M12	9-99111-412-0	01	1	0508-0512	●
193	NUT 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66> M12	0-91111-512-0	01	1	0601-	●

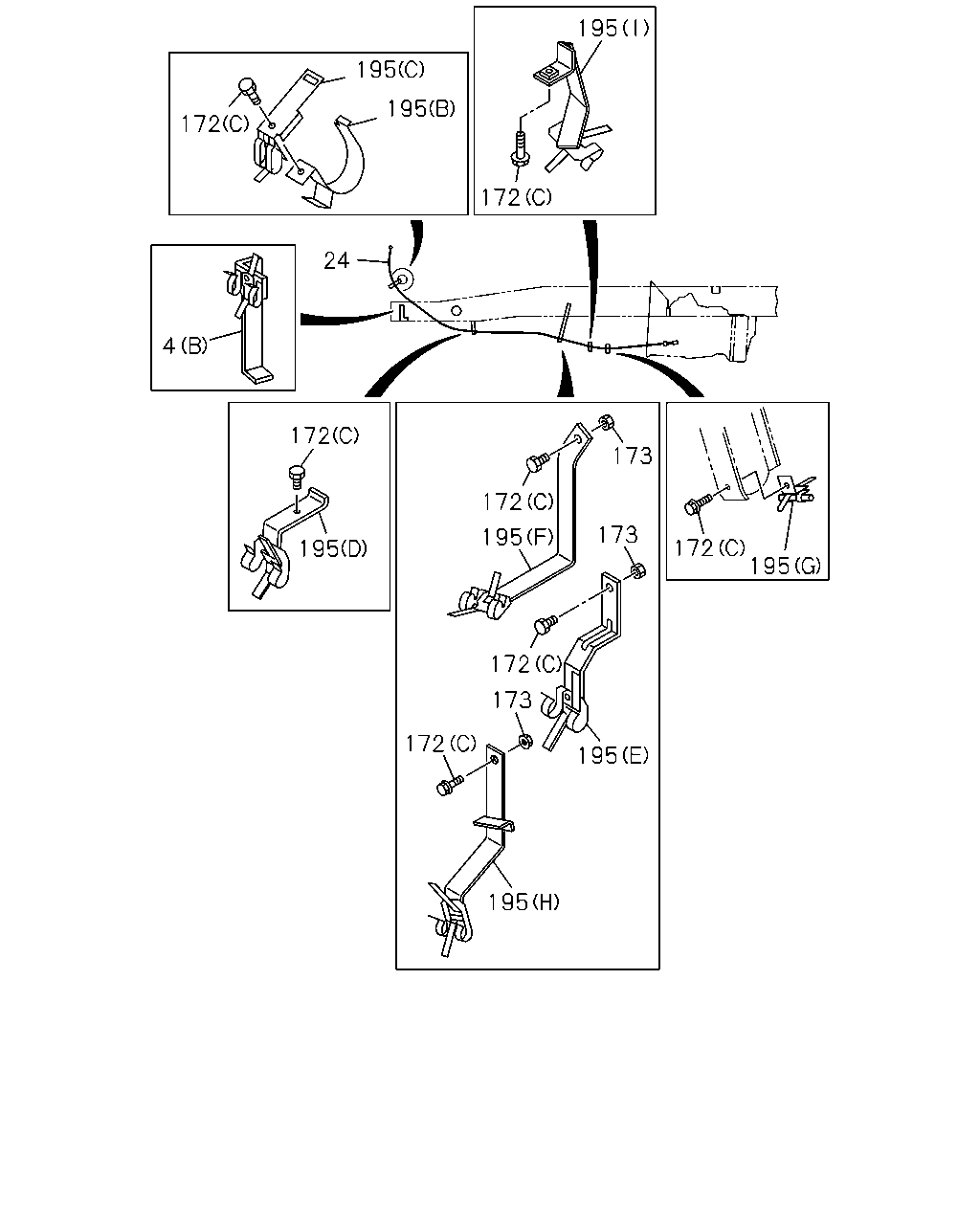

195 195 195 172 172 24 4 172 173 172 173 195 172 195 195 172 173 172 195 195

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	BRACKET; PTO CONT 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66> (A)	8-97310-740-0	01	1	0508-	●
4	BRACKET; PTO CONT PTO TRANSMISSION SIDE<V66> EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97114-534-1	01	1	0508-	●	●
24	CABLE; PTO CONT 4HE1-TCS ENG<RDS> PTO TRANSMISSION SIDE<V66> FRAME STRAIGHT TYPE<7KJ> L=3340	8-97329-045-2	01	1	0508-		●
24	CABLE; PTO CONT PTO TRANSMISSION SIDE<V66> EXC. FRAME STRAIGHT TYPE<7KJ> L=3209	8-97352-391-1	01	1	0508-	●
24	CABLE; PTO CONT 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> FRAME STRAIGHT TYPE<7KJ> L=3341	8-97367-545-1	01	1	0510-		●
172	BOLT; BRKT PTO TRANSMISSION SIDE<V66> FRAME STRAIGHT TYPE<7KJ> (C) M10X30 FLANGE	0-28681-030-0	01	1	0508-0512		●
172	BOLT; BRKT PTO TRANSMISSION SIDE<V66> FRAME STRAIGHT TYPE<7KJ> (C) M10X30 FLANGE THA	0-28651-030-0	01	1	0601-		●
172	BOLT; BRKT PTO TRANSMISSION SIDE<V66> (A) M8X16 W/LK WASHER	0-50040-816-0	02	1	0508-0512	●	●
172	BOLT; BRKT PTO TRANSMISSION SIDE<V66> (A) M8X16 W/LK WASHER	0-50540-816-0	02	1	0601-	●	●
172	BOLT; BRKT PTO TRANSMISSION SIDE<V66> (B) M6X12 W/LK&PL WASHER	9-03920-612-0	01	1	0508-0604	●	●
172	BOLT; BRKT PTO TRANSMISSION SIDE<V66> (B) M6X12 W/LK&PL WASHER	0-36230-612-0	01	1	0605-	●	●
172	BOLT; BRKT PTO TRANSMISSION SIDE<V66> FRAME STRAIGHT TYPE<7KJ> (C) M8X25 FLANGE	0-28680-825-0	02	1	0508-0512	●	●
172	BOLT; BRKT PTO TRANSMISSION SIDE<V66> FRAME STRAIGHT TYPE<7KJ> (C) M8X25 FLANGE THA	0-28650-825-0	02	1	0601-	●	●
172	BOLT; BRKT PTO TRANSMISSION SIDE<V66> EXC. FRAME STRAIGHT TYPE<7KJ> (C) M8X25 FLANGE	0-28680-825-0	04	1	0508-0512	●	●
172	BOLT; BRKT PTO TRANSMISSION SIDE<V66> EXC. FRAME STRAIGHT TYPE<7KJ> (C) M8X25 FLANGE THA	0-28650-825-0	04	1	0601-	●	●
172	BOLT; BRKT 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> (A) M8X16 FLANGE	0-28080-816-0	01	1	0510-0512		●
172	BOLT; BRKT 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> (A) M8X16 FLANGE THA	0-28050-816-0	01	1	0601-		●
173	NUT; BRKT 4HE1-TCS ENG<RDS> PTO TRANSMISSION SIDE<V66> FRAME STRAIGHT TYPE<7KJ> M10 FLANGE	0-91150-110-0	01	1	0508-0602		●
173	NUT; BRKT 4HE1-TCS ENG<RDS> PTO TRANSMISSION SIDE<V66> FRAME STRAIGHT TYPE<7KJ> M10 FLANGE THA	0-91180-110-0	01	1	0603-		●
173	NUT; BRKT 4HE1-TCS ENG<RDS> PTO TRANSMISSION SIDE<V66> FRAME STRAIGHT TYPE<7KJ> M8 FLANGE	0-91150-108-0	01	1	0508-0602		●
173	NUT; BRKT 4HE1-TCS ENG<RDS> PTO TRANSMISSION SIDE<V66> FRAME STRAIGHT TYPE<7KJ> M8 FLANGE THA	0-91180-108-0	01	1	0603-		●
173	NUT; BRKT PTO TRANSMISSION SIDE<V66> EXC. FRAME STRAIGHT TYPE<7KJ> M8 FLANGE	0-91150-108-0	02	1	0508-0602	●	●
173	NUT; BRKT PTO TRANSMISSION SIDE<V66> EXC. FRAME STRAIGHT TYPE<7KJ> M8 FLANGE THA	0-91180-108-0	02	1	0603-	●	●
195	BRACKET; CONT CABLE 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> PTO TRANSMISSION SIDE<V66> (B)	8-97079-557-3	01	1	0508-	●	●
195	BRACKET; CONT CABLE 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> PTO TRANSMISSION SIDE<V66> (C)	8-97079-558-3	01	1	0508-	●	●
195	BRACKET; CONT CABLE 4HE1-TCS ENG<RDS> PTO TRANSMISSION SIDE<V66> FRAME STRAIGHT TYPE<7KJ> (E)	8-97229-563-0	01	1	0508-		●
195	BRACKET; CONT CABLE 4HE1-TCS ENG<RDS> PTO TRANSMISSION SIDE<V66> FRAME STRAIGHT TYPE<7KJ> (F)	8-97231-502-0	01	1	0508-		●
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE<V66> (A)	8-97088-407-1	01	1	0508-	●	●
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE<V66> EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-97079-559-2	01	1	0508-	●	●
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE<V66> EXC. FRAME STRAIGHT TYPE<7KJ> (G)	8-97079-560-3	01	1	0508-	●	●
195	BRACKET; CONT CABLE 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> (H)	8-97230-055-1	01	1	0510-		●
195	BRACKET; CONT CABLE 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> (B)	8-97248-931-0	01	1	0510-		●
195	BRACKET; CONT CABLE 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> (C)	8-97248-932-1	01	1	0510-		●
195	BRACKET; CONT CABLE 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> (I)	8-97368-059-0	01	1	0510-		●
195	BRACKET; CONT CABLE 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> (D)	8-97376-750-0	01	1	0510-		●

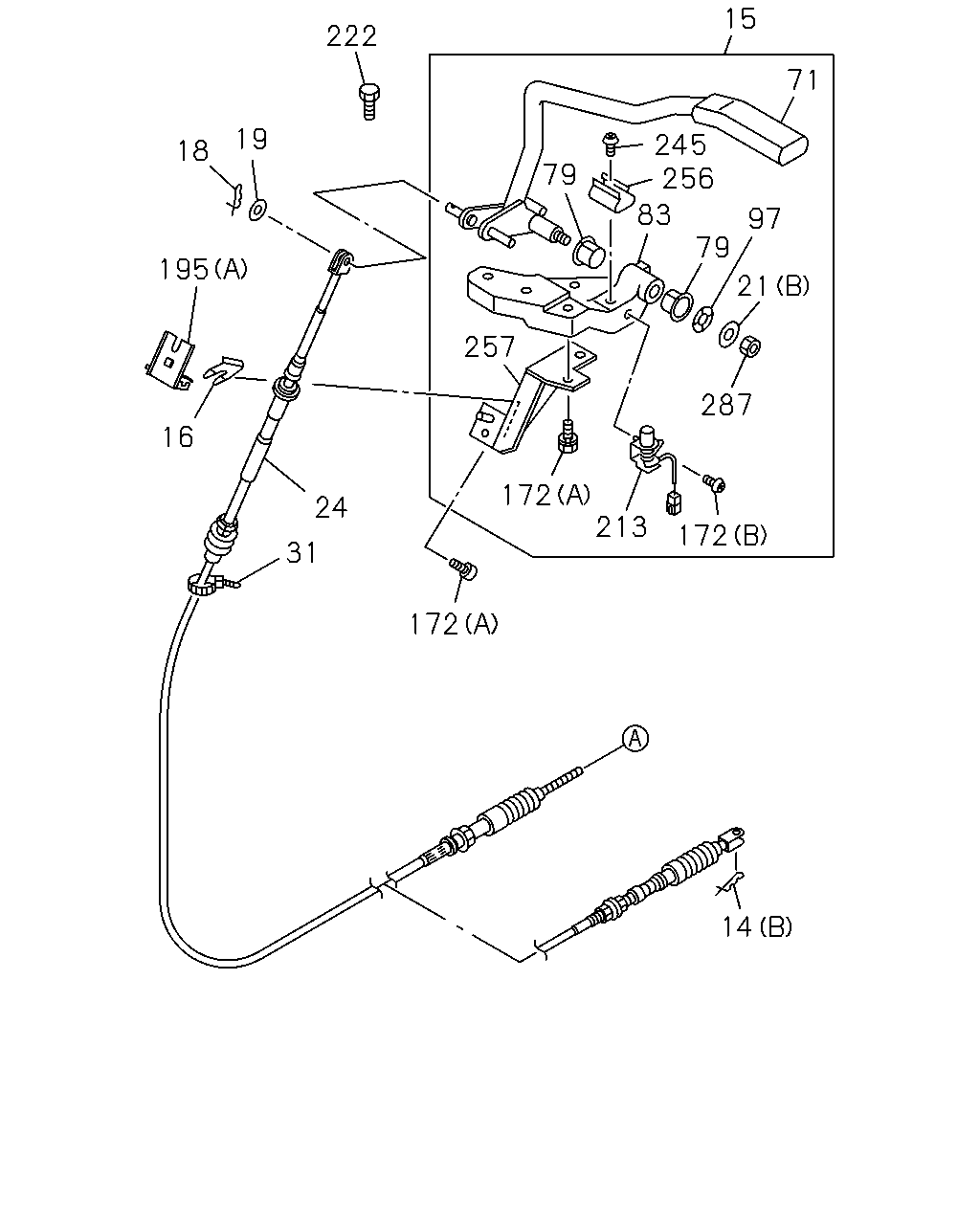

15 222 71 19 245 256 18 79 83 97 79 195 21 257 287 16 172 213 24 172 31 172 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
14	PIN; SPLIT,YOKE 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66> (A)	1-09987-158-1	01	1	0508-0805	●
14	PIN; SPLIT,YOKE 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66> (A)	8-97581-216-0	01	1	0806-	●
14	PIN; SPLIT,YOKE PTO TRANSMISSION SIDE<V66> FRAME STRAIGHT TYPE<7KJ> (B) OD=2.8 L=18	9-08113-018-0	01	1	0508-0606		●
14	PIN; SPLIT,YOKE PTO TRANSMISSION SIDE<V66> FRAME STRAIGHT TYPE<7KJ> (B) OD=2.8 L=18	0-81123-018-0	01	1	0607-		●
15	LEVER ASM; PTO CONT PTO TRANSMISSION SIDE<V66>	8-97177-805-3	01	1	0508-	●	●
16	CLIP; CABLE,PTO PTO TRANSMISSION SIDE<V66>	8-94152-900-0	01	1	0508-	●	●
18	PIN; SNAP,PTO CABLE PTO TRANSMISSION SIDE<V66> L=27.7	8-94111-137-0	01	1	0508-	●	●
19	WASHER; PL,PTO CABLE PTO TRANSMISSION SIDE<V66> ID=8.4 THA	9-09160-508-0	01	1	0508-0605	●	●
19	WASHER; PL,PTO CABLE PTO TRANSMISSION SIDE<V66> ID=8.4 OD=16 THA	0-91610-508-0	01	1	0606-	●	●
21	WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE<V66> (A) ID=8.4 OD=22	9-09164-708-0	01	1	0508-0605	●
21	WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE<V66> (A) ID=8.4 OD=22 THA	0-91614-708-0	01	1	0606-	●
21	WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE<V66> (B) ID=8.4 OD=22	9-09160-708-0	01	1	0508-0605	●	●
21	WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE<V66> (B) ID=8.4 OD=22	0-91610-708-0	01	1	0606-	●	●
24	CABLE; PTO CONT 4HE1-TCS ENG<RDS> PTO TRANSMISSION SIDE<V66> FRAME STRAIGHT TYPE<7KJ> L=3340	8-97329-045-2	01	1	0508-		●
24	CABLE; PTO CONT PTO TRANSMISSION SIDE<V66> EXC. FRAME STRAIGHT TYPE<7KJ> L=3209	8-97352-391-1	01	1	0508-	●
24	CABLE; PTO CONT 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> FRAME STRAIGHT TYPE<7KJ> L=3341	8-97367-545-1	01	1	0510-		●
31	CLIP; BAND,CABLE PTO TRANSMISSION SIDE<V66> L=250	5-09707-030-1	01	1	0508-	●	●
71	LEVER; PTO CONT PTO TRANSMISSION SIDE<V66>	8-97177-806-1	01	1	0508-	●	●
79	BUSHING; CONT LEVER PTO TRANSMISSION SIDE<V66>	8-94238-596-0	02	1	0508-	●	●
83	BRACKET; CONT LEVER PTO TRANSMISSION SIDE<V66>	8-97117-352-0	01	1	0508-	●	●
97	WASHER; LK PTO TRANSMISSION SIDE<V66> ID=15 OD=25	8-11053-111-0	01	1	0508-	●	●
172	BOLT; BRKT PTO TRANSMISSION SIDE<V66> FRAME STRAIGHT TYPE<7KJ> (C) M10X30 FLANGE	0-28681-030-0	01	1	0508-0512		●
172	BOLT; BRKT PTO TRANSMISSION SIDE<V66> FRAME STRAIGHT TYPE<7KJ> (C) M10X30 FLANGE THA	0-28651-030-0	01	1	0601-		●
172	BOLT; BRKT PTO TRANSMISSION SIDE<V66> (A) M8X16 W/LK WASHER	0-50040-816-0	02	1	0508-0512	●	●
172	BOLT; BRKT PTO TRANSMISSION SIDE<V66> (A) M8X16 W/LK WASHER	0-50540-816-0	02	1	0601-	●	●
172	BOLT; BRKT PTO TRANSMISSION SIDE<V66> (B) M6X12 W/LK&PL WASHER	9-03920-612-0	01	1	0508-0604	●	●
172	BOLT; BRKT PTO TRANSMISSION SIDE<V66> (B) M6X12 W/LK&PL WASHER	0-36230-612-0	01	1	0605-	●	●
172	BOLT; BRKT PTO TRANSMISSION SIDE<V66> FRAME STRAIGHT TYPE<7KJ> (C) M8X25 FLANGE	0-28680-825-0	02	1	0508-0512	●	●
172	BOLT; BRKT PTO TRANSMISSION SIDE<V66> FRAME STRAIGHT TYPE<7KJ> (C) M8X25 FLANGE THA	0-28650-825-0	02	1	0601-	●	●
172	BOLT; BRKT PTO TRANSMISSION SIDE<V66> EXC. FRAME STRAIGHT TYPE<7KJ> (C) M8X25 FLANGE	0-28680-825-0	04	1	0508-0512	●	●
172	BOLT; BRKT PTO TRANSMISSION SIDE<V66> EXC. FRAME STRAIGHT TYPE<7KJ> (C) M8X25 FLANGE THA	0-28650-825-0	04	1	0601-	●	●
172	BOLT; BRKT 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> (A) M8X16 FLANGE	0-28080-816-0	01	1	0510-0512		●
172	BOLT; BRKT 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> (A) M8X16 FLANGE THA	0-28050-816-0	01	1	0601-		●
195	BRACKET; CONT CABLE 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> PTO TRANSMISSION SIDE<V66> (B)	8-97079-557-3	01	1	0508-	●	●
195	BRACKET; CONT CABLE 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> PTO TRANSMISSION SIDE<V66> (C)	8-97079-558-3	01	1	0508-	●	●
195	BRACKET; CONT CABLE 4HE1-TCS ENG<RDS> PTO TRANSMISSION SIDE<V66> FRAME STRAIGHT TYPE<7KJ> (E)	8-97229-563-0	01	1	0508-		●
195	BRACKET; CONT CABLE 4HE1-TCS ENG<RDS> PTO TRANSMISSION SIDE<V66> FRAME STRAIGHT TYPE<7KJ> (F)	8-97231-502-0	01	1	0508-		●
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE<V66> (A)	8-97088-407-1	01	1	0508-	●	●
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE<V66> EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-97079-559-2	01	1	0508-	●	●
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE<V66> EXC. FRAME STRAIGHT TYPE<7KJ> (G)	8-97079-560-3	01	1	0508-	●	●
195	BRACKET; CONT CABLE 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> (H)	8-97230-055-1	01	1	0510-		●
195	BRACKET; CONT CABLE 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> (B)	8-97248-931-0	01	1	0510-		●
195	BRACKET; CONT CABLE 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> (C)	8-97248-932-1	01	1	0510-		●
195	BRACKET; CONT CABLE 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> (I)	8-97368-059-0	01	1	0510-		●
195	BRACKET; CONT CABLE 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> (D)	8-97376-750-0	01	1	0510-		●
213	SWITCH; PTO CONT PTO TRANSMISSION SIDE<V66>	8-97370-568-0	01	1	0508-	●	●
222	BOLT; LEVER PTO TRANSMISSION SIDE<V66> M8X14 FLANGE	0-28080-814-0	04	1	0508-	●	●
245	SCREW; COVER,CONT LEVER BRKT PTO TRANSMISSION SIDE<V66> M4X10 W/LK&PL WASHER	9-03920-410-0	01	1	0508-0604	●	●
245	SCREW; COVER,CONT LEVER BRKT PTO TRANSMISSION SIDE<V66> M4X10 W/LK&PL WASHER THA	0-36230-410-0	01	1	0605-	●	●
256	PLATE; LOCK PTO TRANSMISSION SIDE<V66>	8-97117-351-0	01	1	0508-	●	●
257	REINFORCEMENT; PTO PTO TRANSMISSION SIDE<V66>	8-97088-406-3	01	1	0508-	●	●
287	NUT; SWITCH,CONT LEVER PTO TRANSMISSION SIDE<V66> M8 W/LK WASHER	8-94279-050-0	01	1	0508-	●	●
