Sayfa 2-36 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51041 - NPR/NQR(THAILAND) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-36 - MANUAL TRANSMISSION CONT LINK AND CABLE ▶

2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#43104) — 122 parça

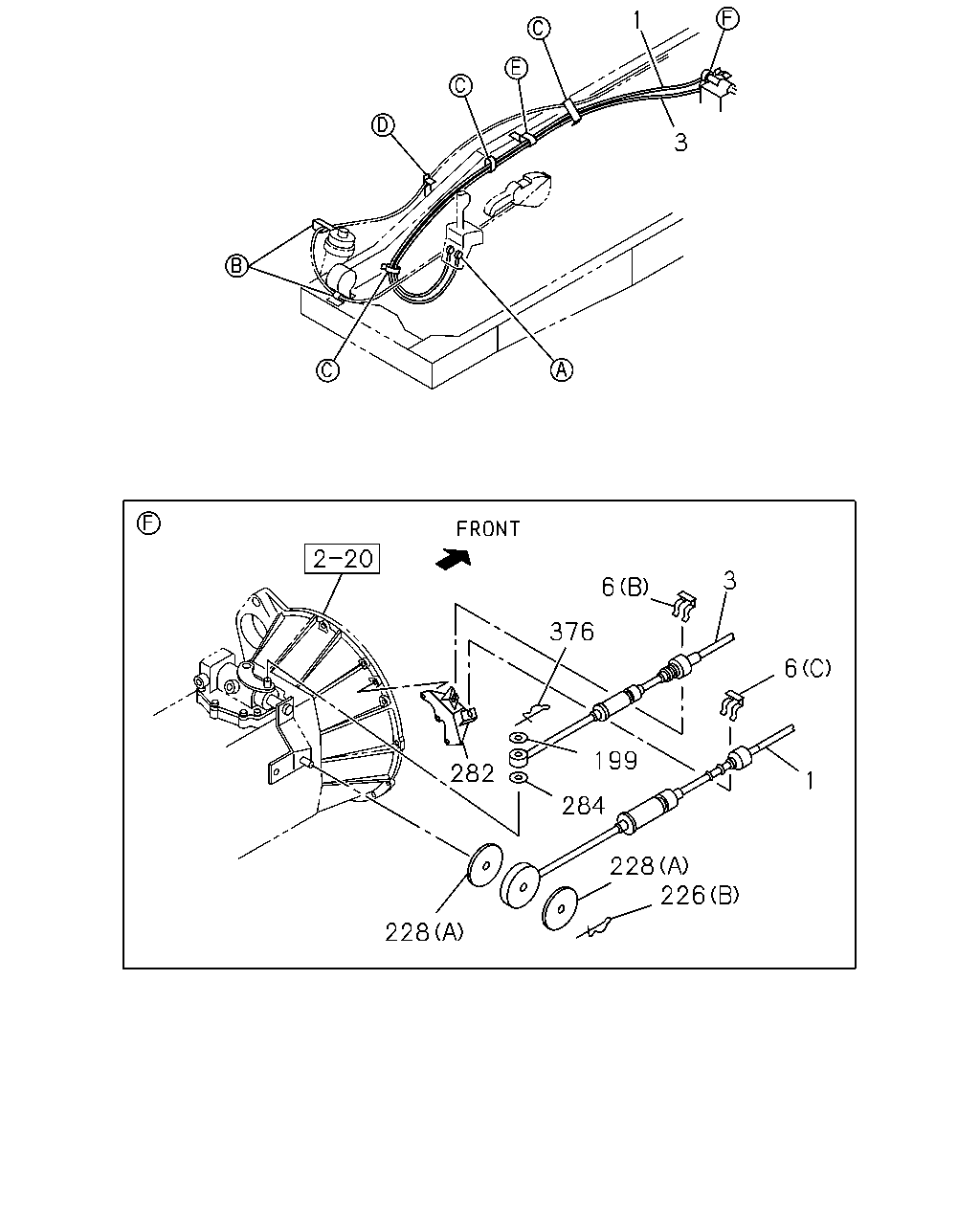

1 3 3 6 376 6 199 282 1 284 228 226 228

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CABLE; SHIFT,TRANS CONT 4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> L=2776	8-97350-417-1	01	1	0508-	●
1	CABLE; SHIFT,TRANS CONT 4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> L=3070	8-97329-417-1	01	1	0508-0509		●
1	CABLE; SHIFT,TRANS CONT 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> FRAME STRAIGHT TYPE<7KJ> L=3070	8-97329-417-1	01	1	0510-0911		●
1	CABLE; SHIFT,TRANS CONT 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> FRAME STRAIGHT TYPE<7KJ>	8-98146-836-0	01	1	0912-		●
3	CABLE; SELECT,TRANS CONT 4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> L=2819	8-97350-418-0	01	1	0508-	●
3	CABLE; SELECT,TRANS CONT 4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> L=3151	8-98009-288-1	01	1	0508-0509		●
3	CABLE; SELECT,TRANS CONT 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> FRAME STRAIGHT TYPE<7KJ> L=3151	8-98009-288-1	01	1	0510-		●
6	CLIP; CABLE (C) ID=22.2	1-09701-209-1	01	1	0508-	●	●
6	CLIP; CABLE (A)	8-97011-448-0	02	1	0508-	●	●
6	CLIP; CABLE (B) ID=19.2	8-97211-011-0	01	1	0508-	●	●
6	CLIP; CABLE 4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> (E) ID=33X16.5 L=50	5-09700-341-0	01	1	0508-	●
6	CLIP; CABLE 4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> (D)	9-09917-171-0	01	1	0508-	●
6	CLIP; CABLE 4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> (G)	8-97036-333-1	01	1	0508-0509		●
6	CLIP; CABLE 4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> (G)	8-97036-333-1	01	1	0508-0509		●
6	CLIP; CABLE 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> FRAME STRAIGHT TYPE<7KJ> (G)	8-97036-333-1	01	1	0510-		●
6	CLIP; CABLE 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> FRAME STRAIGHT TYPE<7KJ> (G)	8-97036-333-1	01	1	0510-		●
6	CLIP; CABLE 4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> (F)	8-97036-332-1	01	1	0508-0509		●
6	CLIP; CABLE 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> FRAME STRAIGHT TYPE<7KJ> (F)	8-97036-332-1	01	1	0510-		●
6	CLIP; CABLE 4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> (H)	8-97147-985-0	01	1	0508-0509		●
6	CLIP; CABLE 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> FRAME STRAIGHT TYPE<7KJ> (H)	8-97147-985-0	01	1	0510-		●
199	WASHER; PL,SELECT ID=8.4 THA	9-09160-508-0	01	1	0508-0605	●	●
199	WASHER; PL,SELECT ID=8.4 OD=16 THA	0-91610-508-0	01	1	0606-	●	●
226	PIN; SHIFT CABLE (A) L=27.7	8-94111-137-0	01	1	0508-	●	●
226	PIN; SHIFT CABLE (B) L=23	8-94170-378-0	01	1	0508-	●	●
228	WASHER; PL,SHIFT CABLE (A) ID=8.2 OD=40	8-97182-975-0	02	1	0508-	●	●
228	WASHER; PL,SHIFT CABLE (B) ID=8.4	9-09164-508-0	01	1	0508-0605	●	●
228	WASHER; PL,SHIFT CABLE (B) ID=8.4 OD=16	0-91614-508-0	01	1	0606-	●	●
282	BRACKET; TRANS SIDE 4HG1-T ENG<RDP>	8-97311-441-1	01	1	0508-	●
282	BRACKET; TRANS SIDE 4HE1-TCS ENG<RDS>	8-97311-442-1	01	1	0508-0509		●
282	BRACKET; TRANS SIDE 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS>	8-97311-442-1	01	1	0510-		●
284	WASHER; WAVE,SELECT CABLE,CAB ID=8.4 OD=14	5-09550-002-0	01	1	0508-	●	●
376	PIN; SNAP,SELECT CABLE L=23	8-94170-378-0	01	1	0508-	●	●
536	DAMPER; CABLE 4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> THA	8-98097-681-0	01	1	0508-	●
536	DAMPER; CABLE 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> FRAME STRAIGHT TYPE<7KJ> THA	8-98097-681-0	01	1	0508-		●

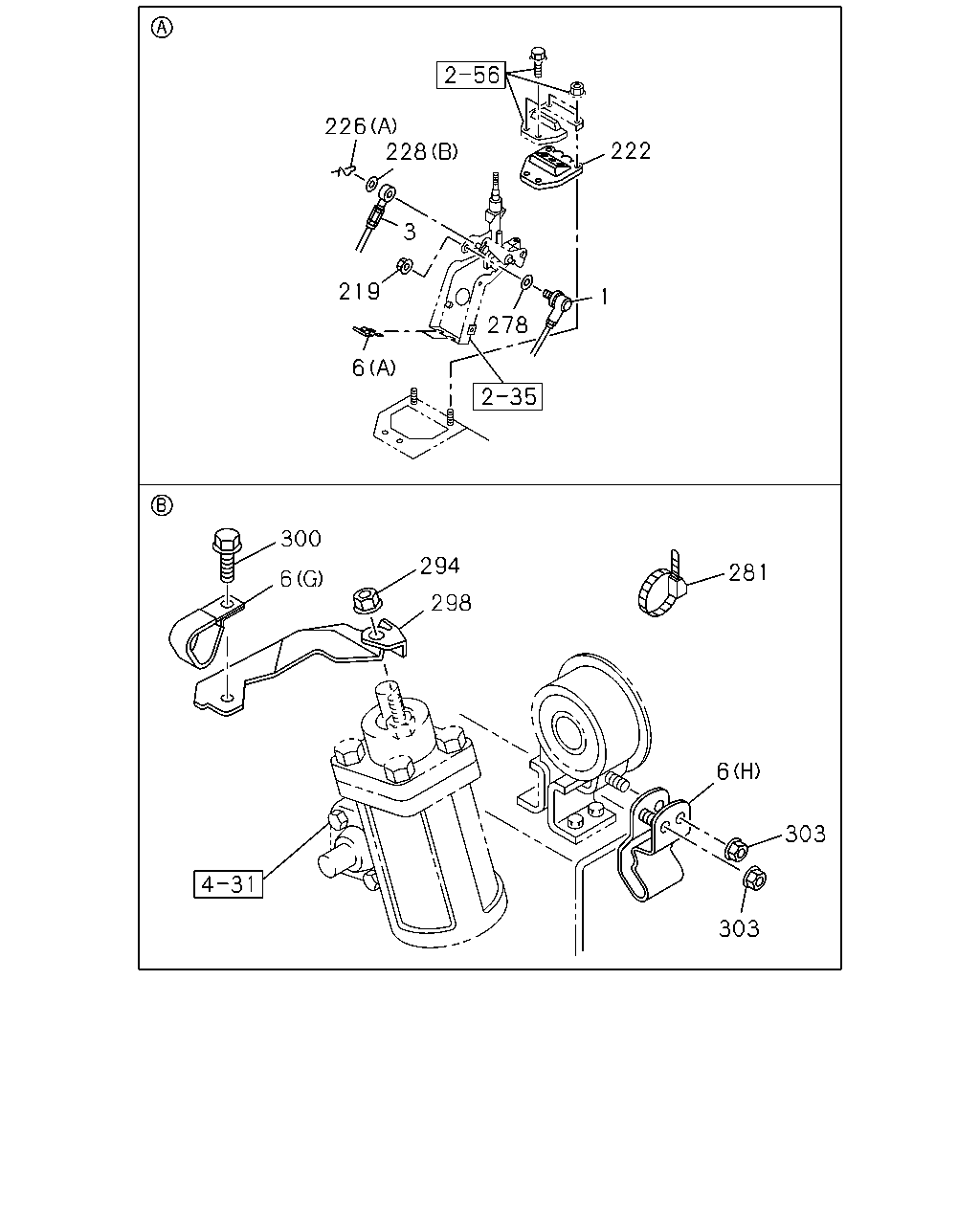

226 228 222 3 219 1 278 6 300 294 281 6 298 6 303 303

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CABLE; SHIFT,TRANS CONT 4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> L=2776	8-97350-417-1	01	1	0508-	●
1	CABLE; SHIFT,TRANS CONT 4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> L=3070	8-97329-417-1	01	1	0508-0509		●
1	CABLE; SHIFT,TRANS CONT 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> FRAME STRAIGHT TYPE<7KJ> L=3070	8-97329-417-1	01	1	0510-0911		●
1	CABLE; SHIFT,TRANS CONT 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> FRAME STRAIGHT TYPE<7KJ>	8-98146-836-0	01	1	0912-		●
3	CABLE; SELECT,TRANS CONT 4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> L=2819	8-97350-418-0	01	1	0508-	●
3	CABLE; SELECT,TRANS CONT 4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> L=3151	8-98009-288-1	01	1	0508-0509		●
3	CABLE; SELECT,TRANS CONT 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> FRAME STRAIGHT TYPE<7KJ> L=3151	8-98009-288-1	01	1	0510-		●
6	CLIP; CABLE (C) ID=22.2	1-09701-209-1	01	1	0508-	●	●
6	CLIP; CABLE (A)	8-97011-448-0	02	1	0508-	●	●
6	CLIP; CABLE (B) ID=19.2	8-97211-011-0	01	1	0508-	●	●
6	CLIP; CABLE 4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> (E) ID=33X16.5 L=50	5-09700-341-0	01	1	0508-	●
6	CLIP; CABLE 4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> (D)	9-09917-171-0	01	1	0508-	●
6	CLIP; CABLE 4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> (G)	8-97036-333-1	01	1	0508-0509		●
6	CLIP; CABLE 4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> (G)	8-97036-333-1	01	1	0508-0509		●
6	CLIP; CABLE 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> FRAME STRAIGHT TYPE<7KJ> (G)	8-97036-333-1	01	1	0510-		●
6	CLIP; CABLE 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> FRAME STRAIGHT TYPE<7KJ> (G)	8-97036-333-1	01	1	0510-		●
6	CLIP; CABLE 4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> (F)	8-97036-332-1	01	1	0508-0509		●
6	CLIP; CABLE 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> FRAME STRAIGHT TYPE<7KJ> (F)	8-97036-332-1	01	1	0510-		●
6	CLIP; CABLE 4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> (H)	8-97147-985-0	01	1	0508-0509		●
6	CLIP; CABLE 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> FRAME STRAIGHT TYPE<7KJ> (H)	8-97147-985-0	01	1	0510-		●
219	NUT; FLANGE,SHAFT CABLE M8 T=8.0	8-94363-045-0	01	1	0508-	●	●
222	GROMMET; CABLE	8-97065-212-1	01	1	0508-	●	●
226	PIN; SHIFT CABLE (A) L=27.7	8-94111-137-0	01	1	0508-	●	●
226	PIN; SHIFT CABLE (B) L=23	8-94170-378-0	01	1	0508-	●	●
228	WASHER; PL,SHIFT CABLE (A) ID=8.2 OD=40	8-97182-975-0	02	1	0508-	●	●
228	WASHER; PL,SHIFT CABLE (B) ID=8.4	9-09164-508-0	01	1	0508-0605	●	●
228	WASHER; PL,SHIFT CABLE (B) ID=8.4 OD=16	0-91614-508-0	01	1	0606-	●	●
278	WASHER; LK,SHIFT WIRE ID=8.4 TOOTH LK INT	9-09151-208-0	01	1	0508-0604	●	●
278	WASHER; LK,SHIFT WIRE ID=8.4 TOOTH LK INT	0-91541-208-0	01	1	0605-	●	●
281	CLIP; BAND L=250	5-09707-030-1	01	1	0508-	●	●
294	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0508-	●	●
298	BRACKET 4HE1-TCS ENG<RDS> POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ>	8-97288-446-0	01	1	0508-0509		●
298	BRACKET 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ>	8-97288-446-0	01	1	0510-		●
300	BOLT; CLIP POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE	0-28680-825-0	01	1	0508-0611	●	●
300	BOLT; CLIP EXC. FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE	0-28680-825-0	01	1	0508-0611	●	●
300	BOLT; CLIP POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE THA	0-28650-825-0	01	1	0612-	●	●
300	BOLT; CLIP EXC. FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE THA	0-28650-825-0	01	1	0612-	●	●
300	BOLT; CLIP FRAME STRAIGHT TYPE<7KJ> EXC. POWER STEERING<N40> M8X16 FLANGE	0-28080-816-0	01	1	0508-0611	●	●
300	BOLT; CLIP FRAME STRAIGHT TYPE<7KJ> EXC. POWER STEERING<N40> M8X16 FLANGE THA	0-28050-816-0	01	1	0612-	●	●
300	BOLT; CLIP 4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE	0-28680-825-0	02	1	0508-0509		●
300	BOLT; CLIP 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE	0-28680-825-0	02	1	0510-0611		●
300	BOLT; CLIP 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE THA	0-28650-825-0	02	1	0612-		●
303	NUT; CLIP 4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> M8 FLANGE	0-91150-108-0	01	1	0508-	●
303	NUT; CLIP 4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> M8 FLANGE	0-91150-108-0	03	1	0508-0509		●
303	NUT; CLIP 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> FRAME STRAIGHT TYPE<7KJ> M8 FLANGE	0-91150-108-0	03	1	0510-		●
536	DAMPER; CABLE 4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> THA	8-98097-681-0	01	1	0508-	●
536	DAMPER; CABLE 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> FRAME STRAIGHT TYPE<7KJ> THA	8-98097-681-0	01	1	0508-		●

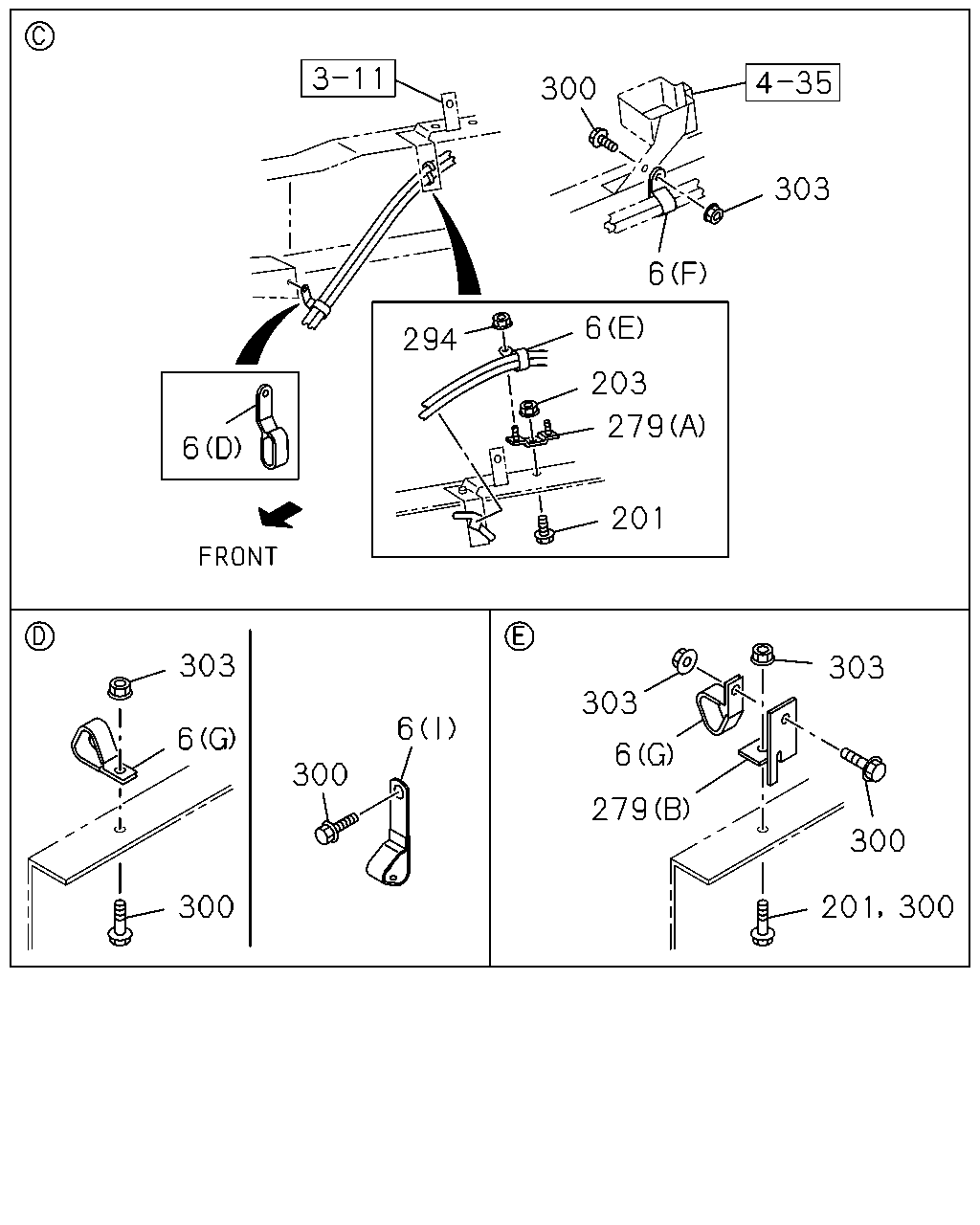

300 303 6 6 294 203 279 6 201 303 303 303 6 6 6 300 279 300 300 201 300

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	CLIP; CABLE (C) ID=22.2	1-09701-209-1	01	1	0508-	●	●
6	CLIP; CABLE (A)	8-97011-448-0	02	1	0508-	●	●
6	CLIP; CABLE (B) ID=19.2	8-97211-011-0	01	1	0508-	●	●
6	CLIP; CABLE 4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> (E) ID=33X16.5 L=50	5-09700-341-0	01	1	0508-	●
6	CLIP; CABLE 4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> (D)	9-09917-171-0	01	1	0508-	●
6	CLIP; CABLE 4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> (G)	8-97036-333-1	01	1	0508-0509		●
6	CLIP; CABLE 4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> (G)	8-97036-333-1	01	1	0508-0509		●
6	CLIP; CABLE 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> FRAME STRAIGHT TYPE<7KJ> (G)	8-97036-333-1	01	1	0510-		●
6	CLIP; CABLE 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> FRAME STRAIGHT TYPE<7KJ> (G)	8-97036-333-1	01	1	0510-		●
6	CLIP; CABLE 4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> (F)	8-97036-332-1	01	1	0508-0509		●
6	CLIP; CABLE 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> FRAME STRAIGHT TYPE<7KJ> (F)	8-97036-332-1	01	1	0510-		●
6	CLIP; CABLE 4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> (H)	8-97147-985-0	01	1	0508-0509		●
6	CLIP; CABLE 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> FRAME STRAIGHT TYPE<7KJ> (H)	8-97147-985-0	01	1	0510-		●
201	BOLT; BRKT 4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE	0-28680-825-0	01	1	0508-0509	●
201	BOLT; BRKT 4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE	0-28680-825-0	01	1	0508-0509		●
201	BOLT; BRKT 4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE	0-28680-825-0	01	1	0510-0611	●
201	BOLT; BRKT 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE	0-28680-825-0	01	1	0510-0611		●
201	BOLT; BRKT 4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE THA	0-28650-825-0	01	1	0612-	●
201	BOLT; BRKT 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE THA	0-28650-825-0	01	1	0612-		●
203	NUT; BRKT FIX 4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> M8 FLANGE	0-91150-108-0	01	1	0508-0509	●
203	NUT; BRKT FIX 4HE1-TCS ENG<RDS> POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ> M8 FLANGE	0-91150-108-0	01	1	0508-0509	●
203	NUT; BRKT FIX 4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> M8 FLANGE	0-91150-108-0	01	1	0510-	●
203	NUT; BRKT FIX 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ> M8 FLANGE	0-91150-108-0	01	1	0510-	●
279	BRACKET; CABLE TO FRAME 4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97028-496-1	01	1	0508-	●
279	BRACKET; CABLE TO FRAME 4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> (B)	8-97171-065-0	01	1	0508-0509		●
279	BRACKET; CABLE TO FRAME 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> FRAME STRAIGHT TYPE<7KJ> (B)	8-97171-065-0	01	1	0510-		●
294	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0508-	●	●
300	BOLT; CLIP POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE	0-28680-825-0	01	1	0508-0611	●	●
300	BOLT; CLIP EXC. FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE	0-28680-825-0	01	1	0508-0611	●	●
300	BOLT; CLIP POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE THA	0-28650-825-0	01	1	0612-	●	●
300	BOLT; CLIP EXC. FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE THA	0-28650-825-0	01	1	0612-	●	●
300	BOLT; CLIP FRAME STRAIGHT TYPE<7KJ> EXC. POWER STEERING<N40> M8X16 FLANGE	0-28080-816-0	01	1	0508-0611	●	●
300	BOLT; CLIP FRAME STRAIGHT TYPE<7KJ> EXC. POWER STEERING<N40> M8X16 FLANGE THA	0-28050-816-0	01	1	0612-	●	●
300	BOLT; CLIP 4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE	0-28680-825-0	02	1	0508-0509		●
300	BOLT; CLIP 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE	0-28680-825-0	02	1	0510-0611		●
300	BOLT; CLIP 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE THA	0-28650-825-0	02	1	0612-		●
303	NUT; CLIP 4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> M8 FLANGE	0-91150-108-0	01	1	0508-	●
303	NUT; CLIP 4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> M8 FLANGE	0-91150-108-0	03	1	0508-0509		●
303	NUT; CLIP 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> FRAME STRAIGHT TYPE<7KJ> M8 FLANGE	0-91150-108-0	03	1	0510-		●
536	DAMPER; CABLE 4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> THA	8-98097-681-0	01	1	0508-	●
536	DAMPER; CABLE 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> FRAME STRAIGHT TYPE<7KJ> THA	8-98097-681-0	01	1	0508-		●
