Sayfa 2-26 - Isuzu EPC

2-26 — MANUAL TRANSMISSION GEAR (#43101) — 384 parça

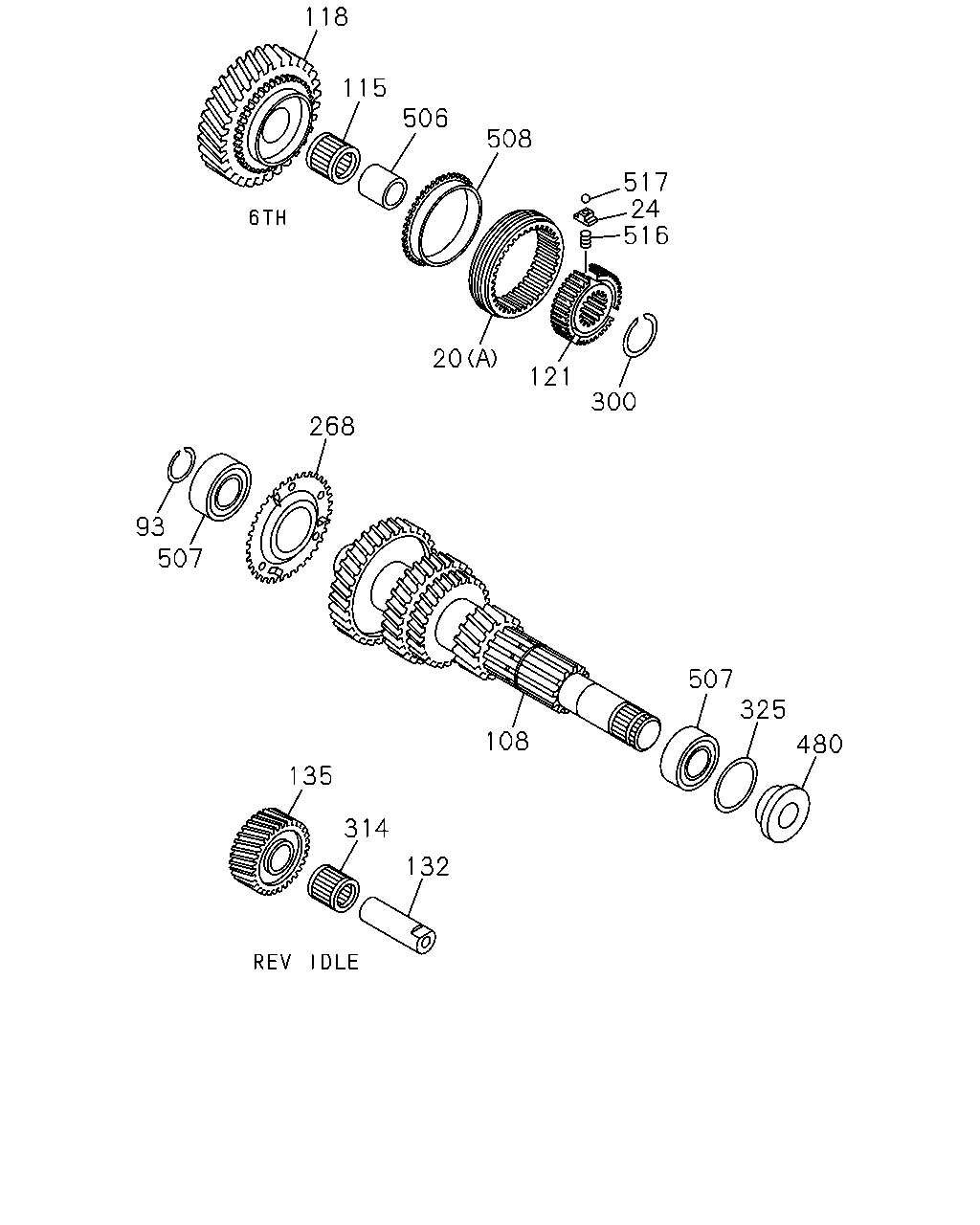

118 115 506 508 517 24 516 20 121 300 268 93 507 507 325 108 480 135 314 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
20	SLEEVE 4HE1-TCS ENG<RDS> (B) Z=54	8-97241-295-2	02	1	0508-0509	●
20	SLEEVE 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> (B) Z=54	8-97241-295-2	02	1	0510-	●
20	SLEEVE 4HE1-TCS ENG<RDS> (A) Z=45	8-97241-296-1	02	1	0508-0509	●
20	SLEEVE 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> (A) Z=45	8-97241-296-1	02	1	0510-1311	●
20	SLEEVE 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> (A) Z=45	8-98258-279-0	02	1	1312-	●
24	BLOCK; INDEX,SYN 4HG1-T ENG<RDP>	8-97241-313-1	06	1	0508-		●
24	BLOCK; INDEX,SYN 4HE1-TCS ENG<RDS>	8-97241-313-1	12	1	0508-0509	●
24	BLOCK; INDEX,SYN 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS>	8-97241-313-1	12	1	0510-	●
93	RING; SNAP,COUNTER FRT BRG 4HG1-T ENG<RDP> ID=30.7 T=1.9	8-97254-734-0	01	1	0508-		●
93	RING; SNAP,COUNTER FRT BRG 4HG1-T ENG<RDP> ID=30.7 T=2.1	8-97254-740-0	01	1	0508-		●
93	RING; SNAP,COUNTER FRT BRG 4HG1-T ENG<RDP> ID=30.7 T=2.3	8-97254-742-0	01	1	0508-		●
93	RING; SNAP,COUNTER FRT BRG 4HE1-TCS ENG<RDS> ID=34.4 T=1.9	8-97254-735-0	01	1	0508-0509	●
93	RING; SNAP,COUNTER FRT BRG 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> ID=34.4 T=1.9	8-97254-735-0	01	1	0510-	●
93	RING; SNAP,COUNTER FRT BRG 4HE1-TCS ENG<RDS> ID=34.4 T=2.1	8-97254-738-0	01	1	0508-0509	●
93	RING; SNAP,COUNTER FRT BRG 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> ID=34.4 T=2.1	8-97254-738-0	01	1	0510-	●
93	RING; SNAP,COUNTER FRT BRG 4HE1-TCS ENG<RDS> ID=34.4 T=2.3	8-97254-741-0	01	1	0508-0509	●
93	RING; SNAP,COUNTER FRT BRG 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> ID=34.4 T=2.3	8-97254-741-0	01	1	0510-	●
108	SHAFT; COUNTER 4HG1-T ENG<RDP> Z=45-49-33-20	8-97380-630-1	01	1	0508-		●
108	SHAFT; COUNTER 4HE1-TCS ENG<RDS> Z=46-38-29-21	8-97349-881-0	01	1	0508-0509	●
108	SHAFT; COUNTER 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> Z=46-38-29-21	8-97349-881-0	01	1	0510-0910	●
108	SHAFT; COUNTER 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> Z=46-38-29-21	8-98113-224-0	01	1	0911-1308	●
108	SHAFT; COUNTER 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> Z=46-38-29-21	8-98249-489-0	01	1	1309-	●
115	BEARING; NEEDLE,6TH,COUNTER 4HE1-TCS ENG<RDS>	8-97253-113-0	01	1	0508-0509	●
115	BEARING; NEEDLE,6TH,COUNTER 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS>	8-97253-113-0	01	1	0510-	●
118	GEAR; 6TH,COUNTER 4HE1-TCS ENG<RDS> Z=47	8-97241-246-0	01	1	0508-0509	●
118	GEAR; 6TH,COUNTER 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> Z=47	8-97241-246-0	01	1	0510-	●
121	HUB; CLU,6TH 4HE1-TCS ENG<RDS>	8-97241-301-2	01	1	0508-0509	●
121	HUB; CLU,6TH 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS>	8-97241-301-2	01	1	0510-	●
132	SHAFT; REV 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS>	8-97252-655-0	01	1	0508-0509	●	●
132	SHAFT; REV	8-97252-655-0	01	1	0510-	●	●
135	GEAR; REV IDLER 4HG1-T ENG<RDP> Z=25	8-97241-293-0	01	1	0508-0512		●
135	GEAR; REV IDLER 4HG1-T ENG<RDP> Z=25	8-98031-869-1	01	1	0601-		●
135	GEAR; REV IDLER 4HE1-TCS ENG<RDS> Z=26	8-97241-292-2	01	1	0508-0509	●
135	GEAR; REV IDLER 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> Z=26	8-97241-292-2	01	1	0510-	●
268	PLATE; ANTI LASH,COUNTER 4HG1-T ENG<RDP>	8-97257-300-1	01	1	0508-		●
300	RING; SNAP,COUNTER SHAFT,RR END 4HE1-TCS ENG<RDS> ID=33.2 T=1.7	8-97288-618-0	01	1	0508-0509	●
300	RING; SNAP,COUNTER SHAFT,RR END 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> ID=33.2 T=1.7	8-97288-618-0	01	1	0510-	●
300	RING; SNAP,COUNTER SHAFT,RR END 4HE1-TCS ENG<RDS> ID=33.2 T=1.8	8-97288-619-0	01	1	0508-0509	●
300	RING; SNAP,COUNTER SHAFT,RR END 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> ID=33.2 T=1.8	8-97288-619-0	01	1	0510-	●
300	RING; SNAP,COUNTER SHAFT,RR END 4HE1-TCS ENG<RDS> ID=33.2 T=1.9	8-97288-620-0	01	1	0508-0509	●
300	RING; SNAP,COUNTER SHAFT,RR END 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> ID=33.2 T=1.9	8-97288-620-0	01	1	0510-	●
300	RING; SNAP,COUNTER SHAFT,RR END 4HE1-TCS ENG<RDS> ID=33.2 T=1.6	8-97365-616-0	01	1	0508-0509	●
300	RING; SNAP,COUNTER SHAFT,RR END 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> ID=33.2 T=1.6	8-97365-616-0	01	1	0510-	●
314	BEARING; NEEDLE,REV GEAR 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> NSK	8-97253-114-0	01	1	0508-0509	●	●
314	BEARING; NEEDLE,REV GEAR NSK	8-97253-114-0	01	1	0510-	●	●
325	SHIM; COUNTER SHAFT BRG 4HG1-T ENG<RDP> ID=62.7 T=2.29	8-97252-666-0	01	1	0508-		●
325	SHIM; COUNTER SHAFT BRG 4HG1-T ENG<RDP> ID=62.7 T=2.35	8-97252-667-0	01	1	0508-		●
325	SHIM; COUNTER SHAFT BRG 4HG1-T ENG<RDP> ID=62.7 T=2.41	8-97252-668-0	01	1	0508-		●
325	SHIM; COUNTER SHAFT BRG 4HG1-T ENG<RDP> ID=62.7 T=2.47	8-97252-669-0	01	1	0508-		●
325	SHIM; COUNTER SHAFT BRG 4HG1-T ENG<RDP> ID=62.7 T=2.53	8-97252-670-0	01	1	0508-		●
325	SHIM; COUNTER SHAFT BRG 4HG1-T ENG<RDP> ID=62.7 T=2.59	8-97252-671-0	01	1	0508-		●
325	SHIM; COUNTER SHAFT BRG 4HG1-T ENG<RDP> ID=62.7 T=2.65	8-97252-672-0	01	1	0508-		●
325	SHIM; COUNTER SHAFT BRG 4HG1-T ENG<RDP> ID=62.7 T=2.71	8-97252-673-0	01	1	0508-		●
325	SHIM; COUNTER SHAFT BRG 4HG1-T ENG<RDP> ID=62.7 T=2.77	8-97252-674-0	01	1	0508-		●
325	SHIM; COUNTER SHAFT BRG 4HG1-T ENG<RDP> ID=62.7 T=2.83	8-97252-675-0	01	1	0508-		●
325	SHIM; COUNTER SHAFT BRG 4HG1-T ENG<RDP> ID=62.7 T=2.89	8-97257-622-0	01	1	0508-		●
325	SHIM; COUNTER SHAFT BRG 4HG1-T ENG<RDP> ID=62.7 T=2.11	8-97306-188-0	01	1	0508-		●
325	SHIM; COUNTER SHAFT BRG 4HG1-T ENG<RDP> ID=62.7 T=2.17	8-97306-189-0	01	1	0508-		●
325	SHIM; COUNTER SHAFT BRG 4HG1-T ENG<RDP> ID=62.7 T=2.23	8-97306-190-0	01	1	0508-		●
325	SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG<RDS> ID=70 T=1.38	8-97252-656-0	01	1	0508-0509	●
325	SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> ID=70 T=1.38	8-97252-656-0	01	1	0510-	●
325	SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG<RDS> ID=70 T=1.44	8-97252-657-0	01	1	0508-0509	●
325	SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> ID=70 T=1.44	8-97252-657-0	01	1	0510-	●
325	SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG<RDS> ID=70 T=1.50	8-97252-658-0	01	1	0508-0509	●
325	SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> ID=70 T=1.50	8-97252-658-0	01	1	0510-	●
325	SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG<RDS> ID=70 T=1.56	8-97252-659-0	01	1	0508-0509	●
325	SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> ID=70 T=1.56	8-97252-659-0	01	1	0510-	●
325	SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG<RDS> ID=70 T=1.62	8-97252-660-0	01	1	0508-0509	●
325	SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> ID=70 T=1.62	8-97252-660-0	01	1	0510-	●
325	SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG<RDS> ID=70 T=1.68	8-97252-661-0	01	1	0508-0509	●
325	SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> ID=70 T=1.68	8-97252-661-0	01	1	0510-	●
325	SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG<RDS> ID=70 T=1.74	8-97252-662-0	01	1	0508-0509	●
325	SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> ID=70 T=1.74	8-97252-662-0	01	1	0510-	●
325	SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG<RDS> ID=70 T=1.80	8-97252-663-0	01	1	0508-0509	●
325	SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> ID=70 T=1.80	8-97252-663-0	01	1	0510-	●
325	SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG<RDS> ID=70 T=1.86	8-97252-664-0	01	1	0508-0509	●
325	SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> ID=70 T=1.86	8-97252-664-0	01	1	0510-	●
325	SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG<RDS> ID=70 T=1.92	8-97252-665-0	01	1	0508-0509	●
325	SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> ID=70 T=1.92	8-97252-665-0	01	1	0510-	●
325	SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG<RDS> ID=70 T=1.98	8-97257-621-0	01	1	0508-0509	●
325	SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> ID=70 T=1.98	8-97257-621-0	01	1	0510-	●
325	SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG<RDS> ID=70 T=1.20	8-97306-185-0	01	1	0508-0509	●
325	SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> ID=70 T=1.20	8-97306-185-0	01	1	0510-	●
325	SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG<RDS> ID=70 T=1.26	8-97306-186-0	01	1	0508-0509	●
325	SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> ID=70 T=1.26	8-97306-186-0	01	1	0510-	●
325	SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG<RDS> ID=70 T=1.32	8-97306-187-0	01	1	0508-0509	●
325	SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> ID=70 T=1.32	8-97306-187-0	01	1	0510-	●
480	WASHER; THRUST,6TH 4HE1-TCS ENG<RDS>	8-97253-122-1	01	1	0508-0509	●
480	WASHER; THRUST,6TH 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS>	8-97253-122-1	01	1	0510-	●
506	COLLAR; 6TH,COUNTER 4HE1-TCS ENG<RDS>	8-97253-120-1	01	1	0508-0509	●
506	COLLAR; 6TH,COUNTER 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS>	8-97253-120-1	01	1	0510-	●
507	BEARING; COUNTER SHAFT,FRT & RR 4HG1-T ENG<RDP>	8-97253-107-0	02	1	0508-		●
507	BEARING; COUNTER SHAFT,FRT & RR 4HE1-TCS ENG<RDS>	8-97253-106-0	02	1	0508-0509	●
507	BEARING; COUNTER SHAFT,FRT & RR 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS>	8-97253-106-0	02	1	0510-	●
508	RING; BLOCK,6TH 4HE1-TCS ENG<RDS> Z=45	8-97241-306-1	01	1	0508-0509	●
508	RING; BLOCK,6TH 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> Z=45	8-97241-306-1	01	1	0510-	●
516	SPRING; SYNCHRO,INDEX 4HG1-T ENG<RDP>	8-97254-835-0	06	1	0508-		●
516	SPRING; SYNCHRO,INDEX 4HE1-TCS ENG<RDS>	8-97305-803-1	12	1	0508-0509	●
516	SPRING; SYNCHRO,INDEX 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS>	8-97305-803-1	12	1	0510-	●
517	BALL; SYNCHRO,INDEX 4HG1-T ENG<RDP>	8-97252-935-0	06	1	0508-		●
517	BALL; SYNCHRO,INDEX 4HE1-TCS ENG<RDS>	8-97252-935-0	12	1	0508-0509	●
517	BALL; SYNCHRO,INDEX 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS>	8-97252-935-0	12	1	0510-	●

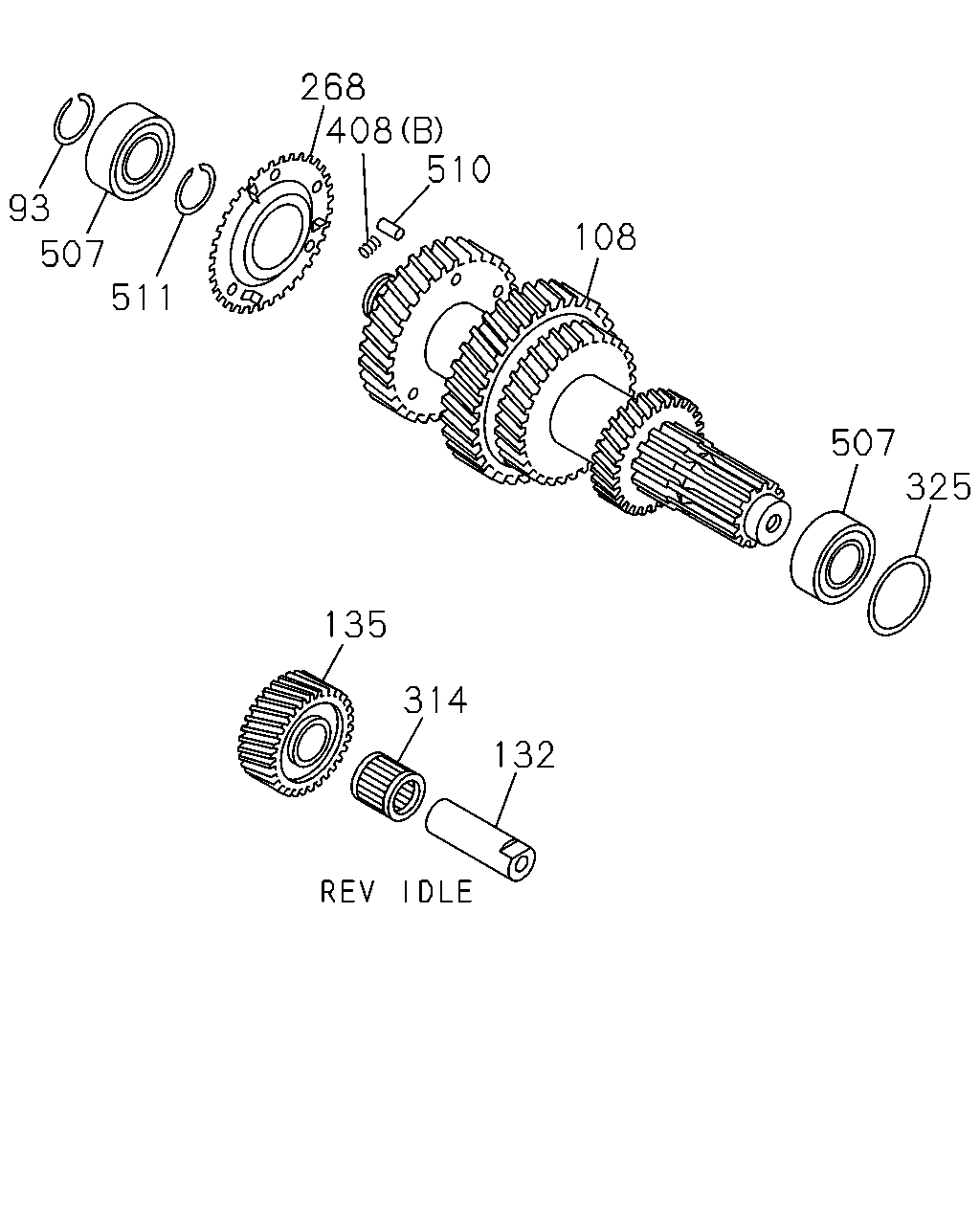

268 408 510 93 108 507 511 507 325 135 314 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
93	RING; SNAP,COUNTER FRT BRG 4HG1-T ENG<RDP> ID=30.7 T=1.9	8-97254-734-0	01	1	0508-		●
93	RING; SNAP,COUNTER FRT BRG 4HG1-T ENG<RDP> ID=30.7 T=2.1	8-97254-740-0	01	1	0508-		●
93	RING; SNAP,COUNTER FRT BRG 4HG1-T ENG<RDP> ID=30.7 T=2.3	8-97254-742-0	01	1	0508-		●
93	RING; SNAP,COUNTER FRT BRG 4HE1-TCS ENG<RDS> ID=34.4 T=1.9	8-97254-735-0	01	1	0508-0509	●
93	RING; SNAP,COUNTER FRT BRG 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> ID=34.4 T=1.9	8-97254-735-0	01	1	0510-	●
93	RING; SNAP,COUNTER FRT BRG 4HE1-TCS ENG<RDS> ID=34.4 T=2.1	8-97254-738-0	01	1	0508-0509	●
93	RING; SNAP,COUNTER FRT BRG 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> ID=34.4 T=2.1	8-97254-738-0	01	1	0510-	●
93	RING; SNAP,COUNTER FRT BRG 4HE1-TCS ENG<RDS> ID=34.4 T=2.3	8-97254-741-0	01	1	0508-0509	●
93	RING; SNAP,COUNTER FRT BRG 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> ID=34.4 T=2.3	8-97254-741-0	01	1	0510-	●
108	SHAFT; COUNTER 4HG1-T ENG<RDP> Z=45-49-33-20	8-97380-630-1	01	1	0508-		●
108	SHAFT; COUNTER 4HE1-TCS ENG<RDS> Z=46-38-29-21	8-97349-881-0	01	1	0508-0509	●
108	SHAFT; COUNTER 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> Z=46-38-29-21	8-97349-881-0	01	1	0510-0910	●
108	SHAFT; COUNTER 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> Z=46-38-29-21	8-98113-224-0	01	1	0911-1308	●
108	SHAFT; COUNTER 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> Z=46-38-29-21	8-98249-489-0	01	1	1309-	●
132	SHAFT; REV 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS>	8-97252-655-0	01	1	0508-0509	●	●
132	SHAFT; REV	8-97252-655-0	01	1	0510-	●	●
135	GEAR; REV IDLER 4HG1-T ENG<RDP> Z=25	8-97241-293-0	01	1	0508-0512		●
135	GEAR; REV IDLER 4HG1-T ENG<RDP> Z=25	8-98031-869-1	01	1	0601-		●
135	GEAR; REV IDLER 4HE1-TCS ENG<RDS> Z=26	8-97241-292-2	01	1	0508-0509	●
135	GEAR; REV IDLER 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> Z=26	8-97241-292-2	01	1	0510-	●
268	PLATE; ANTI LASH,COUNTER 4HG1-T ENG<RDP>	8-97257-300-1	01	1	0508-		●
314	BEARING; NEEDLE,REV GEAR 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> NSK	8-97253-114-0	01	1	0508-0509	●	●
314	BEARING; NEEDLE,REV GEAR NSK	8-97253-114-0	01	1	0510-	●	●
325	SHIM; COUNTER SHAFT BRG 4HG1-T ENG<RDP> ID=62.7 T=2.29	8-97252-666-0	01	1	0508-		●
325	SHIM; COUNTER SHAFT BRG 4HG1-T ENG<RDP> ID=62.7 T=2.35	8-97252-667-0	01	1	0508-		●
325	SHIM; COUNTER SHAFT BRG 4HG1-T ENG<RDP> ID=62.7 T=2.41	8-97252-668-0	01	1	0508-		●
325	SHIM; COUNTER SHAFT BRG 4HG1-T ENG<RDP> ID=62.7 T=2.47	8-97252-669-0	01	1	0508-		●
325	SHIM; COUNTER SHAFT BRG 4HG1-T ENG<RDP> ID=62.7 T=2.53	8-97252-670-0	01	1	0508-		●
325	SHIM; COUNTER SHAFT BRG 4HG1-T ENG<RDP> ID=62.7 T=2.59	8-97252-671-0	01	1	0508-		●
325	SHIM; COUNTER SHAFT BRG 4HG1-T ENG<RDP> ID=62.7 T=2.65	8-97252-672-0	01	1	0508-		●
325	SHIM; COUNTER SHAFT BRG 4HG1-T ENG<RDP> ID=62.7 T=2.71	8-97252-673-0	01	1	0508-		●
325	SHIM; COUNTER SHAFT BRG 4HG1-T ENG<RDP> ID=62.7 T=2.77	8-97252-674-0	01	1	0508-		●
325	SHIM; COUNTER SHAFT BRG 4HG1-T ENG<RDP> ID=62.7 T=2.83	8-97252-675-0	01	1	0508-		●
325	SHIM; COUNTER SHAFT BRG 4HG1-T ENG<RDP> ID=62.7 T=2.89	8-97257-622-0	01	1	0508-		●
325	SHIM; COUNTER SHAFT BRG 4HG1-T ENG<RDP> ID=62.7 T=2.11	8-97306-188-0	01	1	0508-		●
325	SHIM; COUNTER SHAFT BRG 4HG1-T ENG<RDP> ID=62.7 T=2.17	8-97306-189-0	01	1	0508-		●
325	SHIM; COUNTER SHAFT BRG 4HG1-T ENG<RDP> ID=62.7 T=2.23	8-97306-190-0	01	1	0508-		●
325	SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG<RDS> ID=70 T=1.38	8-97252-656-0	01	1	0508-0509	●
325	SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> ID=70 T=1.38	8-97252-656-0	01	1	0510-	●
325	SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG<RDS> ID=70 T=1.44	8-97252-657-0	01	1	0508-0509	●
325	SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> ID=70 T=1.44	8-97252-657-0	01	1	0510-	●
325	SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG<RDS> ID=70 T=1.50	8-97252-658-0	01	1	0508-0509	●
325	SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> ID=70 T=1.50	8-97252-658-0	01	1	0510-	●
325	SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG<RDS> ID=70 T=1.56	8-97252-659-0	01	1	0508-0509	●
325	SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> ID=70 T=1.56	8-97252-659-0	01	1	0510-	●
325	SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG<RDS> ID=70 T=1.62	8-97252-660-0	01	1	0508-0509	●
325	SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> ID=70 T=1.62	8-97252-660-0	01	1	0510-	●
325	SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG<RDS> ID=70 T=1.68	8-97252-661-0	01	1	0508-0509	●
325	SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> ID=70 T=1.68	8-97252-661-0	01	1	0510-	●
325	SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG<RDS> ID=70 T=1.74	8-97252-662-0	01	1	0508-0509	●
325	SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> ID=70 T=1.74	8-97252-662-0	01	1	0510-	●
325	SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG<RDS> ID=70 T=1.80	8-97252-663-0	01	1	0508-0509	●
325	SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> ID=70 T=1.80	8-97252-663-0	01	1	0510-	●
325	SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG<RDS> ID=70 T=1.86	8-97252-664-0	01	1	0508-0509	●
325	SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> ID=70 T=1.86	8-97252-664-0	01	1	0510-	●
325	SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG<RDS> ID=70 T=1.92	8-97252-665-0	01	1	0508-0509	●
325	SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> ID=70 T=1.92	8-97252-665-0	01	1	0510-	●
325	SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG<RDS> ID=70 T=1.98	8-97257-621-0	01	1	0508-0509	●
325	SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> ID=70 T=1.98	8-97257-621-0	01	1	0510-	●
325	SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG<RDS> ID=70 T=1.20	8-97306-185-0	01	1	0508-0509	●
325	SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> ID=70 T=1.20	8-97306-185-0	01	1	0510-	●
325	SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG<RDS> ID=70 T=1.26	8-97306-186-0	01	1	0508-0509	●
325	SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> ID=70 T=1.26	8-97306-186-0	01	1	0510-	●
325	SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG<RDS> ID=70 T=1.32	8-97306-187-0	01	1	0508-0509	●
325	SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> ID=70 T=1.32	8-97306-187-0	01	1	0510-	●
408	SPRING 4HG1-T ENG<RDP> (B)	8-94148-196-0	03	1	0508-		●
408	SPRING 4HG1-T ENG<RDP> (A)	8-97366-040-1	02	1	0508-		●
507	BEARING; COUNTER SHAFT,FRT & RR 4HG1-T ENG<RDP>	8-97253-107-0	02	1	0508-		●
507	BEARING; COUNTER SHAFT,FRT & RR 4HE1-TCS ENG<RDS>	8-97253-106-0	02	1	0508-0509	●
507	BEARING; COUNTER SHAFT,FRT & RR 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS>	8-97253-106-0	02	1	0510-	●
510	PIN; STRAIGHT,ANTI LASH 4HG1-T ENG<RDP>	9-08160-825-0	03	1	0508-		●
511	RING; SNAP,ANTI LASH PLATE 4HG1-T ENG<RDP>	8-97254-767-0	01	1	0508-		●

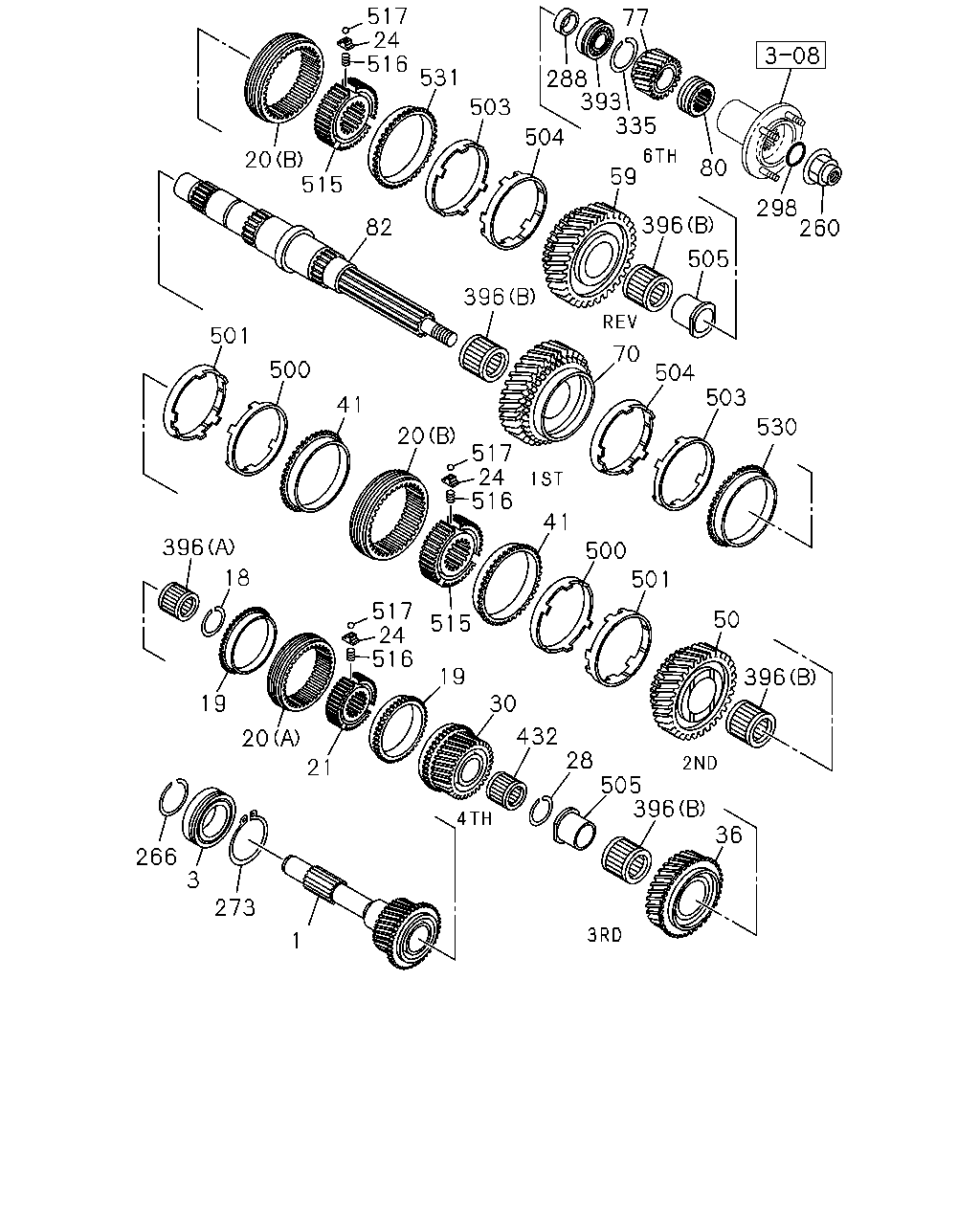

517 24 516 77 531 288 393 335 503 504 59 20 515 80 298 260 396 82 505 396 501 70 500 504 503 41 530 20 517 24 516 41 396 500 18 501 517 24 516 50 515 396 19 19 30 432 28 505 396 36 20 21 266 3 273 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; TOP GEAR,TRANS 4HE1-TCS ENG<RDS> Z=25	8-97371-090-0	01	1	0508-0509	●
1	SHAFT; TOP GEAR,TRANS 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> Z=25	8-97371-090-0	01	1	0510-	●
1	SHAFT; TOP GEAR,TRANS 4HG1-T ENG<RDP> Z=28	8-97252-924-1	01	1	0508-		●
3	BEARING; TOP GEAR SHAFT 4HG1-T ENG<RDP> NSK	8-97253-098-1	01	1	0508-		●
3	BEARING; TOP GEAR SHAFT 4HE1-TCS ENG<RDS> NSK	8-97253-097-1	01	1	0508-0509	●
3	BEARING; TOP GEAR SHAFT 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> NSK	8-97253-097-1	01	1	0510-	●
18	RING; SNAP,CLU HUB 4HG1-T ENG<RDP> ID=30.7 T=1.8	8-97254-728-0	01	1	0508-		●
18	RING; SNAP,CLU HUB 4HE1-TCS ENG<RDS> ID=35.7 T=1.8	8-97256-855-0	01	1	0508-0509	●
18	RING; SNAP,CLU HUB 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> ID=35.7 T=1.8	8-97256-855-0	01	1	0510-	●
19	RING; BLOCK,4TH & 5TH 4HE1-TCS ENG<RDS> Z=45	8-97241-306-1	02	1	0508-0509	●
19	RING; BLOCK,4TH & 5TH 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> Z=45	8-97241-306-1	02	1	0510-	●
20	SLEEVE 4HE1-TCS ENG<RDS> (B) Z=54	8-97241-295-2	02	1	0508-0509	●
20	SLEEVE 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> (B) Z=54	8-97241-295-2	02	1	0510-	●
20	SLEEVE 4HE1-TCS ENG<RDS> (A) Z=45	8-97241-296-1	02	1	0508-0509	●
20	SLEEVE 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> (A) Z=45	8-97241-296-1	02	1	0510-1311	●
20	SLEEVE 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> (A) Z=45	8-98258-279-0	02	1	1312-	●
21	HUB; CLU,4TH & 5TH 4HE1-TCS ENG<RDS>	8-97241-299-3	01	1	0508-0509	●
21	HUB; CLU,4TH & 5TH 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS>	8-97241-299-3	01	1	0510-	●
24	BLOCK; INDEX,SYN 4HG1-T ENG<RDP>	8-97241-313-1	06	1	0508-		●
24	BLOCK; INDEX,SYN 4HE1-TCS ENG<RDS>	8-97241-313-1	12	1	0508-0509	●
24	BLOCK; INDEX,SYN 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS>	8-97241-313-1	12	1	0510-	●
28	RING; SNAP,3RD GEAR 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> ID=46.5 T=1.8	8-97254-743-0	01	1	0508-0509	●	●
28	RING; SNAP,3RD GEAR ID=46.5 T=1.8	8-97254-743-0	01	1	0510-	●	●
30	GEAR; 4TH,MAINSHAFT 4HE1-TCS ENG<RDS> Z=28	8-97252-628-0	01	1	0508-0509	●
30	GEAR; 4TH,MAINSHAFT 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> Z=28	8-97252-628-0	01	1	0510-	●
36	GEAR; 3RD,MAINSHAFT 4HG1-T ENG<RDP> Z=34	8-97241-234-0	01	1	0508-		●
36	GEAR; 3RD,MAINSHAFT 4HE1-TCS ENG<RDS> Z=31	8-97252-630-1	01	1	0508-0509	●
36	GEAR; 3RD,MAINSHAFT 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> Z=31	8-97252-630-1	01	1	0510-	●
41	RING; BLOCK,2ND & 3RD 4HG1-T ENG<RDP> Z=45	8-97241-306-1	02	1	0508-		●
41	RING; BLOCK,2ND & 3RD 4HE1-TCS ENG<RDS> Z=54	8-97241-305-2	02	1	0508-0509	●
41	RING; BLOCK,2ND & 3RD 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> Z=54	8-97241-305-2	02	1	0510-	●
50	GEAR; 2ND,MAINSHAFT 4HG1-T ENG<RDP> Z=38	8-97241-237-1	01	1	0508-		●
50	GEAR; 2ND,MAINSHAFT 4HE1-TCS ENG<RDS> Z=43	8-97241-236-1	01	1	0508-0509	●
50	GEAR; 2ND,MAINSHAFT 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> Z=43	8-97241-236-1	01	1	0510-	●
59	GEAR; REV MAINSHAFT 4HG1-T ENG<RDP> Z=41	8-97241-244-0	01	1	0508-		●
59	GEAR; REV MAINSHAFT 4HE1-TCS ENG<RDS> Z=45	8-97241-243-0	01	1	0508-0509	●
59	GEAR; REV MAINSHAFT 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> Z=45	8-97241-243-0	01	1	0510-	●
70	GEAR; 1ST,MAINSHAFT 4HG1-T ENG<RDP> Z=43	8-97350-010-0	01	1	0508-		●
70	GEAR; 1ST,MAINSHAFT 4HE1-TCS ENG<RDS> Z=45	8-97241-241-0	01	1	0508-0509	●
70	GEAR; 1ST,MAINSHAFT 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> Z=45	8-97241-241-0	01	1	0510-	●
77	GEAR; 6TH,MAINSHAFT 4HE1-TCS ENG<RDS> Z=20	8-97252-634-0	01	1	0508-0509	●
77	GEAR; 6TH,MAINSHAFT 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> Z=20	8-97252-634-0	01	1	0510-	●
80	GEAR; SPD DRIVE 4HG1-T ENG<RDP> Z=4	8-97253-556-0	01	1	0508-		●
80	GEAR; SPD DRIVE 4HE1-TCS ENG<RDS> Z=4	8-97253-555-0	01	1	0508-0509	●
80	GEAR; SPD DRIVE 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> Z=4	8-97253-555-0	01	1	0510-	●
82	SHAFT; MAIN,TRANS 4HG1-T ENG<RDP> Z=28-42-42-21	8-97253-117-3	01	1	0508-		●
82	SHAFT; MAIN,TRANS 4HE1-TCS ENG<RDS> Z=26-42-23	8-97253-115-3	01	1	0508-0509	●
82	SHAFT; MAIN,TRANS 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> Z=26-42-23	8-97253-115-3	01	1	0510-	●
260	NUT; MAINSHAFT END 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> M27 H=25	8-97253-126-0	01	1	0508-0509	●	●
260	NUT; MAINSHAFT END M27 H=25	8-97253-126-0	01	1	0510-0604	●	●
260	NUT; MAINSHAFT END M27 H=25	8-97360-410-0	01	1	0605-	●	●
266	RING; SNAP,BRG INNER 4HG1-T ENG<RDP>	8-97286-916-0	01	1	0508-		●
266	RING; SNAP,BRG INNER 4HE1-TCS ENG<RDS>	8-97286-915-0	01	1	0508-0509	●
266	RING; SNAP,BRG INNER 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS>	8-97286-915-0	01	1	0510-	●
273	RING; SNAP,BRG OUTER 4HG1-T ENG<RDP>	8-97254-610-0	01	1	0508-		●
273	RING; SNAP,BRG OUTER 4HE1-TCS ENG<RDS>	8-97254-609-0	01	1	0508-0509	●
273	RING; SNAP,BRG OUTER 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS>	8-97254-609-0	01	1	0510-	●
288	SPACER; BRG,MAINSHAFT 4HG1-T ENG<RDP>	8-97252-942-0	01	1	0508-		●
288	SPACER; BRG,MAINSHAFT 4HE1-TCS ENG<RDS>	8-97252-941-0	01	1	0508-0509	●
288	SPACER; BRG,MAINSHAFT 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS>	8-97252-941-0	01	1	0510-	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). 4HG1-T ENG<RDP> ID=30.6 T=5.7	8-94481-411-0	01	1	0508-0508		●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). 4HG1-T ENG<RDP> ID=30.6 T=5.7	8-98028-226-0	01	1	0508-		●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). 4HE1-TCS ENG<RDS> ID=35.7 T=5	1-09623-379-0	01	1	0508-0509	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> ID=35.7 T=5	1-09623-379-0	01	1	0510-	●
335	RING; SNAP,BEARING 4HG1-T ENG<RDP>	8-97254-722-0	01	1	0508-		●
335	RING; SNAP,BEARING 4HE1-TCS ENG<RDS>	8-97254-720-0	01	1	0508-0509	●
335	RING; SNAP,BEARING 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS>	8-97254-720-0	01	1	0510-	●
393	BEARING; MAINSHAFT END 4HG1-T ENG<RDP>	8-97253-105-1	01	1	0508-		●
393	BEARING; MAINSHAFT END 4HE1-TCS ENG<RDS>	8-97253-104-0	01	1	0508-0509	●
393	BEARING; MAINSHAFT END 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS>	8-97253-104-0	01	1	0510-	●
396	BEARING; NEEDLE,MAINSHAFT 4HG1-T ENG<RDP> (A)	8-97253-102-1	01	1	0508-		●
396	BEARING; NEEDLE,MAINSHAFT 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> (B)	8-97253-110-0	04	1	0508-0509	●	●
396	BEARING; NEEDLE,MAINSHAFT (B)	8-97253-110-0	04	1	0510-	●	●
396	BEARING; NEEDLE,MAINSHAFT 4HE1-TCS ENG<RDS> (A)	8-97253-099-1	01	1	0508-0509	●
396	BEARING; NEEDLE,MAINSHAFT 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> (A)	8-97253-099-1	01	1	0510-	●
432	BEARING; NEEDLE,4TH 4HE1-TCS ENG<RDS> NSK	8-97253-111-0	01	1	0508-0509	●
432	BEARING; NEEDLE,4TH 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> NSK	8-97253-111-0	01	1	0510-	●
500	RING; OUTSIDE,3RD & 2ND 4HG1-T ENG<RDP>	8-97241-309-1	02	1	0508-		●
500	RING; OUTSIDE,3RD & 2ND 4HE1-TCS ENG<RDS>	8-97241-307-1	02	1	0508-0509	●
500	RING; OUTSIDE,3RD & 2ND 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS>	8-97241-307-1	02	1	0510-	●
501	RING; INSIDE,3RD & 2ND 4HG1-T ENG<RDP>	8-97241-312-1	02	1	0508-		●
501	RING; INSIDE,3RD & 2ND 4HE1-TCS ENG<RDS>	8-97241-311-1	02	1	0508-0509	●
501	RING; INSIDE,3RD & 2ND 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS>	8-97241-311-1	02	1	0510-	●
503	RING; OUTSIDE,LOW & REV 4HG1-T ENG<RDP>	8-97241-309-1	01	1	0508-		●
503	RING; OUTSIDE,LOW & REV 4HE1-TCS ENG<RDS>	8-97241-307-1	02	1	0508-0509	●
503	RING; OUTSIDE,LOW & REV 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS>	8-97241-307-1	02	1	0510-	●
504	RING; INSIDE,LOW & REV 4HG1-T ENG<RDP>	8-97241-312-1	01	1	0508-		●
504	RING; INSIDE,LOW & REV 4HE1-TCS ENG<RDS>	8-97241-311-1	02	1	0508-0509	●
504	RING; INSIDE,LOW & REV 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS>	8-97241-311-1	02	1	0510-	●
505	COLLAR; 3RD & REV 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS>	8-97253-119-2	02	1	0508-0509	●	●
505	COLLAR; 3RD & REV	8-97253-119-2	02	1	0510-	●	●
515	HUB; CLU,1ST & REV,2ND & 3RD 4HG1-T ENG<RDP>	8-97241-298-3	02	1	0508-		●
515	HUB; CLU,1ST & REV,2ND & 3RD 4HE1-TCS ENG<RDS>	8-97239-155-2	02	1	0508-0509	●
515	HUB; CLU,1ST & REV,2ND & 3RD 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS>	8-97239-155-2	02	1	0510-	●
516	SPRING; SYNCHRO,INDEX 4HG1-T ENG<RDP>	8-97254-835-0	06	1	0508-		●
516	SPRING; SYNCHRO,INDEX 4HE1-TCS ENG<RDS>	8-97305-803-1	12	1	0508-0509	●
516	SPRING; SYNCHRO,INDEX 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS>	8-97305-803-1	12	1	0510-	●
517	BALL; SYNCHRO,INDEX 4HG1-T ENG<RDP>	8-97252-935-0	06	1	0508-		●
517	BALL; SYNCHRO,INDEX 4HE1-TCS ENG<RDS>	8-97252-935-0	12	1	0508-0509	●
517	BALL; SYNCHRO,INDEX 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS>	8-97252-935-0	12	1	0510-	●
530	RING; BLOCK,LOW 4HG1-T ENG<RDP> Z=45	8-97241-306-1	01	1	0508-		●
530	RING; BLOCK,LOW 4HE1-TCS ENG<RDS> Z=54	8-97241-305-2	01	1	0508-0509	●
530	RING; BLOCK,LOW 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> Z=54	8-97241-305-2	01	1	0510-	●
531	RING; BLOCK,REV 4HG1-T ENG<RDP> Z=45	8-97368-343-0	01	1	0508-		●
531	RING; BLOCK,REV 4HE1-TCS ENG<RDS> Z=54	8-97241-305-2	01	1	0508-0509	●
531	RING; BLOCK,REV 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> Z=54	8-97241-305-2	01	1	0510-	●

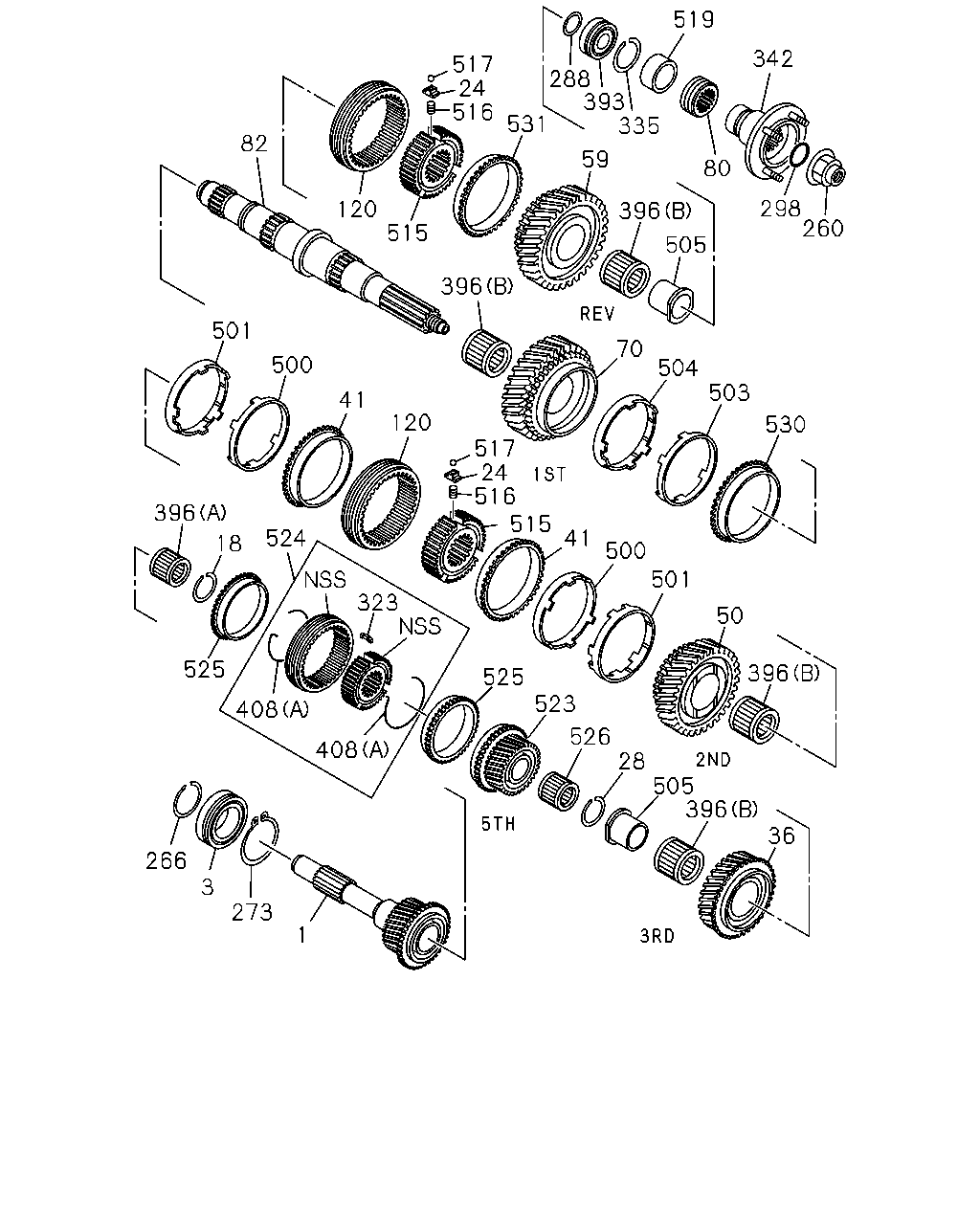

519 342 517 24 516 288 393 335 531 82 59 80 298 260 120 396 515 505 396 501 70 500 504 503 41 120 530 517 24 516 515 396 524 41 18 500 501 323 50 396 525 525 523 408 526 28 505 396 36 408 266 3 273 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; TOP GEAR,TRANS 4HE1-TCS ENG<RDS> Z=25	8-97371-090-0	01	1	0508-0509	●
1	SHAFT; TOP GEAR,TRANS 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> Z=25	8-97371-090-0	01	1	0510-	●
1	SHAFT; TOP GEAR,TRANS 4HG1-T ENG<RDP> Z=28	8-97252-924-1	01	1	0508-		●
3	BEARING; TOP GEAR SHAFT 4HG1-T ENG<RDP> NSK	8-97253-098-1	01	1	0508-		●
3	BEARING; TOP GEAR SHAFT 4HE1-TCS ENG<RDS> NSK	8-97253-097-1	01	1	0508-0509	●
3	BEARING; TOP GEAR SHAFT 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> NSK	8-97253-097-1	01	1	0510-	●
18	RING; SNAP,CLU HUB 4HG1-T ENG<RDP> ID=30.7 T=1.8	8-97254-728-0	01	1	0508-		●
18	RING; SNAP,CLU HUB 4HE1-TCS ENG<RDS> ID=35.7 T=1.8	8-97256-855-0	01	1	0508-0509	●
18	RING; SNAP,CLU HUB 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> ID=35.7 T=1.8	8-97256-855-0	01	1	0510-	●
24	BLOCK; INDEX,SYN 4HG1-T ENG<RDP>	8-97241-313-1	06	1	0508-		●
24	BLOCK; INDEX,SYN 4HE1-TCS ENG<RDS>	8-97241-313-1	12	1	0508-0509	●
24	BLOCK; INDEX,SYN 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS>	8-97241-313-1	12	1	0510-	●
28	RING; SNAP,3RD GEAR 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> ID=46.5 T=1.8	8-97254-743-0	01	1	0508-0509	●	●
28	RING; SNAP,3RD GEAR ID=46.5 T=1.8	8-97254-743-0	01	1	0510-	●	●
36	GEAR; 3RD,MAINSHAFT 4HG1-T ENG<RDP> Z=34	8-97241-234-0	01	1	0508-		●
36	GEAR; 3RD,MAINSHAFT 4HE1-TCS ENG<RDS> Z=31	8-97252-630-1	01	1	0508-0509	●
36	GEAR; 3RD,MAINSHAFT 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> Z=31	8-97252-630-1	01	1	0510-	●
41	RING; BLOCK,2ND & 3RD 4HG1-T ENG<RDP> Z=45	8-97241-306-1	02	1	0508-		●
41	RING; BLOCK,2ND & 3RD 4HE1-TCS ENG<RDS> Z=54	8-97241-305-2	02	1	0508-0509	●
41	RING; BLOCK,2ND & 3RD 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> Z=54	8-97241-305-2	02	1	0510-	●
50	GEAR; 2ND,MAINSHAFT 4HG1-T ENG<RDP> Z=38	8-97241-237-1	01	1	0508-		●
50	GEAR; 2ND,MAINSHAFT 4HE1-TCS ENG<RDS> Z=43	8-97241-236-1	01	1	0508-0509	●
50	GEAR; 2ND,MAINSHAFT 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> Z=43	8-97241-236-1	01	1	0510-	●
59	GEAR; REV MAINSHAFT 4HG1-T ENG<RDP> Z=41	8-97241-244-0	01	1	0508-		●
59	GEAR; REV MAINSHAFT 4HE1-TCS ENG<RDS> Z=45	8-97241-243-0	01	1	0508-0509	●
59	GEAR; REV MAINSHAFT 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> Z=45	8-97241-243-0	01	1	0510-	●
70	GEAR; 1ST,MAINSHAFT 4HG1-T ENG<RDP> Z=43	8-97350-010-0	01	1	0508-		●
70	GEAR; 1ST,MAINSHAFT 4HE1-TCS ENG<RDS> Z=45	8-97241-241-0	01	1	0508-0509	●
70	GEAR; 1ST,MAINSHAFT 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> Z=45	8-97241-241-0	01	1	0510-	●
80	GEAR; SPD DRIVE 4HG1-T ENG<RDP> Z=4	8-97253-556-0	01	1	0508-		●
80	GEAR; SPD DRIVE 4HE1-TCS ENG<RDS> Z=4	8-97253-555-0	01	1	0508-0509	●
80	GEAR; SPD DRIVE 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> Z=4	8-97253-555-0	01	1	0510-	●
82	SHAFT; MAIN,TRANS 4HG1-T ENG<RDP> Z=28-42-42-21	8-97253-117-3	01	1	0508-		●
82	SHAFT; MAIN,TRANS 4HE1-TCS ENG<RDS> Z=26-42-23	8-97253-115-3	01	1	0508-0509	●
82	SHAFT; MAIN,TRANS 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> Z=26-42-23	8-97253-115-3	01	1	0510-	●
120	SLEEVE 4HG1-T ENG<RDP> Z=45	8-94421-871-1	01	1	0508-		●
120	SLEEVE 4HG1-T ENG<RDP> Z=45	8-97241-296-1	02	1	0508-1311		●
120	SLEEVE 4HG1-T ENG<RDP> Z=45	8-98258-279-0	02	1	1312-		●
260	NUT; MAINSHAFT END 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> M27 H=25	8-97253-126-0	01	1	0508-0509	●	●
260	NUT; MAINSHAFT END M27 H=25	8-97253-126-0	01	1	0510-0604	●	●
260	NUT; MAINSHAFT END M27 H=25	8-97360-410-0	01	1	0605-	●	●
266	RING; SNAP,BRG INNER 4HG1-T ENG<RDP>	8-97286-916-0	01	1	0508-		●
266	RING; SNAP,BRG INNER 4HE1-TCS ENG<RDS>	8-97286-915-0	01	1	0508-0509	●
266	RING; SNAP,BRG INNER 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS>	8-97286-915-0	01	1	0510-	●
273	RING; SNAP,BRG OUTER 4HG1-T ENG<RDP>	8-97254-610-0	01	1	0508-		●
273	RING; SNAP,BRG OUTER 4HE1-TCS ENG<RDS>	8-97254-609-0	01	1	0508-0509	●
273	RING; SNAP,BRG OUTER 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS>	8-97254-609-0	01	1	0510-	●
288	SPACER; BRG,MAINSHAFT 4HG1-T ENG<RDP>	8-97252-942-0	01	1	0508-		●
288	SPACER; BRG,MAINSHAFT 4HE1-TCS ENG<RDS>	8-97252-941-0	01	1	0508-0509	●
288	SPACER; BRG,MAINSHAFT 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS>	8-97252-941-0	01	1	0510-	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). 4HG1-T ENG<RDP> ID=30.6 T=5.7	8-94481-411-0	01	1	0508-0508		●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). 4HG1-T ENG<RDP> ID=30.6 T=5.7	8-98028-226-0	01	1	0508-		●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). 4HE1-TCS ENG<RDS> ID=35.7 T=5	1-09623-379-0	01	1	0508-0509	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> ID=35.7 T=5	1-09623-379-0	01	1	0510-	●
323	INSERT 4HG1-T ENG<RDP>	8-94448-202-2	03	1	0508-		●
335	RING; SNAP,BEARING 4HG1-T ENG<RDP>	8-97254-722-0	01	1	0508-		●
335	RING; SNAP,BEARING 4HE1-TCS ENG<RDS>	8-97254-720-0	01	1	0508-0509	●
335	RING; SNAP,BEARING 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS>	8-97254-720-0	01	1	0510-	●
342	FLANGE; OUTPUT 4HG1-T ENG<RDP>	8-97252-814-1	01	1	0508-0604		●
342	FLANGE; OUTPUT 4HG1-T ENG<RDP>	8-98031-640-0	01	1	0605-		●
393	BEARING; MAINSHAFT END 4HG1-T ENG<RDP>	8-97253-105-1	01	1	0508-		●
393	BEARING; MAINSHAFT END 4HE1-TCS ENG<RDS>	8-97253-104-0	01	1	0508-0509	●
393	BEARING; MAINSHAFT END 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS>	8-97253-104-0	01	1	0510-	●
396	BEARING; NEEDLE,MAINSHAFT 4HG1-T ENG<RDP> (A)	8-97253-102-1	01	1	0508-		●
396	BEARING; NEEDLE,MAINSHAFT 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> (B)	8-97253-110-0	04	1	0508-0509	●	●
396	BEARING; NEEDLE,MAINSHAFT (B)	8-97253-110-0	04	1	0510-	●	●
396	BEARING; NEEDLE,MAINSHAFT 4HE1-TCS ENG<RDS> (A)	8-97253-099-1	01	1	0508-0509	●
396	BEARING; NEEDLE,MAINSHAFT 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> (A)	8-97253-099-1	01	1	0510-	●
408	SPRING 4HG1-T ENG<RDP> (B)	8-94148-196-0	03	1	0508-		●
408	SPRING 4HG1-T ENG<RDP> (A)	8-97366-040-1	02	1	0508-		●
500	RING; OUTSIDE,3RD & 2ND 4HG1-T ENG<RDP>	8-97241-309-1	02	1	0508-		●
500	RING; OUTSIDE,3RD & 2ND 4HE1-TCS ENG<RDS>	8-97241-307-1	02	1	0508-0509	●
500	RING; OUTSIDE,3RD & 2ND 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS>	8-97241-307-1	02	1	0510-	●
501	RING; INSIDE,3RD & 2ND 4HG1-T ENG<RDP>	8-97241-312-1	02	1	0508-		●
501	RING; INSIDE,3RD & 2ND 4HE1-TCS ENG<RDS>	8-97241-311-1	02	1	0508-0509	●
501	RING; INSIDE,3RD & 2ND 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS>	8-97241-311-1	02	1	0510-	●
503	RING; OUTSIDE,LOW & REV 4HG1-T ENG<RDP>	8-97241-309-1	01	1	0508-		●
503	RING; OUTSIDE,LOW & REV 4HE1-TCS ENG<RDS>	8-97241-307-1	02	1	0508-0509	●
503	RING; OUTSIDE,LOW & REV 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS>	8-97241-307-1	02	1	0510-	●
504	RING; INSIDE,LOW & REV 4HG1-T ENG<RDP>	8-97241-312-1	01	1	0508-		●
504	RING; INSIDE,LOW & REV 4HE1-TCS ENG<RDS>	8-97241-311-1	02	1	0508-0509	●
504	RING; INSIDE,LOW & REV 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS>	8-97241-311-1	02	1	0510-	●
505	COLLAR; 3RD & REV 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS>	8-97253-119-2	02	1	0508-0509	●	●
505	COLLAR; 3RD & REV	8-97253-119-2	02	1	0510-	●	●
515	HUB; CLU,1ST & REV,2ND & 3RD 4HG1-T ENG<RDP>	8-97241-298-3	02	1	0508-		●
515	HUB; CLU,1ST & REV,2ND & 3RD 4HE1-TCS ENG<RDS>	8-97239-155-2	02	1	0508-0509	●
515	HUB; CLU,1ST & REV,2ND & 3RD 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS>	8-97239-155-2	02	1	0510-	●
516	SPRING; SYNCHRO,INDEX 4HG1-T ENG<RDP>	8-97254-835-0	06	1	0508-		●
516	SPRING; SYNCHRO,INDEX 4HE1-TCS ENG<RDS>	8-97305-803-1	12	1	0508-0509	●
516	SPRING; SYNCHRO,INDEX 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS>	8-97305-803-1	12	1	0510-	●
517	BALL; SYNCHRO,INDEX 4HG1-T ENG<RDP>	8-97252-935-0	06	1	0508-		●
517	BALL; SYNCHRO,INDEX 4HE1-TCS ENG<RDS>	8-97252-935-0	12	1	0508-0509	●
517	BALL; SYNCHRO,INDEX 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS>	8-97252-935-0	12	1	0510-	●
519	COLLAR; MAINSHAFT END,5TH 4HG1-T ENG<RDP>	8-97252-940-0	01	1	0508-		●
523	GEAR; OD,MAINSHAFT 4HG1-T ENG<RDP> Z=22	8-97241-231-0	01	1	0508-		●
524	SLEEVE & HUB ASM; TOP-4TH,OD 4HG1-T ENG<RDP>	8-97366-526-0	01	1	0508-		●
525	RING; BLOCK,TOP & 4TH,OD 4HG1-T ENG<RDP> Z=45	8-97309-532-0	02	1	0508-		●
526	BEARING; NEEDLE,4TH & 5TH 4HG1-T ENG<RDP>	8-97253-112-0	01	1	0508-		●
530	RING; BLOCK,LOW 4HG1-T ENG<RDP> Z=45	8-97241-306-1	01	1	0508-		●
530	RING; BLOCK,LOW 4HE1-TCS ENG<RDS> Z=54	8-97241-305-2	01	1	0508-0509	●
530	RING; BLOCK,LOW 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> Z=54	8-97241-305-2	01	1	0510-	●
531	RING; BLOCK,REV 4HG1-T ENG<RDP> Z=45	8-97368-343-0	01	1	0508-		●
531	RING; BLOCK,REV 4HE1-TCS ENG<RDS> Z=54	8-97241-305-2	01	1	0508-0509	●
531	RING; BLOCK,REV 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> Z=54	8-97241-305-2	01	1	0510-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
