0-35B — ENGINE CONTROL VALVE AND LEVER (#431) — 100 parça

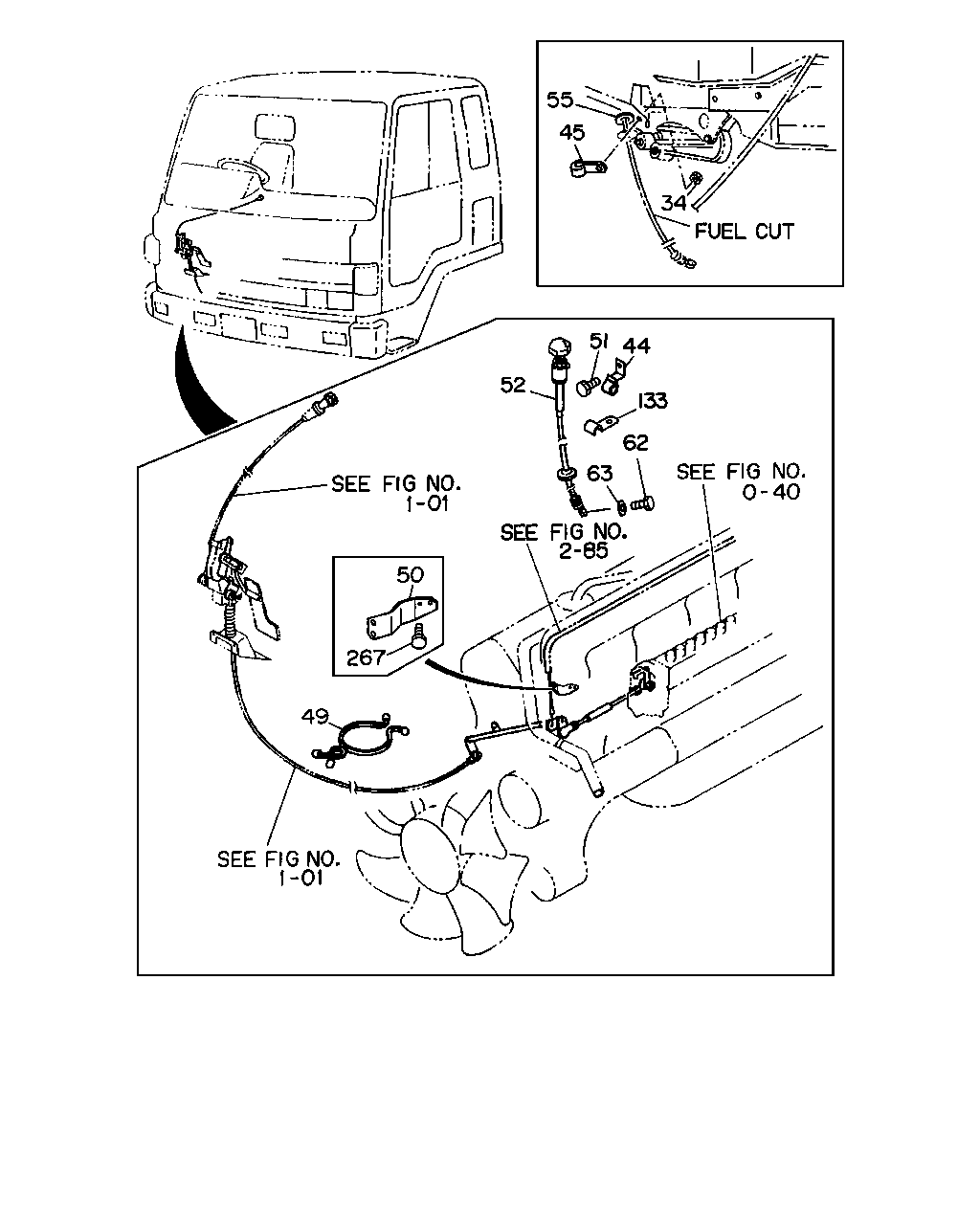

çizim 92734
55 34 45 51 44 133 52 62 50 63 267 49
BalonParca AdiParca NoAdetTipApplied Date A B
34 NUT; BRKT
M8 		9-09110-408-0 01 1 8712-9001 ●
44 CLIP; CABLE
ID=11 		1-09700-474-0 01 1 8712- ● ●
45 CLIP; FUEL CUT CABLE
ID=9 L=40 		9-09524-875-0 01 1 9006- ●
49 CLIP; BAND,RAD HOSE 1-09709-122-0 01 1 8712-9001 ●
50 BRACKET; ENG CONT CABLE 1-23335-230-0 01 1 8712-8812 ●
50 BRACKET; ENG CONT CABLE 1-23335-379-0 01 1 8901- ● ●
51 BOLT; CLIP,FUEL CUT CABLE
M6X12 		0-50000-612-0 01 1 8712-9001 ●
51 BOLT; CLIP,FUEL CUT CABLE
M6X12 		0-50000-612-0 01 1 9002-9204 ●
51 BOLT; CLIP,FUEL CUT CABLE 0-50080-612-0 01 1 9205-9306 ●
51 BOLT; CLIP,FUEL CUT CABLE
EXC. AUTO ENG SHUTOFF<KB6> 		0-50080-612-0 01 1 9307- ●
51 BOLT; CLIP,FUEL CUT CABLE
M8X20 W/LK&PL WASHER 		9-01960-820-0 01 1 9006-9204 ●
51 BOLT; CLIP,FUEL CUT CABLE
M8X20 W/LK&PL WASHER 		0-50140-820-0 01 1 9205- ●
52 CABLE; FUEL CUT
L=2230 		1-23210-737-2 01 1 8712-9001 ●
52 CABLE; FUEL CUT
L=2230 		1-23210-737-4 01 1 9002-9306 ●
52 CABLE; FUEL CUT
EXC. AUTO ENG SHUTOFF<KB6> L=2230 		1-23210-737-4 01 1 9307- ●
55 GROMMET; FUEL CUT CABLE
AUTO ENG SHUTOFF<KB6> OD=35 		1-09983-066-1 01 1 9307- ●
62 BOLT; CABLE END
M6X16 W/LK WASHER 		9-01900-616-0 02 1 8712-8806 ●
62 BOLT; CABLE END
M6X16 W/LK WASHER 		9-01910-616-0 04 1 8807-9001 ●
62 BOLT; CABLE END
M6X16 W/LK WASHER 		9-01910-616-0 02 1 9002-9005 ●
62 BOLT; CABLE END
M6X16 W/LK WASHER 		0-50040-616-0 02 1 9006-9302 ●
62 BOLT; CABLE END
M6X16 FLANGE 		0-28080-616-0 02 1 9303-9306 ●
63 WASHER; PL,FUEL CUT CABLE 1-09985-157-0 01 1 8712-9001 ●
63 WASHER; PL,FUEL CUT CABLE 1-09985-157-0 01 1 9002-9301 ●
133 CLIP; FUEL PIPE
ID=9.7 L=20 		1-09700-878-1 01 1 8901- ● ●
267 BOLT; ENG CONT
M10X18 		8-94399-729-1 02 1 9002-9104 ●
267 BOLT; ENG CONT
M10X18 FLANGE 		0-28181-018-0 02 1 9105- ●

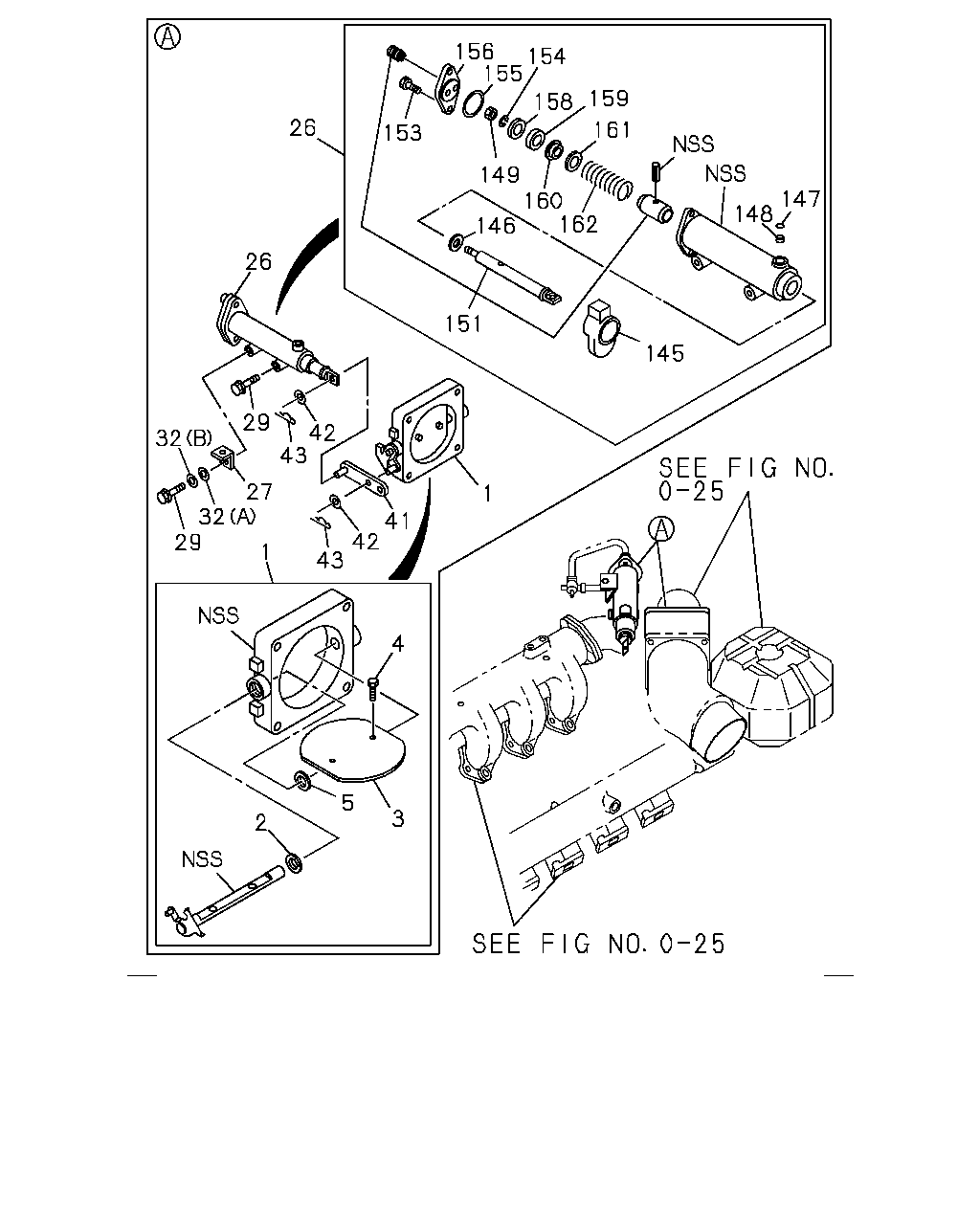

çizim 94072
156 154 155 153 158 159 161 162 160 149 151 146 145 148 147 26 26 29 32 42 43 27 32 29 41 1 42 43 1 4 3 5 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHUTTER ASM; INT 1-14310-199-0 01 1 8712-8909 ●
1 SHUTTER ASM; INT 1-14310-206-2 01 1 8910-9503 ● ●
1 SHUTTER ASM; INT 1-14310-219-0 01 1 9504- ●
2 COVER; DUST,SHAFT 9-14319-316-0 01 1 8712- ● ●
3 VALVE; INT SHUTTER 1-14312-037-0 01 1 8712-9306 ● ●
4 SCREW; VLV FIX 9-92050-514-0 02 1 8712- ● ●
5 WASHER; THRUST,INT SHUTTER
ID=12.5 		9-09160-512-0 01 1 8712- ● ●
26 CYLINDER ASM; CONT 1-22190-527-1 01 1 8712- ● ●
27 BRACKET; WIRE CLIP 1-83129-087-0 01 1 8712- ● ●
29 BOLT; CONT CYL
M10X60 		9-01656-060-0 04 1 8712-9001 ●
29 BOLT; CONT CYL
M10X55 FLANGE 		8-94399-863-1 02 1 9002- ●
32 WASHER; LK,CONT CYL
(B) ID=10.2 		9-09150-510-0 02 1 8712-9001 ●
32 WASHER; LK,CONT CYL
(A) ID=10.5 OD=18 		9-09160-510-0 01 1 8712- ● ●
41 LINK; INT SHUTTER 1-14319-004-2 01 1 8712- ● ●
42 WASHER; LK,ROD LOCK
ID=6.4 		9-09160-506-0 02 1 8712-9306 ● ●
42 WASHER; LK,ROD LOCK
ID=6.4 		9-09160-506-0 02 1 9307- ●
43 PIN; SNAP ROD LK
L=21.2 		1-09747-003-0 02 1 8712- ● ●
145 COVER; BREATHER 1-22199-008-0 01 1 8712- ● ●
146 SEAL; DUST,CONT 1-22189-016-0 01 1 8712- ● ●
147 RING; RET 9-88510-331-0 01 1 8712- ● ●
148 FILTER; CONT CYL 9-88510-330-0 01 1 8712- ● ●
149 NUT; LOCK,CONT SHAFT 9-83315-085-0 01 1 9002- ● ●
151 SHAFT; CONT CYL 1-22199-082-0 01 1 8712-9306 ● ●
151 SHAFT; CONT CYL 1-22196-256-0 01 1 9307- ●
153 BOLT; CONT CYL 9-88510-267-0 02 1 8712-9306 ●
153 BOLT; CONT CYL 1-33739-326-0 02 1 9307- ●
154 WASHER; LK,CYL
ID=8.2 		9-09150-508-0 01 1 8712- ● ●
155 GASKET; CONT CYL 9-88510-372-0 01 1 8712- ● ●
156 COVER; CONT CYL 1-22199-036-0 01 1 8712-9306 ● ●
156 COVER; CONT CYL 1-22189-162-1 01 1 9307- ●
158 RETAINER; GASKET,CYL 9-88510-324-0 01 1 8712- ● ●
159 GASKET; CONT CYL 9-88510-373-0 01 1 8712- ● ●
160 PLATE 1-22199-020-0 01 1 8712- ● ●
161 RING; WEAR 1-22199-002-0 01 1 8712- ● ●
162 SPRING; CONT CYL 1-22199-018-0 01 1 8712- ● ●

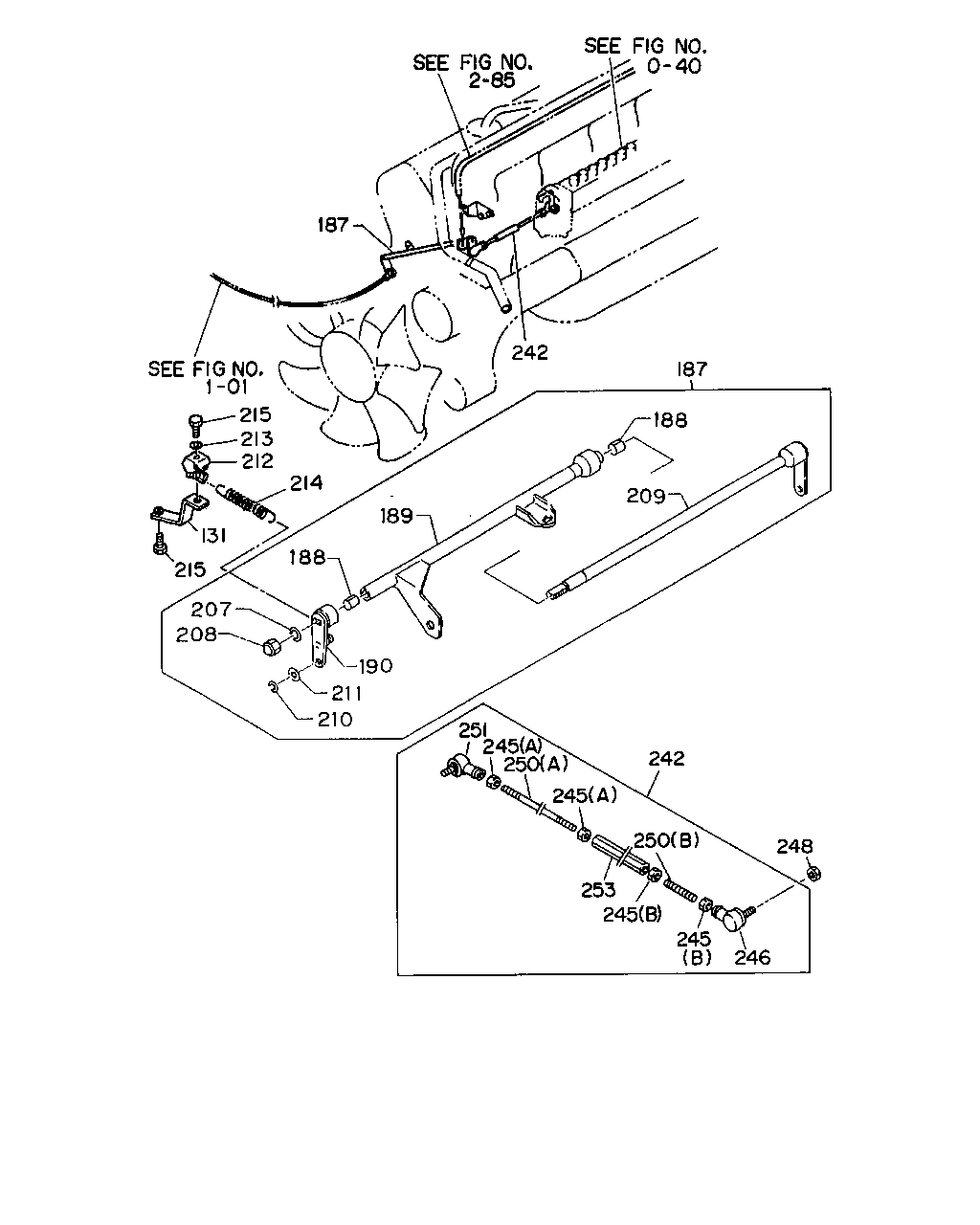

çizim 94839
187 242 187 215 214 212 213 189 188 131 215 188 209 190 207 211 210 208 251 245 250 242 245 250 248 253 245 245 246
BalonParca AdiParca NoAdetTipApplied Date A B
131 BRACKET 1-15419-272-0 01 1 8712- ● ●
187 CONTROL ASM; ENG 1-23300-259-0 01 1 8712-9001 ●
187 CONTROL ASM; ENG 1-23300-285-2 01 1 9002- ●
188 BUSHING; CONT SHAFT 1-09330-053-0 02 1 8712- ● ●
189 BRACKET; ENG CONT 1-23335-208-0 01 1 8712-9001 ●
189 BRACKET; ENG CONT 1-23335-297-0 01 1 9002- ●
190 LEVER; ENG CONT 1-23311-254-1 01 1 8712- ● ●
207 WASHER; LK,CONT LEVER
ID=8.2 		9-09150-508-0 01 1 8712- ● ●
208 NUT; LEVER 1-09984-015-0 01 1 8712- ● ●
209 SHAFT; ENG CONT 1-23331-093-0 01 1 8712- ● ●
210 WASHER; LK,JOINT BALL
ID=5.1 		9-09150-505-0 01 1 8712- ● ●
211 WASHER; PL,JOINT BALL
ID=5.3 OD=16 		9-09164-705-0 01 1 8712- ● ●
212 BRACKET; SPR EYE 1-23335-058-0 01 1 8712- ● ●
213 WASHER; LK,BRKT,SPR EYE
ID=10.2 		9-09150-510-0 01 1 8712-8808 ●
214 SPRING; ENG CONT RETURN 1-09583-207-0 01 1 8712-9405 ● ●
214 SPRING; ENG CONT RETURN 1-09583-315-0 01 1 9406- ●
215 BOLT; BRKT SPR EYE
M10X16 		9-02351-016-0 01 1 8712-8808 ●
215 BOLT; BRKT SPR EYE
M10X16 W/LK WASHER 		9-01931-016-0 01 1 8809-8812 ●
215 BOLT; BRKT SPR EYE
M6X14 		9-01910-614-0 01 1 8901-9001 ●
215 BOLT; BRKT SPR EYE
M6X25 		9-01910-625-0 01 1 8902-9005 ● ●
215 BOLT; BRKT SPR EYE
M6X25 W/LK WASHER 		0-50040-625-0 01 1 9006- ●
215 BOLT; BRKT SPR EYE
M10X20 W/LK WASHER 		9-01931-020-0 01 1 9002-9002 ●
215 BOLT; BRKT SPR EYE
M10X20 W/LK WASHER 		0-50051-020-0 01 1 9003-9006 ●
215 BOLT; BRKT SPR EYE
M10X18 		8-94399-729-1 01 1 9007-9104 ●
215 BOLT; BRKT SPR EYE
M10X18 FLANGE 		0-28181-018-0 01 1 9105- ●
242 LINK ASM 1-23314-159-3 01 1 8712- ● ●
245 NUT; LINK
(B) M5 LH THREAD 		9-09840-277-0 02 1 8712- ● ●
245 NUT; LINK
(A) M5 		9-99110-405-0 02 1 8712- ● ●
246 JOINT; BALL,ENG CONT LINK
LH THREAD 		1-09760-064-0 01 1 8712-8812 ●
246 JOINT; BALL,ENG CONT LINK
LH THREAD 		1-09760-096-0 01 1 8901-9006 ● ●
246 JOINT; BALL,ENG CONT LINK
LH THREAD 		1-09760-102-0 01 1 9007- ●
248 NUT; JOINT BALL
M5 		9-99110-405-0 01 1 8712-9001 ● ●
248 NUT; JOINT BALL
M5 		9-99110-405-0 03 1 9002- ●
250 ROD; ROD TO JOINT
(B) M5X50 LH THREAD 		1-09765-197-0 01 1 8712- ● ●
250 ROD; ROD TO JOINT
(A) M5X120 		9-08400-512-0 01 1 8712- ● ●
251 JOINT; BALL,RIGHT SCREW,ENG CONT LINK
RH THREAD 		1-09760-063-0 01 1 8712-8812 ●
251 JOINT; BALL,RIGHT SCREW,ENG CONT LINK
RH THREAD 		1-09760-095-0 01 1 8901-9006 ● ●
251 JOINT; BALL,RIGHT SCREW,ENG CONT LINK
RH THREAD 		1-09760-101-0 01 1 9007- ●
253 JOINT; ROD TO ROD 9-23319-194-0 01 1 8901- ● ●
