Sayfa 2-20 - Isuzu EPC

2-20 — MANUAL TRANSMISSION ASM AND CASE (#43099) — 210 parça

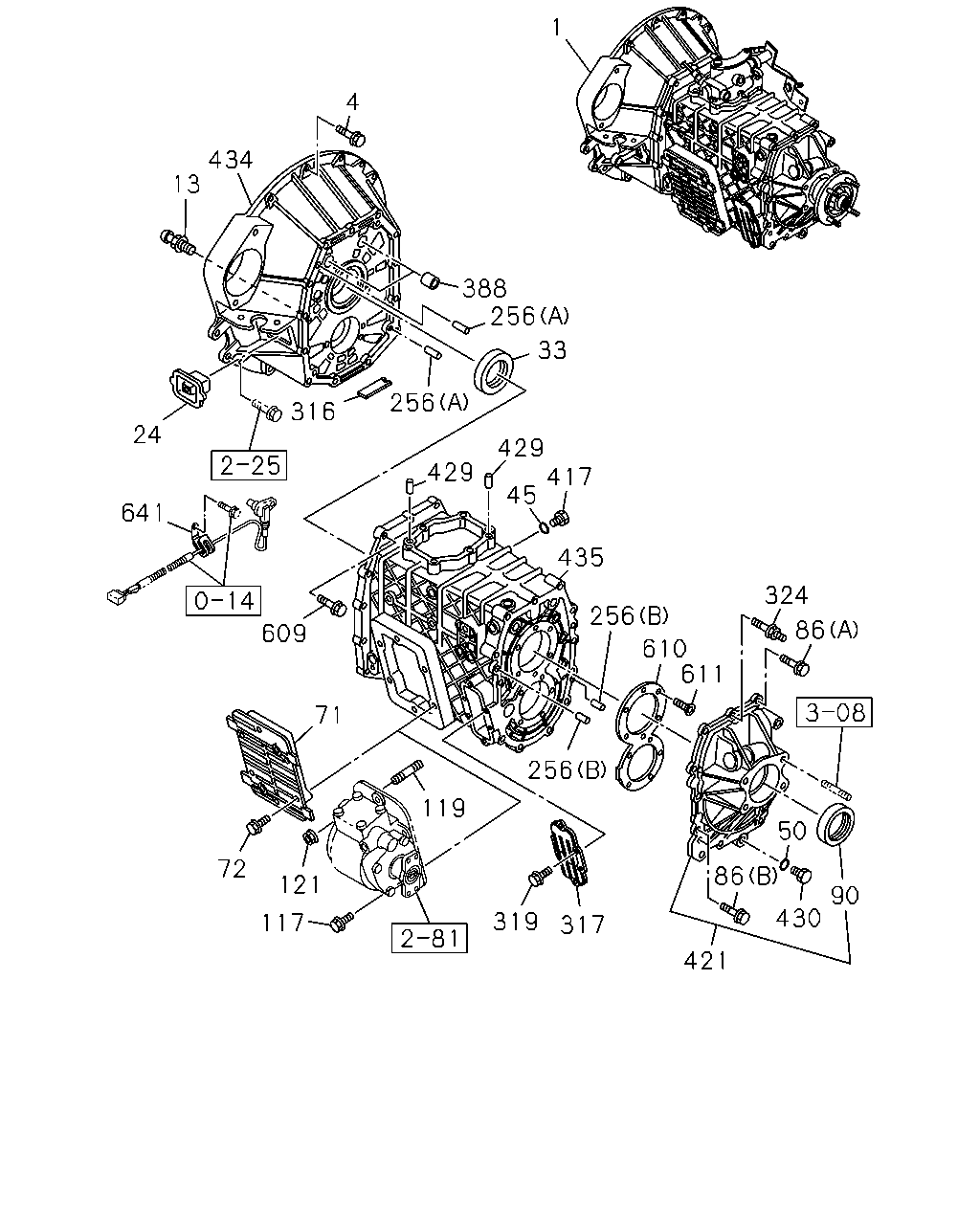

4 1 388 256 33 434 256 316 641 429 429 417 45 435 256 610 611 609 86 324 256 71 317 72 319 119 586 421 86 50 430 90 121 631 117

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TRANSMISSION ASM; MANUAL 4HE1-TCS ENG<RDS> PTO TRANSMISSION SIDE<V66>	8-97379-203-0	01	1	0508-0509	●
1	TRANSMISSION ASM; MANUAL 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66>	8-97379-203-0	01	1	0510-	●
1	TRANSMISSION ASM; MANUAL 4HE1-TCS ENG<RDS> EXC. PTO TRANSMISSION SIDE<V66>	8-97379-203-0	01	1	0508-0509	●
1	TRANSMISSION ASM; MANUAL 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> EXC. PTO TRANSMISSION SIDE<V66>	8-97379-203-0	01	1	0510-	●
1	TRANSMISSION ASM; MANUAL 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66>	8-97373-914-0	01	1	0508-		●
1	TRANSMISSION ASM; MANUAL 4HG1-T ENG<RDP> EXC. PTO TRANSMISSION SIDE<V66>	8-97373-914-0	01	1	0508-		●
4	BOLT; FLYWHEEL HSG 4HG1-T ENG<RDP> M10X30 FLANGE	0-28181-030-0	02	1	0508-0512		●
4	BOLT; FLYWHEEL HSG 4HG1-T ENG<RDP> EXC. PTO TRANSMISSION SIDE<V66> M10X30 FLANGE	0-28181-030-0	02	1	0508-0512		●
4	BOLT; FLYWHEEL HSG 4HG1-T ENG<RDP> M10X30 FLANGE	0-28151-030-0	02	1	0601-		●
4	BOLT; FLYWHEEL HSG 4HG1-T ENG<RDP> EXC. PTO TRANSMISSION SIDE<V66> M10X30 FLANGE	0-28151-030-0	02	1	0601-		●
4	BOLT; FLYWHEEL HSG 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66> M10X35 FLANGE	0-28181-035-0	02	1	0508-0512		●
4	BOLT; FLYWHEEL HSG 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66> M10X35 FLANGE	0-28151-035-0	02	1	0601-		●
4	BOLT; FLYWHEEL HSG 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> M10X35 FLANGE	0-28181-035-0	03	1	0508-0509	●	●
4	BOLT; FLYWHEEL HSG M10X35 FLANGE	0-28181-035-0	03	1	0510-0512	●	●
4	BOLT; FLYWHEEL HSG M10X35 FLANGE	0-28151-035-0	03	1	0601-	●	●
4	BOLT; FLYWHEEL HSG 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> M10X55 FLANGE THA	8-94399-863-1	02	1	0508-0509	●	●
4	BOLT; FLYWHEEL HSG M10X55 FLANGE THA	8-94399-863-1	02	1	0510-0805	●	●
4	BOLT; FLYWHEEL HSG M10X55 FLANGE	8-97365-449-0	02	1	0806-	●	●
4	BOLT; FLYWHEEL HSG 4HE1-TCS ENG<RDS> M10X30 FLANGE	0-28181-030-0	04	1	0508-0509	●
4	BOLT; FLYWHEEL HSG 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M10X30 FLANGE	0-28181-030-0	04	1	0510-0512	●
4	BOLT; FLYWHEEL HSG 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M10X30 FLANGE	0-28151-030-0	04	1	0601-	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS>	8-97253-550-0	01	1	0508-0509	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97253-550-0	01	1	0510-	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> ID=17	8-97115-712-0	01	1	0508-0509	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0510-	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> ID=17	8-97115-712-0	01	1	0508-0509	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0510-	●	●
71	COVER; SIDE,TRANS CASE 4HG1-T ENG<RDP> EXC. PTO TRANSMISSION SIDE<V66>	8-97252-625-0	01	1	0508-		●
71	COVER; SIDE,TRANS CASE 4HE1-TCS ENG<RDS> EXC. PTO TRANSMISSION SIDE<V66>	8-97252-624-2	01	1	0508-0509	●
71	COVER; SIDE,TRANS CASE 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> EXC. PTO TRANSMISSION SIDE<V66>	8-97252-624-2	01	1	0510-	●
72	BOLT; SIDE COVER 4HG1-T ENG<RDP> EXC. PTO TRANSMISSION SIDE<V66> M10X20 FLANGE	8-97254-833-0	06	1	0508-		●
72	BOLT; SIDE COVER 4HE1-TCS ENG<RDS> EXC. PTO TRANSMISSION SIDE<V66> M10X20 FLANGE	8-97254-833-0	08	1	0508-0509	●
72	BOLT; SIDE COVER 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> EXC. PTO TRANSMISSION SIDE<V66> M10X20 FLANGE	8-97254-833-0	08	1	0510-	●
86	BOLT; RR COVER 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> (A) M10X40 FLANGE	0-28181-040-0	10	1	0508-0509	●	●
86	BOLT; RR COVER (A) M10X40 FLANGE	0-28181-040-0	10	1	0510-0512	●	●
86	BOLT; RR COVER (A) M10X40 FLANGE	0-28151-040-0	10	1	0601-	●	●
86	BOLT; RR COVER 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> (B) M10X40 FLANGE	8-97305-392-0	02	1	0508-0509	●	●
86	BOLT; RR COVER (B) M10X40 FLANGE	8-97305-392-0	02	1	0510-0604	●	●
86	BOLT; RR COVER (B) M10X40 FLANGE	8-97365-377-0	02	1	0605-	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4HG1-T ENG<RDP> NOK	8-97253-552-1	01	1	0508-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4HE1-TCS ENG<RDS> NOK	8-97253-551-1	01	1	0508-0509	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> NOK	8-97253-551-1	01	1	0510-	●
117	BOLT; PTO FIX 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66> M10X30 FLANGE	0-28781-030-0	03	1	0508-0512		●
117	BOLT; PTO FIX 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66> M10X30 FLANGE	0-28751-030-0	03	1	0601-		●
117	BOLT; PTO FIX 4HE1-TCS ENG<RDS> PTO TRANSMISSION SIDE<V66> M10X28 FLANGE	0-28181-028-0	06	1	0508-0509	●
117	BOLT; PTO FIX 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> M10X28 FLANGE	0-28181-028-0	06	1	0510-0706	●
117	BOLT; PTO FIX 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> M10X28 FLANGE	8-98044-944-0	06	1	0707-	●
119	STUD; PTO FIX 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66> M10X25 L=40	9-04411-025-0	03	1	0508-0604		●
119	STUD; PTO FIX 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66> M10X25 L=40 THA	0-44011-025-0	03	1	0605-		●
119	STUD; PTO FIX 4HE1-TCS ENG<RDS> PTO TRANSMISSION SIDE<V66> M10X25 L=40	9-04411-025-0	02	1	0508-0509	●
119	STUD; PTO FIX 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> M10X25 L=40	9-04411-025-0	02	1	0510-0604	●
119	STUD; PTO FIX 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> M10X25 L=40 THA	0-44011-025-0	02	1	0605-	●
121	NUT; PTO FIX 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66> M10 FLANGE	0-91150-210-0	03	1	0508-0602		●
121	NUT; PTO FIX 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66> M10 FLANGE THA	0-91180-210-0	03	1	0603-		●
121	NUT; PTO FIX 4HE1-TCS ENG<RDS> PTO TRANSMISSION SIDE<V66> M10 FLANGE	0-91150-210-0	02	1	0508-0509	●
121	NUT; PTO FIX 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> M10 FLANGE	0-91150-210-0	02	1	0510-0602	●
121	NUT; PTO FIX 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> M10 FLANGE THA	0-91180-210-0	02	1	0603-	●
256	PIN; KNOCK 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> (A) OD=10 L=20	8-97135-423-0	02	1	0508-0509	●	●
256	PIN; KNOCK (A) OD=10 L=20	8-97135-423-0	02	1	0510-	●	●
256	PIN; KNOCK 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> (B) ID=6 L=12 THA	9-08160-612-0	02	1	0508-0509	●	●
256	PIN; KNOCK (B) ID=6 L=12 THA	9-08160-612-0	02	1	0510-	●	●
316	MAGNET; TRANS CASE 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS>	8-94249-524-2	01	1	0508-0509	●	●
316	MAGNET; TRANS CASE	8-94249-524-2	01	1	0510-	●	●
317	COVER; CASE 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS>	8-97252-626-0	01	1	0508-0509	●	●
317	COVER; CASE	8-97252-626-0	01	1	0510-	●	●
319	BOLT; COVER 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> M8X20 FLANGE	0-28080-820-0	06	1	0508-0509	●	●
319	BOLT; COVER M8X20 FLANGE	0-28080-820-0	06	1	0510-0512	●	●
319	BOLT; COVER M8X20 FLANGE THA	0-28050-820-0	06	1	0601-	●	●
324	STUD; RR COVER 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> M10X15,M10X40 L=65	8-97309-013-0	01	1	0508-0509	●	●
324	STUD; RR COVER M10X15,M10X40 L=65	8-97309-013-0	01	1	0510-0604	●	●
324	STUD; RR COVER M10X15,M10X40 L=65	8-97365-379-0	01	1	0605-	●	●
388	BUSHING; CLU HSG 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS>	8-97241-326-2	02	1	0508-0509	●	●
388	BUSHING; CLU HSG	8-97241-326-2	02	1	0510-	●	●
417	PLUG; OIL FILLER,TRANS 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS>	8-94310-917-0	01	1	0508-0509	●	●
417	PLUG; OIL FILLER,TRANS	8-94310-917-0	01	1	0510-0604	●	●
417	PLUG; OIL FILLER,TRANS	8-97365-373-0	01	1	0605-	●	●
421	COVER; RR,TRANS 4HG1-T ENG<RDP>	8-98020-029-0	01	1	0508-		●
421	COVER; RR,TRANS 4HE1-TCS ENG<RDS>	8-97238-934-5	01	1	0508-0509	●
421	COVER; RR,TRANS 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS>	8-97238-934-5	01	1	0510-	●
429	PIN; STRAIGHT 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> OD=10 L=20	8-97135-423-0	02	1	0508-0509	●	●
429	PIN; STRAIGHT OD=10 L=20	8-97135-423-0	02	1	0510-	●	●
430	PLUG; OIL DRAIN 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS>	9-09662-004-0	01	1	0508-0509	●	●
430	PLUG; OIL DRAIN	9-09662-004-0	01	1	0510-0604	●	●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	0605-	●	●
434	HOUSING; CLU 4HG1-T ENG<RDP>	8-97237-099-5	01	1	0508-		●
434	HOUSING; CLU 4HE1-TCS ENG<RDS>	8-97238-930-4	01	1	0508-0509	●
434	HOUSING; CLU 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS>	8-97238-930-4	01	1	0510-	●
435	CASE; TRANS 4HG1-T ENG<RDP>	8-97379-375-0	01	1	0508-		●
435	CASE; TRANS 4HE1-TCS ENG<RDS>	8-97382-868-1	01	1	0508-0509	●
435	CASE; TRANS 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS>	8-97382-868-1	01	1	0510-	●
586	BEARING; NEEDLE 4HE1-TCS ENG<RDS>	8-97253-108-0	01	1	0508-0509	●
586	BEARING; NEEDLE 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS>	8-97253-108-0	01	1	0510-	●
609	BOLT; HSG TO CASE 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> M10X40 FLANGE	0-28181-040-0	13	1	0508-0509	●	●
609	BOLT; HSG TO CASE M10X40 FLANGE	0-28181-040-0	13	1	0510-0512	●	●
609	BOLT; HSG TO CASE M10X40 FLANGE	0-28151-040-0	13	1	0601-	●	●
610	RETAINER; BRG 4HG1-T ENG<RDP>	8-97241-315-1	01	1	0508-		●
610	RETAINER; BRG 4HE1-TCS ENG<RDS>	8-97241-314-2	01	1	0508-0509	●
610	RETAINER; BRG 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS>	8-97241-314-2	01	1	0510-	●
611	SCREW 4HG1-T ENG<RDP> M10X27	8-97254-834-2	11	1	0508-0604		●
611	SCREW 4HG1-T ENG<RDP> M10X27 TORQUES	8-97365-354-0	11	1	0605-		●
611	SCREW 4HE1-TCS ENG<RDS> M10X27	8-97254-834-2	10	1	0508-0509	●
611	SCREW 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M10X27	8-97254-834-2	10	1	0510-0604	●
611	SCREW 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M10X27 TORQUES	8-97365-354-0	10	1	0605-	●
631	SPACER; PTO 4HE1-TCS ENG<RDS> PTO TRANSMISSION SIDE<V66>	8-97328-662-0	01	1	0508-0509	●
631	SPACER; PTO 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66>	8-97328-662-0	01	1	0510-	●
641	CLIP; CAM SENSOR 4HK1-TCS ENG<RJS> KD PREPARATORY PACK<6HF> HYDRO BRAKE BOOSTER<7QQ> ID=8	8-94107-659-0	01	1	0510-	●

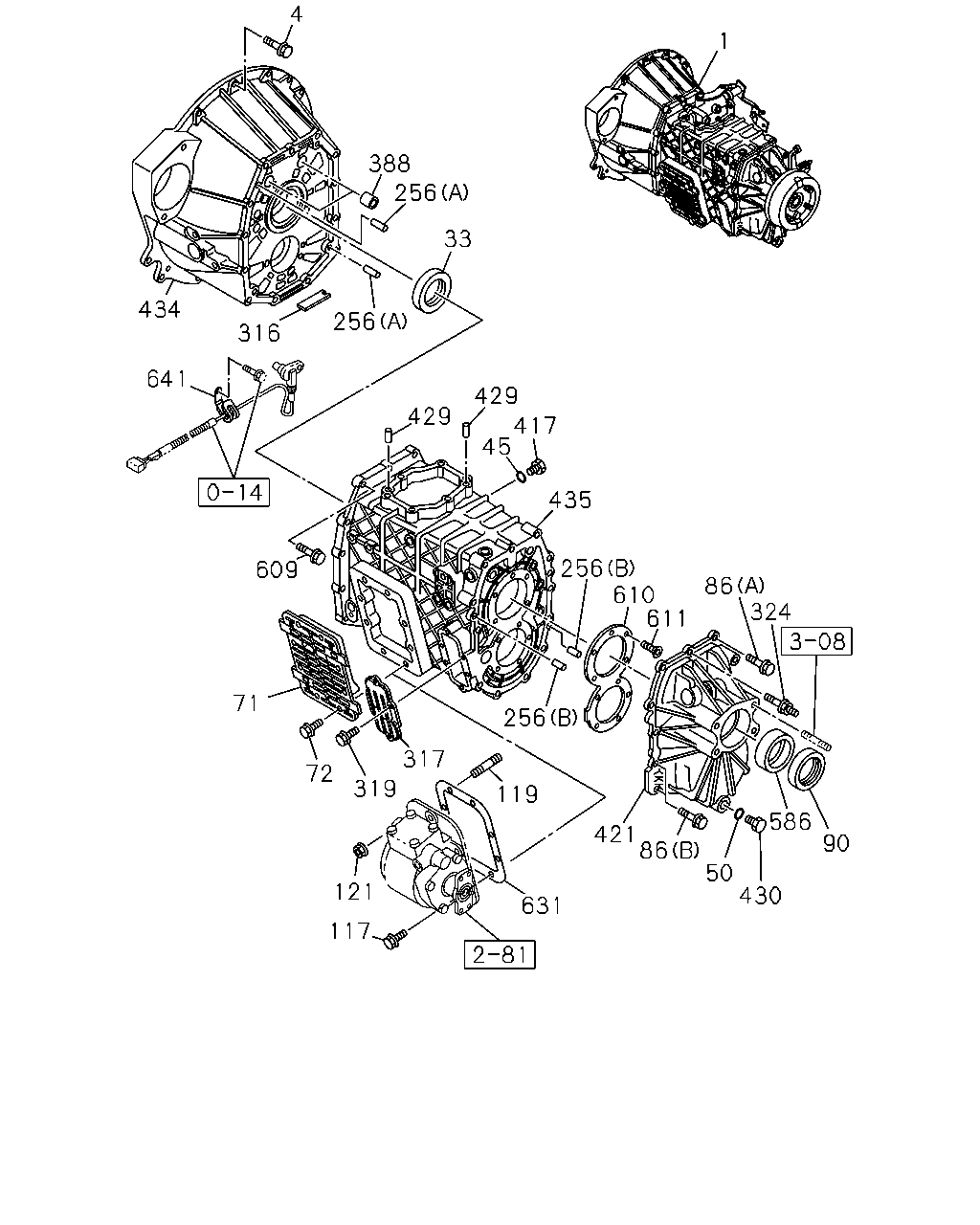

1 4 434 13 388 256 33 256 316 24 429 417 45 429 641 435 256 256 324 86 609 610 611 71 119 50 86 72 121 90 430 319 117 317 421

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TRANSMISSION ASM; MANUAL 4HE1-TCS ENG<RDS> PTO TRANSMISSION SIDE<V66>	8-97379-203-0	01	1	0508-0509	●
1	TRANSMISSION ASM; MANUAL 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66>	8-97379-203-0	01	1	0510-	●
1	TRANSMISSION ASM; MANUAL 4HE1-TCS ENG<RDS> EXC. PTO TRANSMISSION SIDE<V66>	8-97379-203-0	01	1	0508-0509	●
1	TRANSMISSION ASM; MANUAL 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> EXC. PTO TRANSMISSION SIDE<V66>	8-97379-203-0	01	1	0510-	●
1	TRANSMISSION ASM; MANUAL 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66>	8-97373-914-0	01	1	0508-		●
1	TRANSMISSION ASM; MANUAL 4HG1-T ENG<RDP> EXC. PTO TRANSMISSION SIDE<V66>	8-97373-914-0	01	1	0508-		●
4	BOLT; FLYWHEEL HSG 4HG1-T ENG<RDP> M10X30 FLANGE	0-28181-030-0	02	1	0508-0512		●
4	BOLT; FLYWHEEL HSG 4HG1-T ENG<RDP> EXC. PTO TRANSMISSION SIDE<V66> M10X30 FLANGE	0-28181-030-0	02	1	0508-0512		●
4	BOLT; FLYWHEEL HSG 4HG1-T ENG<RDP> M10X30 FLANGE	0-28151-030-0	02	1	0601-		●
4	BOLT; FLYWHEEL HSG 4HG1-T ENG<RDP> EXC. PTO TRANSMISSION SIDE<V66> M10X30 FLANGE	0-28151-030-0	02	1	0601-		●
4	BOLT; FLYWHEEL HSG 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66> M10X35 FLANGE	0-28181-035-0	02	1	0508-0512		●
4	BOLT; FLYWHEEL HSG 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66> M10X35 FLANGE	0-28151-035-0	02	1	0601-		●
4	BOLT; FLYWHEEL HSG 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> M10X35 FLANGE	0-28181-035-0	03	1	0508-0509	●	●
4	BOLT; FLYWHEEL HSG M10X35 FLANGE	0-28181-035-0	03	1	0510-0512	●	●
4	BOLT; FLYWHEEL HSG M10X35 FLANGE	0-28151-035-0	03	1	0601-	●	●
4	BOLT; FLYWHEEL HSG 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> M10X55 FLANGE THA	8-94399-863-1	02	1	0508-0509	●	●
4	BOLT; FLYWHEEL HSG M10X55 FLANGE THA	8-94399-863-1	02	1	0510-0805	●	●
4	BOLT; FLYWHEEL HSG M10X55 FLANGE	8-97365-449-0	02	1	0806-	●	●
4	BOLT; FLYWHEEL HSG 4HE1-TCS ENG<RDS> M10X30 FLANGE	0-28181-030-0	04	1	0508-0509	●
4	BOLT; FLYWHEEL HSG 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M10X30 FLANGE	0-28181-030-0	04	1	0510-0512	●
4	BOLT; FLYWHEEL HSG 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M10X30 FLANGE	0-28151-030-0	04	1	0601-	●
13	SUPPORT; SHIFT FORK 4HG1-T ENG<RDP>	8-97255-384-1	01	1	0508-		●
24	COVER; CHECK HOLE,DUST 4HG1-T ENG<RDP>	8-97255-201-0	01	1	0508-		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS>	8-97253-550-0	01	1	0508-0509	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97253-550-0	01	1	0510-	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> ID=17	8-97115-712-0	01	1	0508-0509	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0510-	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> ID=17	8-97115-712-0	01	1	0508-0509	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0510-	●	●
71	COVER; SIDE,TRANS CASE 4HG1-T ENG<RDP> EXC. PTO TRANSMISSION SIDE<V66>	8-97252-625-0	01	1	0508-		●
71	COVER; SIDE,TRANS CASE 4HE1-TCS ENG<RDS> EXC. PTO TRANSMISSION SIDE<V66>	8-97252-624-2	01	1	0508-0509	●
71	COVER; SIDE,TRANS CASE 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> EXC. PTO TRANSMISSION SIDE<V66>	8-97252-624-2	01	1	0510-	●
72	BOLT; SIDE COVER 4HG1-T ENG<RDP> EXC. PTO TRANSMISSION SIDE<V66> M10X20 FLANGE	8-97254-833-0	06	1	0508-		●
72	BOLT; SIDE COVER 4HE1-TCS ENG<RDS> EXC. PTO TRANSMISSION SIDE<V66> M10X20 FLANGE	8-97254-833-0	08	1	0508-0509	●
72	BOLT; SIDE COVER 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> EXC. PTO TRANSMISSION SIDE<V66> M10X20 FLANGE	8-97254-833-0	08	1	0510-	●
86	BOLT; RR COVER 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> (A) M10X40 FLANGE	0-28181-040-0	10	1	0508-0509	●	●
86	BOLT; RR COVER (A) M10X40 FLANGE	0-28181-040-0	10	1	0510-0512	●	●
86	BOLT; RR COVER (A) M10X40 FLANGE	0-28151-040-0	10	1	0601-	●	●
86	BOLT; RR COVER 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> (B) M10X40 FLANGE	8-97305-392-0	02	1	0508-0509	●	●
86	BOLT; RR COVER (B) M10X40 FLANGE	8-97305-392-0	02	1	0510-0604	●	●
86	BOLT; RR COVER (B) M10X40 FLANGE	8-97365-377-0	02	1	0605-	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4HG1-T ENG<RDP> NOK	8-97253-552-1	01	1	0508-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4HE1-TCS ENG<RDS> NOK	8-97253-551-1	01	1	0508-0509	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> NOK	8-97253-551-1	01	1	0510-	●
117	BOLT; PTO FIX 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66> M10X30 FLANGE	0-28781-030-0	03	1	0508-0512		●
117	BOLT; PTO FIX 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66> M10X30 FLANGE	0-28751-030-0	03	1	0601-		●
117	BOLT; PTO FIX 4HE1-TCS ENG<RDS> PTO TRANSMISSION SIDE<V66> M10X28 FLANGE	0-28181-028-0	06	1	0508-0509	●
117	BOLT; PTO FIX 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> M10X28 FLANGE	0-28181-028-0	06	1	0510-0706	●
117	BOLT; PTO FIX 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> M10X28 FLANGE	8-98044-944-0	06	1	0707-	●
119	STUD; PTO FIX 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66> M10X25 L=40	9-04411-025-0	03	1	0508-0604		●
119	STUD; PTO FIX 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66> M10X25 L=40 THA	0-44011-025-0	03	1	0605-		●
119	STUD; PTO FIX 4HE1-TCS ENG<RDS> PTO TRANSMISSION SIDE<V66> M10X25 L=40	9-04411-025-0	02	1	0508-0509	●
119	STUD; PTO FIX 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> M10X25 L=40	9-04411-025-0	02	1	0510-0604	●
119	STUD; PTO FIX 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> M10X25 L=40 THA	0-44011-025-0	02	1	0605-	●
121	NUT; PTO FIX 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66> M10 FLANGE	0-91150-210-0	03	1	0508-0602		●
121	NUT; PTO FIX 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66> M10 FLANGE THA	0-91180-210-0	03	1	0603-		●
121	NUT; PTO FIX 4HE1-TCS ENG<RDS> PTO TRANSMISSION SIDE<V66> M10 FLANGE	0-91150-210-0	02	1	0508-0509	●
121	NUT; PTO FIX 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> M10 FLANGE	0-91150-210-0	02	1	0510-0602	●
121	NUT; PTO FIX 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> M10 FLANGE THA	0-91180-210-0	02	1	0603-	●
256	PIN; KNOCK 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> (A) OD=10 L=20	8-97135-423-0	02	1	0508-0509	●	●
256	PIN; KNOCK (A) OD=10 L=20	8-97135-423-0	02	1	0510-	●	●
256	PIN; KNOCK 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> (B) ID=6 L=12 THA	9-08160-612-0	02	1	0508-0509	●	●
256	PIN; KNOCK (B) ID=6 L=12 THA	9-08160-612-0	02	1	0510-	●	●
316	MAGNET; TRANS CASE 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS>	8-94249-524-2	01	1	0508-0509	●	●
316	MAGNET; TRANS CASE	8-94249-524-2	01	1	0510-	●	●
317	COVER; CASE 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS>	8-97252-626-0	01	1	0508-0509	●	●
317	COVER; CASE	8-97252-626-0	01	1	0510-	●	●
319	BOLT; COVER 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> M8X20 FLANGE	0-28080-820-0	06	1	0508-0509	●	●
319	BOLT; COVER M8X20 FLANGE	0-28080-820-0	06	1	0510-0512	●	●
319	BOLT; COVER M8X20 FLANGE THA	0-28050-820-0	06	1	0601-	●	●
324	STUD; RR COVER 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> M10X15,M10X40 L=65	8-97309-013-0	01	1	0508-0509	●	●
324	STUD; RR COVER M10X15,M10X40 L=65	8-97309-013-0	01	1	0510-0604	●	●
324	STUD; RR COVER M10X15,M10X40 L=65	8-97365-379-0	01	1	0605-	●	●
388	BUSHING; CLU HSG 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS>	8-97241-326-2	02	1	0508-0509	●	●
388	BUSHING; CLU HSG	8-97241-326-2	02	1	0510-	●	●
417	PLUG; OIL FILLER,TRANS 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS>	8-94310-917-0	01	1	0508-0509	●	●
417	PLUG; OIL FILLER,TRANS	8-94310-917-0	01	1	0510-0604	●	●
417	PLUG; OIL FILLER,TRANS	8-97365-373-0	01	1	0605-	●	●
421	COVER; RR,TRANS 4HG1-T ENG<RDP>	8-98020-029-0	01	1	0508-		●
421	COVER; RR,TRANS 4HE1-TCS ENG<RDS>	8-97238-934-5	01	1	0508-0509	●
421	COVER; RR,TRANS 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS>	8-97238-934-5	01	1	0510-	●
429	PIN; STRAIGHT 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> OD=10 L=20	8-97135-423-0	02	1	0508-0509	●	●
429	PIN; STRAIGHT OD=10 L=20	8-97135-423-0	02	1	0510-	●	●
430	PLUG; OIL DRAIN 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS>	9-09662-004-0	01	1	0508-0509	●	●
430	PLUG; OIL DRAIN	9-09662-004-0	01	1	0510-0604	●	●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	0605-	●	●
434	HOUSING; CLU 4HG1-T ENG<RDP>	8-97237-099-5	01	1	0508-		●
434	HOUSING; CLU 4HE1-TCS ENG<RDS>	8-97238-930-4	01	1	0508-0509	●
434	HOUSING; CLU 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS>	8-97238-930-4	01	1	0510-	●
435	CASE; TRANS 4HG1-T ENG<RDP>	8-97379-375-0	01	1	0508-		●
435	CASE; TRANS 4HE1-TCS ENG<RDS>	8-97382-868-1	01	1	0508-0509	●
435	CASE; TRANS 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS>	8-97382-868-1	01	1	0510-	●
609	BOLT; HSG TO CASE 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> M10X40 FLANGE	0-28181-040-0	13	1	0508-0509	●	●
609	BOLT; HSG TO CASE M10X40 FLANGE	0-28181-040-0	13	1	0510-0512	●	●
609	BOLT; HSG TO CASE M10X40 FLANGE	0-28151-040-0	13	1	0601-	●	●
610	RETAINER; BRG 4HG1-T ENG<RDP>	8-97241-315-1	01	1	0508-		●
610	RETAINER; BRG 4HE1-TCS ENG<RDS>	8-97241-314-2	01	1	0508-0509	●
610	RETAINER; BRG 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS>	8-97241-314-2	01	1	0510-	●
611	SCREW 4HG1-T ENG<RDP> M10X27	8-97254-834-2	11	1	0508-0604		●
611	SCREW 4HG1-T ENG<RDP> M10X27 TORQUES	8-97365-354-0	11	1	0605-		●
611	SCREW 4HE1-TCS ENG<RDS> M10X27	8-97254-834-2	10	1	0508-0509	●
611	SCREW 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M10X27	8-97254-834-2	10	1	0510-0604	●
611	SCREW 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M10X27 TORQUES	8-97365-354-0	10	1	0605-	●
641	CLIP; CAM SENSOR 4HK1-TCS ENG<RJS> KD PREPARATORY PACK<6HF> HYDRO BRAKE BOOSTER<7QQ> ID=8	8-94107-659-0	01	1	0510-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
