◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51041 - NPR/NQR(THAILAND) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-08 - CLUTCH MASTER CYLINDER ▶
2-08 — CLUTCH MASTER CYLINDER (#43097) — 48 parça

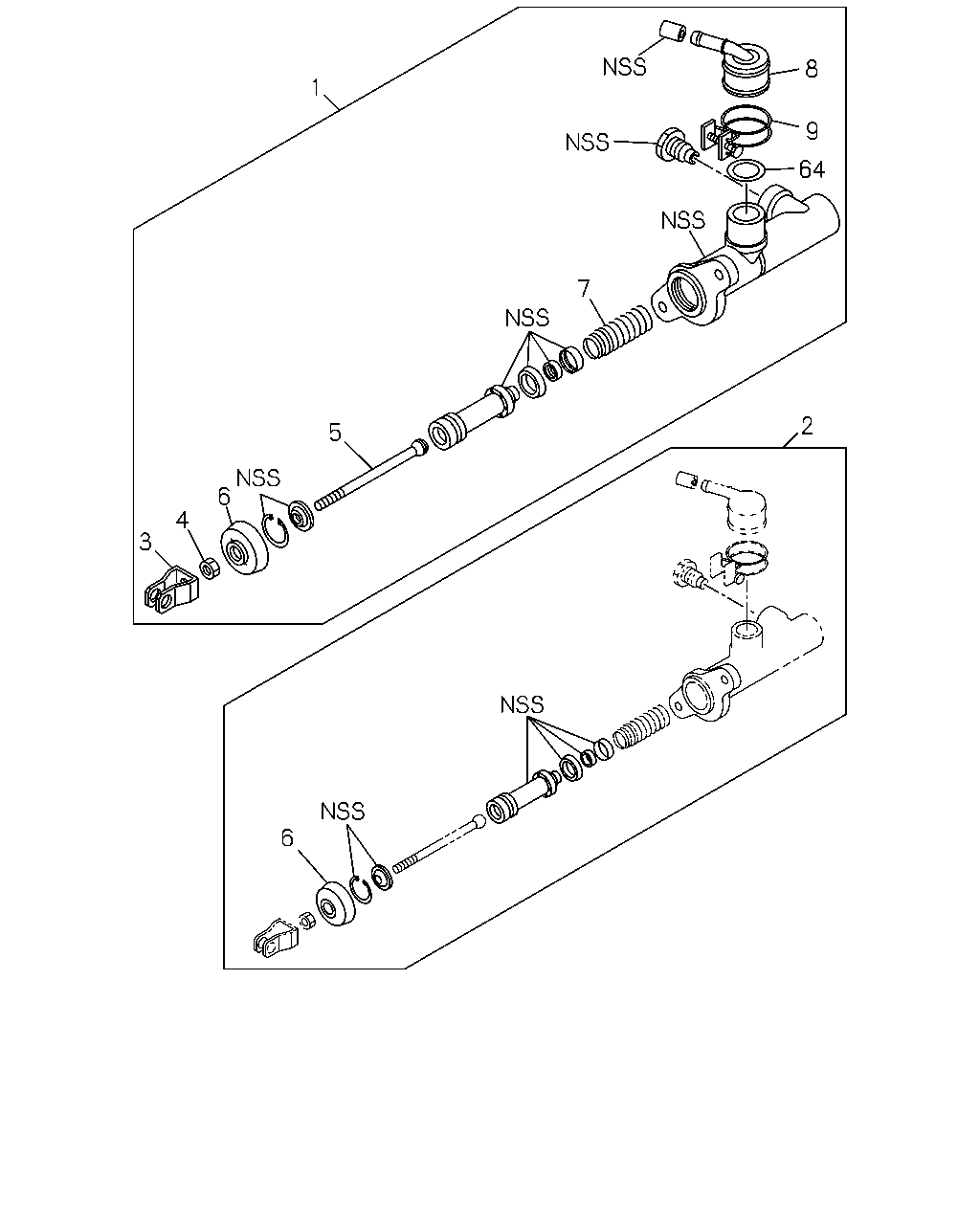

çizim 119301
8 1 9 64 7 2 5 6 4 3 6
BalonParca AdiParca NoAdetTipApplied Date A B
1 CYLINDER ASM; CLUTCH MASTER
EXC. POWER ASSIST CLUTCH<S2T> 		8-97162-963-0 01 1 0508-0803 ● ●
1 CYLINDER ASM; CLUTCH MASTER
EXC. POWER ASSIST CLUTCH<S2T> 		8-98117-639-0 01 1 0804- ● ●
1 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH<S2T> 		8-97210-747-1 01 1 0508-0610 ● ●
1 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH<S2T> 		8-98004-782-2 01 1 0611-0709 ● ●
1 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH<S2T> 		8-98098-250-0 01 1 0710- ● ●
2 REPAIR KIT; CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		5-87831-597-0 01 1 0508-0803 ● ●
2 REPAIR KIT; CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		5-87832-226-0 01 1 0804- ● ●
2 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		5-87831-617-0 01 1 0508-0709 ● ●
2 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		5-87832-221-0 01 1 0710- ● ●
3 JOINT; JAW,CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-770-0 01 1 0508- ● ●
4 NUT; JAW JOINT
EXC. POWER ASSIST CLUTCH<S2T> M8 		9-09111-408-0 01 1 0508-0511 ● ●
4 NUT; JAW JOINT
EXC. POWER ASSIST CLUTCH<S2T> M8 		0-91111-508-0 01 1 0512- ● ●
5 ROD; PUSH,CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-768-0 01 1 0508- ● ●
6 BOOT; CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		8-94412-200-0 01 1 0508- ● ●
6 BOOT; CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		8-97163-153-0 01 1 0508-0709 ● ●
7 SPRING ASM; CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-780-0 01 1 0508- ● ●
7 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		8-97163-148-0 01 1 0508-0709 ● ●
7 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		8-98077-784-0 01 1 0710- ● ●
8 CONNECTOR; PIPE,CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		8-97163-191-0 01 1 0508-0709 ● ●
8 CONNECTOR; PIPE,CLU M/CYL 8-97163-191-0 01 1 0710- ● ●
8 CONNECTOR; PIPE,CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		8-97163-154-0 01 1 0508-0709 ● ●
9 CLAMP; PIPE CONNECTOR,CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-773-0 01 1 0508-0709 ● ●
9 CLAMP; PIPE CONNECTOR,CLU M/CYL 8-97167-773-0 01 1 0710- ● ●
9 CLAMP; PIPE CONNECTOR,CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		8-97163-143-0 01 1 0508-0610 ● ●
9 CLAMP; PIPE CONNECTOR,CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		8-98061-352-0 01 1 0611-0709 ● ●
64 GASKET; CONNECTOR
EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-767-0 01 1 0508-0709 ● ●
64 GASKET; CONNECTOR 8-97167-767-0 01 1 0710- ● ●

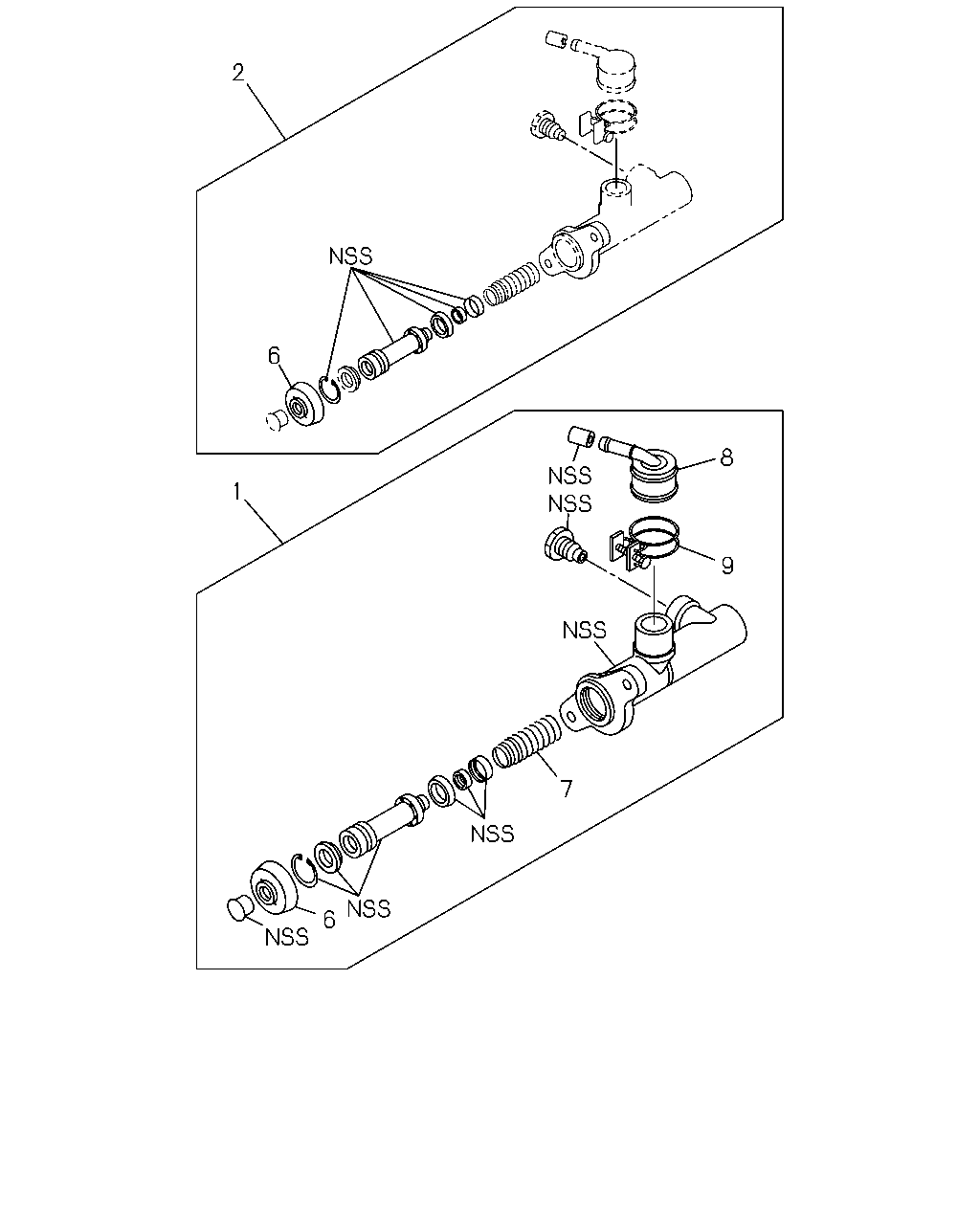

çizim 119308
2 6 8 1 9 7 6
BalonParca AdiParca NoAdetTipApplied Date A B
1 CYLINDER ASM; CLUTCH MASTER
EXC. POWER ASSIST CLUTCH<S2T> 		8-97162-963-0 01 1 0508-0803 ● ●
1 CYLINDER ASM; CLUTCH MASTER
EXC. POWER ASSIST CLUTCH<S2T> 		8-98117-639-0 01 1 0804- ● ●
1 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH<S2T> 		8-97210-747-1 01 1 0508-0610 ● ●
1 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH<S2T> 		8-98004-782-2 01 1 0611-0709 ● ●
1 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH<S2T> 		8-98098-250-0 01 1 0710- ● ●
2 REPAIR KIT; CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		5-87831-597-0 01 1 0508-0803 ● ●
2 REPAIR KIT; CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		5-87832-226-0 01 1 0804- ● ●
2 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		5-87831-617-0 01 1 0508-0709 ● ●
2 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		5-87832-221-0 01 1 0710- ● ●
6 BOOT; CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		8-94412-200-0 01 1 0508- ● ●
6 BOOT; CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		8-97163-153-0 01 1 0508-0709 ● ●
7 SPRING ASM; CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-780-0 01 1 0508- ● ●
7 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		8-97163-148-0 01 1 0508-0709 ● ●
7 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		8-98077-784-0 01 1 0710- ● ●
8 CONNECTOR; PIPE,CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		8-97163-191-0 01 1 0508-0709 ● ●
8 CONNECTOR; PIPE,CLU M/CYL 8-97163-191-0 01 1 0710- ● ●
8 CONNECTOR; PIPE,CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		8-97163-154-0 01 1 0508-0709 ● ●
9 CLAMP; PIPE CONNECTOR,CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-773-0 01 1 0508-0709 ● ●
9 CLAMP; PIPE CONNECTOR,CLU M/CYL 8-97167-773-0 01 1 0710- ● ●
9 CLAMP; PIPE CONNECTOR,CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		8-97163-143-0 01 1 0508-0610 ● ●
9 CLAMP; PIPE CONNECTOR,CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		8-98061-352-0 01 1 0611-0709 ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
