◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51041 - NPR/NQR(THAILAND) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-07 - CLUTCH BOOSTER; MINIPACK ▶
2-07 — CLUTCH BOOSTER; MINIPACK (#43096) — 7 parça

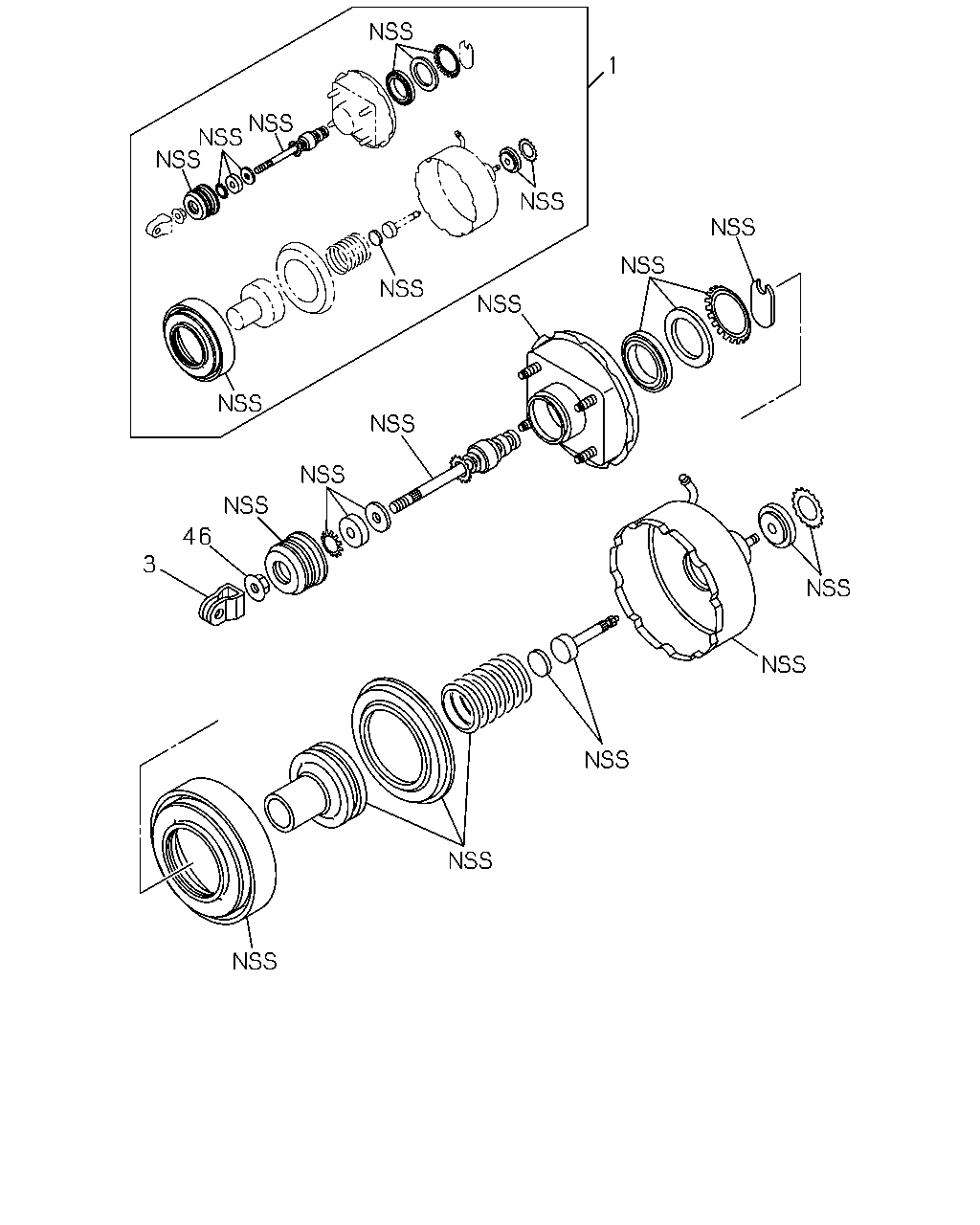

çizim 119306
1 46 3
BalonParca AdiParca NoAdetTipApplied Date A B
1 REPAIR KIT; CLU BOOSTER
4HG1-T ENG<RDP> POWER ASSIST CLUTCH<S2T> 		8-97174-145-0 01 1 0508- ●
1 REPAIR KIT; CLU BOOSTER
4HE1-TCS ENG<RDS> POWER ASSIST CLUTCH<S2T> 		8-97174-151-0 01 1 0508-0509 ●
1 REPAIR KIT; CLU BOOSTER
4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> POWER ASSIST CLUTCH<S2T> 		8-97174-151-0 01 1 0510- ●
3 CLEVIS; PUSH ROD,CLU BOOSTER
4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> POWER ASSIST CLUTCH<S2T> 		8-97174-147-0 01 1 0508-0509 ● ●
3 CLEVIS; PUSH ROD,CLU BOOSTER
POWER ASSIST CLUTCH<S2T> 		8-97174-147-0 01 1 0510- ● ●
46 NUT; PUSH ROD,CLU BOOSTER
4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> POWER ASSIST CLUTCH<S2T> 		8-97174-148-0 01 1 0508-0509 ● ●
46 NUT; PUSH ROD,CLU BOOSTER
POWER ASSIST CLUTCH<S2T> 		8-97174-148-0 01 1 0510- ● ●
