2-05 — CLUTCH PIPING (#43094) — 25 parça

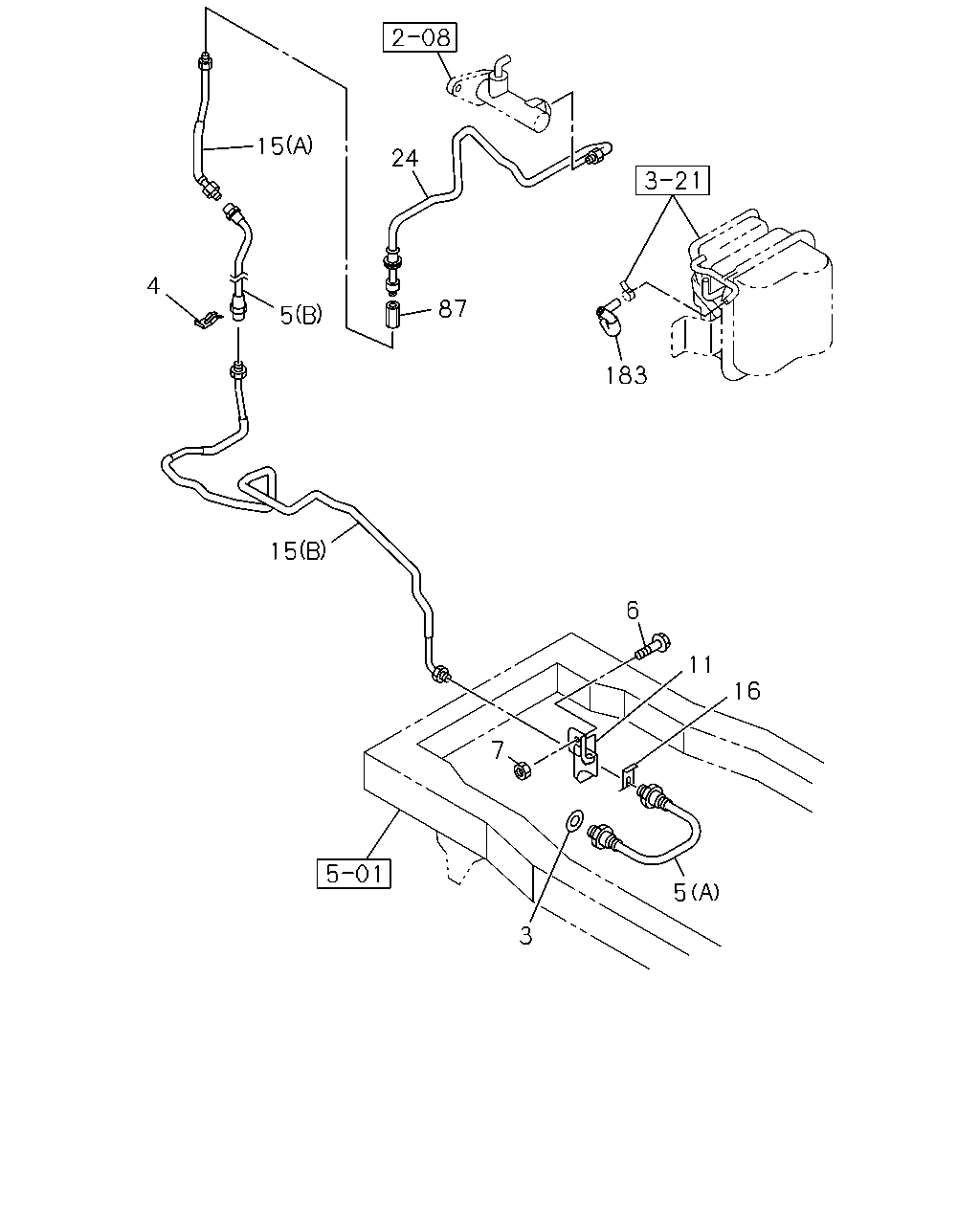

çizim 119294
15 24 4 87 5 183 15 6 11 16 7 5 3
BalonParca AdiParca NoAdetTipApplied Date A B
3 GASKET; FLEX HOSE,CLU 9-09920-873-1 01 1 0508- ● ●
4 CLIP; FLEX HOSE,CLU CONT 8-94167-006-0 02 1 0508-0610 ● ●
4 CLIP; FLEX HOSE,CLU CONT 8-97365-304-0 02 1 0611- ● ●
5 HOSE; FLEX,CLU PIPE
4HE1-TCS ENG<RDS> (A) 		8-98020-158-0 01 1 0508-0509 ●
5 HOSE; FLEX,CLU PIPE
4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> (A) 		8-98020-158-0 01 1 0510- ●
5 HOSE; FLEX,CLU PIPE
(B) 		8-94248-702-2 01 1 0508-0609 ● ●
5 HOSE; FLEX,CLU PIPE
(B) 		8-98004-775-0 01 1 0610-0706 ● ●
5 HOSE; FLEX,CLU PIPE
(B) 		8-98090-655-0 01 1 0707- ● ●
5 HOSE; FLEX,CLU PIPE
4HG1-T ENG<RDP> (A) 		8-97064-108-1 01 1 0508- ●
6 BOLT; BRKT,FLEX HOSE
M8X25 FLANGE 		0-28680-825-0 01 1 0508-0611 ● ●
6 BOLT; BRKT,FLEX HOSE
M8X25 FLANGE THA 		0-28650-825-0 01 1 0612- ● ●
7 NUT; FLEX HOSE,CLU CONT
M8 FLANGE 		0-91150-108-0 01 1 0508- ● ●
11 BRACKET; FLEX HOSE,CLU 8-97365-305-0 01 1 0508- ● ●
15 PIPE; CLU,FLEX HOSE
(A) THA 		8-97917-169-1 01 1 0508- ● ●
15 PIPE; CLU,FLEX HOSE
4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> (B) THA 		8-97922-416-0 01 1 0508- ●
15 PIPE; CLU,FLEX HOSE
4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> (B) THA 		8-97917-170-1 01 1 0508-0509 ●
15 PIPE; CLU,FLEX HOSE
4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> FRAME STRAIGHT TYPE<7KJ> (B) THA 		8-97917-170-1 01 1 0510- ●
16 CLIP; FLEX HOSE 8-94167-006-0 01 1 0508-0610 ● ●
16 CLIP; FLEX HOSE 8-97365-304-0 01 1 0611- ● ●
24 PIPE ASM; CLU,M/CYL TO UNION
POWER ASSIST CLUTCH<S2T> 		8-97177-034-0 01 1 0508- ● ●
24 PIPE ASM; CLU,M/CYL TO UNION
EXC. POWER ASSIST CLUTCH<S2T> THA 		8-97917-183-1 01 1 0508- ● ●
87 UNION; OIL PIPE
M12 STRAIGHT 		9-99227-006-0 01 1 0508-0607 ● ●
87 UNION; OIL PIPE
M12 STRAIGHT 		0-92107-006-0 01 1 0608- ● ●
183 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH<S2T> HYDRO BRAKE BOOSTER<7QQ> 		8-97129-874-0 01 1 0508- ●
183 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH<S2T> EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97129-873-0 01 1 0508- ● ●
