2-03 — CLUTCH PEDAL AND CONTROL (#43093) — 57 parça

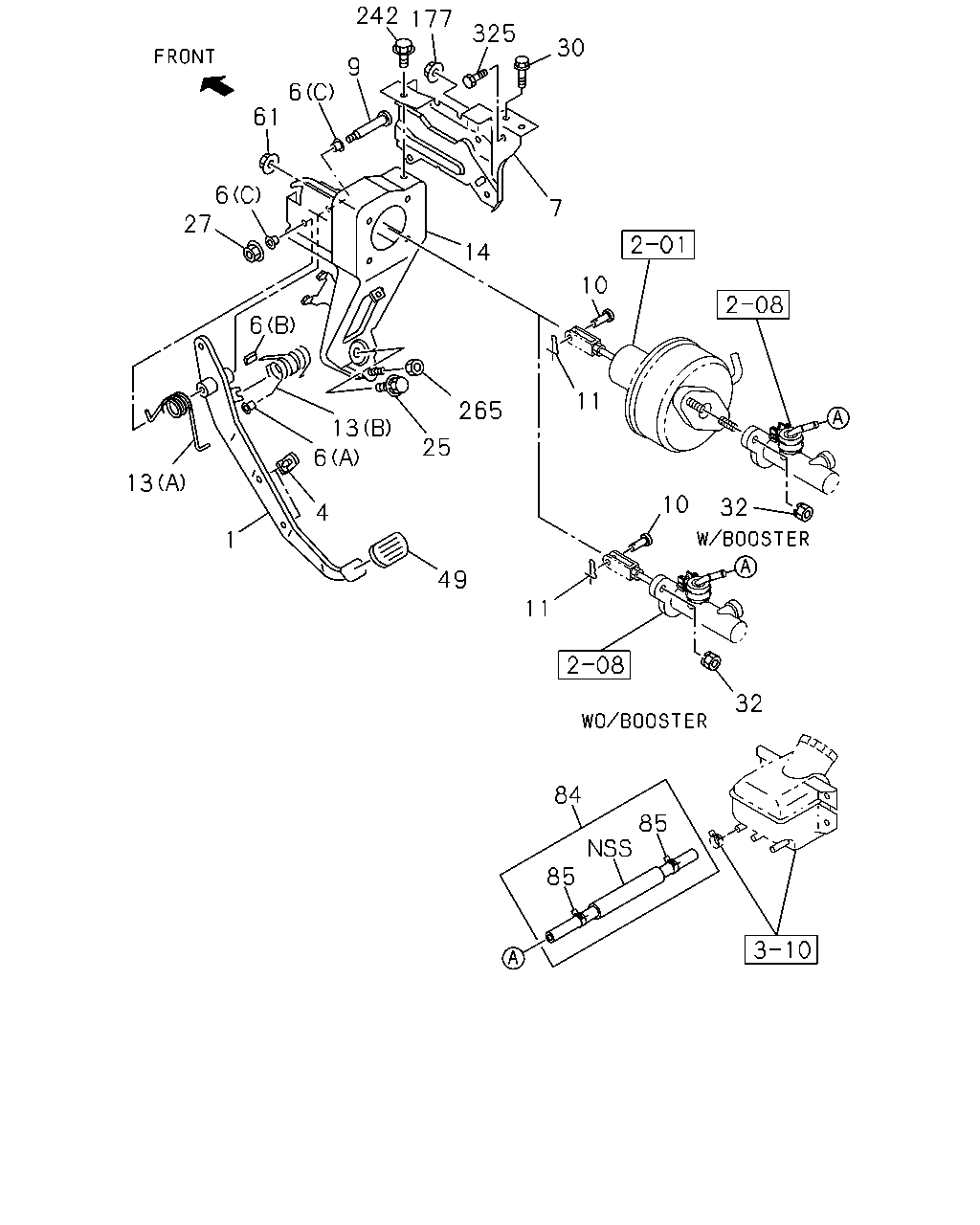

çizim 119303
242 177 325 30 6 61 6 27 7 14 10 6 11 265 13 25 6 13 10 32 4 1 49 11 32 84 85 85 9
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PEDAL; CLU
FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH<S2T> 		8-97853-220-2 01 1 0508- ●
1 PEDAL; CLU
POWER ASSIST CLUTCH<S2T> 		8-97853-220-2 01 1 0508- ● ●
1 PEDAL; CLU
4HG1-T ENG<RDP> FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH<S2T> THA 		8-97916-303-0 01 1 0508- ●
1 PEDAL; CLU
4HG1-T ENG<RDP> EXC. POWER ASSIST CLUTCH<S2T> THA 		8-97916-303-0 01 1 0508- ●
1 PEDAL; CLU
4HE1-TCS ENG<RDS> FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH<S2T> THA 		8-97920-904-0 01 1 0508-0509 ●
1 PEDAL; CLU
4HE1-TCS ENG<RDS> EXC. POWER ASSIST CLUTCH<S2T> THA 		8-97920-904-0 01 1 0508-0509 ●
1 PEDAL; CLU
4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH<S2T> THA 		8-97920-904-0 01 1 0510- ●
1 PEDAL; CLU
4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> EXC. POWER ASSIST CLUTCH<S2T> THA 		8-97920-904-0 01 1 0510- ●
4 STOPPER; CLU PEDAL
4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> THA 		8-97853-534-1 02 1 0508-0509 ● ● ●
4 STOPPER; CLU PEDAL
THA 		8-97853-534-1 02 1 0510- ● ● ●
6 BUSHING; CLU PEDAL
4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> (C) 		8-94238-596-0 02 1 0508-0509 ● ● ●
6 BUSHING; CLU PEDAL
(C) 		8-94238-596-0 02 1 0510- ● ● ●
6 BUSHING; CLU PEDAL
4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> EXC. POWER ASSIST CLUTCH<S2T> (A) 		8-97853-619-0 02 1 0508-0509 ● ● ●
6 BUSHING; CLU PEDAL
EXC. POWER ASSIST CLUTCH<S2T> (A) 		8-97853-619-0 02 1 0510- ● ● ●
6 BUSHING; CLU PEDAL
4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> EXC. POWER ASSIST CLUTCH<S2T> (B) 		8-97853-620-0 01 1 0508-0509 ● ● ●
6 BUSHING; CLU PEDAL
EXC. POWER ASSIST CLUTCH<S2T> (B) 		8-97853-620-0 01 1 0510- ● ● ●
7 BRACKET; CLU PEDAL
4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> 		8-97853-522-5 01 1 0508-0509 ● ● ●
7 BRACKET; CLU PEDAL 8-97853-522-5 01 1 0510- ● ● ●
9 PIN; CLU PEDAL
4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> 		8-97866-667-0 01 1 0508-0509 ● ● ●
9 PIN; CLU PEDAL 8-97866-667-0 01 1 0510- ● ● ●
10 PIN; CLU PEDAL
FLOOR REMOTE SHIFT<M11> 		8-97359-812-0 01 1 0508- ●
10 PIN; CLU PEDAL 8-97359-812-0 01 1 0508- ● ●
11 PIN; SNAP,PUSH ROD TO PEDAL
FLOOR REMOTE SHIFT<M11> 		8-94279-912-0 01 1 0508- ●
11 PIN; SNAP,PUSH ROD TO PEDAL 8-94279-912-0 01 1 0508- ● ●
13 SPRING; ASSIST,CLU PEDAL
FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH<S2T> (A) 		8-97853-535-1 01 1 0508- ●
13 SPRING; ASSIST,CLU PEDAL
POWER ASSIST CLUTCH<S2T> (A) 		8-97853-535-1 01 1 0508- ● ●
13 SPRING; ASSIST,CLU PEDAL
4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> EXC. POWER ASSIST CLUTCH<S2T> (B) 		8-97853-221-1 01 1 0508-0509 ● ● ●
13 SPRING; ASSIST,CLU PEDAL
EXC. POWER ASSIST CLUTCH<S2T> (B) 		8-97853-221-1 01 1 0510- ● ● ●
14 BRACKET ASM; CLU PEDAL MTG
FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH<S2T> 		8-97892-849-3 01 1 0508- ●
14 BRACKET ASM; CLU PEDAL MTG
POWER ASSIST CLUTCH<S2T> 		8-97892-849-3 01 1 0508- ● ●
14 BRACKET ASM; CLU PEDAL MTG
4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> EXC. POWER ASSIST CLUTCH<S2T> 		8-97892-848-2 01 1 0508-0509 ● ● ●
14 BRACKET ASM; CLU PEDAL MTG
EXC. POWER ASSIST CLUTCH<S2T> 		8-97892-848-2 01 1 0510- ● ● ●
25 BOLT; PEDAL
M10X22 W/PL WASHER 		8-97313-188-0 01 1 0508- ● ● ●
27 NUT; FULCRUM PIN
4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> M10 FLANGE 		1-09440-022-0 01 1 0508-0509 ● ● ●
27 NUT; FULCRUM PIN
M10 FLANGE 		1-09440-022-0 01 1 0510- ● ● ●
30 BOLT; CLU MTG BRKT
M10X25 FLANGE 		0-28691-025-0 01 1 0508-0512 ● ● ●
30 BOLT; CLU MTG BRKT
M10X25 FLANGE THA 		0-28661-025-0 01 1 0601- ● ● ●
32 NUT; BRKT TO CLU M/CYL
M8 W/LK WASHER 		8-94279-050-0 02 1 0508- ● ● ●
49 RUBBER; PAD,CLU PEDAL
4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> 		8-97853-413-2 01 1 0508-0509 ● ● ●
49 RUBBER; PAD,CLU PEDAL 8-97853-413-2 01 1 0510- ● ● ●
61 NUT; BOOSTER TO BRKT
POWER ASSIST CLUTCH<S2T> M8 W/LK WASHER 		8-94279-050-0 04 1 0508- ● ● ●
84 HOSE; RUBBER,CLU LINE
FLOOR REMOTE SHIFT<M11> 		8-97135-025-0 01 1 0508-1405 ●
84 HOSE; RUBBER,CLU LINE 8-97135-025-0 01 1 0508-1405 ● ●
84 HOSE; RUBBER,CLU LINE
FLOOR REMOTE SHIFT<M11> 		8-98193-435-0 01 1 1406- ●
84 HOSE; RUBBER,CLU LINE 8-98193-435-0 01 1 1406- ● ●
85 CLIP; HOSE TO M/CYL
FLOOR REMOTE SHIFT<M11> 		8-97130-480-0 02 1 0508-1405 ●
85 CLIP; HOSE TO M/CYL 8-97130-480-0 02 1 0508-1405 ● ●
85 CLIP; HOSE TO M/CYL
FLOOR REMOTE SHIFT<M11> 		8-98168-080-0 02 1 1406- ●
85 CLIP; HOSE TO M/CYL 8-98168-080-0 02 1 1406- ● ●
177 NUT; BRKT
M8 W/LK WASHER 		8-94279-050-0 02 1 0508- ● ● ●
242 BOLT; BRKT,CLUTCH
4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> M8X16 FLANGE 		0-28480-816-0 02 1 0508-0509 ● ● ●
242 BOLT; BRKT,CLUTCH
M8X16 FLANGE 		0-28480-816-0 02 1 0510-0512 ● ● ●
242 BOLT; BRKT,CLUTCH
EXC. POWER ASSIST CLUTCH<S2T> M8X16 FLANGE 		0-28450-816-0 02 1 0601- ● ● ●
265 NUT; BRKT,COLUMN SUPT TO C.PDL
M8 FLANGE 		8-97046-127-0 01 1 0508-0610 ● ● ●
265 NUT; BRKT,COLUMN SUPT TO C.PDL
M8 W/DISHED WASHER 		8-97329-625-0 01 1 0611- ● ● ●
325 BOLT; BRKT,STRG SUPPORT
M8X20 FLANGE 		0-28680-820-0 01 1 0508-0611 ● ● ●
325 BOLT; BRKT,STRG SUPPORT
M8X20 FLANGE THA 		0-28650-820-0 01 1 0612- ● ● ●
