2-01 — CLUTCH (#43092) — 82 parça

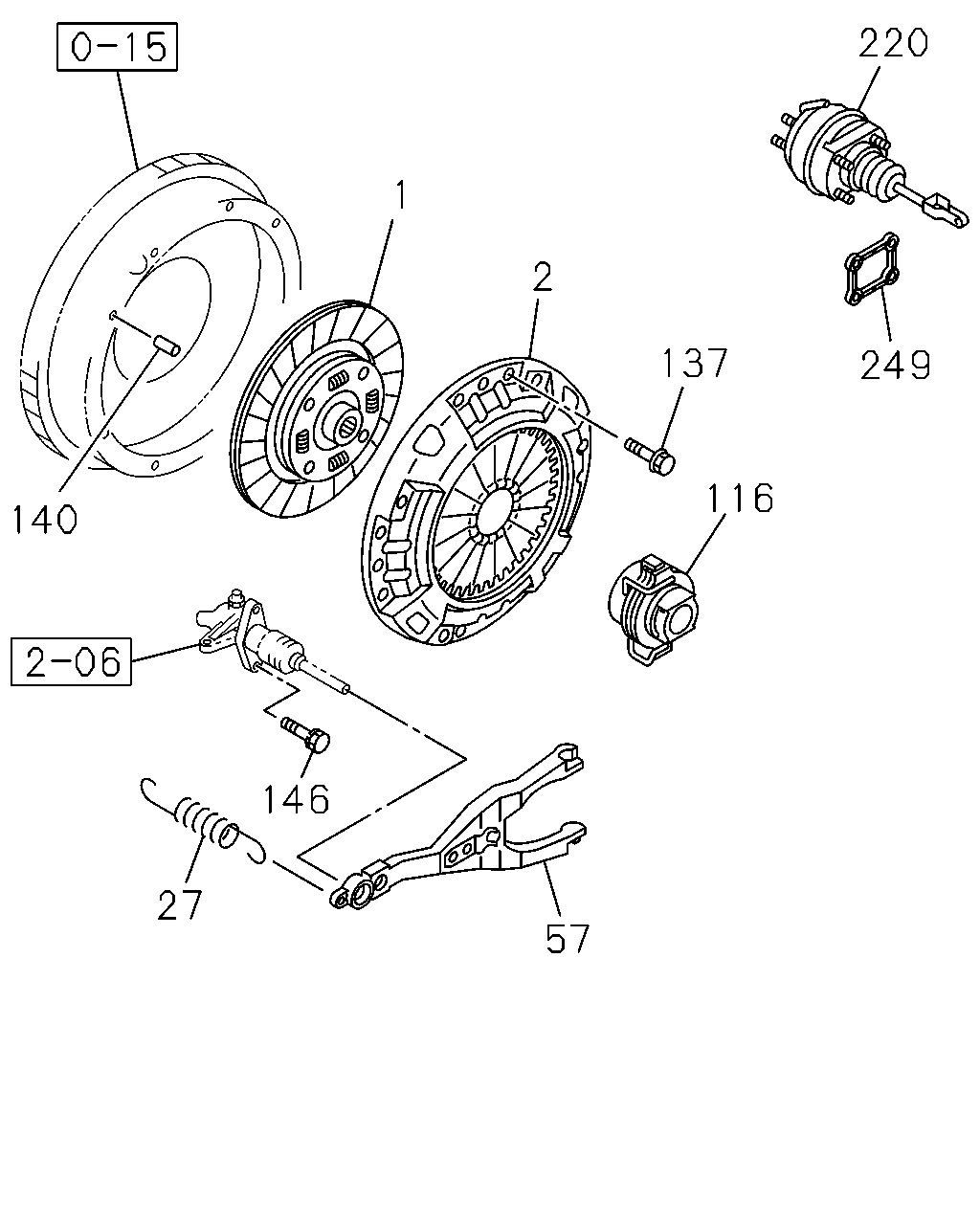

220 1 2 137 249 116 140 146 27 57

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DISC; CLUTCH 4HG1-T ENG<RDP> THA	8-97943-099-0	01	1	0508-	●
1	DISC; CLUTCH 4HE1-TCS ENG<RDS>	8-97367-795-0	01	1	0508-0509		●
1	DISC; CLUTCH 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS>	8-97367-795-0	01	1	0510-1007		●
1	DISC; CLUTCH 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS>	8-98164-917-0	01	1	1008-		●
1	DISC; CLUTCH 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> BEST VALUE PARTS THA	5-87610-092-0	01	1	1008-		●
2	PLATE ASM; PRESSURE,CLU 4HG1-T ENG<RDP>	8-97310-796-0	01	1	0508-	●
2	PLATE ASM; PRESSURE,CLU 4HE1-TCS ENG<RDS>	8-97351-794-0	01	1	0508-0509		●
2	PLATE ASM; PRESSURE,CLU 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS>	8-97351-794-0	01	1	0510-1405		●
2	PLATE ASM; PRESSURE,CLU 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS>	8-97038-831-2	01	1	1406-		●
2	PLATE ASM; PRESSURE,CLU 4HG1-T ENG<RDP> EXC. AIR CONDITIONER MANUAL CONT<C60> BEST VALUE PARTS	5-87610-050-1	01	1	0508-	●
2	PLATE ASM; PRESSURE,CLU 4HE1-TCS ENG<RDS> BEST VALUE PARTS	5-87610-081-0	01	1	0508-1405		●
2	PLATE ASM; PRESSURE,CLU 4HE1-TCS ENG<RDS> BEST VALUE PARTS	5-87610-104-0	01	1	1406-		●
27	SPRING; RETURN,SHIFT FORK 4HG1-T ENG<RDP>	8-97184-359-0	01	1	0508-0812	●
27	SPRING; RETURN,SHIFT FORK 4HG1-T ENG<RDP>	8-98025-313-0	01	1	0901-	●
27	SPRING; RETURN,SHIFT FORK 4HE1-TCS ENG<RDS>	8-97184-358-0	01	1	0508-0509		●
27	SPRING; RETURN,SHIFT FORK 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS>	8-97184-358-0	01	1	0510-0812		●
27	SPRING; RETURN,SHIFT FORK 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS>	8-98025-314-0	01	1	0901-		●
57	FORK; SHIFT,CLU 4HG1-T ENG<RDP>	8-97255-303-0	01	1	0508-	●
57	FORK; SHIFT,CLU 4HE1-TCS ENG<RDS>	8-97310-456-1	01	1	0508-0509		●
57	FORK; SHIFT,CLU 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS>	8-97310-456-1	01	1	0510-		●
116	BLOCK; SHIFT,CLU 4HG1-T ENG<RDP>	8-97255-313-0	01	1	0508-	●
116	BLOCK; SHIFT,CLU 4HG1-T ENG<RDP> BEST VALUE PARTS	5-87610-110-0	01	1	0508-	●
137	BOLT; CLU COVER 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> M10X16 FLANGE	0-28081-016-0	10	1	0508-0509	●	●
137	BOLT; CLU COVER M10X16 FLANGE	0-28081-016-0	10	1	0510-	●	●
140	PIN; STRAIGHT 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> L=25	8-94410-361-0	02	1	0508-0509	●	●
140	PIN; STRAIGHT L=25	8-94410-361-0	02	1	0510-	●	●
146	BOLT; SLAVE CYL TO TRANS CASE M8X30 FLANGE	0-28680-830-0	02	1	0508-0611	●	●
146	BOLT; SLAVE CYL TO TRANS CASE M8X30 FLANGE THA	0-28650-830-0	02	1	0612-	●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 4HG1-T ENG<RDP> POWER ASSIST CLUTCH<S2T>	8-97162-962-1	01	1	0508-	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 4HE1-TCS ENG<RDS> POWER ASSIST CLUTCH<S2T>	8-97166-854-1	01	1	0508-0509		●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> POWER ASSIST CLUTCH<S2T>	8-97166-854-1	01	1	0510-		●
249	SPACER; CLU BOOSTER POWER ASSIST CLUTCH<S2T>	8-97167-489-0	01	1	0508-	●	●

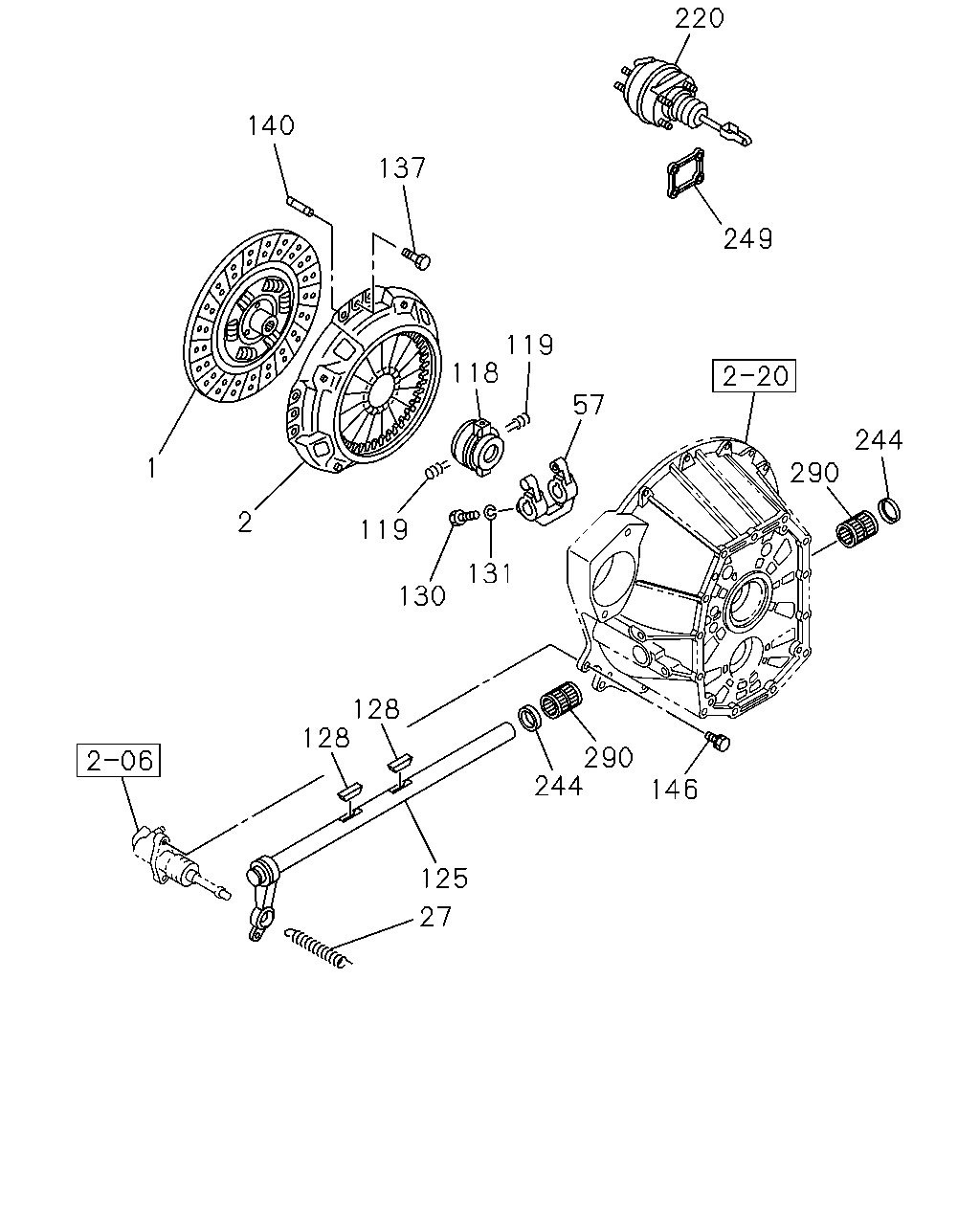

220 140 137 249 119 118 57 244 1 290 2 119 131 130 128 128 290 244 146 125 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DISC; CLUTCH 4HG1-T ENG<RDP> THA	8-97943-099-0	01	1	0508-	●
1	DISC; CLUTCH 4HE1-TCS ENG<RDS>	8-97367-795-0	01	1	0508-0509		●
1	DISC; CLUTCH 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS>	8-97367-795-0	01	1	0510-1007		●
1	DISC; CLUTCH 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS>	8-98164-917-0	01	1	1008-		●
1	DISC; CLUTCH 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> BEST VALUE PARTS THA	5-87610-092-0	01	1	1008-		●
2	PLATE ASM; PRESSURE,CLU 4HG1-T ENG<RDP>	8-97310-796-0	01	1	0508-	●
2	PLATE ASM; PRESSURE,CLU 4HE1-TCS ENG<RDS>	8-97351-794-0	01	1	0508-0509		●
2	PLATE ASM; PRESSURE,CLU 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS>	8-97351-794-0	01	1	0510-1405		●
2	PLATE ASM; PRESSURE,CLU 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS>	8-97038-831-2	01	1	1406-		●
2	PLATE ASM; PRESSURE,CLU 4HG1-T ENG<RDP> EXC. AIR CONDITIONER MANUAL CONT<C60> BEST VALUE PARTS	5-87610-050-1	01	1	0508-	●
2	PLATE ASM; PRESSURE,CLU 4HE1-TCS ENG<RDS> BEST VALUE PARTS	5-87610-081-0	01	1	0508-1405		●
2	PLATE ASM; PRESSURE,CLU 4HE1-TCS ENG<RDS> BEST VALUE PARTS	5-87610-104-0	01	1	1406-		●
27	SPRING; RETURN,SHIFT FORK 4HG1-T ENG<RDP>	8-97184-359-0	01	1	0508-0812	●
27	SPRING; RETURN,SHIFT FORK 4HG1-T ENG<RDP>	8-98025-313-0	01	1	0901-	●
27	SPRING; RETURN,SHIFT FORK 4HE1-TCS ENG<RDS>	8-97184-358-0	01	1	0508-0509		●
27	SPRING; RETURN,SHIFT FORK 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS>	8-97184-358-0	01	1	0510-0812		●
27	SPRING; RETURN,SHIFT FORK 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS>	8-98025-314-0	01	1	0901-		●
57	FORK; SHIFT,CLU 4HG1-T ENG<RDP>	8-97255-303-0	01	1	0508-	●
57	FORK; SHIFT,CLU 4HE1-TCS ENG<RDS>	8-97310-456-1	01	1	0508-0509		●
57	FORK; SHIFT,CLU 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS>	8-97310-456-1	01	1	0510-		●
118	BEARING; CLU RELEASE 4HE1-TCS ENG<RDS>	1-31310-012-0	01	1	0508-0509		●
118	BEARING; CLU RELEASE 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS>	1-31310-012-0	01	1	0510-		●
118	BEARING; CLU RELEASE 4HE1-TCS ENG<RDS> BEST VALUE PARTS	1-87610-110-0	01	1	0508-0509		●
118	BEARING; CLU RELEASE 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> BEST VALUE PARTS	1-87610-110-0	01	1	0510-		●
119	SPRING; SHIFT FORK 4HE1-TCS ENG<RDS>	1-31329-024-0	02	1	0508-0509		●
119	SPRING; SHIFT FORK 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS>	1-31329-024-0	02	1	0510-		●
125	SHAFT; CLU 4HE1-TCS ENG<RDS>	8-97310-435-0	01	1	0508-0509		●
125	SHAFT; CLU 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS>	8-97310-435-0	01	1	0510-		●
128	KEY; FEATHER,CLU SHAFT 4HE1-TCS ENG<RDS>	9-09867-008-0	02	1	0508-0509		●
128	KEY; FEATHER,CLU SHAFT 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS>	9-09867-008-0	02	1	0510-		●
130	SCREW; SHIFT FORK 4HE1-TCS ENG<RDS> M8X14	9-06120-814-0	01	1	0508-0509		●
130	SCREW; SHIFT FORK 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M8X14	9-06120-814-0	01	1	0510-0512		●
130	SCREW; SHIFT FORK 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M8X14	0-61200-814-0	01	1	0601-		●
131	WASHER; LK,SHIFT FORK 4HE1-TCS ENG<RDS> ID=8.2	9-09150-508-0	01	1	0508-0509		●
131	WASHER; LK,SHIFT FORK 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> ID=8.2	9-09150-508-0	01	1	0510-0603		●
131	WASHER; LK,SHIFT FORK 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> ID=8.2	0-91510-508-0	01	1	0604-		●
137	BOLT; CLU COVER 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> M10X16 FLANGE	0-28081-016-0	10	1	0508-0509	●	●
137	BOLT; CLU COVER M10X16 FLANGE	0-28081-016-0	10	1	0510-	●	●
140	PIN; STRAIGHT 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> L=25	8-94410-361-0	02	1	0508-0509	●	●
140	PIN; STRAIGHT L=25	8-94410-361-0	02	1	0510-	●	●
146	BOLT; SLAVE CYL TO TRANS CASE M8X30 FLANGE	0-28680-830-0	02	1	0508-0611	●	●
146	BOLT; SLAVE CYL TO TRANS CASE M8X30 FLANGE THA	0-28650-830-0	02	1	0612-	●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 4HG1-T ENG<RDP> POWER ASSIST CLUTCH<S2T>	8-97162-962-1	01	1	0508-	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 4HE1-TCS ENG<RDS> POWER ASSIST CLUTCH<S2T>	8-97166-854-1	01	1	0508-0509		●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> POWER ASSIST CLUTCH<S2T>	8-97166-854-1	01	1	0510-		●
244	SEAL; DUST ALSO INCLUDED IN GASKET SET(M/T). 4HE1-TCS ENG<RDS>	1-09625-002-0	02	1	0508-0509		●
244	SEAL; DUST ALSO INCLUDED IN GASKET SET(M/T). 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS>	1-09625-002-0	02	1	0510-		●
249	SPACER; CLU BOOSTER POWER ASSIST CLUTCH<S2T>	8-97167-489-0	01	1	0508-	●	●
290	BEARING; NEEDLE 4HE1-TCS ENG<RDS> NTN	1-09811-002-1	02	1	0508-0509		●
290	BEARING; NEEDLE 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> NTN	1-09811-002-1	02	1	0510-		●
