Sayfa 2-01A - Isuzu EPC

2-01A — CLUTCH (#4309) — 185 parça

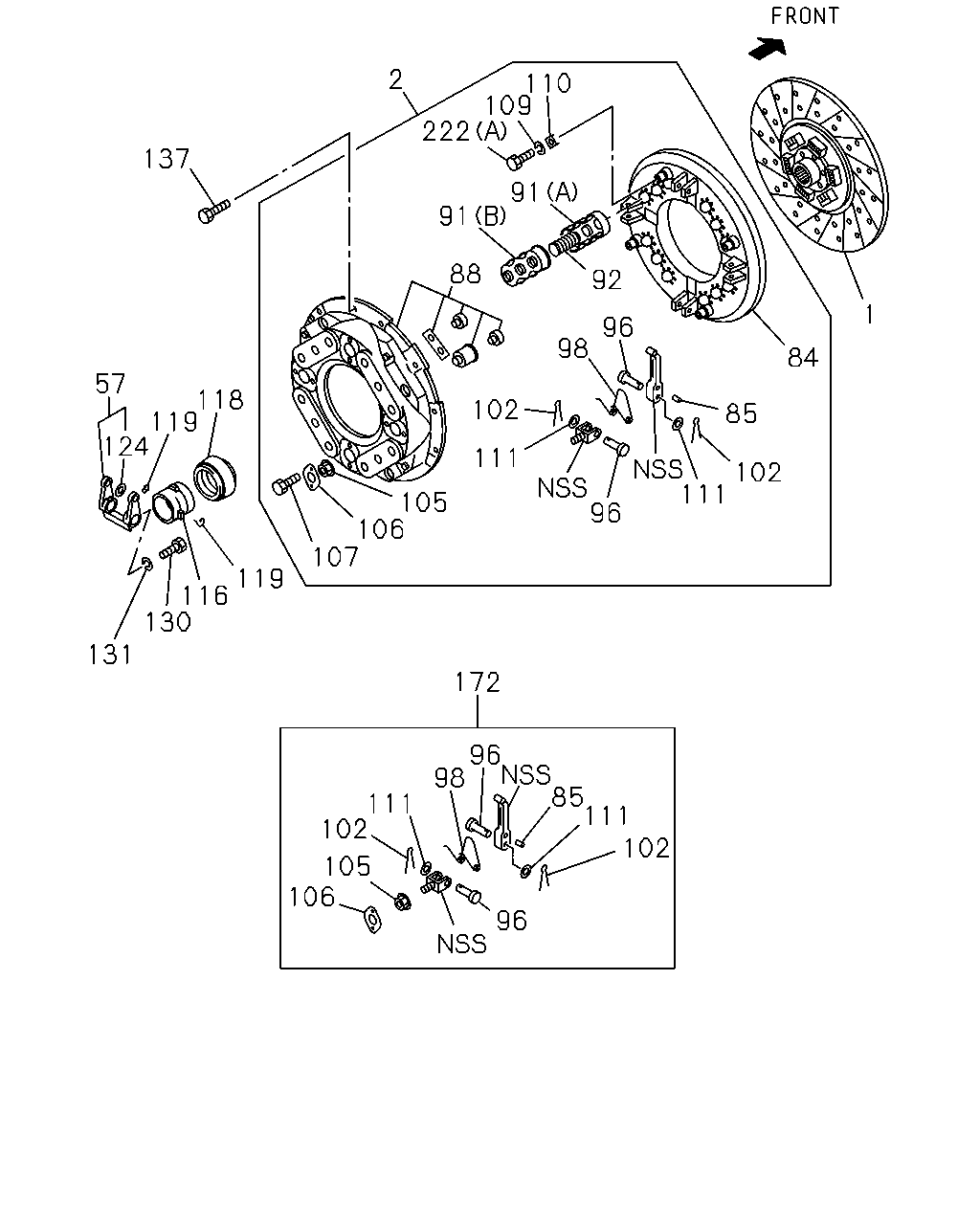

2 110 109 222 137 91 91 88 92 1 96 98 84 57 118 119 124 102 85 111 111 102 96 105 106 107 119 116 130 131 172 96 98 85 111 102 111 102 105 106 96

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	DISC; CLUTCH 6WA1 TC-S(56L) 17"	1-31240-753-1	01	1	9603-9704	●	●	●	●	●
1	DISC; CLUTCH 6WA1 TC-S(56L) 17"	1-31240-775-0	01	1	9705-9707	●	●	●	●	●
1	DISC; CLUTCH 6WA1 TC-S(56L) 17"	1-31240-773-1	01	1	9708-9904	●	●	●	●	●
1	DISC; CLUTCH 6WA1 TC-N(54L),6WA1 TC-C(55L),10PE1H(68L), 6WA1TC-R(93L) 17"	1-31240-773-1	01	1	9905-9908	●	●				●
1	DISC; CLUTCH 6WA1 TC-N(54L),6WA1 TC-C(55L),10PE1H(68L), 6WA1TC-R(93L) 17"	1-31240-824-0	01	1	9909-	●	●				●
1	DISC; CLUTCH 8PE1S(59L),10PE1S(60L) 17"	1-31240-700-0	01	1	9603-9904	●	●	●	●	●
1	DISC; CLUTCH 8PE1S(59L),10PE1S(60L),10PE1N(61L) 17"	1-31240-700-0	01	1	9905-	●	●	●	●	●
2	PLATE ASM; PRESSURE,CLU 10PE1S(60L) EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-31220-265-2	01	1	9603-9707	●	●	●	●
2	PLATE ASM; PRESSURE,CLU 6WA1 TC-S(56L) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATO R(YC4)	1-31220-265-2	01	1	9603-9707	●
2	PLATE ASM; PRESSURE,CLU 10PE1S(60L) EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-31220-321-0	01	1	9708-9904	●	●	●	●
2	PLATE ASM; PRESSURE,CLU 6WA1 TC-S(56L) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATO R(YC4)	1-31220-321-0	01	1	9708-9904	●
2	PLATE ASM; PRESSURE,CLU 6WA1 TC-N(54L),6WA1 TC-C(55L),10PE1H(68L), 6WA1TC-R(93L)	1-31220-321-2	01	1	9905-	●	●				●
2	PLATE ASM; PRESSURE,CLU 10PE1S(60L) EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT <TEH>	1-31220-277-0	01	1	9603-9707	●	●	●	●
2	PLATE ASM; PRESSURE,CLU 6WA1 TC-S(56L) INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	1-31220-277-0	01	1	9603-9707	●
2	PLATE ASM; PRESSURE,CLU 10PE1S(60L) EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT <TEH>	1-31220-320-0	01	1	9708-9904	●	●	●	●
2	PLATE ASM; PRESSURE,CLU 6WA1 TC-S(56L) INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	1-31220-320-0	01	1	9708-9904	●
2	PLATE ASM; PRESSURE,CLU 10PE1S(60L),10PE1N(61L)	1-31220-277-1	01	1	9905-	●	●	●	●
2	PLATE ASM; PRESSURE,CLU 8PE1S(59L)	1-31220-234-1	01	1	9603-9707	●	●	●	●	●
2	PLATE ASM; PRESSURE,CLU 8PE1S(59L)	1-31220-319-0	01	1	9708-9904	●	●	●	●	●
2	PLATE ASM; PRESSURE,CLU 8PE1S(59L)	1-31220-234-4	01	1	9905-	●	●		●	●
57	FORK; SHIFT,CLU	1-31340-059-1	01	1	9603-9910	●	●	●	●	●
57	FORK; SHIFT,CLU	1-31340-059-1	01	1	9911-	●	●	●	●	●	●
84	PLATE; PRESSURE 10PE1S(60L) EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-31221-083-1	01	1	9603-9707	●	●	●	●
84	PLATE; PRESSURE 6WA1 TC-S(56L) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATO R(YC4)	1-31221-083-1	01	1	9603-9707	●
84	PLATE; PRESSURE 6WA1 TC-S(56L),8PE1S(59L),10PE1S(60L)	1-31221-083-1	01	1	9708-9904	●	●	●	●	●
84	PLATE; PRESSURE 6WA1 TC-N(54L),6WA1 TC-C(55L),10PE1H(68L), 6WA1TC-R(93L)	1-31221-083-1	01	1	9905-	●	●				●
84	PLATE; PRESSURE 8PE1S(59L),10PE1S(60L) EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT <TEH>	1-31221-041-0	01	1	9603-9707	●	●	●	●	●
84	PLATE; PRESSURE 6WA1 TC-S(56L) INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	1-31221-041-0	01	1	9603-9707	●
84	PLATE; PRESSURE 8PE1S(59L),10PE1S(60L),10PE1N(61L)	1-31221-041-0	01	1	9905-	●	●	●	●	●
85	BUSHING; RELEASE LEVER 10PE1S(60L) EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-31239-021-0	08	1	9603-9707	●	●	●	●
85	BUSHING; RELEASE LEVER 6WA1 TC-S(56L) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATO R(YC4)	1-31239-021-0	08	1	9603-9707	●
85	BUSHING; RELEASE LEVER 8PE1S(59L),10PE1S(60L) EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT <TEH>	1-31239-003-0	08	1	9603-9707	●	●	●	●	●
85	BUSHING; RELEASE LEVER 6WA1 TC-S(56L) INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	1-31239-003-0	08	1	9603-9707	●
85	BUSHING; RELEASE LEVER 6WA1 TC-S(56L),8PE1S(59L),10PE1S(60L)	1-31239-053-0	08	1	9708-9904	●	●	●	●	●
85	BUSHING; RELEASE LEVER 6WA1 TC-N(54L),6WA1 TC-C(55L),10PE1H(68L), 6WA1TC-R(93L)	1-31239-053-0	08	1	9905-	●	●				●
85	BUSHING; RELEASE LEVER 8PE1S(59L),10PE1S(60L),10PE1N(61L)	1-31239-003-0	08	1	9905-	●	●	●	●	●
88	COVER SUB ASM; CLU	1-31210-008-0	01	1	9905-	●	●	●	●	●
88	COVER SUB ASM; CLU 6WA1 TC-S(56L),8PE1S(59L),10PE1S(60L)	1-31210-008-0	01	1	9603-9904	●	●	●	●	●
91	SEAT; SPR 6WA1 TC-S(56L),8PE1S(59L),10PE1S(60L) (A)	1-31219-032-0	04	1	9603-9904	●	●	●	●	●
91	SEAT; SPR (A)	1-31219-032-0	04	1	9905-	●	●	●	●	●
91	SEAT; SPR 6WA1 TC-S(56L),8PE1S(59L),10PE1S(60L) (B)	1-31219-033-0	04	1	9603-9904	●	●	●	●	●
91	SEAT; SPR (B)	1-31219-033-0	04	1	9905-	●	●	●	●	●
92	SPRING; CLU 10PE1S(60L) EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-31214-040-0	12	1	9603-9904	●	●	●	●
92	SPRING; CLU 6WA1 TC-S(56L) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATO R(YC4)	1-31214-040-0	12	1	9603-9904	●
92	SPRING; CLU 6WA1 TC-N(54L),6WA1 TC-C(55L),10PE1H(68L), 6WA1TC-R(93L)	1-31214-040-0	12	1	9905-	●	●				●
92	SPRING; CLU 10PE1S(60L) EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT <TEH>	1-09580-297-0	12	1	9603-9904	●	●	●	●
92	SPRING; CLU 6WA1 TC-S(56L) INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	1-09580-297-0	12	1	9603-9904	●
92	SPRING; CLU 10PE1S(60L),10PE1N(61L)	1-09580-297-0	12	1	9905-	●	●	●	●
92	SPRING; CLU 8PE1S(59L)	1-09580-273-0	12	1	9603-9904	●	●	●	●	●
92	SPRING; CLU 8PE1S(59L)	1-09580-273-0	12	1	9905-	●	●		●	●
96	PIN; RELEASE LEVER 10PE1S(60L) EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-31232-017-0	08	1	9603-9707	●	●	●	●
96	PIN; RELEASE LEVER 6WA1 TC-S(56L) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATO R(YC4)	1-31232-017-0	08	1	9603-9707	●
96	PIN; RELEASE LEVER 6WA1 TC-S(56L),8PE1S(59L),10PE1S(60L)	1-31232-017-0	08	1	9708-9904	●	●	●	●	●
96	PIN; RELEASE LEVER 6WA1 TC-N(54L),6WA1 TC-C(55L),10PE1H(68L), 6WA1TC-R(93L)	1-31232-017-0	08	1	9905-	●	●				●
96	PIN; RELEASE LEVER 8PE1S(59L),10PE1S(60L) EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT <TEH> L=77	1-31232-010-0	08	1	9603-9707	●	●	●	●	●
96	PIN; RELEASE LEVER 6WA1 TC-S(56L) INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) L=77	1-31232-010-0	08	1	9603-9707	●
96	PIN; RELEASE LEVER 8PE1S(59L),10PE1S(60L),10PE1N(61L) L=77	1-31232-010-0	08	1	9905-	●	●	●	●	●
98	SPRING; RETURN 10PE1S(60L) EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-31233-007-0	04	1	9603-9707	●	●	●	●
98	SPRING; RETURN 6WA1 TC-S(56L) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATO R(YC4)	1-31233-007-0	04	1	9603-9707	●
98	SPRING; RETURN 6WA1 TC-S(56L),8PE1S(59L),10PE1S(60L)	1-31233-007-0	04	1	9708-9904	●	●	●	●	●
98	SPRING; RETURN 6WA1 TC-N(54L),6WA1 TC-C(55L),10PE1H(68L), 6WA1TC-R(93L)	1-31233-007-0	04	1	9905-9909	●	●
98	SPRING; RETURN 6WA1 TC-N(54L),6WA1 TC-C(55L),10PE1H(68L), 6WA1TC-R(93L)	1-31233-007-0	04	1	9910-	●	●				●
98	SPRING; RETURN 8PE1S(59L),10PE1S(60L) EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT <TEH>	1-31233-001-0	04	1	9603-9707	●	●	●	●	●
98	SPRING; RETURN 6WA1 TC-S(56L) INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	1-31233-001-0	04	1	9603-9707	●
98	SPRING; RETURN 8PE1S(59L),10PE1S(60L),10PE1N(61L)	1-31233-001-0	04	1	9905-	●	●	●	●	●
102	PIN; SPLIT,RELEASE LEVER 6WA1 TC-S(56L),8PE1S(59L),10PE1S(60L) OD=2.7 L=22	9-08113-022-0	08	1	9603-9904	●	●	●	●	●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08113-022-0	08	1	9905-9909	●	●	●	●	●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08113-022-0	08	1	9910-	●	●	●	●	●	●
105	NUT; SUPPORT 10PE1S(60L) EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-31235-009-0	04	1	9603-9707	●	●	●	●
105	NUT; SUPPORT 6WA1 TC-S(56L) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATO R(YC4)	1-31235-009-0	04	1	9603-9707	●
105	NUT; SUPPORT 6WA1 TC-S(56L),8PE1S(59L),10PE1S(60L)	1-31235-009-0	04	1	9708-9904	●	●	●	●	●
105	NUT; SUPPORT 6WA1 TC-N(54L),6WA1 TC-C(55L),10PE1H(68L), 6WA1TC-R(93L)	1-31235-009-0	04	1	9905-	●	●				●
105	NUT; SUPPORT 8PE1S(59L),10PE1S(60L) EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT <TEH>	9-31235-061-0	04	1	9603-9707	●	●	●	●	●
105	NUT; SUPPORT 6WA1 TC-S(56L) INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	9-31235-061-0	04	1	9603-9707	●
105	NUT; SUPPORT 8PE1S(59L),10PE1S(60L),10PE1N(61L)	9-31235-061-0	04	1	9905-	●	●	●	●	●
106	PLATE; LK,LEVER SUPPORT 6WA1 TC-S(56L),8PE1S(59L),10PE1S(60L)	1-31239-019-0	04	1	9603-9904	●	●	●	●	●
106	PLATE; LK,LEVER SUPPORT	1-31239-019-0	04	1	9905-9909	●	●	●	●	●
106	PLATE; LK,LEVER SUPPORT	1-31239-019-0	04	1	9910-	●	●	●	●	●	●
107	BOLT; LK PLATE 6WA1 TC-S(56L),8PE1S(59L),10PE1S(60L) M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	9603-9904	●	●	●	●	●
107	BOLT; LK PLATE M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	9905-9909	●	●	●	●	●
107	BOLT; LK PLATE M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	9910-	●	●	●	●	●	●
109	WASHER; LK,STRAP 6WA1 TC-S(56L),8PE1S(59L),10PE1S(60L) ID=12.2	9-09150-512-0	04	1	9603-9904	●	●	●	●	●
109	WASHER; LK,STRAP ID=12.2	9-09150-512-0	04	1	9905-9909	●	●	●	●	●
109	WASHER; LK,STRAP ID=12.2	9-09150-512-0	04	1	9910-	●	●	●	●	●	●
110	WASHER; SPECIAL,STRAP 6WA1 TC-S(56L),8PE1S(59L),10PE1S(60L) ID=12	1-31229-006-0	04	1	9603-9904	●	●	●	●	●
110	WASHER; SPECIAL,STRAP ID=12	1-31229-006-0	04	1	9905-9909	●	●	●	●	●
110	WASHER; SPECIAL,STRAP ID=12	1-31229-006-0	04	1	9910-	●	●	●	●	●	●
111	WASHER; PL,STRAP 6WA1 TC-S(56L),8PE1S(59L),10PE1S(60L) ID=14	9-09651-098-0	08	1	9603-9904	●	●	●	●	●
111	WASHER; PL,STRAP ID=14	9-09651-098-0	08	1	9905-	●	●	●	●	●
116	BLOCK; SHIFT,CLU	1-31321-073-2	01	1	9603-9910	●	●	●	●	●
116	BLOCK; SHIFT,CLU	1-31321-073-2	01	1	9911-	●	●	●	●	●	●
118	BEARING; CLU RELEASE	9-00095-044-1	01	1	9603-9910	●	●	●	●	●
118	BEARING; CLU RELEASE	9-00095-044-1	01	1	9911-0003	●	●	●	●	●	●
118	BEARING; CLU RELEASE	1-09820-112-0	01	1	0004-	●	●	●	●	●	●
119	SPRING; SHIFT FORK	1-31329-019-0	01	1	9603-9910	●	●	●	●	●
119	SPRING; SHIFT FORK	1-31329-019-0	01	1	9911-	●	●	●	●	●	●
119	SPRING; SHIFT FORK	1-31329-018-0	01	1	9603-9910	●	●	●	●	●
119	SPRING; SHIFT FORK	1-31329-018-0	01	1	9911-	●	●	●	●	●	●
124	BEARING; CAM,SHIFT FORK	1-31349-011-1	02	1	9603-9910	●	●	●	●	●
124	BEARING; CAM,SHIFT FORK	1-31349-011-1	02	1	9911-	●	●	●	●	●	●
130	SCREW; SHIFT FORK M8X14	9-06120-814-0	01	1	9603-9910	●	●	●	●	●
130	SCREW; SHIFT FORK M8X14	9-06120-814-0	01	1	9911-	●	●	●	●	●	●
131	WASHER; LK,SHIFT FORK ID=8.2	9-09150-508-0	01	1	9603-9910	●	●	●	●	●
131	WASHER; LK,SHIFT FORK ID=8.2	9-09150-508-0	01	1	9911-	●	●	●	●	●	●
137	BOLT; CLU COVER 6WA1 TC-S(56L),8PE1S(59L),10PE1S(60L) M10X20 FLANGE	0-28181-020-0	12	1	9603-9904	●	●	●	●	●
137	BOLT; CLU COVER M10X20 FLANGE	0-28181-020-0	12	1	9905-	●	●	●	●	●
172	LEVER KIT; RELEASE,CLU 10PE1S(60L) EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-87830-650-1	01	1	9603-9707	●	●	●	●
172	LEVER KIT; RELEASE,CLU 6WA1 TC-S(56L) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATO R(YC4)	1-87830-650-1	01	1	9603-9707	●
172	LEVER KIT; RELEASE,CLU 8PE1S(59L),10PE1S(60L) EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT <TEH>	1-87830-526-1	01	1	9603-9707	●	●	●	●	●
172	LEVER KIT; RELEASE,CLU 6WA1 TC-S(56L) INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	1-87830-526-1	01	1	9603-9707	●
172	LEVER KIT; RELEASE,CLU 6WA1 TC-S(56L),8PE1S(59L),10PE1S(60L)	1-87830-885-1	01	1	9708-9904	●	●	●	●	●
172	LEVER KIT; RELEASE,CLU 6WA1 TC-N(54L),6WA1 TC-C(55L),10PE1H(68L), 6WA1TC-R(93L)	1-87830-885-2	01	1	9905-	●	●				●
172	LEVER KIT; RELEASE,CLU 8PE1S(59L),10PE1S(60L),10PE1N(61L)	1-87830-526-1	01	1	9905-	●	●	●	●	●
222	BOLT; STRAP 10PE1S(60L) EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> (A)	1-09040-102-0	04	1	9603-9707	●	●	●	●
222	BOLT; STRAP 6WA1 TC-S(56L) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATO R(YC4) (A)	1-09040-102-0	04	1	9603-9707	●
222	BOLT; STRAP 6WA1 TC-S(56L),8PE1S(59L),10PE1S(60L) (A)	1-09040-102-0	04	1	9708-9904	●	●	●	●	●
222	BOLT; STRAP 6WA1 TC-N(54L),6WA1 TC-C(55L),10PE1H(68L), 6WA1TC-R(93L) (A)	1-09040-102-0	04	1	9905-	●	●				●
222	BOLT; STRAP 10PE1S(60L) EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT <TEH> (A) M12X30	1-09040-016-0	04	1	9603-9707	●	●	●	●	●
222	BOLT; STRAP 8PE1S(59L) (A) M12X30	1-09040-016-0	04	1	9603-9707	●	●		●	●
222	BOLT; STRAP 6WA1 TC-S(56L) INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) (A) M12X30	1-09040-016-0	04	1	9603-9707	●
222	BOLT; STRAP 8PE1S(59L),10PE1S(60L),10PE1N(61L) (A) M12X30	1-09040-016-0	04	1	9905-9909	●	●	●	●	●

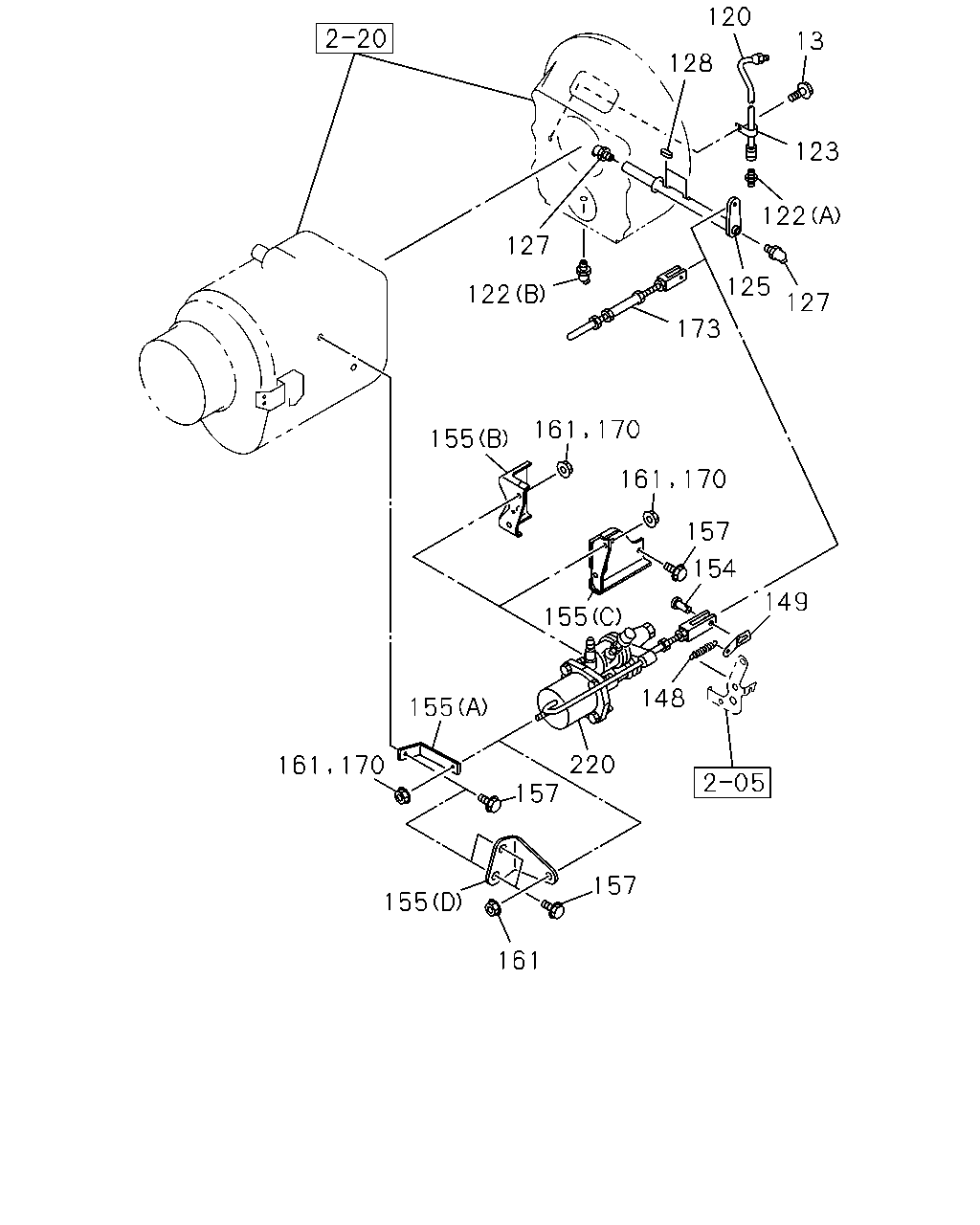

120 13 128 123 122 127 125 122 127 173 161 170 155 161 170 157 154 149 155 148 155 220 157 161 170 157 155 161

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
13	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	9603-9910	●	●	●	●	●
13	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	9911-	●	●	●	●	●	●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=390	1-09364-870-0	01	1	9603-9910	●	●	●	●	●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=390	1-09364-870-0	01	1	9911-0003	●	●	●	●	●	●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=390	1-09365-143-0	01	1	0004-	●	●	●	●	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 & M10	1-09660-710-0	01	1	9603-9904	●	●	●	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 & M10	1-09660-710-0	01	1	9905-9910	●	●	●	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 & M10	1-09660-710-0	01	1	9911-	●	●	●	●	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (B) PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	01	1	9603-9904	●	●	●	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (B) PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	01	1	9905-9910	●	●	●	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (B) PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	01	1	9911-	●	●	●	●	●	●
123	CLIP; FLEX HOSE,SHIFT BLOCK ID=9 L=20	9-09524-835-0	01	1	9603-9910	●	●	●	●	●
123	CLIP; FLEX HOSE,SHIFT BLOCK ID=9 L=20	9-09524-835-0	01	1	9911-	●	●	●	●	●	●
125	SHAFT; CLU L=477	1-31342-240-1	01	1	9603-9901	●	●	●	●	●
125	SHAFT; CLU	1-31342-305-0	01	1	9902-9910	●	●	●	●	●
125	SHAFT; CLU	1-31342-305-0	01	1	9911-	●	●	●	●	●	●
127	NIPPLE; GREASE,CLU SHAFT PT1/8 ELBOW	9-09031-210-0	02	1	9603-9705	●	●	●	●	●
127	NIPPLE; GREASE,CLU SHAFT PT1/8 ELBOW	9-09031-210-0	02	1	9706-9904	●	●	●	●	●
127	NIPPLE; GREASE,CLU SHAFT PT1/8 ELBOW	9-09031-210-0	02	1	9905-9907	●	●	●	●	●
127	NIPPLE; GREASE,CLU SHAFT PT1/8 ELBOW	9-09031-210-0	02	1	9908-9910	●	●	●	●	●
127	NIPPLE; GREASE,CLU SHAFT PT1/8 ELBOW	9-09031-210-0	02	1	9911-	●	●	●	●	●	●
128	KEY; FEATHER,CLU SHAFT	1-09735-045-0	02	1	9603-9910	●	●	●	●	●
128	KEY; FEATHER,CLU SHAFT	1-09735-045-0	02	1	9911-	●	●	●	●	●	●
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	9603-9710	●	●
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	9711-9910	●	●	●	●	●
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	9911-	●	●	●	●	●	●
148	SPRING; CLU RETURN L=137.7	1-09583-284-0	01	1	9603-9710			●	●	●
148	SPRING; CLU RETURN FIRE TRUCK<RA9> L=206.4	1-09583-291-0	01	1	9905-				●
149	EYE; SPRING,RETURN SPRING	1-31426-041-0	01	1	9603-9904	●	●	●	●	●
149	EYE; SPRING,RETURN SPRING	1-31426-052-0	01	1	9905-9910	●	●	●	●	●
149	EYE; SPRING,RETURN SPRING	1-31426-052-0	01	1	9911-	●	●	●	●	●	●
154	PIN; JAW JOINT	1-31424-009-0	01	1	9603-9910	●	●	●	●	●
154	PIN; JAW JOINT	1-31424-009-0	01	1	9911-	●	●	●	●	●	●
155	BRACKET; MINIPACK (A)	1-31429-289-1	01	1	9603-	●	●
155	BRACKET; MINIPACK 6WA1 TC-S(56L),10PE1S(60L) (C)	1-31429-301-0	01	1	9603-9901	●	●
155	BRACKET; MINIPACK 6WA1 TC-S(56L),10PE1S(60L) (C)	1-31429-402-0	01	1	9902-9904	●	●
155	BRACKET; MINIPACK 6WA1 TC-N(54L),6WA1 TC-C(55L),10PE1S(60L), 10PE1N(61L),10PE1H(68L) (C)	1-31429-402-0	01	1	9905-9910	●	●
155	BRACKET; MINIPACK 6WA1 TC-N(54L),6WA1 TC-C(55L),10PE1S(60L), 10PE1N(61L),10PE1H(68L) (C)	1-31429-402-0	01	1	9911-	●	●				●
155	BRACKET; MINIPACK 8PE1S(59L) (B)	1-31429-288-0	01	1	9603-	●	●
155	BRACKET; MINIPACK (A)	1-31429-345-0	01	1	9603-9904			●
155	BRACKET; MINIPACK (A)	1-31429-345-0	01	1	9905-			●	●	●
155	BRACKET; MINIPACK 10PE1S(60L),10PE1N(61L),10PE1H(68L) (B)	1-31429-443-1	01	1	0007-				●
155	BRACKET; MINIPACK 10PE1S(60L) (B)	1-31429-274-0	01	1	9603-9901				●	●
155	BRACKET; MINIPACK 10PE1S(60L) (B)	1-31429-401-0	01	1	9902-9904				●	●
155	BRACKET; MINIPACK 10PE1S(60L),10PE1N(61L),10PE1H(68L) (B)	1-31429-401-0	01	1	9905-0006			●	●
155	BRACKET; MINIPACK 10PE1S(60L),10PE1N(61L),10PE1H(68L) (B)	1-31429-401-0	01	1	0007-			●
155	BRACKET; MINIPACK 8PE1S(59L) (B)	1-31429-290-0	01	1	9603-9901				●	●
155	BRACKET; MINIPACK 8PE1S(59L) (B)	1-31429-400-0	01	1	9902-0006				●	●
155	BRACKET; MINIPACK 8PE1S(59L) (B)	1-31429-444-1	01	1	0007-				●	●
155	BRACKET; MINIPACK (D)	1-31429-350-0	01	1	9911-						●
157	BOLT; BRKT M10X18 FLANGE	0-28181-018-0	03	1	9603-9910	●	●	●	●	●
157	BOLT; BRKT M10X18 FLANGE	0-28181-018-0	03	1	9911-	●	●	●	●	●	●
161	NUT; BRKT M10 FLANGE	0-91150-210-0	03	1	9603-9910	●	●
161	NUT; BRKT M10 FLANGE	0-91150-210-0	03	1	9911-	●	●				●
170	NUT; BOOSTER FIX M10 FLANGE	0-91150-210-0	03	1	9603-			●	●	●
173	ROD; PUSH,MINIPACK FIRE TRUCK<RA9>	1-31824-113-0	01	1	9905-0011				●
173	ROD; PUSH,MINIPACK FIRE TRUCK<RA9>	1-31824-204-0	01	1	0012-				●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 6WA1 TC-S(56L),10PE1S(60L)	1-31800-382-0	01	1	9603-9904	●	●	●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 6WA1 TC-N(54L),6WA1 TC-C(55L),10PE1S(60L), 10PE1N(61L),10PE1H(68L)	1-31800-382-0	01	1	9905-9910	●	●	●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-S(56L) EXC. SILENCER SINGLE VERTICAL<N28>	1-31800-382-1	01	1	9911-0011	●	●	●	●	●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 6WA1 TC-C(55L) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>	1-31800-382-1	01	1	9911-0011	●	●	●	●	●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-S(56L) EXC. SILENCER SINGLE VERTICAL<N28>	1-31800-466-0	01	1	0012-	●	●	●	●	●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 6WA1 TC-C(55L) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>	1-31800-466-0	01	1	0012-	●	●	●	●	●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 8PE1S(59L)	1-31800-385-2	01	1	9603-	●	●		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
