Sayfa 1-50 - Isuzu EPC

1-50 — EXHAUST PIPE AND SILENCER (#43089) — 405 parça

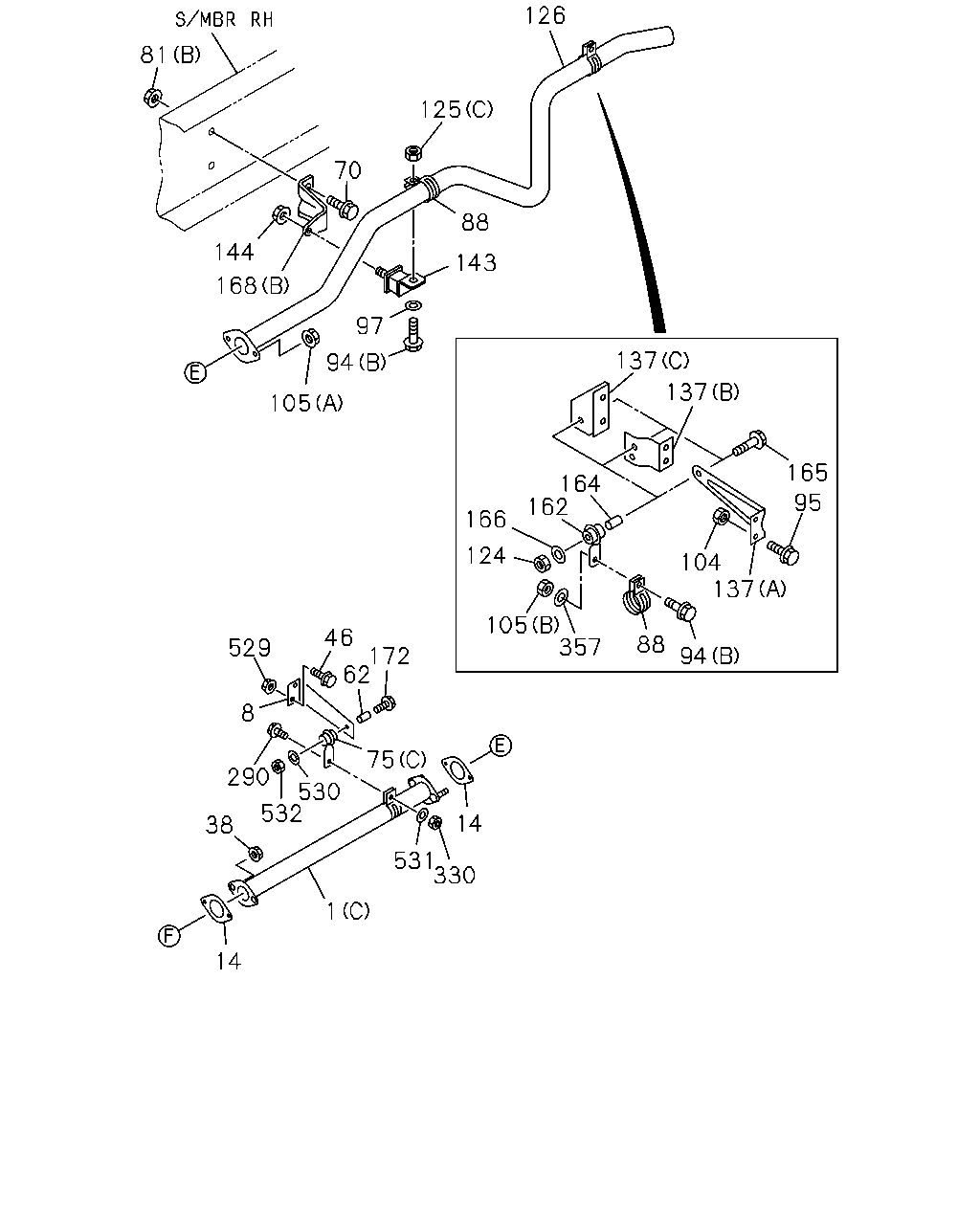

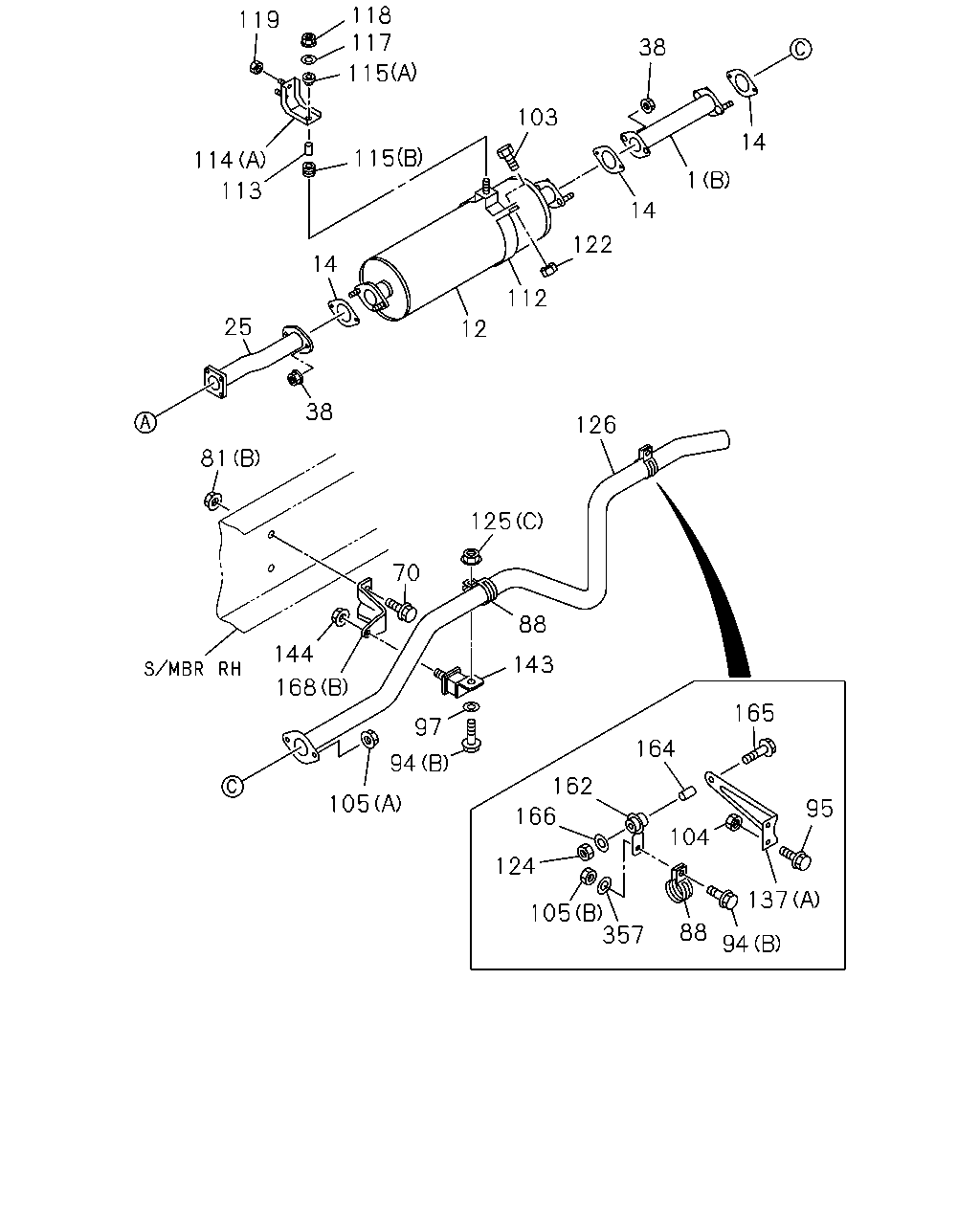

118 117 119 38 115 103 14 115 114 1 113 14 122 14 112 25 12 38 126 81 125 70 88 144 143 168 165 97 164 94 162 105 95 166 104 124 137 105 357 88 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PIPE; EXH 4HE1-TCS ENG<RDS> (C)	8-97210-052-0	01	1	0508-0509	●
1	PIPE; EXH 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> (C)	8-97210-052-0	01	1	0510-	●
1	PIPE; EXH 4HG1-T ENG<RDP> (A) THA	8-97917-124-1	01	1	0508-	●	●
1	PIPE; EXH 4HE1-TCS ENG<RDS> (D) THA	8-97920-879-0	01	1	0508-	●		●
1	PIPE; EXH 4HG1-T ENG<RDP> (B) THA	8-97917-128-1	01	1	0508-		●
1	PIPE; EXH 4HE1-TCS ENG<RDS> (C) THA	8-97922-683-0	01	1	0508-0509			●
1	PIPE; EXH 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> (C) THA	8-97922-683-0	01	1	0510-			●
1	PIPE; EXH 4HK1-TCS ENG<RJS> (D) THA	8-97922-926-0	01	1	0510-	●		●
12	SILENCER ASM; EXH 4HE1-TCS ENG<RDS>	8-97222-489-1	01	1	0508-0509	●		●
12	SILENCER ASM; EXH 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS>	8-97222-489-1	01	1	0510-	●		●
12	SILENCER ASM; EXH 4HG1-T ENG<RDP> THA	8-97940-315-2	01	1	0508-	●	●
14	GASKET; SILENCER TO EXH PIPE ID=64.7	8-94328-352-0	02	1	0508-	●	●	●
14	GASKET; SILENCER TO EXH PIPE 4HE1-TCS ENG<RDS> ID=64.7	8-94328-352-0	01	1	0508-0509	●		●
14	GASKET; SILENCER TO EXH PIPE ID=64.7	8-94328-352-0	01	1	0508-0509		●
14	GASKET; SILENCER TO EXH PIPE 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> ID=64.7	8-94328-352-0	01	1	0510-	●		●
14	GASKET; SILENCER TO EXH PIPE ID=64.7	8-94328-352-0	01	1	0510-		●
25	PIPE; EXH,BRK VLV TO SILENCER 4HG1-T ENG<RDP> THA	8-97917-126-1	01	1	0508-	●	●
25	PIPE; EXH,BRK VLV TO SILENCER 4HE1-TCS ENG<RDS> THA	8-97922-682-0	01	1	0508-0509	●		●
25	PIPE; EXH,BRK VLV TO SILENCER 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> THA	8-97922-682-0	01	1	0510-	●		●
38	NUT; SILENCER M10 FLANGE	0-91150-110-0	02	1	0508-0509	●	●	●
38	NUT; SILENCER 4HE1-TCS ENG<RDS> M10 FLANGE	0-91150-110-0	02	1	0508-0509	●		●
38	NUT; SILENCER M10 FLANGE	0-91150-110-0	02	1	0508-0509		●
38	NUT; SILENCER M10 FLANGE	0-91150-110-0	02	1	0510-0602	●	●	●
38	NUT; SILENCER 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M10 FLANGE	0-91150-110-0	02	1	0510-0602	●		●
38	NUT; SILENCER M10 FLANGE	0-91150-110-0	02	1	0510-0602		●
38	NUT; SILENCER M10 FLANGE THA	0-91180-110-0	02	1	0603-	●	●	●
38	NUT; SILENCER 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M10 FLANGE THA	0-91180-110-0	02	1	0603-	●		●
38	NUT; SILENCER M10 FLANGE THA	0-91180-110-0	02	1	0603-		●
70	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	0508-0611	●	●	●
70	BOLT; BRKT M8X25 FLANGE THA	0-28650-825-0	02	1	0612-	●	●	●
81	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	0508-	●	●	●
81	NUT; BRKT 4HE1-TCS ENG<RDS> (A) M10 FLANGE	0-91150-110-0	03	1	0508-0509	●		●
81	NUT; BRKT 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> (A) M10 FLANGE	0-91150-110-0	03	1	0510-0602	●		●
81	NUT; BRKT 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> (A) M10 FLANGE THA	0-91180-110-0	03	1	0603-	●		●
88	CLAMP; EXH PIPE THA	8-97917-235-0	02	1	0508-	●	●	●
94	BOLT; CLAMP 4HE1-TCS ENG<RDS> (A) M10X30 FLANGE	0-28681-030-0	01	1	0508-0509	●		●
94	BOLT; CLAMP 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> (A) M10X30 FLANGE	0-28681-030-0	01	1	0510-0611	●		●
94	BOLT; CLAMP 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> (A) M10X30 FLANGE THA	0-28651-030-0	01	1	0612-	●		●
94	BOLT; CLAMP (B) M8X45	0-20800-845-0	02	1	0508-	●	●	●
95	BOLT; BRKT 4HE1-TCS ENG<RDS> M10X30 FLANGE	0-28681-030-0	02	1	0508-0509			●
95	BOLT; BRKT 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M10X30 FLANGE	0-28681-030-0	02	1	0510-0611			●
95	BOLT; BRKT 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M10X30 FLANGE THA	0-28651-030-0	02	1	0612-			●
95	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	0508-0611	●	●
95	BOLT; BRKT M8X25 FLANGE THA	0-28650-825-0	02	1	0612-	●	●
97	WASHER; PL,CLAMP ID=8.4 OD=18	9-09164-608-0	01	1	0508-0605	●	●	●
97	WASHER; PL,CLAMP ID=8.4 OD=18	0-91614-608-0	01	1	0606-	●	●	●
103	BOLT; SILENCER BRKT FIX M8X45 W/LK WASHER THA	0-50540-845-0	01	1	0910-	●	●	●
103	BOLT; SILENCER BRKT FIX M8X45 W/LK WASHER	0-50040-845-0	01	1	0508-0701	●	●	●
103	BOLT; SILENCER BRKT FIX M8X45 W/LK WASHER THA	0-50540-845-0	01	1	0702-	●	●	●
104	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0508-	●	●
104	NUT; BRKT 4HE1-TCS ENG<RDS> M10 FLANGE	0-91150-110-0	02	1	0508-0509			●
104	NUT; BRKT 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M10 FLANGE	0-91150-110-0	02	1	0510-0602			●
104	NUT; BRKT 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M10 FLANGE THA	0-91180-110-0	02	1	0603-			●
105	NUT; CLAMP (A) M10 FLANGE	0-91150-110-0	02	1	0508-0602	●	●	●
105	NUT; CLAMP (A) M10 FLANGE THA	0-91180-110-0	02	1	0603-	●	●	●
105	NUT; CLAMP (B) M8	9-09110-408-0	01	1	0508-	●	●	●
112	BRACKET; HANGER 4HG1-T ENG<RDP>	8-97076-020-0	01	1	0508-	●	●
112	BRACKET; HANGER 4HE1-TCS ENG<RDS>	8-97207-224-0	01	1	0508-0509	●		●
112	BRACKET; HANGER 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS>	8-97207-224-0	01	1	0510-	●		●
113	COLLAR; DIST,MTG BRKT L=37.5 THA	9-22151-217-0	01	1	0508-	●	●	●
114	BRACKET; EXH SILENCER EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-94329-856-0	01	1	0508-	●
114	BRACKET; EXH SILENCER (A)	8-94329-856-0	01	1	0508-		●
114	BRACKET; EXH SILENCER 4HE1-TCS ENG<RDS> (B)	8-94329-857-0	01	1	0508-0509	●		●
114	BRACKET; EXH SILENCER 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> (B)	8-94329-857-0	01	1	0510-	●		●
115	RUBBER; MTG,SILENCER 4HK1-TCS ENG<RJS> (B)	8-97379-882-0	02	1	0510-	●		●
115	RUBBER; MTG,SILENCER 4HK1-TCS ENG<RJS> (A) THA	8-97379-927-0	02	1	0510-	●		●
115	RUBBER; MTG,SILENCER 4HE1-TCS ENG<RDS> (A)	8-94457-277-1	01	1	0508-	●		●
115	RUBBER; MTG,SILENCER 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> (A)	8-94457-277-1	01	1	0508-	●
115	RUBBER; MTG,SILENCER 4HG1-T ENG<RDP> (A)	8-94457-277-1	01	1	0508-		●
115	RUBBER; MTG,SILENCER 4HE1-TCS ENG<RDS> (A)	8-94457-277-1	01	1	0508-			●
115	RUBBER; MTG,SILENCER 4HE1-TCS ENG<RDS> (B)	8-94457-278-1	01	1	0508-	●		●
115	RUBBER; MTG,SILENCER 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> (B)	8-94457-278-1	01	1	0508-	●
115	RUBBER; MTG,SILENCER 4HG1-T ENG<RDP> (B)	8-94457-278-1	01	1	0508-		●
115	RUBBER; MTG,SILENCER 4HE1-TCS ENG<RDS> (B)	8-94457-278-1	01	1	0508-			●
117	WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	01	1	0508-	●	●	●
118	NUT; SILENCER MTG BRKT M10 FLANGE	5-09440-006-0	01	1	0508-	●	●	●
119	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0508-	●	●	●
122	NUT; HANGER BRKT M8	9-09110-408-0	01	1	0508-	●	●	●
124	NUT; SUPPORT RUBBER M10 FLANGE	0-91150-110-0	01	1	0508-0602	●	●	●
124	NUT; SUPPORT RUBBER M10 FLANGE THA	0-91180-110-0	01	1	0603-	●	●	●
125	NUT; CLAMP 4HE1-TCS ENG<RDS> (B) M8 FLANGE	0-91150-108-0	02	1	0508-0509	●		●
125	NUT; CLAMP 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> (B) M8 FLANGE	0-91150-108-0	02	1	0510-	●		●
125	NUT; CLAMP 4HE1-TCS ENG<RDS> (A) M10 FLANGE	0-91150-110-0	02	1	0508-0509	●		●
125	NUT; CLAMP 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> (A) M10 FLANGE	0-91150-110-0	02	1	0510-0602	●		●
125	NUT; CLAMP 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> (A) M10 FLANGE THA	0-91180-110-0	02	1	0603-	●		●
125	NUT; CLAMP (C) M8	9-09110-408-0	01	1	0508-	●	●	●
126	PIPE; EXH,RR 4HG1-T ENG<RDP> THA	8-97917-129-1	01	1	0508-	●	●
126	PIPE; EXH,RR 4HE1-TCS ENG<RDS> THA	8-97922-696-0	01	1	0508-0509	●
126	PIPE; EXH,RR 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> THA	8-97922-696-0	01	1	0510-	●
126	PIPE; EXH,RR 4HE1-TCS ENG<RDS> THA	8-97920-882-0	01	1	0508-0509			●
126	PIPE; EXH,RR 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> THA	8-97920-882-0	01	1	0510-0612			●
126	PIPE; EXH,RR 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> THA	8-97923-639-0	01	1	0701-			●
137	BRACKET; TAIL PIPE FRAME STRAIGHT TYPE<7KJ> (B)	8-97116-588-2	01	1	0508-	●
137	BRACKET; TAIL PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-94114-022-1	01	1	0508-	●
137	BRACKET; TAIL PIPE (A)	8-94114-022-1	01	1	0508-		●
137	BRACKET; TAIL PIPE 4HE1-TCS ENG<RDS> (C)	8-97185-801-0	01	1	0508-0509			●
137	BRACKET; TAIL PIPE 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> (C)	8-97185-801-0	01	1	0510-			●
143	RUBBER; SUPPORT	8-97371-655-1	01	1	0508-	●	●	●
144	NUT; MTG RUBBER M8 FLANGE	0-91150-108-0	01	1	0508-	●	●	●
162	RUBBER; SUPPORT,TAIL PIPE L=115	8-94156-256-0	01	1	0508-	●	●	●
164	COLLAR; DIST,TAIL PIPE L=37.5 THA	9-22151-217-0	01	1	0508-0509	●	●	●
164	COLLAR; DIST,TAIL PIPE 4HE1-TCS ENG<RDS> L=37.5 THA	9-22151-217-0	01	1	0508-0509	●		●
164	COLLAR; DIST,TAIL PIPE L=37.5 THA	9-22151-217-0	01	1	0510-	●	●	●
164	COLLAR; DIST,TAIL PIPE 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> L=37.5 THA	9-22151-217-0	01	1	0510-	●		●
165	BOLT; SUPPORT RUBBER M10X70 FLANGE	0-28081-070-0	01	1	0508-0512	●	●	●
165	BOLT; SUPPORT RUBBER M10X70 FLANGE THA	0-28051-070-0	01	1	0601-	●	●	●
166	WASHER; PL,SUPPORT RUBBER,EXH PIPE ID=10.5 OD=32	9-09164-810-0	01	1	0508-0605	●	●	●
166	WASHER; PL,SUPPORT RUBBER,EXH PIPE ID=10.5 OD=32	0-91614-810-0	01	1	0606-	●	●	●
168	BRACKET; EXH PIPE,FRT 4HG1-T ENG<RDP> (C)	8-97238-728-0	01	1	0508-	●	●
168	BRACKET; EXH PIPE,FRT 4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-94370-689-2	01	1	0508-	●
168	BRACKET; EXH PIPE,FRT 4HG1-T ENG<RDP> (A)	8-94370-689-2	01	1	0508-		●
168	BRACKET; EXH PIPE,FRT 4HE1-TCS ENG<RDS> FLOOR REMOTE SHIFT<M11> (E)	8-94370-046-4	01	1	0508-	●
168	BRACKET; EXH PIPE,FRT 4HE1-TCS ENG<RDS> (E)	8-94370-046-4	01	1	0508-			●
168	BRACKET; EXH PIPE,FRT FRAME STRAIGHT TYPE<7KJ> (B)	8-97096-651-0	01	1	0508-	●
168	BRACKET; EXH PIPE,FRT (B)	8-97096-651-0	01	1	0508-			●
168	BRACKET; EXH PIPE,FRT EXC. FRAME STRAIGHT TYPE<7KJ> (B)	5-22151-044-0	01	1	0508-	●
168	BRACKET; EXH PIPE,FRT (B)	5-22151-044-0	01	1	0508-		●
168	BRACKET; EXH PIPE,FRT 4HE1-TCS ENG<RDS> (D)	8-97214-433-0	01	1	0508-0509	●		●
168	BRACKET; EXH PIPE,FRT 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> (D)	8-97214-433-0	01	1	0510-	●		●
168	BRACKET; EXH PIPE,FRT 4HK1-TCS ENG<RJS> (E)	8-97365-228-0	01	1	0510-	●		●
357	WASHER; PL,CLAMP ID=8.4 OD=18	9-09164-608-0	01	1	0508-0605	●	●	●
357	WASHER; PL,CLAMP ID=8.4 OD=18	0-91614-608-0	01	1	0606-	●	●	●

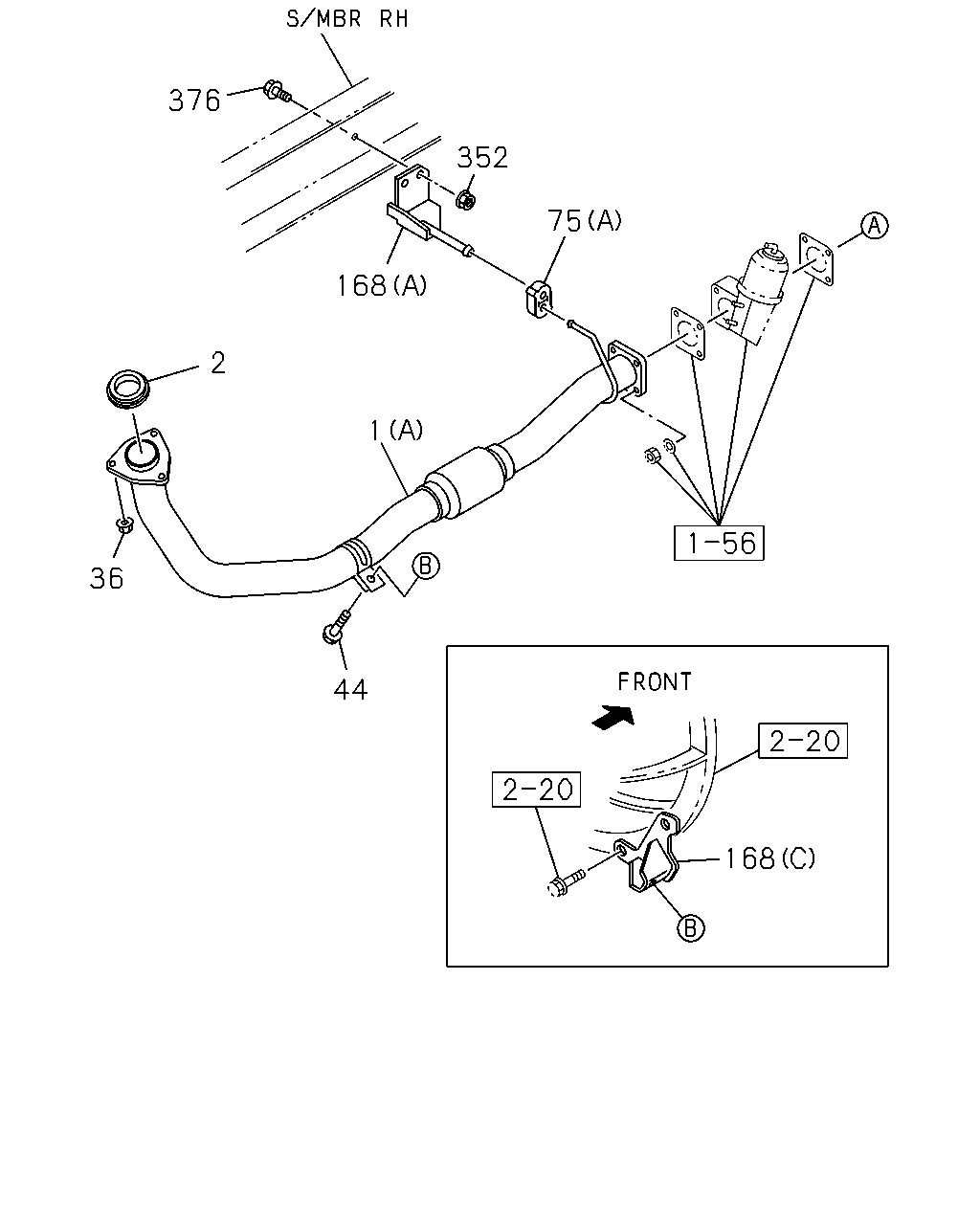

376 352 75 168 2 1 36 44 168

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PIPE; EXH 4HE1-TCS ENG<RDS> (C)	8-97210-052-0	01	1	0508-0509	●
1	PIPE; EXH 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> (C)	8-97210-052-0	01	1	0510-	●
1	PIPE; EXH 4HG1-T ENG<RDP> (A) THA	8-97917-124-1	01	1	0508-	●	●
1	PIPE; EXH 4HE1-TCS ENG<RDS> (D) THA	8-97920-879-0	01	1	0508-	●		●
1	PIPE; EXH 4HG1-T ENG<RDP> (B) THA	8-97917-128-1	01	1	0508-		●
1	PIPE; EXH 4HE1-TCS ENG<RDS> (C) THA	8-97922-683-0	01	1	0508-0509			●
1	PIPE; EXH 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> (C) THA	8-97922-683-0	01	1	0510-			●
1	PIPE; EXH 4HK1-TCS ENG<RJS> (D) THA	8-97922-926-0	01	1	0510-	●		●
2	GASKET; PIPE TO MANIF	8-97381-455-0	01	1	0508-	●	●	●
36	NUT; EXH PIPE M10 FLANGE	8-97096-192-1	03	1	0508-	●	●	●
44	BOLT; BRKT 4HK1-TCS ENG<RJS> M10X40 FLANGE	0-28081-040-0	01	1	0510-0611	●		●
44	BOLT; BRKT 4HK1-TCS ENG<RJS> M10X40 FLANGE THA	0-28051-040-0	01	1	0612-	●		●
44	BOLT; BRKT 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> M8X35 FLANGE	0-28080-835-0	01	1	0508-0512	●	●	●
44	BOLT; BRKT 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> M8X35 FLANGE THA	0-28050-835-0	01	1	0601-	●	●	●
75	RUBBER; SUPPORT,BRKT 4HG1-T ENG<RDP> (A)	8-97166-498-1	01	1	0508-	●	●
75	RUBBER; SUPPORT,BRKT 4HE1-TCS ENG<RDS> (B)	8-97080-694-0	01	1	0508-0509	●		●
75	RUBBER; SUPPORT,BRKT 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> (B)	8-97080-694-0	01	1	0510-	●		●
75	RUBBER; SUPPORT,BRKT 4HE1-TCS ENG<RDS> (C) L=115	8-94156-256-0	01	1	0508-0509			●
75	RUBBER; SUPPORT,BRKT 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> (C) L=115	8-94156-256-0	01	1	0510-			●
168	BRACKET; EXH PIPE,FRT 4HG1-T ENG<RDP> (C)	8-97238-728-0	01	1	0508-	●	●
168	BRACKET; EXH PIPE,FRT 4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-94370-689-2	01	1	0508-	●
168	BRACKET; EXH PIPE,FRT 4HG1-T ENG<RDP> (A)	8-94370-689-2	01	1	0508-		●
168	BRACKET; EXH PIPE,FRT 4HE1-TCS ENG<RDS> FLOOR REMOTE SHIFT<M11> (E)	8-94370-046-4	01	1	0508-	●
168	BRACKET; EXH PIPE,FRT 4HE1-TCS ENG<RDS> (E)	8-94370-046-4	01	1	0508-			●
168	BRACKET; EXH PIPE,FRT FRAME STRAIGHT TYPE<7KJ> (B)	8-97096-651-0	01	1	0508-	●
168	BRACKET; EXH PIPE,FRT (B)	8-97096-651-0	01	1	0508-			●
168	BRACKET; EXH PIPE,FRT EXC. FRAME STRAIGHT TYPE<7KJ> (B)	5-22151-044-0	01	1	0508-	●
168	BRACKET; EXH PIPE,FRT (B)	5-22151-044-0	01	1	0508-		●
168	BRACKET; EXH PIPE,FRT 4HE1-TCS ENG<RDS> (D)	8-97214-433-0	01	1	0508-0509	●		●
168	BRACKET; EXH PIPE,FRT 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> (D)	8-97214-433-0	01	1	0510-	●		●
168	BRACKET; EXH PIPE,FRT 4HK1-TCS ENG<RJS> (E)	8-97365-228-0	01	1	0510-	●		●
352	NUT; BRKT EXC. FRAME STRAIGHT TYPE<7KJ> M10 FLANGE	0-91150-110-0	02	1	0508-0602	●
352	NUT; BRKT M10 FLANGE	0-91150-110-0	02	1	0508-0602		●
352	NUT; BRKT EXC. FRAME STRAIGHT TYPE<7KJ> M10 FLANGE THA	0-91180-110-0	02	1	0603-	●
352	NUT; BRKT M10 FLANGE THA	0-91180-110-0	02	1	0603-		●
376	BOLT; BRKT 4HG1-T ENG<RDP> M10X35 FLANGE	0-28681-035-0	02	1	0508-0611	●	●
376	BOLT; BRKT 4HG1-T ENG<RDP> M10X35 FLANGE THA	0-28651-035-0	02	1	0612-	●	●
376	BOLT; BRKT 4HE1-TCS ENG<RDS> M10X35 FLANGE	0-28681-035-0	01	1	0508-0509	●		●
376	BOLT; BRKT 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M10X35 FLANGE	0-28681-035-0	01	1	0510-0611	●		●
376	BOLT; BRKT 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M10X35 FLANGE THA	0-28651-035-0	01	1	0612-	●		●

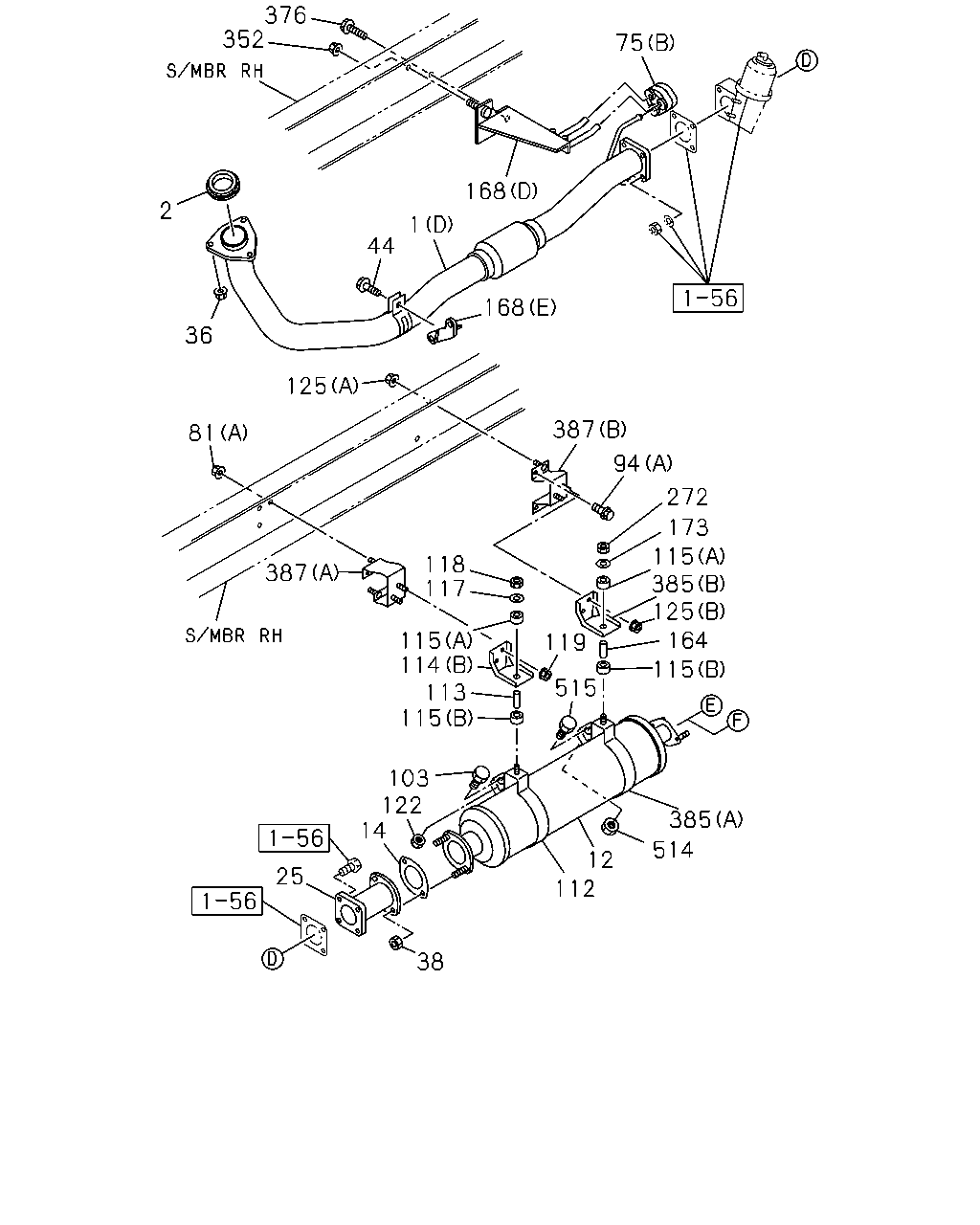

376 352 75 168 2 1 44 168 36 125 387 81 94 272 173 115 385 125 118 117 387 164 115 114 113 115 119 115 515 103 122 14 385 514 12 112 25 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PIPE; EXH 4HE1-TCS ENG<RDS> (C)	8-97210-052-0	01	1	0508-0509	●
1	PIPE; EXH 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> (C)	8-97210-052-0	01	1	0510-	●
1	PIPE; EXH 4HG1-T ENG<RDP> (A) THA	8-97917-124-1	01	1	0508-	●	●
1	PIPE; EXH 4HE1-TCS ENG<RDS> (D) THA	8-97920-879-0	01	1	0508-	●		●
1	PIPE; EXH 4HG1-T ENG<RDP> (B) THA	8-97917-128-1	01	1	0508-		●
1	PIPE; EXH 4HE1-TCS ENG<RDS> (C) THA	8-97922-683-0	01	1	0508-0509			●
1	PIPE; EXH 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> (C) THA	8-97922-683-0	01	1	0510-			●
1	PIPE; EXH 4HK1-TCS ENG<RJS> (D) THA	8-97922-926-0	01	1	0510-	●		●
2	GASKET; PIPE TO MANIF	8-97381-455-0	01	1	0508-	●	●	●
12	SILENCER ASM; EXH 4HE1-TCS ENG<RDS>	8-97222-489-1	01	1	0508-0509	●		●
12	SILENCER ASM; EXH 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS>	8-97222-489-1	01	1	0510-	●		●
12	SILENCER ASM; EXH 4HG1-T ENG<RDP> THA	8-97940-315-2	01	1	0508-	●	●
14	GASKET; SILENCER TO EXH PIPE ID=64.7	8-94328-352-0	02	1	0508-	●	●	●
14	GASKET; SILENCER TO EXH PIPE 4HE1-TCS ENG<RDS> ID=64.7	8-94328-352-0	01	1	0508-0509	●		●
14	GASKET; SILENCER TO EXH PIPE ID=64.7	8-94328-352-0	01	1	0508-0509		●
14	GASKET; SILENCER TO EXH PIPE 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> ID=64.7	8-94328-352-0	01	1	0510-	●		●
14	GASKET; SILENCER TO EXH PIPE ID=64.7	8-94328-352-0	01	1	0510-		●
25	PIPE; EXH,BRK VLV TO SILENCER 4HG1-T ENG<RDP> THA	8-97917-126-1	01	1	0508-	●	●
25	PIPE; EXH,BRK VLV TO SILENCER 4HE1-TCS ENG<RDS> THA	8-97922-682-0	01	1	0508-0509	●		●
25	PIPE; EXH,BRK VLV TO SILENCER 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> THA	8-97922-682-0	01	1	0510-	●		●
36	NUT; EXH PIPE M10 FLANGE	8-97096-192-1	03	1	0508-	●	●	●
38	NUT; SILENCER M10 FLANGE	0-91150-110-0	02	1	0508-0509	●	●	●
38	NUT; SILENCER 4HE1-TCS ENG<RDS> M10 FLANGE	0-91150-110-0	02	1	0508-0509	●		●
38	NUT; SILENCER M10 FLANGE	0-91150-110-0	02	1	0508-0509		●
38	NUT; SILENCER M10 FLANGE	0-91150-110-0	02	1	0510-0602	●	●	●
38	NUT; SILENCER 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M10 FLANGE	0-91150-110-0	02	1	0510-0602	●		●
38	NUT; SILENCER M10 FLANGE	0-91150-110-0	02	1	0510-0602		●
38	NUT; SILENCER M10 FLANGE THA	0-91180-110-0	02	1	0603-	●	●	●
38	NUT; SILENCER 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M10 FLANGE THA	0-91180-110-0	02	1	0603-	●		●
38	NUT; SILENCER M10 FLANGE THA	0-91180-110-0	02	1	0603-		●
44	BOLT; BRKT 4HK1-TCS ENG<RJS> M10X40 FLANGE	0-28081-040-0	01	1	0510-0611	●		●
44	BOLT; BRKT 4HK1-TCS ENG<RJS> M10X40 FLANGE THA	0-28051-040-0	01	1	0612-	●		●
44	BOLT; BRKT 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> M8X35 FLANGE	0-28080-835-0	01	1	0508-0512	●	●	●
44	BOLT; BRKT 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> M8X35 FLANGE THA	0-28050-835-0	01	1	0601-	●	●	●
75	RUBBER; SUPPORT,BRKT 4HG1-T ENG<RDP> (A)	8-97166-498-1	01	1	0508-	●	●
75	RUBBER; SUPPORT,BRKT 4HE1-TCS ENG<RDS> (B)	8-97080-694-0	01	1	0508-0509	●		●
75	RUBBER; SUPPORT,BRKT 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> (B)	8-97080-694-0	01	1	0510-	●		●
75	RUBBER; SUPPORT,BRKT 4HE1-TCS ENG<RDS> (C) L=115	8-94156-256-0	01	1	0508-0509			●
75	RUBBER; SUPPORT,BRKT 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> (C) L=115	8-94156-256-0	01	1	0510-			●
81	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	0508-	●	●	●
81	NUT; BRKT 4HE1-TCS ENG<RDS> (A) M10 FLANGE	0-91150-110-0	03	1	0508-0509	●		●
81	NUT; BRKT 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> (A) M10 FLANGE	0-91150-110-0	03	1	0510-0602	●		●
81	NUT; BRKT 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> (A) M10 FLANGE THA	0-91180-110-0	03	1	0603-	●		●
94	BOLT; CLAMP 4HE1-TCS ENG<RDS> (A) M10X30 FLANGE	0-28681-030-0	01	1	0508-0509	●		●
94	BOLT; CLAMP 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> (A) M10X30 FLANGE	0-28681-030-0	01	1	0510-0611	●		●
94	BOLT; CLAMP 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> (A) M10X30 FLANGE THA	0-28651-030-0	01	1	0612-	●		●
94	BOLT; CLAMP (B) M8X45	0-20800-845-0	02	1	0508-	●	●	●
103	BOLT; SILENCER BRKT FIX M8X45 W/LK WASHER THA	0-50540-845-0	01	1	0910-	●	●	●
103	BOLT; SILENCER BRKT FIX M8X45 W/LK WASHER	0-50040-845-0	01	1	0508-0701	●	●	●
103	BOLT; SILENCER BRKT FIX M8X45 W/LK WASHER THA	0-50540-845-0	01	1	0702-	●	●	●
112	BRACKET; HANGER 4HG1-T ENG<RDP>	8-97076-020-0	01	1	0508-	●	●
112	BRACKET; HANGER 4HE1-TCS ENG<RDS>	8-97207-224-0	01	1	0508-0509	●		●
112	BRACKET; HANGER 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS>	8-97207-224-0	01	1	0510-	●		●
113	COLLAR; DIST,MTG BRKT L=37.5 THA	9-22151-217-0	01	1	0508-	●	●	●
114	BRACKET; EXH SILENCER EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-94329-856-0	01	1	0508-	●
114	BRACKET; EXH SILENCER (A)	8-94329-856-0	01	1	0508-		●
114	BRACKET; EXH SILENCER 4HE1-TCS ENG<RDS> (B)	8-94329-857-0	01	1	0508-0509	●		●
114	BRACKET; EXH SILENCER 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> (B)	8-94329-857-0	01	1	0510-	●		●
115	RUBBER; MTG,SILENCER 4HK1-TCS ENG<RJS> (B)	8-97379-882-0	02	1	0510-	●		●
115	RUBBER; MTG,SILENCER 4HK1-TCS ENG<RJS> (A) THA	8-97379-927-0	02	1	0510-	●		●
115	RUBBER; MTG,SILENCER 4HE1-TCS ENG<RDS> (A)	8-94457-277-1	01	1	0508-	●		●
115	RUBBER; MTG,SILENCER 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> (A)	8-94457-277-1	01	1	0508-	●
115	RUBBER; MTG,SILENCER 4HG1-T ENG<RDP> (A)	8-94457-277-1	01	1	0508-		●
115	RUBBER; MTG,SILENCER 4HE1-TCS ENG<RDS> (A)	8-94457-277-1	01	1	0508-			●
115	RUBBER; MTG,SILENCER 4HE1-TCS ENG<RDS> (B)	8-94457-278-1	01	1	0508-	●		●
115	RUBBER; MTG,SILENCER 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> (B)	8-94457-278-1	01	1	0508-	●
115	RUBBER; MTG,SILENCER 4HG1-T ENG<RDP> (B)	8-94457-278-1	01	1	0508-		●
115	RUBBER; MTG,SILENCER 4HE1-TCS ENG<RDS> (B)	8-94457-278-1	01	1	0508-			●
117	WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	01	1	0508-	●	●	●
118	NUT; SILENCER MTG BRKT M10 FLANGE	5-09440-006-0	01	1	0508-	●	●	●
119	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0508-	●	●	●
122	NUT; HANGER BRKT M8	9-09110-408-0	01	1	0508-	●	●	●
125	NUT; CLAMP 4HE1-TCS ENG<RDS> (B) M8 FLANGE	0-91150-108-0	02	1	0508-0509	●		●
125	NUT; CLAMP 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> (B) M8 FLANGE	0-91150-108-0	02	1	0510-	●		●
125	NUT; CLAMP 4HE1-TCS ENG<RDS> (A) M10 FLANGE	0-91150-110-0	02	1	0508-0509	●		●
125	NUT; CLAMP 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> (A) M10 FLANGE	0-91150-110-0	02	1	0510-0602	●		●
125	NUT; CLAMP 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> (A) M10 FLANGE THA	0-91180-110-0	02	1	0603-	●		●
125	NUT; CLAMP (C) M8	9-09110-408-0	01	1	0508-	●	●	●
164	COLLAR; DIST,TAIL PIPE L=37.5 THA	9-22151-217-0	01	1	0508-0509	●	●	●
164	COLLAR; DIST,TAIL PIPE 4HE1-TCS ENG<RDS> L=37.5 THA	9-22151-217-0	01	1	0508-0509	●		●
164	COLLAR; DIST,TAIL PIPE L=37.5 THA	9-22151-217-0	01	1	0510-	●	●	●
164	COLLAR; DIST,TAIL PIPE 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> L=37.5 THA	9-22151-217-0	01	1	0510-	●		●
168	BRACKET; EXH PIPE,FRT 4HG1-T ENG<RDP> (C)	8-97238-728-0	01	1	0508-	●	●
168	BRACKET; EXH PIPE,FRT 4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-94370-689-2	01	1	0508-	●
168	BRACKET; EXH PIPE,FRT 4HG1-T ENG<RDP> (A)	8-94370-689-2	01	1	0508-		●
168	BRACKET; EXH PIPE,FRT 4HE1-TCS ENG<RDS> FLOOR REMOTE SHIFT<M11> (E)	8-94370-046-4	01	1	0508-	●
168	BRACKET; EXH PIPE,FRT 4HE1-TCS ENG<RDS> (E)	8-94370-046-4	01	1	0508-			●
168	BRACKET; EXH PIPE,FRT FRAME STRAIGHT TYPE<7KJ> (B)	8-97096-651-0	01	1	0508-	●
168	BRACKET; EXH PIPE,FRT (B)	8-97096-651-0	01	1	0508-			●
168	BRACKET; EXH PIPE,FRT EXC. FRAME STRAIGHT TYPE<7KJ> (B)	5-22151-044-0	01	1	0508-	●
168	BRACKET; EXH PIPE,FRT (B)	5-22151-044-0	01	1	0508-		●
168	BRACKET; EXH PIPE,FRT 4HE1-TCS ENG<RDS> (D)	8-97214-433-0	01	1	0508-0509	●		●
168	BRACKET; EXH PIPE,FRT 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> (D)	8-97214-433-0	01	1	0510-	●		●
168	BRACKET; EXH PIPE,FRT 4HK1-TCS ENG<RJS> (E)	8-97365-228-0	01	1	0510-	●		●
173	WASHER; PL 4HE1-TCS ENG<RDS> OD=55	9-09852-169-0	01	1	0508-0509	●		●
173	WASHER; PL 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> OD=55	9-09852-169-0	01	1	0510-	●		●
272	NUT; FLANGE 4HE1-TCS ENG<RDS> M10 FLANGE	5-09440-006-0	01	1	0508-0509	●		●
272	NUT; FLANGE 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M10 FLANGE	5-09440-006-0	01	1	0510-	●		●
352	NUT; BRKT EXC. FRAME STRAIGHT TYPE<7KJ> M10 FLANGE	0-91150-110-0	02	1	0508-0602	●
352	NUT; BRKT M10 FLANGE	0-91150-110-0	02	1	0508-0602		●
352	NUT; BRKT EXC. FRAME STRAIGHT TYPE<7KJ> M10 FLANGE THA	0-91180-110-0	02	1	0603-	●
352	NUT; BRKT M10 FLANGE THA	0-91180-110-0	02	1	0603-		●
376	BOLT; BRKT 4HG1-T ENG<RDP> M10X35 FLANGE	0-28681-035-0	02	1	0508-0611	●	●
376	BOLT; BRKT 4HG1-T ENG<RDP> M10X35 FLANGE THA	0-28651-035-0	02	1	0612-	●	●
376	BOLT; BRKT 4HE1-TCS ENG<RDS> M10X35 FLANGE	0-28681-035-0	01	1	0508-0509	●		●
376	BOLT; BRKT 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M10X35 FLANGE	0-28681-035-0	01	1	0510-0611	●		●
376	BOLT; BRKT 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M10X35 FLANGE THA	0-28651-035-0	01	1	0612-	●		●
385	BRACKET; SILENCER MTG 4HE1-TCS ENG<RDS> (B)	8-94329-857-0	01	1	0508-0509	●		●
385	BRACKET; SILENCER MTG 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> (B)	8-94329-857-0	01	1	0510-	●		●
385	BRACKET; SILENCER MTG 4HE1-TCS ENG<RDS> (A)	8-97207-224-0	01	1	0508-0509	●		●
385	BRACKET; SILENCER MTG 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> (A)	8-97207-224-0	01	1	0510-	●		●
387	SPACER; BRKT 4HE1-TCS ENG<RDS> (B)	8-97172-493-2	01	1	0508-0509	●		●
387	SPACER; BRKT 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> (B)	8-97172-493-2	01	1	0510-	●		●
387	SPACER; BRKT 4HE1-TCS ENG<RDS> (A)	8-97218-212-0	01	1	0508-0509	●		●
387	SPACER; BRKT 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> (A)	8-97218-212-0	01	1	0510-	●		●
514	NUT; BAND 4HE1-TCS ENG<RDS> M8	9-09110-408-0	01	1	0508-0509	●		●
514	NUT; BAND 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M8	9-09110-408-0	01	1	0510-	●		●
515	BOLT; BAND 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M8X45 W/LK WASHER THA	0-50540-845-0	01	1	0910-	●		●
515	BOLT; BAND 4HE1-TCS ENG<RDS> M8X45 W/LK WASHER	0-50040-845-0	01	1	0508-0509	●		●
515	BOLT; BAND 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M8X45 W/LK WASHER	0-50040-845-0	01	1	0510-0701	●		●
515	BOLT; BAND 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M8X45 W/LK WASHER THA	0-50540-845-0	01	1	0702-	●		●

126 81 125 70 88 144 143 168 97 137 94 137 105 165 164 162 95 166 124 104 137 105 357 46 88 529 172 62 94 8 75 290 530 532 14 38 531 330 1 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PIPE; EXH 4HE1-TCS ENG<RDS> (C)	8-97210-052-0	01	1	0508-0509	●
1	PIPE; EXH 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> (C)	8-97210-052-0	01	1	0510-	●
1	PIPE; EXH 4HG1-T ENG<RDP> (A) THA	8-97917-124-1	01	1	0508-	●	●
1	PIPE; EXH 4HE1-TCS ENG<RDS> (D) THA	8-97920-879-0	01	1	0508-	●		●
1	PIPE; EXH 4HG1-T ENG<RDP> (B) THA	8-97917-128-1	01	1	0508-		●
1	PIPE; EXH 4HE1-TCS ENG<RDS> (C) THA	8-97922-683-0	01	1	0508-0509			●
1	PIPE; EXH 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> (C) THA	8-97922-683-0	01	1	0510-			●
1	PIPE; EXH 4HK1-TCS ENG<RJS> (D) THA	8-97922-926-0	01	1	0510-	●		●
8	BRACKET; EXH PIPE 4HE1-TCS ENG<RDS>	8-97220-154-0	01	1	0508-0509			●
8	BRACKET; EXH PIPE 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS>	8-97220-154-0	01	1	0510-			●
14	GASKET; SILENCER TO EXH PIPE ID=64.7	8-94328-352-0	02	1	0508-	●	●	●
14	GASKET; SILENCER TO EXH PIPE 4HE1-TCS ENG<RDS> ID=64.7	8-94328-352-0	01	1	0508-0509	●		●
14	GASKET; SILENCER TO EXH PIPE ID=64.7	8-94328-352-0	01	1	0508-0509		●
14	GASKET; SILENCER TO EXH PIPE 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> ID=64.7	8-94328-352-0	01	1	0510-	●		●
14	GASKET; SILENCER TO EXH PIPE ID=64.7	8-94328-352-0	01	1	0510-		●
38	NUT; SILENCER M10 FLANGE	0-91150-110-0	02	1	0508-0509	●	●	●
38	NUT; SILENCER 4HE1-TCS ENG<RDS> M10 FLANGE	0-91150-110-0	02	1	0508-0509	●		●
38	NUT; SILENCER M10 FLANGE	0-91150-110-0	02	1	0508-0509		●
38	NUT; SILENCER M10 FLANGE	0-91150-110-0	02	1	0510-0602	●	●	●
38	NUT; SILENCER 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M10 FLANGE	0-91150-110-0	02	1	0510-0602	●		●
38	NUT; SILENCER M10 FLANGE	0-91150-110-0	02	1	0510-0602		●
38	NUT; SILENCER M10 FLANGE THA	0-91180-110-0	02	1	0603-	●	●	●
38	NUT; SILENCER 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M10 FLANGE THA	0-91180-110-0	02	1	0603-	●		●
38	NUT; SILENCER M10 FLANGE THA	0-91180-110-0	02	1	0603-		●
46	BOLT; BRKT,EXH PIPE 4HE1-TCS ENG<RDS> M10X35 FLANGE	0-28681-035-0	02	1	0508-0509			●
46	BOLT; BRKT,EXH PIPE 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M10X35 FLANGE	0-28681-035-0	02	1	0510-0611			●
46	BOLT; BRKT,EXH PIPE 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M10X35 FLANGE THA	0-28651-035-0	02	1	0612-			●
62	TUBE; DIST,BRKT 4HE1-TCS ENG<RDS> L=37.5 THA	9-22151-217-0	01	1	0508-0509			●
62	TUBE; DIST,BRKT 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> L=37.5 THA	9-22151-217-0	01	1	0510-			●
70	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	0508-0611	●	●	●
70	BOLT; BRKT M8X25 FLANGE THA	0-28650-825-0	02	1	0612-	●	●	●
75	RUBBER; SUPPORT,BRKT 4HG1-T ENG<RDP> (A)	8-97166-498-1	01	1	0508-	●	●
75	RUBBER; SUPPORT,BRKT 4HE1-TCS ENG<RDS> (B)	8-97080-694-0	01	1	0508-0509	●		●
75	RUBBER; SUPPORT,BRKT 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> (B)	8-97080-694-0	01	1	0510-	●		●
75	RUBBER; SUPPORT,BRKT 4HE1-TCS ENG<RDS> (C) L=115	8-94156-256-0	01	1	0508-0509			●
75	RUBBER; SUPPORT,BRKT 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> (C) L=115	8-94156-256-0	01	1	0510-			●
81	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	0508-	●	●	●
81	NUT; BRKT 4HE1-TCS ENG<RDS> (A) M10 FLANGE	0-91150-110-0	03	1	0508-0509	●		●
81	NUT; BRKT 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> (A) M10 FLANGE	0-91150-110-0	03	1	0510-0602	●		●
81	NUT; BRKT 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> (A) M10 FLANGE THA	0-91180-110-0	03	1	0603-	●		●
88	CLAMP; EXH PIPE THA	8-97917-235-0	02	1	0508-	●	●	●
94	BOLT; CLAMP 4HE1-TCS ENG<RDS> (A) M10X30 FLANGE	0-28681-030-0	01	1	0508-0509	●		●
94	BOLT; CLAMP 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> (A) M10X30 FLANGE	0-28681-030-0	01	1	0510-0611	●		●
94	BOLT; CLAMP 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> (A) M10X30 FLANGE THA	0-28651-030-0	01	1	0612-	●		●
94	BOLT; CLAMP (B) M8X45	0-20800-845-0	02	1	0508-	●	●	●
95	BOLT; BRKT 4HE1-TCS ENG<RDS> M10X30 FLANGE	0-28681-030-0	02	1	0508-0509			●
95	BOLT; BRKT 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M10X30 FLANGE	0-28681-030-0	02	1	0510-0611			●
95	BOLT; BRKT 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M10X30 FLANGE THA	0-28651-030-0	02	1	0612-			●
95	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	0508-0611	●	●
95	BOLT; BRKT M8X25 FLANGE THA	0-28650-825-0	02	1	0612-	●	●
97	WASHER; PL,CLAMP ID=8.4 OD=18	9-09164-608-0	01	1	0508-0605	●	●	●
97	WASHER; PL,CLAMP ID=8.4 OD=18	0-91614-608-0	01	1	0606-	●	●	●
104	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0508-	●	●
104	NUT; BRKT 4HE1-TCS ENG<RDS> M10 FLANGE	0-91150-110-0	02	1	0508-0509			●
104	NUT; BRKT 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M10 FLANGE	0-91150-110-0	02	1	0510-0602			●
104	NUT; BRKT 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M10 FLANGE THA	0-91180-110-0	02	1	0603-			●
105	NUT; CLAMP (A) M10 FLANGE	0-91150-110-0	02	1	0508-0602	●	●	●
105	NUT; CLAMP (A) M10 FLANGE THA	0-91180-110-0	02	1	0603-	●	●	●
105	NUT; CLAMP (B) M8	9-09110-408-0	01	1	0508-	●	●	●
124	NUT; SUPPORT RUBBER M10 FLANGE	0-91150-110-0	01	1	0508-0602	●	●	●
124	NUT; SUPPORT RUBBER M10 FLANGE THA	0-91180-110-0	01	1	0603-	●	●	●
125	NUT; CLAMP 4HE1-TCS ENG<RDS> (B) M8 FLANGE	0-91150-108-0	02	1	0508-0509	●		●
125	NUT; CLAMP 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> (B) M8 FLANGE	0-91150-108-0	02	1	0510-	●		●
125	NUT; CLAMP 4HE1-TCS ENG<RDS> (A) M10 FLANGE	0-91150-110-0	02	1	0508-0509	●		●
125	NUT; CLAMP 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> (A) M10 FLANGE	0-91150-110-0	02	1	0510-0602	●		●
125	NUT; CLAMP 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> (A) M10 FLANGE THA	0-91180-110-0	02	1	0603-	●		●
125	NUT; CLAMP (C) M8	9-09110-408-0	01	1	0508-	●	●	●
126	PIPE; EXH,RR 4HG1-T ENG<RDP> THA	8-97917-129-1	01	1	0508-	●	●
126	PIPE; EXH,RR 4HE1-TCS ENG<RDS> THA	8-97922-696-0	01	1	0508-0509	●
126	PIPE; EXH,RR 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> THA	8-97922-696-0	01	1	0510-	●
126	PIPE; EXH,RR 4HE1-TCS ENG<RDS> THA	8-97920-882-0	01	1	0508-0509			●
126	PIPE; EXH,RR 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> THA	8-97920-882-0	01	1	0510-0612			●
126	PIPE; EXH,RR 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> THA	8-97923-639-0	01	1	0701-			●
137	BRACKET; TAIL PIPE FRAME STRAIGHT TYPE<7KJ> (B)	8-97116-588-2	01	1	0508-	●
137	BRACKET; TAIL PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-94114-022-1	01	1	0508-	●
137	BRACKET; TAIL PIPE (A)	8-94114-022-1	01	1	0508-		●
137	BRACKET; TAIL PIPE 4HE1-TCS ENG<RDS> (C)	8-97185-801-0	01	1	0508-0509			●
137	BRACKET; TAIL PIPE 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> (C)	8-97185-801-0	01	1	0510-			●
143	RUBBER; SUPPORT	8-97371-655-1	01	1	0508-	●	●	●
144	NUT; MTG RUBBER M8 FLANGE	0-91150-108-0	01	1	0508-	●	●	●
162	RUBBER; SUPPORT,TAIL PIPE L=115	8-94156-256-0	01	1	0508-	●	●	●
164	COLLAR; DIST,TAIL PIPE L=37.5 THA	9-22151-217-0	01	1	0508-0509	●	●	●
164	COLLAR; DIST,TAIL PIPE 4HE1-TCS ENG<RDS> L=37.5 THA	9-22151-217-0	01	1	0508-0509	●		●
164	COLLAR; DIST,TAIL PIPE L=37.5 THA	9-22151-217-0	01	1	0510-	●	●	●
164	COLLAR; DIST,TAIL PIPE 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> L=37.5 THA	9-22151-217-0	01	1	0510-	●		●
165	BOLT; SUPPORT RUBBER M10X70 FLANGE	0-28081-070-0	01	1	0508-0512	●	●	●
165	BOLT; SUPPORT RUBBER M10X70 FLANGE THA	0-28051-070-0	01	1	0601-	●	●	●
166	WASHER; PL,SUPPORT RUBBER,EXH PIPE ID=10.5 OD=32	9-09164-810-0	01	1	0508-0605	●	●	●
166	WASHER; PL,SUPPORT RUBBER,EXH PIPE ID=10.5 OD=32	0-91614-810-0	01	1	0606-	●	●	●
168	BRACKET; EXH PIPE,FRT 4HG1-T ENG<RDP> (C)	8-97238-728-0	01	1	0508-	●	●
168	BRACKET; EXH PIPE,FRT 4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-94370-689-2	01	1	0508-	●
168	BRACKET; EXH PIPE,FRT 4HG1-T ENG<RDP> (A)	8-94370-689-2	01	1	0508-		●
168	BRACKET; EXH PIPE,FRT 4HE1-TCS ENG<RDS> FLOOR REMOTE SHIFT<M11> (E)	8-94370-046-4	01	1	0508-	●
168	BRACKET; EXH PIPE,FRT 4HE1-TCS ENG<RDS> (E)	8-94370-046-4	01	1	0508-			●
168	BRACKET; EXH PIPE,FRT FRAME STRAIGHT TYPE<7KJ> (B)	8-97096-651-0	01	1	0508-	●
168	BRACKET; EXH PIPE,FRT (B)	8-97096-651-0	01	1	0508-			●
168	BRACKET; EXH PIPE,FRT EXC. FRAME STRAIGHT TYPE<7KJ> (B)	5-22151-044-0	01	1	0508-	●
168	BRACKET; EXH PIPE,FRT (B)	5-22151-044-0	01	1	0508-		●
168	BRACKET; EXH PIPE,FRT 4HE1-TCS ENG<RDS> (D)	8-97214-433-0	01	1	0508-0509	●		●
168	BRACKET; EXH PIPE,FRT 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> (D)	8-97214-433-0	01	1	0510-	●		●
168	BRACKET; EXH PIPE,FRT 4HK1-TCS ENG<RJS> (E)	8-97365-228-0	01	1	0510-	●		●
172	BOLT 4HE1-TCS ENG<RDS> M10X70 FLANGE	0-28081-070-0	01	1	0508-0509			●
172	BOLT 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M10X70 FLANGE	0-28081-070-0	01	1	0510-0512			●
172	BOLT 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M10X70 FLANGE THA	0-28051-070-0	01	1	0601-			●
290	BOLT; CLAMP 4HE1-TCS ENG<RDS> M8X45	0-20800-845-0	01	1	0508-0509			●
290	BOLT; CLAMP 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M8X45	0-20800-845-0	01	1	0510-			●
330	NUT; CLAMP 4HE1-TCS ENG<RDS> M8	9-09110-408-0	01	1	0508-0509			●
330	NUT; CLAMP 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M8	9-09110-408-0	01	1	0510-			●
357	WASHER; PL,CLAMP ID=8.4 OD=18	9-09164-608-0	01	1	0508-0605	●	●	●
357	WASHER; PL,CLAMP ID=8.4 OD=18	0-91614-608-0	01	1	0606-	●	●	●
529	NUT; BRKT,EXH PIPE 4HE1-TCS ENG<RDS> M10 FLANGE	0-91150-110-0	02	1	0508-0509			●
529	NUT; BRKT,EXH PIPE 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M10 FLANGE	0-91150-110-0	02	1	0510-0602			●
529	NUT; BRKT,EXH PIPE 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M10 FLANGE THA	0-91180-110-0	02	1	0603-			●
530	WASHER 4HE1-TCS ENG<RDS> ID=10.5 OD=32	9-09164-810-0	01	1	0508-0509			●
530	WASHER 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> ID=10.5 OD=32	9-09164-810-0	01	1	0510-0605			●
530	WASHER 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> ID=10.5 OD=32	0-91614-810-0	01	1	0606-			●
531	WASHER; CLAMP 4HE1-TCS ENG<RDS> ID=8.4 OD=18	9-09164-608-0	01	1	0508-0509			●
531	WASHER; CLAMP 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> ID=8.4 OD=18	9-09164-608-0	01	1	0510-0605			●
531	WASHER; CLAMP 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> ID=8.4 OD=18	0-91614-608-0	01	1	0606-			●
532	NUT 4HE1-TCS ENG<RDS> M10 FLANGE	0-91150-110-0	01	1	0508-0509			●
532	NUT 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M10 FLANGE	0-91150-110-0	01	1	0510-0602			●
532	NUT 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M10 FLANGE THA	0-91180-110-0	01	1	0603-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
