Sayfa 1-45 - Isuzu EPC

1-45 — WATER SEDIMENTER; FUEL (#43088) — 186 parça

1 9 7 5 36 87 14 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SEDIMENTER; FUEL 4HK1-TCS ENG<RJS> (C)	8-98017-806-2	01	1	0510-	●	●
1	SEDIMENTER; FUEL 4HG1-T ENG<RDP> (A)	8-97081-814-3	01	1	0508-	●		●
1	SEDIMENTER; FUEL 4HE1-TCS ENG<RDS> (B)	8-97188-042-1	01	1	0508-	●	●
5	GASKET; UPR COVER,SEDIMENTER 4HG1-T ENG<RDP>	5-09623-075-0	01	1	0508-	●		●
5	GASKET; UPR COVER,SEDIMENTER 4HE1-TCS ENG<RDS>	1-09623-491-0	01	1	0508-	●	●
7	PLUG; DRAIN,SEDIMENTER 4HK1-TCS ENG<RJS>	8-97172-546-1	01	1	0510-	●	●
7	PLUG; DRAIN,SEDIMENTER 4HG1-T ENG<RDP>	8-94132-674-0	01	1	0508-	●		●
7	PLUG; DRAIN,SEDIMENTER 4HE1-TCS ENG<RDS>	9-13219-070-0	01	1	0508-	●	●
9	GASKET; DRAIN PLUG & CONNECTOR 4HG1-T ENG<RDP>	8-94132-675-0	01	1	0508-	●		●
9	GASKET; DRAIN PLUG & CONNECTOR 4HE1-TCS ENG<RDS> ID=8.2 OD=13.2	1-09630-082-0	01	1	0508-	●	●
14	GASKET; SENSOR TO CENTER BOLT 4HG1-T ENG<RDP>	8-94447-156-0	01	1	0508-	●		●
36	RING; BODY TO CASE 4HG1-T ENG<RDP>	5-13234-001-0	01	1	0508-	●		●
36	RING; BODY TO CASE 4HE1-TCS ENG<RDS>	1-13219-226-0	01	1	0508-	●	●
37	PLUG; SENSOR 4HK1-TCS ENG<RJS>	8-98004-899-0	01	1	0510-	●	●
37	PLUG; SENSOR 4HG1-T ENG<RDP>	8-94453-746-0	01	1	0508-	●		●
87	CASE ASM; SEDIMENTER 4HG1-T ENG<RDP>	8-97219-363-1	01	1	0508-	●		●

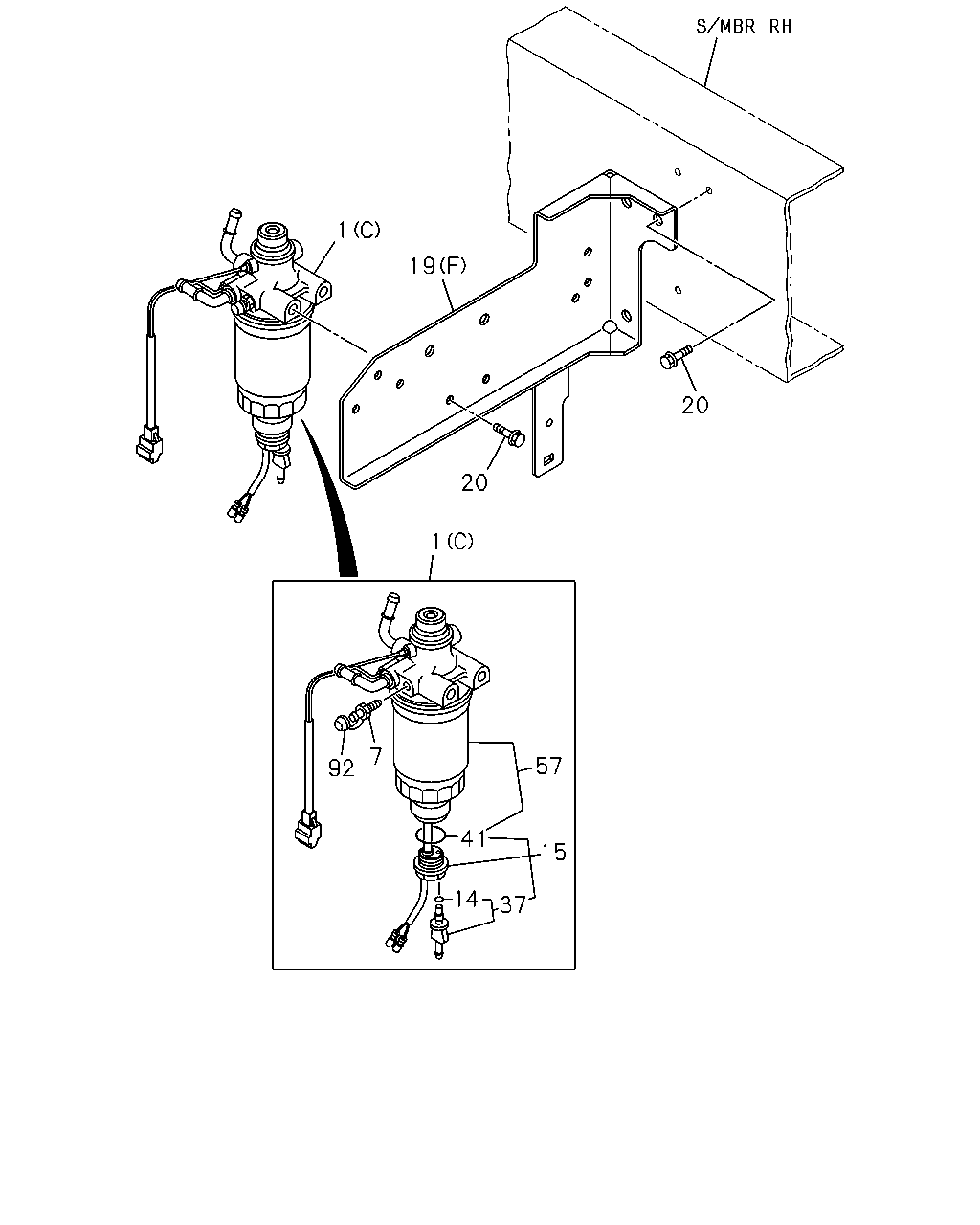

1 19 20 20 1 7 57 92 41 15 14 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SEDIMENTER; FUEL 4HK1-TCS ENG<RJS> (C)	8-98017-806-2	01	1	0510-	●	●
1	SEDIMENTER; FUEL 4HG1-T ENG<RDP> (A)	8-97081-814-3	01	1	0508-	●		●
1	SEDIMENTER; FUEL 4HE1-TCS ENG<RDS> (B)	8-97188-042-1	01	1	0508-	●	●
7	PLUG; DRAIN,SEDIMENTER 4HK1-TCS ENG<RJS>	8-97172-546-1	01	1	0510-	●	●
7	PLUG; DRAIN,SEDIMENTER 4HG1-T ENG<RDP>	8-94132-674-0	01	1	0508-	●		●
7	PLUG; DRAIN,SEDIMENTER 4HE1-TCS ENG<RDS>	9-13219-070-0	01	1	0508-	●	●
14	GASKET; SENSOR TO CENTER BOLT 4HG1-T ENG<RDP>	8-94447-156-0	01	1	0508-	●		●
15	SENSOR ASM; SEDIMENTER 4HK1-TCS ENG<RJS>	8-98009-886-0	01	1	0510-	●	●
19	BRACKET; FUEL SEDIMENTER 4HG1-T ENG<RDP> FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97370-092-0	01	1	0508-	●
19	BRACKET; FUEL SEDIMENTER 4HG1-T ENG<RDP> FUEL FILTER DUAL<S6B> (A)	8-97370-092-0	01	1	0508-			●
19	BRACKET; FUEL SEDIMENTER 4HG1-T ENG<RDP> FRAME STRAIGHT TYPE<7KJ> (B)	8-97363-089-0	01	1	0508-	●
19	BRACKET; FUEL SEDIMENTER 4HG1-T ENG<RDP> EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (C)	8-94366-685-0	01	1	0508-	●
19	BRACKET; FUEL SEDIMENTER 4HG1-T ENG<RDP> EXC. FUEL FILTER DUAL<S6B> (C)	8-94366-685-0	01	1	0508-			●
19	BRACKET; FUEL SEDIMENTER 4HE1-TCS ENG<RDS> FUEL FILTER DUAL<S6B> (D)	8-97363-088-0	01	1	0508-	●	●
19	BRACKET; FUEL SEDIMENTER 4HE1-TCS ENG<RDS> EXC. FUEL FILTER DUAL<S6B> (E)	8-97182-048-2	01	1	0508-	●	●
19	BRACKET; FUEL SEDIMENTER 4HK1-TCS ENG<RJS> (F)	8-97368-101-5	01	1	0510-	●	●
20	BOLT; BRKT TO SEDIMENTER 4HG1-T ENG<RDP>,4HK1-TCS ENG<RJS> M8X20 FLANGE	0-28680-820-0	02	1	0510-0512	●
20	BOLT; BRKT TO SEDIMENTER 4HG1-T ENG<RDP> M8X20 FLANGE	0-28680-820-0	02	1	0510-0512			●
20	BOLT; BRKT TO SEDIMENTER 4HK1-TCS ENG<RJS> M8X20 FLANGE	0-28680-820-0	02	1	0510-0512		●
20	BOLT; BRKT TO SEDIMENTER 4HG1-T ENG<RDP>,4HK1-TCS ENG<RJS> M8X20 FLANGE THA	0-28650-820-0	02	1	0601-	●
20	BOLT; BRKT TO SEDIMENTER 4HG1-T ENG<RDP> M8X20 FLANGE THA	0-28650-820-0	02	1	0601-			●
20	BOLT; BRKT TO SEDIMENTER 4HK1-TCS ENG<RJS> M8X20 FLANGE THA	0-28650-820-0	02	1	0601-		●
20	BOLT; BRKT TO SEDIMENTER 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> FUEL FILTER DUAL<S6B> M10X30 FLANGE	0-28081-030-0	02	1	0508-0512	●	●	●
20	BOLT; BRKT TO SEDIMENTER 4HG1-T ENG<RDP> FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> M10X30 FLANGE	0-28081-030-0	02	1	0508-0512	●		●
20	BOLT; BRKT TO SEDIMENTER 4HE1-TCS ENG<RDS> M10X30 FLANGE	0-28081-030-0	02	1	0508-0512	●	●
20	BOLT; BRKT TO SEDIMENTER 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> FUEL FILTER DUAL<S6B> M10X30 FLANGE	0-28051-030-0	02	1	0601-	●	●	●
20	BOLT; BRKT TO SEDIMENTER 4HG1-T ENG<RDP> FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> M10X30 FLANGE	0-28051-030-0	02	1	0601-	●		●
20	BOLT; BRKT TO SEDIMENTER 4HE1-TCS ENG<RDS> M10X30 FLANGE	0-28051-030-0	02	1	0601-	●	●
20	BOLT; BRKT TO SEDIMENTER 4HG1-T ENG<RDP> EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> M8X30 FLANGE	0-28080-830-0	02	1	0508-0512	●
20	BOLT; BRKT TO SEDIMENTER 4HG1-T ENG<RDP> EXC. FUEL FILTER DUAL<S6B> M8X30 FLANGE	0-28080-830-0	02	1	0508-0512			●
20	BOLT; BRKT TO SEDIMENTER 4HG1-T ENG<RDP> EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> M8X30 FLANGE THA	0-28050-830-0	02	1	0601-	●
20	BOLT; BRKT TO SEDIMENTER 4HG1-T ENG<RDP> EXC. FUEL FILTER DUAL<S6B> M8X30 FLANGE THA	0-28050-830-0	02	1	0601-			●
20	BOLT; BRKT TO SEDIMENTER 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> M10X30 FLANGE	0-28081-030-0	03	1	0508-0509	●
20	BOLT; BRKT TO SEDIMENTER 4HE1-TCS ENG<RDS> M10X30 FLANGE	0-28081-030-0	03	1	0508-0509		●
20	BOLT; BRKT TO SEDIMENTER 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> M10X30 FLANGE	0-28081-030-0	03	1	0510-0512	●
20	BOLT; BRKT TO SEDIMENTER 4HK1-TCS ENG<RJS> M10X30 FLANGE	0-28081-030-0	03	1	0510-0512	●
20	BOLT; BRKT TO SEDIMENTER 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M10X30 FLANGE	0-28081-030-0	03	1	0510-0512		●
20	BOLT; BRKT TO SEDIMENTER 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> M10X30 FLANGE	0-28051-030-0	03	1	0601-	●
20	BOLT; BRKT TO SEDIMENTER 4HK1-TCS ENG<RJS> M10X30 FLANGE	0-28051-030-0	03	1	0601-	●
20	BOLT; BRKT TO SEDIMENTER 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M10X30 FLANGE	0-28051-030-0	03	1	0601-		●
20	BOLT; BRKT TO SEDIMENTER 4HG1-T ENG<RDP> M8X20 FLANGE	0-28680-820-0	02	1	0508-0509	●		●
20	BOLT; BRKT TO SEDIMENTER 4HG1-T ENG<RDP>,4HK1-TCS ENG<RJS> M8X20 FLANGE	0-28680-820-0	02	1	0510-0611	●
20	BOLT; BRKT TO SEDIMENTER 4HG1-T ENG<RDP> M8X20 FLANGE	0-28680-820-0	02	1	0510-0611			●
20	BOLT; BRKT TO SEDIMENTER 4HK1-TCS ENG<RJS> M8X20 FLANGE	0-28680-820-0	02	1	0510-0611		●
20	BOLT; BRKT TO SEDIMENTER 4HG1-T ENG<RDP>,4HK1-TCS ENG<RJS> M8X20 FLANGE THA	0-28650-820-0	02	1	0612-	●
20	BOLT; BRKT TO SEDIMENTER 4HG1-T ENG<RDP> M8X20 FLANGE THA	0-28650-820-0	02	1	0612-			●
20	BOLT; BRKT TO SEDIMENTER 4HK1-TCS ENG<RJS> M8X20 FLANGE THA	0-28650-820-0	02	1	0612-		●
37	PLUG; SENSOR 4HK1-TCS ENG<RJS>	8-98004-899-0	01	1	0510-	●	●
37	PLUG; SENSOR 4HG1-T ENG<RDP>	8-94453-746-0	01	1	0508-	●		●
41	GASKET; SENSOR TO CASE 4HK1-TCS ENG<RJS>	9-09563-334-0	01	1	0510-0611	●	●
41	GASKET; SENSOR TO CASE 4HK1-TCS ENG<RJS>	1-09623-649-0	01	1	0612-	●	●
57	CARTRIDGE KIT; FUEL FILTER 4HK1-TCS ENG<RJS>	8-98021-811-0	01	1	0510-0511	●	●
57	CARTRIDGE KIT; FUEL FILTER 4HK1-TCS ENG<RJS>	8-98031-847-0	01	1	0512-0611	●	●
57	CARTRIDGE KIT; FUEL FILTER 4HK1-TCS ENG<RJS>	8-98037-481-0	01	1	0612-	●	●
92	CAP; DRAIN 4HK1-TCS ENG<RJS>	8-97172-548-0	01	1	0510-	●	●

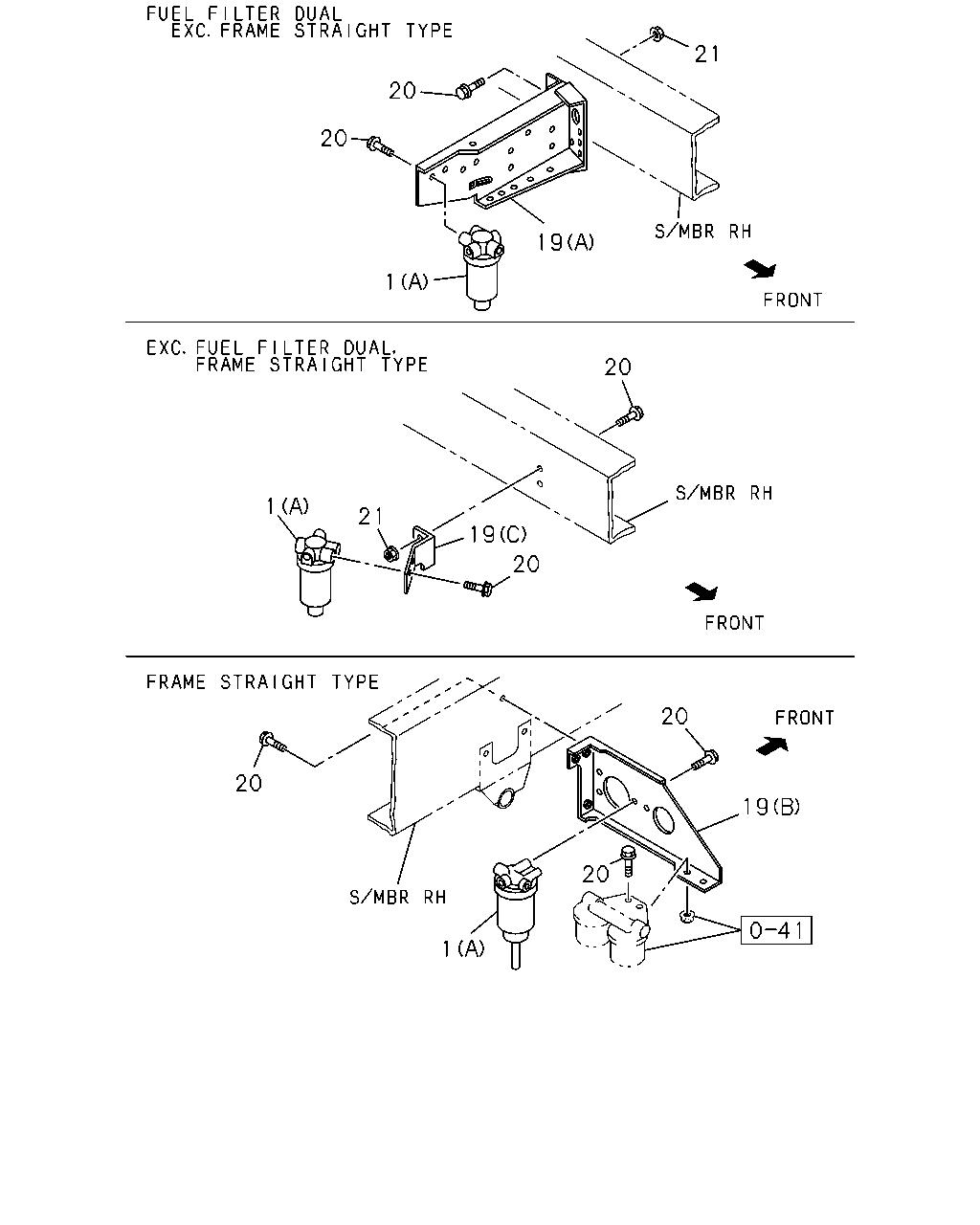

21 20 20 19 1 20 1 21 19 20 20 20 9 20 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SEDIMENTER; FUEL 4HK1-TCS ENG<RJS> (C)	8-98017-806-2	01	1	0510-	●	●
1	SEDIMENTER; FUEL 4HG1-T ENG<RDP> (A)	8-97081-814-3	01	1	0508-	●		●
1	SEDIMENTER; FUEL 4HE1-TCS ENG<RDS> (B)	8-97188-042-1	01	1	0508-	●	●
9	GASKET; DRAIN PLUG & CONNECTOR 4HG1-T ENG<RDP>	8-94132-675-0	01	1	0508-	●		●
9	GASKET; DRAIN PLUG & CONNECTOR 4HE1-TCS ENG<RDS> ID=8.2 OD=13.2	1-09630-082-0	01	1	0508-	●	●
19	BRACKET; FUEL SEDIMENTER 4HG1-T ENG<RDP> FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97370-092-0	01	1	0508-	●
19	BRACKET; FUEL SEDIMENTER 4HG1-T ENG<RDP> FUEL FILTER DUAL<S6B> (A)	8-97370-092-0	01	1	0508-			●
19	BRACKET; FUEL SEDIMENTER 4HG1-T ENG<RDP> FRAME STRAIGHT TYPE<7KJ> (B)	8-97363-089-0	01	1	0508-	●
19	BRACKET; FUEL SEDIMENTER 4HG1-T ENG<RDP> EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (C)	8-94366-685-0	01	1	0508-	●
19	BRACKET; FUEL SEDIMENTER 4HG1-T ENG<RDP> EXC. FUEL FILTER DUAL<S6B> (C)	8-94366-685-0	01	1	0508-			●
19	BRACKET; FUEL SEDIMENTER 4HE1-TCS ENG<RDS> FUEL FILTER DUAL<S6B> (D)	8-97363-088-0	01	1	0508-	●	●
19	BRACKET; FUEL SEDIMENTER 4HE1-TCS ENG<RDS> EXC. FUEL FILTER DUAL<S6B> (E)	8-97182-048-2	01	1	0508-	●	●
19	BRACKET; FUEL SEDIMENTER 4HK1-TCS ENG<RJS> (F)	8-97368-101-5	01	1	0510-	●	●
20	BOLT; BRKT TO SEDIMENTER 4HG1-T ENG<RDP>,4HK1-TCS ENG<RJS> M8X20 FLANGE	0-28680-820-0	02	1	0510-0512	●
20	BOLT; BRKT TO SEDIMENTER 4HG1-T ENG<RDP> M8X20 FLANGE	0-28680-820-0	02	1	0510-0512			●
20	BOLT; BRKT TO SEDIMENTER 4HK1-TCS ENG<RJS> M8X20 FLANGE	0-28680-820-0	02	1	0510-0512		●
20	BOLT; BRKT TO SEDIMENTER 4HG1-T ENG<RDP>,4HK1-TCS ENG<RJS> M8X20 FLANGE THA	0-28650-820-0	02	1	0601-	●
20	BOLT; BRKT TO SEDIMENTER 4HG1-T ENG<RDP> M8X20 FLANGE THA	0-28650-820-0	02	1	0601-			●
20	BOLT; BRKT TO SEDIMENTER 4HK1-TCS ENG<RJS> M8X20 FLANGE THA	0-28650-820-0	02	1	0601-		●
20	BOLT; BRKT TO SEDIMENTER 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> FUEL FILTER DUAL<S6B> M10X30 FLANGE	0-28081-030-0	02	1	0508-0512	●	●	●
20	BOLT; BRKT TO SEDIMENTER 4HG1-T ENG<RDP> FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> M10X30 FLANGE	0-28081-030-0	02	1	0508-0512	●		●
20	BOLT; BRKT TO SEDIMENTER 4HE1-TCS ENG<RDS> M10X30 FLANGE	0-28081-030-0	02	1	0508-0512	●	●
20	BOLT; BRKT TO SEDIMENTER 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> FUEL FILTER DUAL<S6B> M10X30 FLANGE	0-28051-030-0	02	1	0601-	●	●	●
20	BOLT; BRKT TO SEDIMENTER 4HG1-T ENG<RDP> FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> M10X30 FLANGE	0-28051-030-0	02	1	0601-	●		●
20	BOLT; BRKT TO SEDIMENTER 4HE1-TCS ENG<RDS> M10X30 FLANGE	0-28051-030-0	02	1	0601-	●	●
20	BOLT; BRKT TO SEDIMENTER 4HG1-T ENG<RDP> EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> M8X30 FLANGE	0-28080-830-0	02	1	0508-0512	●
20	BOLT; BRKT TO SEDIMENTER 4HG1-T ENG<RDP> EXC. FUEL FILTER DUAL<S6B> M8X30 FLANGE	0-28080-830-0	02	1	0508-0512			●
20	BOLT; BRKT TO SEDIMENTER 4HG1-T ENG<RDP> EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> M8X30 FLANGE THA	0-28050-830-0	02	1	0601-	●
20	BOLT; BRKT TO SEDIMENTER 4HG1-T ENG<RDP> EXC. FUEL FILTER DUAL<S6B> M8X30 FLANGE THA	0-28050-830-0	02	1	0601-			●
20	BOLT; BRKT TO SEDIMENTER 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> M10X30 FLANGE	0-28081-030-0	03	1	0508-0509	●
20	BOLT; BRKT TO SEDIMENTER 4HE1-TCS ENG<RDS> M10X30 FLANGE	0-28081-030-0	03	1	0508-0509		●
20	BOLT; BRKT TO SEDIMENTER 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> M10X30 FLANGE	0-28081-030-0	03	1	0510-0512	●
20	BOLT; BRKT TO SEDIMENTER 4HK1-TCS ENG<RJS> M10X30 FLANGE	0-28081-030-0	03	1	0510-0512	●
20	BOLT; BRKT TO SEDIMENTER 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M10X30 FLANGE	0-28081-030-0	03	1	0510-0512		●
20	BOLT; BRKT TO SEDIMENTER 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> M10X30 FLANGE	0-28051-030-0	03	1	0601-	●
20	BOLT; BRKT TO SEDIMENTER 4HK1-TCS ENG<RJS> M10X30 FLANGE	0-28051-030-0	03	1	0601-	●
20	BOLT; BRKT TO SEDIMENTER 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M10X30 FLANGE	0-28051-030-0	03	1	0601-		●
20	BOLT; BRKT TO SEDIMENTER 4HG1-T ENG<RDP> M8X20 FLANGE	0-28680-820-0	02	1	0508-0509	●		●
20	BOLT; BRKT TO SEDIMENTER 4HG1-T ENG<RDP>,4HK1-TCS ENG<RJS> M8X20 FLANGE	0-28680-820-0	02	1	0510-0611	●
20	BOLT; BRKT TO SEDIMENTER 4HG1-T ENG<RDP> M8X20 FLANGE	0-28680-820-0	02	1	0510-0611			●
20	BOLT; BRKT TO SEDIMENTER 4HK1-TCS ENG<RJS> M8X20 FLANGE	0-28680-820-0	02	1	0510-0611		●
20	BOLT; BRKT TO SEDIMENTER 4HG1-T ENG<RDP>,4HK1-TCS ENG<RJS> M8X20 FLANGE THA	0-28650-820-0	02	1	0612-	●
20	BOLT; BRKT TO SEDIMENTER 4HG1-T ENG<RDP> M8X20 FLANGE THA	0-28650-820-0	02	1	0612-			●
20	BOLT; BRKT TO SEDIMENTER 4HK1-TCS ENG<RJS> M8X20 FLANGE THA	0-28650-820-0	02	1	0612-		●
21	NUT; BRKT TO FRAME 4HG1-T ENG<RDP> EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> M8 FLANGE	0-91150-108-0	02	1	0508-	●
21	NUT; BRKT TO FRAME 4HG1-T ENG<RDP> EXC. FUEL FILTER DUAL<S6B> M8 FLANGE	0-91150-108-0	02	1	0508-			●
21	NUT; BRKT TO FRAME 4HG1-T ENG<RDP> FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> M10 FLANGE	0-91150-110-0	02	1	0508-0602	●
21	NUT; BRKT TO FRAME 4HG1-T ENG<RDP> FUEL FILTER DUAL<S6B> M10 FLANGE	0-91150-110-0	02	1	0508-0602			●
21	NUT; BRKT TO FRAME 4HG1-T ENG<RDP> FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> M10 FLANGE THA	0-91180-110-0	02	1	0603-	●
21	NUT; BRKT TO FRAME 4HG1-T ENG<RDP> FUEL FILTER DUAL<S6B> M10 FLANGE THA	0-91180-110-0	02	1	0603-			●
21	NUT; BRKT TO FRAME 4HG1-T ENG<RDP> FRAME STRAIGHT TYPE<7KJ> M10 FLANGE	0-91150-110-0	01	1	0508-0602	●
21	NUT; BRKT TO FRAME 4HG1-T ENG<RDP> FRAME STRAIGHT TYPE<7KJ> M10 FLANGE THA	0-91180-110-0	01	1	0603-	●

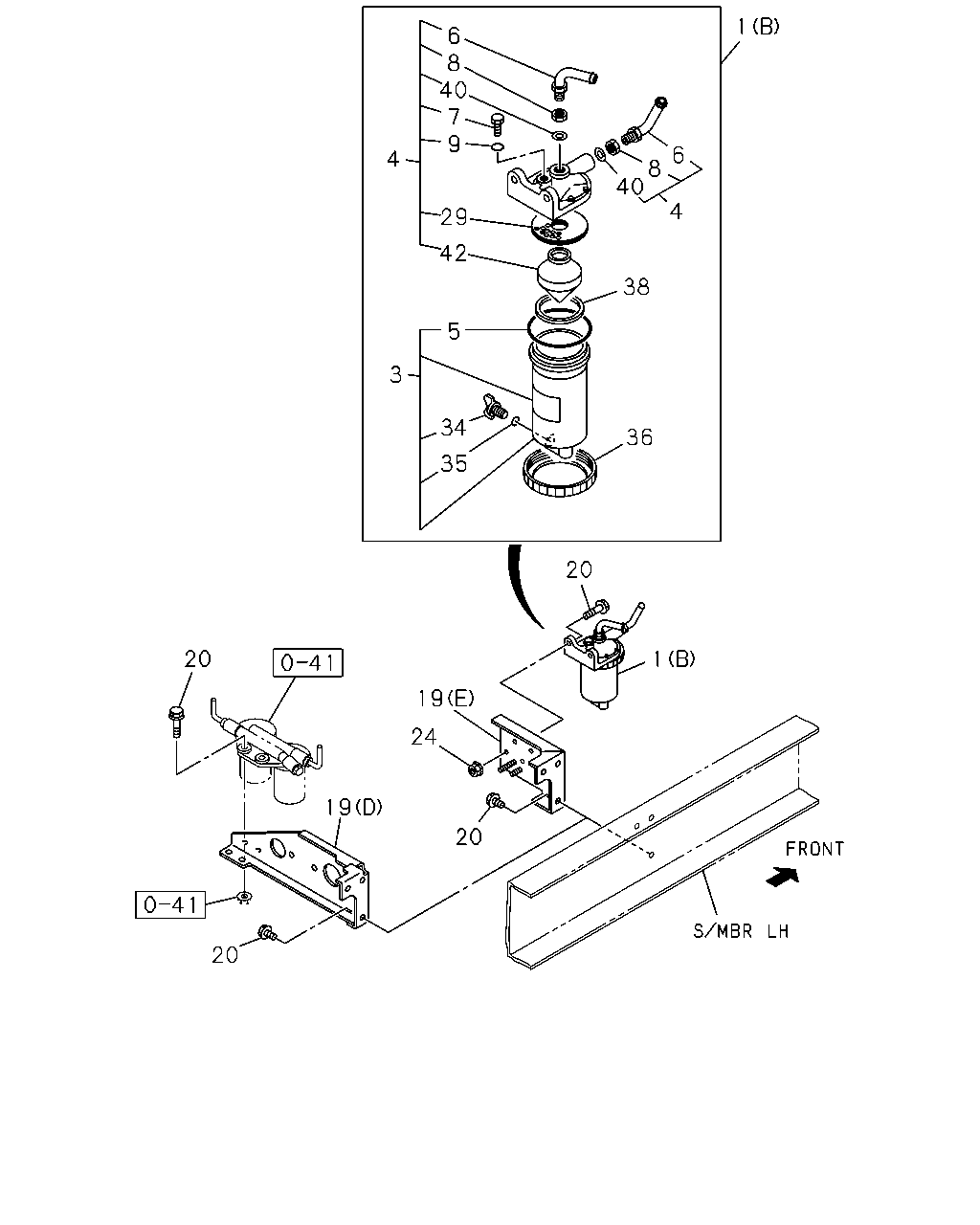

1 6 8 40 7 9 6 4 8 40 4 29 42 38 5 3 34 36 35 20 20 1 19 24 19 20 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SEDIMENTER; FUEL 4HK1-TCS ENG<RJS> (C)	8-98017-806-2	01	1	0510-	●	●
1	SEDIMENTER; FUEL 4HG1-T ENG<RDP> (A)	8-97081-814-3	01	1	0508-	●		●
1	SEDIMENTER; FUEL 4HE1-TCS ENG<RDS> (B)	8-97188-042-1	01	1	0508-	●	●
3	BODY ASM; SEDIMENTER 4HE1-TCS ENG<RDS>	1-13211-192-0	01	1	0508-	●	●
4	COVER; UPR,SEDIMENTER ASM 4HE1-TCS ENG<RDS>	1-13212-146-0	01	1	0508-	●	●
5	GASKET; UPR COVER,SEDIMENTER 4HG1-T ENG<RDP>	5-09623-075-0	01	1	0508-	●		●
5	GASKET; UPR COVER,SEDIMENTER 4HE1-TCS ENG<RDS>	1-09623-491-0	01	1	0508-	●	●
6	CONNECTOR ASM; SEDIMENTER 4HE1-TCS ENG<RDS>	1-13229-002-0	02	1	0508-	●	●
7	PLUG; DRAIN,SEDIMENTER 4HK1-TCS ENG<RJS>	8-97172-546-1	01	1	0510-	●	●
7	PLUG; DRAIN,SEDIMENTER 4HG1-T ENG<RDP>	8-94132-674-0	01	1	0508-	●		●
7	PLUG; DRAIN,SEDIMENTER 4HE1-TCS ENG<RDS>	9-13219-070-0	01	1	0508-	●	●
8	STOPPER; CONN,SEDIMENTER 4HE1-TCS ENG<RDS>	1-13229-001-0	02	1	0508-	●	●
9	GASKET; DRAIN PLUG & CONNECTOR 4HG1-T ENG<RDP>	8-94132-675-0	01	1	0508-	●		●
9	GASKET; DRAIN PLUG & CONNECTOR 4HE1-TCS ENG<RDS> ID=8.2 OD=13.2	1-09630-082-0	01	1	0508-	●	●
19	BRACKET; FUEL SEDIMENTER 4HG1-T ENG<RDP> FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97370-092-0	01	1	0508-	●
19	BRACKET; FUEL SEDIMENTER 4HG1-T ENG<RDP> FUEL FILTER DUAL<S6B> (A)	8-97370-092-0	01	1	0508-			●
19	BRACKET; FUEL SEDIMENTER 4HG1-T ENG<RDP> FRAME STRAIGHT TYPE<7KJ> (B)	8-97363-089-0	01	1	0508-	●
19	BRACKET; FUEL SEDIMENTER 4HG1-T ENG<RDP> EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (C)	8-94366-685-0	01	1	0508-	●
19	BRACKET; FUEL SEDIMENTER 4HG1-T ENG<RDP> EXC. FUEL FILTER DUAL<S6B> (C)	8-94366-685-0	01	1	0508-			●
19	BRACKET; FUEL SEDIMENTER 4HE1-TCS ENG<RDS> FUEL FILTER DUAL<S6B> (D)	8-97363-088-0	01	1	0508-	●	●
19	BRACKET; FUEL SEDIMENTER 4HE1-TCS ENG<RDS> EXC. FUEL FILTER DUAL<S6B> (E)	8-97182-048-2	01	1	0508-	●	●
19	BRACKET; FUEL SEDIMENTER 4HK1-TCS ENG<RJS> (F)	8-97368-101-5	01	1	0510-	●	●
20	BOLT; BRKT TO SEDIMENTER 4HG1-T ENG<RDP>,4HK1-TCS ENG<RJS> M8X20 FLANGE	0-28680-820-0	02	1	0510-0512	●
20	BOLT; BRKT TO SEDIMENTER 4HG1-T ENG<RDP> M8X20 FLANGE	0-28680-820-0	02	1	0510-0512			●
20	BOLT; BRKT TO SEDIMENTER 4HK1-TCS ENG<RJS> M8X20 FLANGE	0-28680-820-0	02	1	0510-0512		●
20	BOLT; BRKT TO SEDIMENTER 4HG1-T ENG<RDP>,4HK1-TCS ENG<RJS> M8X20 FLANGE THA	0-28650-820-0	02	1	0601-	●
20	BOLT; BRKT TO SEDIMENTER 4HG1-T ENG<RDP> M8X20 FLANGE THA	0-28650-820-0	02	1	0601-			●
20	BOLT; BRKT TO SEDIMENTER 4HK1-TCS ENG<RJS> M8X20 FLANGE THA	0-28650-820-0	02	1	0601-		●
20	BOLT; BRKT TO SEDIMENTER 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> FUEL FILTER DUAL<S6B> M10X30 FLANGE	0-28081-030-0	02	1	0508-0512	●	●	●
20	BOLT; BRKT TO SEDIMENTER 4HG1-T ENG<RDP> FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> M10X30 FLANGE	0-28081-030-0	02	1	0508-0512	●		●
20	BOLT; BRKT TO SEDIMENTER 4HE1-TCS ENG<RDS> M10X30 FLANGE	0-28081-030-0	02	1	0508-0512	●	●
20	BOLT; BRKT TO SEDIMENTER 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> FUEL FILTER DUAL<S6B> M10X30 FLANGE	0-28051-030-0	02	1	0601-	●	●	●
20	BOLT; BRKT TO SEDIMENTER 4HG1-T ENG<RDP> FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> M10X30 FLANGE	0-28051-030-0	02	1	0601-	●		●
20	BOLT; BRKT TO SEDIMENTER 4HE1-TCS ENG<RDS> M10X30 FLANGE	0-28051-030-0	02	1	0601-	●	●
20	BOLT; BRKT TO SEDIMENTER 4HG1-T ENG<RDP> EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> M8X30 FLANGE	0-28080-830-0	02	1	0508-0512	●
20	BOLT; BRKT TO SEDIMENTER 4HG1-T ENG<RDP> EXC. FUEL FILTER DUAL<S6B> M8X30 FLANGE	0-28080-830-0	02	1	0508-0512			●
20	BOLT; BRKT TO SEDIMENTER 4HG1-T ENG<RDP> EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> M8X30 FLANGE THA	0-28050-830-0	02	1	0601-	●
20	BOLT; BRKT TO SEDIMENTER 4HG1-T ENG<RDP> EXC. FUEL FILTER DUAL<S6B> M8X30 FLANGE THA	0-28050-830-0	02	1	0601-			●
20	BOLT; BRKT TO SEDIMENTER 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> M10X30 FLANGE	0-28081-030-0	03	1	0508-0509	●
20	BOLT; BRKT TO SEDIMENTER 4HE1-TCS ENG<RDS> M10X30 FLANGE	0-28081-030-0	03	1	0508-0509		●
20	BOLT; BRKT TO SEDIMENTER 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> M10X30 FLANGE	0-28081-030-0	03	1	0510-0512	●
20	BOLT; BRKT TO SEDIMENTER 4HK1-TCS ENG<RJS> M10X30 FLANGE	0-28081-030-0	03	1	0510-0512	●
20	BOLT; BRKT TO SEDIMENTER 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M10X30 FLANGE	0-28081-030-0	03	1	0510-0512		●
20	BOLT; BRKT TO SEDIMENTER 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> M10X30 FLANGE	0-28051-030-0	03	1	0601-	●
20	BOLT; BRKT TO SEDIMENTER 4HK1-TCS ENG<RJS> M10X30 FLANGE	0-28051-030-0	03	1	0601-	●
20	BOLT; BRKT TO SEDIMENTER 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M10X30 FLANGE	0-28051-030-0	03	1	0601-		●
20	BOLT; BRKT TO SEDIMENTER 4HG1-T ENG<RDP> M8X20 FLANGE	0-28680-820-0	02	1	0508-0509	●		●
20	BOLT; BRKT TO SEDIMENTER 4HG1-T ENG<RDP>,4HK1-TCS ENG<RJS> M8X20 FLANGE	0-28680-820-0	02	1	0510-0611	●
20	BOLT; BRKT TO SEDIMENTER 4HG1-T ENG<RDP> M8X20 FLANGE	0-28680-820-0	02	1	0510-0611			●
20	BOLT; BRKT TO SEDIMENTER 4HK1-TCS ENG<RJS> M8X20 FLANGE	0-28680-820-0	02	1	0510-0611		●
20	BOLT; BRKT TO SEDIMENTER 4HG1-T ENG<RDP>,4HK1-TCS ENG<RJS> M8X20 FLANGE THA	0-28650-820-0	02	1	0612-	●
20	BOLT; BRKT TO SEDIMENTER 4HG1-T ENG<RDP> M8X20 FLANGE THA	0-28650-820-0	02	1	0612-			●
20	BOLT; BRKT TO SEDIMENTER 4HK1-TCS ENG<RJS> M8X20 FLANGE THA	0-28650-820-0	02	1	0612-		●
24	NUT; SEDIMENTER 4HE1-TCS ENG<RDS> M10 FLANGE	0-91150-210-0	02	1	0508-	●	●
29	SCREEN ASM; SEDIMENTER 4HE1-TCS ENG<RDS>	1-13219-228-0	01	1	0508-	●	●
34	PLUG; DRAIN,FUEL FILTER 4HE1-TCS ENG<RDS>	1-13219-225-0	01	1	0508-	●	●
35	GASKET; DRAIN PLUG 4HK1-TCS ENG<RJS>	8-98004-898-0	01	1	0510-	●	●
35	GASKET; DRAIN PLUG 4HE1-TCS ENG<RDS>	1-09623-490-0	01	1	0508-	●	●
36	RING; BODY TO CASE 4HG1-T ENG<RDP>	5-13234-001-0	01	1	0508-	●		●
36	RING; BODY TO CASE 4HE1-TCS ENG<RDS>	1-13219-226-0	01	1	0508-	●	●
38	FLOAT; SEDIMENTER 4HE1-TCS ENG<RDS>	1-13219-227-0	01	1	0508-	●	●
40	GASKET; CONNECTOR TO COVER 4HE1-TCS ENG<RDS> ID=14.2 OD=19.2	1-09630-085-0	02	1	0508-	●	●
42	PLATE; BAFFLE 4HE1-TCS ENG<RDS>	1-13219-229-0	01	1	0508-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
