1 |

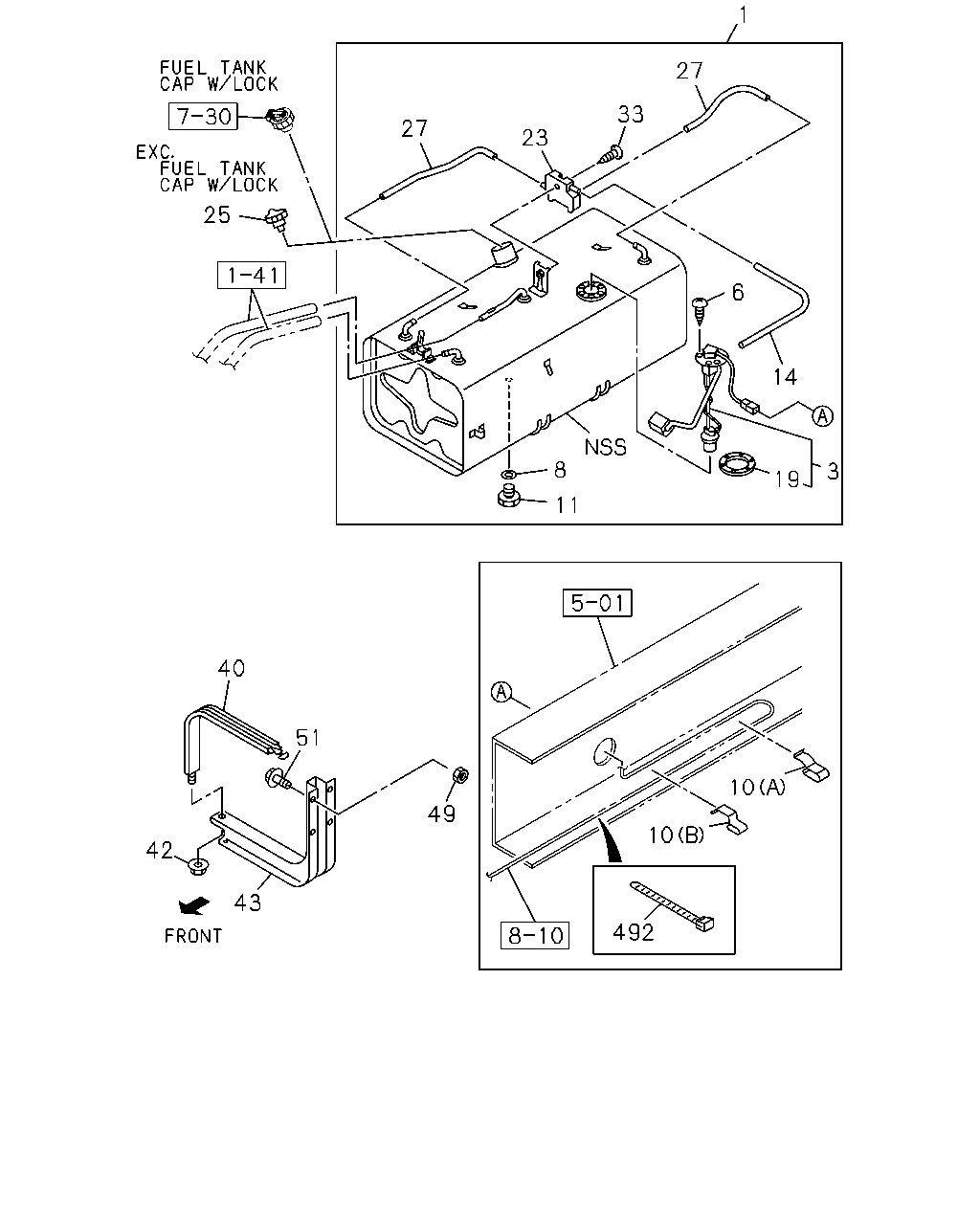

TANK; FUEL
4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS>
1000X340X327 100L
THA
|
8-97916-357-0 |
01 |
1 |
0508- |
● |
● |
● |
| |
1 |
TANK; FUEL
4HK1-TCS ENG<RJS>
753X340X327 75L
THA
|
8-97922-918-0 |
01 |
1 |
0510- |
● |
|
● |
| |
3 |
UNIT; FUEL TANK,SUB
4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS>
|
8-94316-190-0 |
01 |
1 |
0508-0509 |
● |
● |
● |
| |
3 |
UNIT; FUEL TANK,SUB
|
8-94316-190-0 |
01 |
1 |
0510- |
● |
● |
● |
| |
6 |
SCREW; TANK UNIT TO SUB FUEL TANK
4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS>
M5X10 W/LK WASHER
|
9-03910-510-0 |
05 |
1 |
0508-0509 |
● |
● |
● |
| |
6 |
SCREW; TANK UNIT TO SUB FUEL TANK
M5X10 W/LK WASHER
|
9-03910-510-0 |
05 |
1 |
0510-0604 |
● |
● |
● |
| |
6 |
SCREW; TANK UNIT TO SUB FUEL TANK
M5X10 W/LK WASHER
|
0-36220-510-0 |
05 |
1 |
0605- |
● |
● |
● |
| |
8 |
GASKET; DRAIN PLUG,FUEL TANK
4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS>
THA
|
8-97918-206-0 |
01 |
1 |
0508-0509 |
● |
● |
● |
| |
8 |
GASKET; DRAIN PLUG,FUEL TANK
THA
|
8-97918-206-0 |
01 |
1 |
0510- |
● |
● |
● |
| |
10 |
CLIP; SPRING,FUEL TANK UNIT CABLE
(A)
T=10.5
THA
|
5-09709-014-0 |
AR |
1 |
0508- |
● |
● |
● |
| |
10 |
CLIP; SPRING,FUEL TANK UNIT CABLE
(B)
T=6.0
|
5-09709-024-0 |
AR |
1 |
0508- |
● |
● |
● |
| |
10 |
CLIP; SPRING,FUEL TANK UNIT CABLE
(B)
T=9 & 10.5
|
8-97041-091-0 |
AR |
1 |
0508- |
● |
● |
● |
| |
11 |
PLUG; DRAIN,FUEL TANK
4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS>
THA
|
8-97917-063-0 |
02 |
1 |
0508- |
● |
● |
● |
| |
11 |
PLUG; DRAIN,FUEL TANK
4HK1-TCS ENG<RJS>
THA
|
8-97917-063-0 |
01 |
1 |
0510- |
● |
|
● |
| |
14 |
HOSE; BREATHER,OUTLET
4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS>
L=430
THA
|
8-97917-065-0 |
01 |
1 |
0508-0509 |
● |
● |
● |
| |
14 |
HOSE; BREATHER,OUTLET
L=430
THA
|
8-97917-065-0 |
01 |
1 |
0510- |
● |
● |
● |
| |
19 |
GASKET; FUEL TANK UNIT
4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS>
ID=42 OD=71
|
5-83148-001-0 |
01 |
1 |
0508-0509 |
● |
● |
● |
| |
19 |
GASKET; FUEL TANK UNIT
ID=42 OD=71
|
5-83148-001-0 |
01 |
1 |
0510- |
● |
● |
● |
| |
23 |
JOINT; BREATHER HOSE
4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS>
THA
|
8-97917-064-0 |
01 |
1 |
0508-0509 |
● |
● |
● |
| |
23 |
JOINT; BREATHER HOSE
THA
|
8-97917-064-0 |
01 |
1 |
0510- |
● |
● |
● |
| |
25 |
CAP; FILLER,FUEL TANK
EXC. FUEL TANK CAP W/LOCK<N05>
|
8-94258-609-1 |
01 |
1 |
0508- |
● |
● |
● |
| |
27 |
HOSE; BREATHER
4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS>
L=470
THA
|
8-97917-067-0 |
02 |
1 |
0508-0509 |
● |
● |
● |
| |
27 |
HOSE; BREATHER
L=470
THA
|
8-97917-067-0 |
02 |
1 |
0510- |
● |
● |
● |
| |
33 |
SCREW; JOINT TO FUEL TANK
4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS>
M6X20 W/LK&PL WASHER
|
9-03920-620-0 |
01 |
1 |
0508-0509 |
● |
● |
● |
| |
33 |
SCREW; JOINT TO FUEL TANK
M6X20 W/LK&PL WASHER
|
9-03920-620-0 |
01 |
1 |
0510-0604 |
● |
● |
● |
| |
33 |
SCREW; JOINT TO FUEL TANK
M6X20 W/LK&PL WASHER
THA
|
0-36230-620-0 |
01 |
1 |
0605- |
● |
● |
● |
| |
40 |
BELT; SUPPORT,FUEL TANK
4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS>
THA
|
8-97916-551-0 |
02 |
1 |
0508-0508 |
● |
● |
● |
| |
40 |
BELT; SUPPORT,FUEL TANK
THA
|
8-97916-551-0 |
02 |
1 |
0509- |
● |
● |
● |
| |
42 |
NUT; SUPPORT BELT
M8 LOCK NUT
|
9-09131-408-0 |
02 |
1 |
0508-0710 |
● |
● |
● |
| |
42 |
NUT; SUPPORT BELT
M8 LOCK NUT
|
0-91370-008-0 |
02 |
1 |
0711- |
● |
● |
● |
| |
43 |
BRACKET; FUEL TANK
4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS>
THA
|
8-97917-011-0 |
02 |
1 |
0508-0508 |
● |
● |
● |
| |
43 |
BRACKET; FUEL TANK
THA
|
8-97917-011-0 |
02 |
1 |
0509- |
● |
● |
● |
| |
49 |
NUT; BRKT
M10 FLANGE
|
0-91150-210-0 |
08 |
1 |
0508- |
● |
● |
● |
| |
51 |
BOLT; BRKT TO FRAME
FRAME STRAIGHT TYPE<7KJ>
M10X30 FLANGE
|
0-28691-030-0 |
07 |
1 |
0508-0611 |
● |
|
|
| |
51 |
BOLT; BRKT TO FRAME
M10X30 FLANGE
|
0-28691-030-0 |
07 |
1 |
0508-0611 |
|
|
● |
| |
51 |
BOLT; BRKT TO FRAME
FRAME STRAIGHT TYPE<7KJ>
M10X30 FLANGE
THA
|
0-28661-030-0 |
07 |
1 |
0612- |
● |
|
|
| |
51 |
BOLT; BRKT TO FRAME
M10X30 FLANGE
THA
|
0-28661-030-0 |
07 |
1 |
0612- |
|
|
● |
| |
51 |
BOLT; BRKT TO FRAME
EXC. FRAME STRAIGHT TYPE<7KJ>
M10X30 FLANGE
|
0-28691-030-0 |
08 |
1 |
0508-0611 |
● |
|
|
| |
51 |
BOLT; BRKT TO FRAME
M10X30 FLANGE
|
0-28691-030-0 |
08 |
1 |
0508-0611 |
|
● |
|
| |
51 |
BOLT; BRKT TO FRAME
EXC. FRAME STRAIGHT TYPE<7KJ>
M10X30 FLANGE
THA
|
0-28661-030-0 |
08 |
1 |
0612- |
● |
|
|
| |
51 |
BOLT; BRKT TO FRAME
M10X30 FLANGE
THA
|
0-28661-030-0 |
08 |
1 |
0612- |
|
● |
|
| |
492 |
CLIP; HARNESS TO VAC HOSE
L=250
|
5-09707-030-1 |
01 |
1 |
0508- |
● |
● |
● |
| |
619 |
CLIP; FUEL TANK UNIT CABLE
4HK1-TCS ENG<RJS>
L=140
|
5-09707-031-1 |
02 |
1 |
0510- |
● |
|
● |
